| Company | SATCO |
|---|---|
| Candle Power | 28.0 |
| Center Beam Candle Power | 28 |
| Lamp Filament | LED |
| Material | Ceramic / Polycarbonate (PC) |
| Fixture Type | Tubular |
| Status | Discontinued |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1.5KV |
| Total Harmonic Distortion | 70% |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | 0.380A |
| Has Camera | No |
| IOT Enabled | No |
| Lens Material | Polycarbonate (PC) |
| Power Factor | 0.7 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Incandescent Equivalent | 25W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 25000 |
| Beam Angle (degree) | 300 |
| Color Temp | Soft White |
| CRI | 80+ |
| Dimming Type | Check the transformer/driver MFG for dimmer compatibility |
| Operating Frequency | 60Hz |
| Operating Temp | -4F to +104F (-20C to +40C) |
| Lumens | 300L |
| Volts | 12V |
| Watts | 3W |
| Lamp Base | Bi Pin G4 |
|---|---|
| Finish | Frost |
| Housing Color | Frost |
| ANSI Base | G4 |
| Lamp Type | T5 |

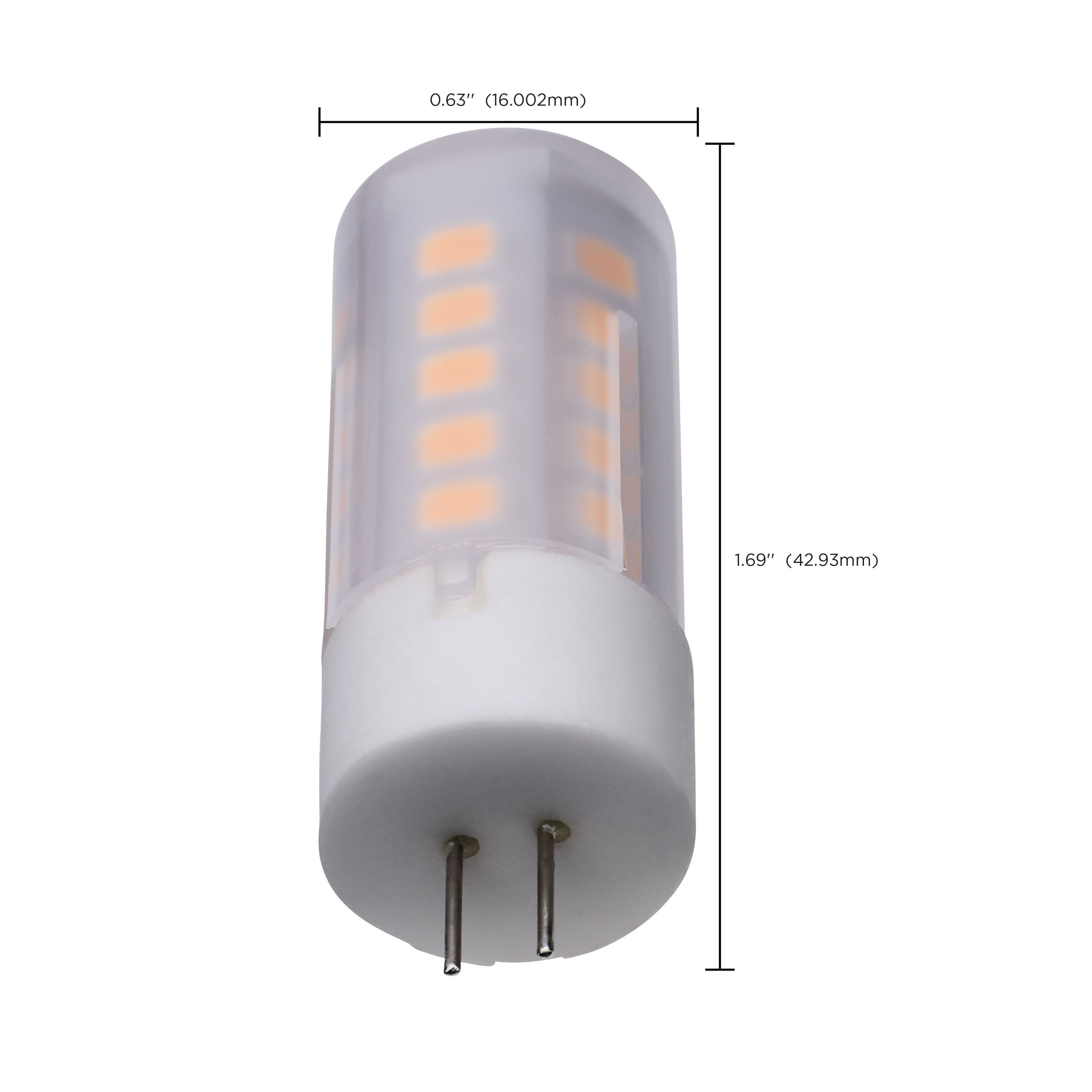

| MOD Lamps | 0.63 |
| MOL | 1.69 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923123139 |
|---|---|
| Case Cube | 1.1904 |
| Case Height | 13.62 |
| Case Length | 17.44 |
| Case Quantity | 200 |
| Case UPC | 10045923123136 |
| Case Weight | 9.1 |
| Case Width | 8.66 |
| EA Cube | 0.0038 |
| EA Height | 2.95 |
| EA Length | 1.5 |
| EA Quantity | 1 |
| EA Weight | 0.035 |
| EA Width | 1.5 |
| Inner Cube | 0.1004 |
| Inner Height | 6.42 |
| Inner Length | 8.07 |
| Inner Quantity | 20 |
| Inner UPC | 20045923123133 |
| Inner Weight | 0.82 |
| Inner Width | 3.35 |
| Pack Type | Box |
| Web Length | 1.69 |
| Web Width | 0.63 |
