S12316

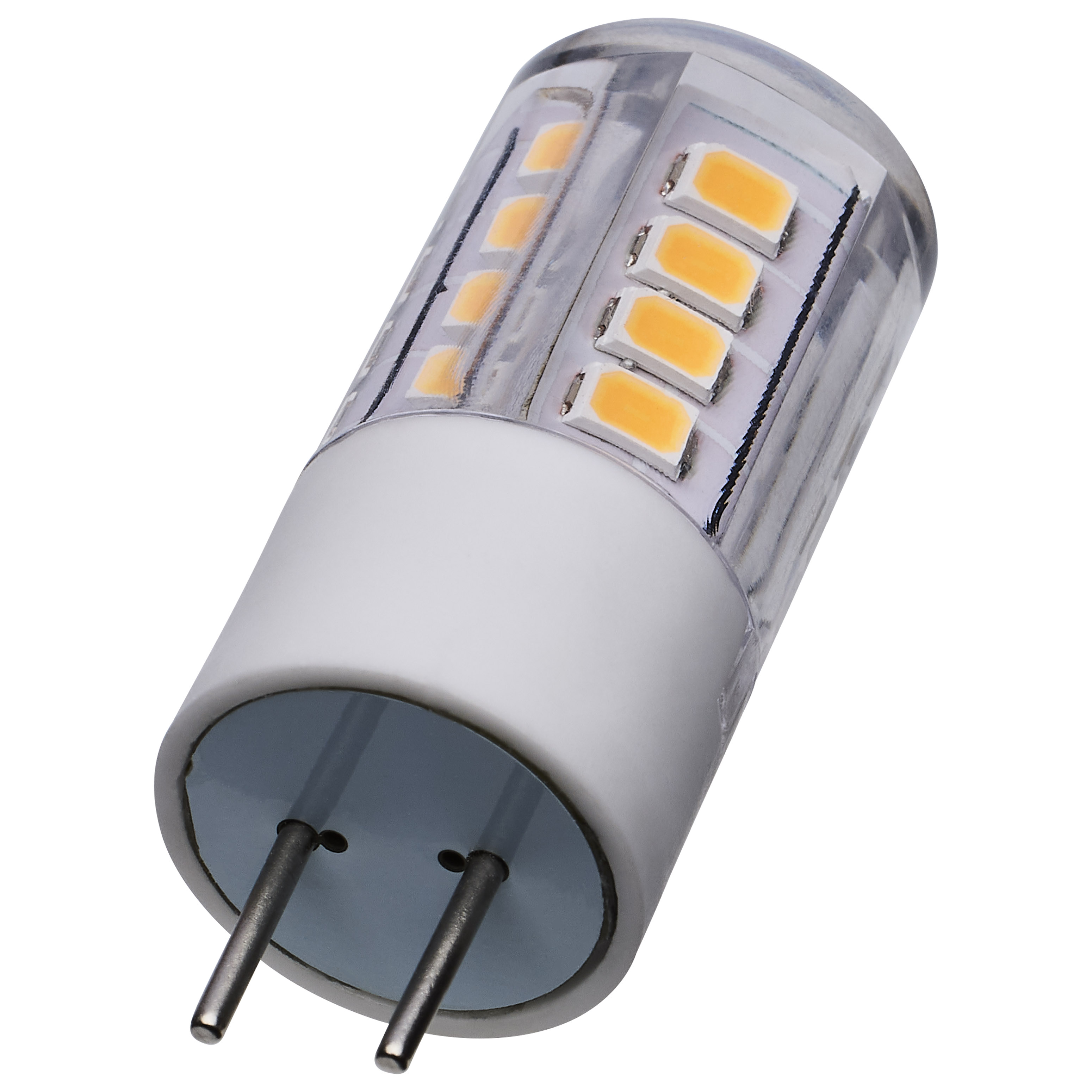

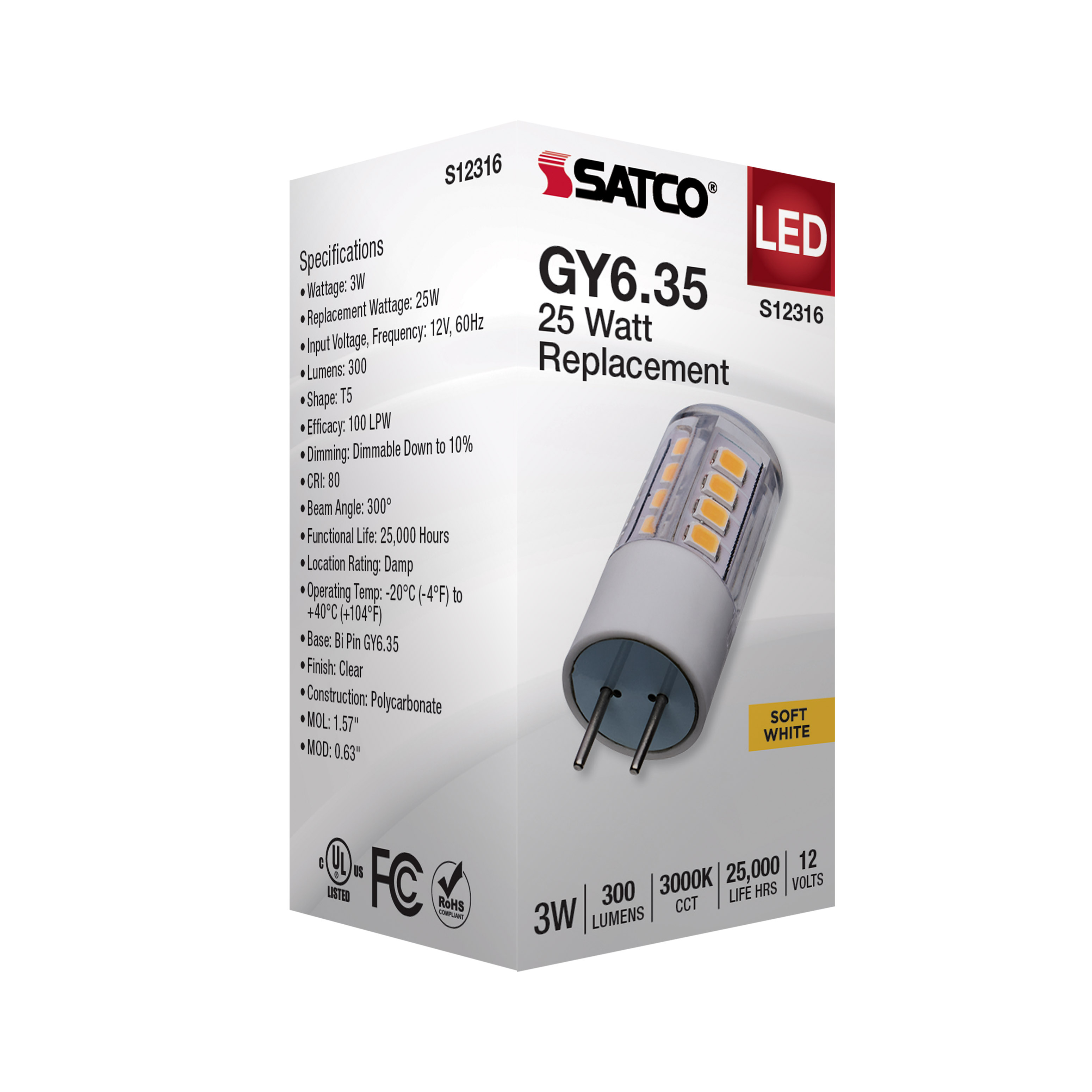

3W/LED/GY6.35/CL/830/12V

  • 3 Watt T5 LED
  • Clear Finish
  • GY6.35 Base
  • 3000K
  • 12 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S12316 SpecificationsLED PIN BASED LAMPS 12V LOW VOLTAGE HALOGEN REPLACEMENTSLED|LAMPS & DOWNLIGHT RETROFITS
Description
Description
3 Watt T5 LED; Clear Finish; GY6.35 Base; 3000K; 12 Volt

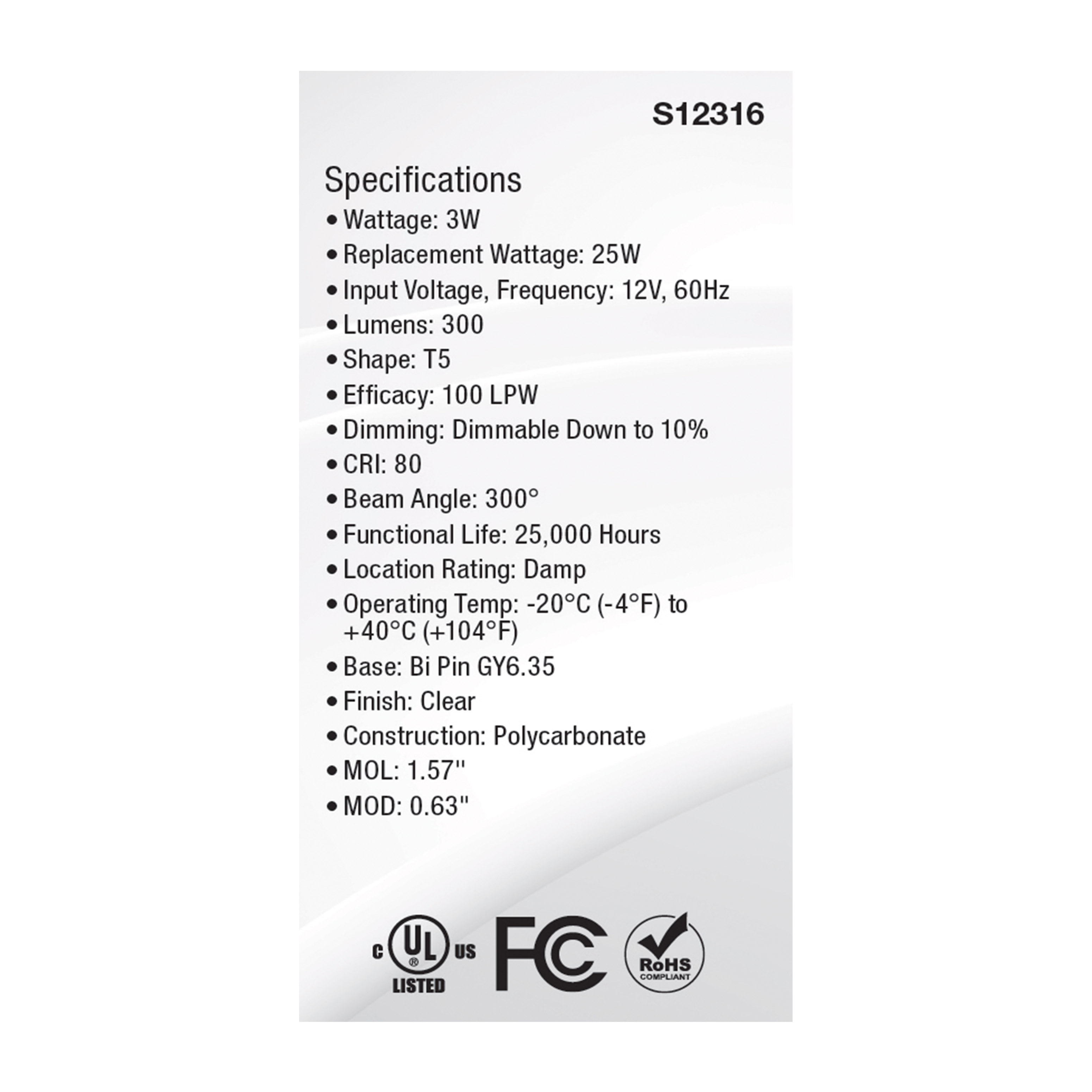

Products Specs
General
CompanySATCO
Candle Power28.0
Center Beam Candle Power28
Dimmable TextCheck the transformer/driver MFG for dimmer compatibility
Lamp FilamentLED
MaterialCeramic / Polycarbonate (PC)
Fixture TypeTubular
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1.5KV
Total Harmonic Distortion70%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.380A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Power Factor0.7
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent25W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)300
Color TempSoft White
CRI80+
Dimming TypeCheck the transformer/driver MFG for dimmer compatibility
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)

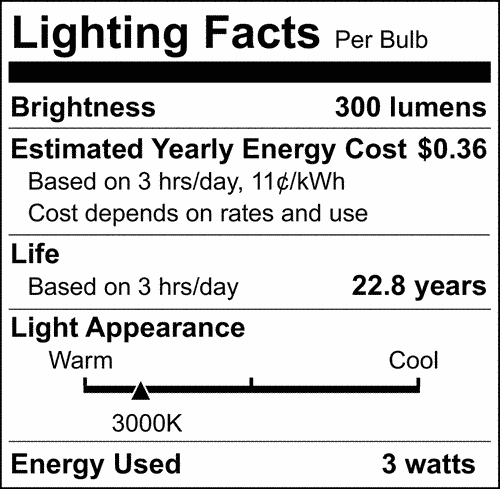

Lumens300L
Volts12V
Watts3W
Physical
Lamp BaseBi Pin GY6.35
FinishClear
Housing ColorWhite
ANSI BaseGY6.35
Lamp TypeT5

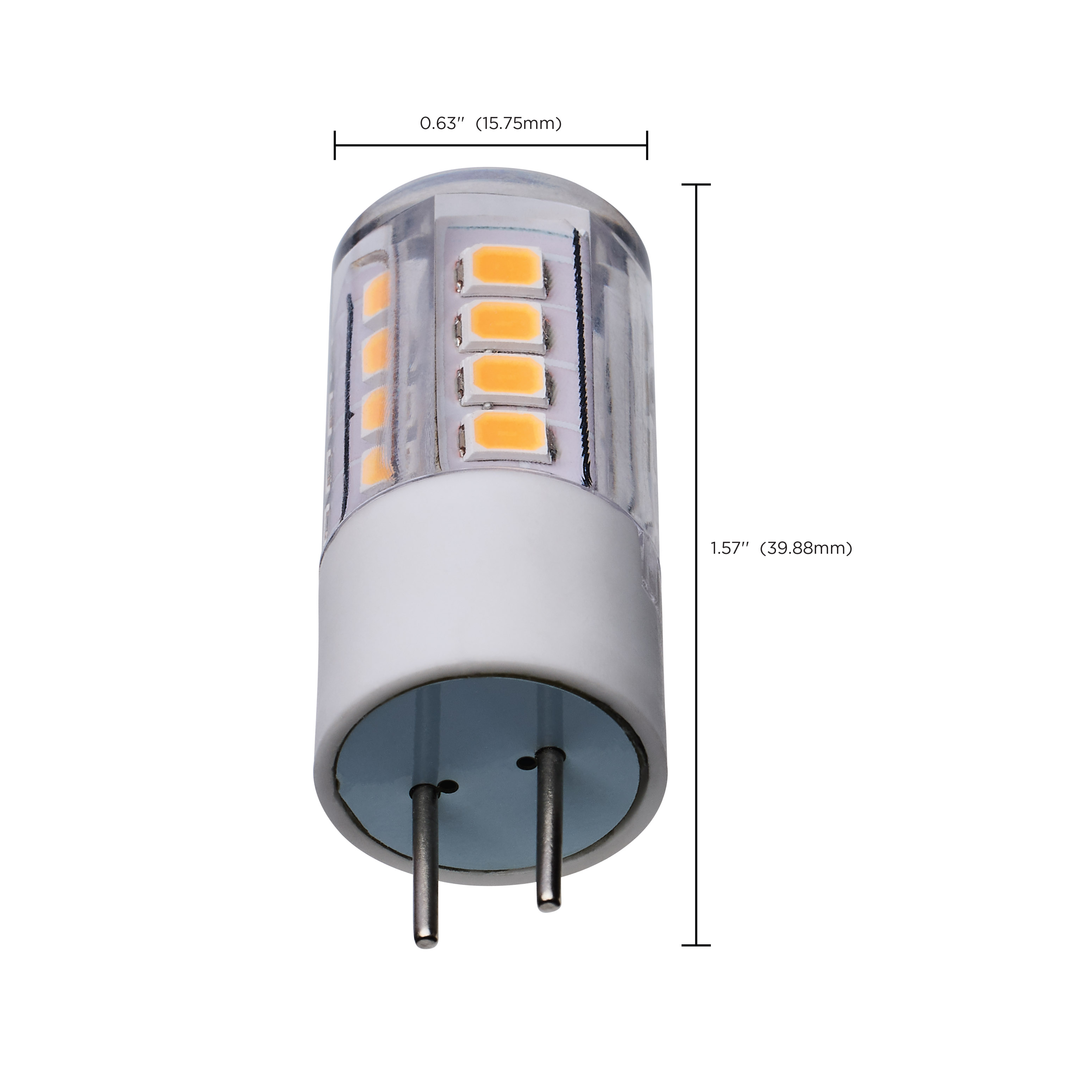

MOD Lamps0.63
MOL1.57
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923123160
Case Cube1.1904
Case Height13.62
Case Length17.44
Case Quantity200
Case UPC10045923123167
Case Weight8.66
Case Width8.66
EA Cube0.0038
EA Height2.95
EA Length1.5
EA Quantity1
EA Weight0.033
EA Width1.5
Inner Cube0.1004
Inner Height6.42
Inner Length8.07
Inner Quantity20
Inner UPC20045923123164
Inner Weight0.78
Inner Width3.35
Pack TypeBox
Web Length1.57
Web Width0.63
