S12346

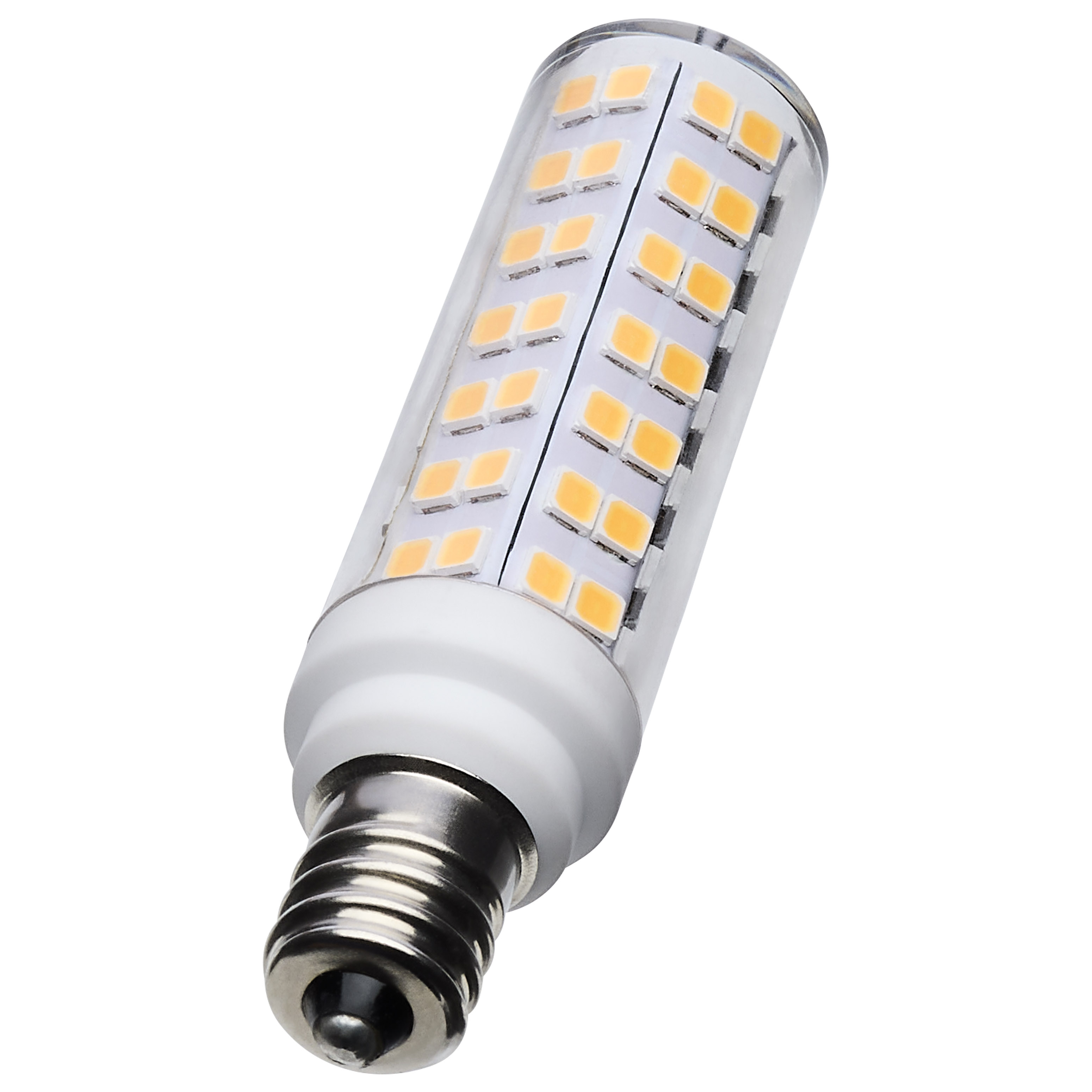

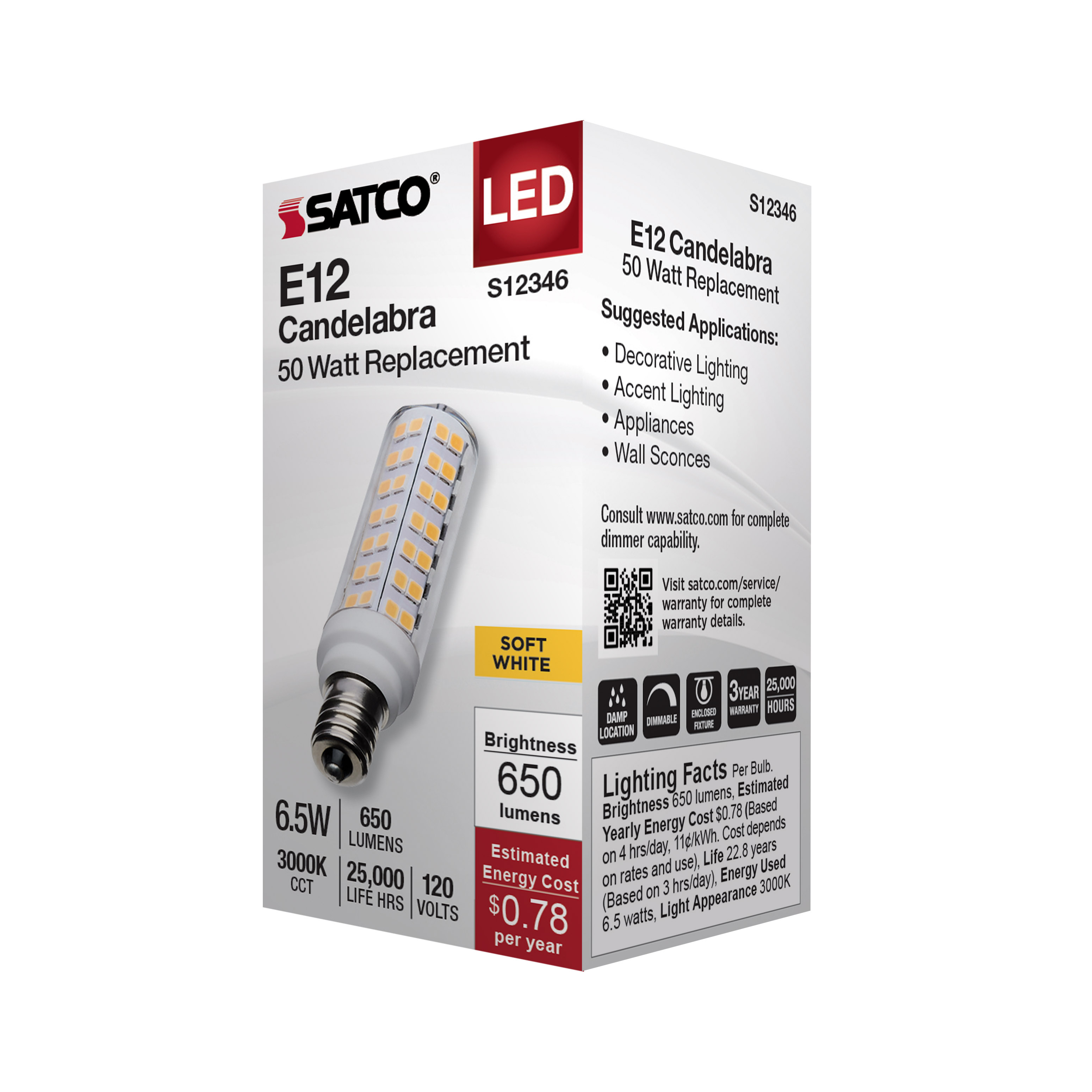

6.5W/LED/E12/CL/830/120V

  • 6.5 Watt T6 LED
  • Clear Finish
  • E12 Base
  • 3000K
  • 120 Volt
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

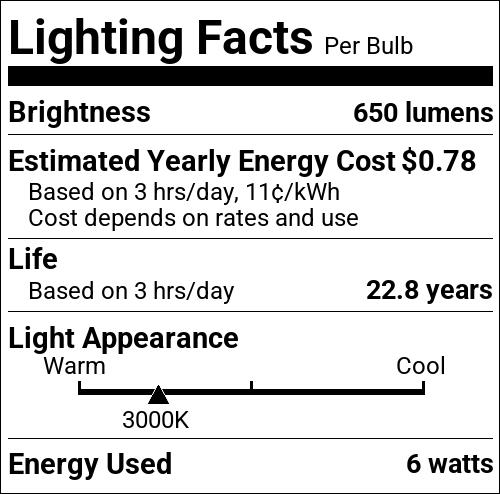

S12346 SpecificationsLED|LAMPS & DOWNLIGHT RETROFITSLED HALOGEN REPLACEMENT LAMPS E11 AND E12 BASES12346 Lighting Facts Label
Description
Description
6.5 Watt T6 LED; Clear Finish; E12 Base; 3000K; 120 Volt

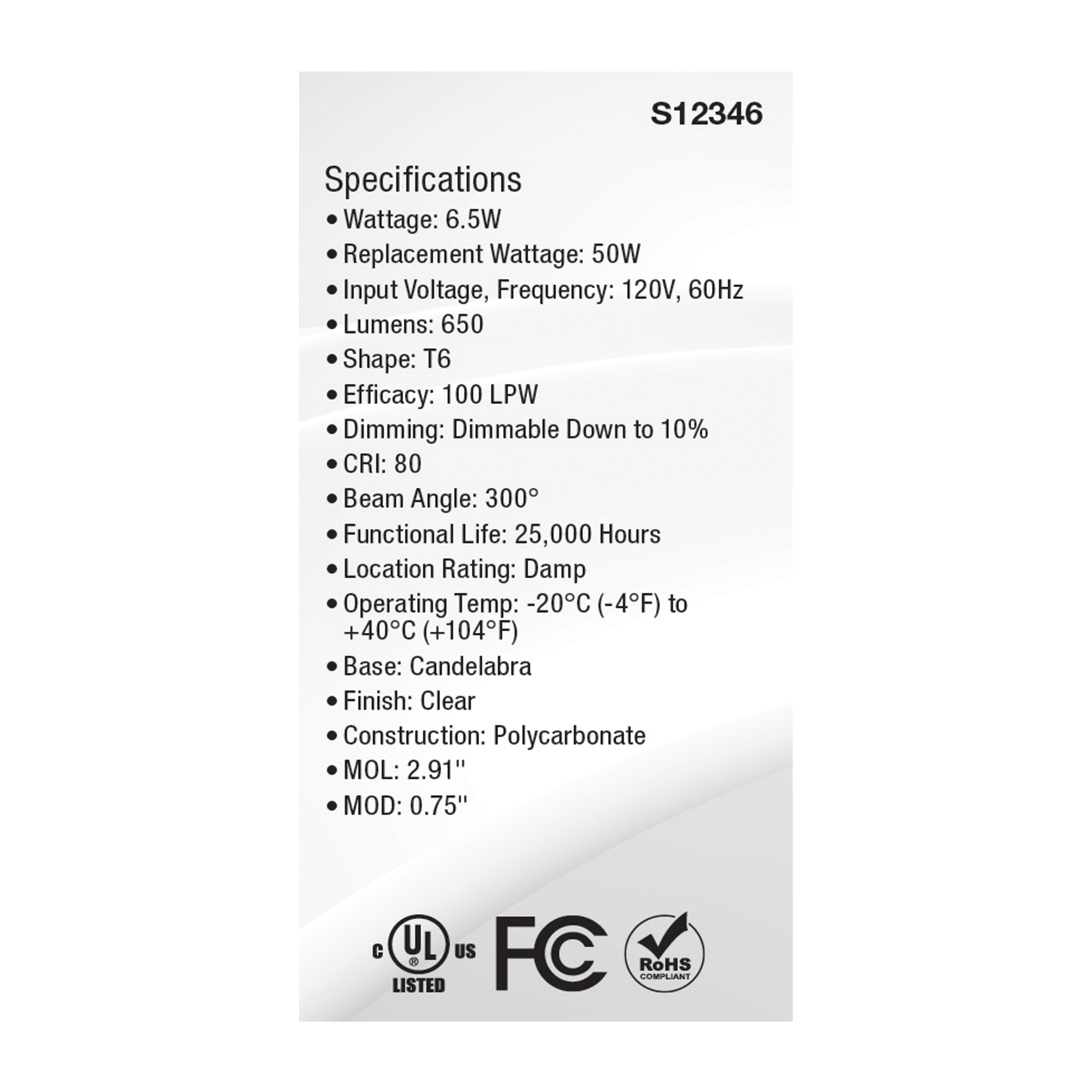

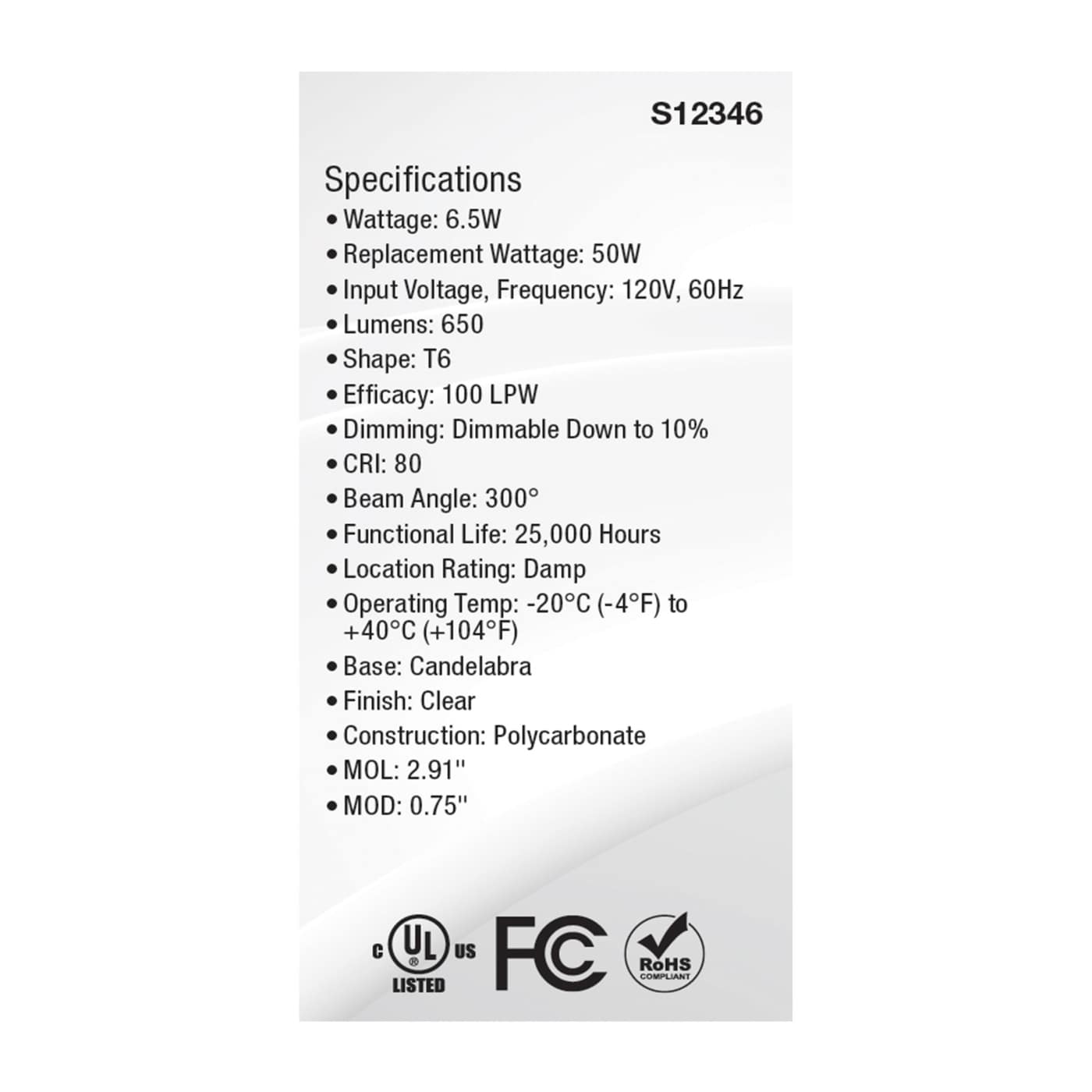

Products Specs
General
CompanySATCO
Candle Power45.0
Center Beam Candle Power45
Dimmable TextForward Phase or Reverse Phase or Phase Selectable; 120V only
Lamp FilamentLED
MaterialCeramic / Polycarbonate (PC)
Fixture TypeTubular
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1.5KV
Total Harmonic Distortion70%
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.056A
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)300
Color TempSoft White
CRI80+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens650L
Volts120v
Watts6.5W
Physical
Lamp BaseCandelabra
FinishClear
Housing ColorWhite
ANSI BaseE12
Lamp TypeT6

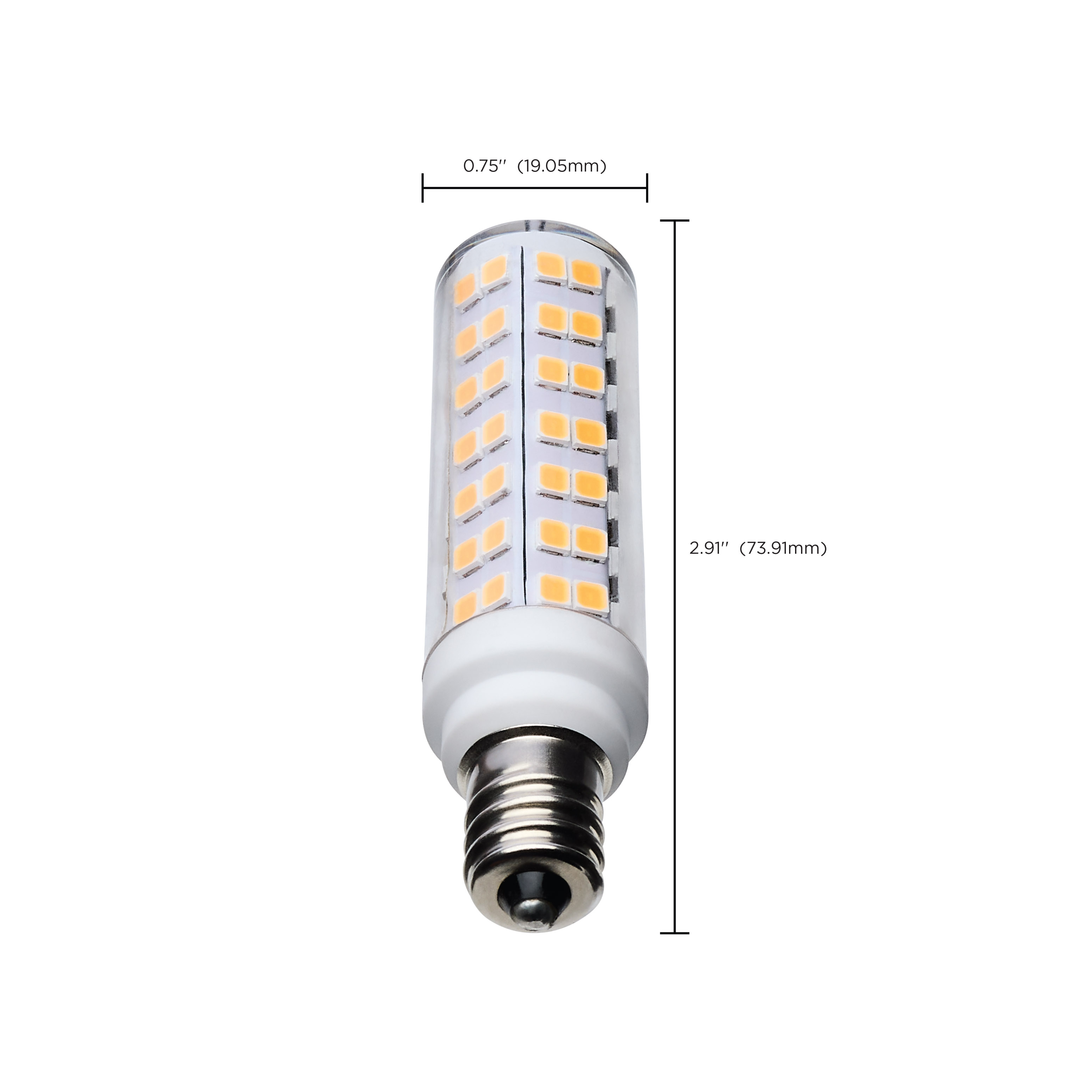

MOD Lamps0.75
MOL2.91
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24 CompliantNo
US State BanCA
Packaging
UPC045923123467
Case Cube1.1904
Case Height13.62
Case Length17.44
Case Quantity200
Case UPC10045923123464
Case Weight17.92
Case Width8.66
EA Cube0.0038
EA Height2.95
EA Length1.5
EA Quantity1
EA Weight0.08
EA Width1.5
Inner Cube0.1004
Inner Height6.42
Inner Length8.07
Inner Quantity20
Inner UPC20045923123461
Inner Weight1.7
Inner Width3.35
Pack TypeBox
Web Length2.91
Web Width0.75
