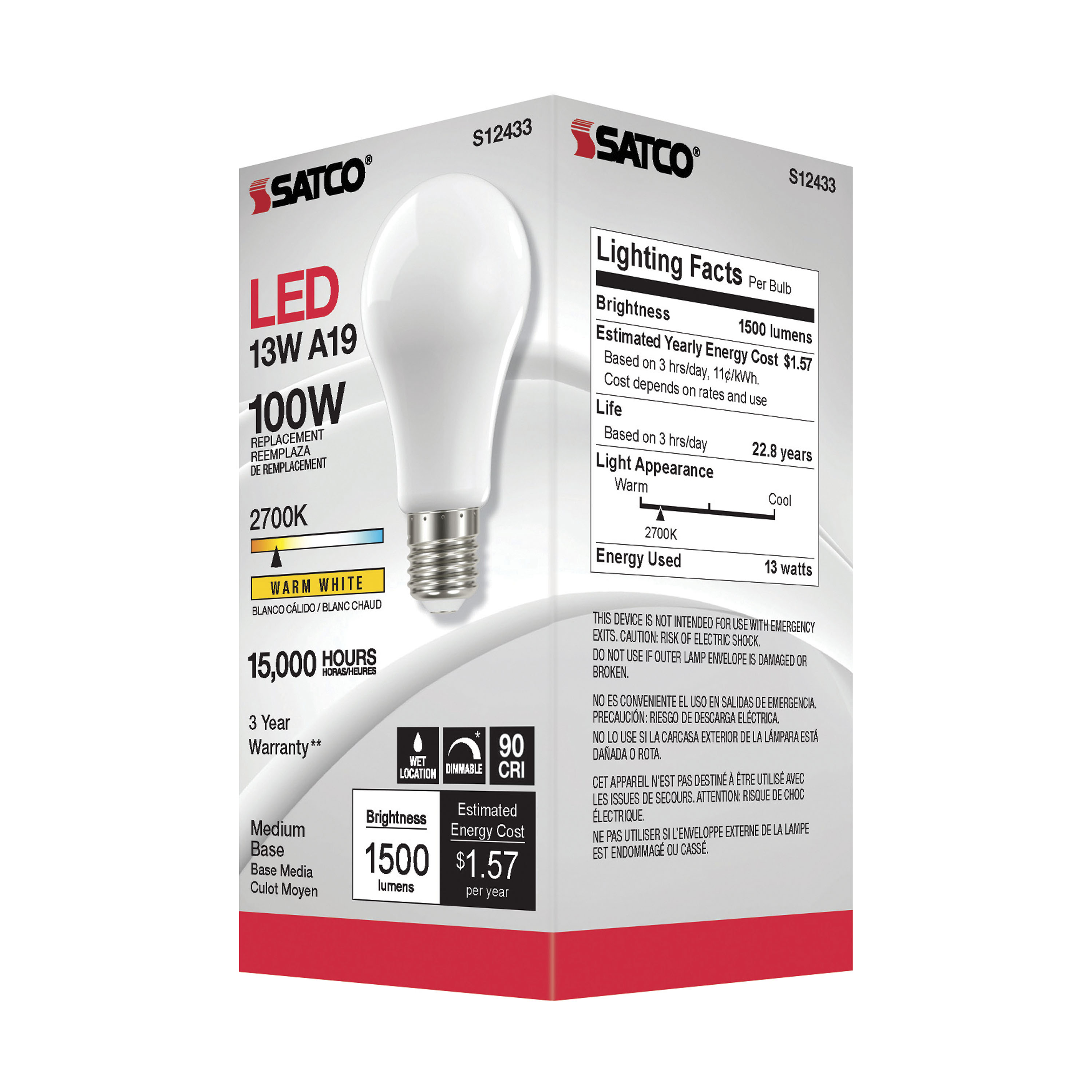

13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
13.5A19/SW/LED/E26/927/120V - S12433
S12433

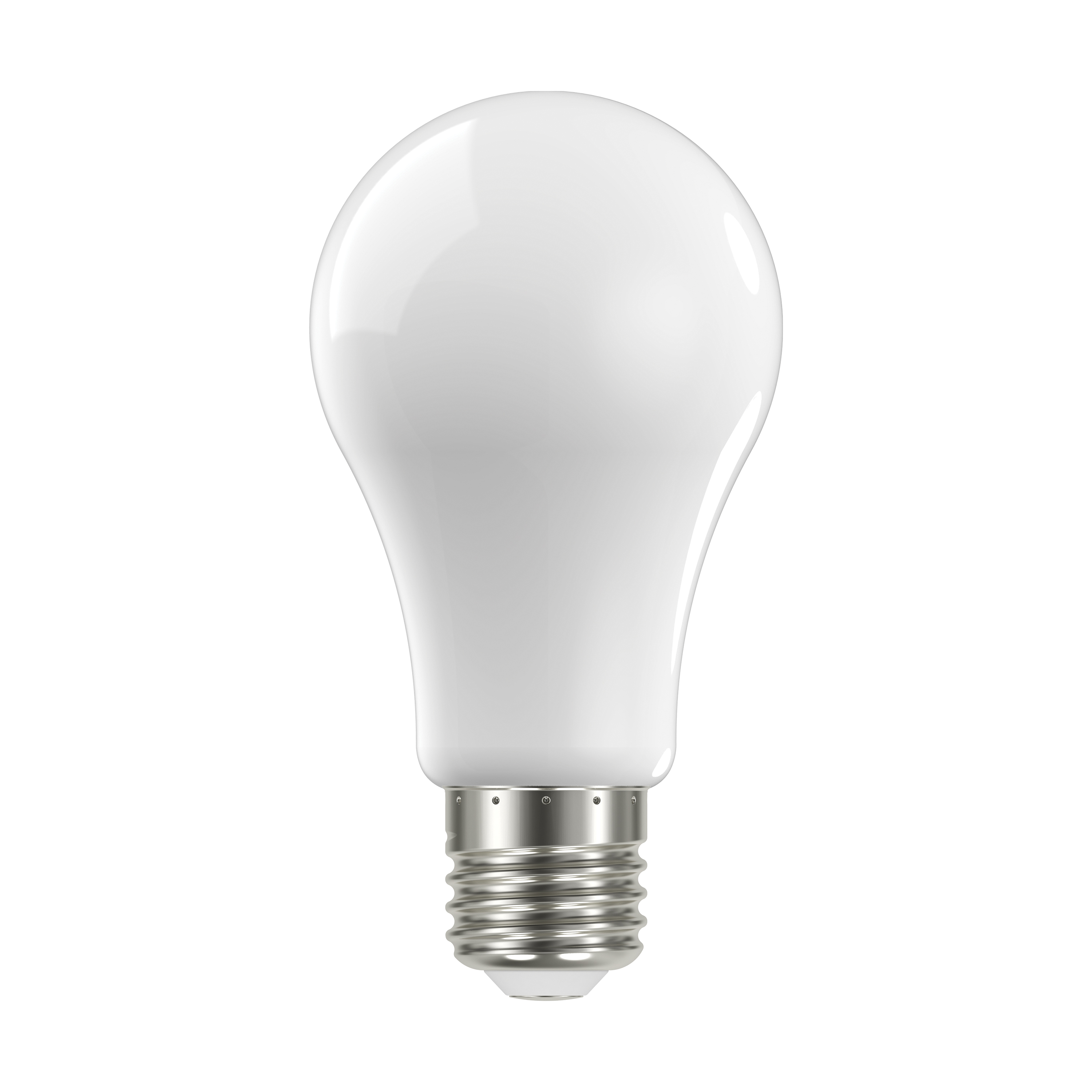

13.5A19/SW/LED/E26/927/120V

  • 13.5 Watt A19 LED Filament
  • Soft White
  • Medium Base
  • 2700K
  • 90 CRI
  • 120 Volt
title_20^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

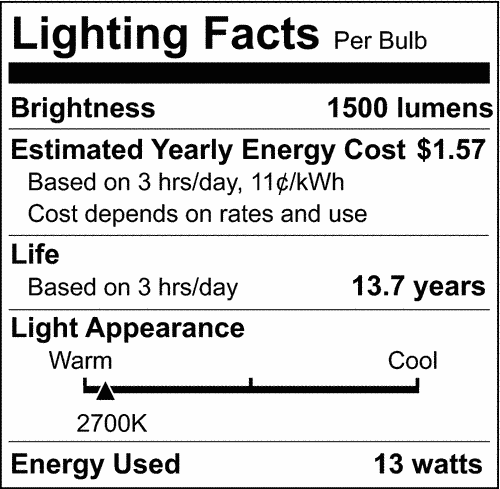

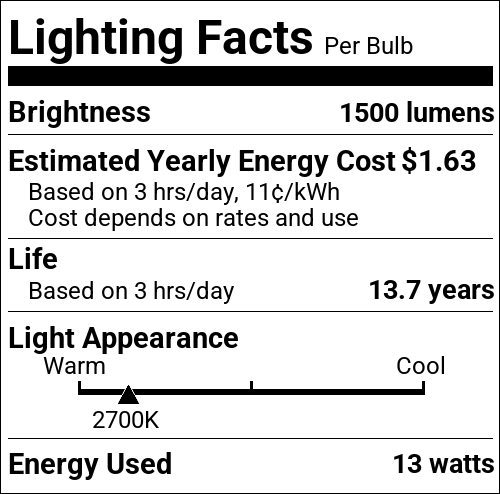

S12433 SpecificationsS12433 Photometrics.iesSATCO|NUVO LED|FILAMENT LAMPSS12433 Lighting Facts Label
Tools
Lighting Layout Analysis For S12433
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13.5 Watt A19 LED Filament; Soft White; Medium Base; 2700K; 90 CRI; 120 Volt
Products Specs
General
CompanySATCO
Candle Power100.0
Dimmable TextForward Phase or Reverse Phase or Phase Selectable
Lamp FilamentLED Filament
MaterialAluminum / Glass
Fixture TypeType A
StatusActive
StyleTraditional
CCT SelectableNo
Wattage SelectableNo
Finish FamilyWhite
Additional InfoS11362 (JA8/T24) for CA / S12433 (T20 only)
Amps0.113A
Has CameraNo
IOT EnabledNo
Lens FinishSoft White
Lens MaterialGlass
Operating PositionUniversal
Power Factor0.7
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)320
Color TempWarm White
CRI90+
Dimming Type120V only, Phase cut
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1500L
Volts120v
Watts13.5W
Physical
Lamp BaseMedium
FinishSoft White
Housing ColorNone
ANSI BaseE26
Lamp TypeA19

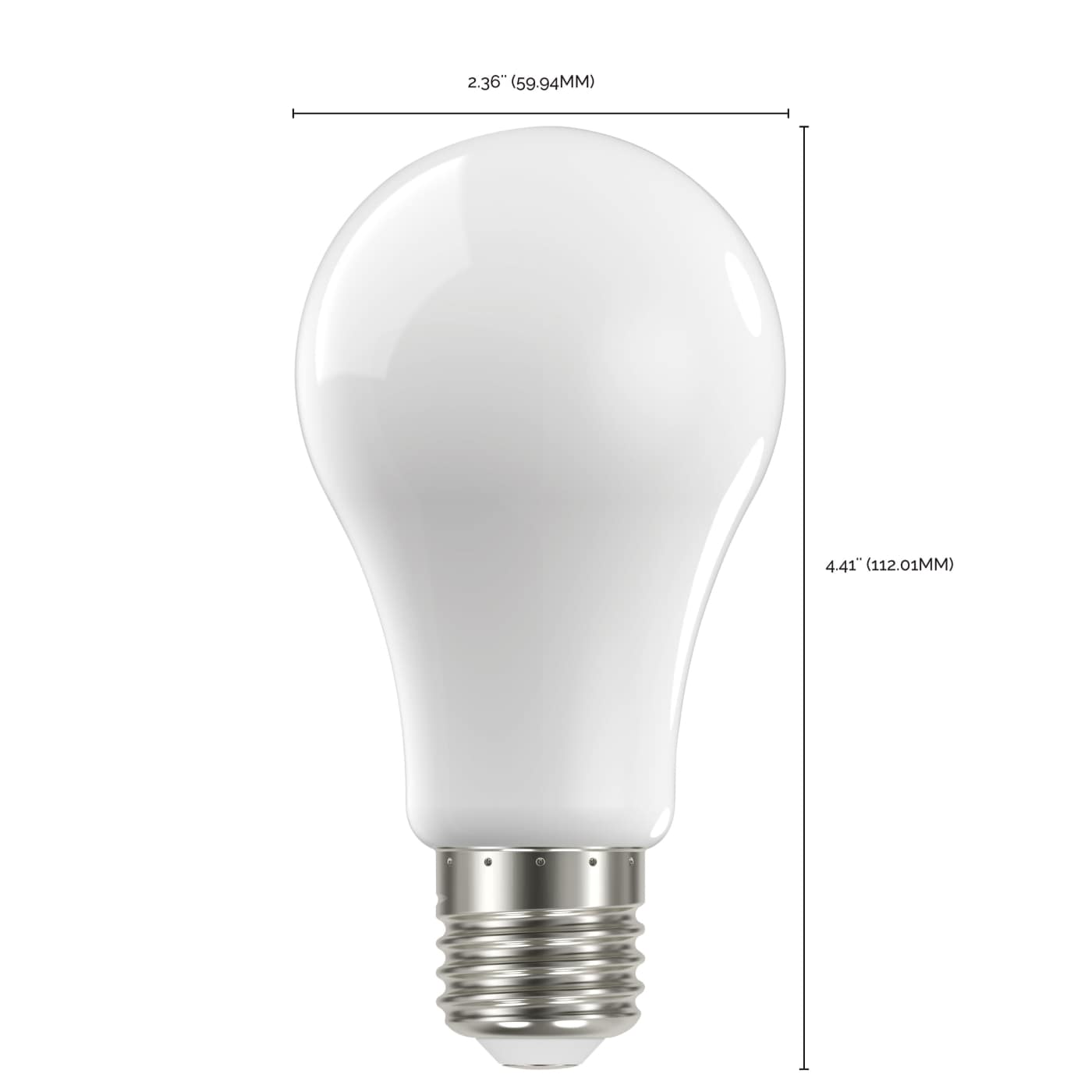

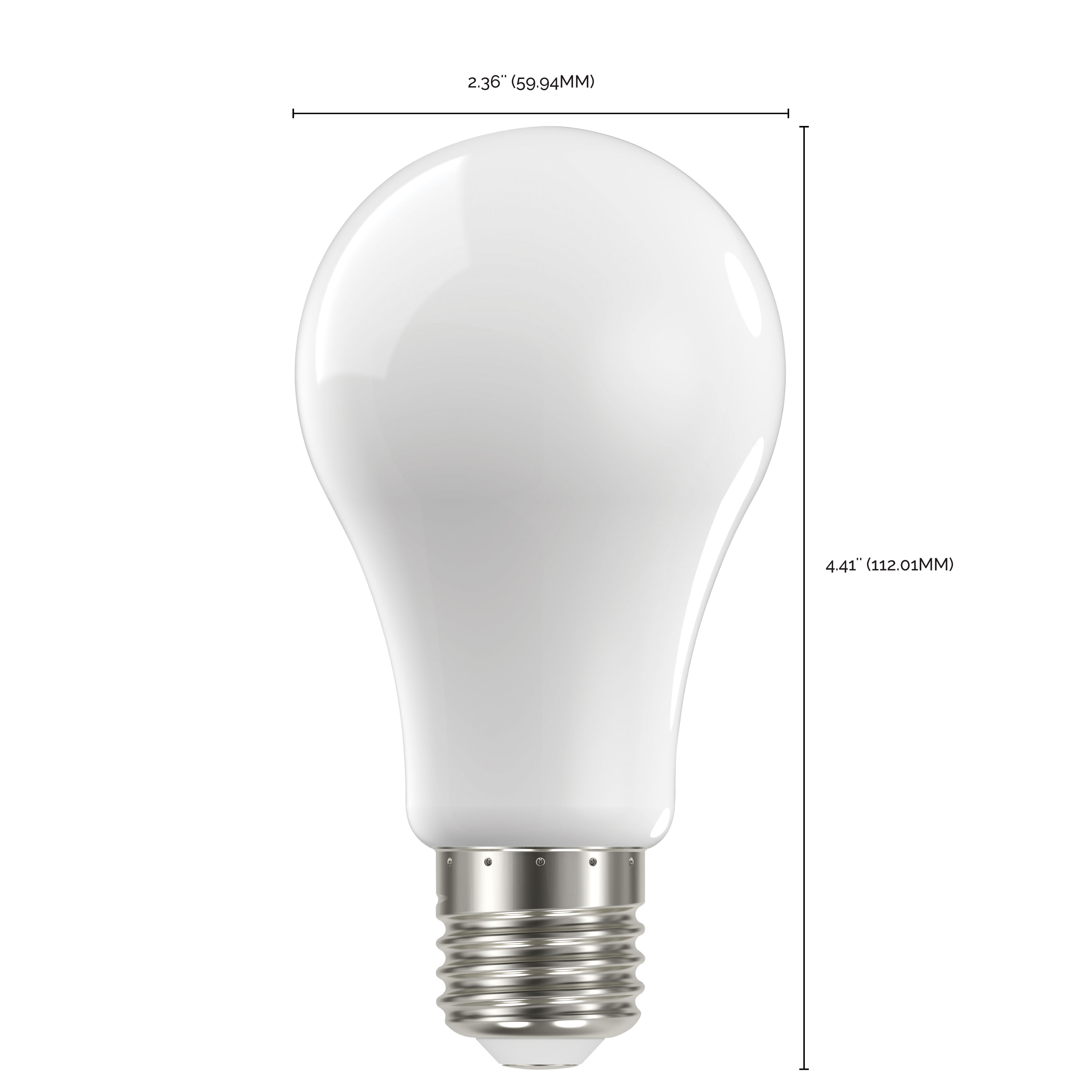

MOD Lamps2.36
MOL4.41
Additional Info
Warranty2-Years
Rated For Enclosed FixtureNo
Documents
Compliance
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanLawful for sale
DLC ApprovedNo
Title 20Yes
T24 CompliantNo
Packaging
UPC045923124334
Case Cube0.6979
Case Height6.1
Case Length22.83
Case Quantity24
Case UPC10045923124331
Case Weight4.85
Case Width8.66
EA Cube0.0182
EA Height4.96
EA Length2.52
EA Quantity1
EA Weight0.15
EA Width2.52
Inner Cube0.1366
Inner Height5.31
Inner Length8.07
Inner Quantity6
Inner UPC20045923124338
Inner Weight1.05
Inner Width5.51
Pack TypeColor Box
Web Length4.41
Web Width2.36
