| Company | SATCO |
|---|---|
| Dimmable Text | Forward Phase or Reverse Phase or Phase Selectable; 120V Only |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | Miniature |
| Status | Active |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | 84% |
| CCT Selectable | No |
| Wattage Selectable | No |
| Finish Family | Gold |
| Amps | 0.090A |
| IOT Enabled | No |
| Power Factor | 0.7 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 2700K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 15000 |
| Beam Angle (degree) | 180 |
| Color Temp | Warm White |
| CRI | 90+ |
| Dimming Type | 120V only, Phase cut |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

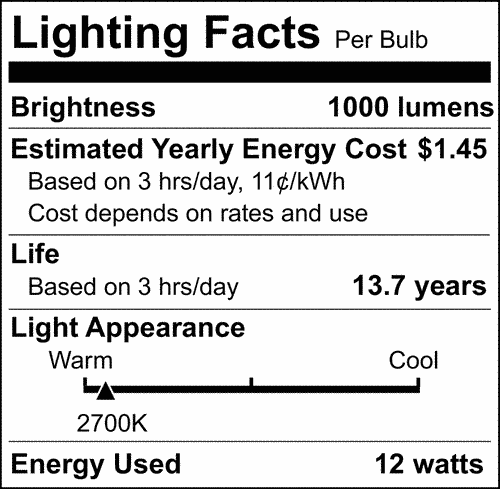

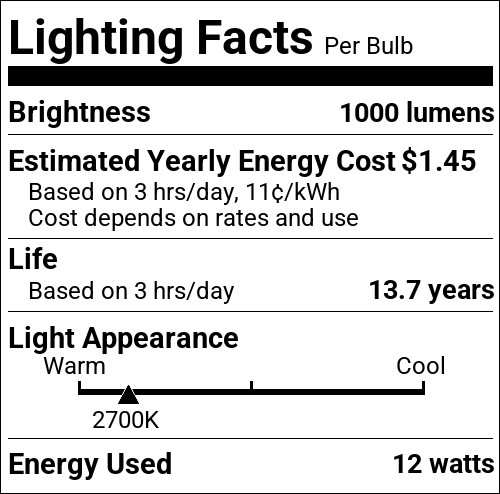

| Lumens | 1000L |
| Volts | 120v |
| Watts | 12W |
| Lamp Base | Medium |
|---|---|
| Finish | Gold |
| Housing Color | None |
| ANSI Base | E26 |
| Lamp Type | A19 |

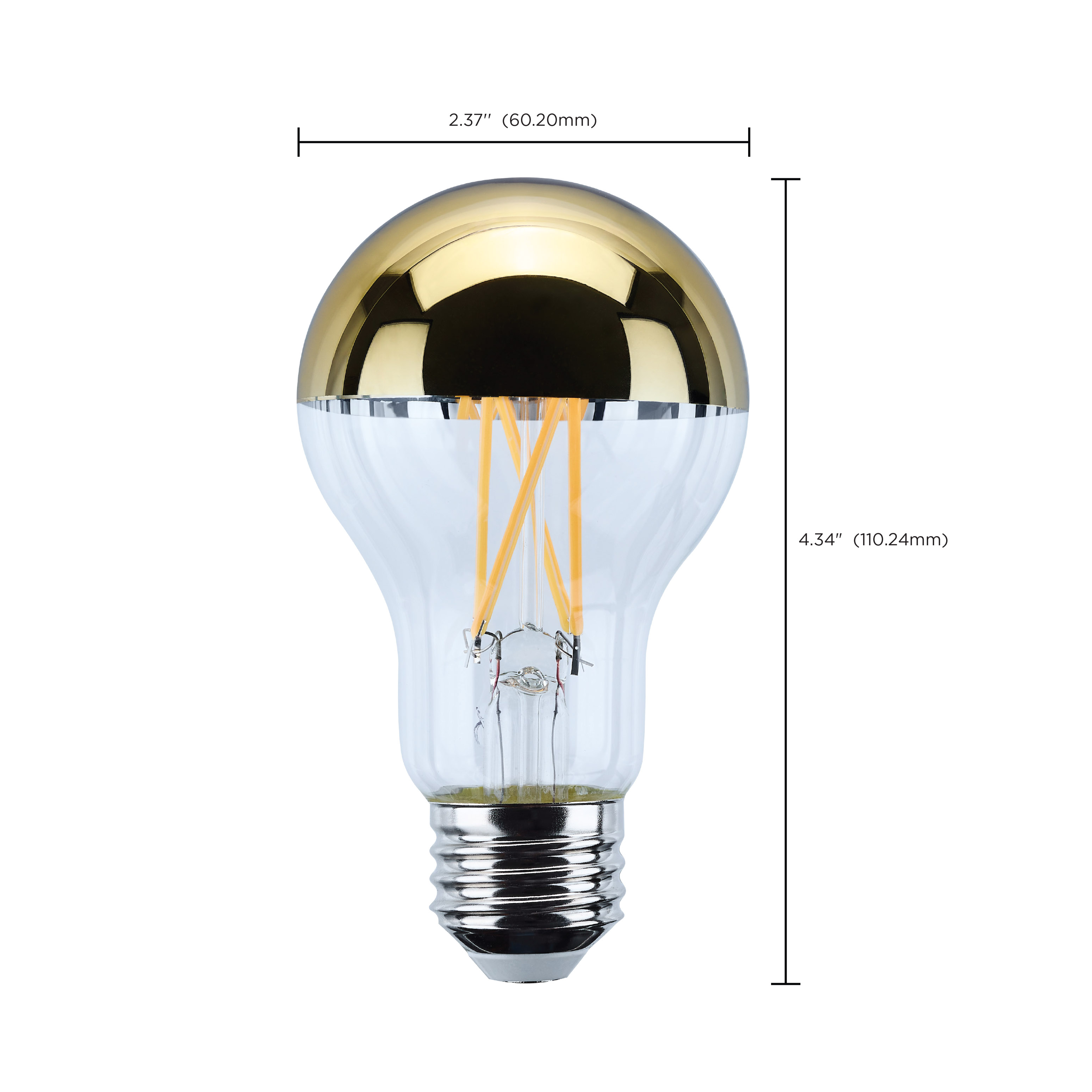

| MOD Lamps | 2.37 |
| MOL | 4.34 |
| Warranty | 2-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| FCC Compliant | Yes |
|---|---|
| IP Rating | IP20 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus |
| California Ban | Lawful for sale |
| DLC Approved | No |
| Title 20 | No |
| T24 Compliant | No |
| UPC | 045923125409 |
|---|---|
| Case Cube | 0.6437 |
| Case Height | 10.63 |
| Case Length | 11.81 |
| Case Quantity | 24 |
| Case UPC | 10045923125406 |
| Case Weight | 3.46 |
| Case Width | 8.86 |
| EA Cube | 0.0146 |
| EA Height | 4.53 |
| EA Length | 2.36 |
| EA Quantity | 1 |
| EA Weight | 0.11 |
| EA Width | 2.36 |
| Inner Cube | 0.1266 |
| Inner Height | 4.92 |
| Inner Length | 8.07 |
| Inner Quantity | 6 |
| Inner UPC | 20045923125403 |
| Inner Weight | 0.79 |
| Inner Width | 5.51 |
| Pack Type | Box |
| Web Length | 4.34 |
| Web Width | 2.37 |
