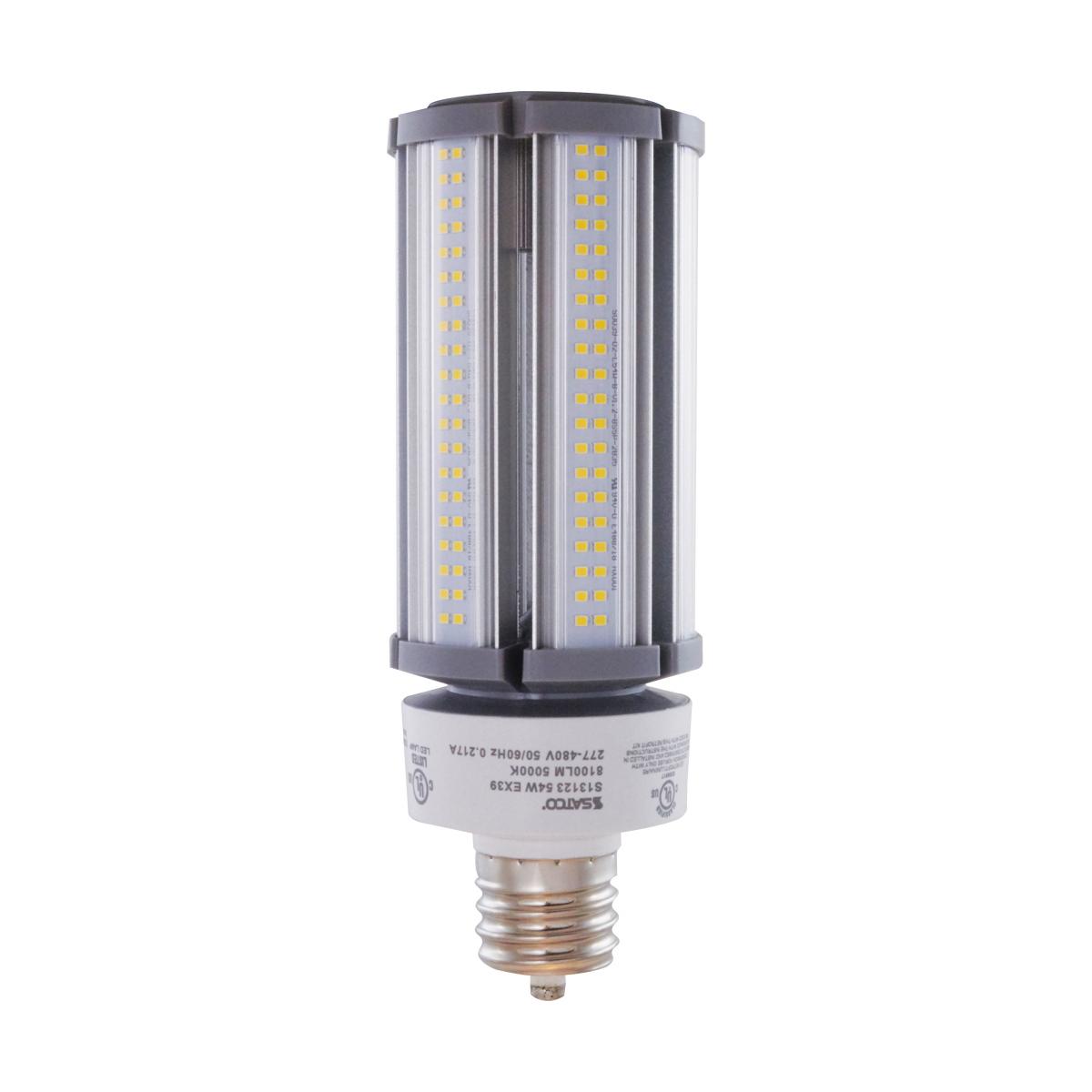

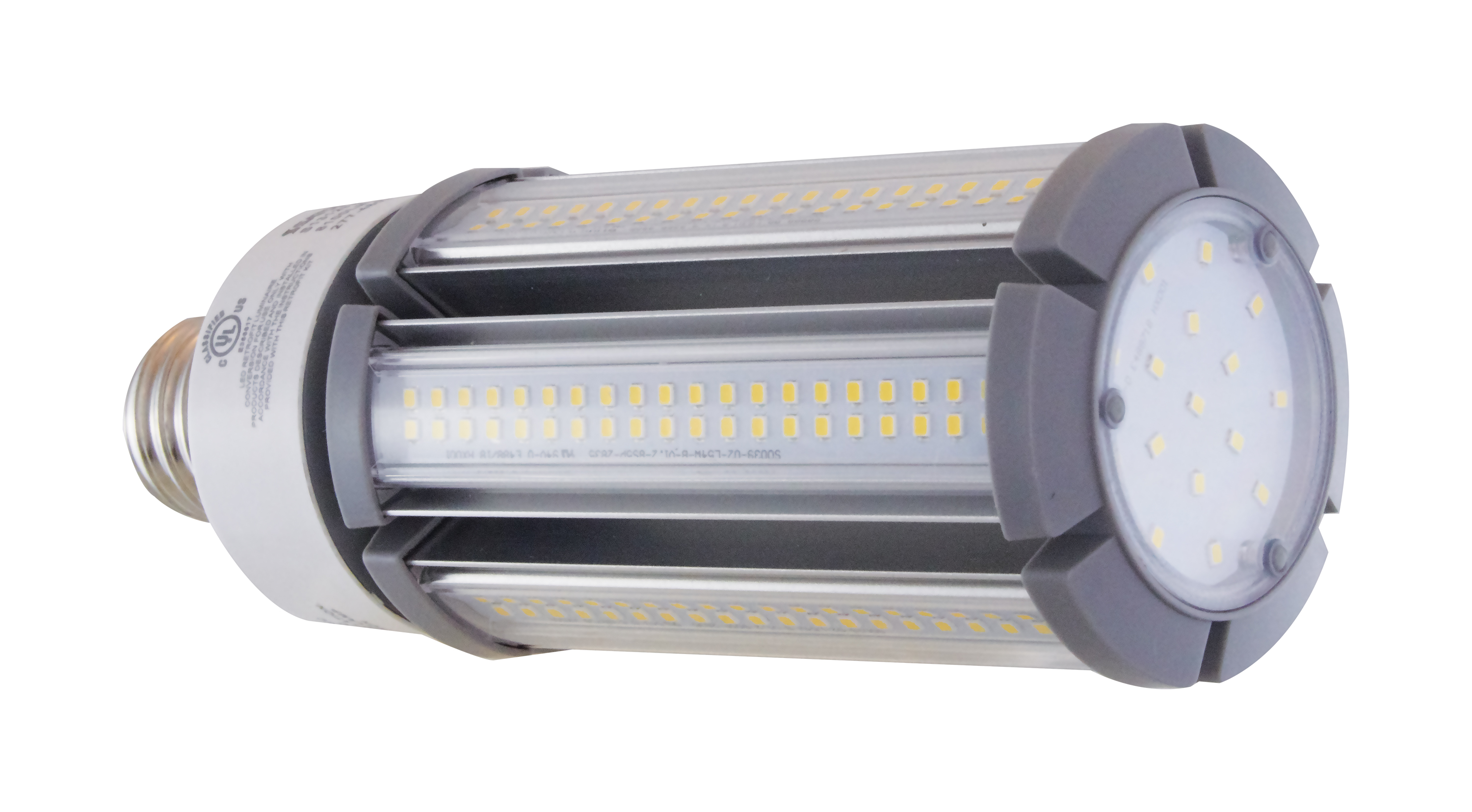

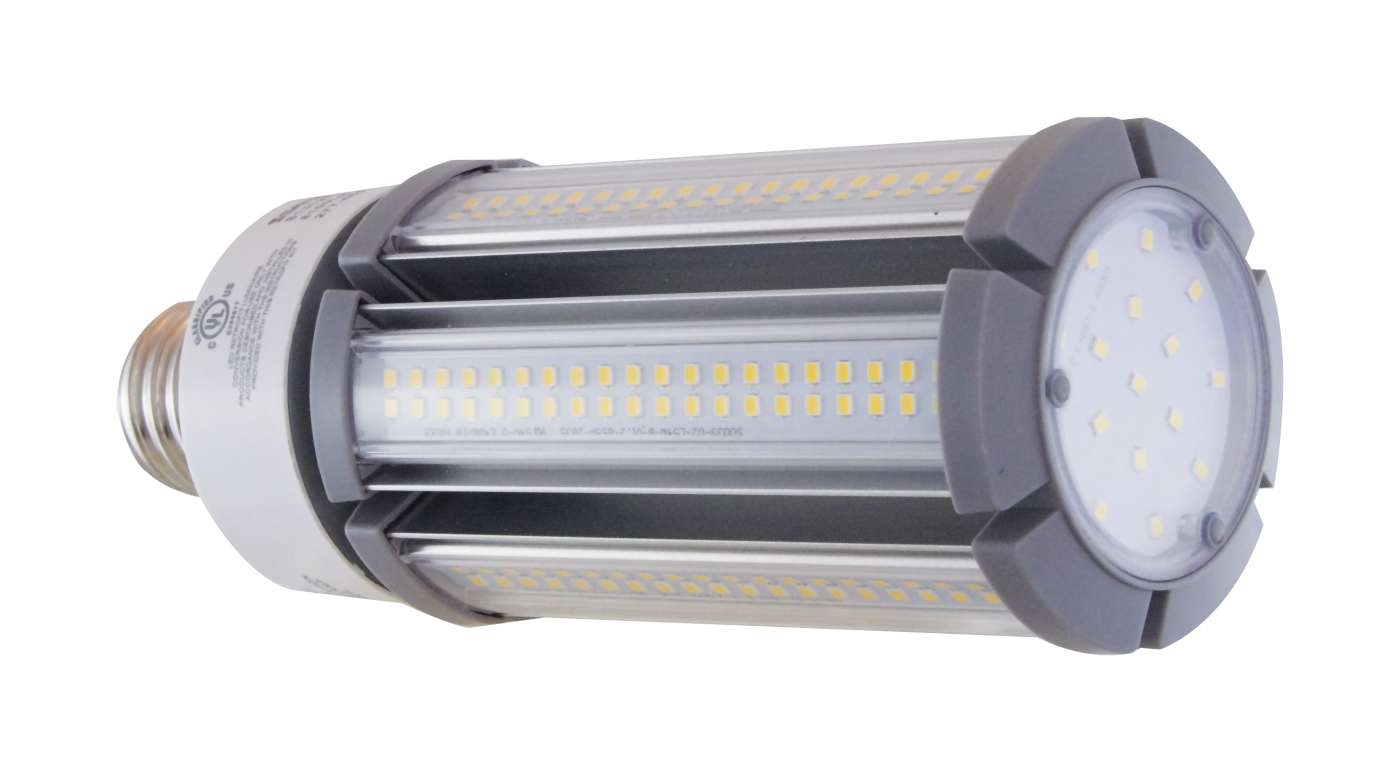

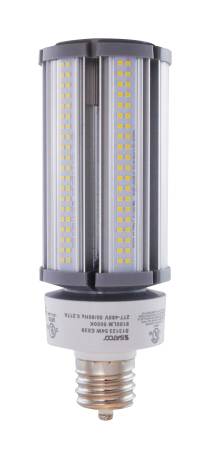

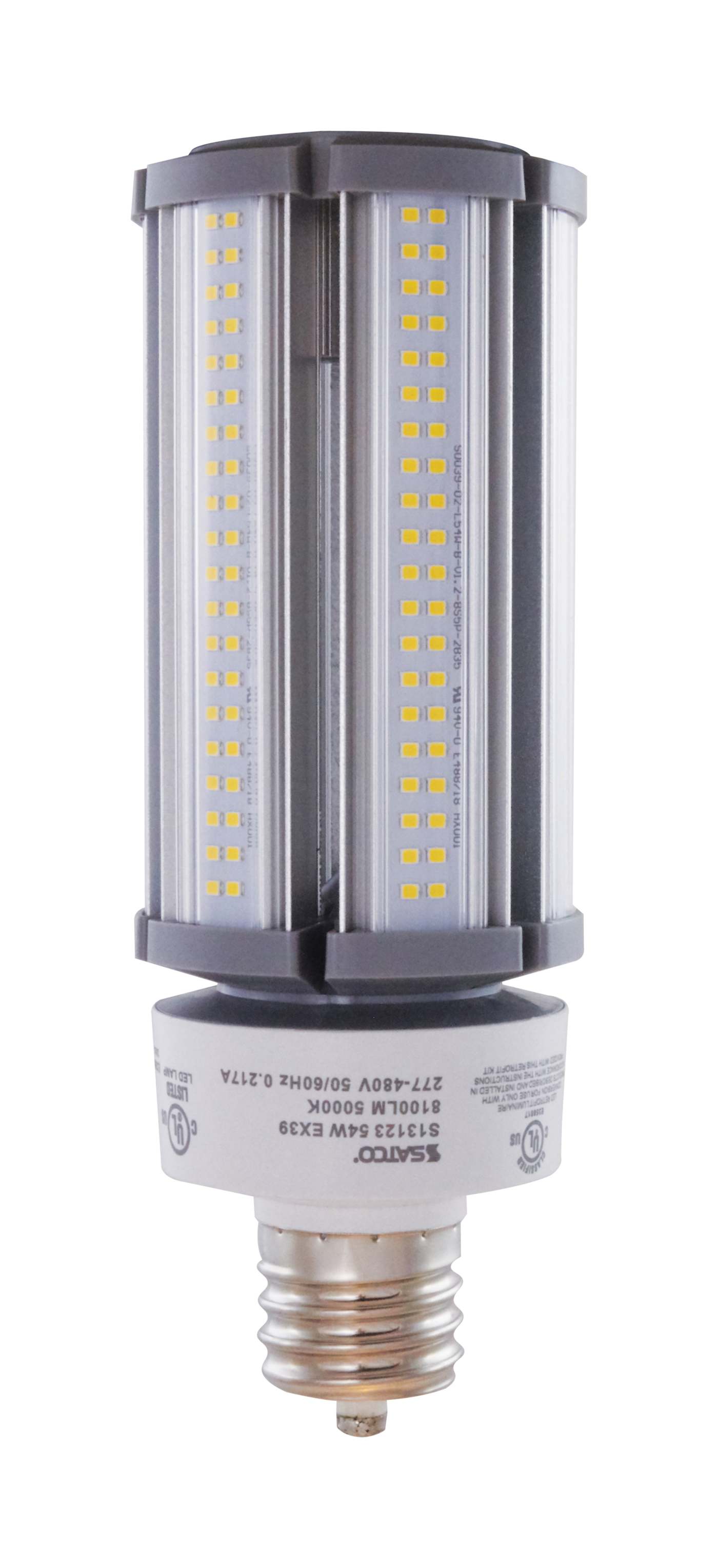

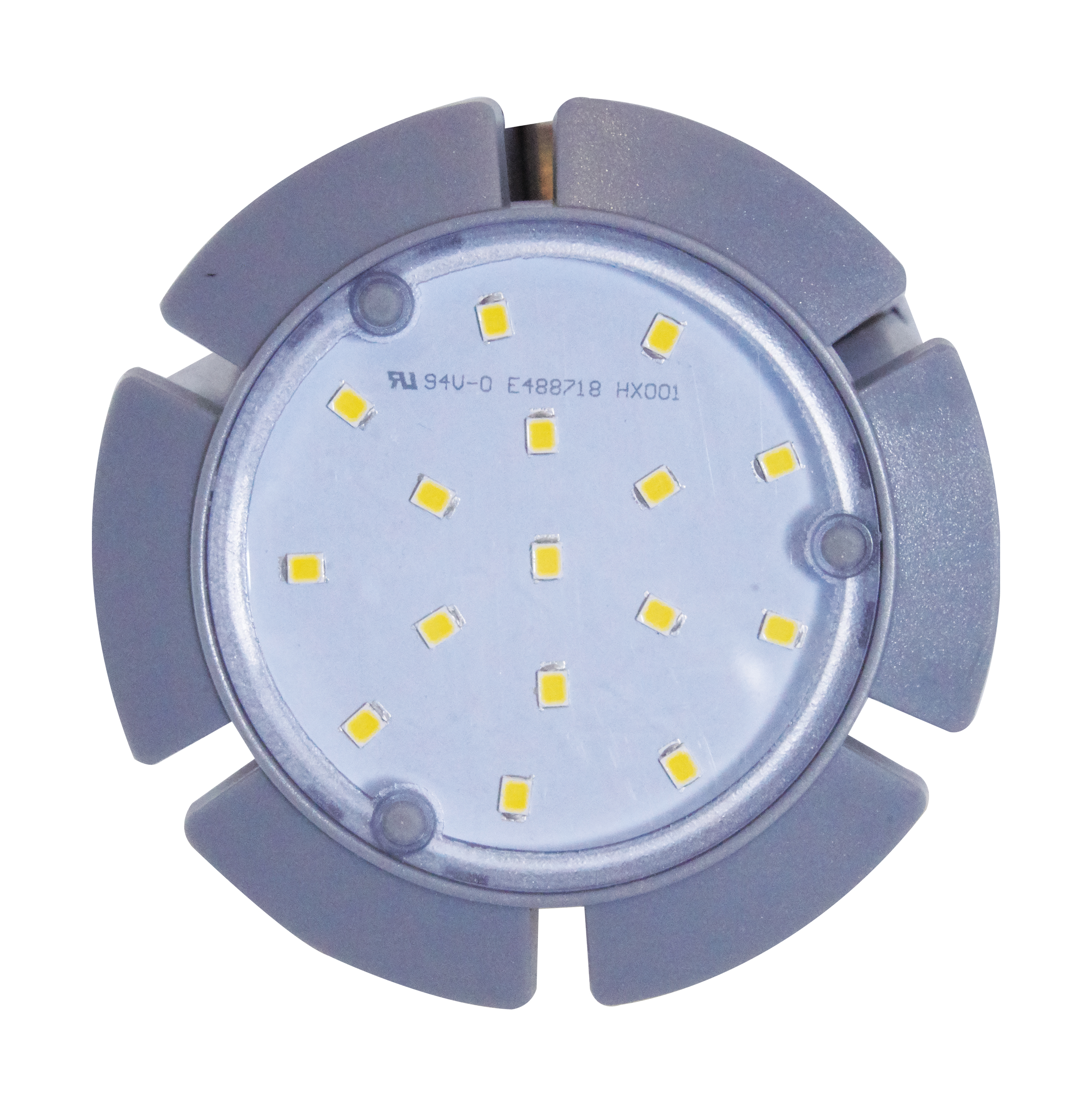

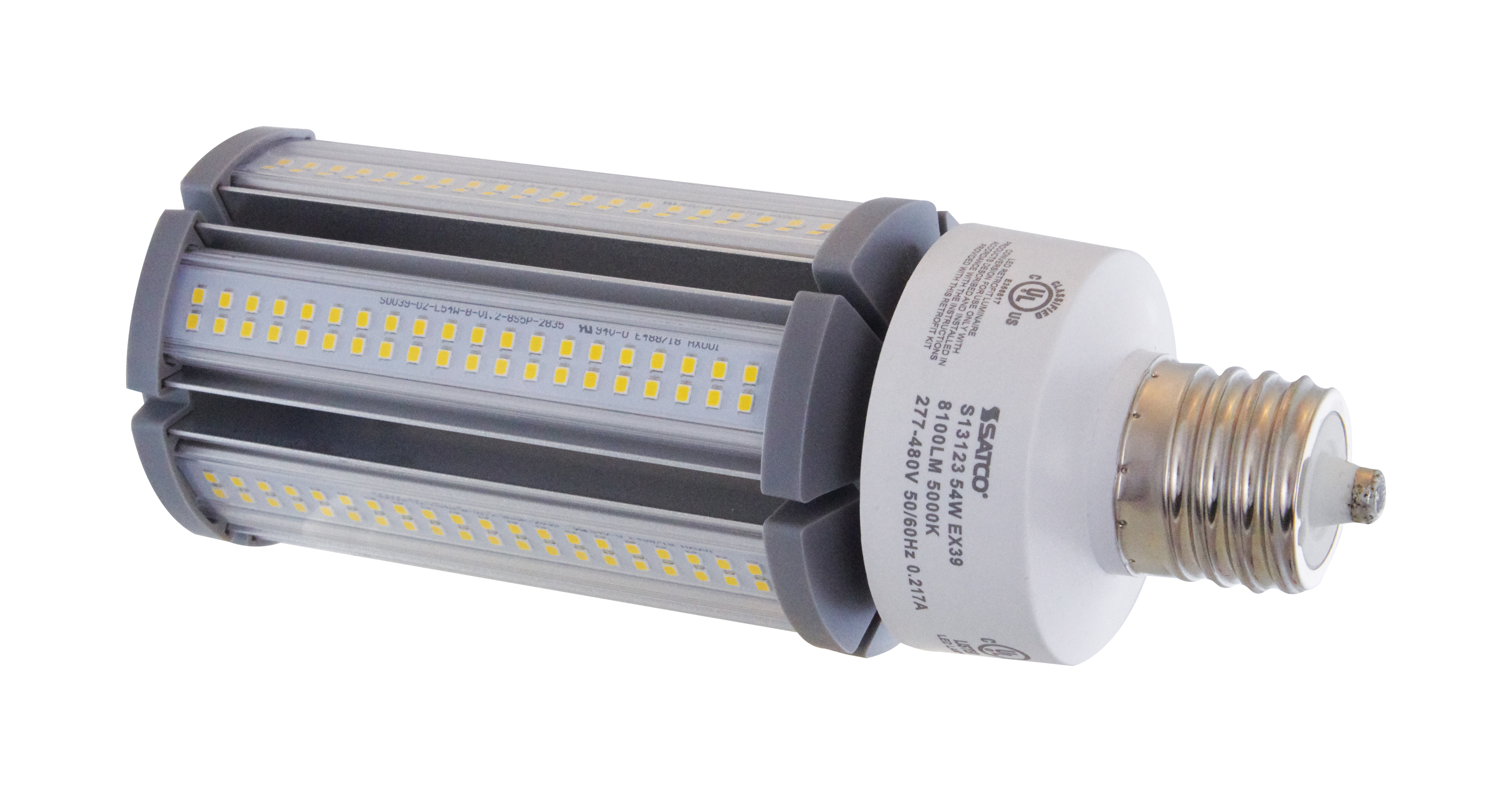

54W/LED/HID/5K/277-480V/EX39 - S13123
54W/LED/HID/5K/277-480V/EX39 - S13123
54W/LED/HID/5K/277-480V/EX39 - S13123
54W/LED/HID/5K/277-480V/EX39 - S13123
54W/LED/HID/5K/277-480V/EX39 - S13123
S13123

54W/LED/HID/5K/277-480V/EX39

Discontinued - Suggested Replacement: S23166
  • 54 Watt LED HID Replacement
  • 5000K
  • Mogul extended base
  • Type B Ballast Bypass
  • 277-480 Volt
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S13123 SpecificationsS13123 Photometrics.iesS13123 Instructions.pdf
Tools
Lighting Layout Analysis For S13123
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
54 Watt LED HID Replacement; 5000K; Mogul extended base; Type B Ballast Bypass;277-480 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Candle Power737.4
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED
StatusObsolete
StyleUtility
Surge ProtectionBuilt-in surge protection - 4KV
CCT SelectableNo
Wattage SelectableNo
Finish FamilyNo Finish
Amps0.195-0.113A
Has CameraNo
IOT EnabledNo
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Minimum Compartment SizeLength: 7.9 in. Width: 7.9 in. Depth: 9.8 in.
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent250W
Electrical
CCT (Kelvin Temp)5000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNatural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent250W

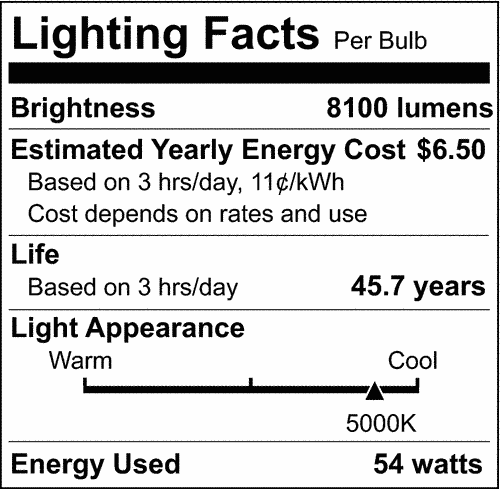

Lumens8100L
Volts277V-480V
Watts54W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps3.35
MOL9.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP64
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcUL - Certified, cUL - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923131233
Case Cube1.2163
Case Height11.55
Case Length11.87
Case Quantity12
Case UPC10045923131230
Case Weight24.55
Case Width15.33
EA Cube0.0855
EA Height10.97
EA Length3.67
EA Quantity1
EA Weight1.94
EA Width3.67
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length9.5
Web Width3.35
