| Company | SATCO |
|---|---|
| Dimmable Text | Dimmable with optional modules |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 14.20% |
| Thermal Management | When the lamp body temperature is > 203F, the output will reduce to 75 percent; When the driver temperature is >257F, the output will reduce to 55 percent. |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | No Finish |
| Amps | 1.000-0.361A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lensed | True |
| Minimum Compartment Size | Length: 9.85 in. Width: 9.85 in. Depth: 11.93 in. |
| Operating Position | Universal |
| Photo Cell | Has Photocell |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 400W |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -29C (-20F) to +45C (+113F) |
| HID Equivalent | 350W |

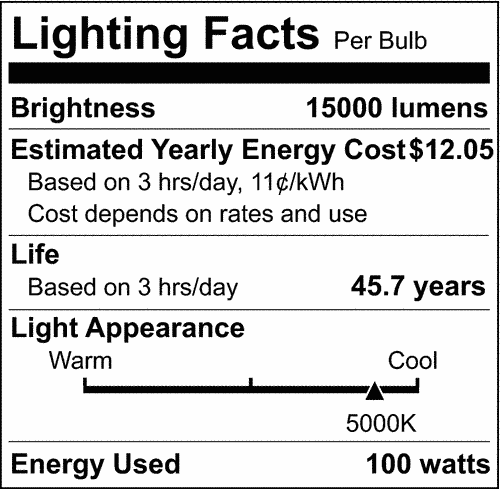

| Lumens | 15000L |
| Volts | 120V-277V |
| Watts | 100W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Clear |
| Housing Color | WhiteGrey |
| ANSI Base | EX39 |
| Lamp Type | Corncob |
| MOD Lamps | 4.6 |
| MOL | 12.35 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| CO Status | Lawful for sale |
| DLC ID | PL66LMJ6RES1; PLDRT7BU9AXX; PLUM173LZEGB |
| FCC Compliant | True |
| HI Status | Lawful for sale |
| IP Rating | IP64 |
| Location Rating | Damp |
| NV Status | Lawful for sale |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| VT Status | Lawful for sale |
| WA Status | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923131271 |
|---|---|
| Case Cube | 2.1145 |
| Case Height | 13.6 |
| Case Length | 14.86 |
| Case Quantity | 4 |
| Case UPC | 10045923131278 |
| Case Weight | 15.97 |
| Case Width | 18.08 |
| EA Cube | 0.4659 |
| EA Height | 6.48 |
| EA Length | 14.23 |
| EA Quantity | 1 |
| EA Weight | 3.56 |
| EA Width | 8.73 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 12.35 |
| Web Width | 4.6 |
