| Company | SATCO |
|---|---|
| Dimmable Text | Dimmable with optional modules |
| Lamp Filament | LED |
| Material | Aluminum / Polycarbonate (PC) |
| Fixture Type | LED HID |
| Product Notes | This is not to be used with a ballast |
| Status | Obsolete |
| Most Current Generation | S23141 |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | 12.20% |
| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | No Finish |
| Amps | 0.450-0.162A |
| Has Camera | No |

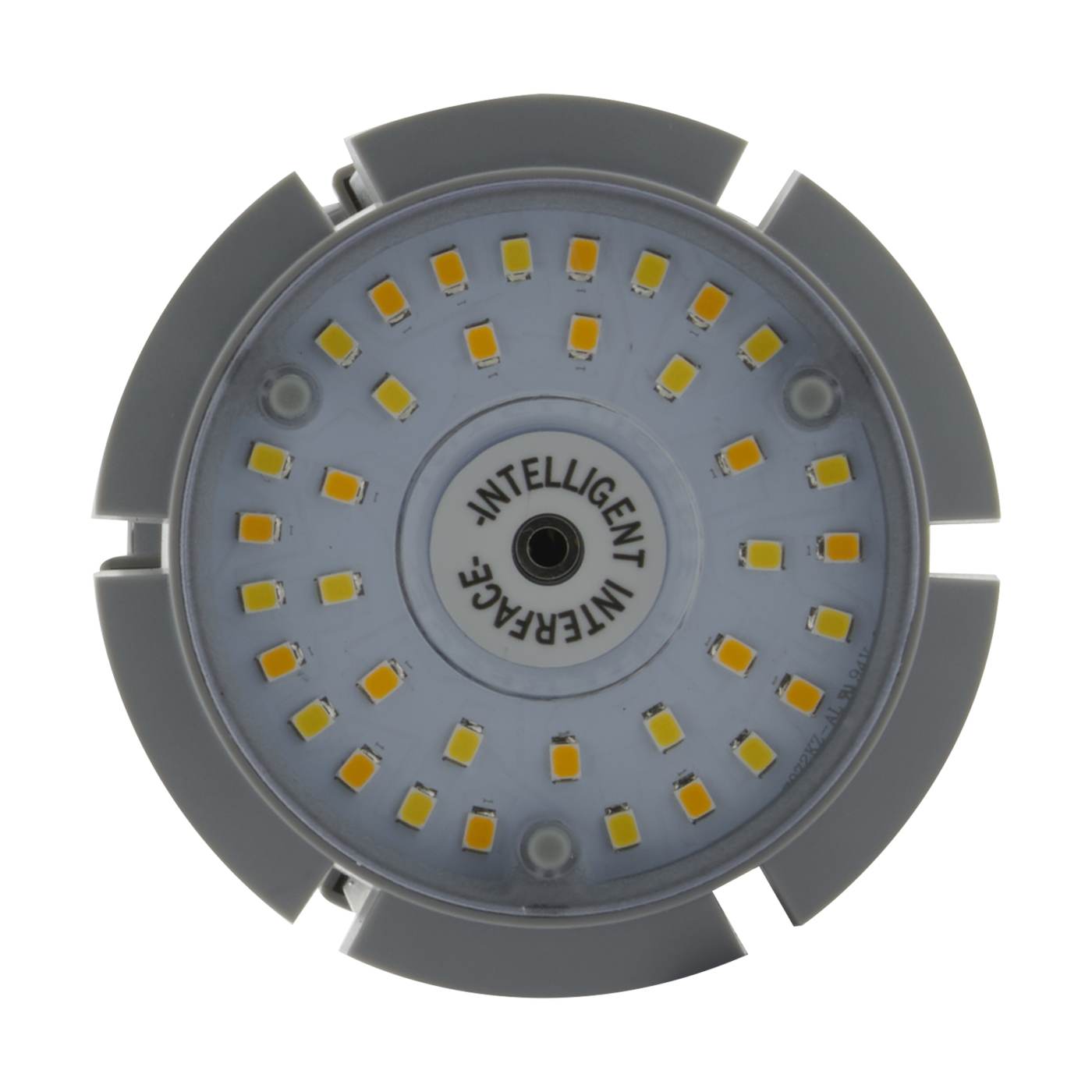

| IOT Enabled | Yes |
| Lens Finish | Clear |
| Lens Material | Polycarbonate (PC) |
| Lensed | Yes |
| Operating Position | Universal |
| Photo Cell | Has Photocell |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 200W |
| Lumens | 5850L-6300L |
| Volts | 120V-277V |
| Watts | 45W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Clear |
| Housing Color | WhiteGrey |
| ANSI Base | EX39 |

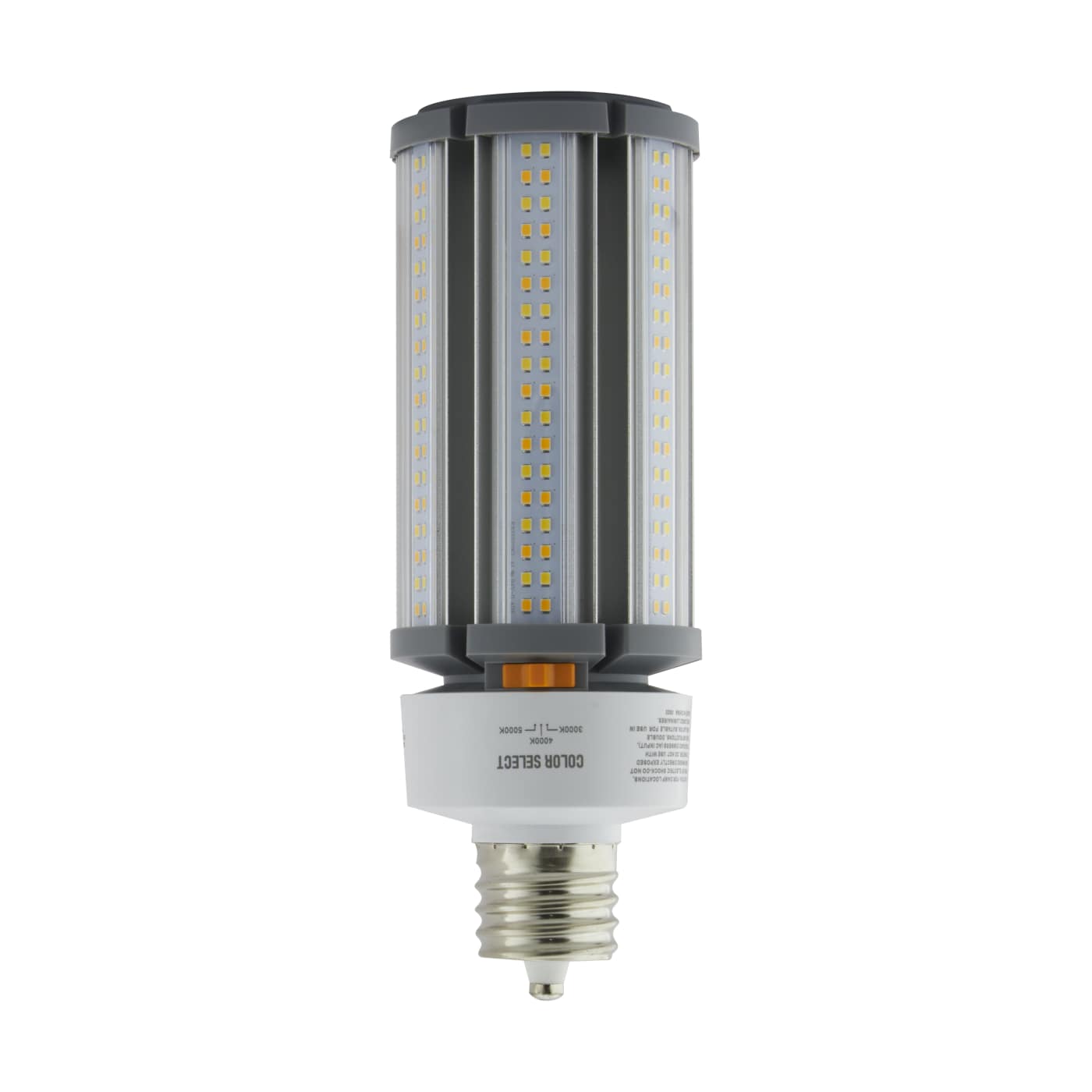

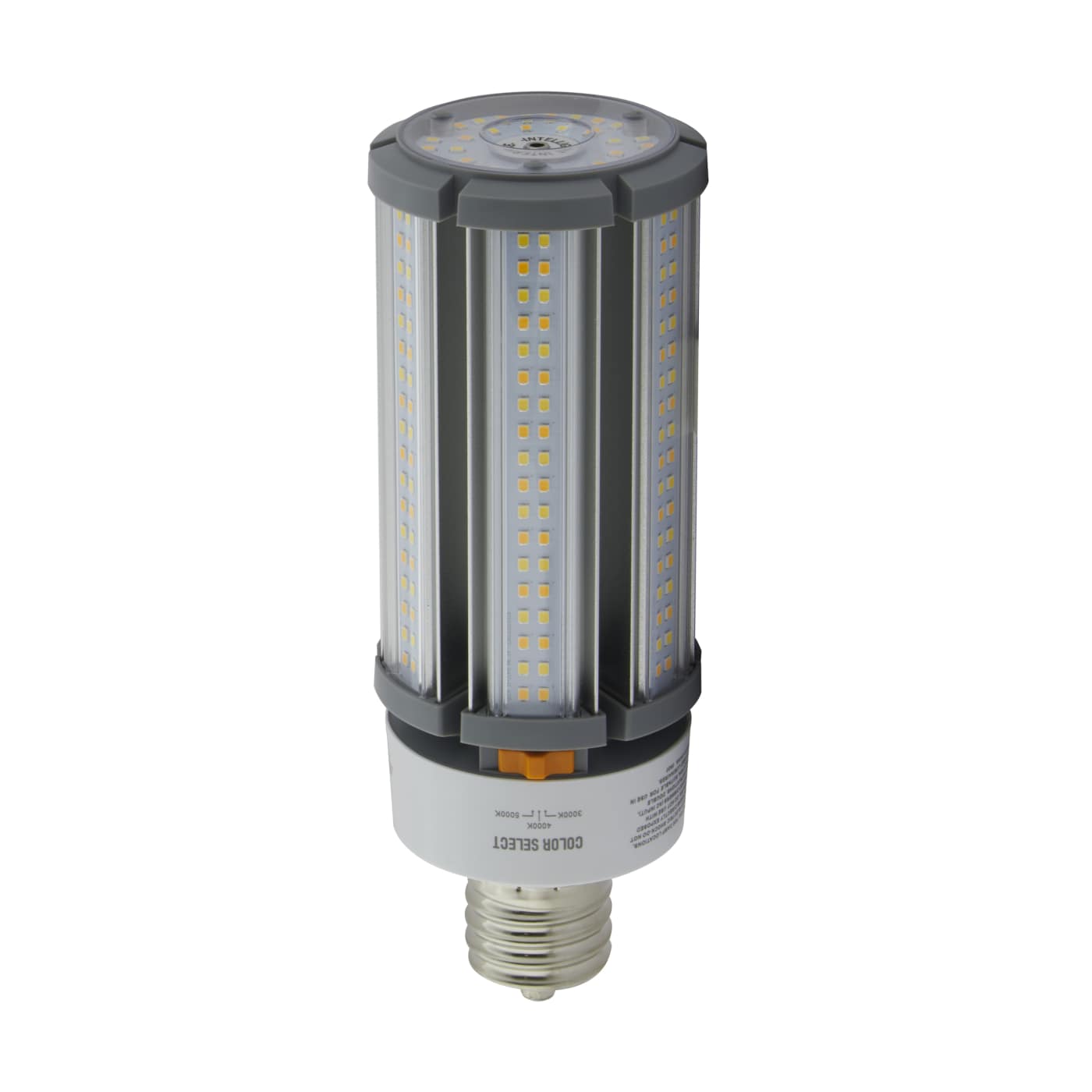

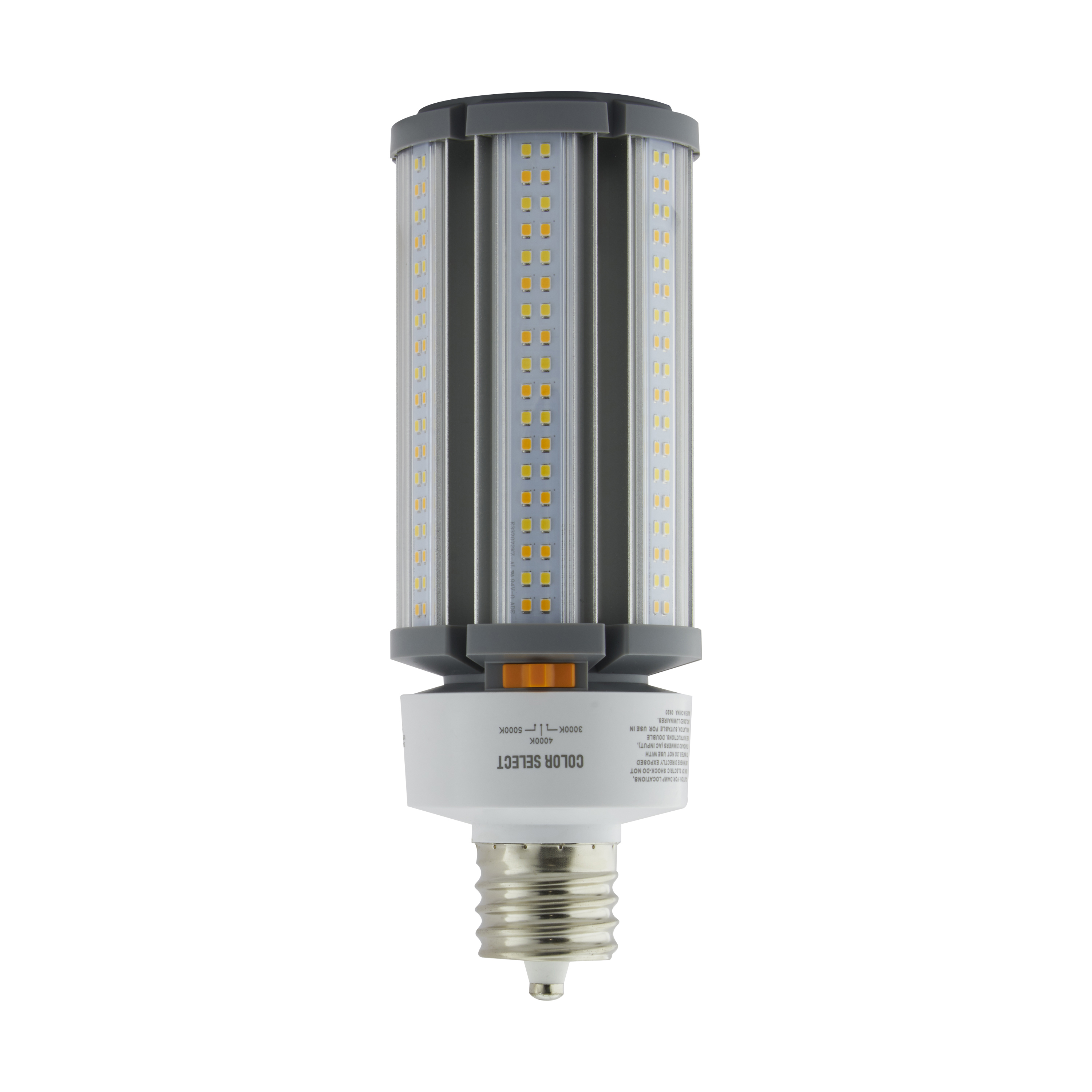

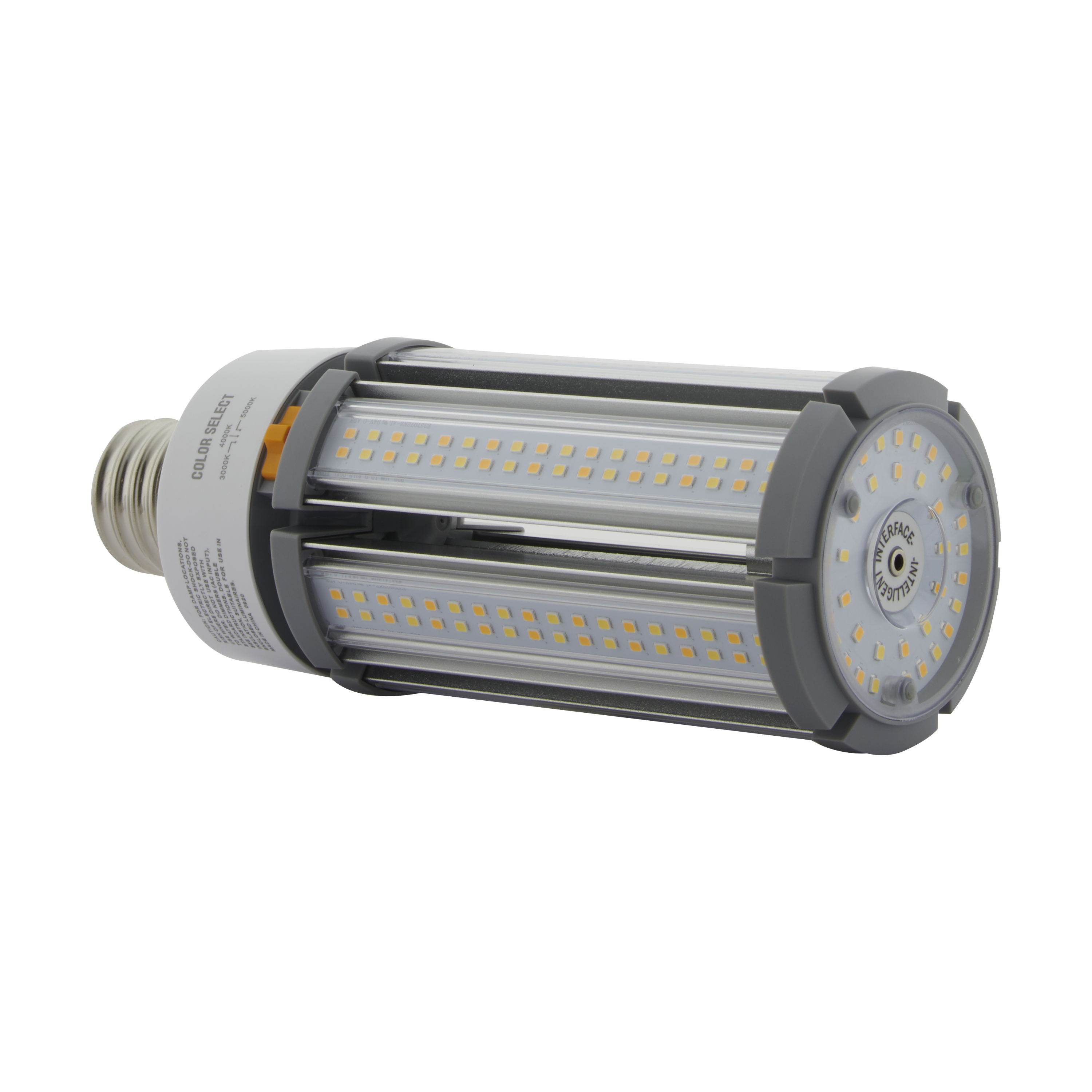

| Lamp Type | Corncob |
| MOD Lamps | 3.35 |
| MOL | 9.8 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | Yes |
| DLC ID | PLK3GLY50F6A; PLU57A762F5O |
|---|---|
| FCC Compliant | Yes |
| IP Rating | IP64 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| California Ban | Lawful for sale |
| DLC Approved | Yes |
| Title 20 | Exempt |
| T24 Compliant | No |
| UPC | 045923131417 |
|---|---|
| Case Cube | 1.2163 |
| Case Height | 11.55 |
| Case Length | 11.87 |
| Case Quantity | 12 |
| Case UPC | 10045923131414 |
| Case Weight | 24.16 |
| Case Width | 15.33 |
| EA Cube | 0.0845 |
| EA Height | 10.96 |
| EA Length | 3.65 |
| EA Quantity | 1 |
| EA Weight | 1.85 |
| EA Width | 3.65 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |

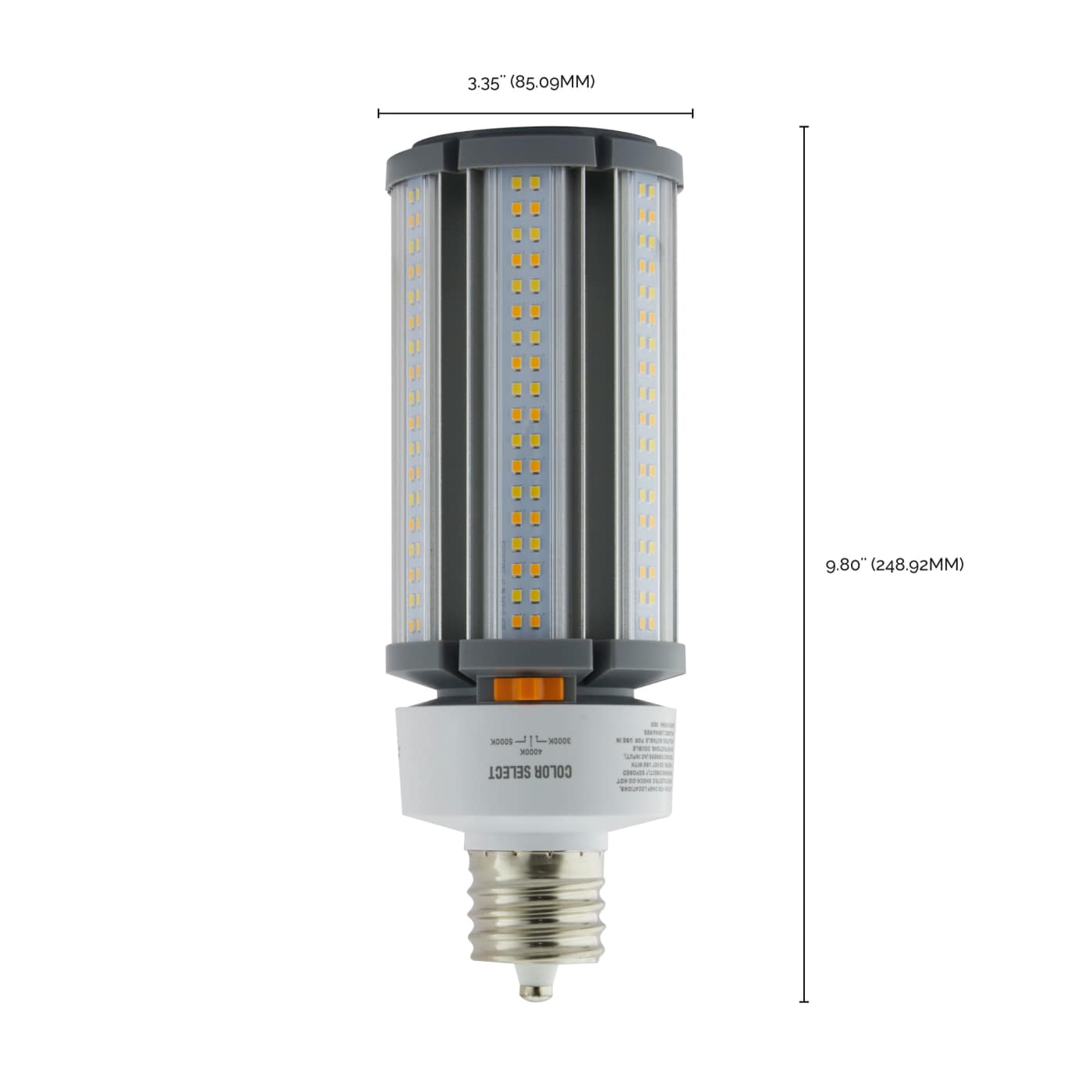

| Web Length | 9.8 |
| Web Width | 3.35 |
