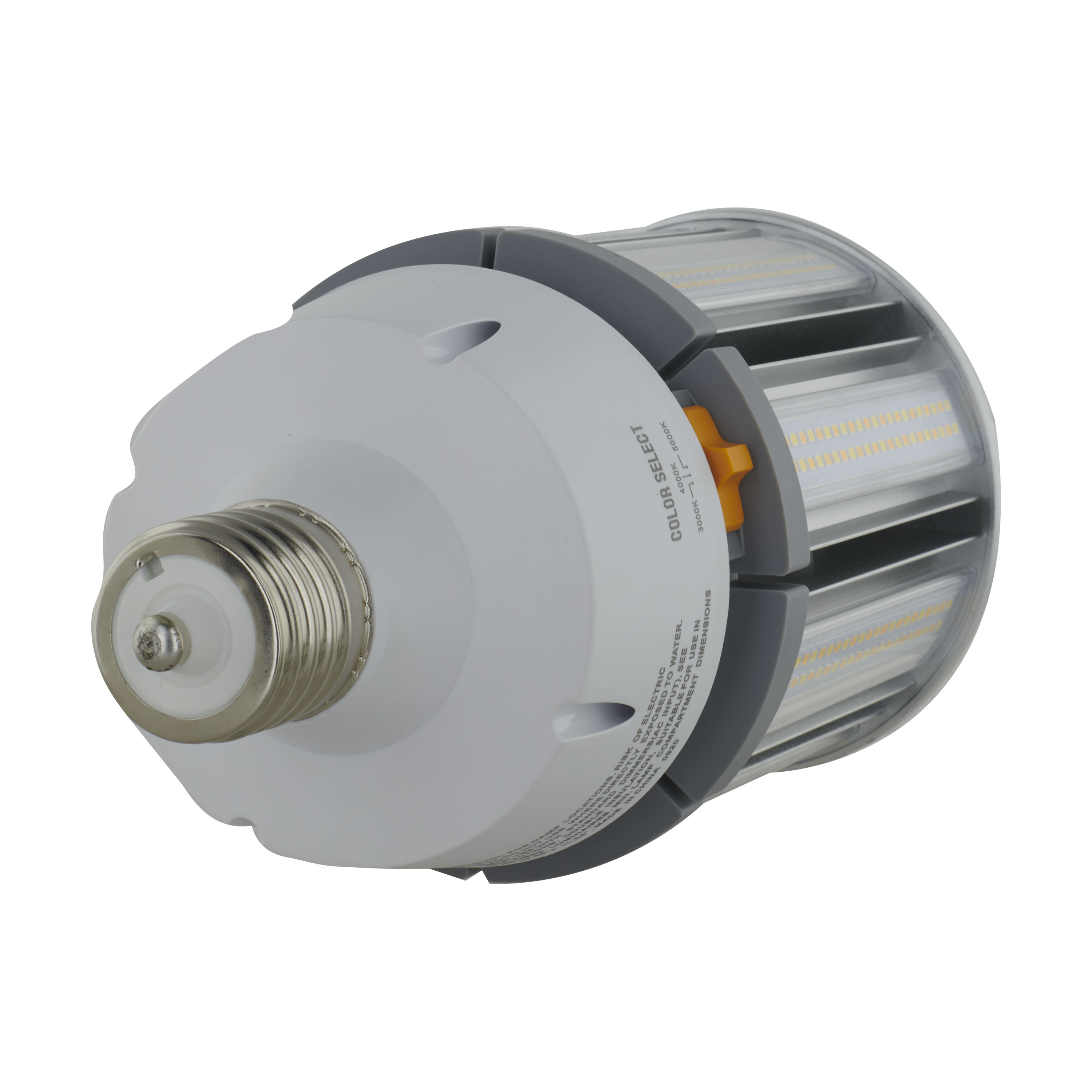

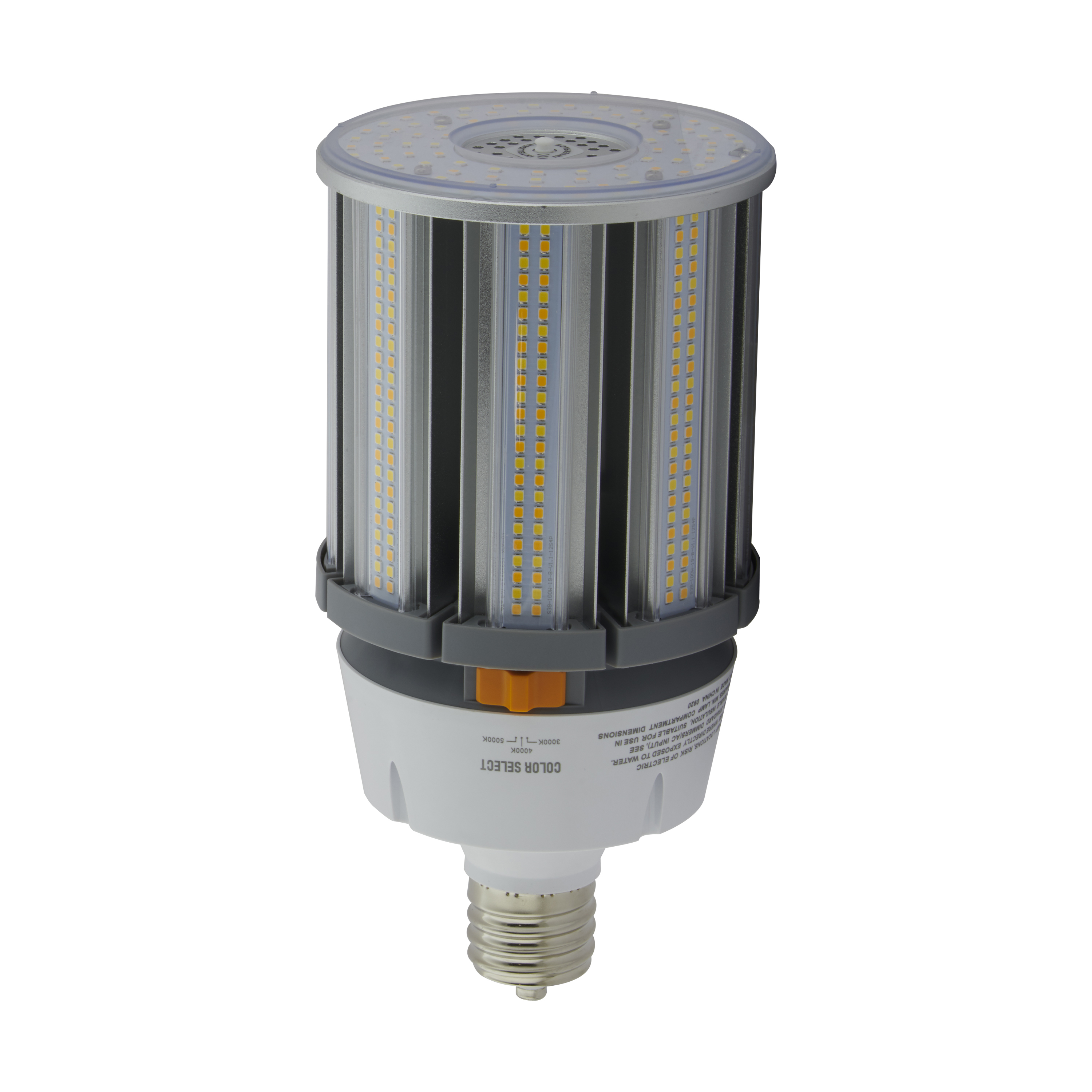

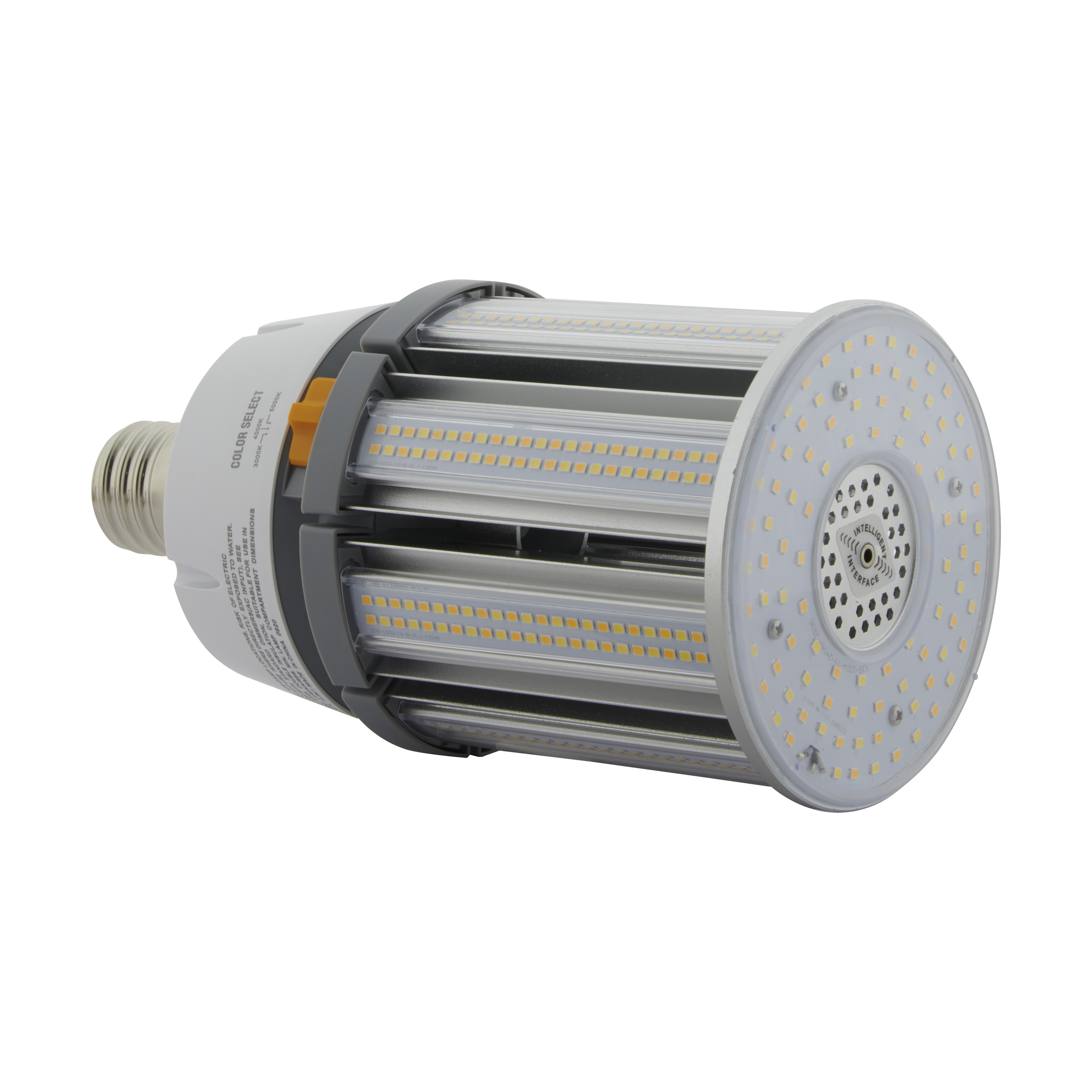

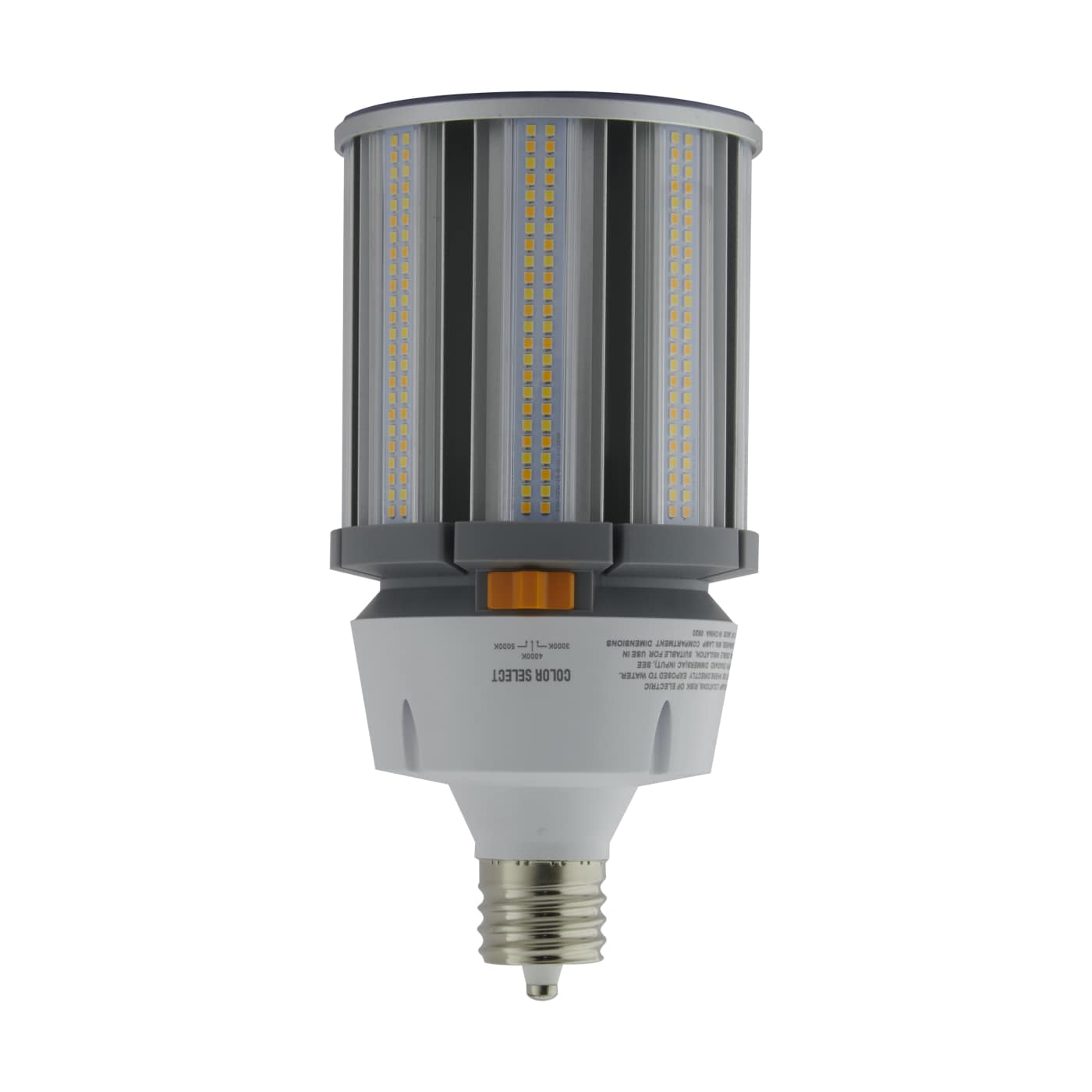

S13144

100W/LED/HID/CCT/EX39/100-277V

Discontinued - Suggested Replacement: S23144
  • 100 Watt
  • LED HID Replacement
  • CCT Selectable
  • Mogul extended base
  • 100-277 Volt
  • ColorQuick Technology
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S13144 SpecificationsS13144 Photometrics 3000K 120V.iesS13144 Photometrics 3000K 277V.ies
Tools
Lighting Layout Analysis For S13144
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
100 Watt; LED HID Replacement; CCT Selectable; Mogul extended base; 100-277 Volt; ColorQuick Technology
Products Specs
General
CompanySATCO
Dimmable TextDimmable with optional modules
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
Product NotesThis is not to be used with a ballast
StatusDiscontinued
Most Current GenerationS23144
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion15.20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNo Finish
Amps1.000-0.361A
Has CameraNo
IOT EnabledYes
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes
Minimum Compartment SizeLength: 9.85 in. Width: 9.85 in. Depth: 11.54 in.
Operating PositionBase Up or Down
Photo CellHas Photocell
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent500W
Electrical

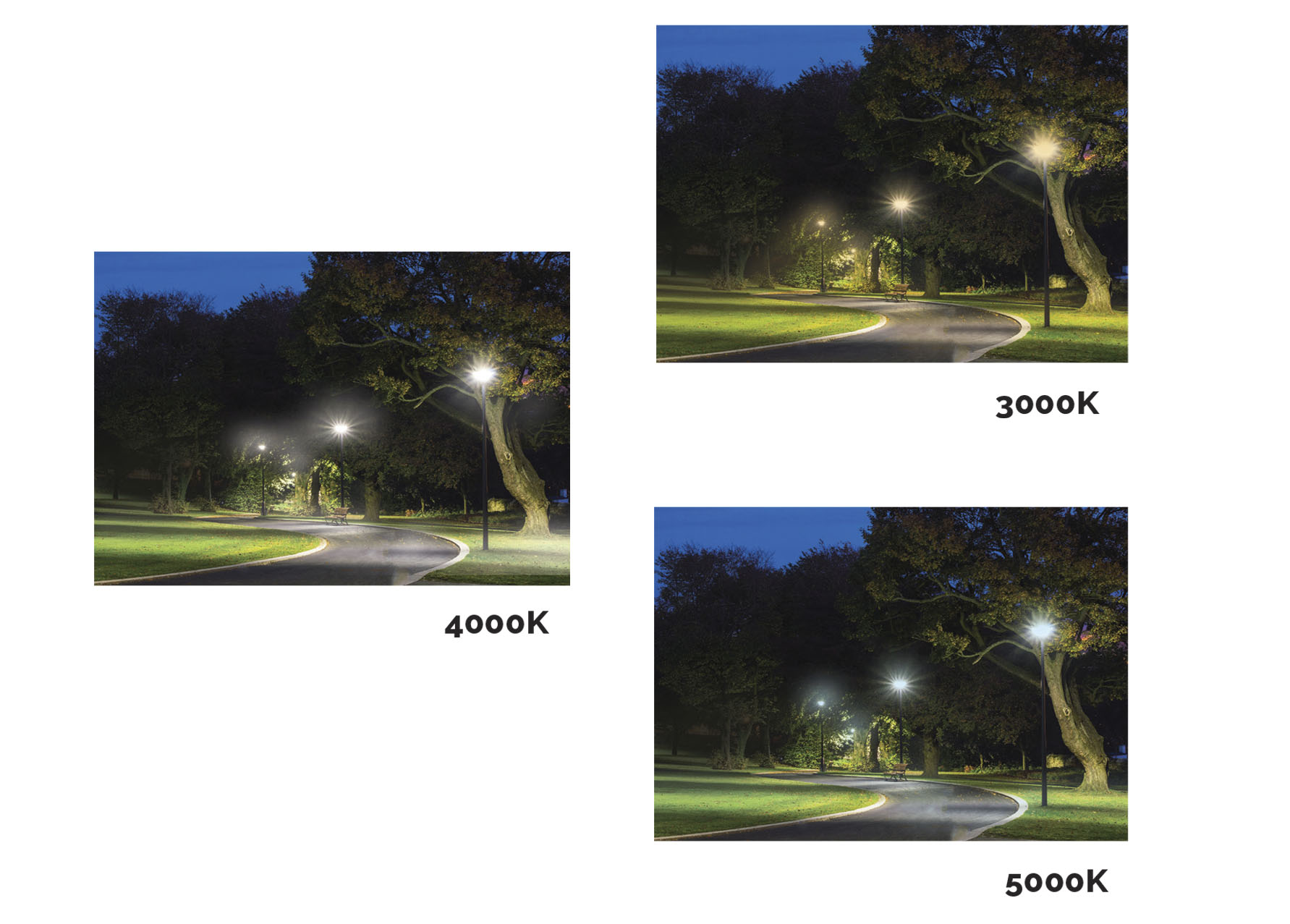

CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm to Cool White
CRI80+
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent400W
Lumens13000L-14000L
Volts120V-277V
Watts100W

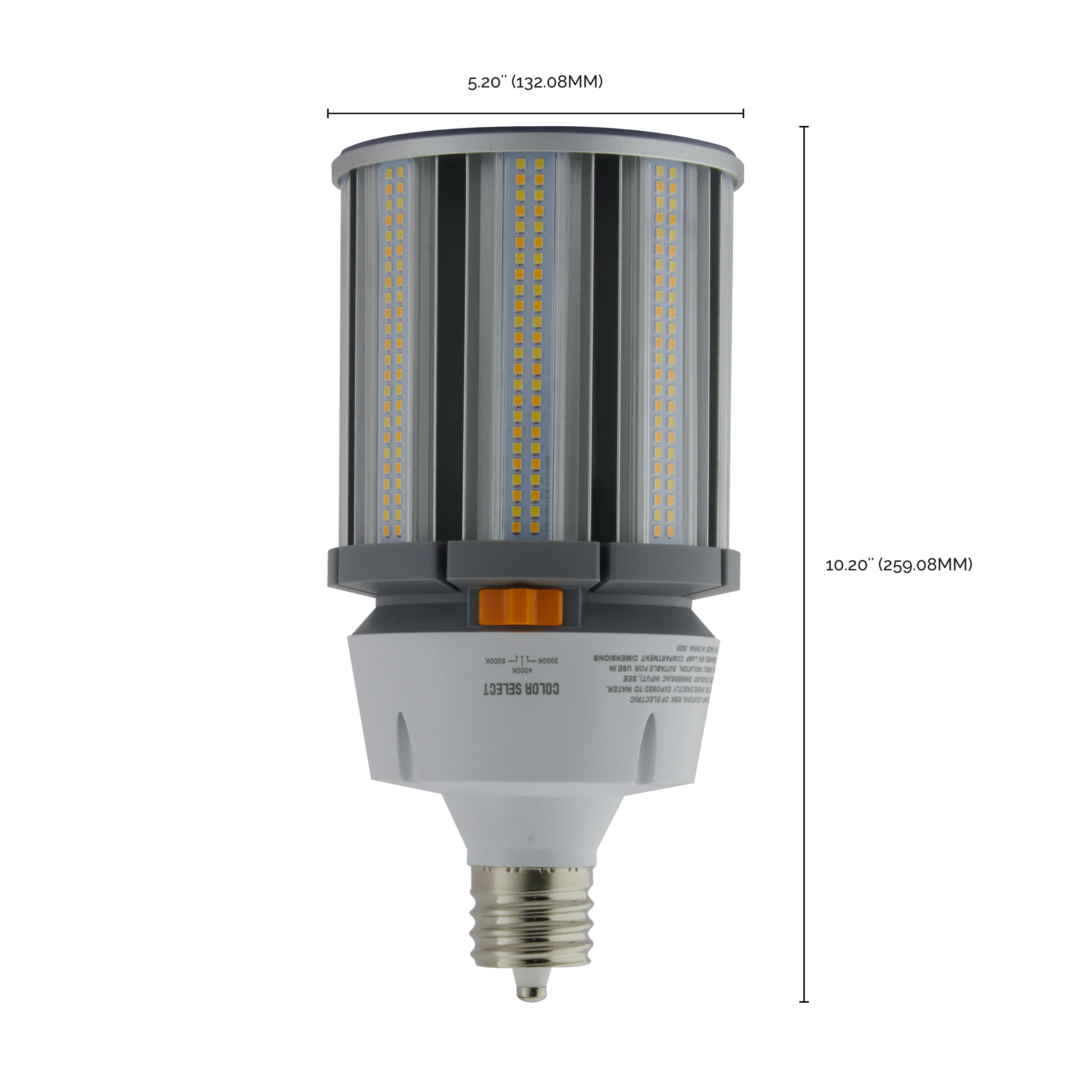

Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps5.16
MOL10.83
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPL4IBC93ZLF5; PL6BW51V84OV
FCC CompliantYes
IP RatingIP64
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923131448
Case Cube0.9959
Case Height11.79
Case Length12.38
Case Quantity4
Case UPC10045923131445
Case Weight16.7
Case Width11.79
EA Cube0.2132
EA Height12.18
EA Length5.5
EA Quantity1
EA Weight3.56
EA Width5.5
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length10.83
Web Width5.16
