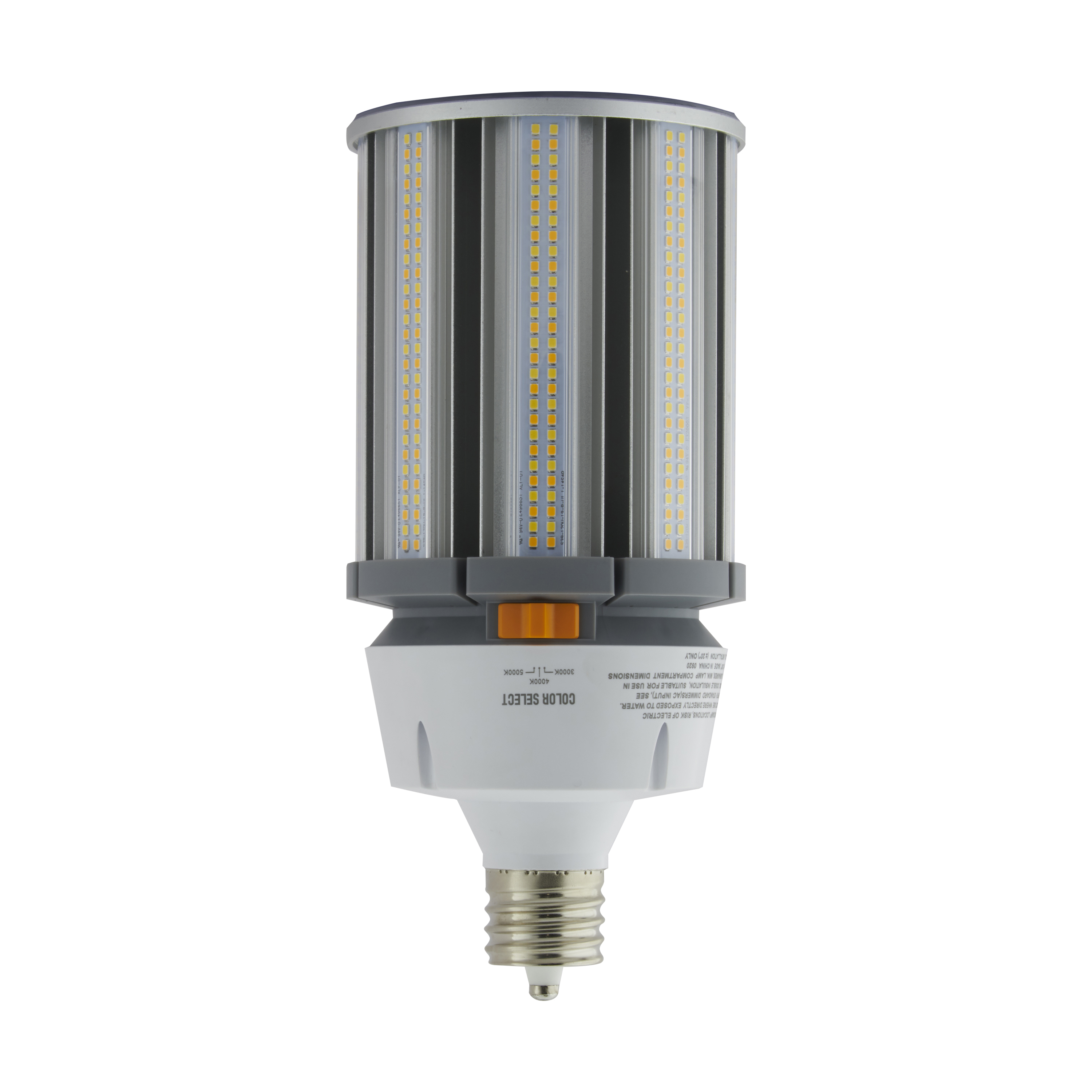

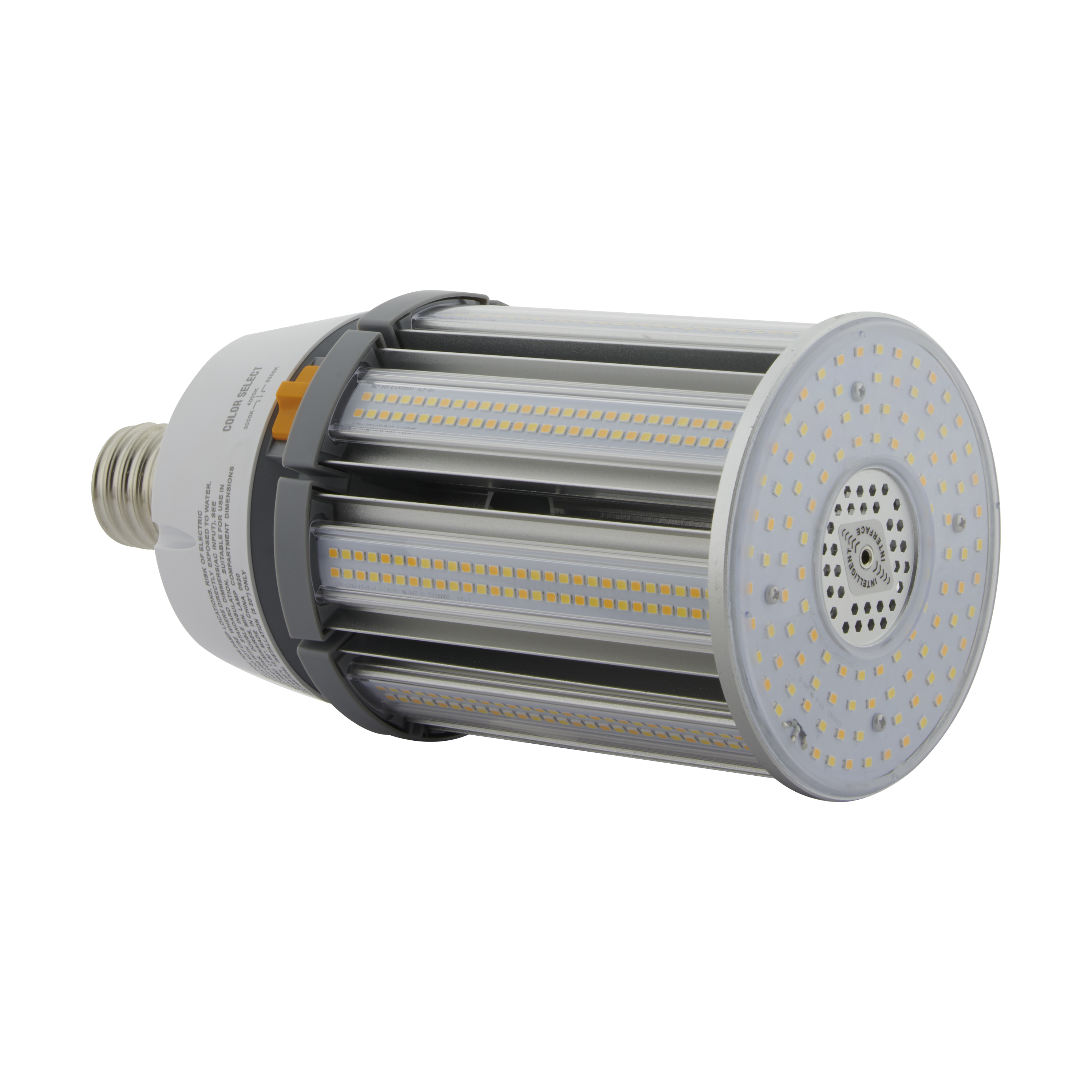

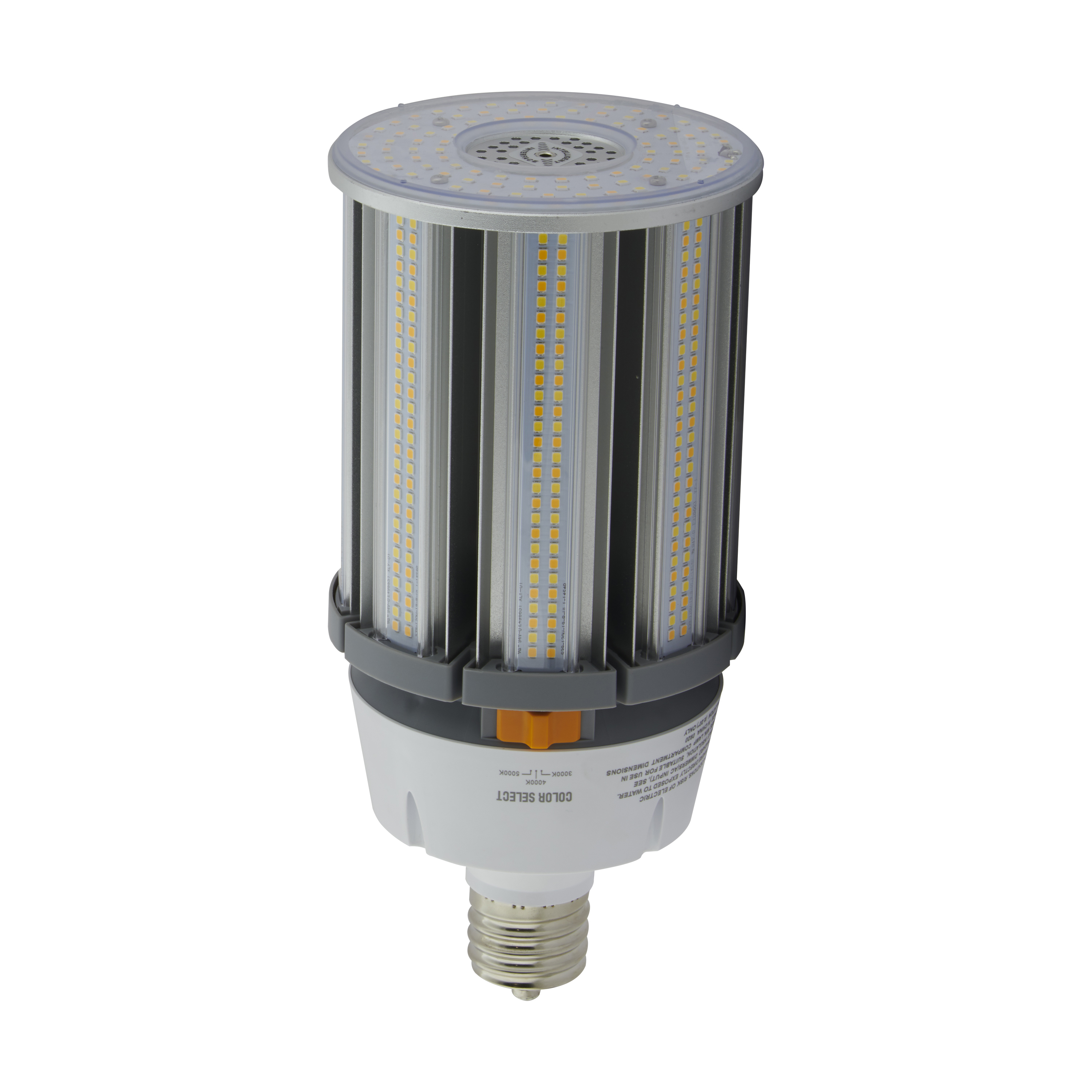

S13145

120W/LED/HID/CCT/EX39/100-277V

Discontinued - Suggested Replacement: S23145
  • 120 Watt
  • LED HID Replacement
  • CCT Selectable
  • Mogul extended base
  • 100-277 Volt
  • ColorQuick Technology
location_rating^damp^1
cc_selectable^y^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S13145 SpecificationsS13145 Instructions.pdf
Tools
Lighting Layout Analysis For S13145
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
120 Watt; LED HID Replacement; CCT Selectable; Mogul extended base; 100-277 Volt; ColorQuick Technology
Products Specs
General
CompanySATCO
Dimmable TextDimmable with optional modules
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypeLED HID
Product NotesThis is not to be used with a ballast
StatusDiscontinued
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion14.20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyNo Finish
Amps1.200-0.433A
Has CameraNo
IOT EnabledYes
Lens FinishClear
Lens MaterialPolycarbonate (PC)
LensedYes

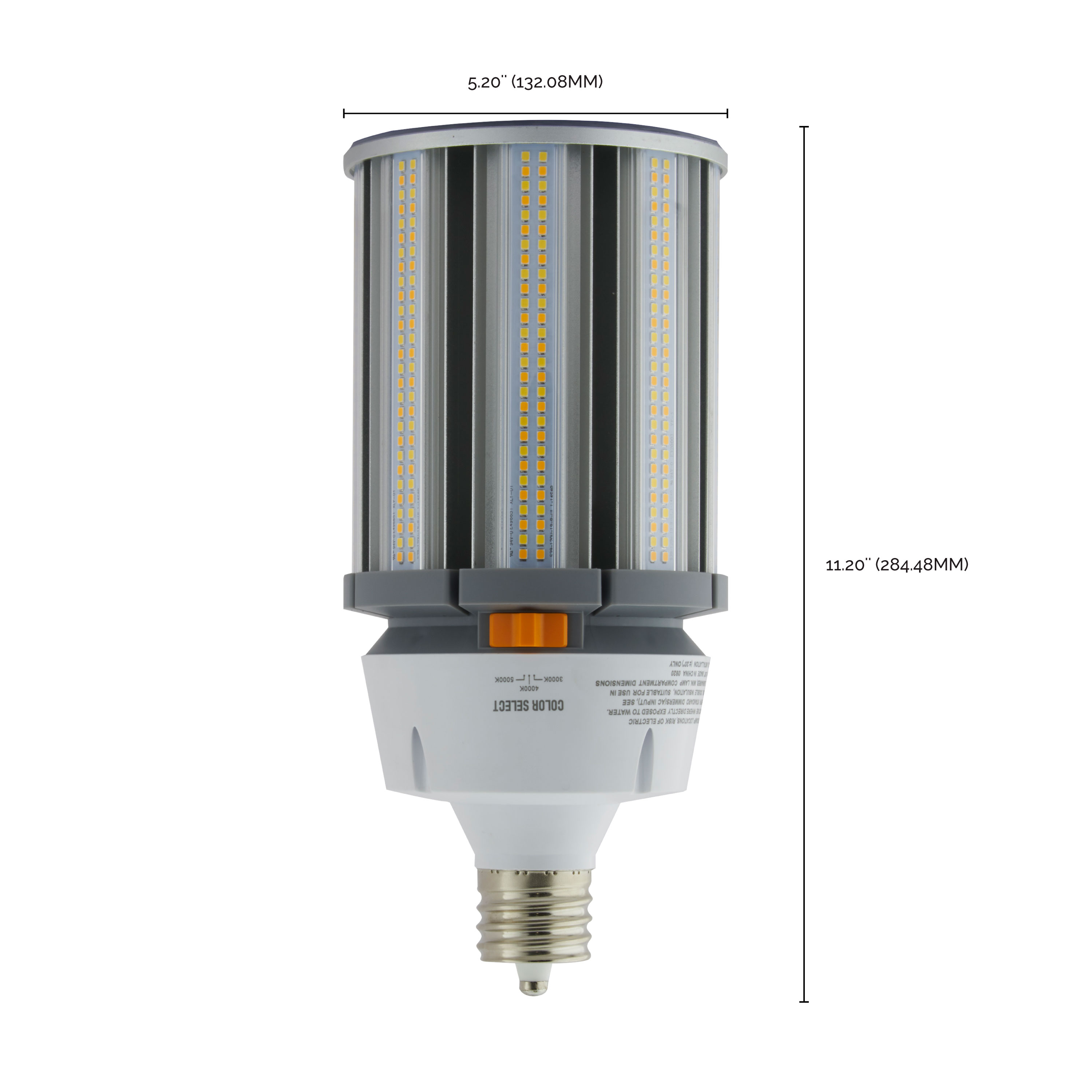

Minimum Compartment SizeLength: 9.85 in. Width: 9.85 in. Depth: 12.60 in.
Operating PositionBase Up or Down
Photo CellHas Photocell
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent750W
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempWarm to Cool White
CRI80+
Dimming TypeDimmable with optional modules
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent500W
Lumens15600L-16800L
Volts120V-277V
Watts120W
Physical

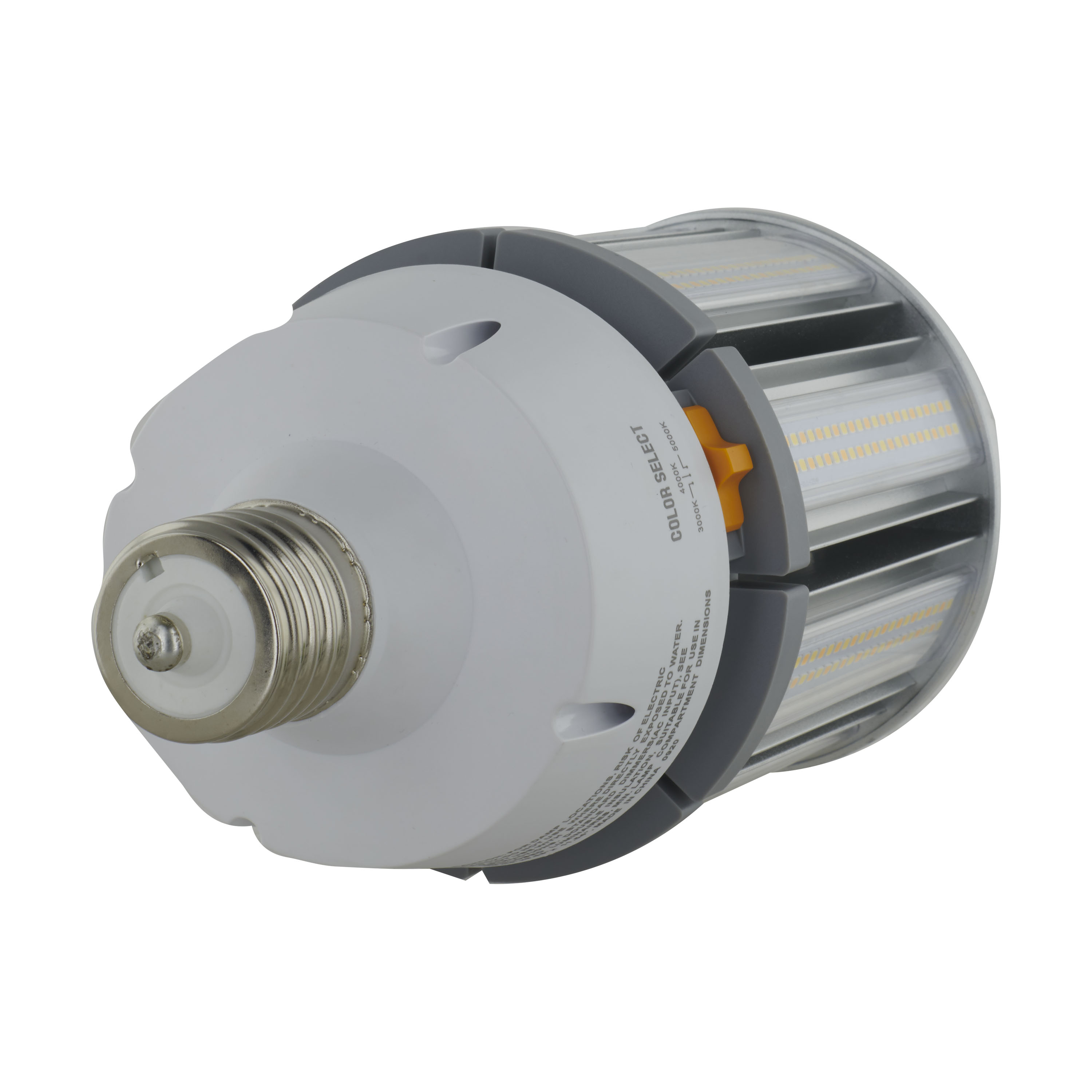

Lamp BaseMogul Extended
FinishClear
Housing ColorWhiteGrey
ANSI BaseEX39
Lamp TypeCorncob
MOD Lamps5.16
MOL11.61
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDPL48Y83ZQH0J; PLQPOPVP4M03
FCC CompliantYes
IP RatingIP64
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified, cULus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923131455
Case Cube0.8985
Case Height11.79
Case Length11.17
Case Quantity4
Case UPC10045923131452
Case Weight18.1
Case Width11.79
EA Cube0.2271
EA Height12.97
EA Length5.5
EA Quantity1
EA Weight3.87
EA Width5.5
Pack TypeBox
Web Length11.61
Web Width5.16
