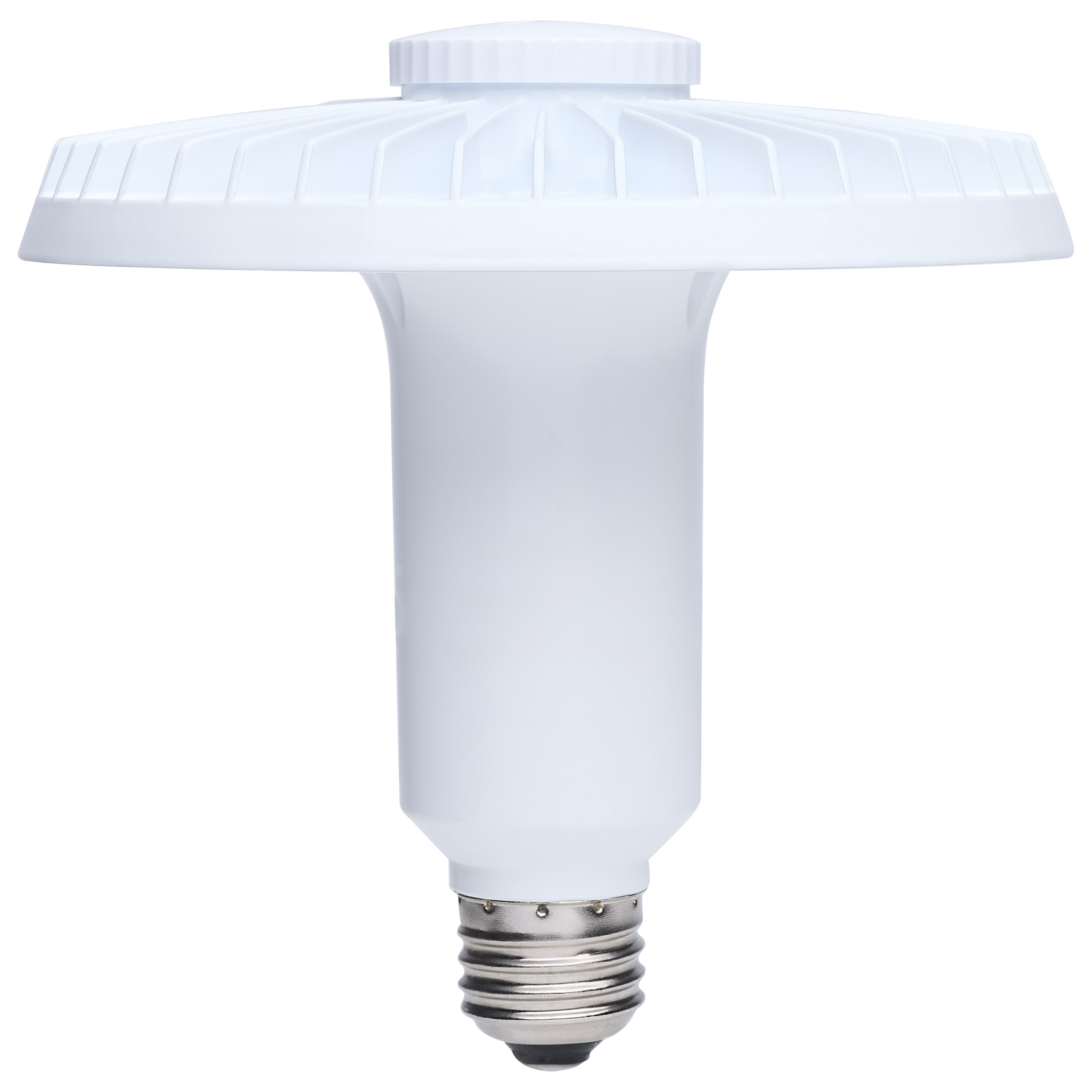

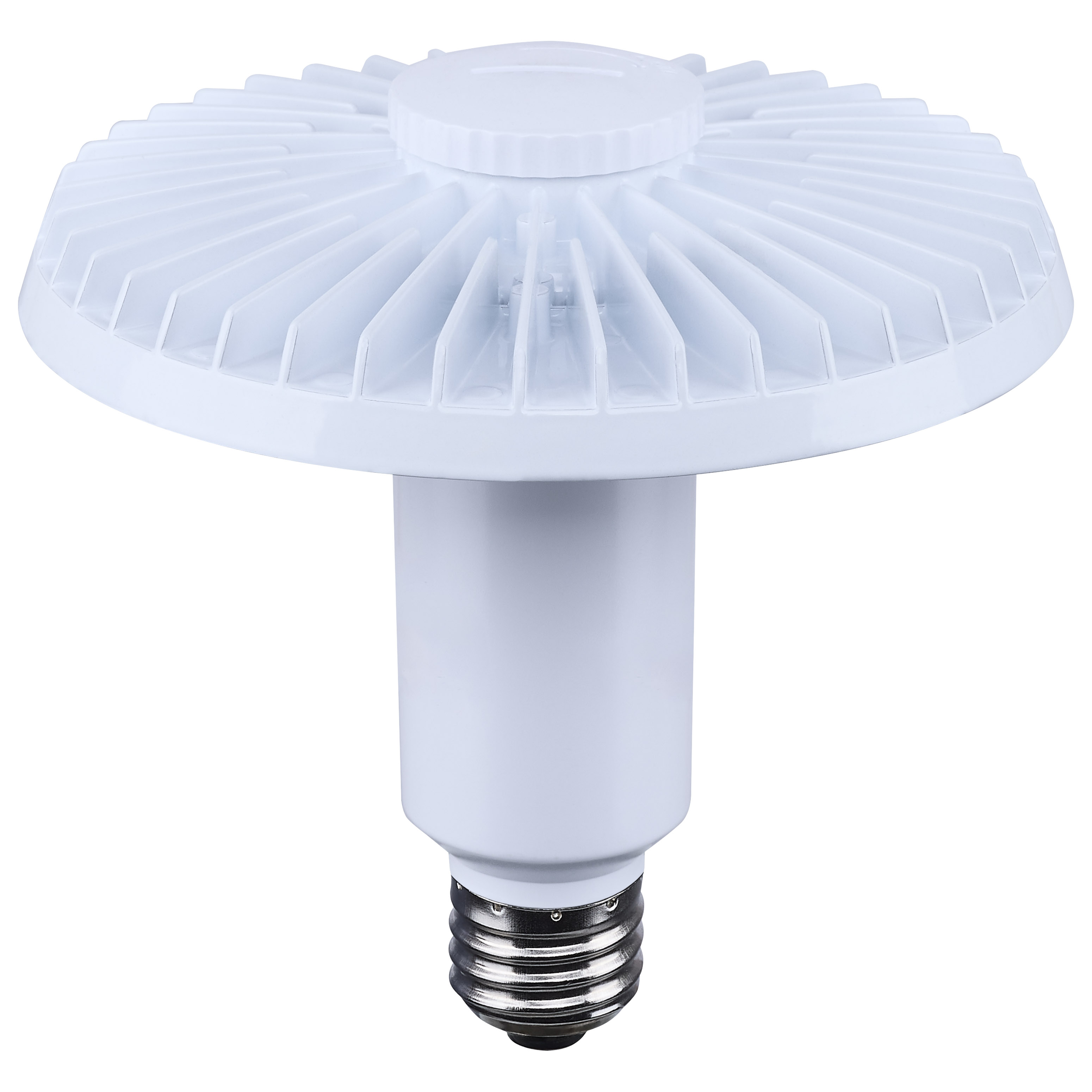

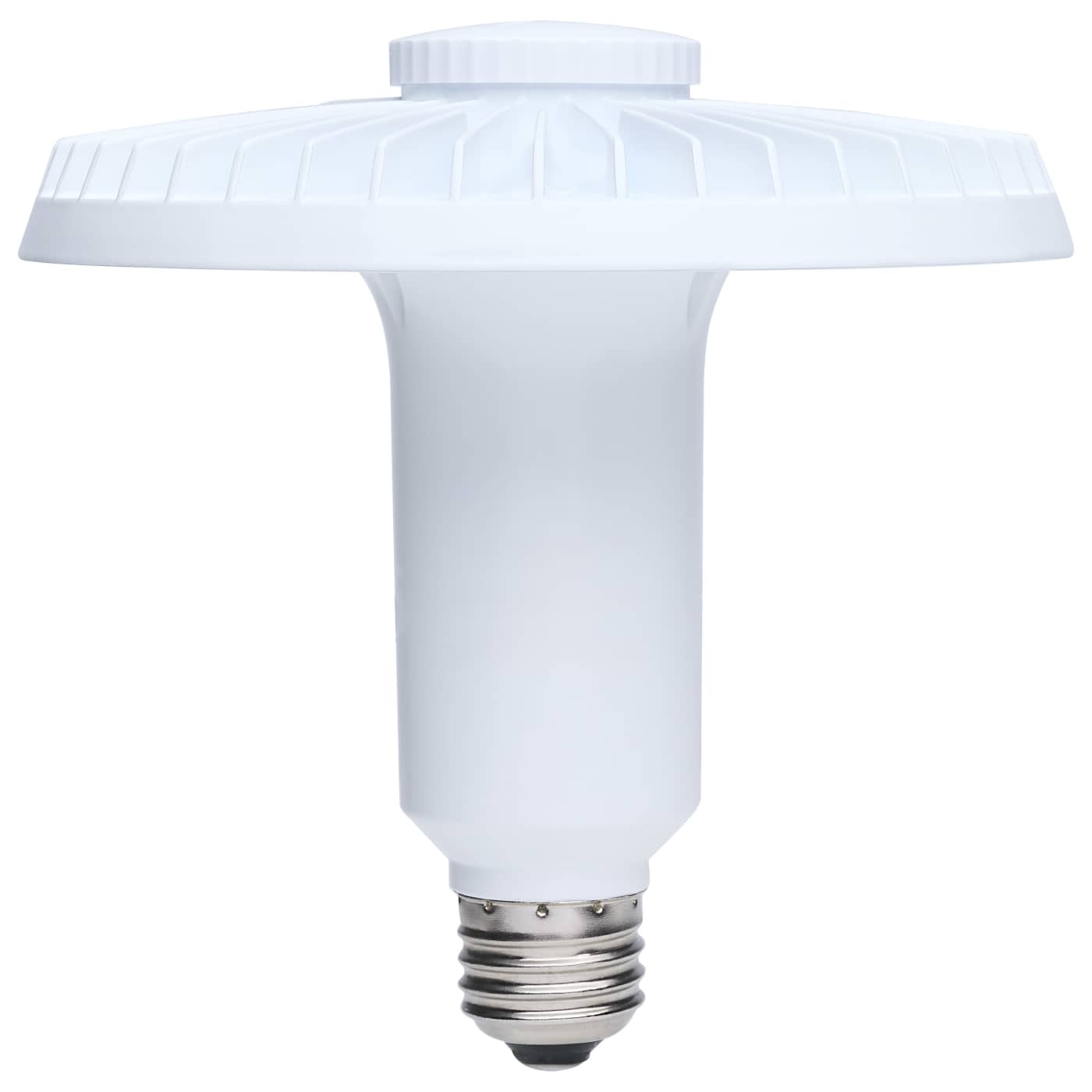

S13148

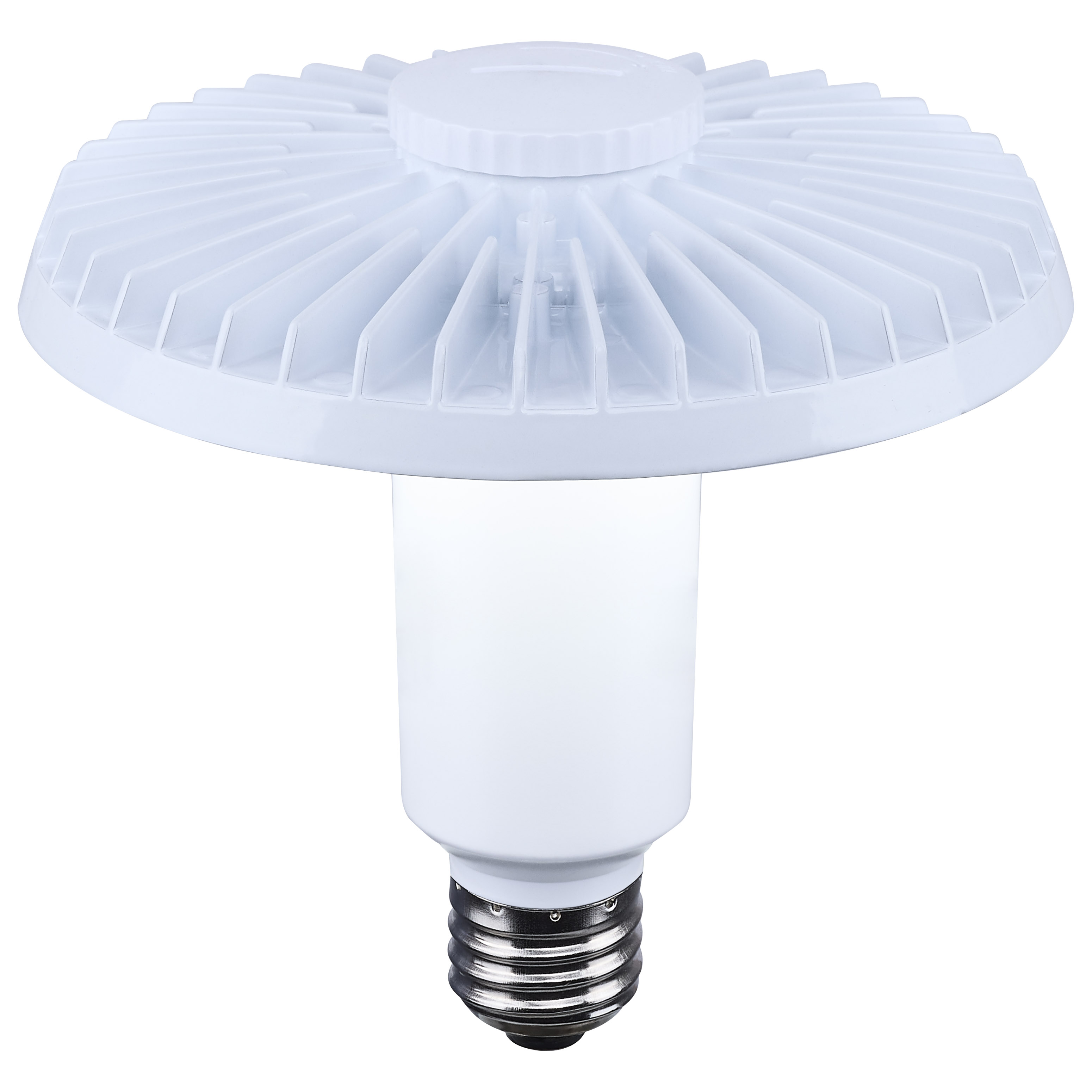

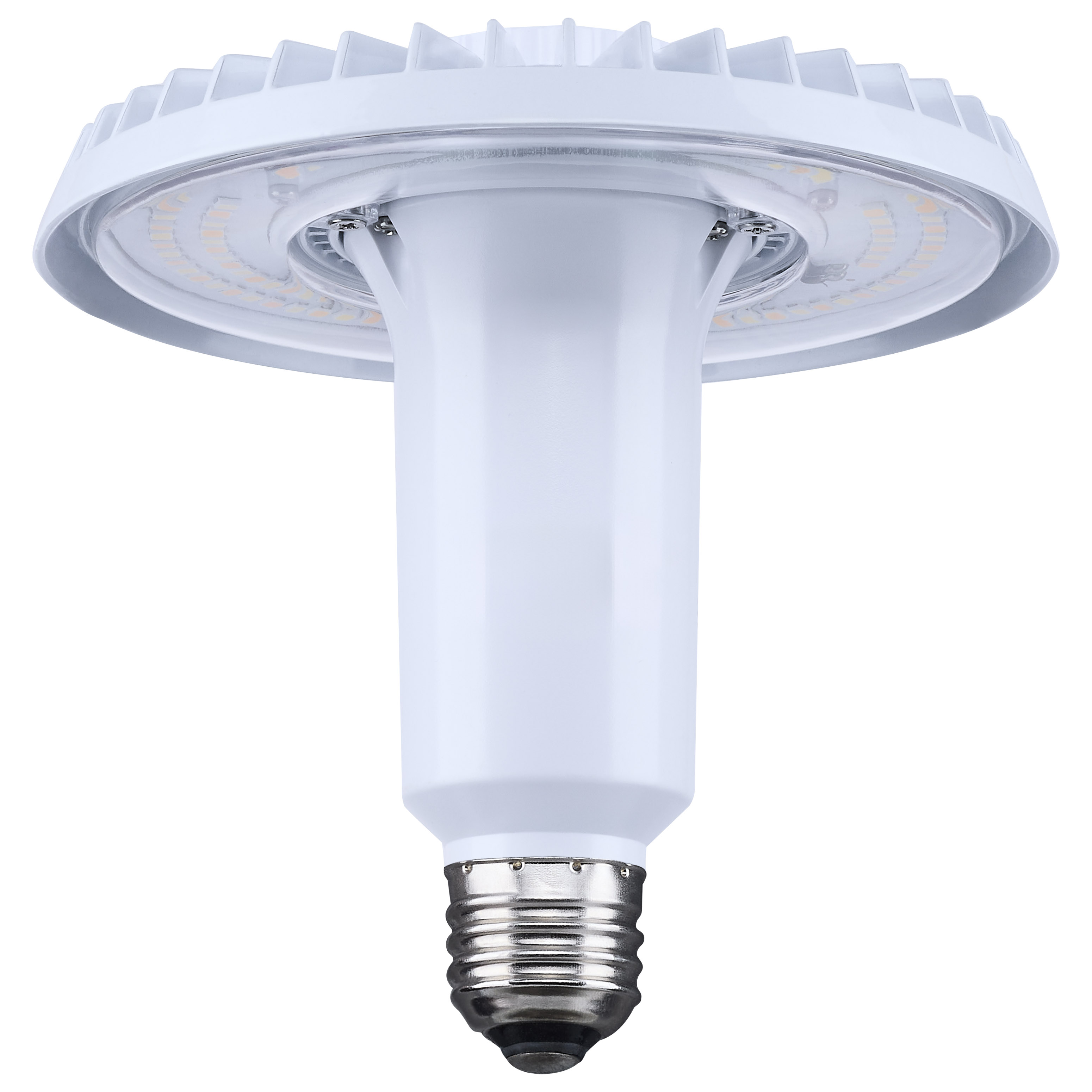

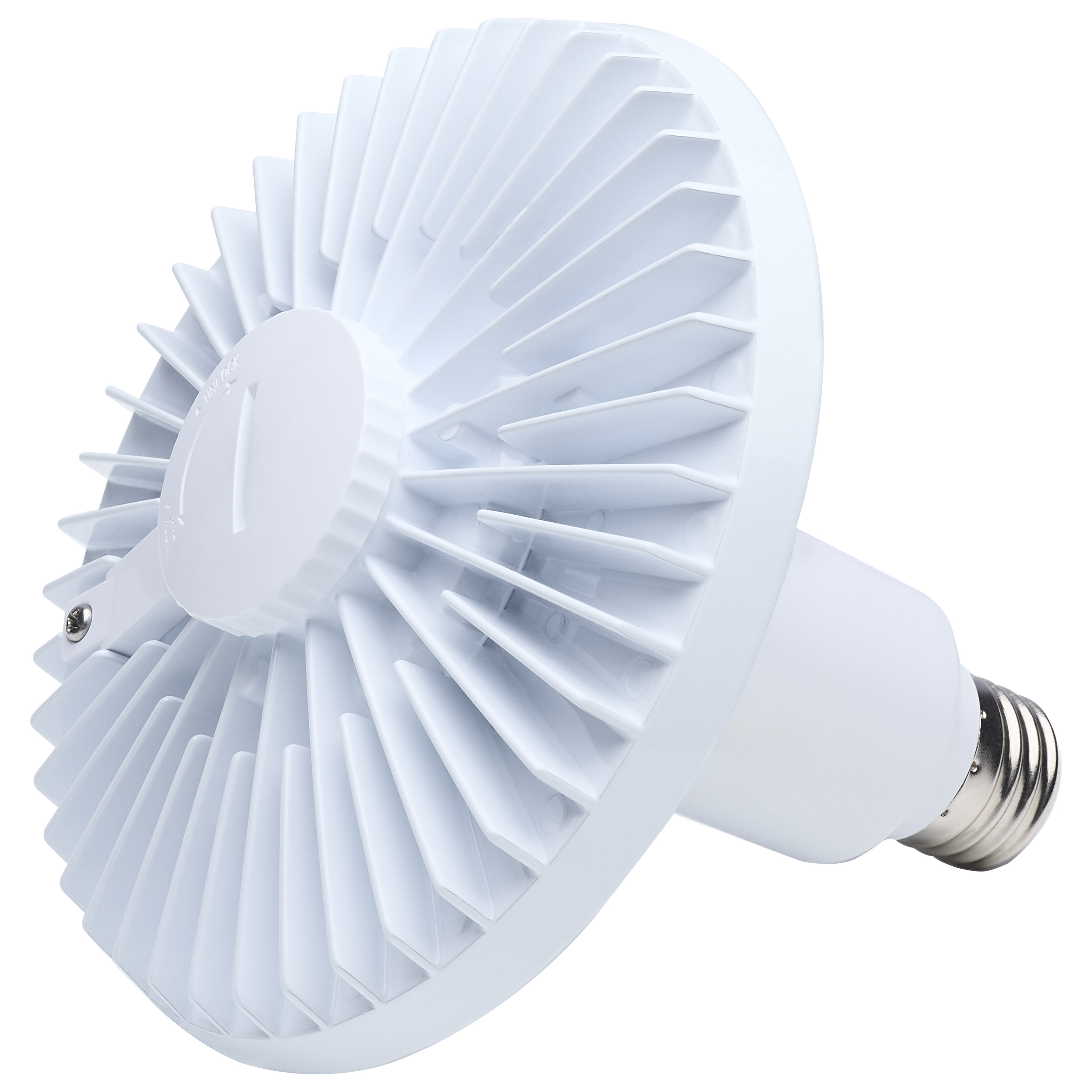

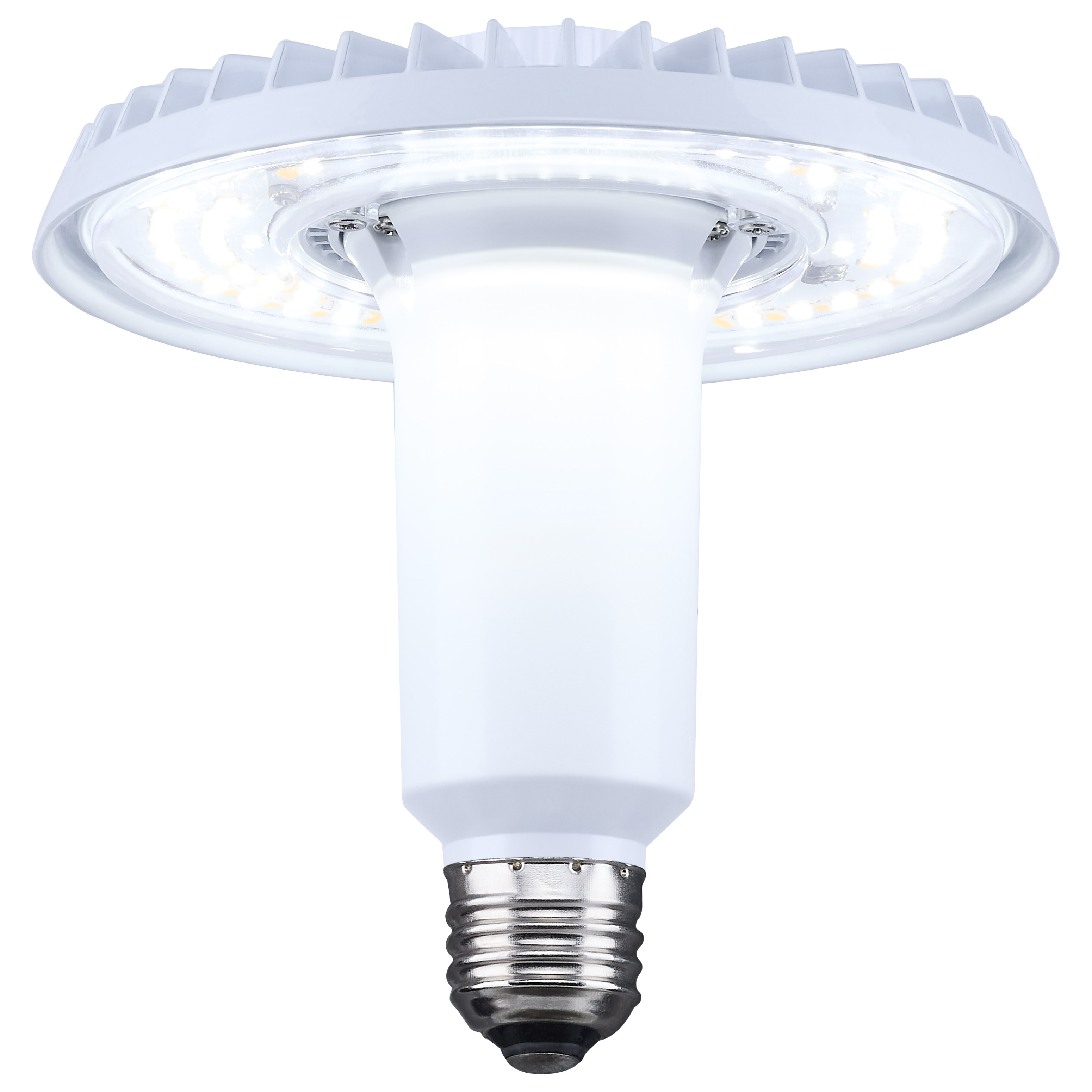

40HID/L/CCT3/E26/B/U

  • 40/30/20 Watt LED HID Replacement

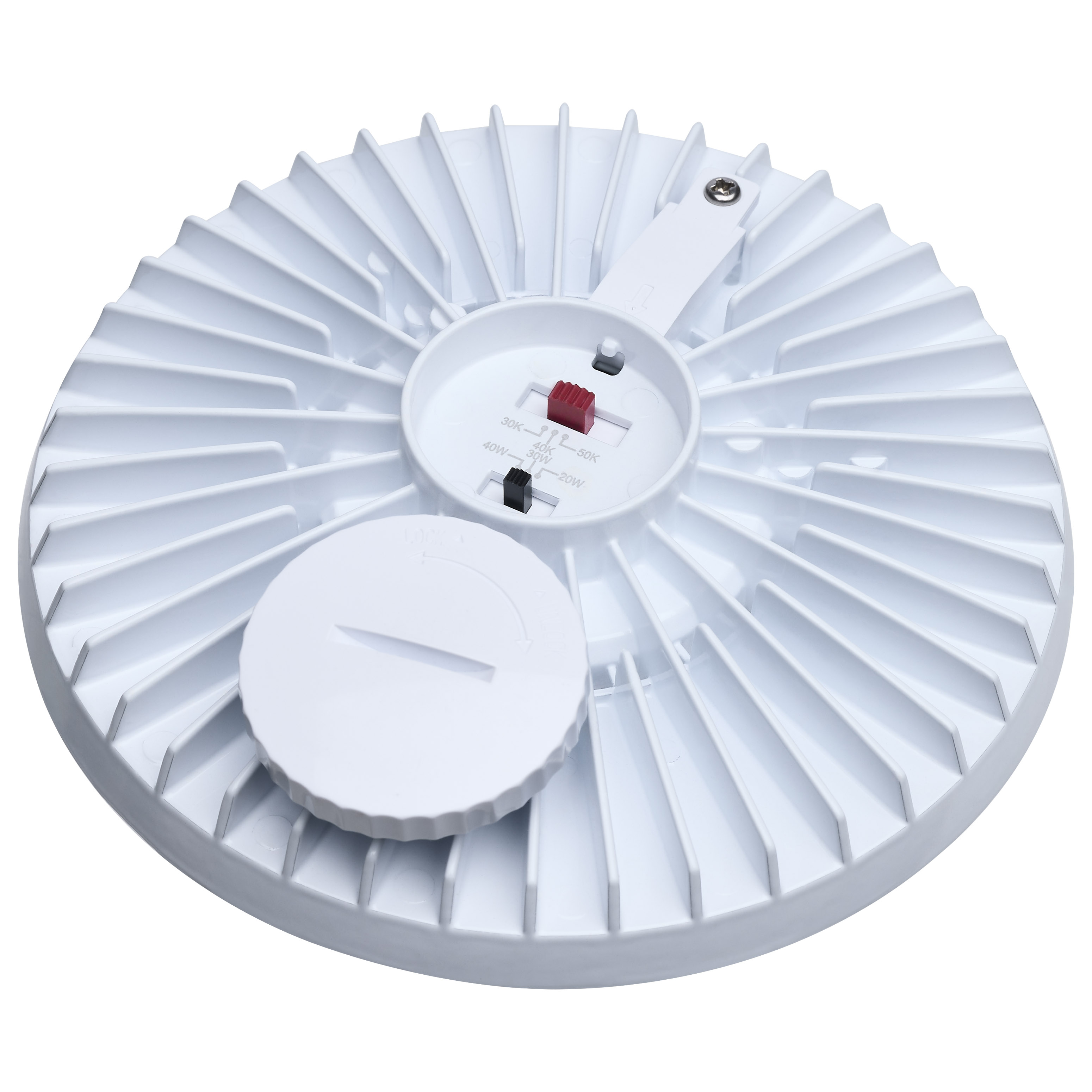

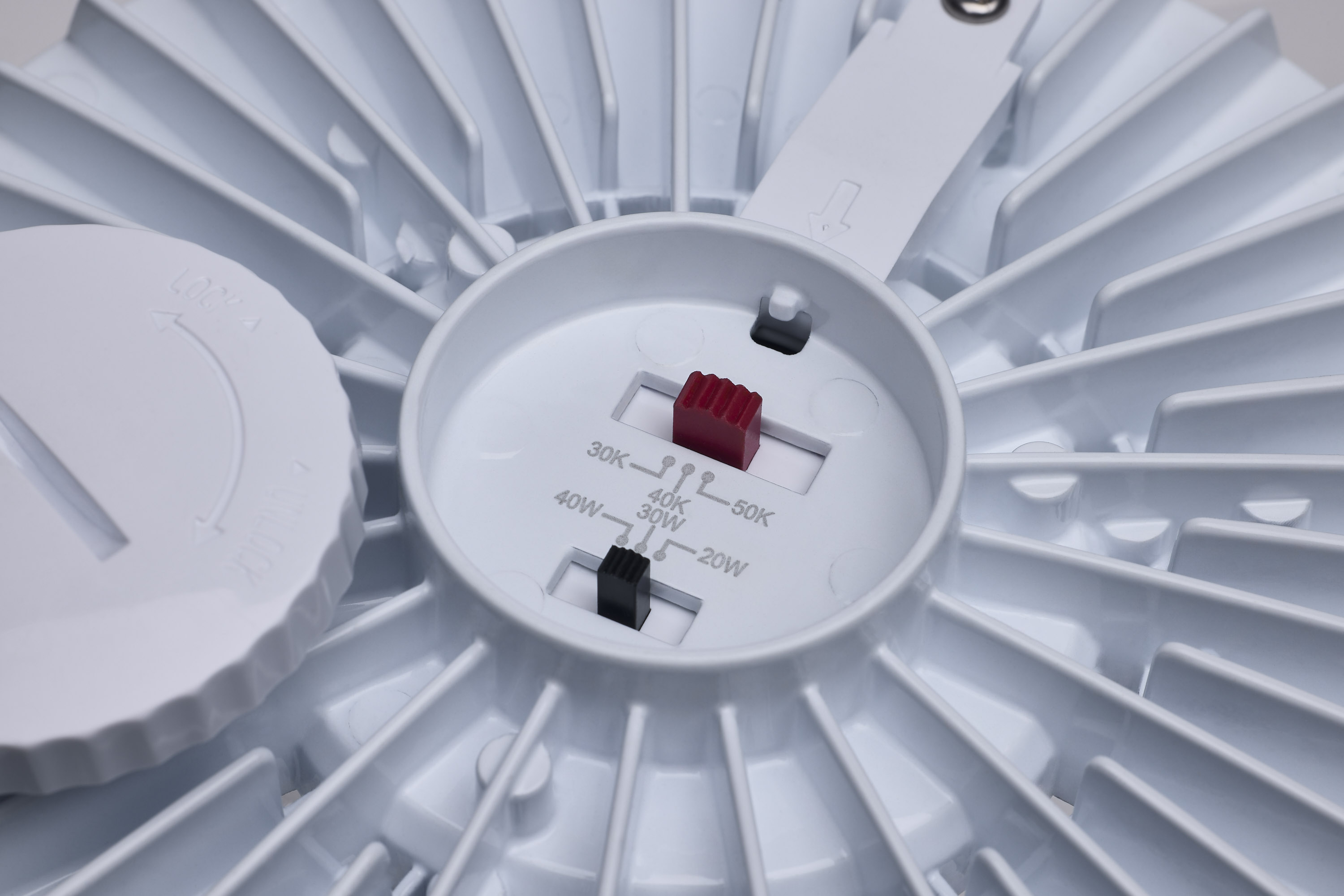

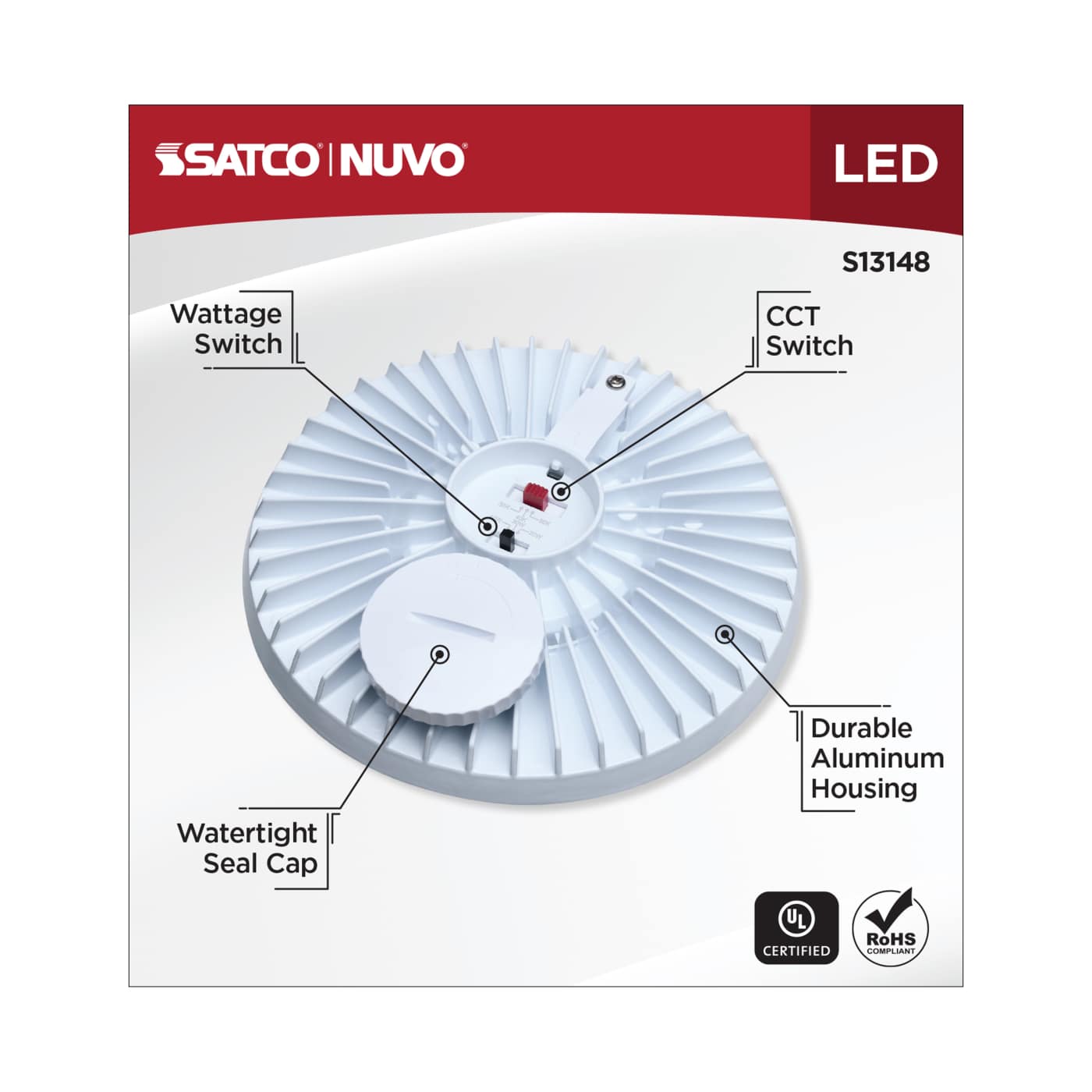

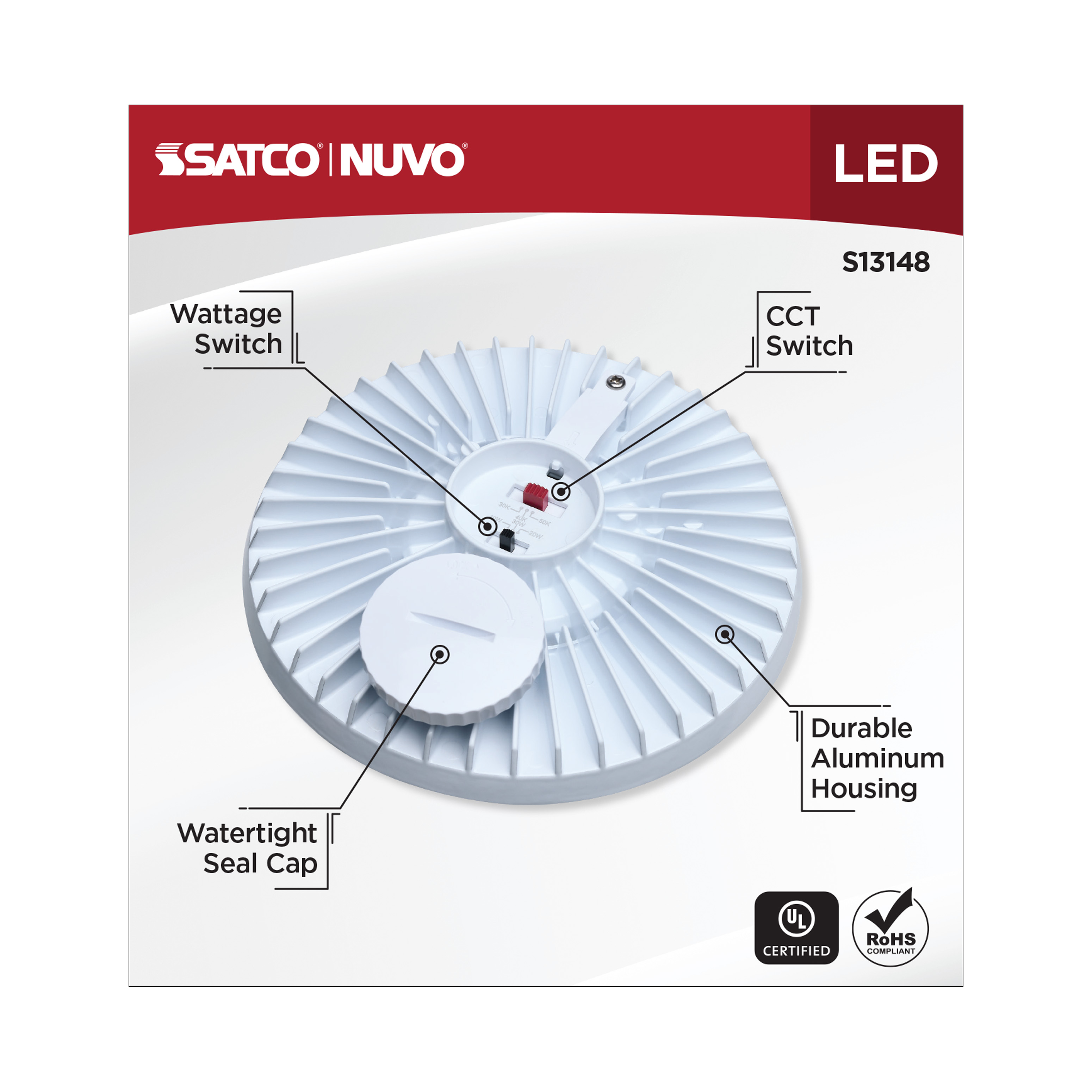

  • 3K/4K/5K CCT Selectable
  • Ballast Bypass
  • Medium Base
  • 120-277 Range Voltage
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S13148 SpecificationsS13148 InstructionsSN1888 Post Top LED PI SHEET FINAL
Tools
Lighting Layout Analysis For S13148
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
40/30/20 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Medium Base; 120-277 Range Voltage

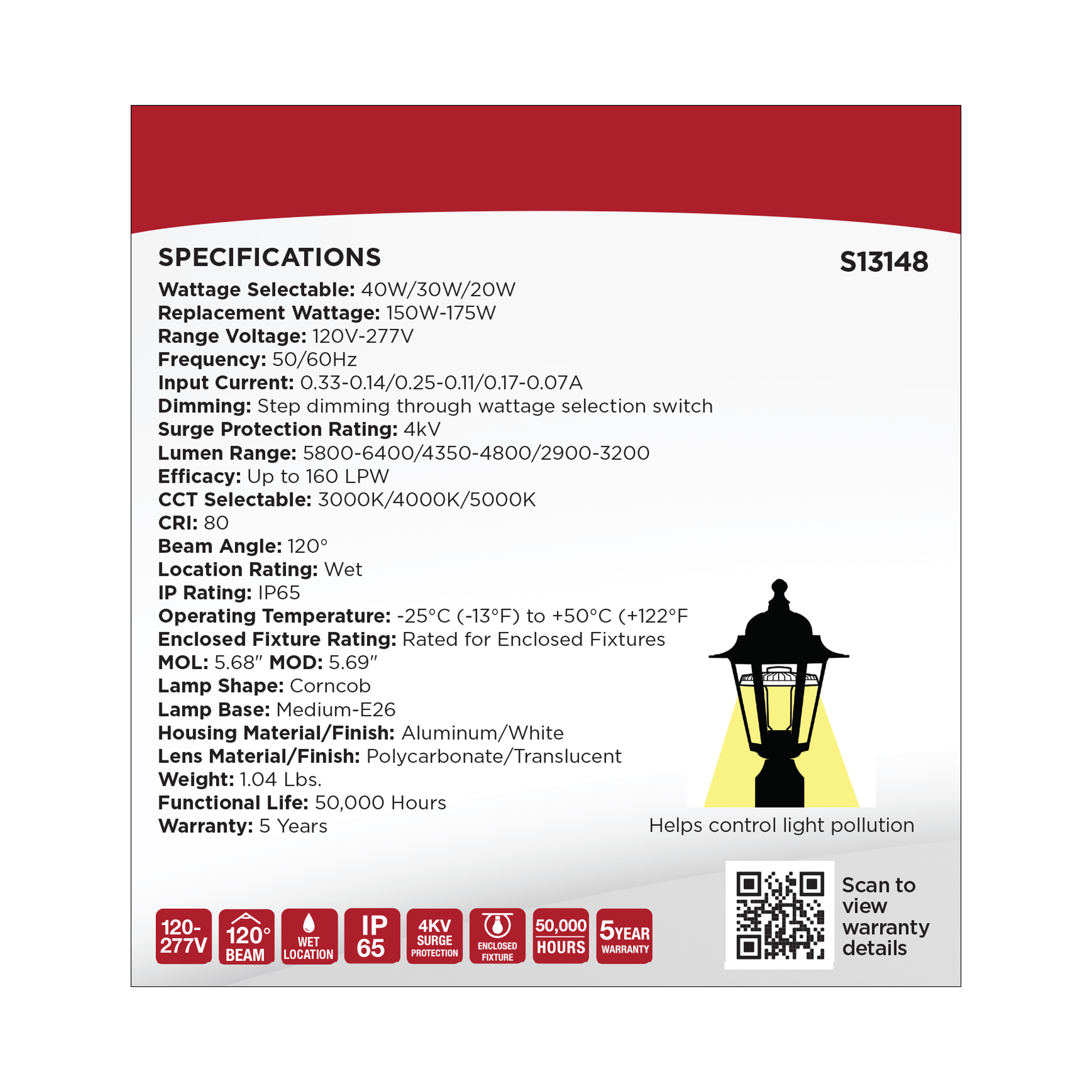

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - >2600 Lumens
Dimmable TextOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialAluminum
Fixture TypeLED HID
StatusActive
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%
CCT SelectableTrue

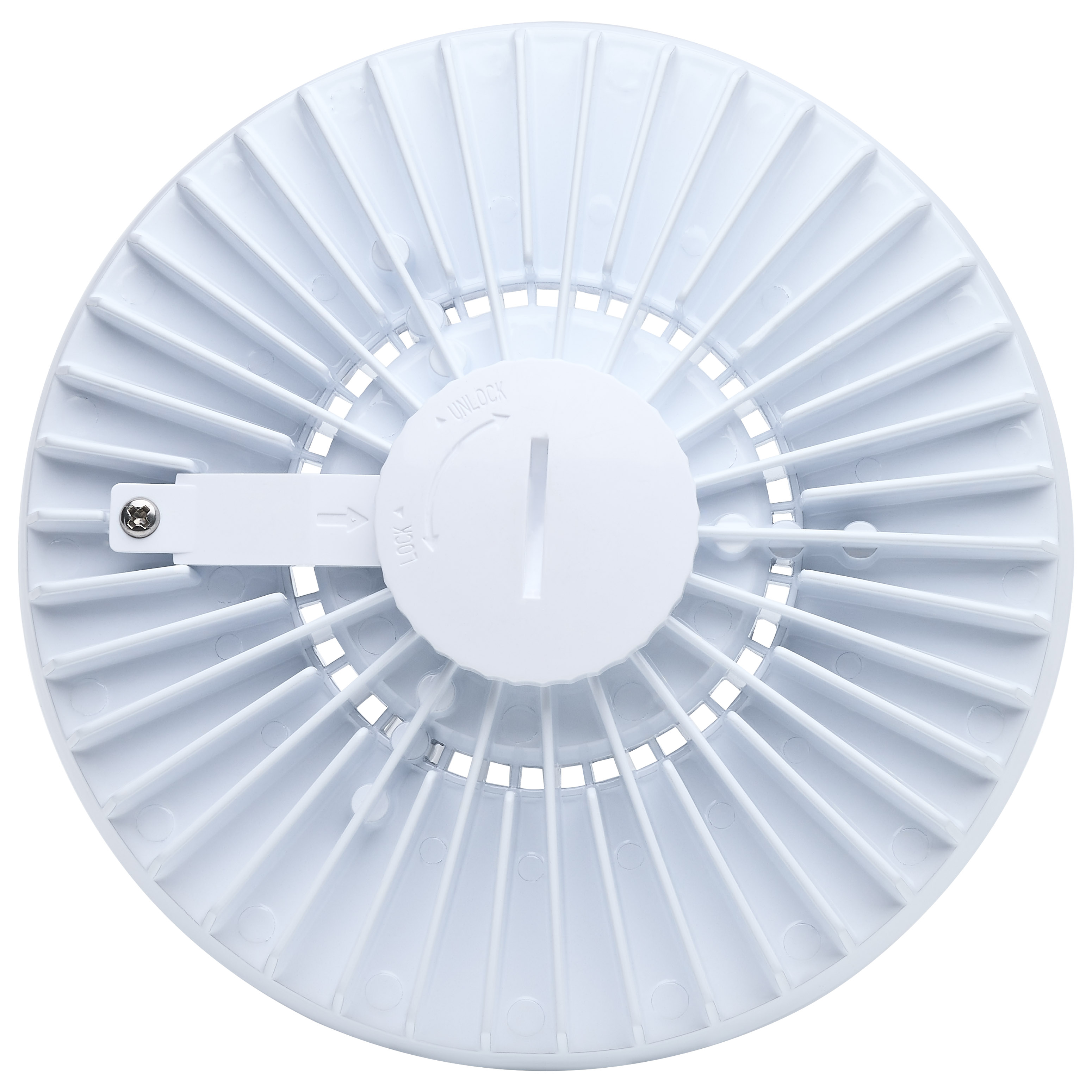

Wattage SelectableTrue
Finish FamilyClear
Amps0.333-0.144/0.250-0.108/0.167-0.072A
Has CameraFalse
IOT EnabledFalse
Lens FinishTranslucent
Lens MaterialPolycarbonate (PC)
LensedTrue
Operating PositionBase Down
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80
Dimming TypeStep Dimming
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +50C (+122F)
HID Equivalent150W-175W

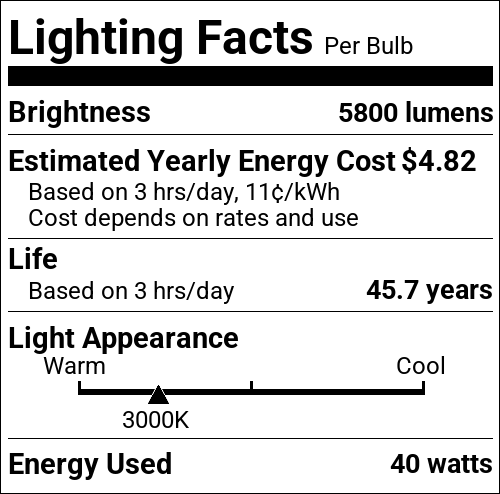

Lumens5800L-6400L/4350L-4800L/2900L-3200L
Volts120V-277V
Watts40W/30W/20W
Physical
Lamp BaseMedium
FinishClear
Housing ColorWhite
ANSI BaseE26
Lamp TypeCorncob

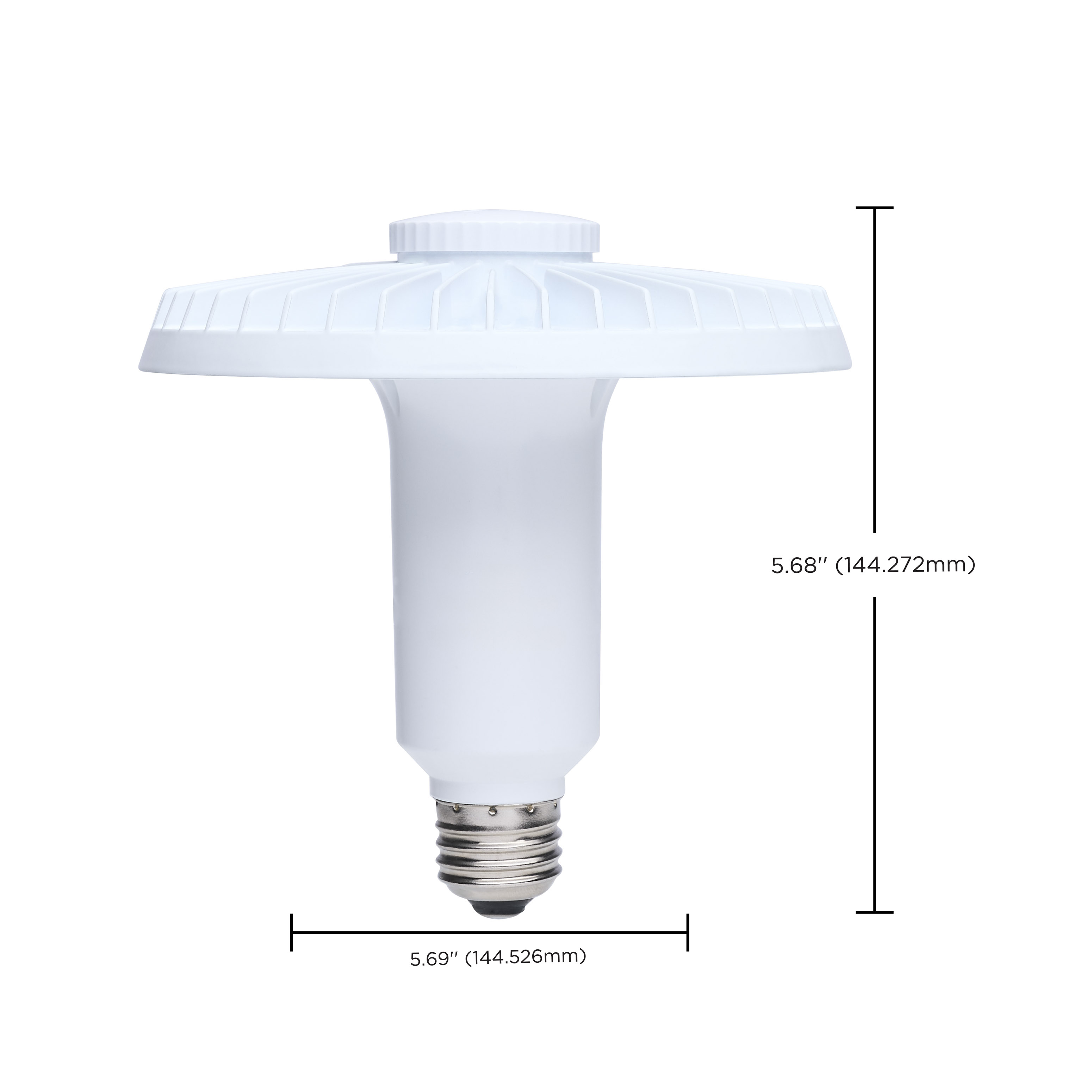

MOD Lamps5.69
MOL5.68
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
FCC CompliantTrue
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
CA Compliance TextLawful for sale
DLC ApprovedFalse
Title 20Exempt
Packaging
UPC045923131486
Case Cube2.5669
Case Height15.35
Case Length20.67
Case Quantity12
Case UPC10045923131483
Case Weight28.66
Case Width13.98
EA Cube0.1826
EA Height7.05
EA Length6.69
EA Quantity1
EA Weight1.95
EA Width6.69
Inner Cube0.0
Pack TypeBox
Web Length5.68
Web Width5.69
