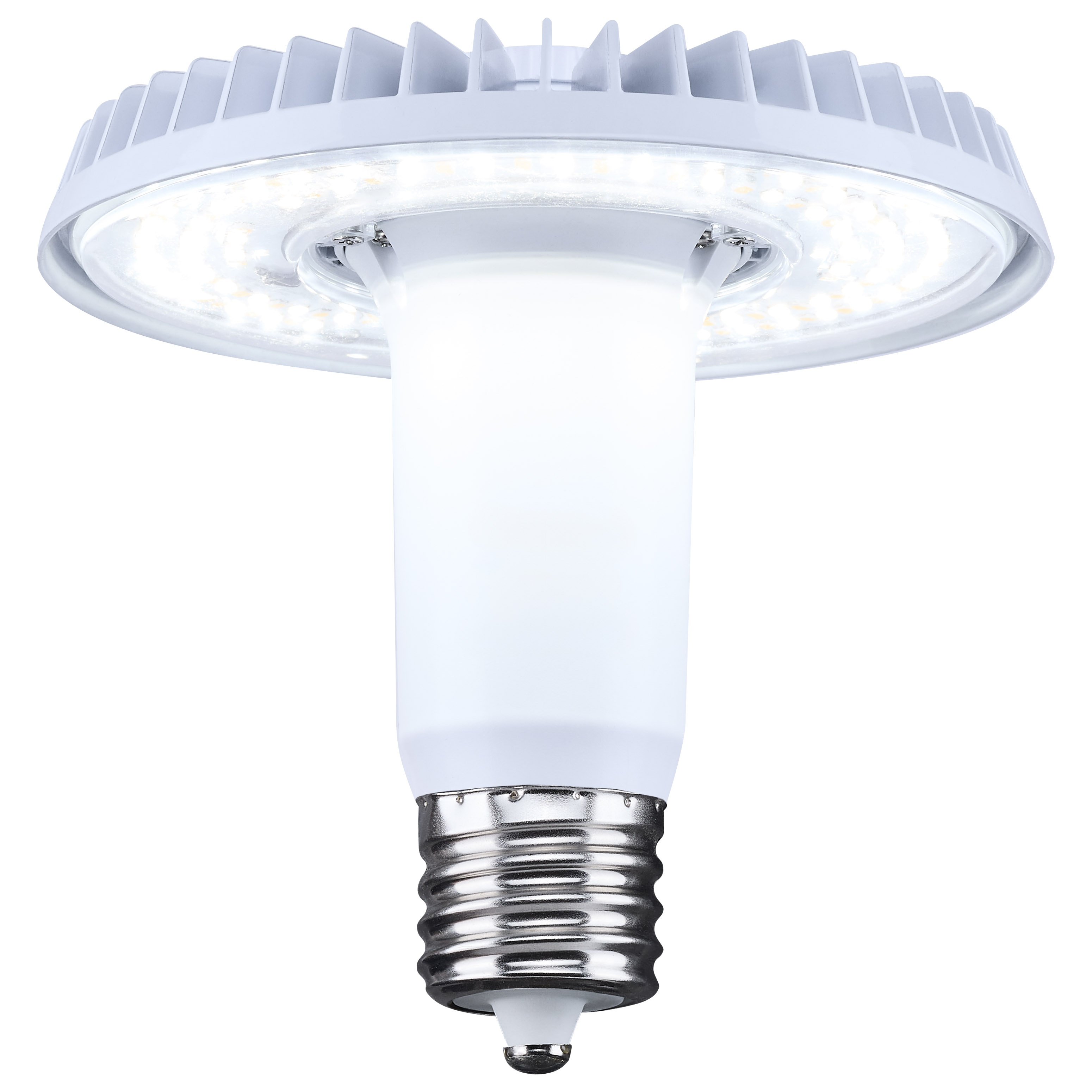

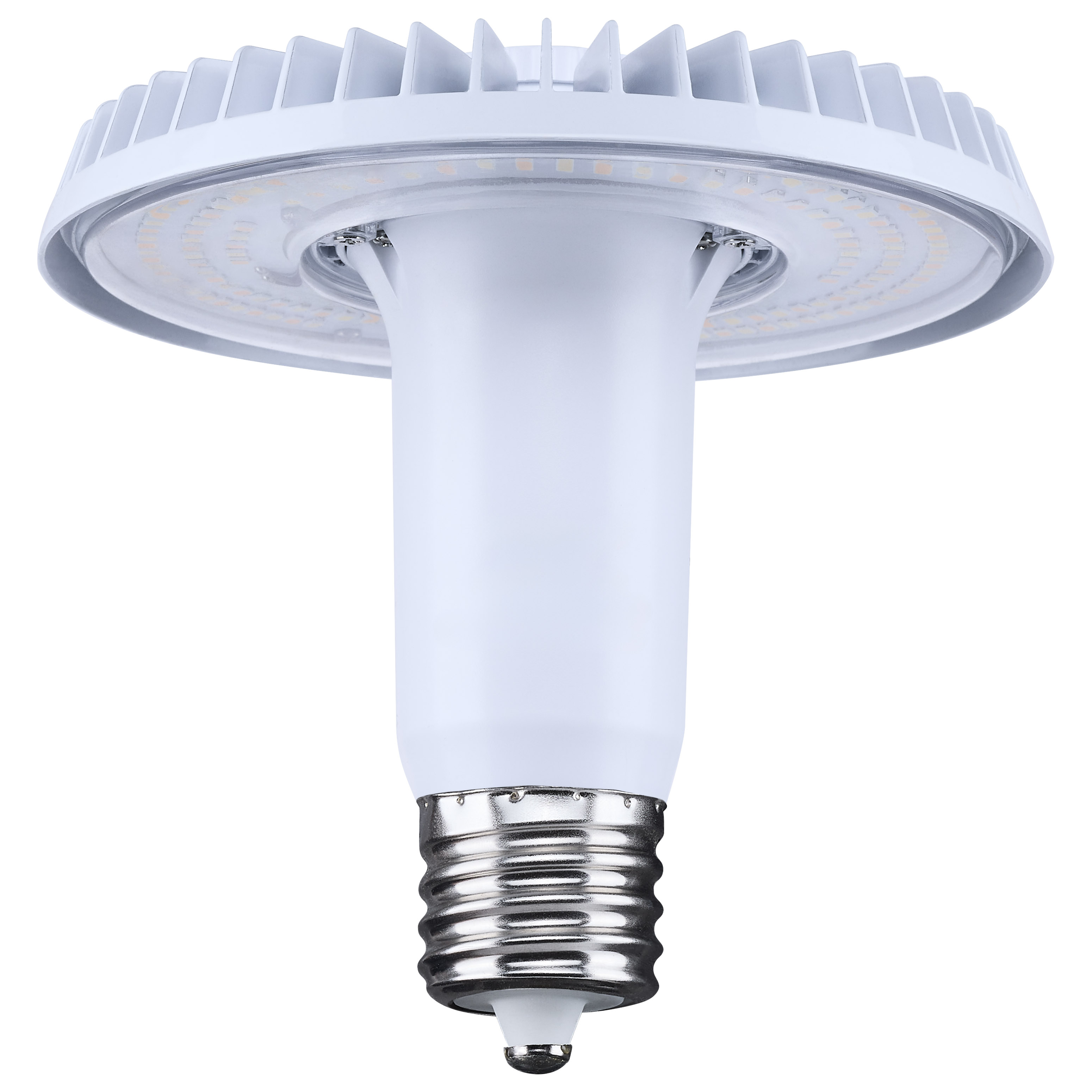

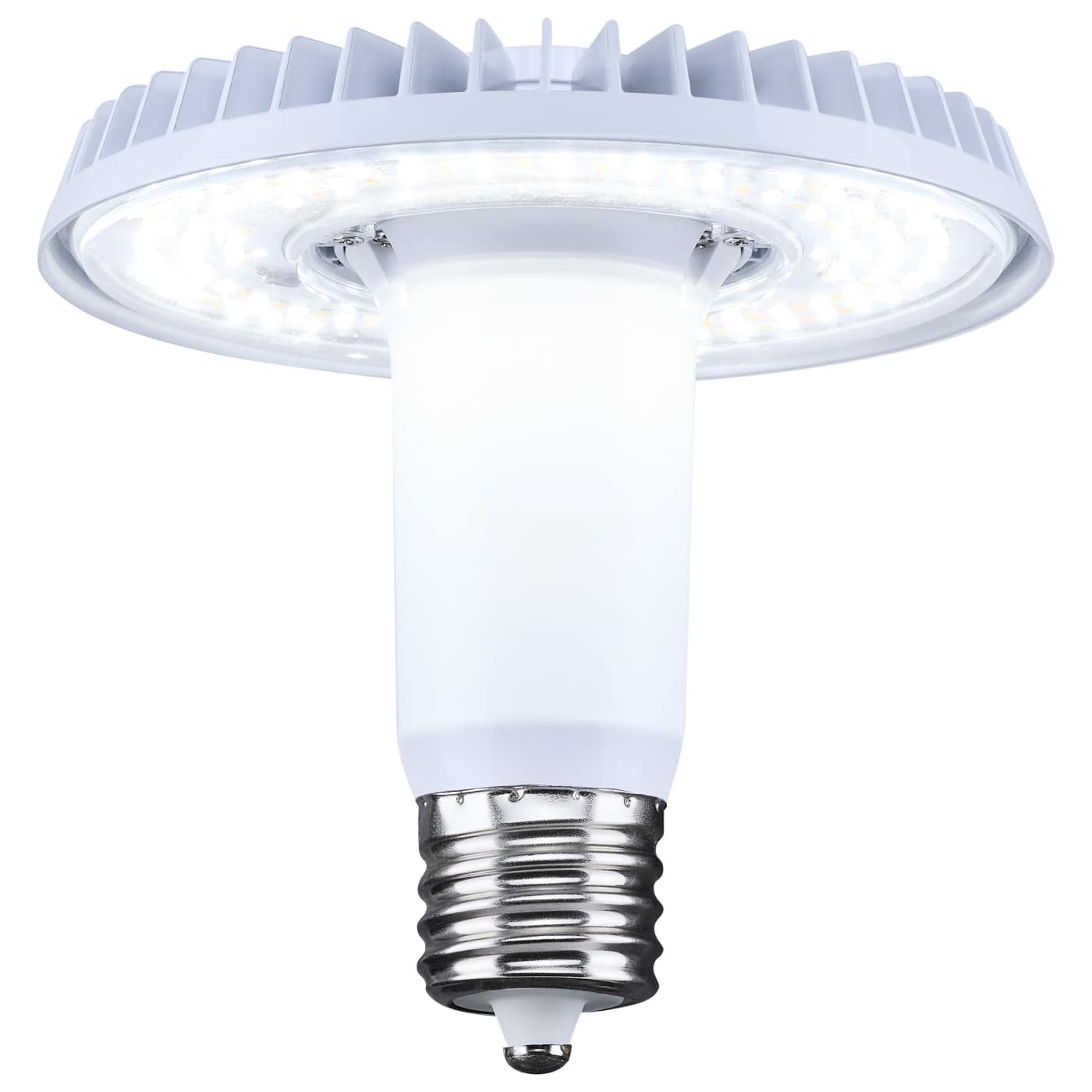

S13149

60HID/L/CCT3/EX39/B/U

  • 60/45/36 Watt LED HID Replacement

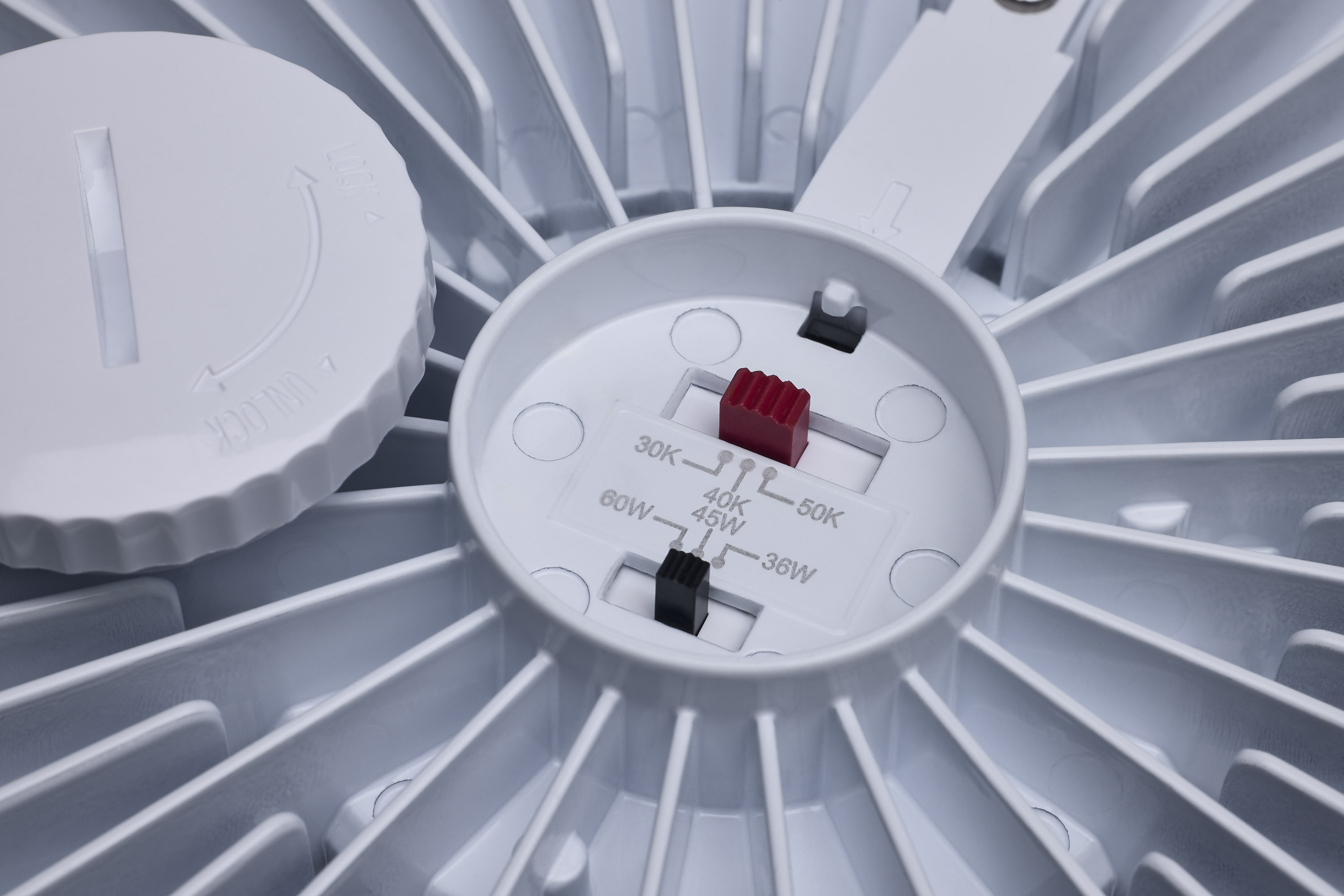

  • 3K/4K/5K CCT Selectable
  • Ballast Bypass
  • Extended Mogul Base
  • 120-277 Range Voltage
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP65^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S13149 SpecificationsS13149 Photometrics 3000K.iesS13149 Instructions.pdf
Tools
Lighting Layout Analysis For S13149
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
60/45/36 Watt LED HID Replacement; 3K/4K/5K CCT Selectable; Ballast Bypass; Extended Mogul Base; 120-277 Range Voltage

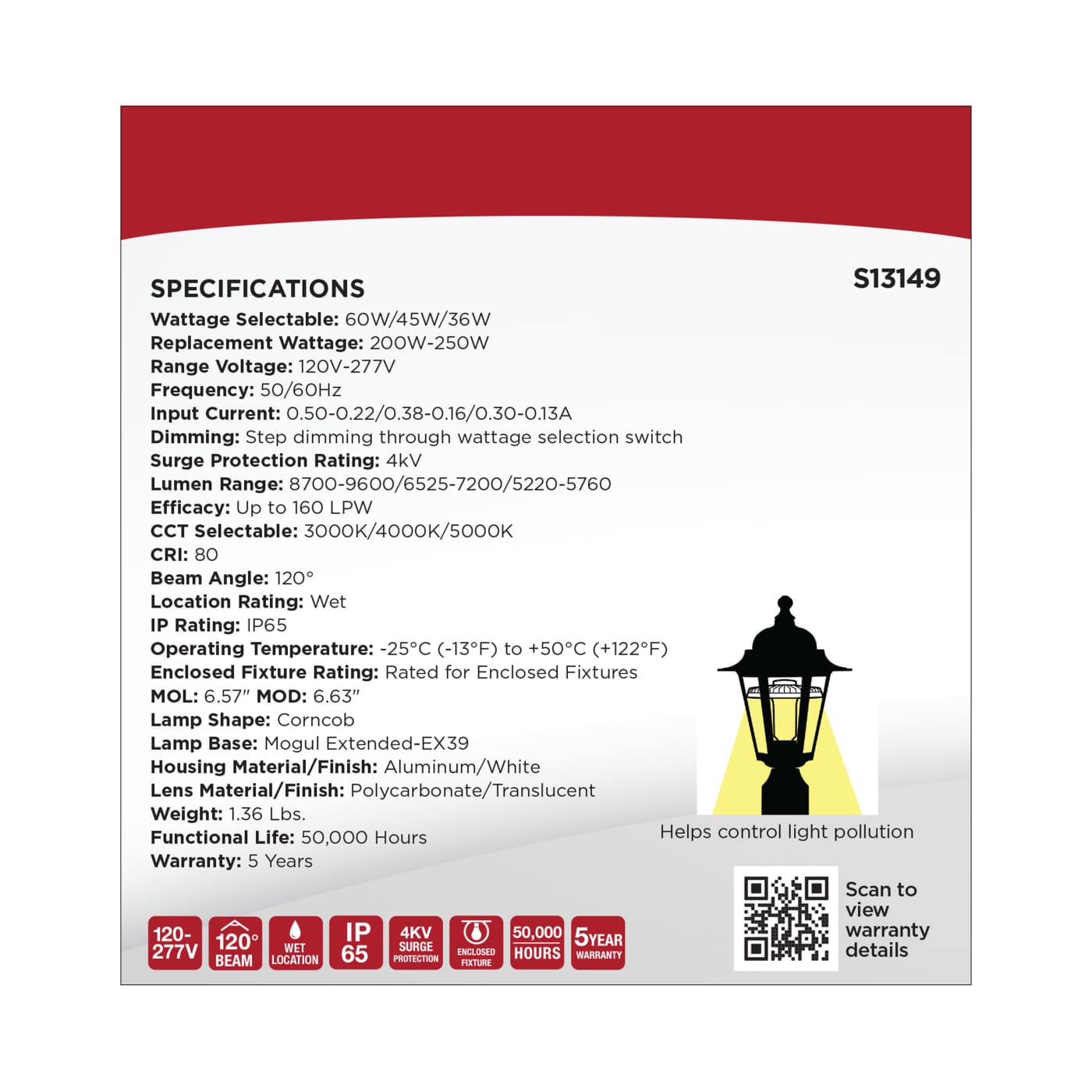

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Dimmable TextStep Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialAluminum
Fixture TypeLED HID
StatusActive
Surge ProtectionBuilt-in surge protection - 4KV
Total Harmonic Distortion<20%

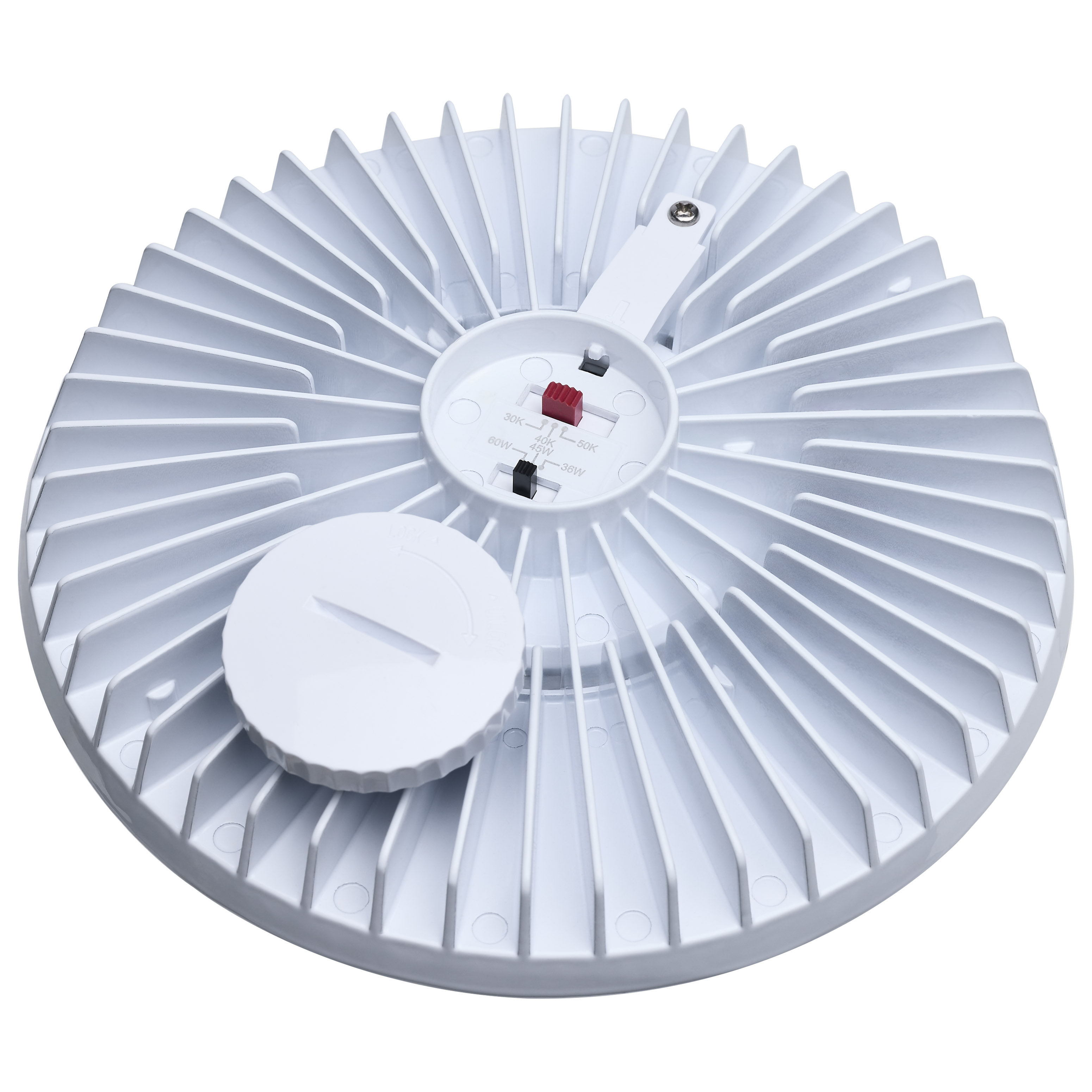

CCT SelectableYes
Wattage SelectableYes
Finish FamilyClear
Amps0.500-0.217/0.375-0.162/0.300-0.130A
Has CameraNo
IOT EnabledNo
Lens FinishTranslucent
Lens MaterialPolycarbonate (PC)
LensedYes
Operating PositionBase Down
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)120
Color TempSoft White to Natural Light
CRI80
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +50C (+122F)
HID Equivalent200W-250W
Lumens8700L-9600L/6525L-7200L/5220L-5760L
Volts120V-277V
Watts60W/45W/36W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeCorncob

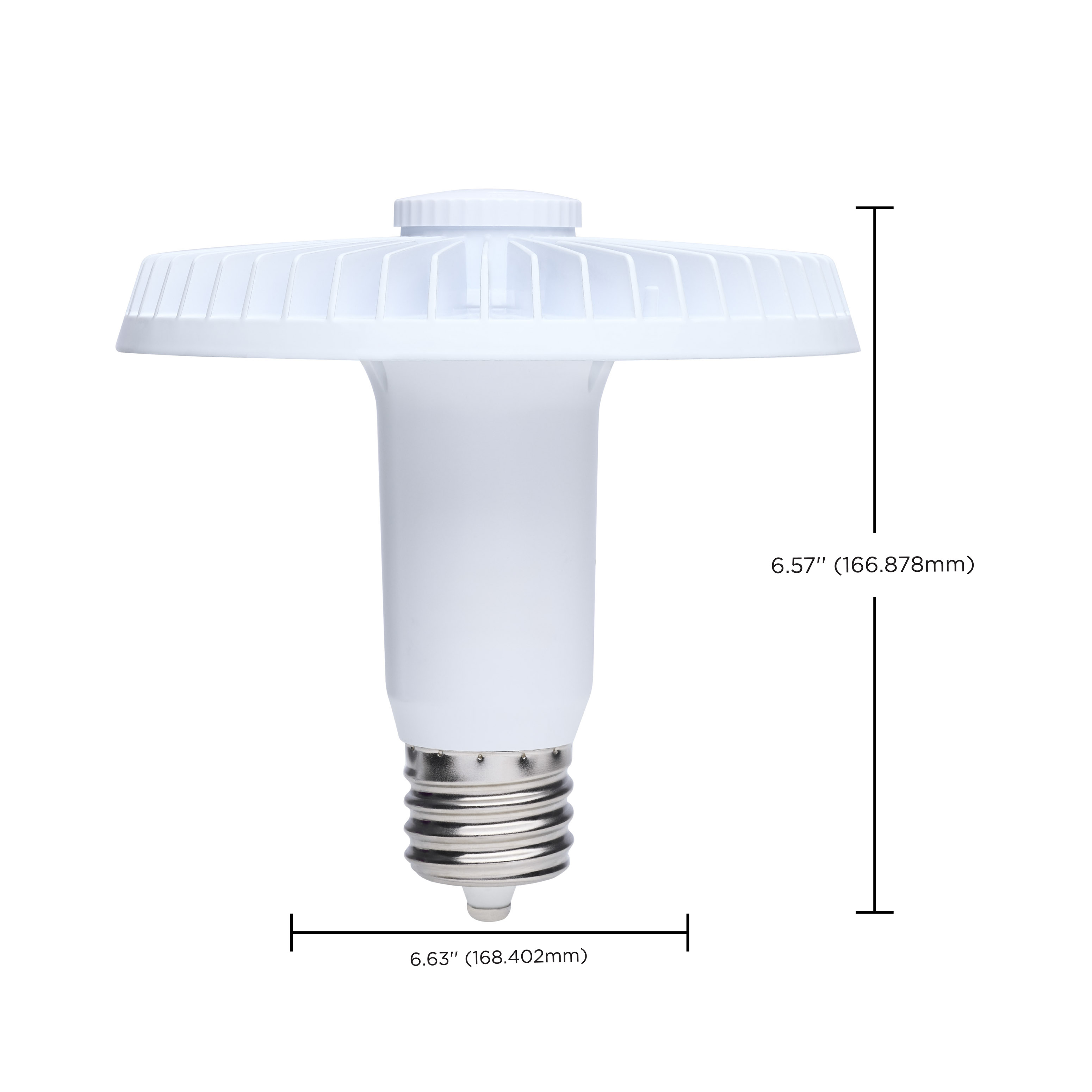

MOD Lamps6.63
MOL6.57
Additional Info
Warranty5-Years
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-2R1YW3
FCC CompliantYes
IP RatingIP65
Location RatingWet
ROHS CompliantYes
Safety ListingcULus
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923131493
Case Cube3.8609
Case Height17.72
Case Length23.62
Case Quantity12
Case UPC10045923131490
Case Weight35.27
Case Width15.94
EA Cube0.27
EA Height7.91
EA Length7.68
EA Quantity1
EA Weight2.87
EA Width7.68
Inner Cube0.0
Pack TypeBox
Web Length6.57
Web Width6.63
