| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Aluminum |
| Fixture Type | Type A |

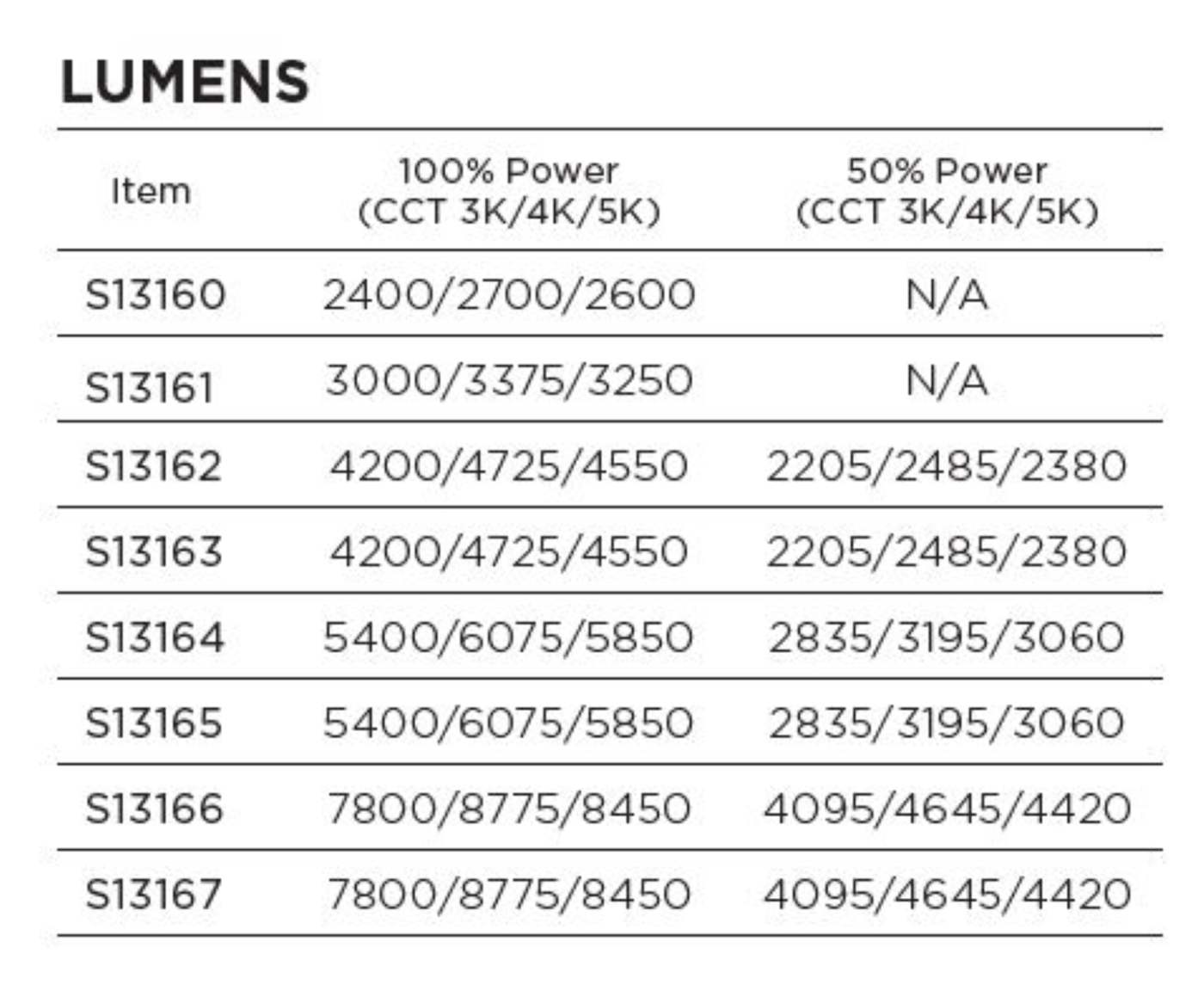

| Product Notes | Lumen/Watt/CCT Ratio Chart in Documents. |
| Status | Active |
| Style | Contemporary |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | 15% |

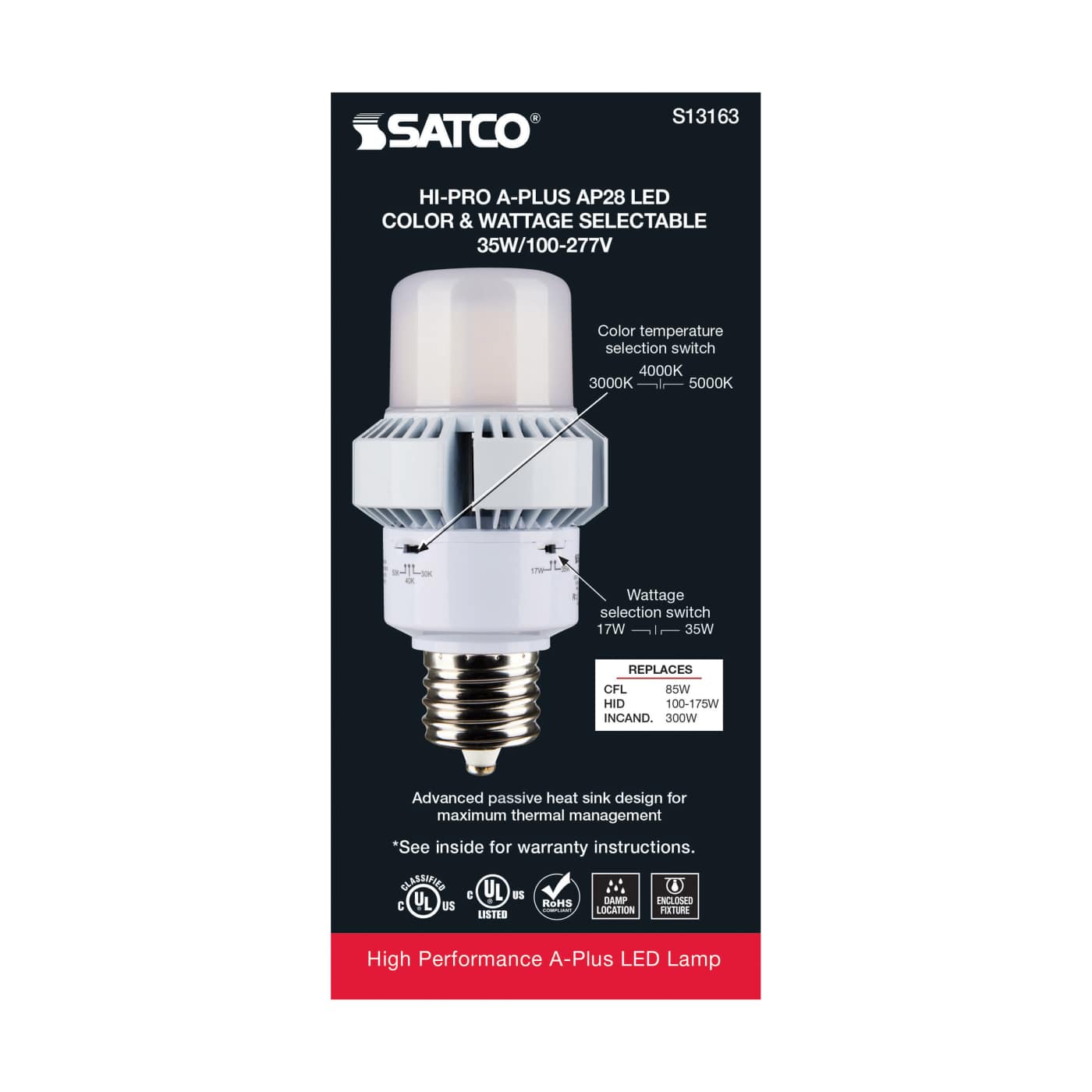

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |
| Amps | 0.350-0.126/0.170-0.061A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length: 6 in. Width: 6 in. Height: 8.5 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| Fluor Equiv | 85W |
| Incandescent Equivalent | 300W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Hours Rated | 50000 |
| Beam Angle (degree) | 280 |
| Color Temp | Warm to Cool White |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -22C (-30F) to +45C (+113F) |
| HID Equivalent | 100W-175W |

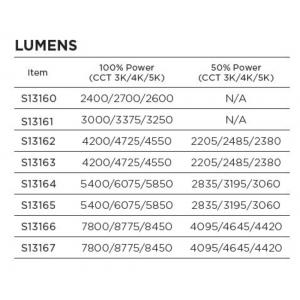

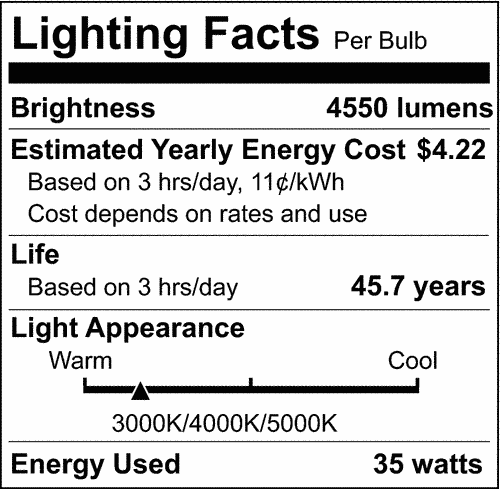

| Lumens | 4550L/2380L |
| Volts | 120V-277V |
| Watts | 35W/17W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | EX39 |

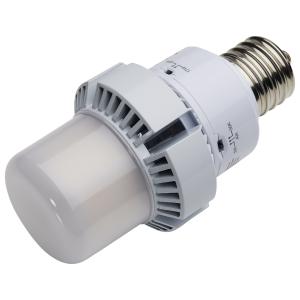

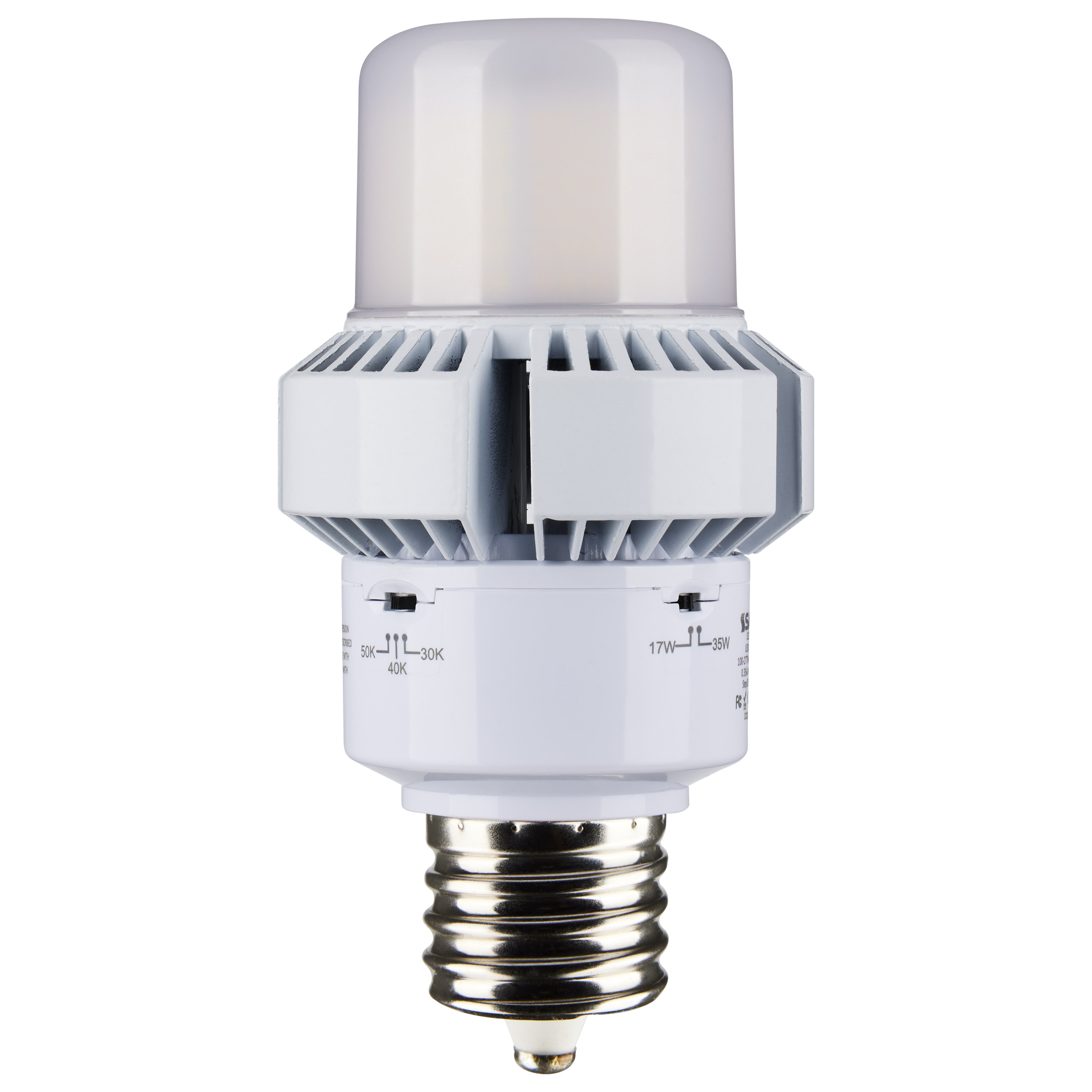

| Lamp Type | AP28 |

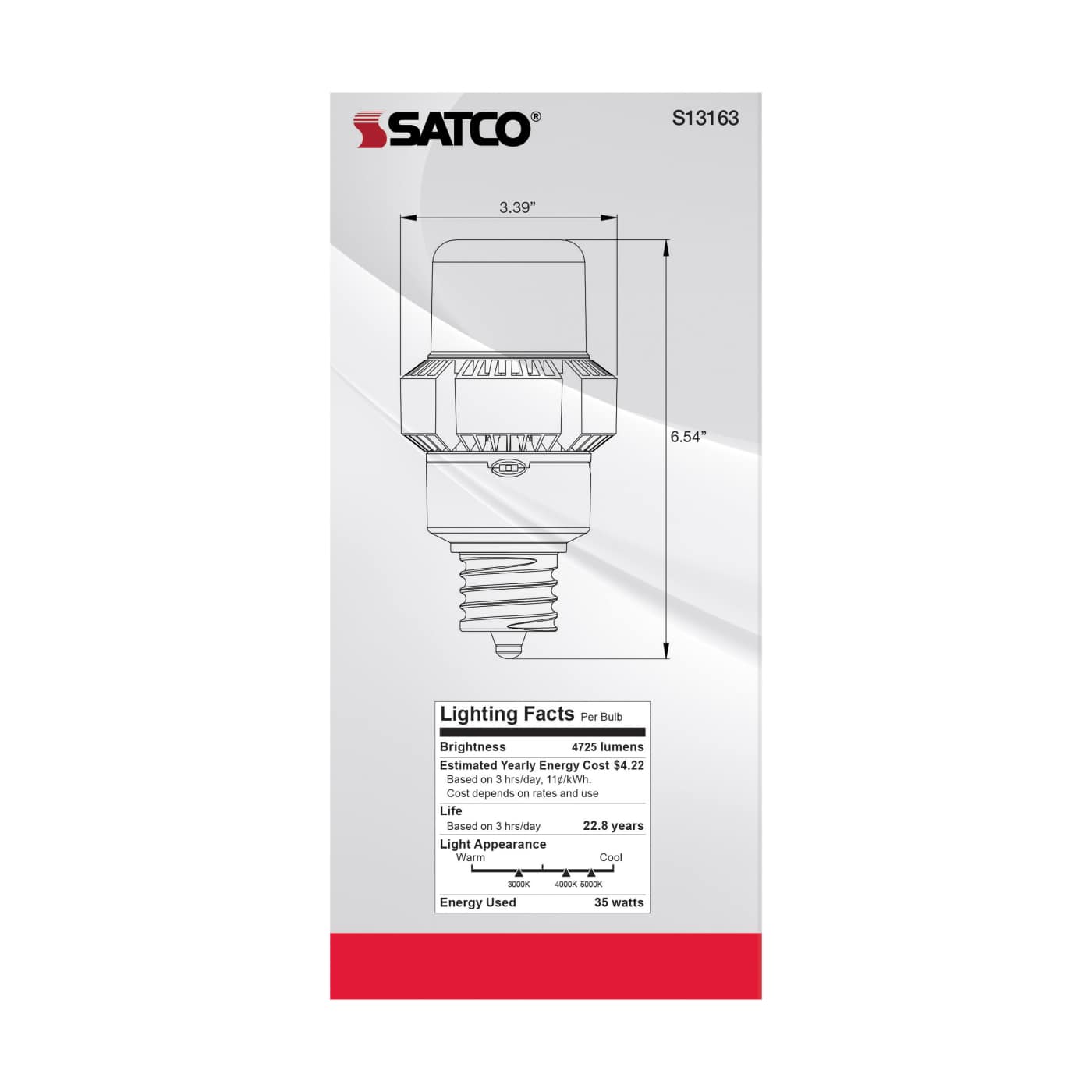

| MOD Lamps | 3.39 |
| MOL | 6.54 |
| Warranty | 5-Years |
|---|---|

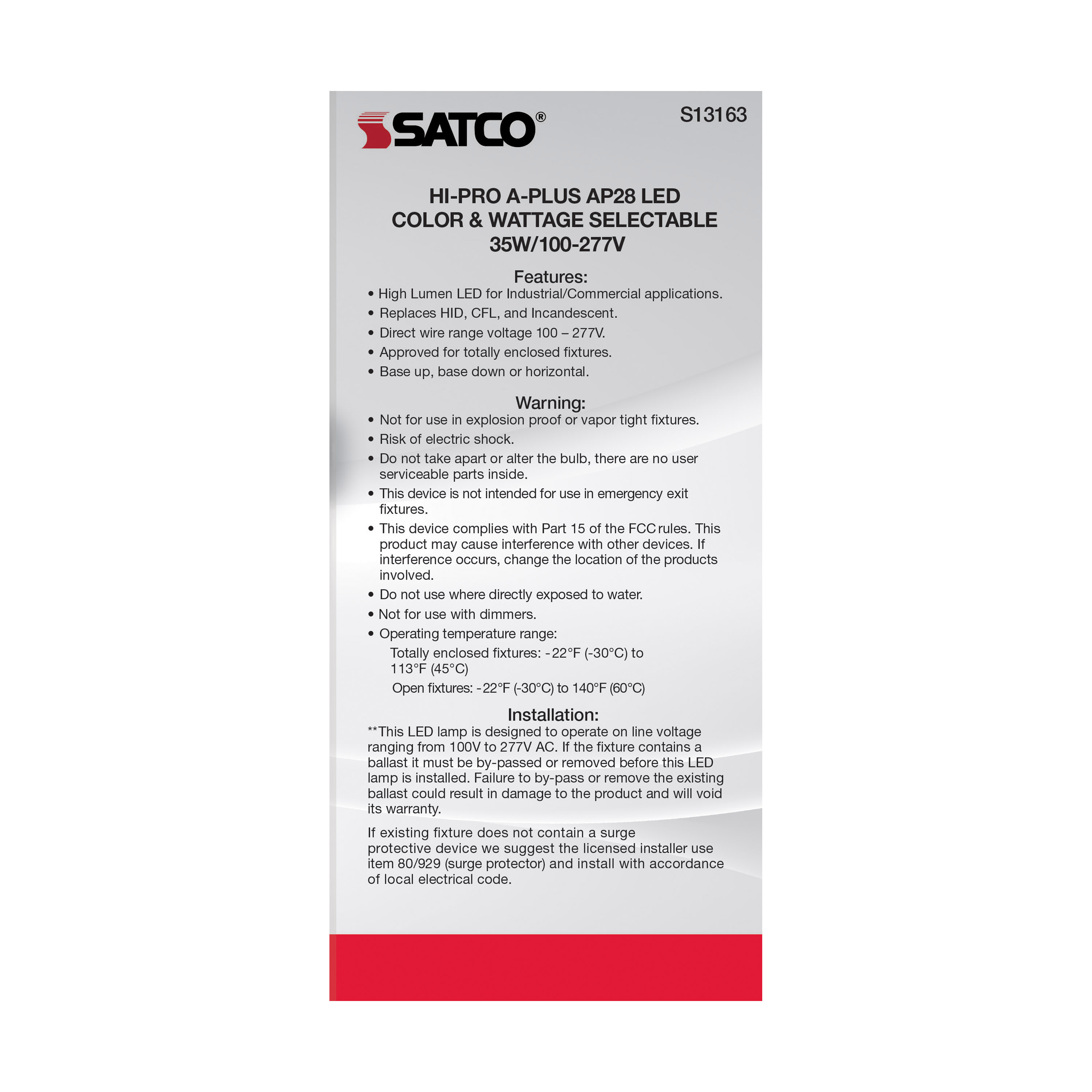

| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-B1AY6N |
| FCC Compliant | True |
| IP Rating | IP64 |
| Location Rating | Damp |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923131639 |
|---|---|
| Case Cube | 0.7962 |
| Case Height | 8.3 |
| Case Length | 14.8 |
| Case Quantity | 12 |
| Case UPC | 10045923131636 |
| Case Weight | 15.0 |
| Case Width | 11.2 |
| EA Cube | 0.0542 |
| EA Height | 7.48 |
| EA Length | 3.54 |
| EA Quantity | 1 |
| EA Weight | 1.18 |
| EA Width | 3.54 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Box |
| Web Length | 6.54 |
| Web Width | 3.39 |
