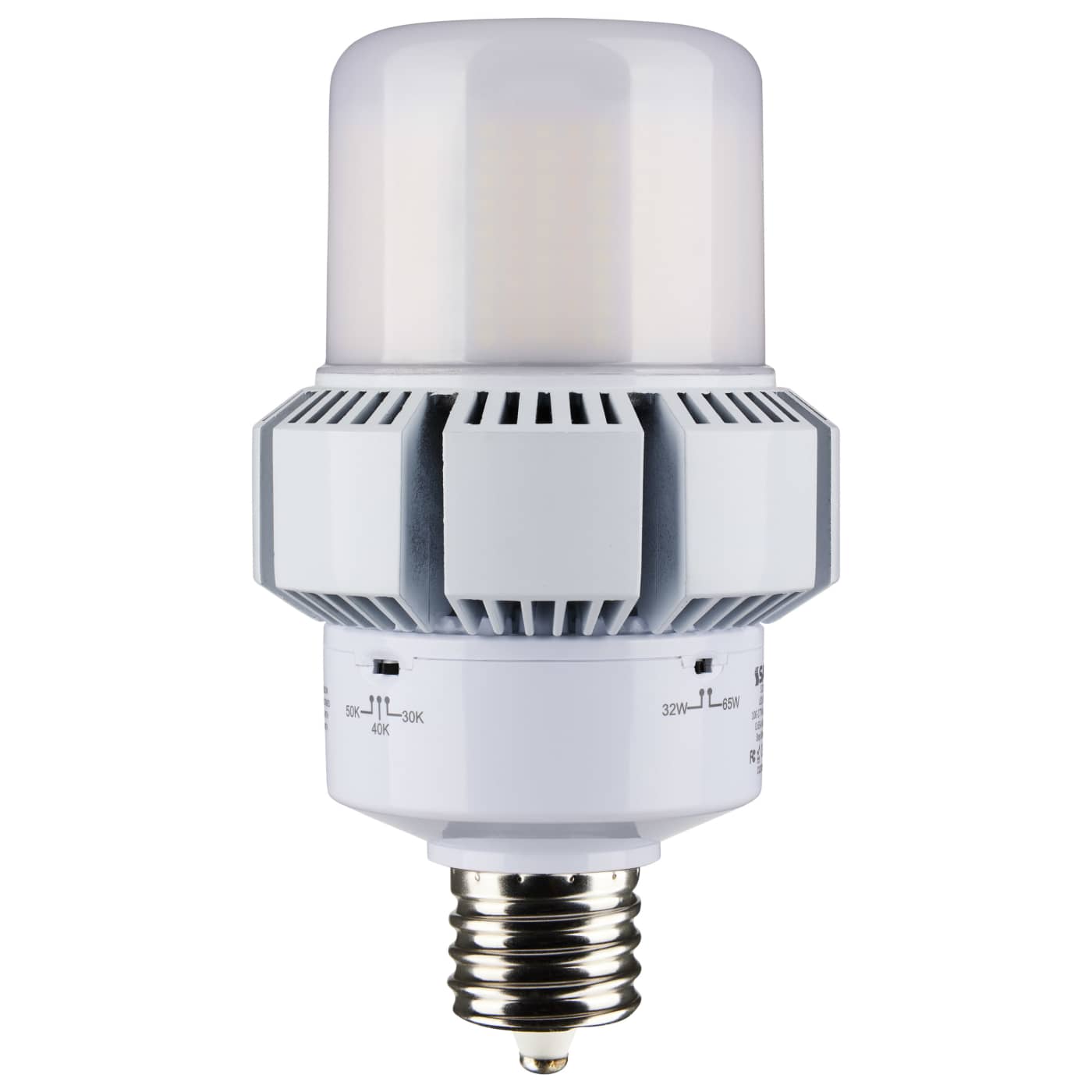

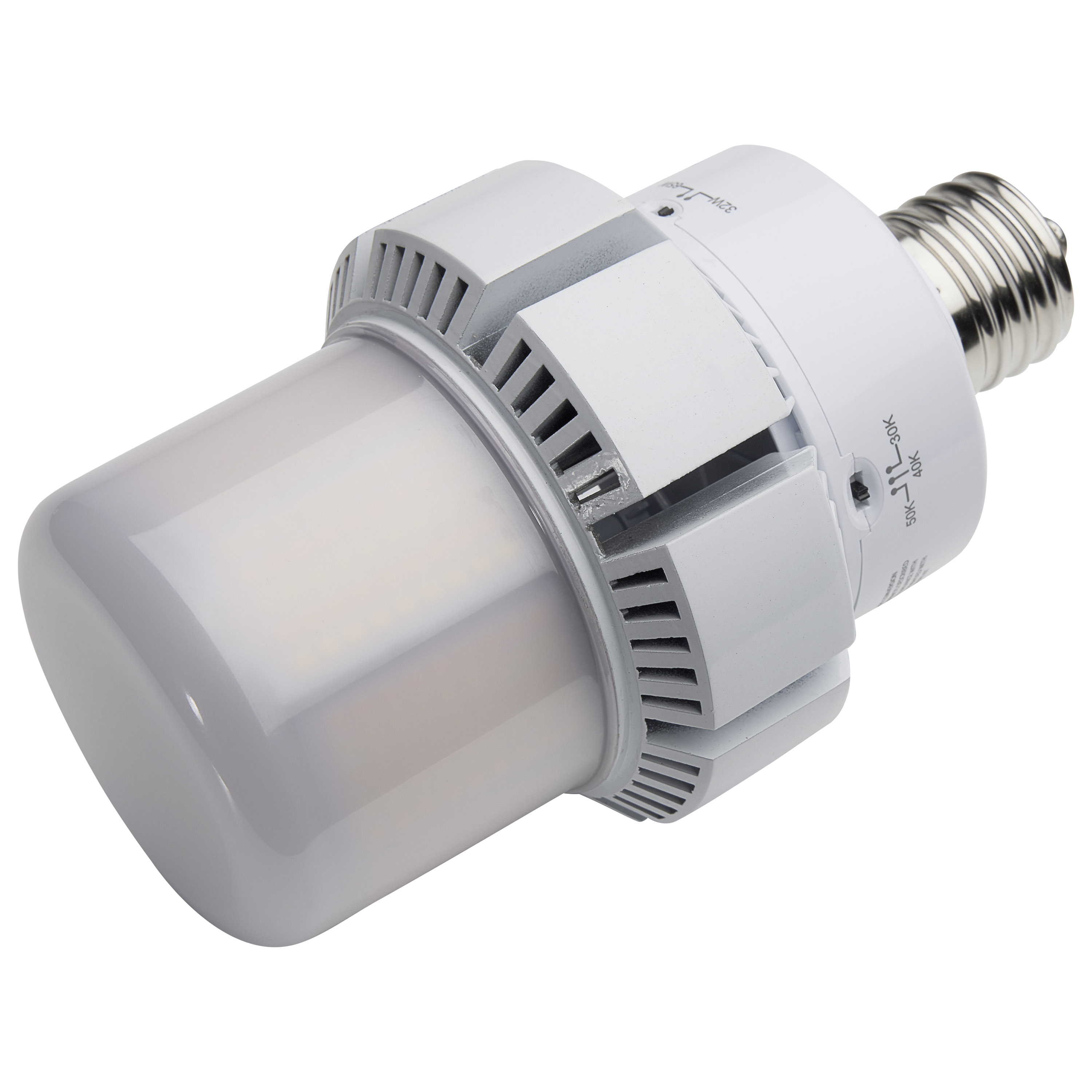

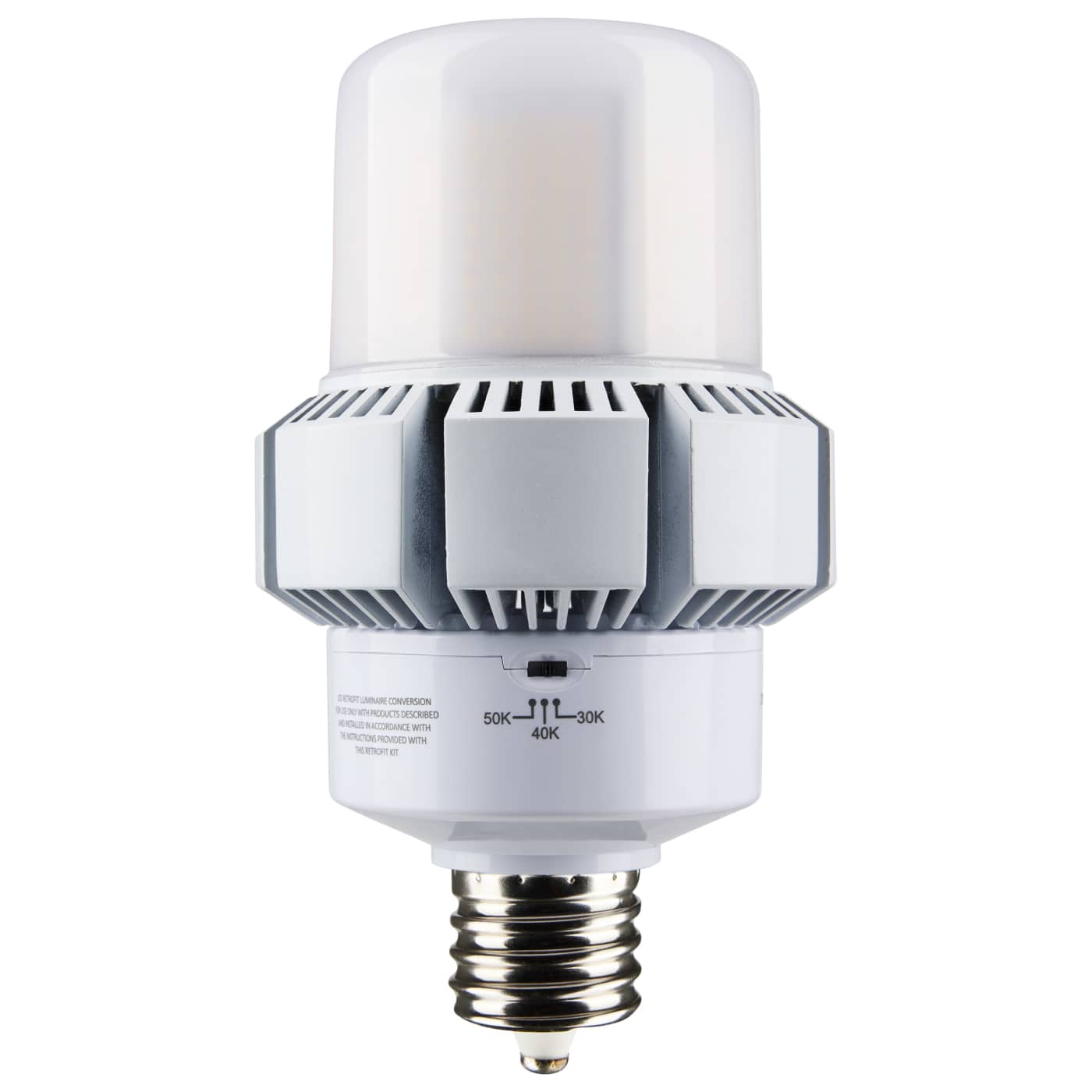

S13167 65W/AP37/LED/CCT/100-277V/EX39

S13167

65W/AP37/LED/CCT/100-277V/EX39

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology

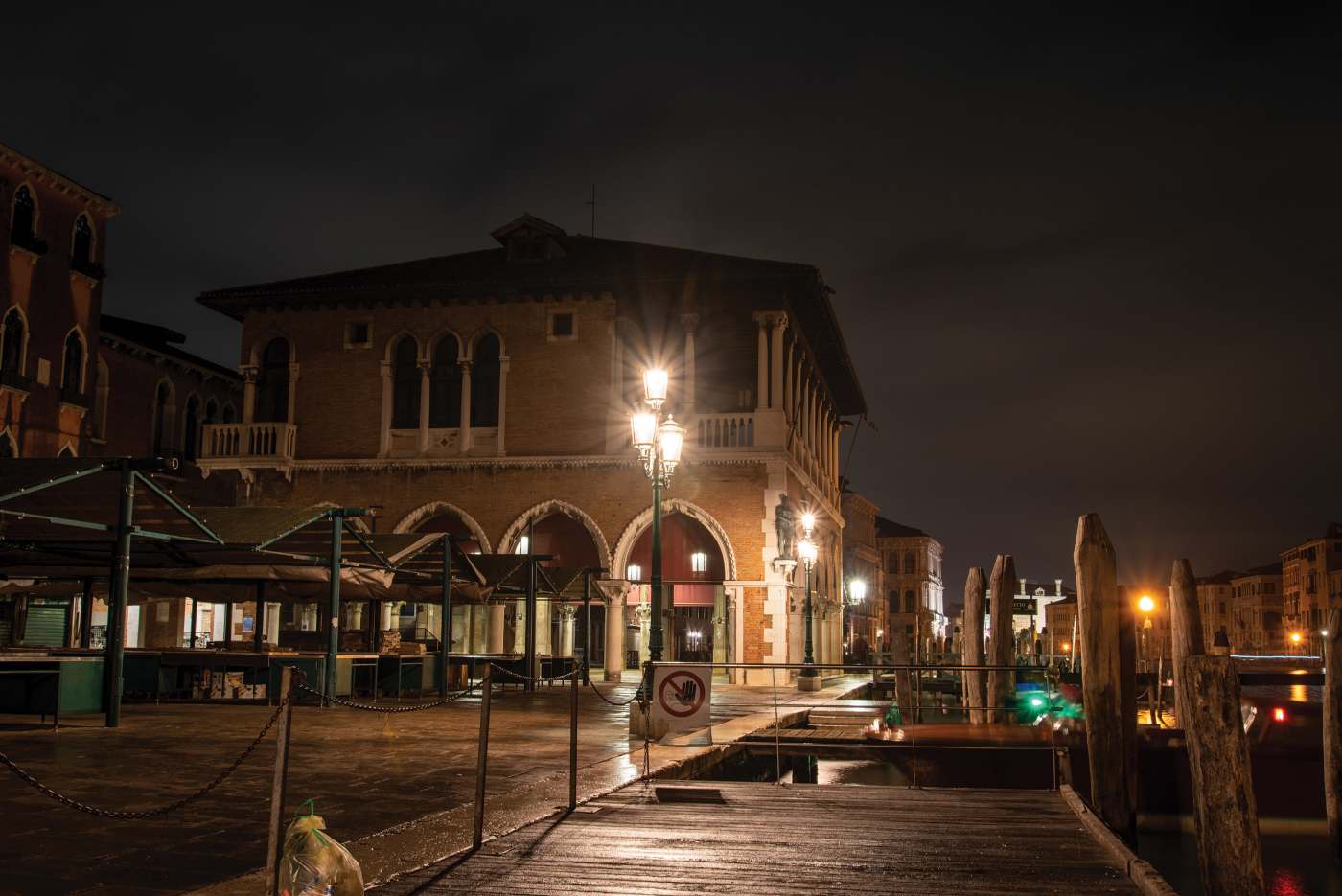

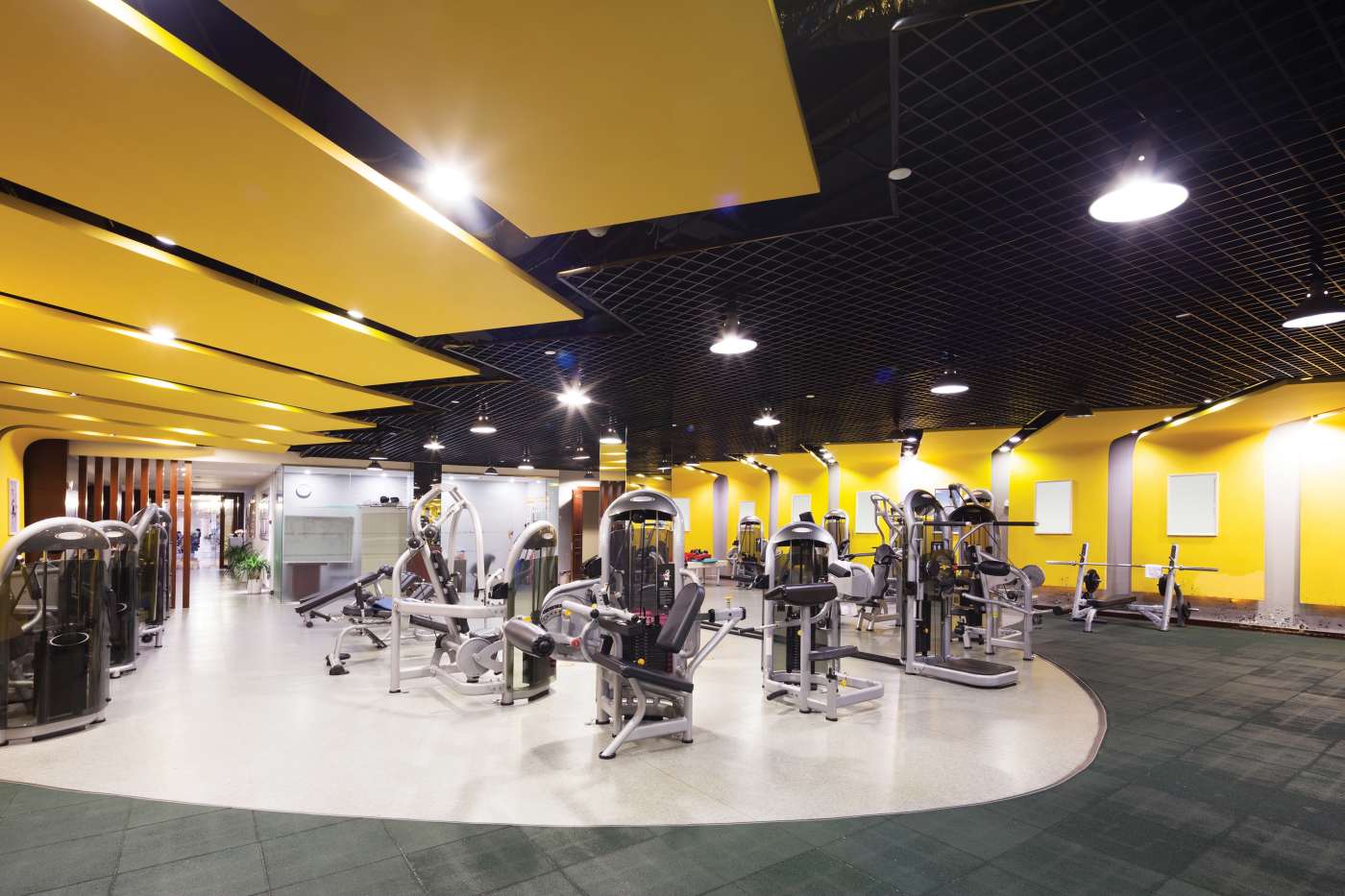

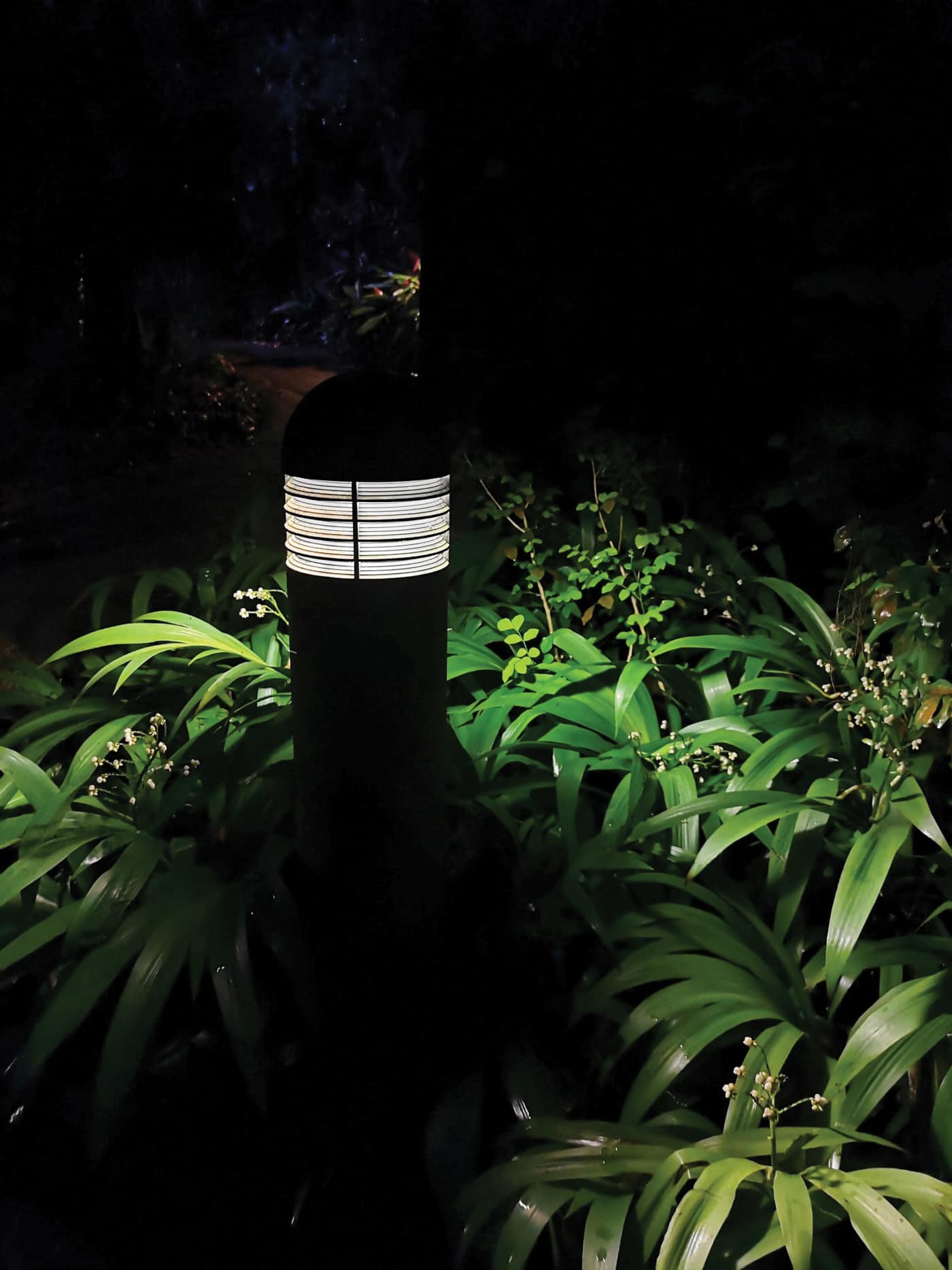

SATCO|NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile A-lamp to date.
  • Advanced heat sink design ensures long lifespan, less maintenance

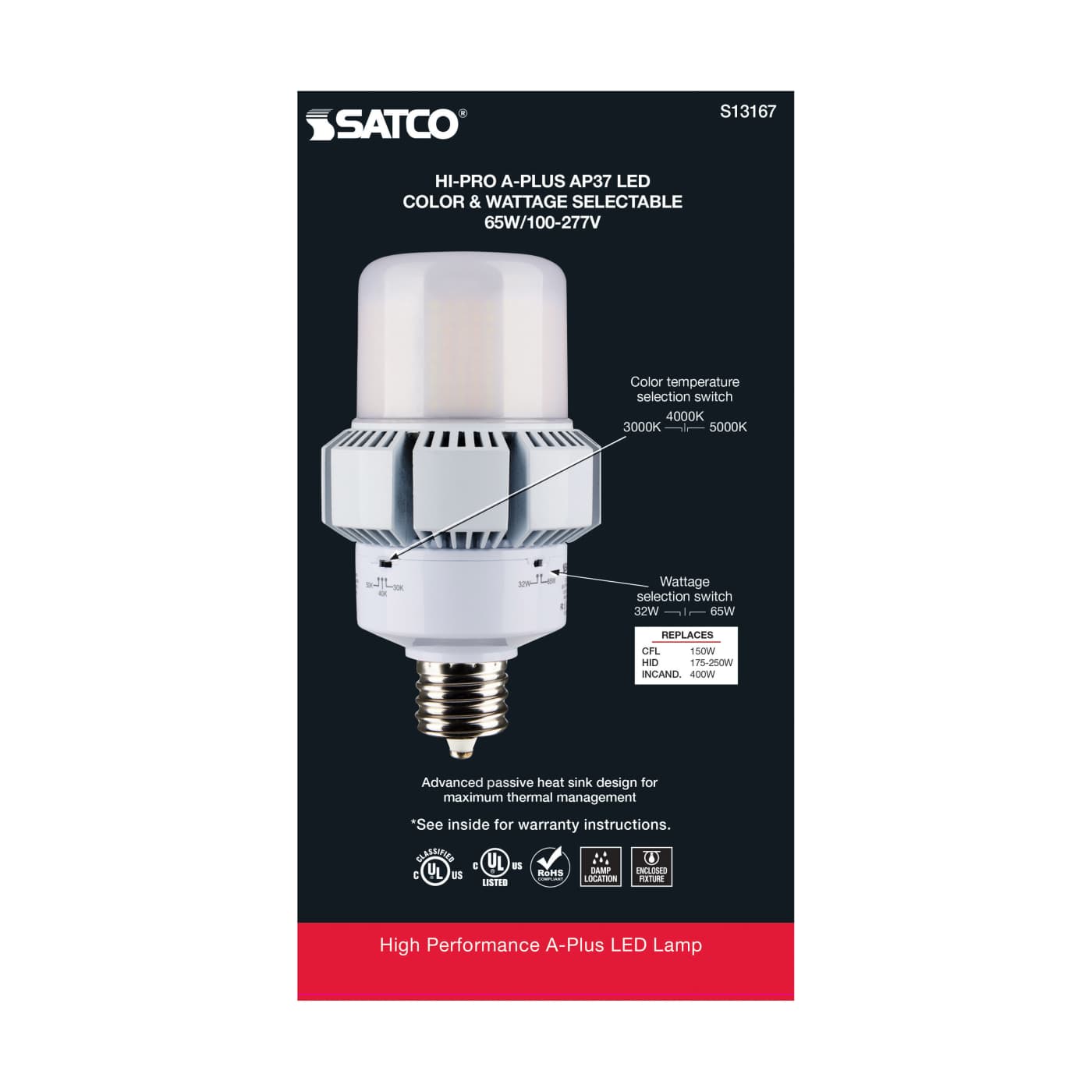

  • ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Dimmable; 80 CRI light quality
Lights

S13167

65W/AP37/LED/CCT/100-277V/EX39

65 Watt; A-Plus 37; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology

SATCO|NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-output light with over 300 degrees of illumination, these lamps are perfect for commercial bollard fixtures, post-top lighting and high ceiling applications, to name a few. A smaller jacket size and base up, down or horizontal use makes this our most versatile A-lamp to date.
  • Advanced heat sink design ensures long lifespan, less maintenance
  • ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
  • Damp location rated for indoor or outdoor use
  • Rated for totally enclosed fixtures
  • Reduced jacket size and built-in surge protection
  • FCC/RoHS compliant
  • Dimmable; 80 CRI light quality

Specifications

General
StatusActive
Watts65W/32W
Incandescent Equivalent400W
Fluorescent Equivalent150W
HID Equivalent175W-250W
Volts100V-277V
ShapeAP37
BaseMogul Extended
ANSI BaseEX39
FinishWhite
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80

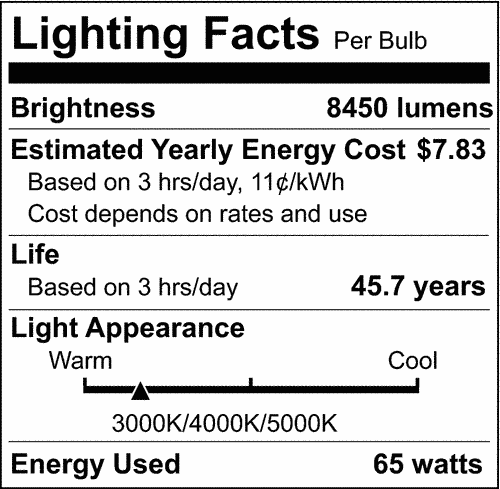

Lumens8450L/4420L
Beam Spread280
Hours Rated50000
Product CategoryType A
Lamp TypeType A
TechnologyLED
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Ballasting RequirementsBallast Bypass
Electrical
Watts65W/32W
Incandescent Equivalent400W
Fluorescent Equivalent150W
HID Equivalent175W-250W
Volts100V-277V
Ballasting RequirementsBallast Bypass
Operating Frequency50/60Hz
CCT (Kelvin)3000K/4000K/5000K
TemperatureWarm to Cool White
CRI80
Lumens8450L/4420L
Beam Spread280
Dimming TypeStep Dimming
Power Factor>0.9
Hours Rated50000
Operating PositionUniversal
Surge ProtectionBuilt-in surge protection - 4KV
THD15%
Operating Temperature-22C (-30F) to +45C (+113F)
Physical

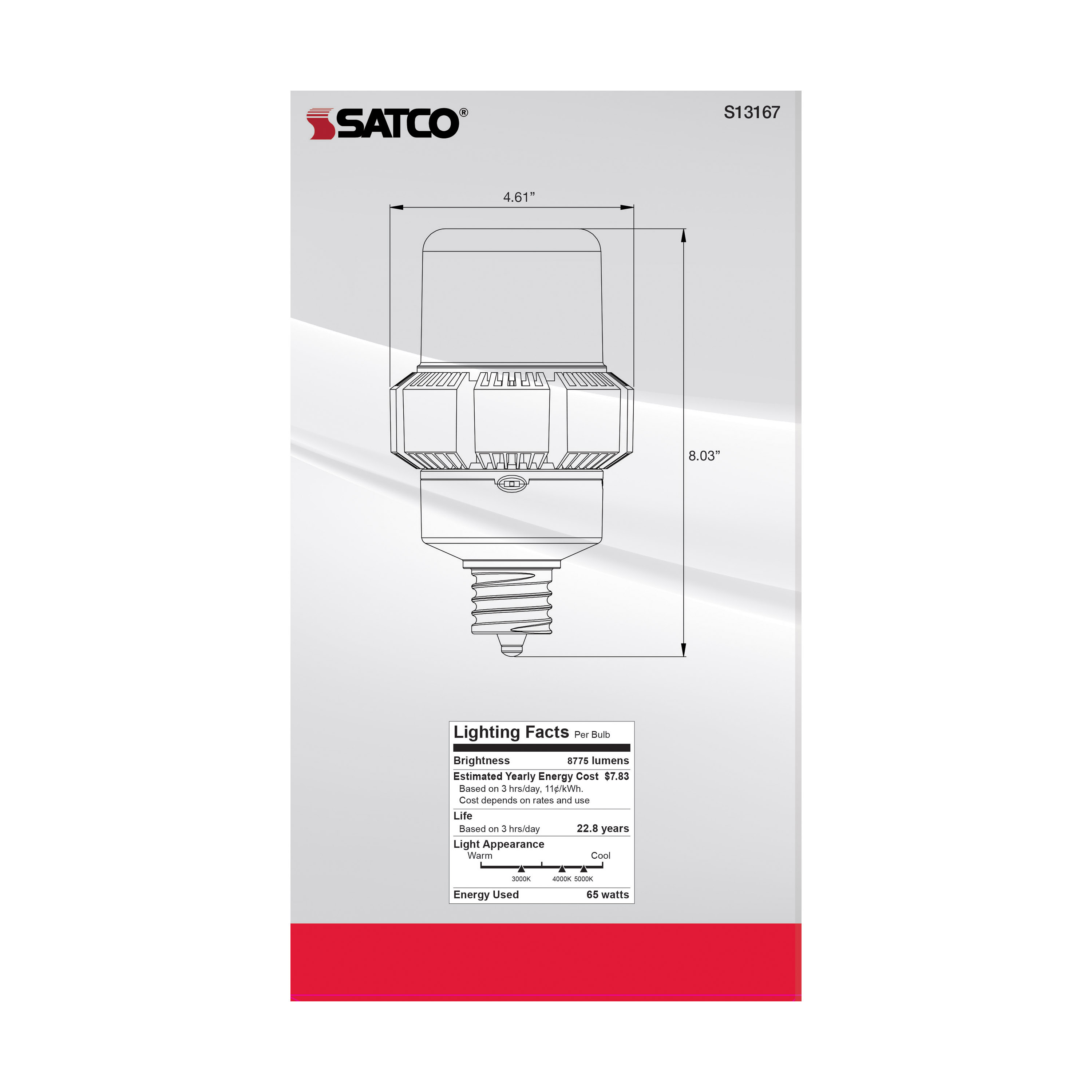

MOL8.03
MOD4.61
ShapeAP37
BaseMogul Extended
ANSI BaseEX39
FinishWhite
Lens FinishFrost
Lens MaterialPolycarbonate (PC)
Housing ColorWhite
Weight (lb.)2.55
Additional Information
Min Compartment SizeLength: 8 in. Width: 8 in. Height: 11 in.
Rated For Enclosed FixtureYes
IP RatingIP64

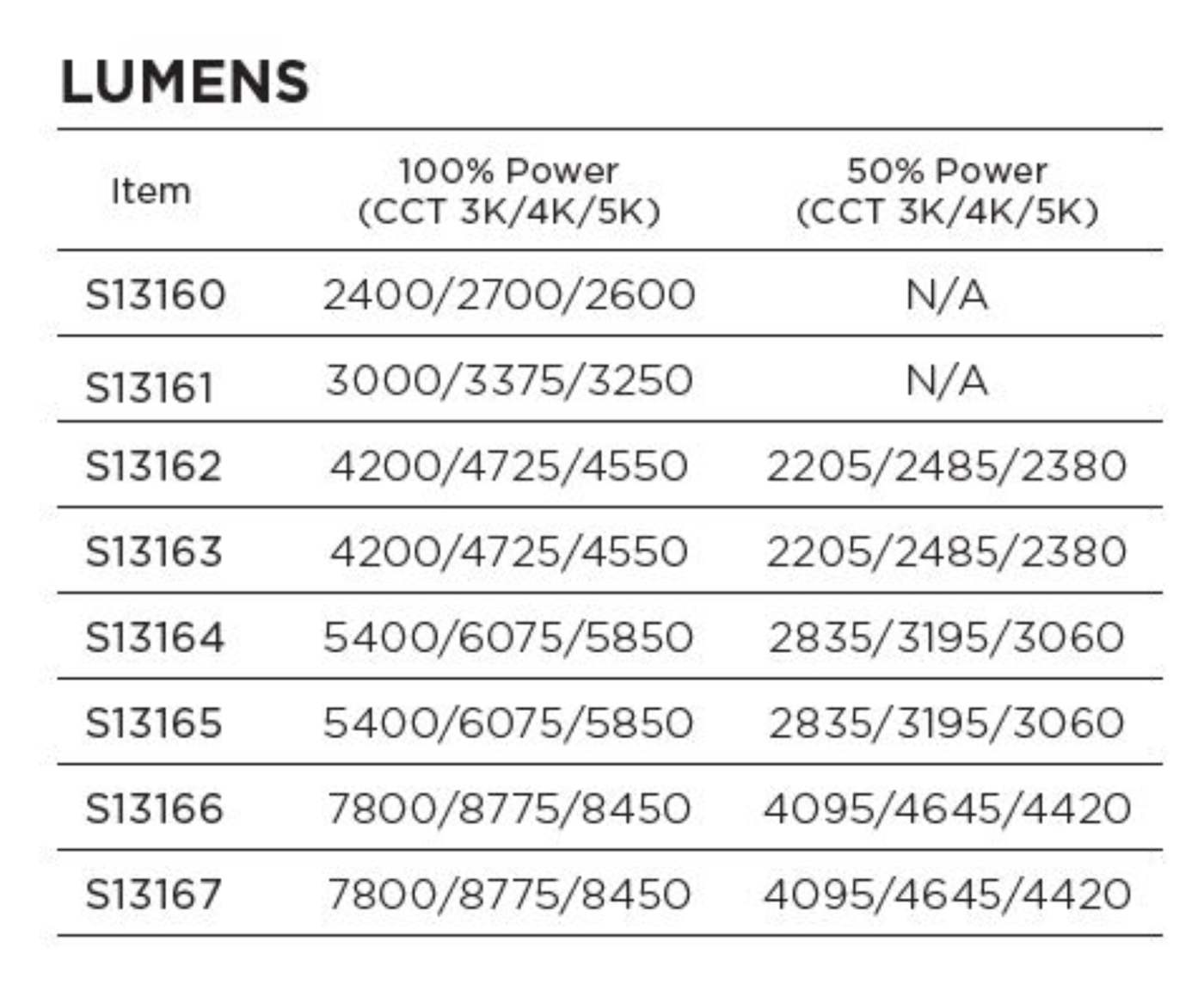

Specification NoteLumen/Watt/CCT Ratio Chart in Documents.
Installation NotesNot for use in vapor tight fixtures.
Warranty5 Year Limited - Hi-Pro
Compliance
Safety ListingcULus - Listed; cULus - Classified
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDS-6YKMLZ
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923131677
Each Quantity1
Each Length (in.)5.31
Each Width (in.)5.31
Each Height (in.)9.41
Each Weight (lb.)2.57
Each Cube (CuFt.)0.1535
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923131674
Case Quantity12
Case Length (in.)21.90
Case Width (in.)16.50
Case Height (in.)10.20
Case Weight (lb.)31.90
Case Cube (CuFt.)2.1330
