| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |

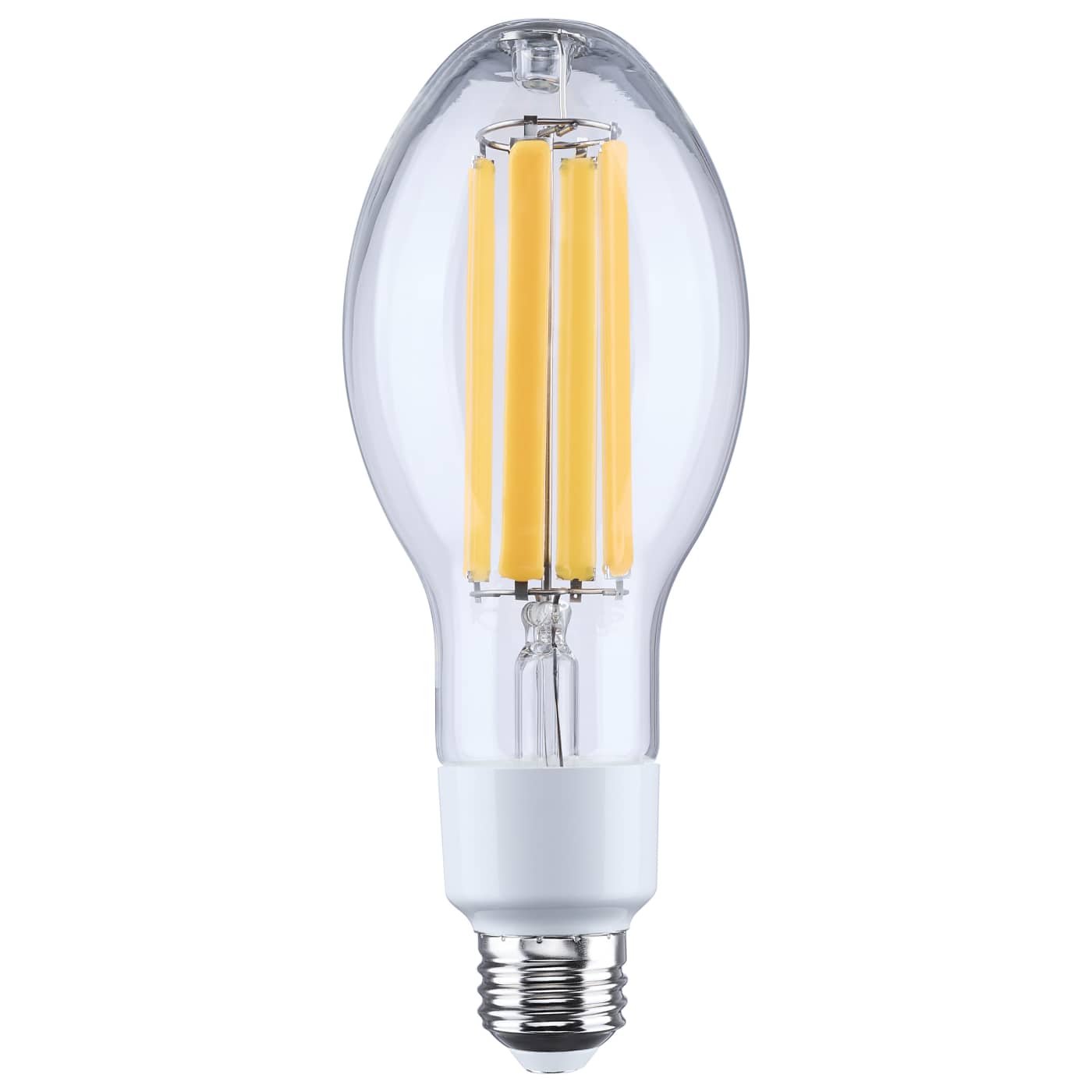

| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | LED HID |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Clear |
| Amps | 0.190-0.080A |
| Has Camera | False |
| IOT Enabled | False |
| Minimum Compartment Size | Length: 5.98 in. Width: 5.98 in. Height: 10.16 in. |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| CCT (Kelvin Temp) | 2200K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 320 |
| Color Temp | Warm White |
| CRI | 80+ |
| Operating Frequency | 60Hz |
| Operating Temp | -30C (-22F) to +65C (+149F) |
| HID Equivalent | 100W |

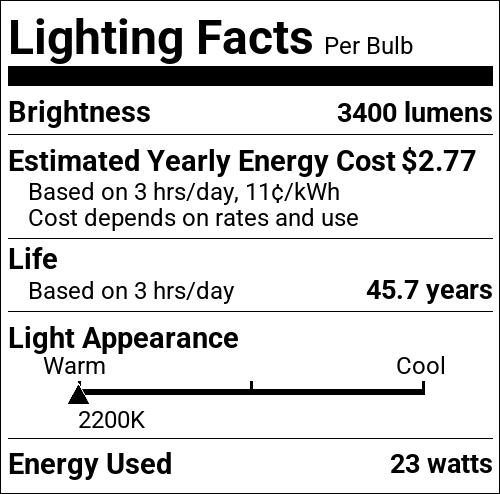

| Lumens | 3400L |
| Volts | 120V-277V |
| Watts | 23W |
| Lamp Base | Medium |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | E26 |
| Lamp Type | ED23.5 |

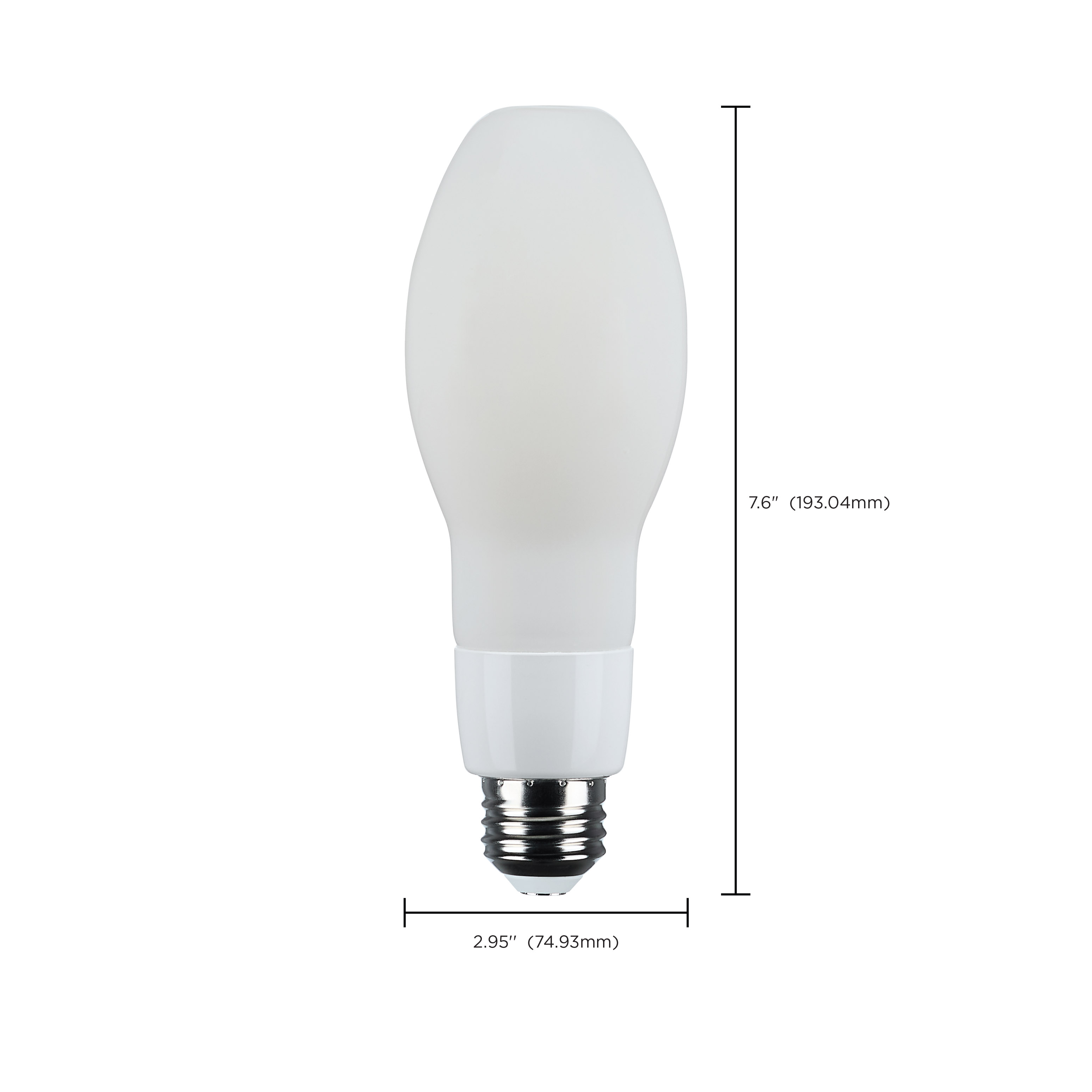

| MOD Lamps | 2.95 |
| MOL | 7.6 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - >2600 Lumens |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923131837 |
|---|---|
| Case Cube | 0.9094 |
| Case Height | 10.24 |
| Case Length | 14.17 |
| Case Quantity | 12 |
| Case UPC | 10045923131834 |
| Case Weight | 6.34 |
| Case Width | 10.83 |
| EA Cube | 0.0575 |
| EA Height | 8.86 |
| EA Length | 3.35 |
| EA Quantity | 1 |
| EA Weight | 0.44 |
| EA Width | 3.35 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Length | 7.6 |
| Web Width | 2.95 |
