| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | LED HID |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Clear |
| Amps | 0.470-0.200A |
| Has Camera | False |
| IOT Enabled | False |
| Minimum Compartment Size | Length: 17.83 in. Width: 17.83 in. Height: 13.39 in. |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| CCT (Kelvin Temp) | 4000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 320 |
| Color Temp | Cool White |
| CRI | 80+ |
| Operating Frequency | 60Hz |
| Operating Temp | -30C (-22F) to +65C (+149F) |
| HID Equivalent | 320W |

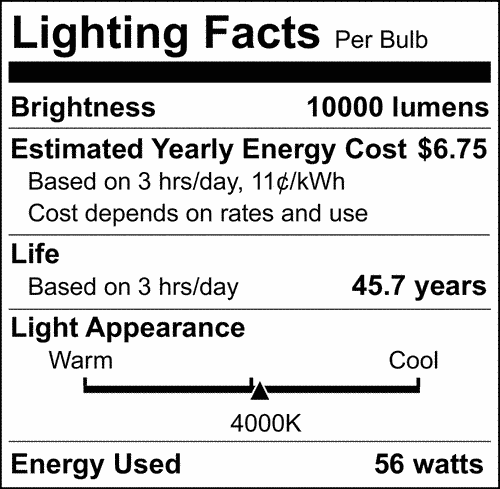

| Lumens | 10000L |
| Volts | 120V-277V |
| Watts | 56W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Clear |
| Housing Color | None |
| ANSI Base | EX39 |

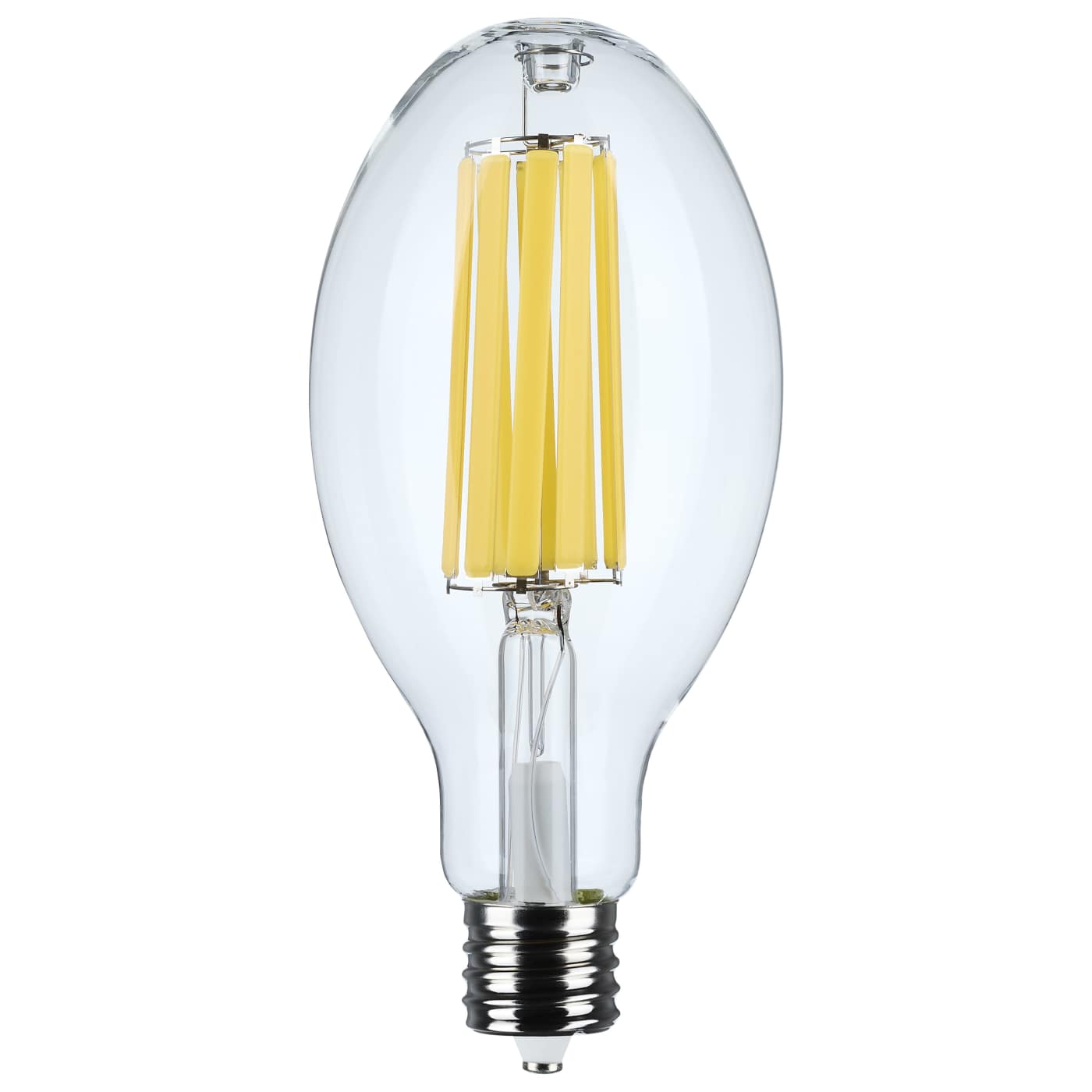

| Lamp Type | ED37 |

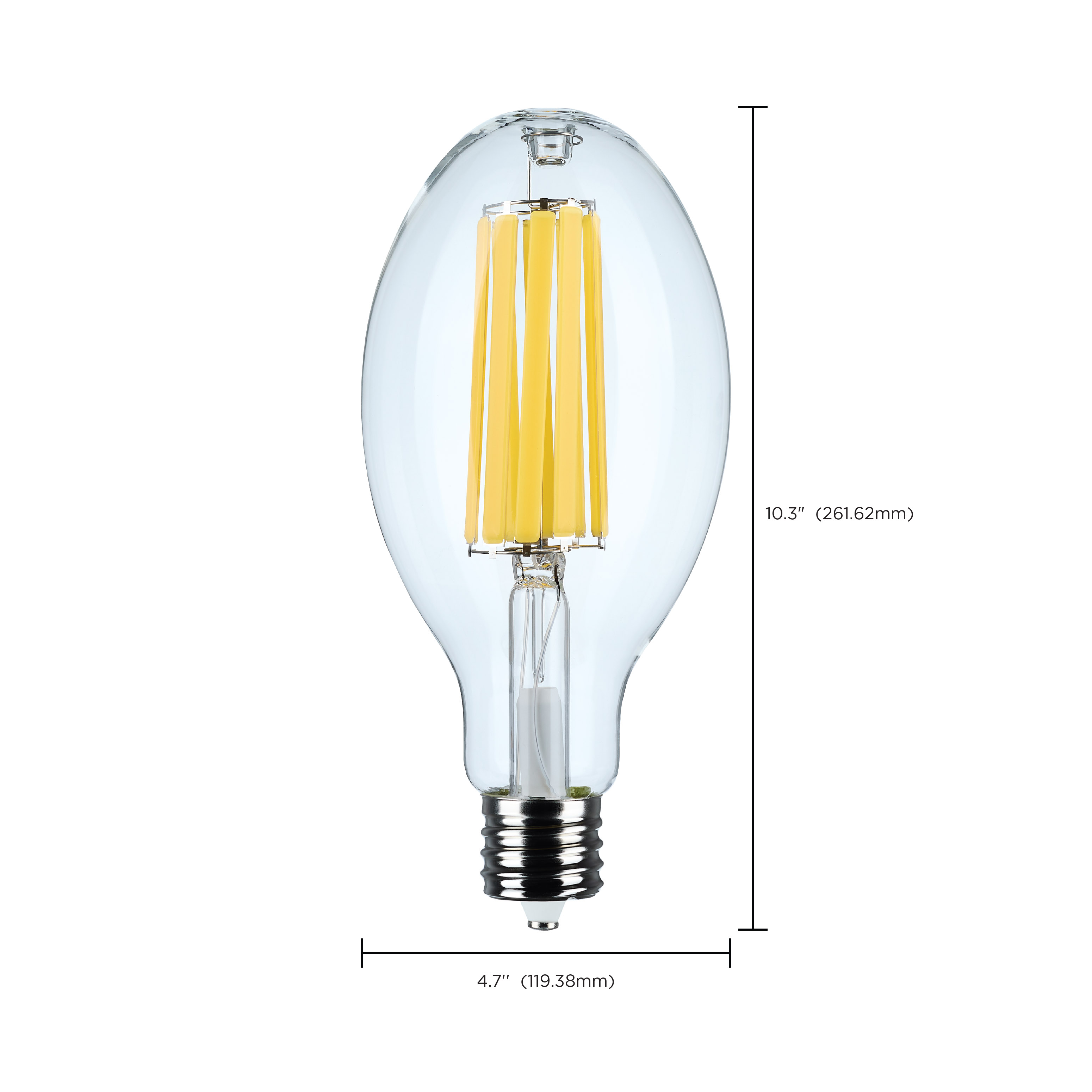

| MOD Lamps | 4.7 |
| MOL | 10.3 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-BGHQJ0 |
| FCC Compliant | True |
| IP Rating | IP65 |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Certified, cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923131936 |
|---|---|
| Case Cube | 1.2746 |
| Case Height | 12.6 |
| Case Length | 16.14 |
| Case Quantity | 6 |
| Case UPC | 10045923131933 |
| Case Weight | 7.23 |
| Case Width | 10.83 |
| EA Cube | 0.1434 |
| EA Height | 9.45 |
| EA Length | 5.12 |
| EA Quantity | 1 |
| EA Weight | 0.99 |
| EA Width | 5.12 |
| Inner Cube | 0.0 |
| Pack Type | Box |
| Web Length | 10.3 |
| Web Width | 4.7 |
