S13195

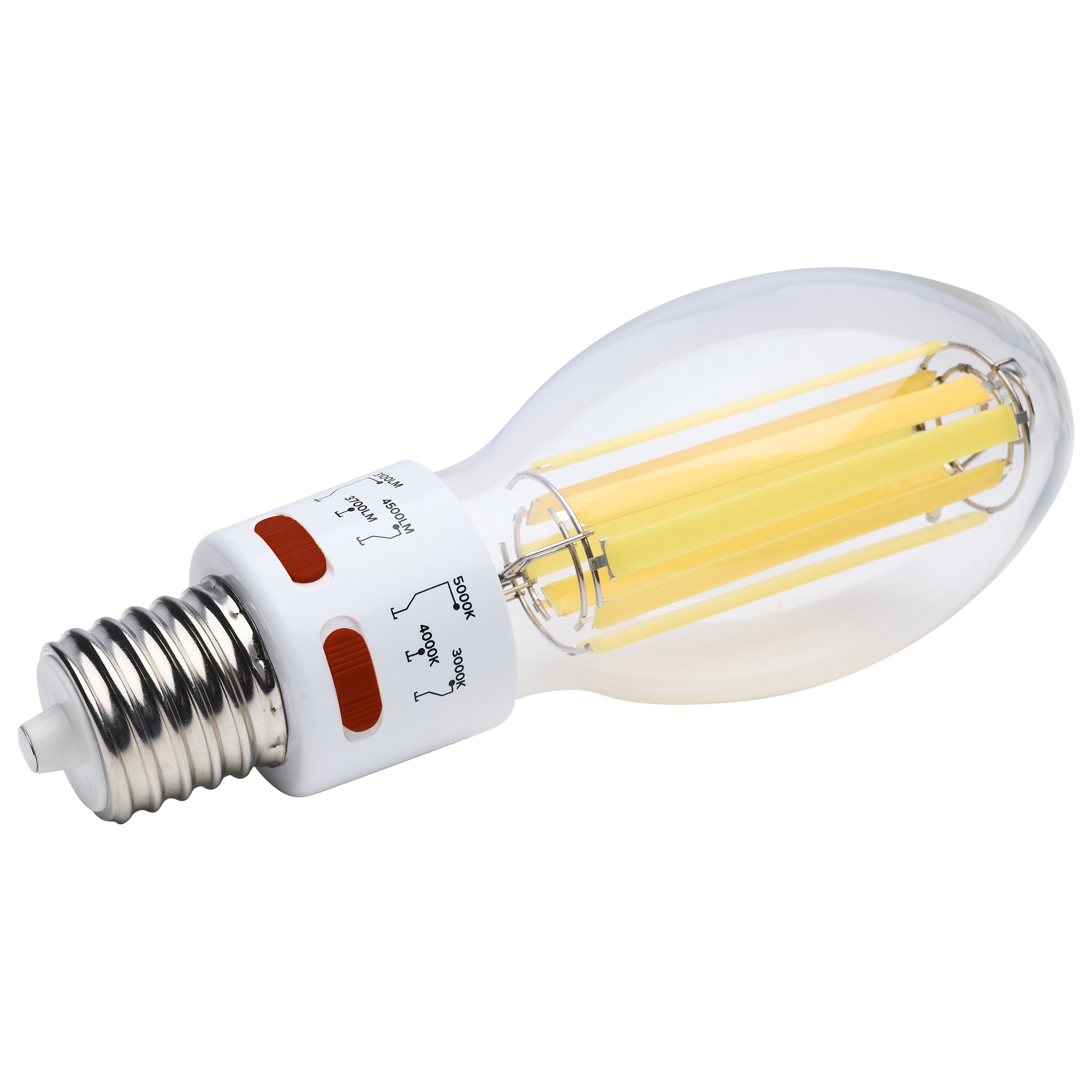

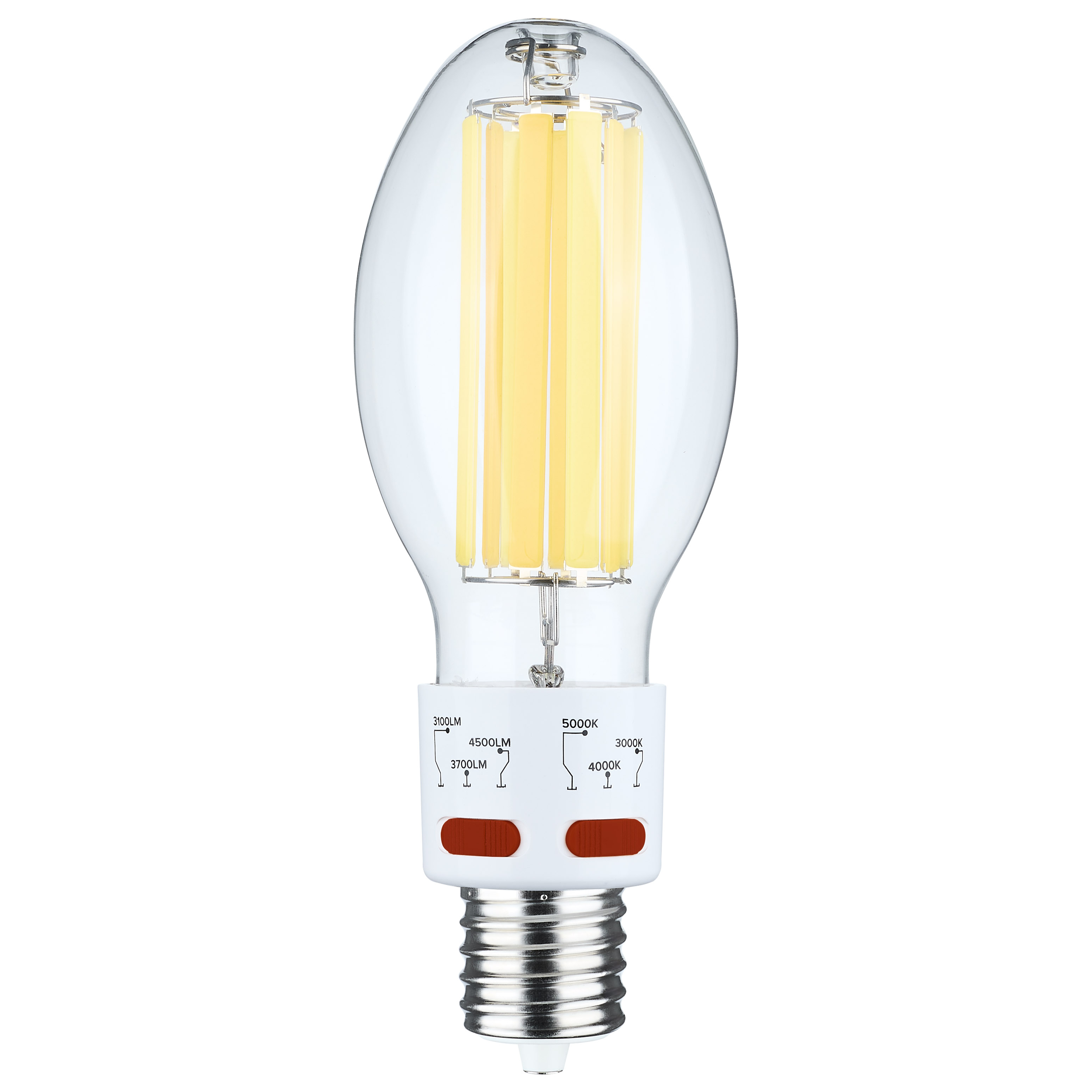

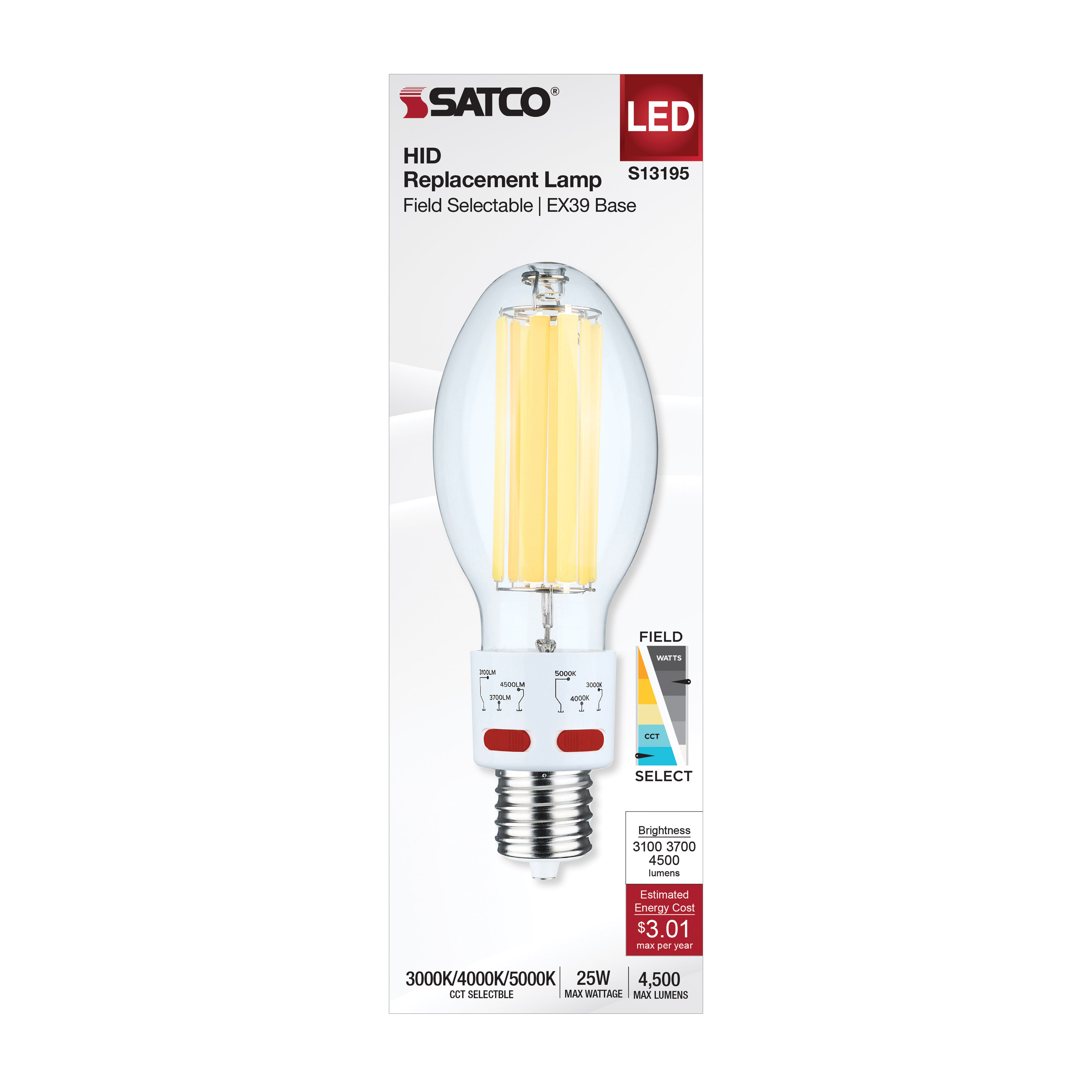

25W/LED/HID/ED28/CCT/EX39/CL

  • 17/20.5/25 Wattage Selectable LED HID Replacement
  • ED28
  • 3000K/4000K/5000K CCT Selectable
  • Mogul Extended Base
  • Clear
  • 120-277 Range Voltage
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
location_rating^wet^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S13195 SpecificationsS13195 Photometrics 17W 3000K.iesS13195 Photometrics 17W 4000K.ies
Tools
Lighting Layout Analysis For S13195
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
17/20.5/25 Wattage Selectable LED HID Replacement; ED28; 3000K/4000K/5000K CCT Selectable; Mogul Extended Base; Clear; 120-277 Range Voltage

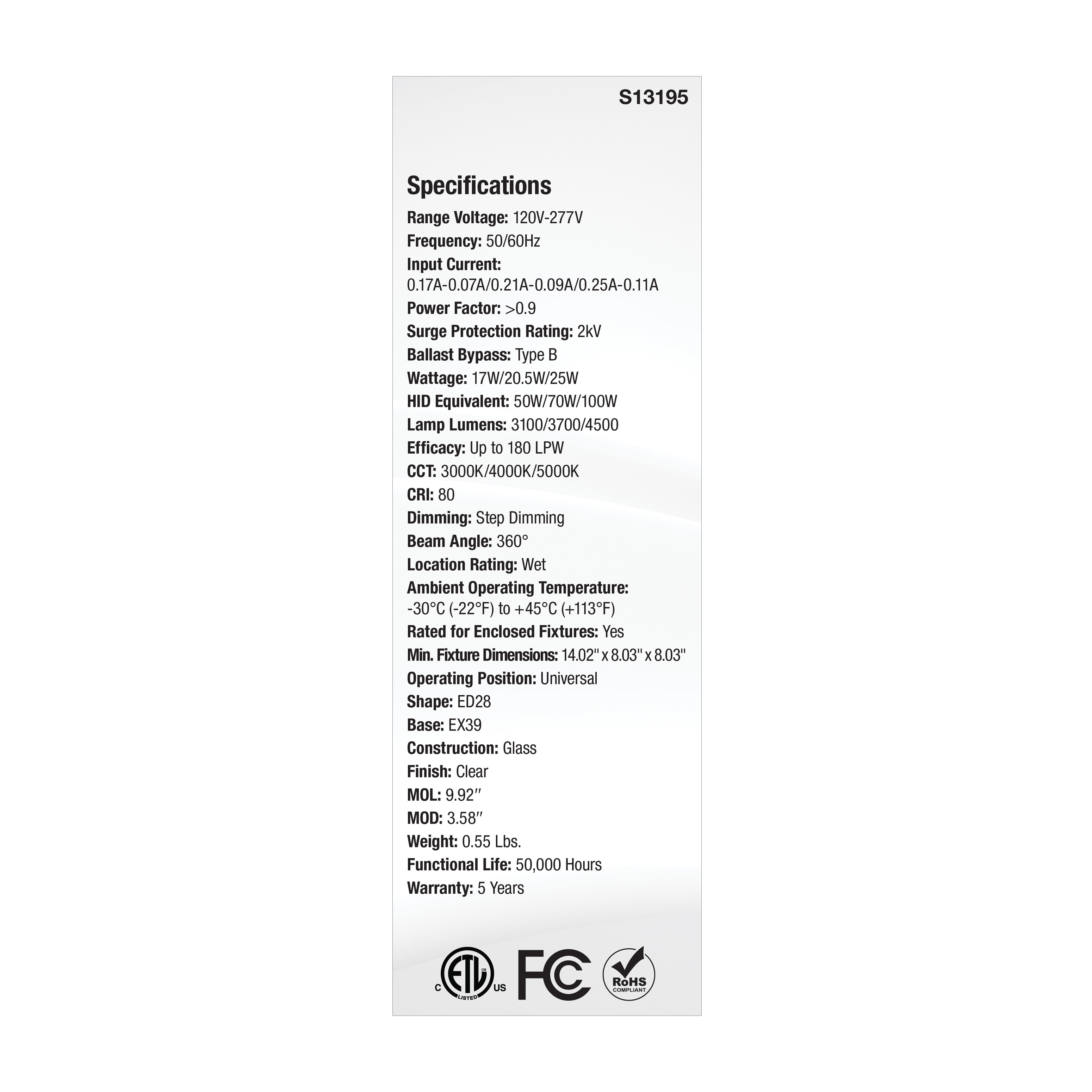

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Candle Power250.0

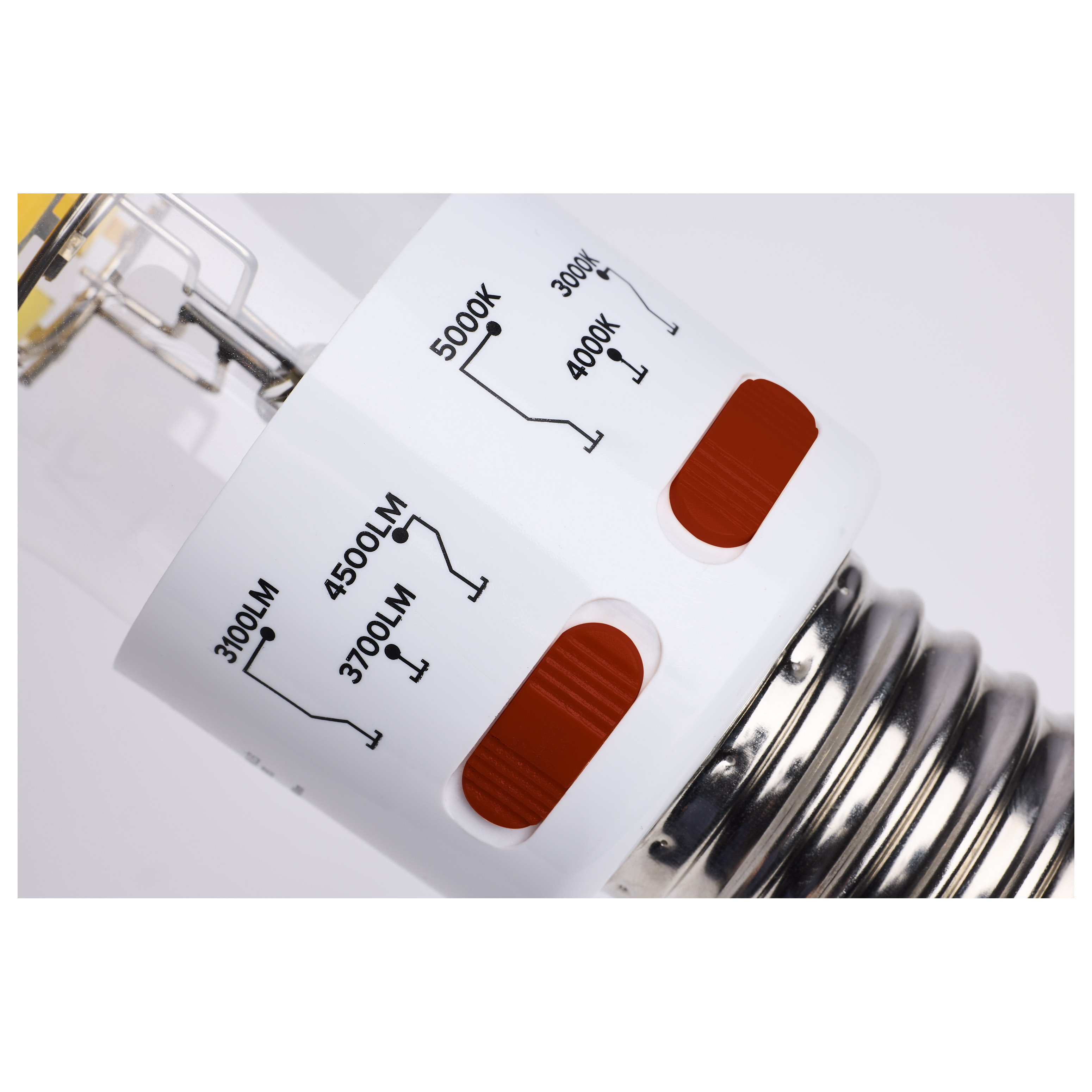

Dimmable TextStep Dimming; Only dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls.
Lamp FilamentLED
MaterialGlass
Fixture TypeLED HID
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2KV
Total Harmonic Distortion<20%
CCT SelectableYes
Wattage SelectableYes
Finish FamilyClear
Amps0.170-0.070/0.210-0.090/0.250-0.110A
Has CameraNo
IOT EnabledNo
Minimum Compartment SizeLength: 14.02 in. Width: 8.03 in. Height: 8.03 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Electrical
CCT (Kelvin Temp)3000K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempSoft White to Natural Light
CRI80+
Dimming TypeOnly dimmable through wattage selection switch on lamp. NOT dimmable with wall dimmers or any other dimming controls., Step Dimming
Operating Frequency50/60Hz
Operating Temp-30C (-22F) to +45C (+113F)
HID Equivalent50W/70W/100W
Lumens3100L/3700L/4500L
Volts120V-277V
Watts17W/20.5W/25W
Physical
Lamp BaseMogul Extended
FinishClear
Housing ColorWhite
ANSI BaseEX39
Lamp TypeED28

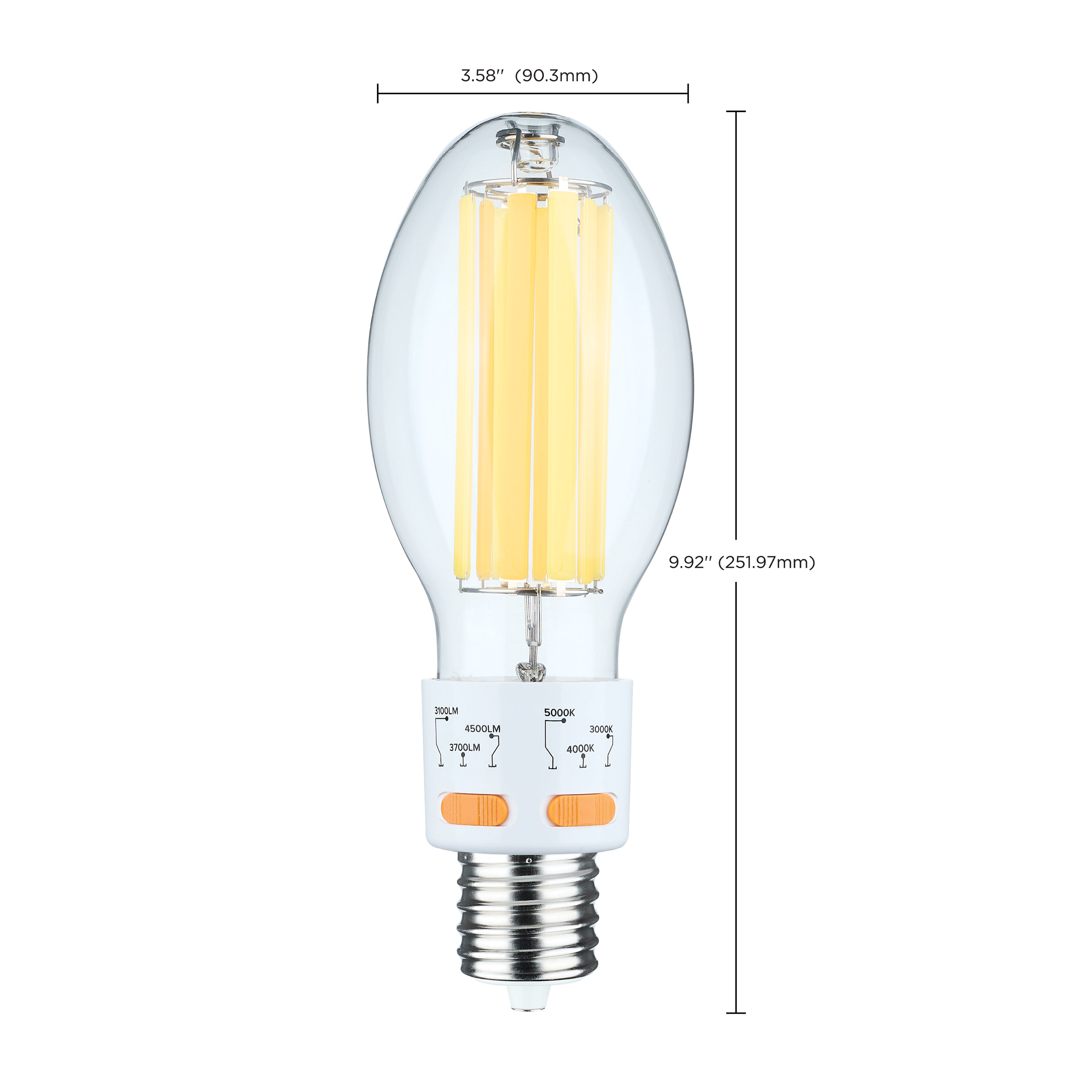

MOD Lamps3.58
MOL9.92
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-YZF3TT
FCC CompliantYes
Location RatingWet
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923131950
Case Cube1.1291
Case Height11.42
Case Length14.96
Case Quantity12
Case UPC10045923131957
Case Weight7.9
Case Width11.42
EA Cube0.0771
EA Height10.63
EA Length3.54
EA Quantity1
EA Weight0.55
EA Width3.54
Inner Cube0.0
Pack TypeColor Box
Web Length9.92
Web Width3.58
