| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required |
| Candle Power | 850.0 |

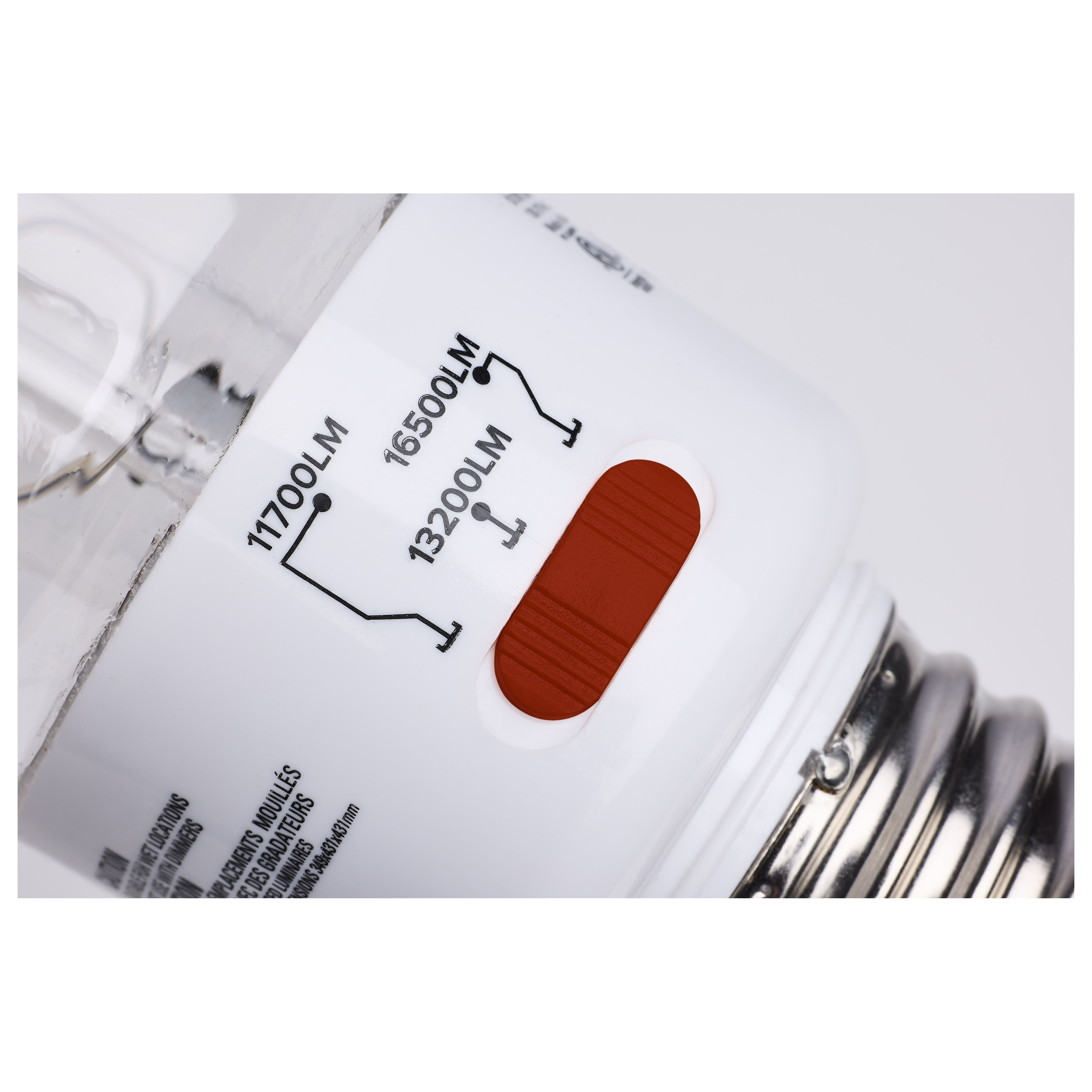

| Dimmable Text | Only dimmable through wattage selection switch on lamp |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | LED HID |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 4KV |
| Total Harmonic Distortion | <20% |
| CCT Selectable | False |
| Wattage Selectable | True |
| Finish Family | Clear |
| Amps | 0.600-0.260/0.680-0.290/0.850-0.370A |
| Has Camera | False |
| IOT Enabled | False |
| Minimum Compartment Size | Length: 13.74 in. Width: 16.97 in. Height: 16.97 in. |
| Operating Position | Universal |
| Power Factor | >0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor, Outdoor |
| Product Technology | LED |
| CCT (Kelvin Temp) | 5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Natural Light |
| CRI | 80+ |
| Dimming Type | Step Dimming |
| Operating Frequency | 50/60Hz |
| Operating Temp | -30C (-22F) to +45C (+113F) |
| HID Equivalent | 320W/400W/450W |
| Lumens | 11700L/13200L/16500L |
| Volts | 120V-277V |
| Watts | 60W/68W/85W |
| Lamp Base | Mogul Extended |
|---|---|
| Finish | Clear |
| Housing Color | White |
| ANSI Base | EX39 |
| Lamp Type | ED37 |

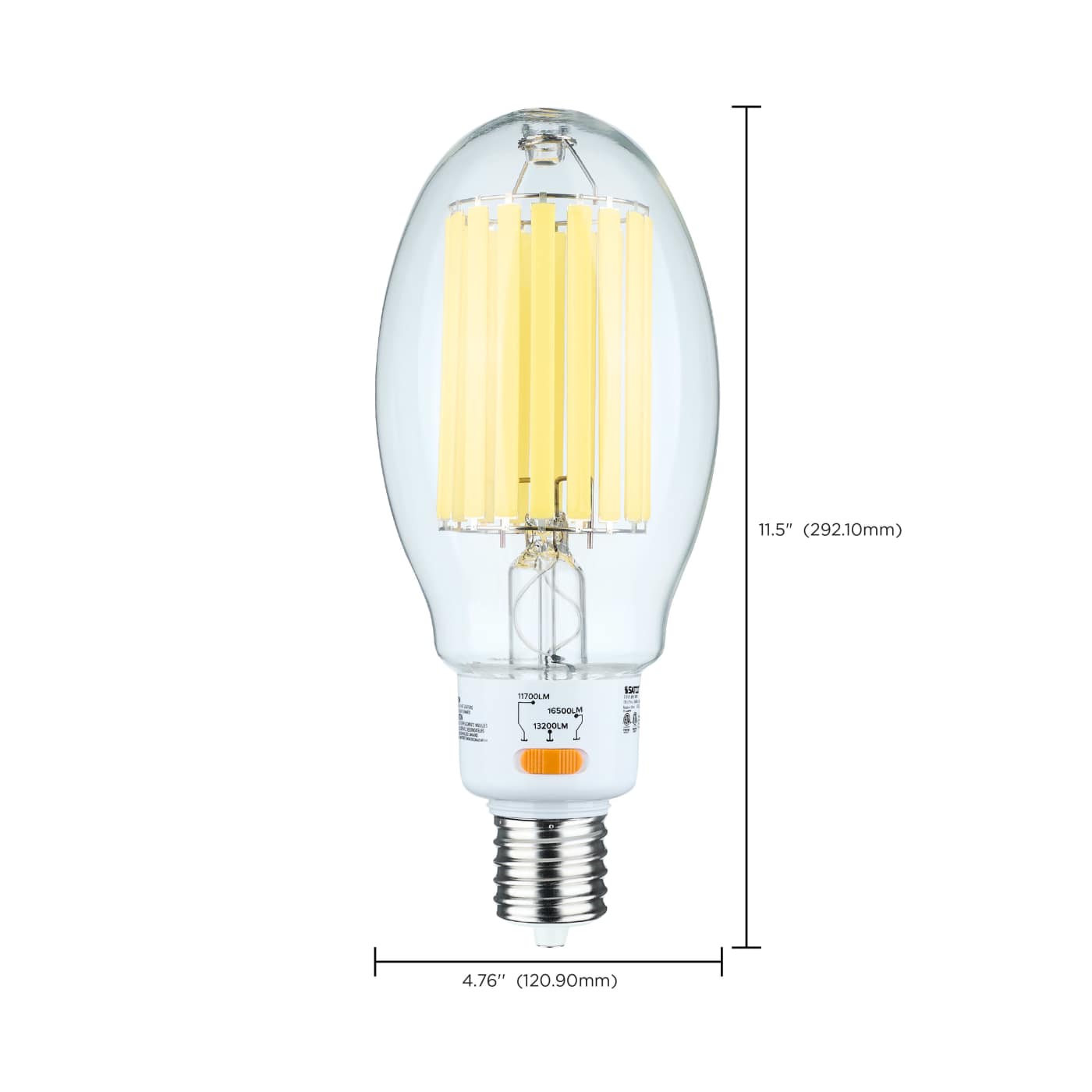

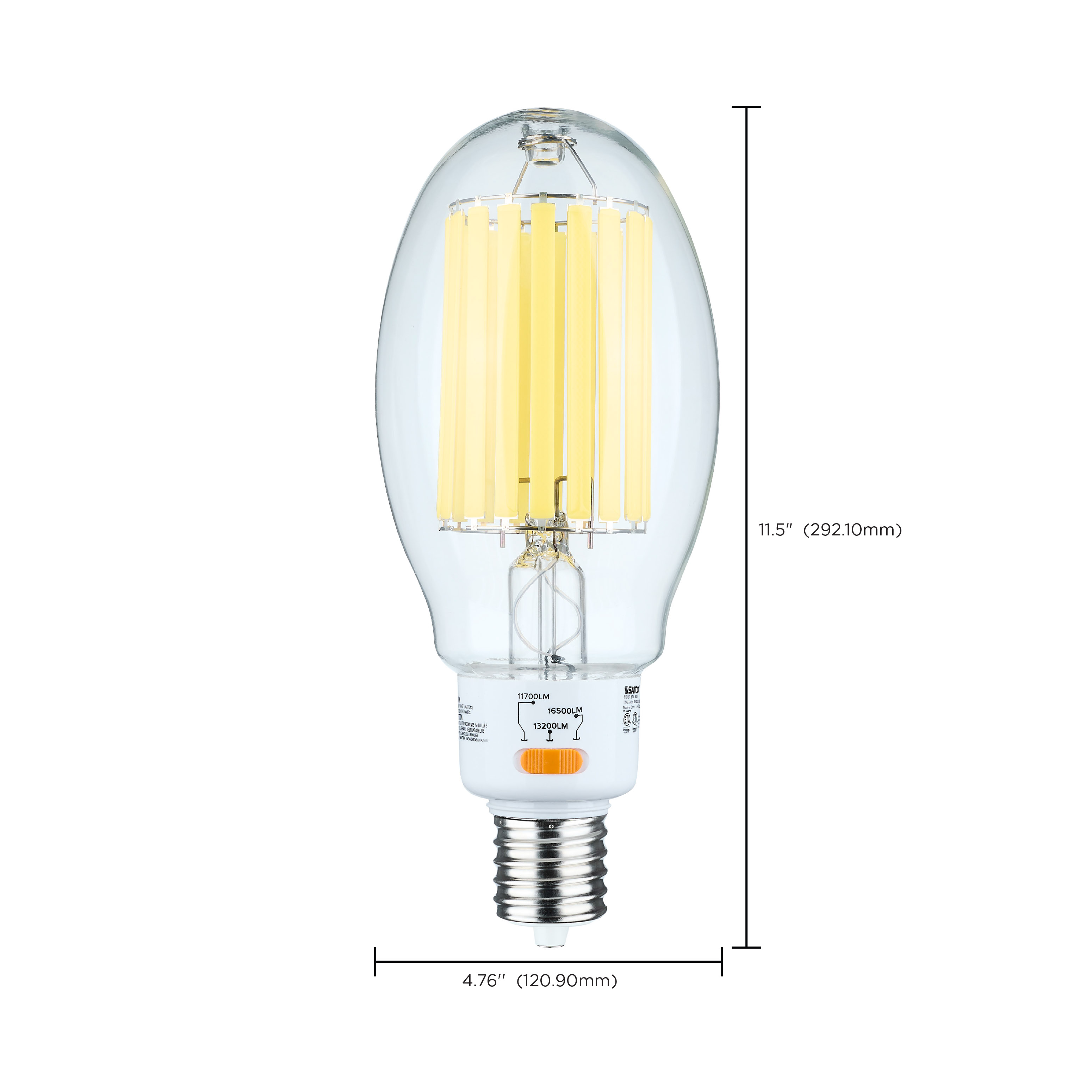

| MOD Lamps | 4.76 |
| MOL | 11.5 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| DLC ID | S-93J453 |
| FCC Compliant | True |
| Location Rating | Wet |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | True |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923131974 |
|---|---|
| Case Cube | 2.1819 |
| Case Height | 12.8 |
| Case Length | 19.69 |
| Case Quantity | 12 |
| Case UPC | 10045923131971 |
| Case Weight | 19.6 |
| Case Width | 14.96 |
| EA Cube | 0.1588 |
| EA Height | 12.32 |
| EA Length | 4.72 |
| EA Quantity | 1 |
| EA Weight | 1.52 |
| EA Width | 4.72 |
| Inner Cube | 0.0 |
| Pack Type | Color Box |
| Web Length | 11.5 |
| Web Width | 4.76 |
