| Company | SATCO |
|---|---|
| Mounting Height | 2.5 |
| Bulb Included | Integrated |

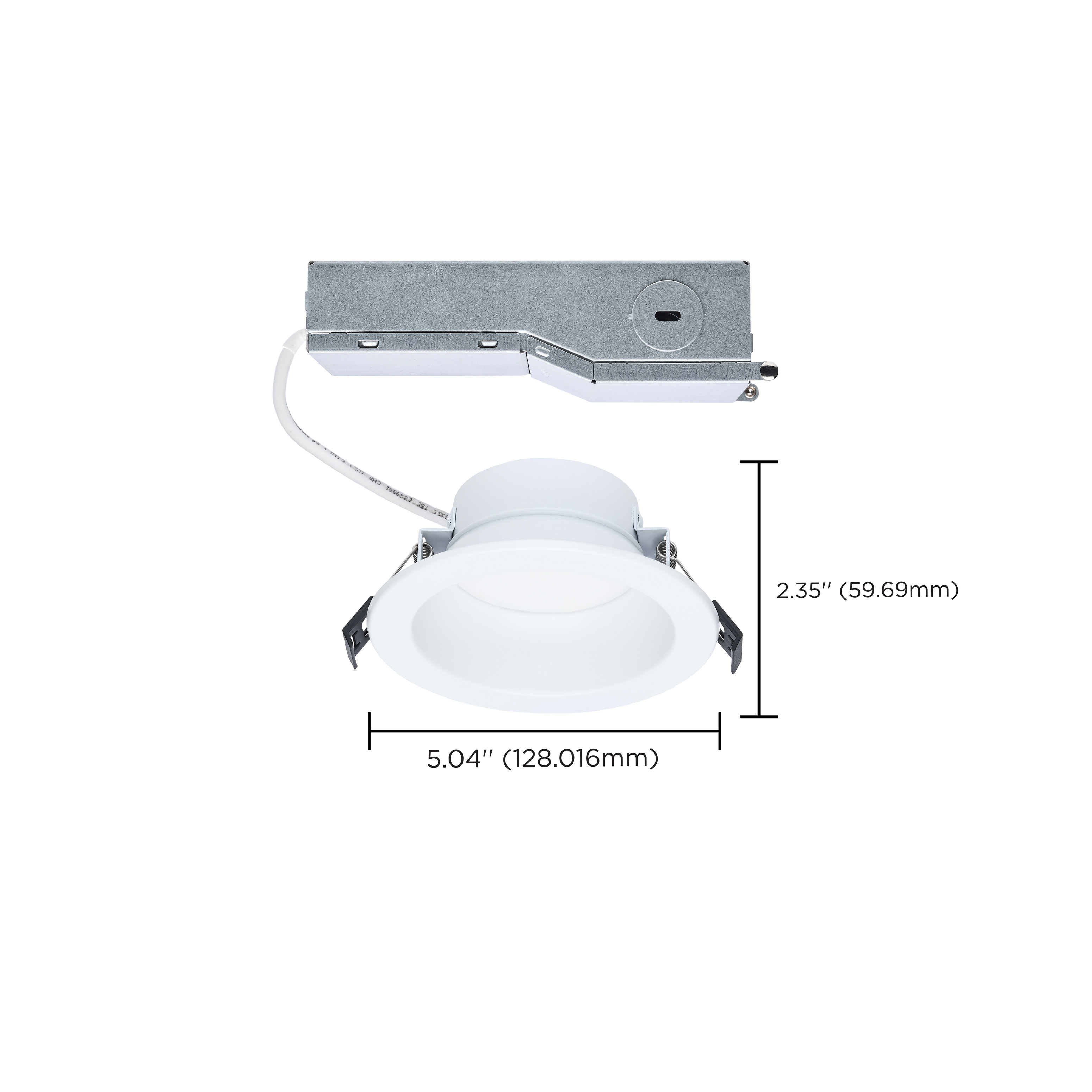

| Diameter | 5.04 |
| Dimmable Text | 0-10V Dimming |
| Material | Aluminum |
| Fixture Type | Commercial Downlight Retrofit |

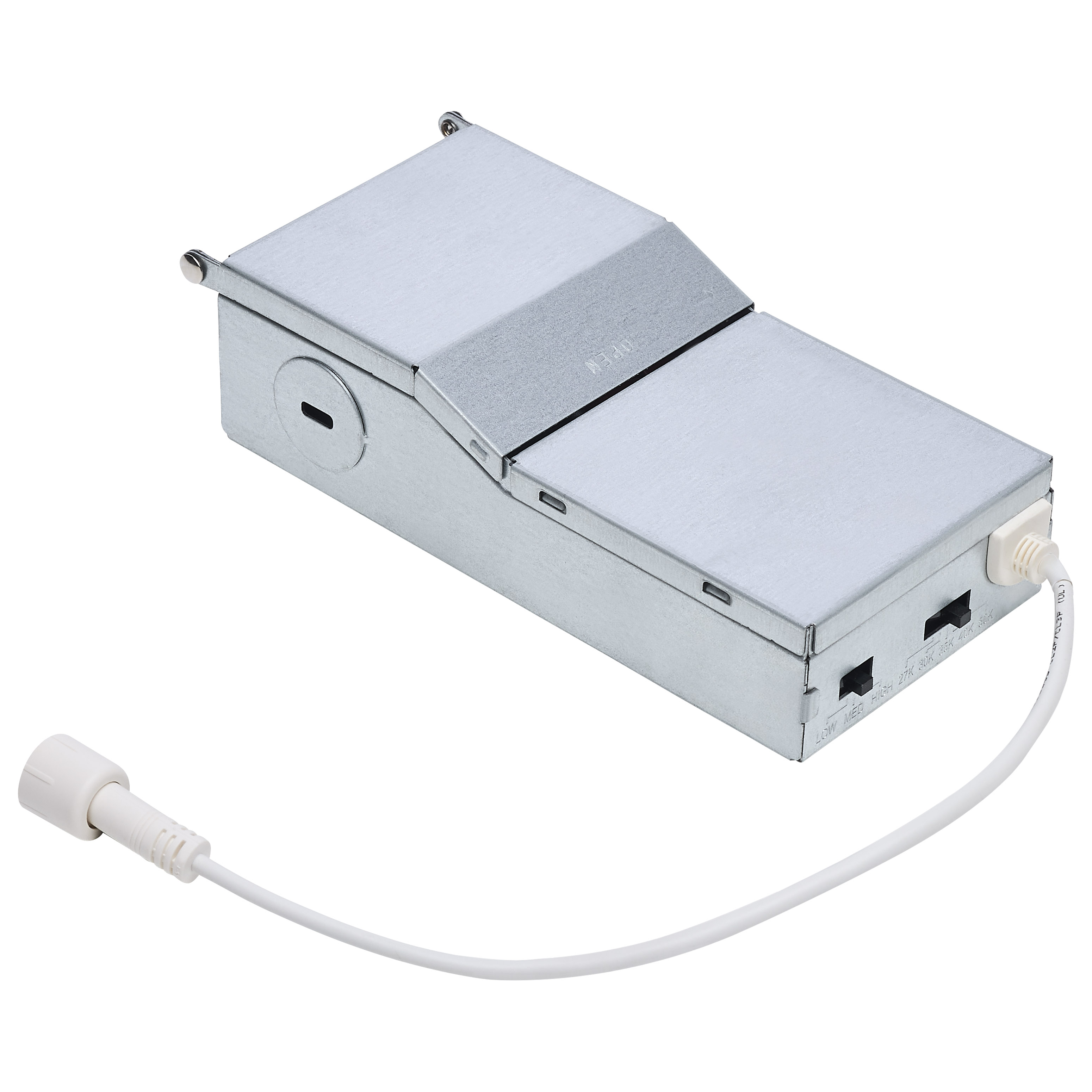

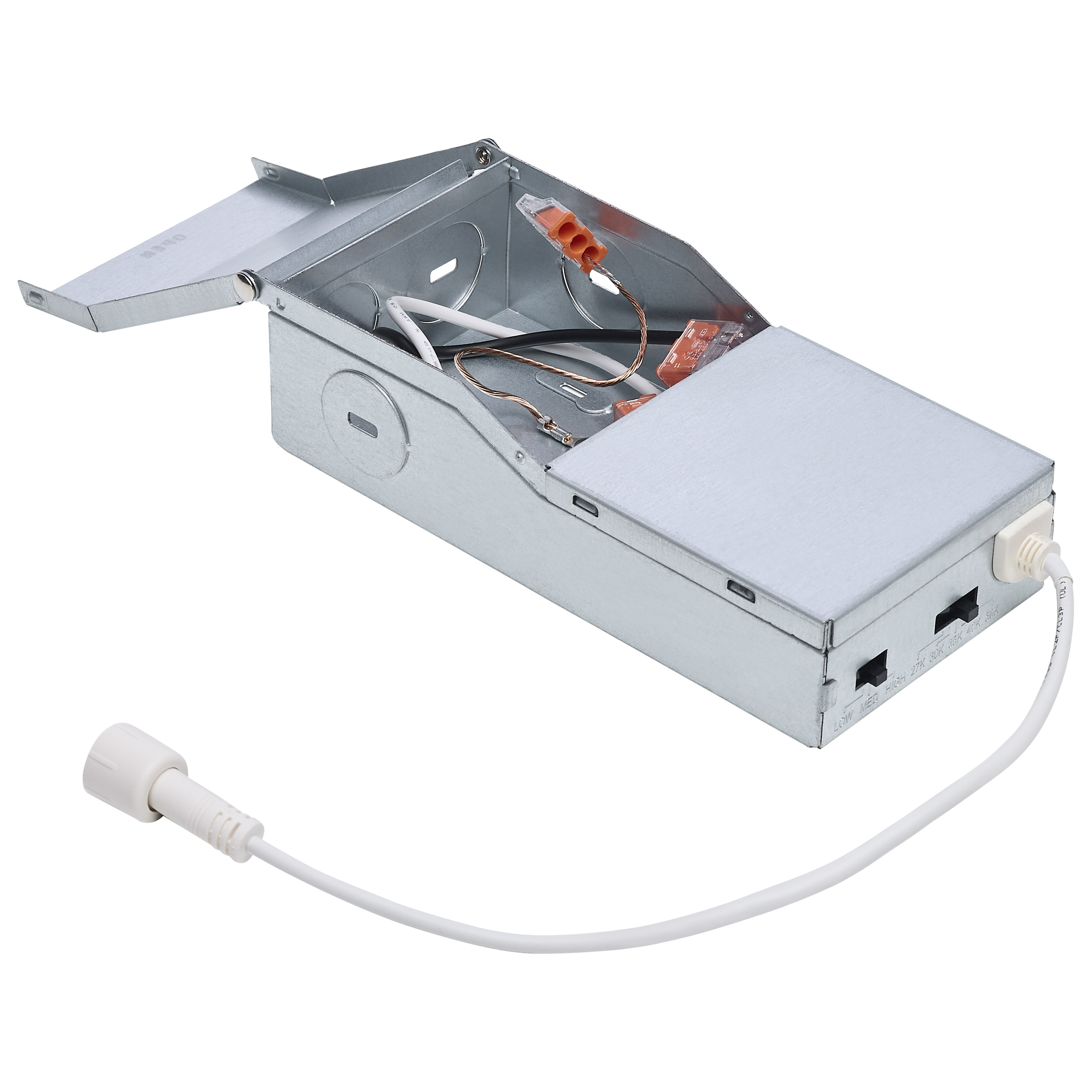

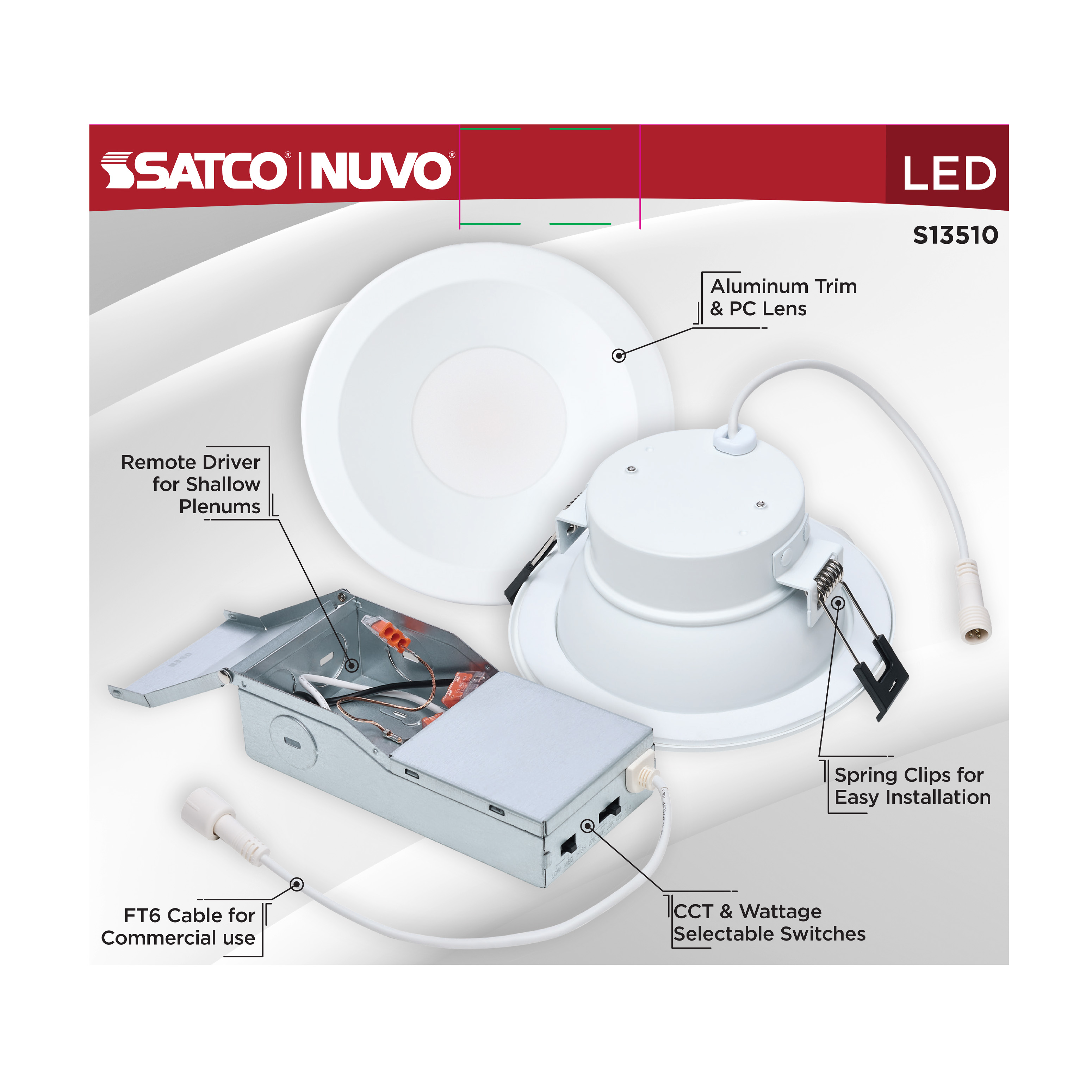

| Product Notes | Default Wattage: 12W; FT6 cable between driver and lighting head; Default CCT: 3000K |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <30% |
| Up Down Installation | Down |

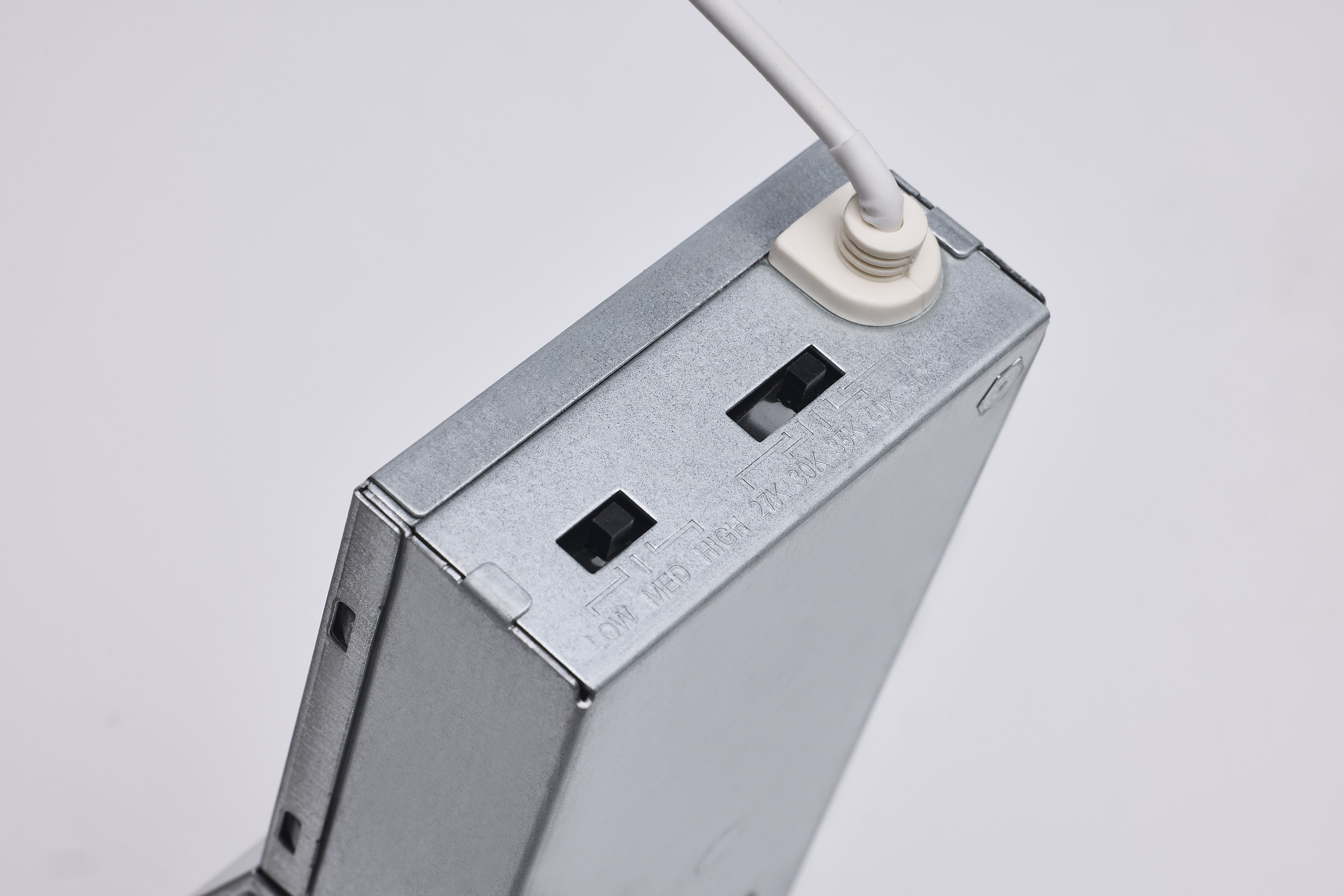

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |
| Amps | 0.100-0.035/0.075-0.026/0.050-0.017A |
| Mounting Diameter | 4.0 |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Lensed | True |
| Nominal Length | 4.0 |
| Power Factor | >0.9 |
| SDS Class | LED_Fixture |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor and Outdoor |
| Product Technology | LED |
| Fluor Equiv | 18W |
| Incandescent Equivalent | 75W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 90 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -25C (-13F) to +40C (+104F) |
| Lumens | 1100L/900L/650L |
| Volts | 120V-347V |
| Watts | 12W/9W/6W |
| Lamp Base | Integrated |
|---|---|
| Finish | Matte White |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| Flicker Free | True |
|---|
| ADA Compliant | False |
|---|---|
| Air Tight | True |
| CA Regulations | California T24 2016 - 2025 JA8 Listed |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Dark Sky Rated | False |
| Energy Star ID | 4515179 |
| FCC Compliant | True |
| IC Rated | True |
| IP Rating | IP54 |
| Location Rating | Wet |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Exempt |
| T24 Compliant | True |
| UPC | 045923135101 |
|---|---|
| Case Cube | 0.9465 |
| Case Height | 7.76 |
| Case Length | 15.98 |
| Case Quantity | 6 |
| Case UPC | 10045923135108 |
| Case Weight | 7.7 |
| Case Width | 13.19 |
| EA Cube | 0.1287 |
| EA Height | 7.01 |
| EA Length | 7.68 |
| EA Quantity | 1 |
| EA Weight | 1.07 |
| EA Width | 4.13 |
| Inner Cube | 0.0 |
| Pack Type | Color Box |
| Web Height | 2.35 |
| Web Width | 5.04 |
