| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Polycarbonate (PC) |
| Fixture Type | Linear |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 1KV |
| Total Harmonic Distortion | 25% |
| Tube Guard Use | No |

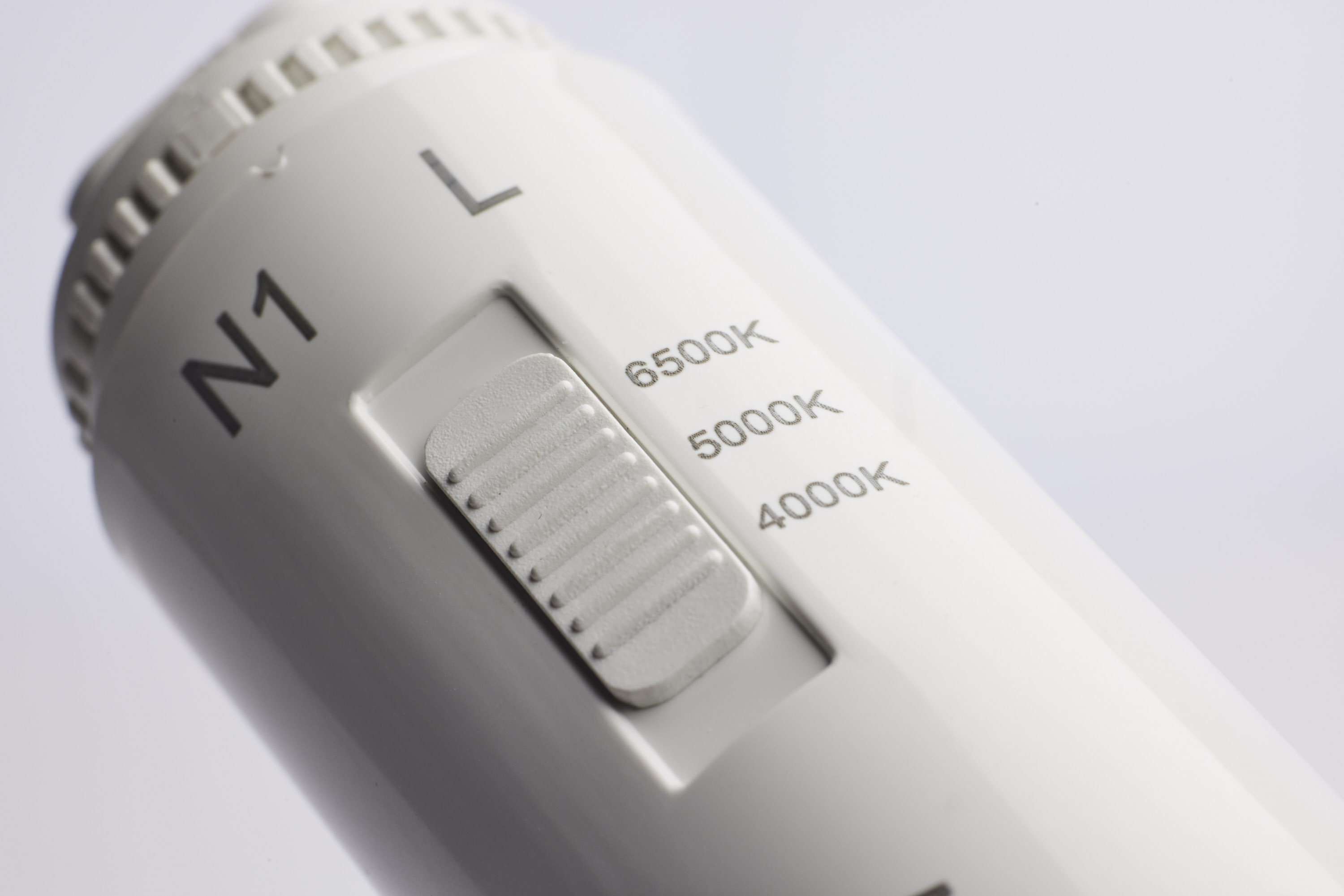

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Amps | 0.092-0.040A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frost |
| Lens Material | Plastic |
| Nominal Length | 30.0 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 42W |
| Incandescent Equivalent | 50W |
| CCT (Kelvin Temp) | 4000K/5000K/6500K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 360 |
| Color Temp | Cool White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

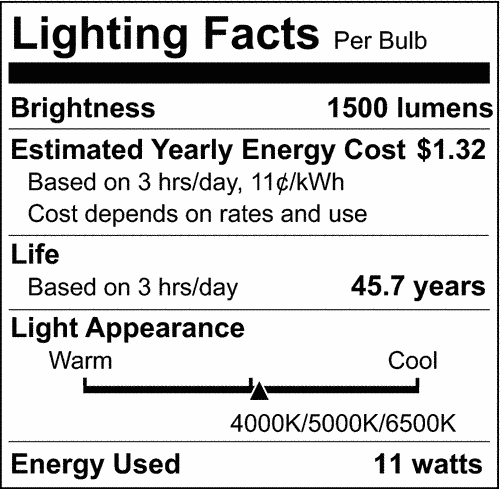

| Lumens | 1500L/1600L/1450L |
| Volts | 120V-277V |
| Watts | 11W |
| Lamp Base | Recessed Double Contact HO/VHO |
|---|---|
| Finish | WHITE |
| Housing Color | White |

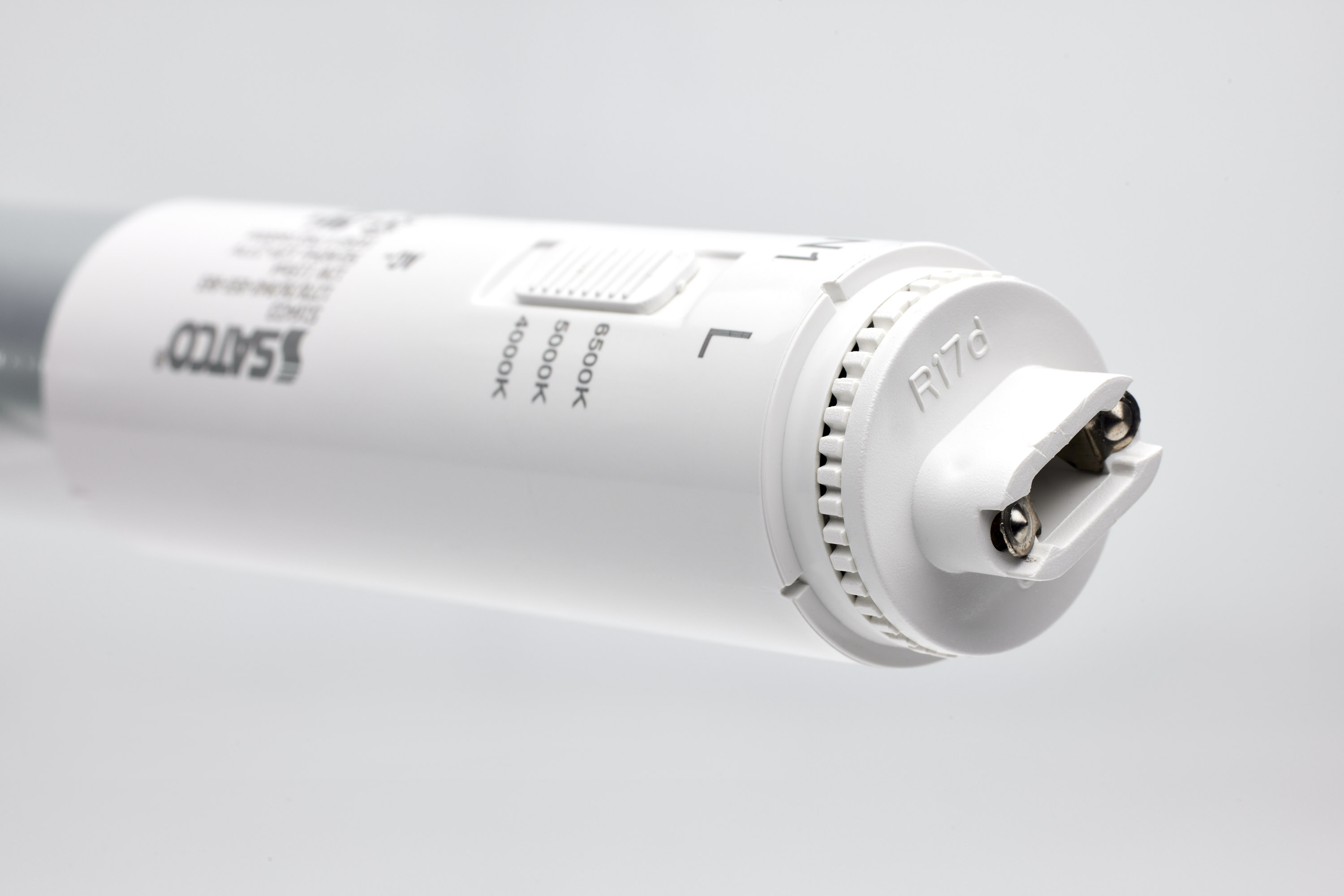

| ANSI Base | R17d |
| Lamp Type | T8 |
| MOD Lamps | 1.13 |
| MOL | 27.81 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | ETL Sanitation listed (conforms to NSF) |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923164323 |
|---|---|
| Case Cube | 0.6722 |
| Case Height | 4.92 |
| Case Length | 30.0 |
| Case Quantity | 10 |
| Case UPC | 10045923164320 |
| Case Weight | 5.5 |
| Case Width | 7.87 |
| EA Cube | 0.023 |
| EA Height | 1.15 |
| EA Length | 30.0 |
| EA Quantity | 1 |
| EA Weight | 0.42 |
| EA Width | 1.15 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |
| Pack Type | Egg Crate |
| Web Length | 27.81 |
| Web Width | 1.13 |
