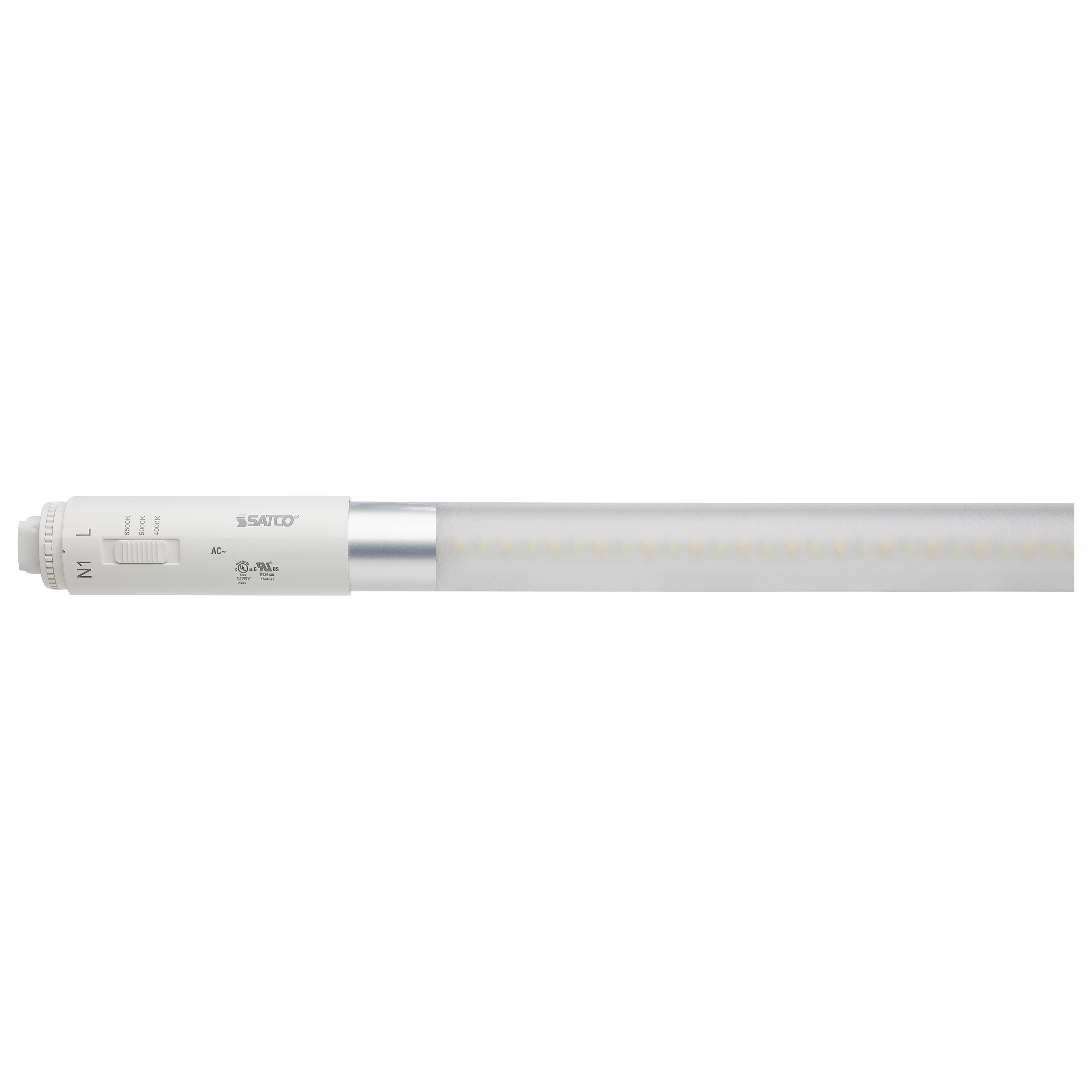

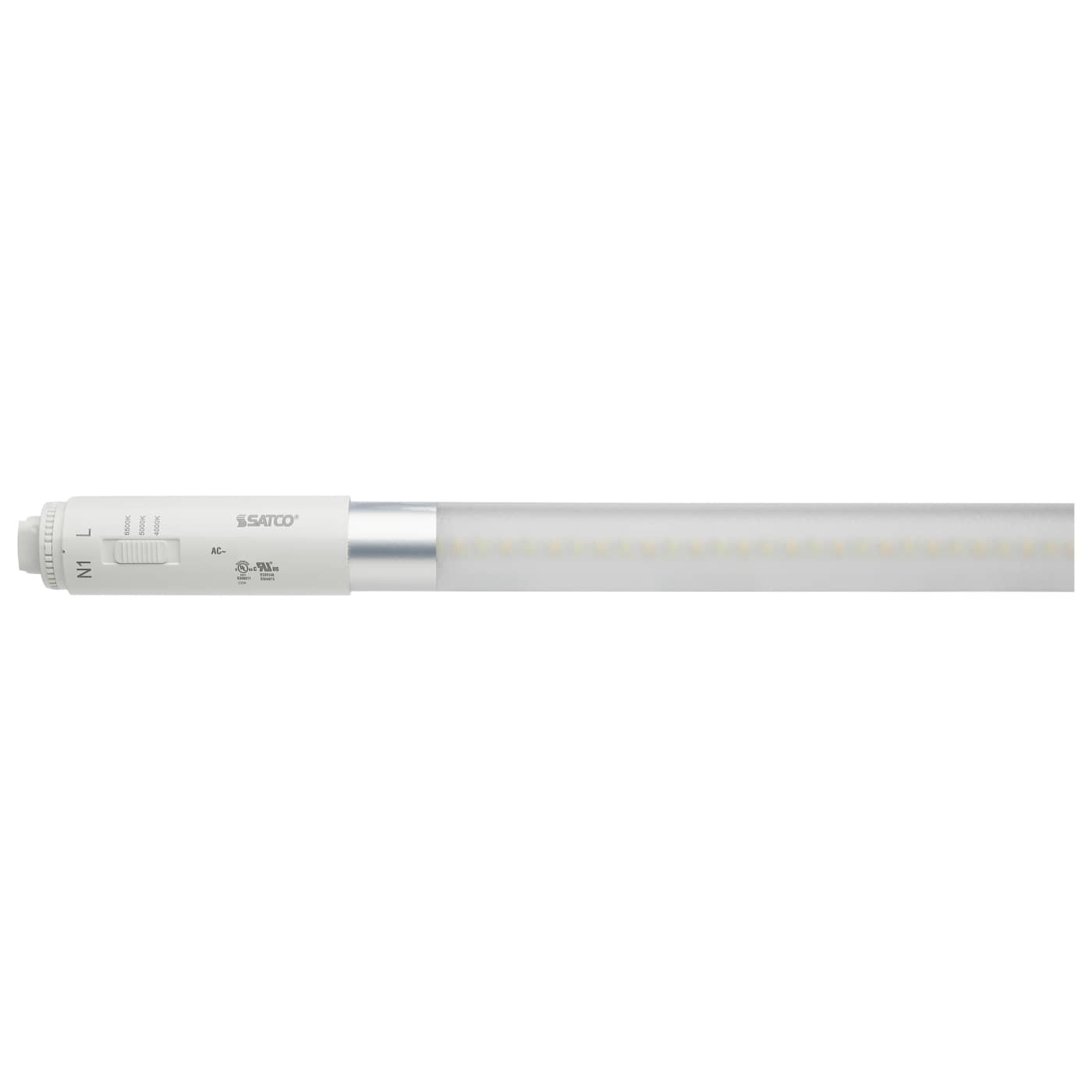

S16438 30T8/LED/HO-SIGN/72-3CCT/BP/SE

S16438

30T8/LED/HO-SIGN/72-3CCT/BP/SE

30 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass


Lights

S16438

30T8/LED/HO-SIGN/72-3CCT/BP/SE

30 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass

Specifications

General
StatusActive
Watts30W
Incandescent Equivalent125W
Fluorescent Equivalent85W
Volts120V-277V
Ballast TypeType B
ShapeT8
BaseRecessed Double Contact HO/VHO

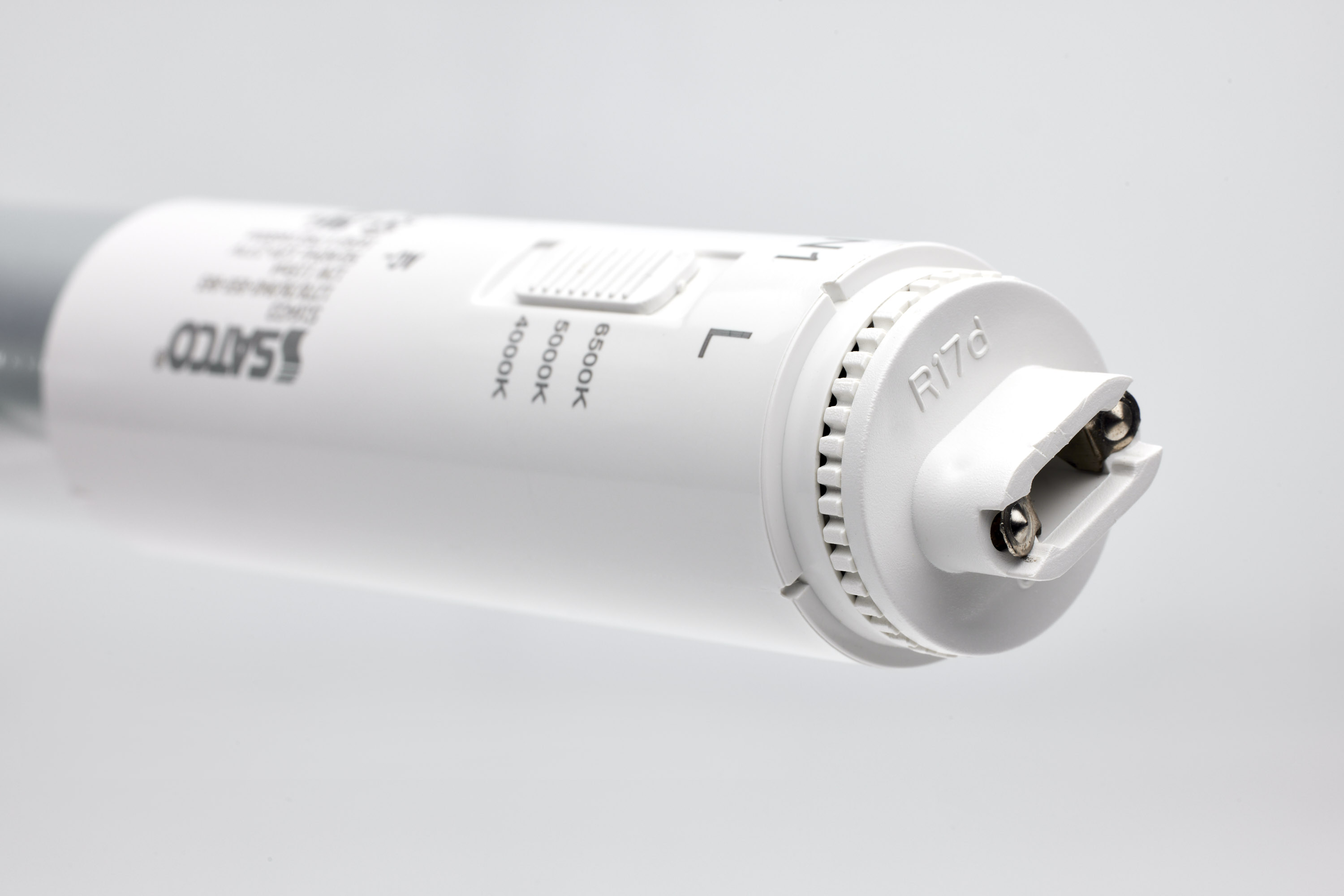

ANSI BaseR17d
Nominal Length72
FinishWhite
CCT (Kelvin)4000K/5000K/6500K
TemperatureCool White to Daylight
CRI83
Lumens4200L/4350L/4150L
Beam Spread360
DimmableNon-Dimmable
Hours Rated50000
Product CategoryLinear
Lamp TypeLinear
TechnologyLED
Electrical
Watts30W
Incandescent Equivalent125W
Fluorescent Equivalent85W
Volts120V-277V
Ballasting RequirementsBallast Bypass
Ballast TypeType B
Operating Frequency50/60Hz
CCT (Kelvin)4000K/5000K/6500K
TemperatureCool White to Daylight
CRI83
Lumens4200L/4350L/4150L
Beam Spread360
DimmableNon-Dimmable
Power Factor0.9
Hours Rated50000
THD25%
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL69.81
MOD1.13
Nominal Length72
ShapeT8
BaseRecessed Double Contact HO/VHO
ANSI BaseR17d
FinishWhite
MaterialPolycarbonate (PC)
Lens FinishFrost
Lens MaterialPlastic
Weight (lb.)1.15
Additional Information
Tube Guard UseNo
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Classified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedNo
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923164385
Each Quantity1
Each Length (in.)72.00
Each Width (in.)1.15
Each Height (in.)1.15
Each Weight (lb.)1.76
Each Cube (CuFt.)0.0551
Pack TypeEgg Crate
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923164382
Case Quantity10
Case Length (in.)72.00
Case Width (in.)7.87
Case Height (in.)4.92
Case Weight (lb.)17.60
Case Cube (CuFt.)1.6134
No compatibility links for this item.
×
×
×
×

Precautions

No precautions available at this time.

×
