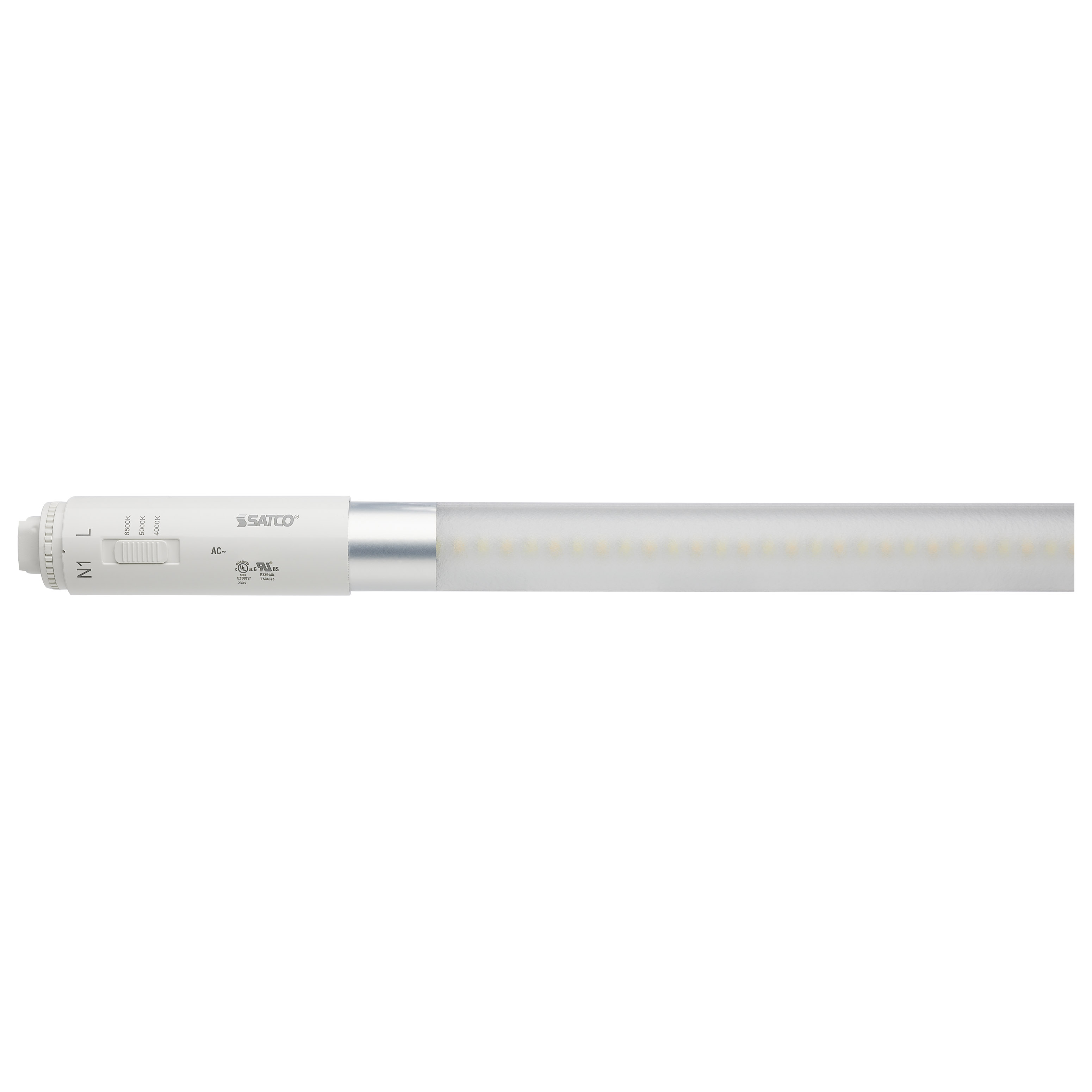

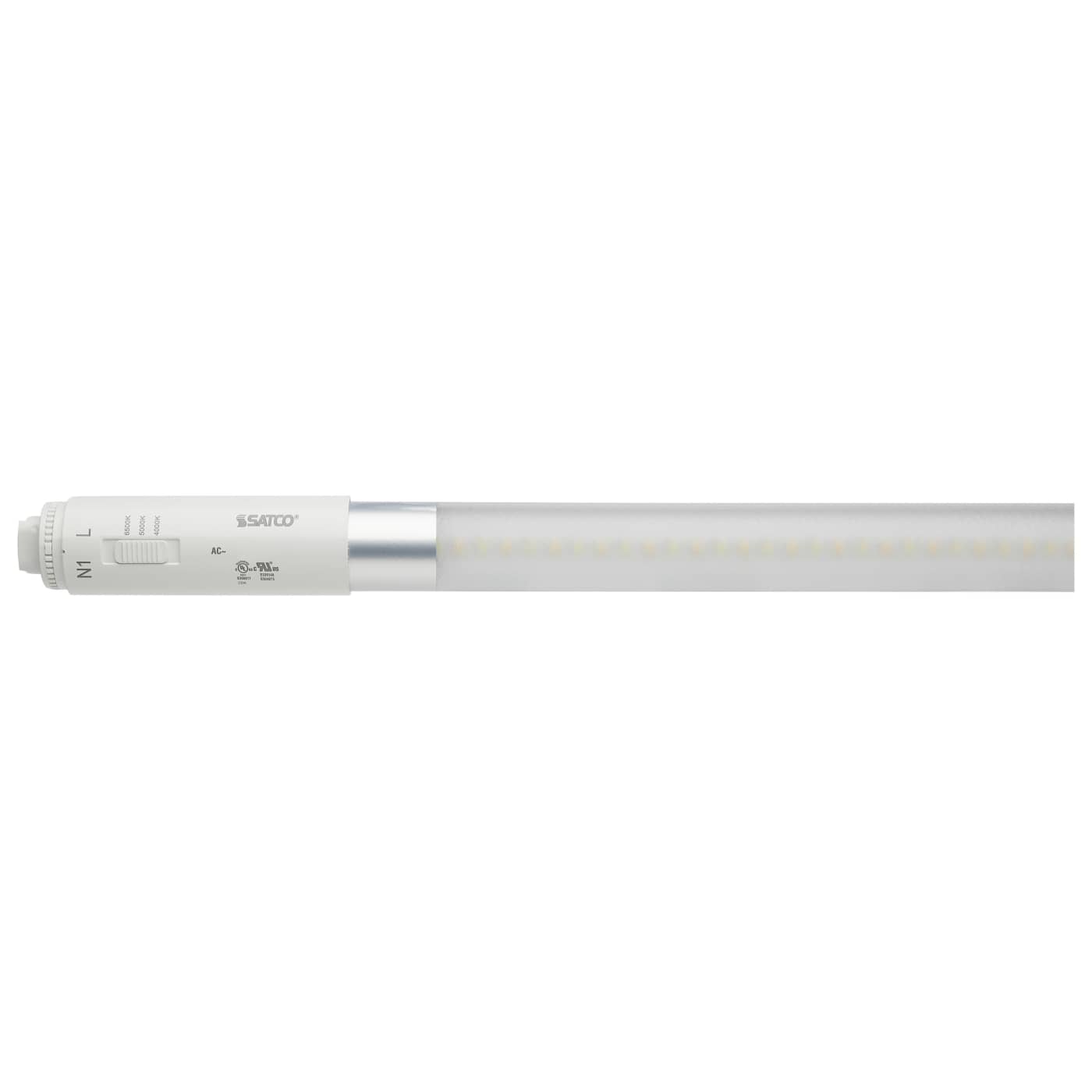

36T8/LED/HO-SIGN/96-3CCT/BP/SE - S16440
36T8/LED/HO-SIGN/96-3CCT/BP/SE - S16440
36T8/LED/HO-SIGN/96-3CCT/BP/SE - S16440
36T8/LED/HO-SIGN/96-3CCT/BP/SE - S16440
36T8/LED/HO-SIGN/96-3CCT/BP/SE - S16440
S16440

36T8/LED/HO-SIGN/96-3CCT/BP/SE

  • 36 Watt T8 LED
  • CCT Selectable
  • 120-277 Volt
  • Single or Double Ended
  • Type B Ballast Bypass
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S16440 SpecificationsS16440 Instructions.pdfLED T8 SIGN LAMPS CCT SELECTABLE
Description
Description
36 Watt T8 LED; CCT Selectable; 120-277 Volt; Single or Double Ended; Type B Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialPolycarbonate (PC)
Fixture TypeLinear
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 1KV
Total Harmonic Distortion25%
Tube Guard UseNo
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.300-0.130A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Lens MaterialPlastic
Nominal Length96.0
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv110W
Incandescent Equivalent125W
Electrical

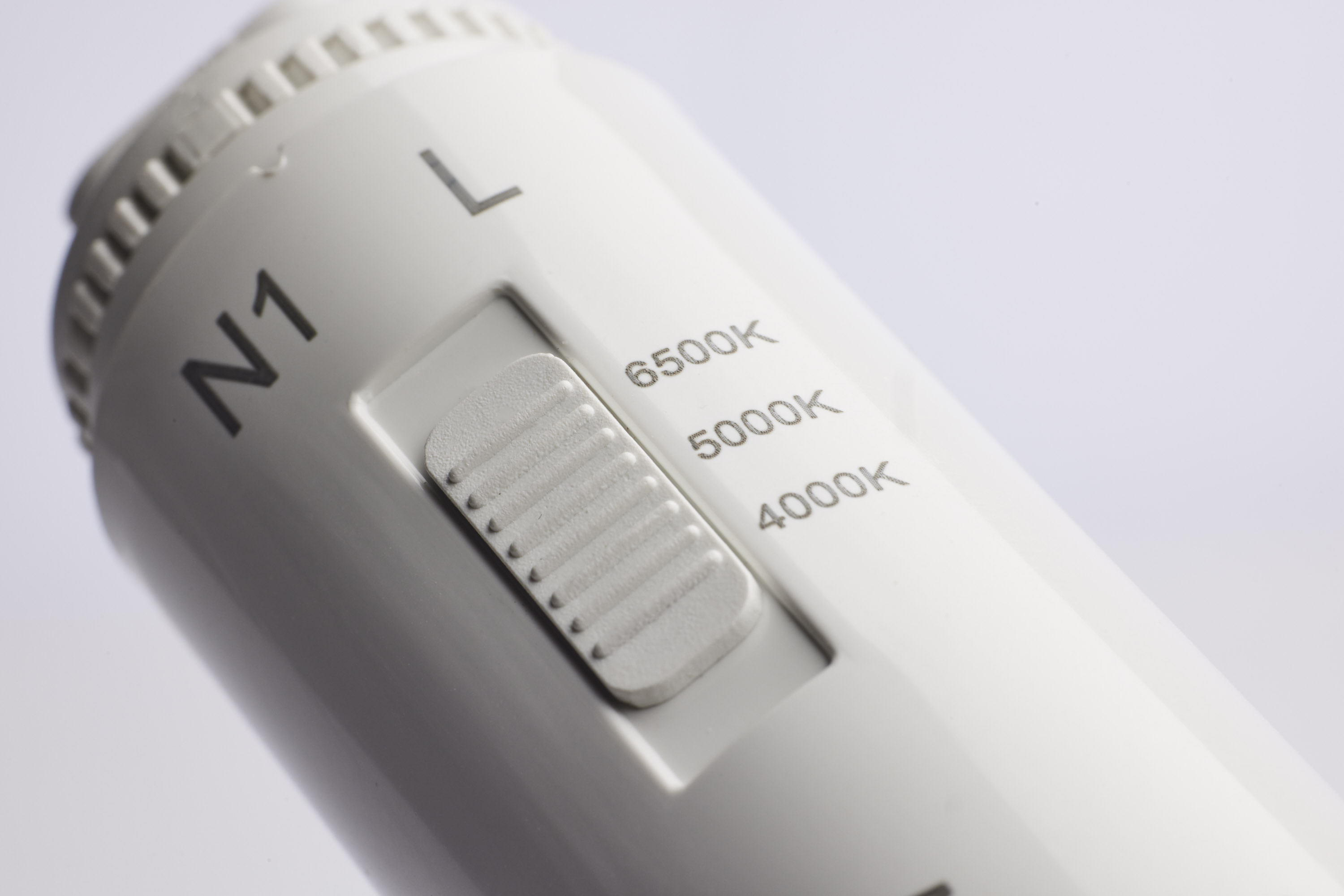

CCT (Kelvin Temp)4000K/5000K/6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempCool White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)

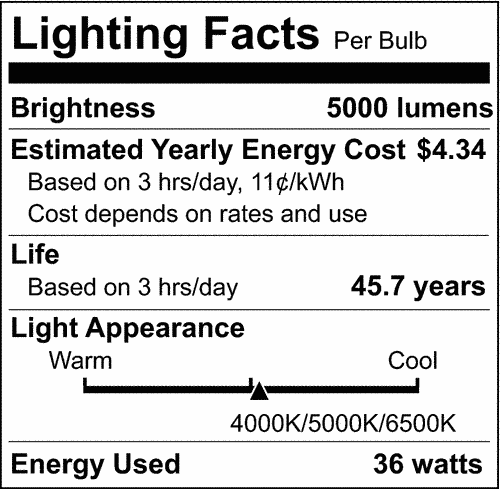

Lumens5000L/5200L/4900L
Volts120V-277V
Watts36W
Physical

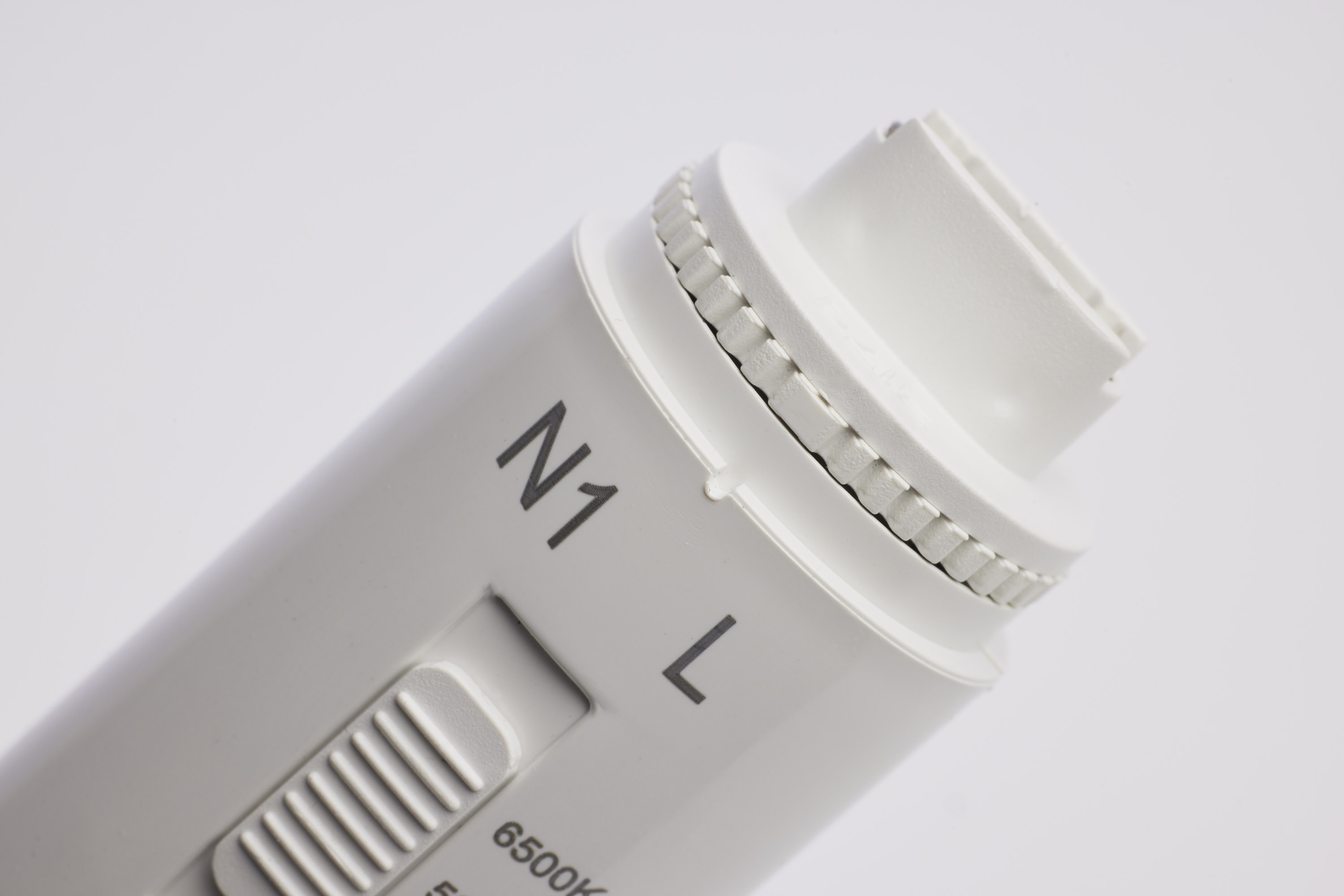

Lamp BaseRecessed Double Contact HO/VHO
FinishWHITE
Housing ColorWhite

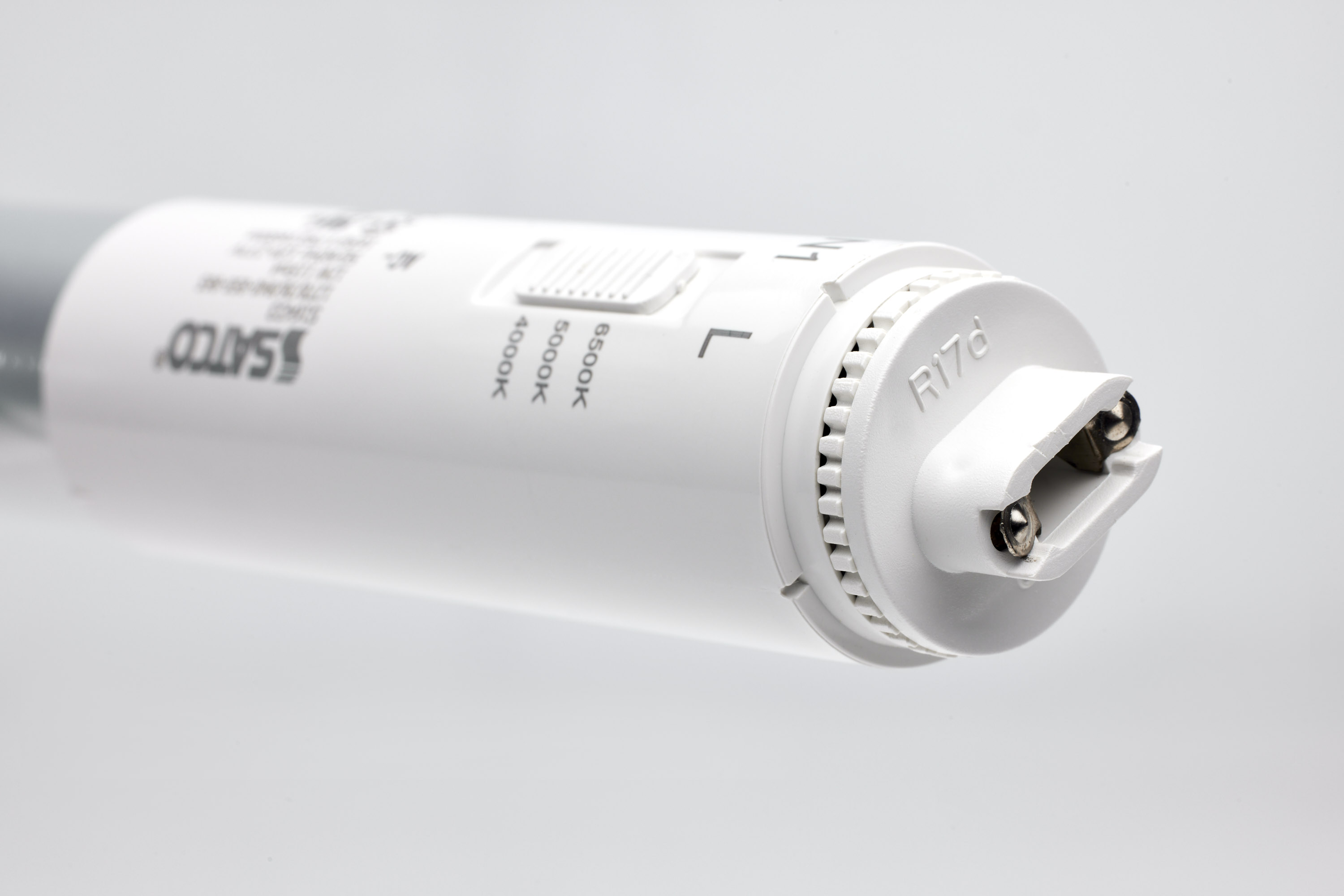

ANSI BaseR17d
Lamp TypeT8
MOD Lamps1.13
MOL93.81
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedETL Sanitation listed (conforms to NSF)
ROHS CompliantYes

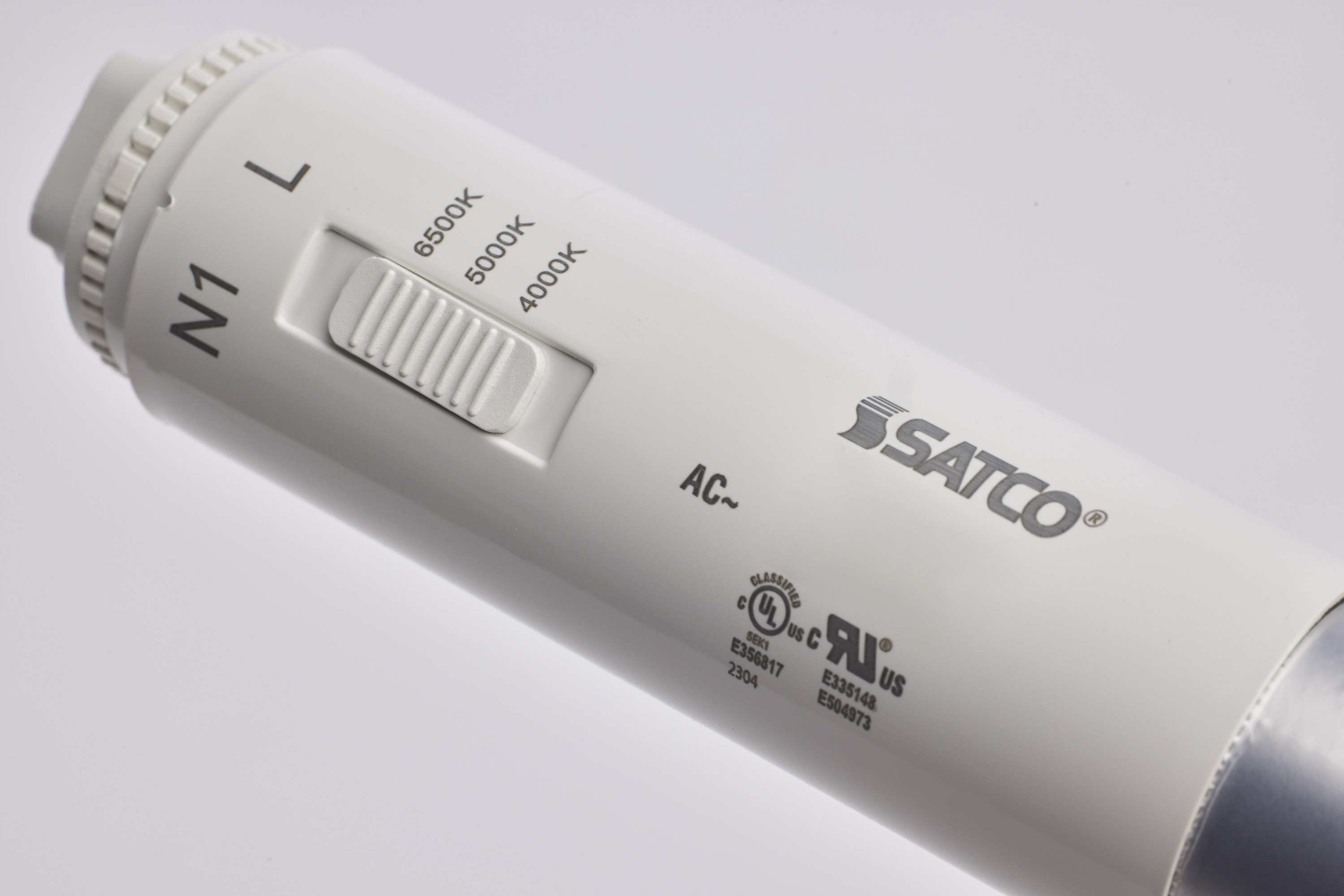

Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923164408
Case Cube2.1511
Case Height4.92
Case Length96.0
Case Quantity10
Case UPC10045923164405
Case Weight21.8
Case Width7.87
EA Cube0.0735
EA Height1.15
EA Length96.0
EA Quantity1
EA Weight1.57
EA Width1.15
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeEgg Crate
Web Length93.81
Web Width1.13
