S16510

FC8T9/LED/CIR/CCT/DM/A-B

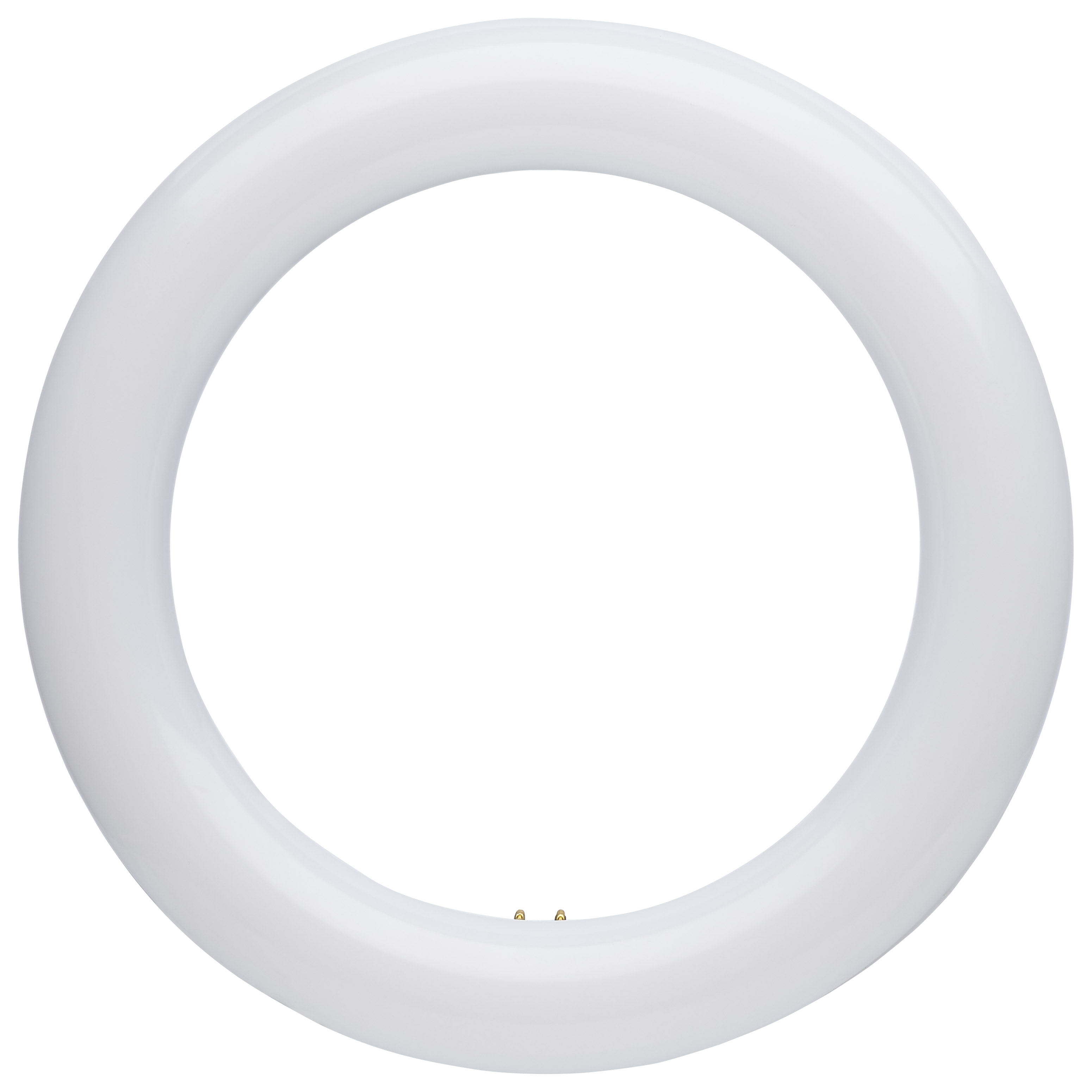

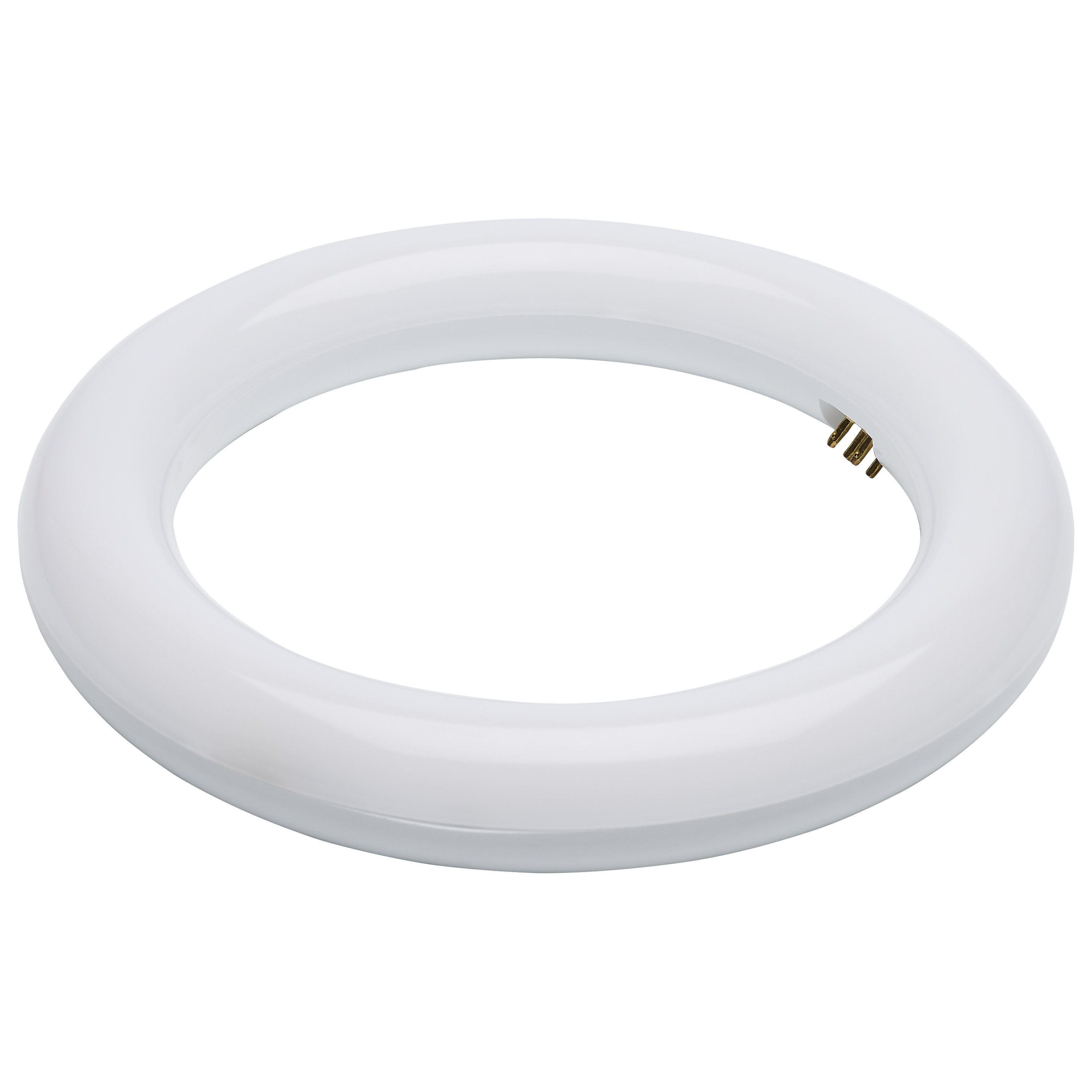

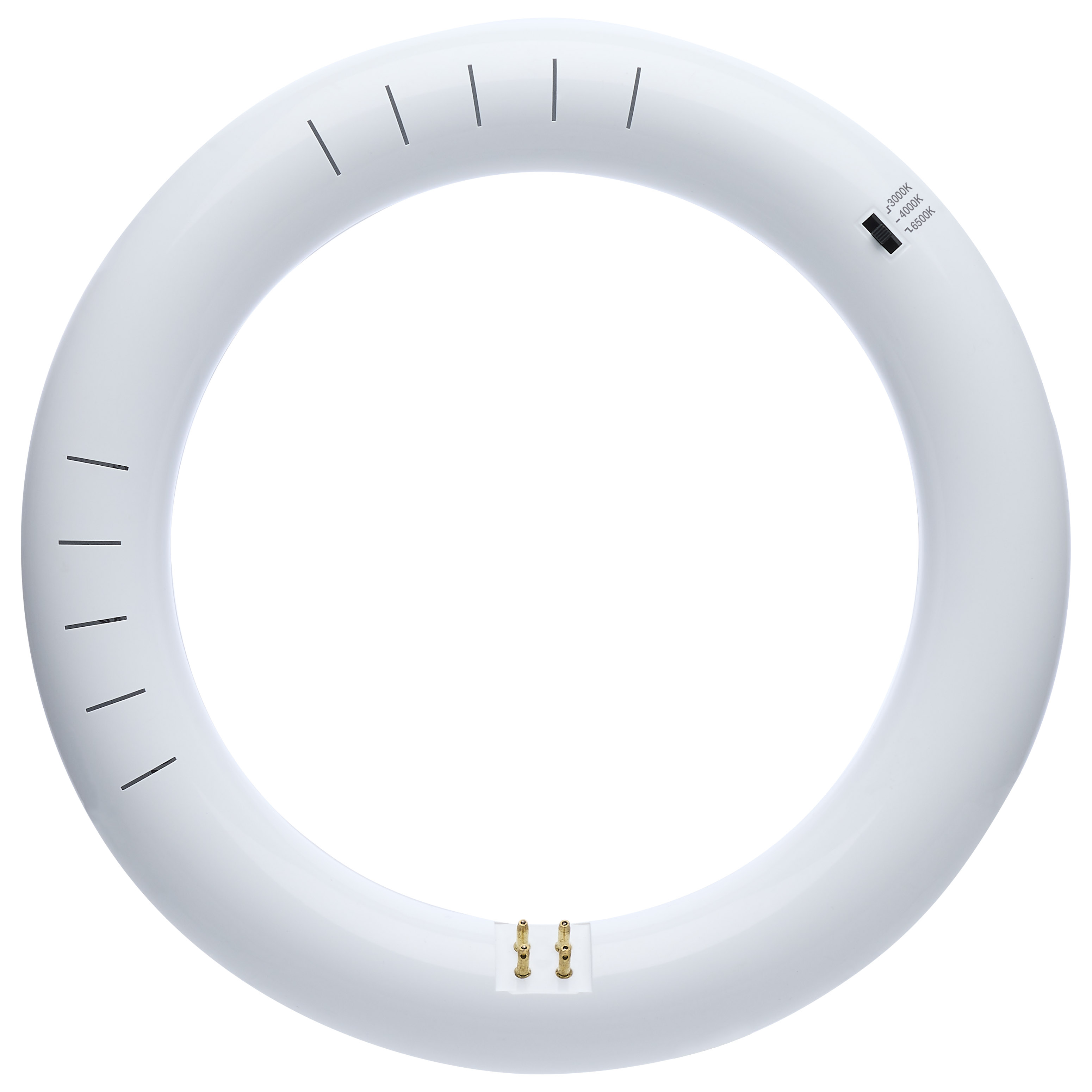

  • LED Circline
  • 11 Watt
  • T9
  • 3000K/4000K/6500K CCT Selectable
  • G10q Base
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S16510 SpecificationsS16510 Ballast Compatibility Chart.pdfS16510 Instructions.pdf
Description
Description
LED Circline; 11 Watt; T9; 3000K/4000K/6500K CCT Selectable; G10q Base; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A/B
Ballasting RequirementsBallast required (Type A, Electronic only) or Ballast Bypass (Type B)
Lamp FilamentLED
MaterialPolycarbonate (PC)
Fixture TypeCircline
Product NotesOnly compatible with Electronic ballasts when installed in Type A mode. See ballast compatibility list for details. Not for use on magnetic ballasts.; Inner Diameter: 5.71 in.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion25%

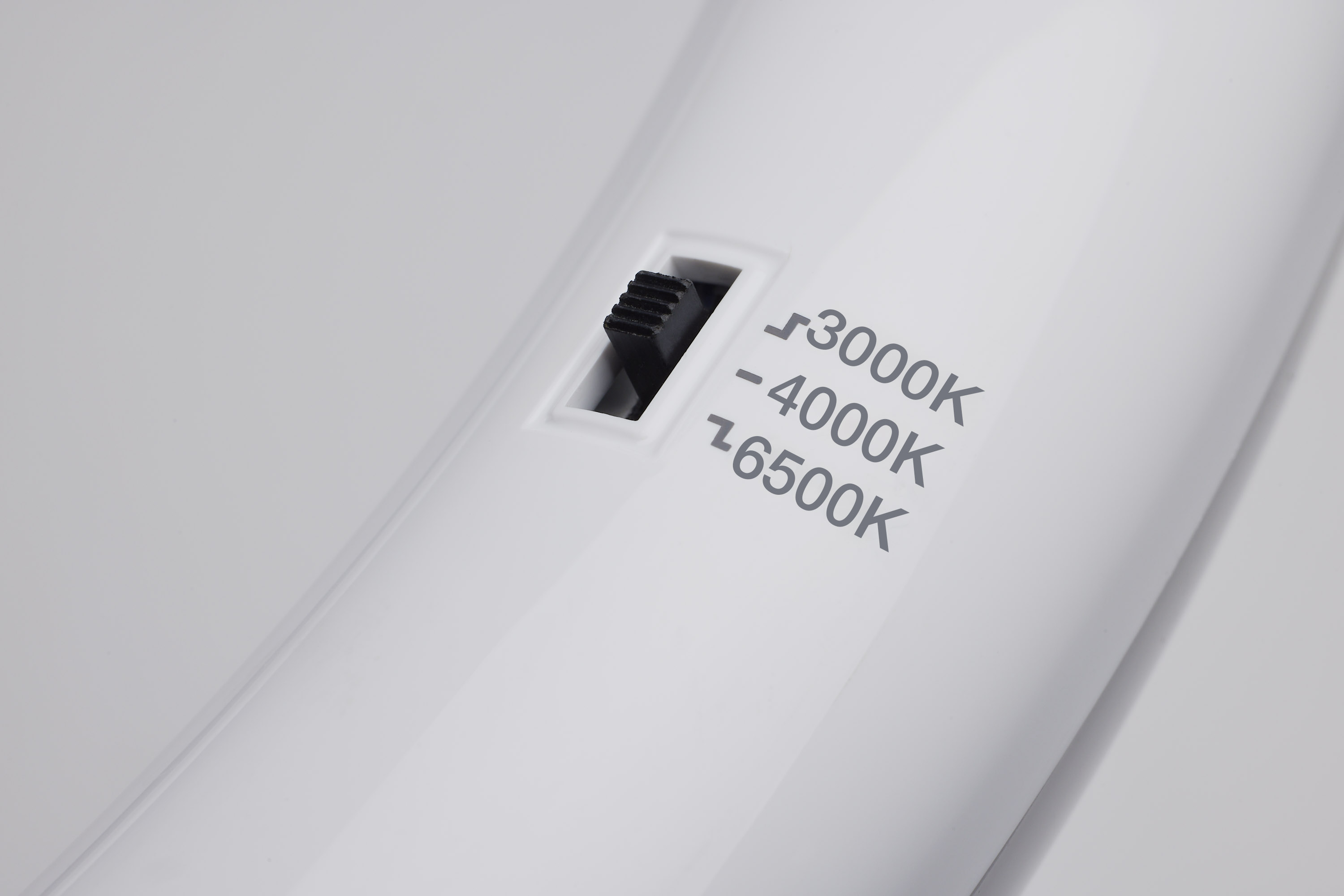

CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.092-0.040A
Has CameraNo
IOT EnabledNo
Lens FinishFrost
Minimum Compartment SizeLength 11.4 in. Width 11.4 in. Height: 3.5 in.
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv22W
Incandescent Equivalent50W
Electrical
CCT (Kelvin Temp)3000K/4000K/6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)180
Color TempSoft White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens1300L/1400L/1350L
Volts120V-277V
Watts11W
Physical

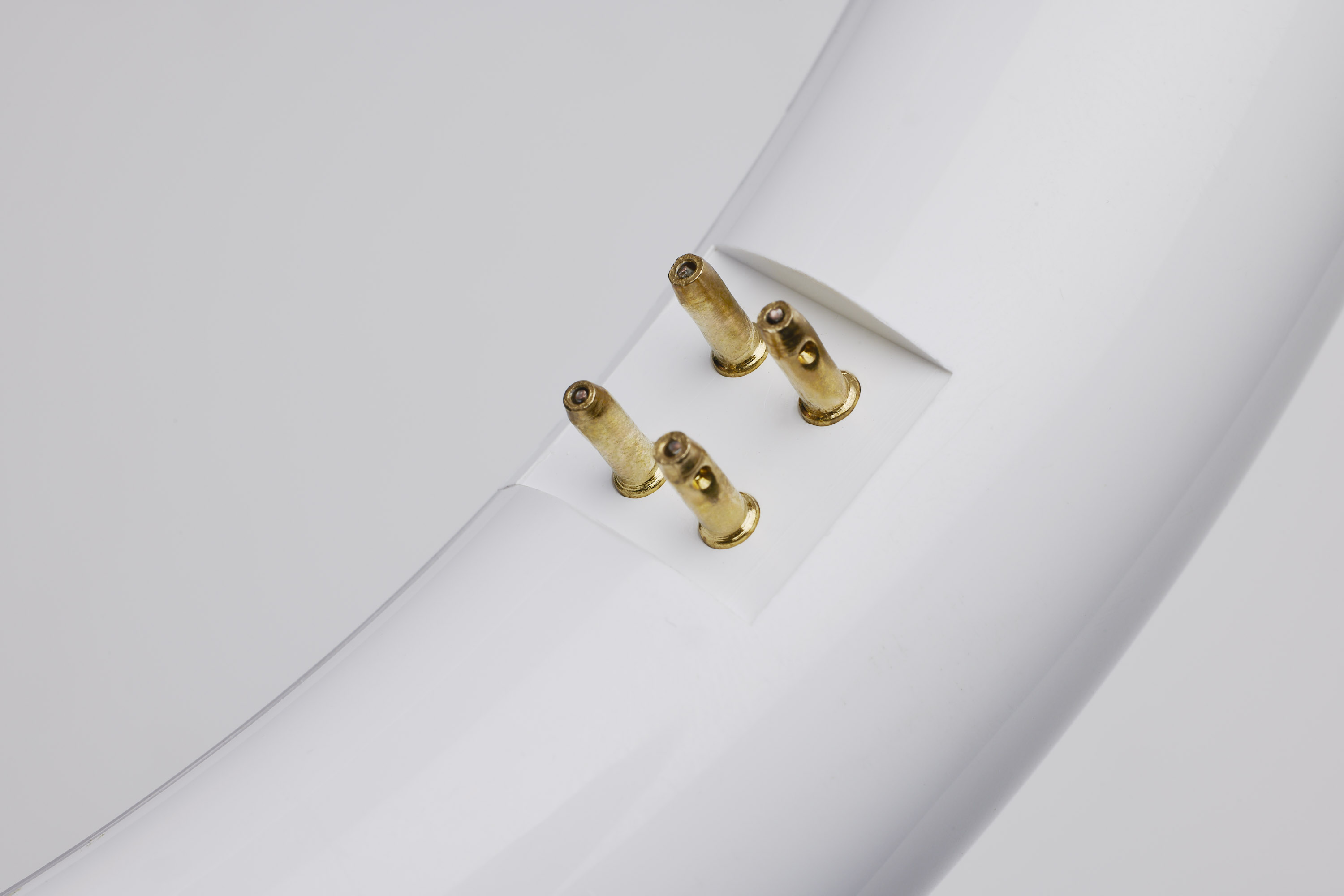

Lamp BaseG10q (4-Pin)
FinishFrost
Housing ColorFrost
ANSI BaseG10q
Lamp TypeT9
MOD Lamps1.2

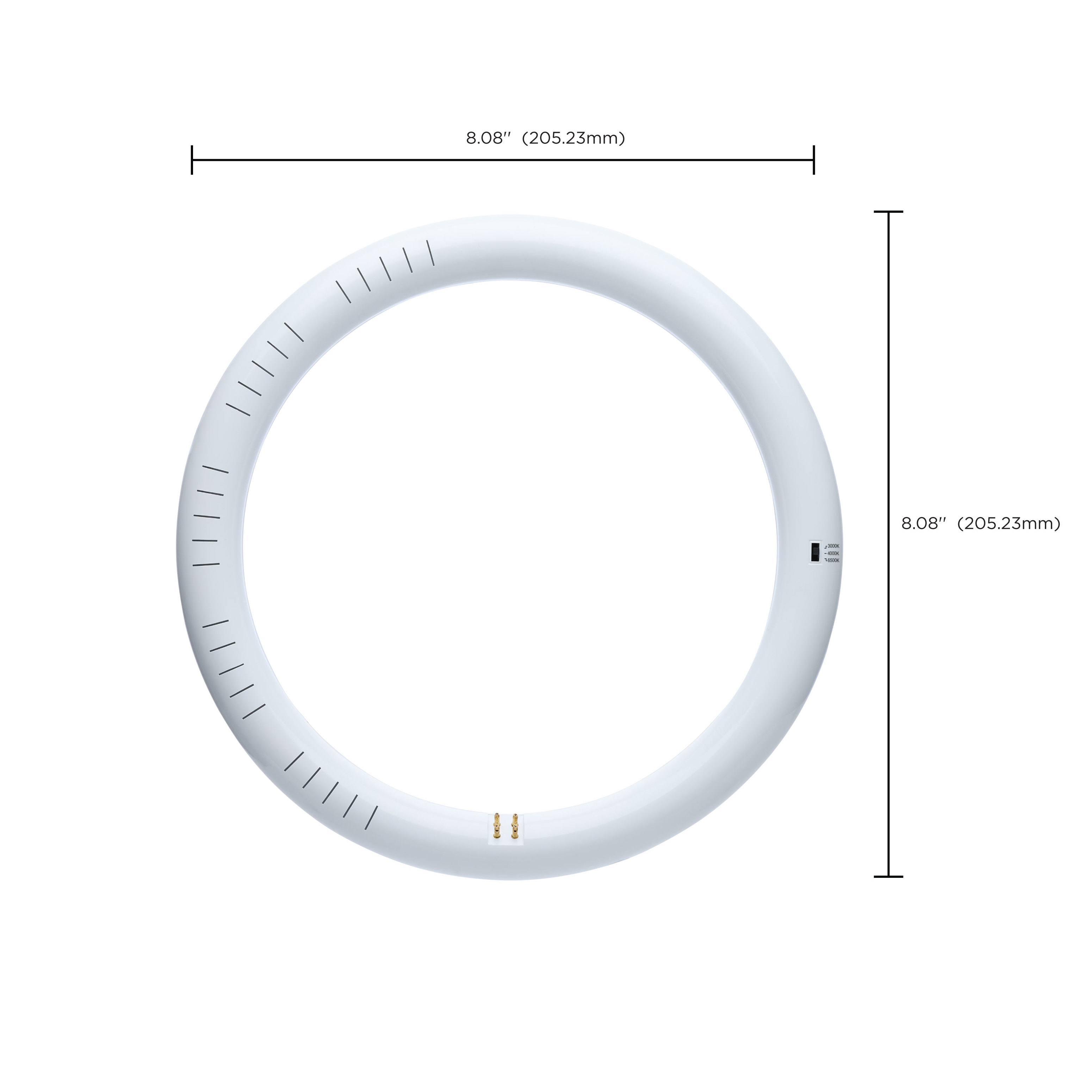

MOL8.08
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcETLus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923165108
Case Cube0.7868
Case Height8.86
Case Length17.32
Case Quantity12
Case UPC10045923165105
Case Weight7.34
Case Width8.86
EA Cube0.0572
EA Height8.46
EA Length8.46
EA Quantity1
EA Weight0.6
EA Width1.38
Inner Cube0.0
Pack TypeBox
Web Length8.08
Web Width1.2
