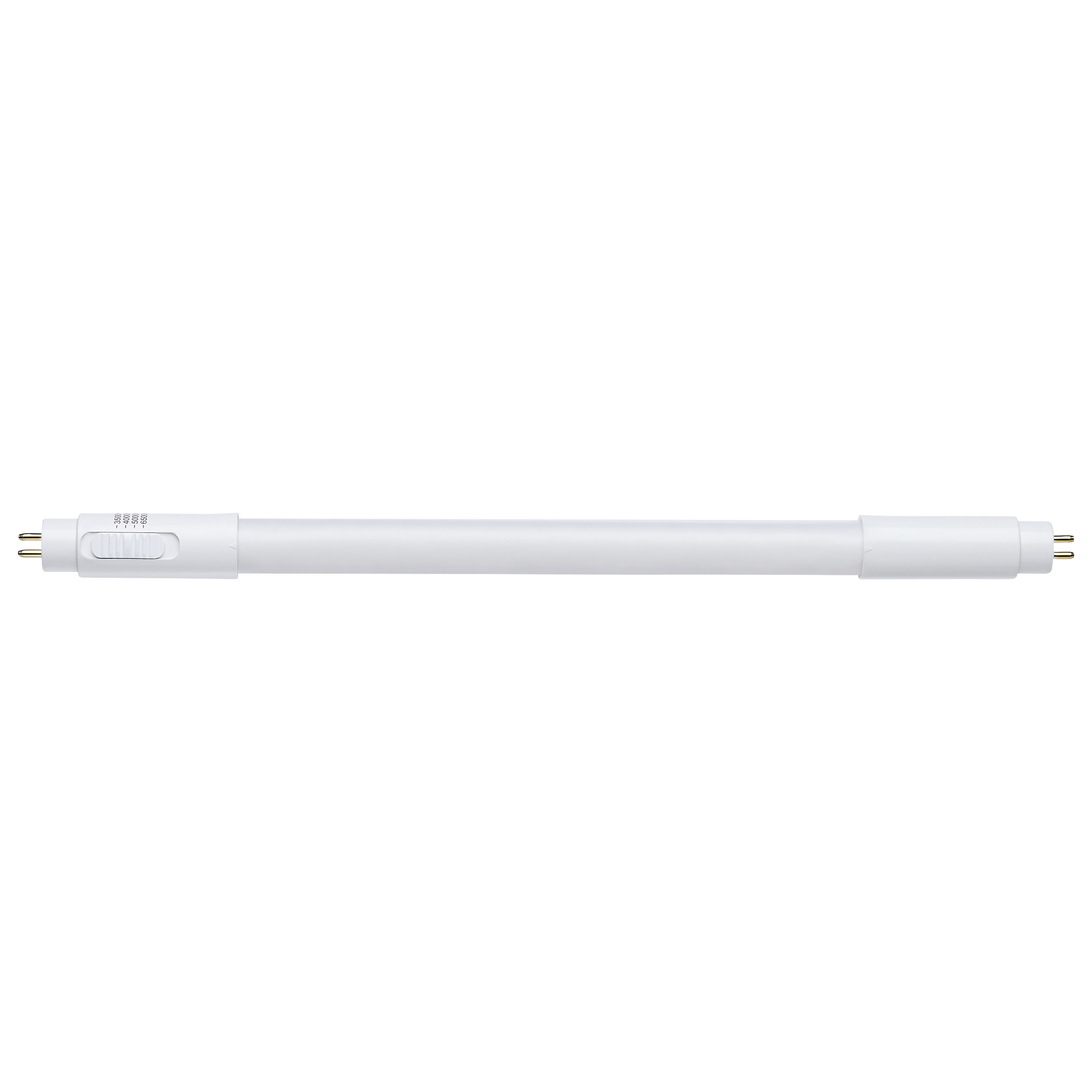

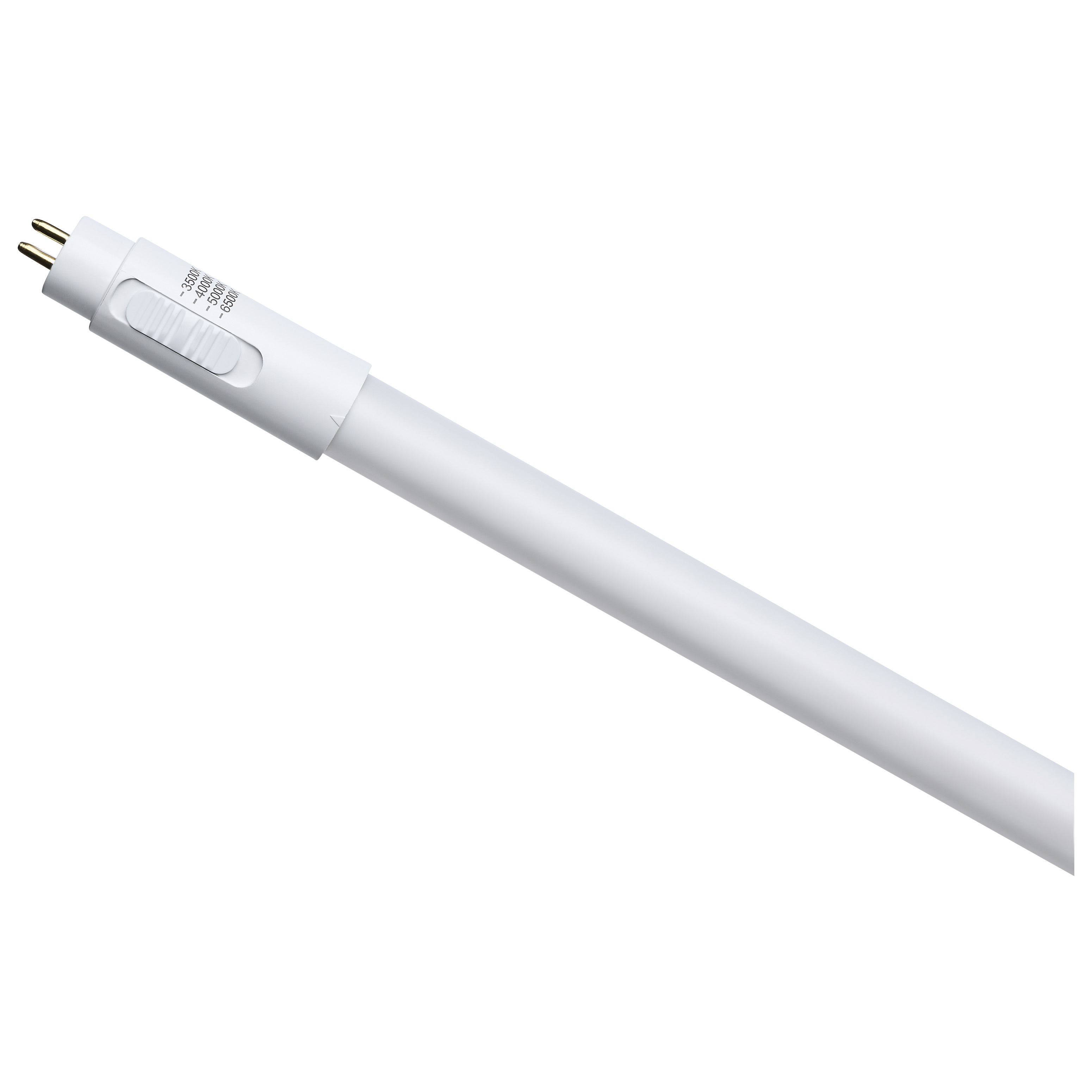

5T5L9/8CCT4/G5/A/O/CF/U/D - S16512
5T5L9/8CCT4/G5/A/O/CF/U/D - S16512
5T5L9/8CCT4/G5/A/O/CF/U/D - S16512
5T5L9/8CCT4/G5/A/O/CF/U/D - S16512
5T5L9/8CCT4/G5/A/O/CF/U/D - S16512
S16512

5T5L9/8CCT4/G5/A/O/CF/U/D

  • 5 Watt T5 LED
  • 9 Inch
  • 35K/4K/5K/65K
  • G5 Base
  •  Type A
  • Omni
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
warranty^3_years^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
Description
Description

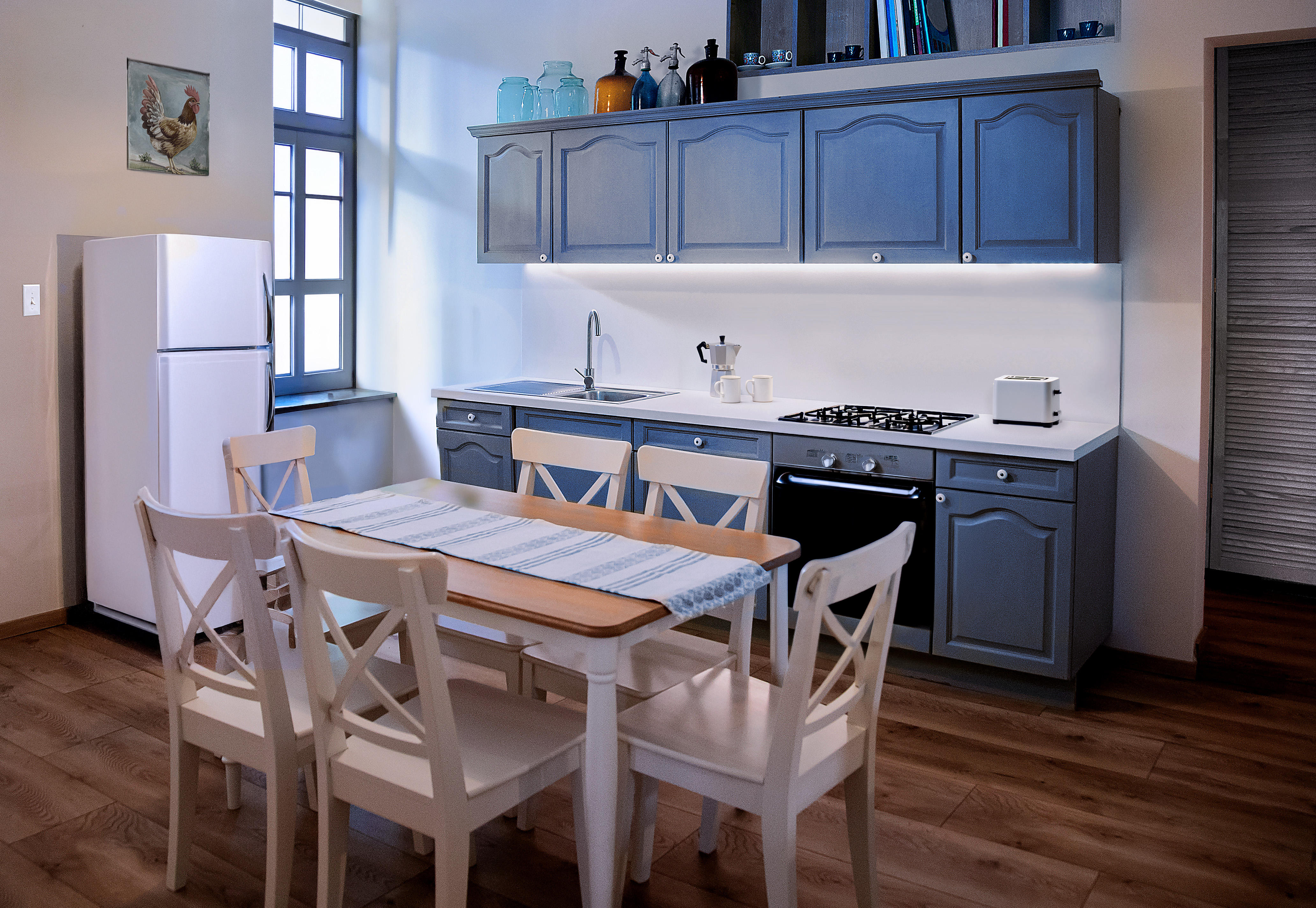

Upgrade your linear lighting with adaptable S16512 LED T5 lamps engineered for convenience, durability, and flexibility. Designed for easy retrofit applications, these ballast-compatible Type A lamps eliminate the need for rewiring existing ballasts. This 9" lamp with a G5 miniature bi-pin base, features four selectable CCT options to suit a variety of environments. Constructed with durable PET-coated glass, these lamps deliver reliable performance, making them an ideal solution for undercabinet, vanity, and task lighting applications replacing F6T5 fluorescent lamps.
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A
Ballasting RequirementsBallast required, check compatibility
MaterialPolycarbonate (PC)
Fixture TypeMiniature
StatusActive
Total Harmonic DistortionBallast Dependent
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
AmpsBallast Dependent
Lens FinishFrost
Lens MaterialGlass
Nominal Length9.0
Operating PositionUniversal
Power FactorBallast Dependent
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv6W
Serviceable BatteryNo
Electrical

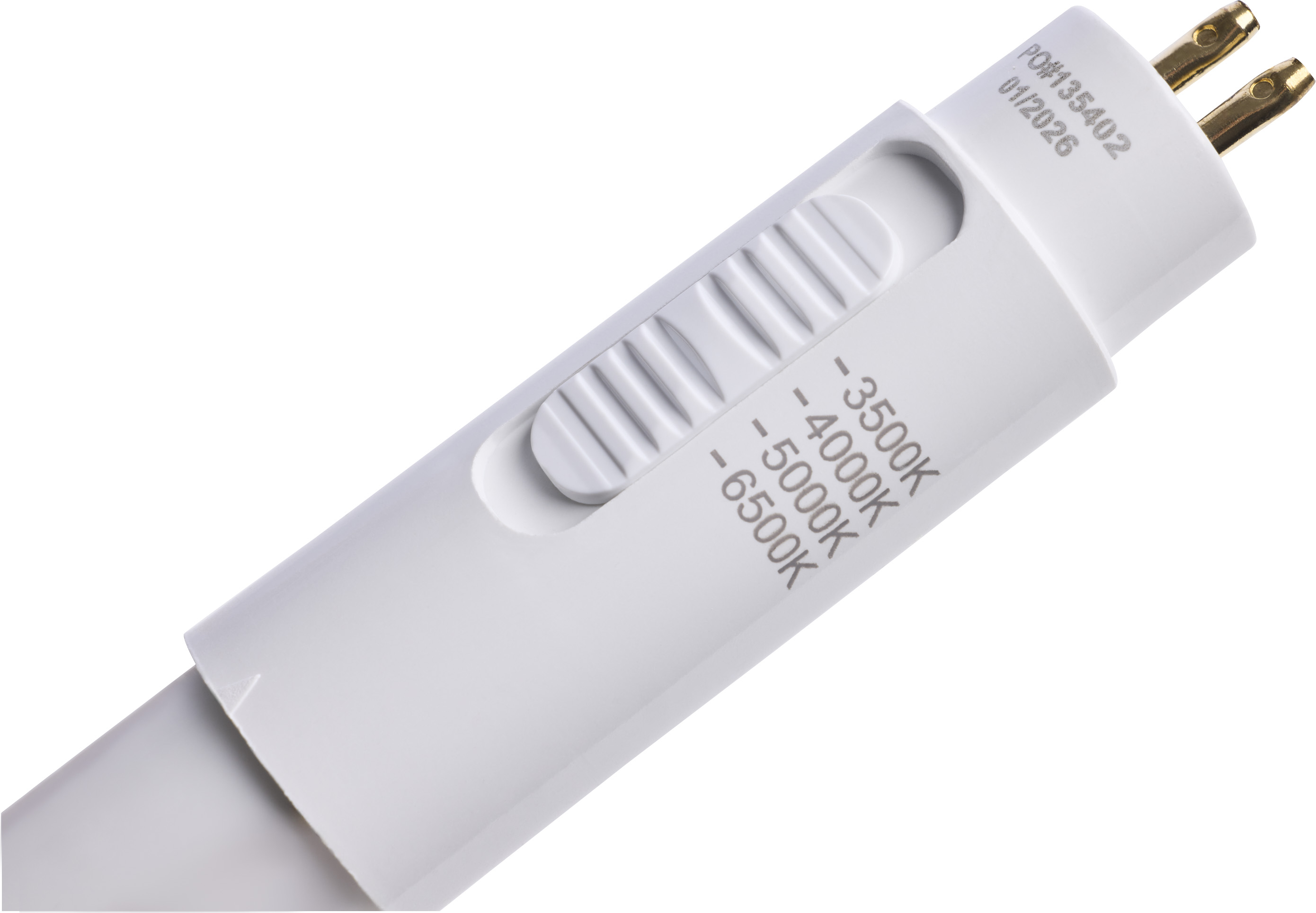

CCT (Kelvin Temp)3500K/4000K/5000K/6500K
DimmableNon-Dimmable
Hours Rated36000
Beam Angle (degree)180
Color TempNeutral White to Daylight
CRI80+
Operating Frequency50/60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens450L
VoltsBallast Dependent
Watts5W
Physical
Lamp BaseMiniature Bi Pin
FinishFrost
ANSI BaseG5
Lamp TypeT5
MOD Lamps0.62

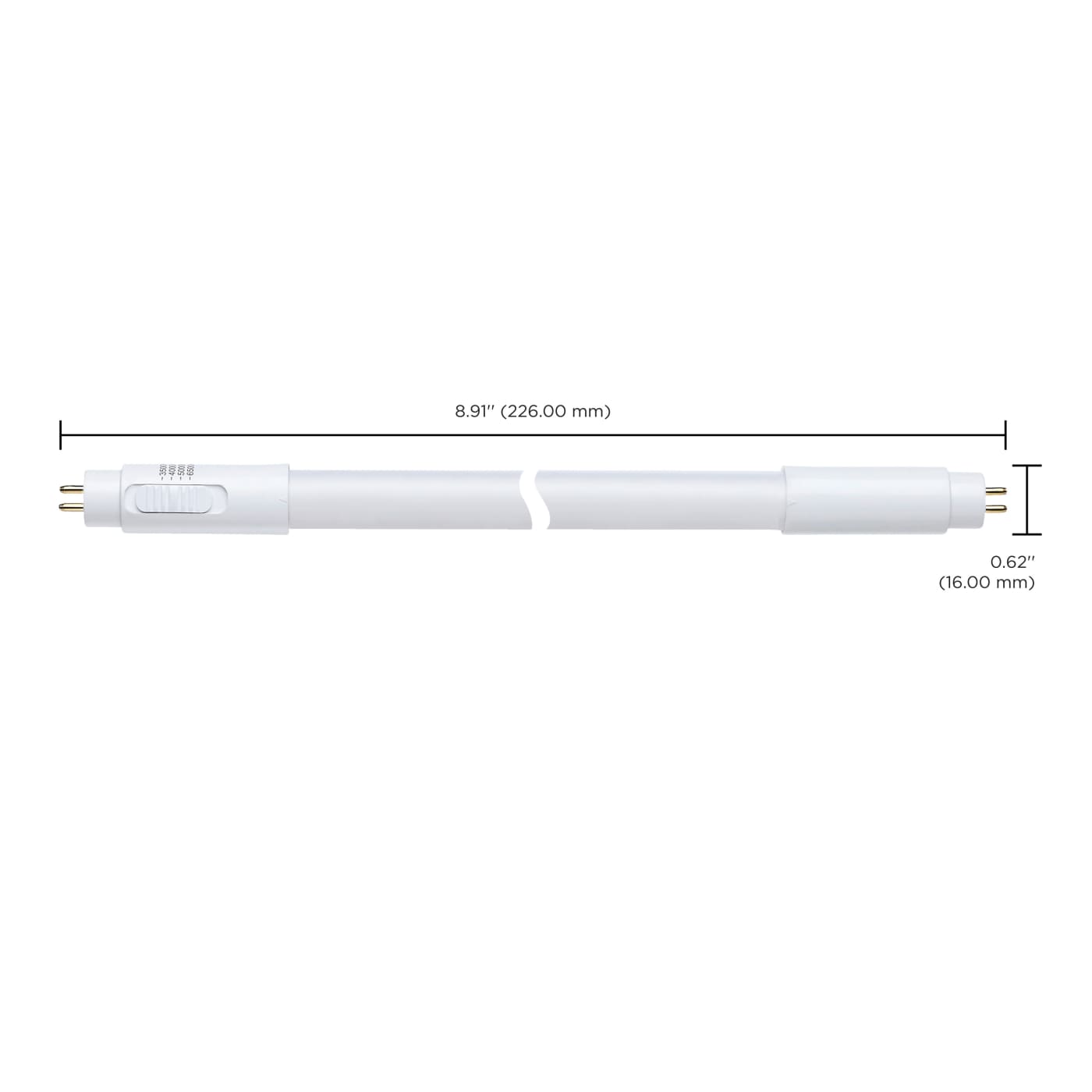

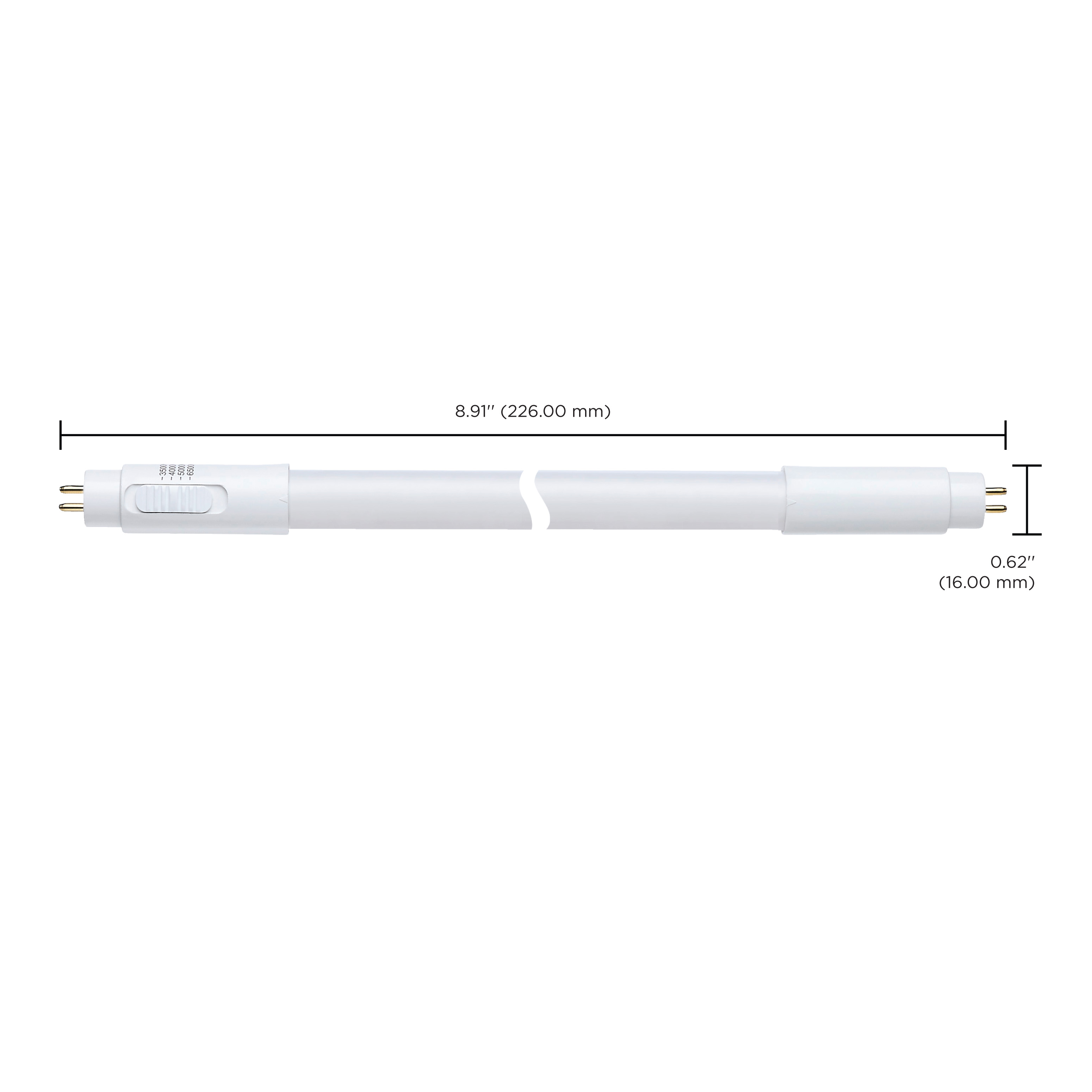

MOL8.91
Additional Info
Warranty3-Years
Rated For Enclosed FixtureYes
Features
Flicker FreeNo
Compliance
Dark Sky RatedNo
FCC CompliantYes
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923165122
Case Cube0.1303
Case Height4.72
Case Length11.02
Case Quantity25
Case UPC10045923165129
Case Weight2.01
Case Width4.33
EA Cube0.0029
EA Height0.75
EA Length9.06
EA Quantity1
EA Weight0.08
EA Width0.75
Pack TypeSleeve
Web Length8.91
Web Width0.62
