| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A |
| Ballasting Requirements | Ballast required, check compatibility |
| Material | Polycarbonate (PC) |
| Fixture Type | Miniature |
| Status | Active |
| Total Harmonic Distortion | Ballast Dependent |

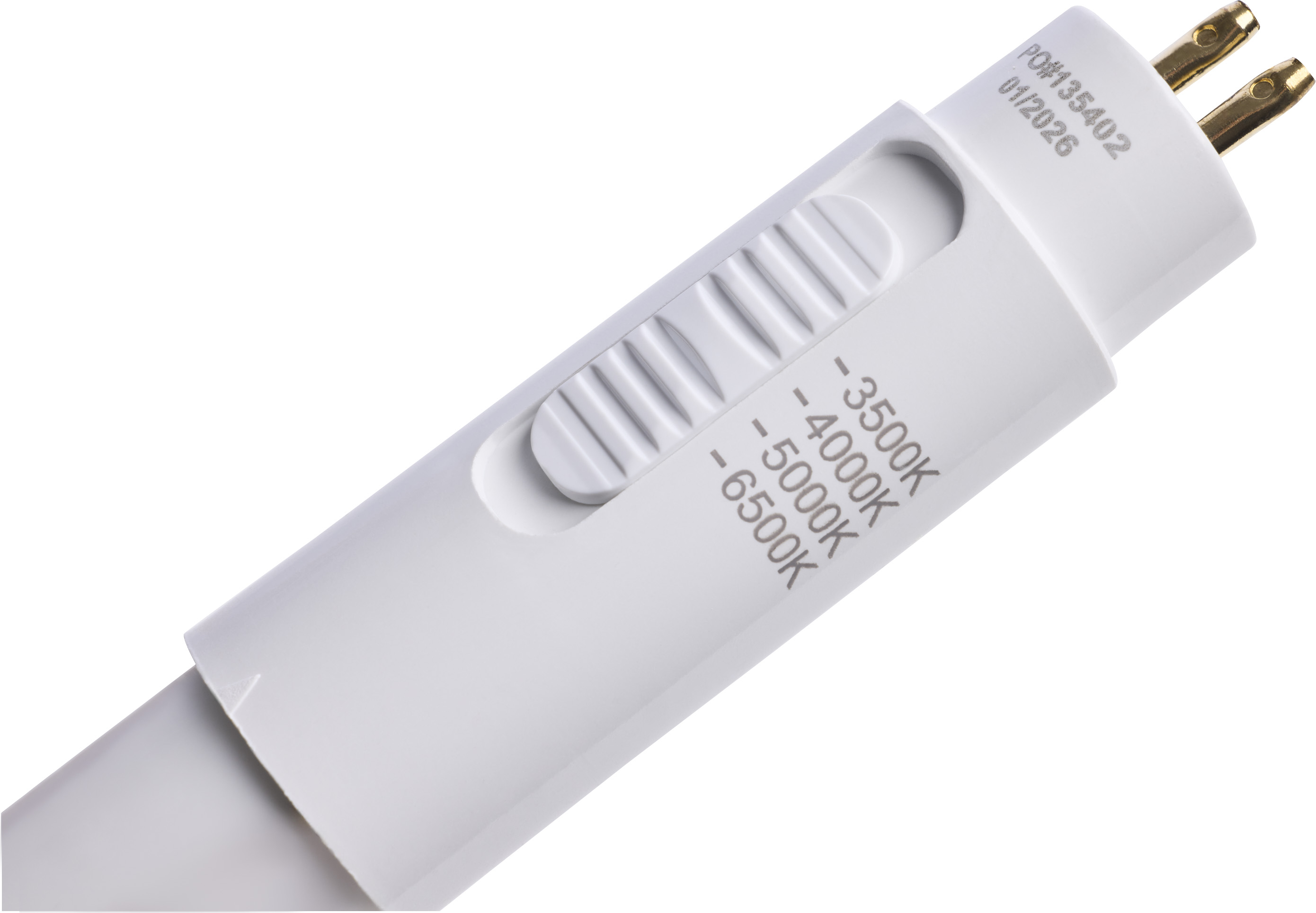

| CCT Selectable | Yes |
| Wattage Selectable | No |
| Finish Family | White |
| Amps | Ballast Dependent |
| Lens Finish | Frost |
| Lens Material | Glass |
| Nominal Length | 12.0 |
| Operating Position | Universal |
| Power Factor | Ballast Dependent |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 8W |
| CCT (Kelvin Temp) | 3500K/4000K/5000K/6500K |
|---|---|
| Hours Rated | 36000 |
| Beam Angle (degree) | 180 |
| Color Temp | Neutral White to Daylight |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -4F to +113F (-20C to +45C) |
| Lumens | 700L |
| Volts | Ballast Dependent |
| Watts | 6W |
| Lamp Base | Miniature Bi Pin |
|---|---|
| Finish | Frost |
| ANSI Base | G5 |
| Lamp Type | T5 |
| MOD Lamps | 0.62 |
| MOL | 11.91 |
| Warranty | 3-Years |
|---|---|
| Rated For Enclosed Fixture | Yes |
| Dark Sky Rated | No |
|---|---|
| FCC Compliant | Yes |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| California Ban | Lawful for sale |
| Title 20 | Exempt |
| T24/JA8 Compliant | No |
| UPC | 045923165139 |
|---|---|
| Case Cube | 0.1653 |
| Case Height | 4.72 |
| Case Length | 13.98 |
| Case Quantity | 25 |
| Case UPC | 10045923165136 |
| Case Weight | 2.55 |
| Case Width | 4.33 |
| EA Cube | 0.0039 |
| EA Height | 0.75 |
| EA Length | 12.01 |
| EA Quantity | 1 |
| EA Weight | 0.09 |
| EA Width | 0.75 |
| Pack Type | Sleeve |

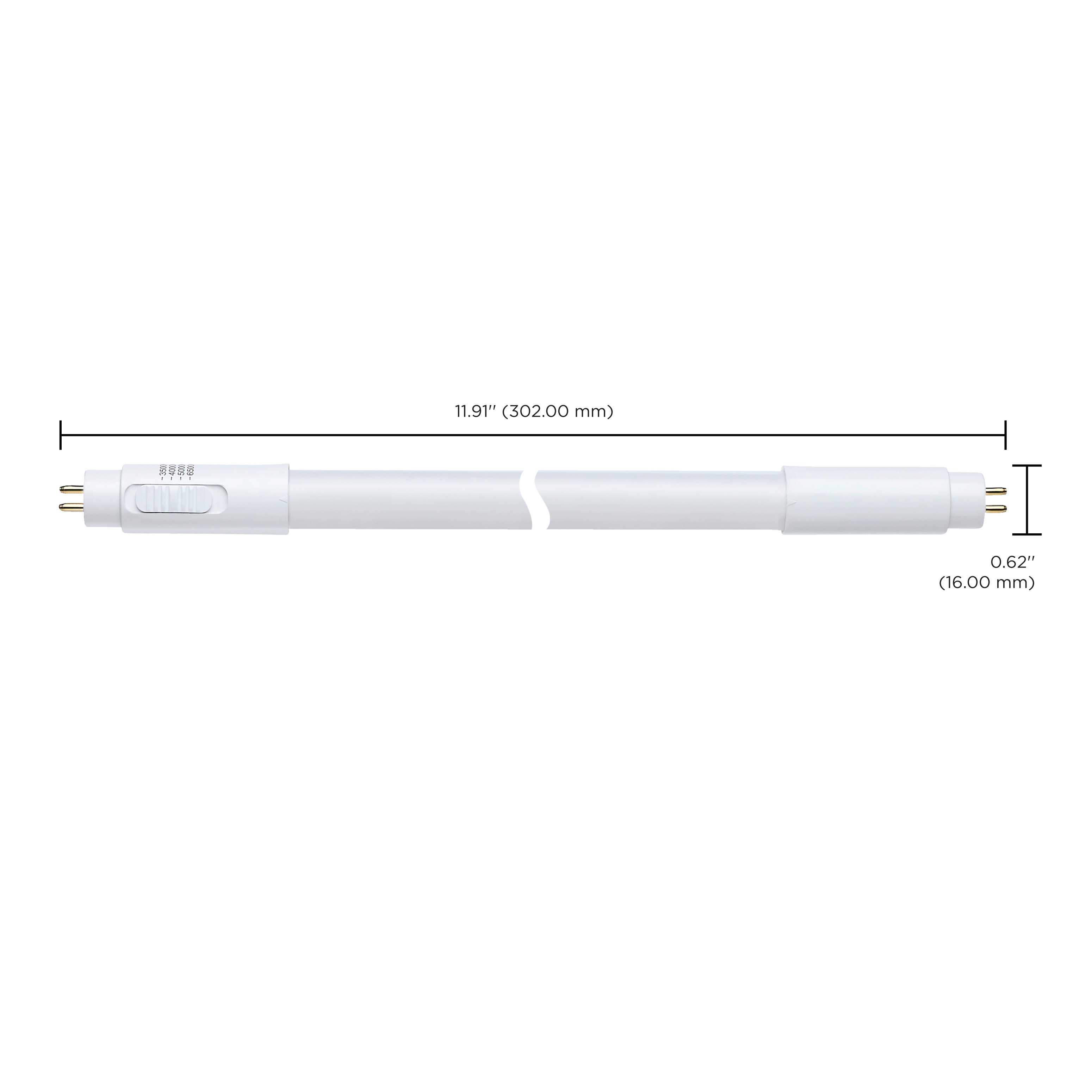

| Web Length | 11.91 |
| Web Width | 0.62 |
