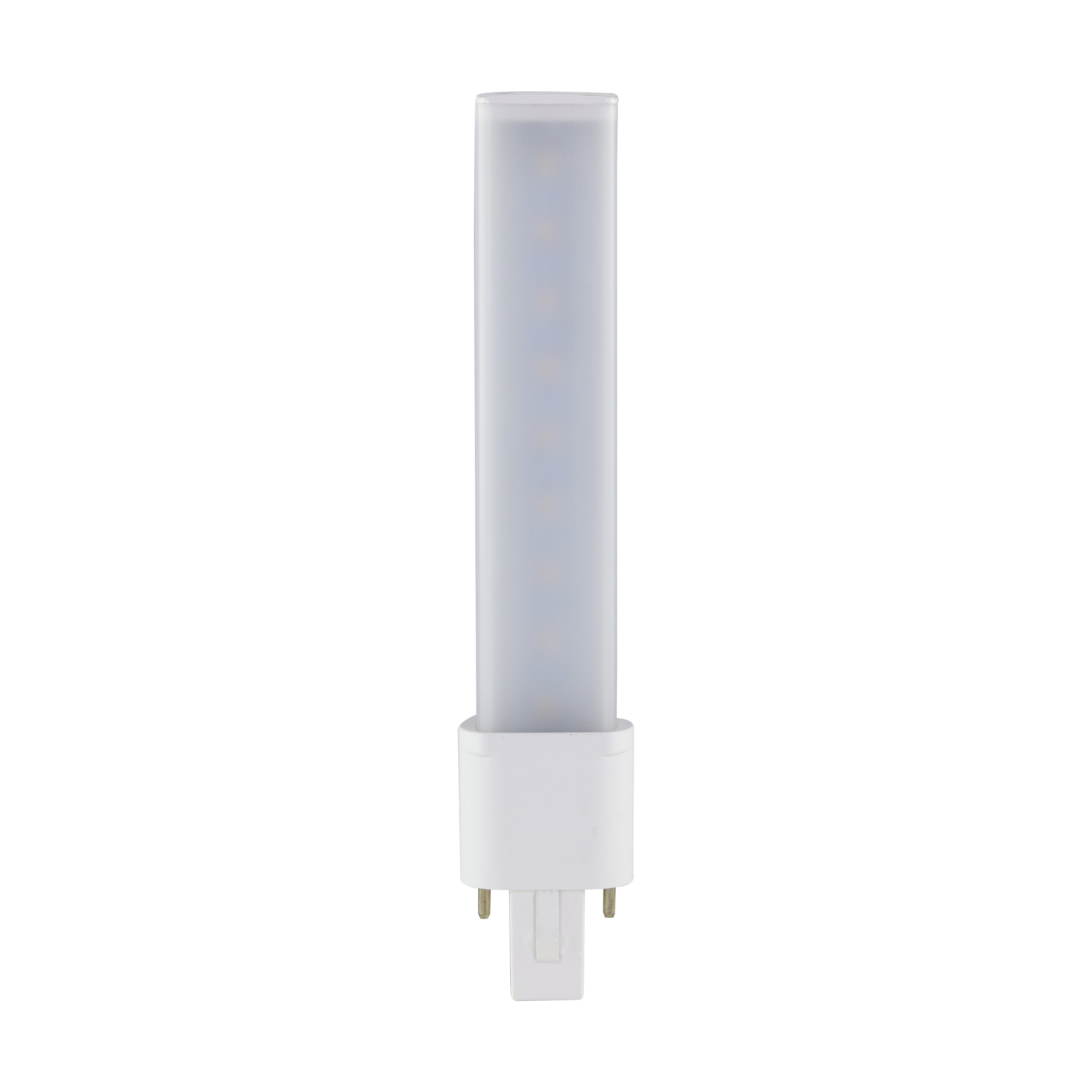

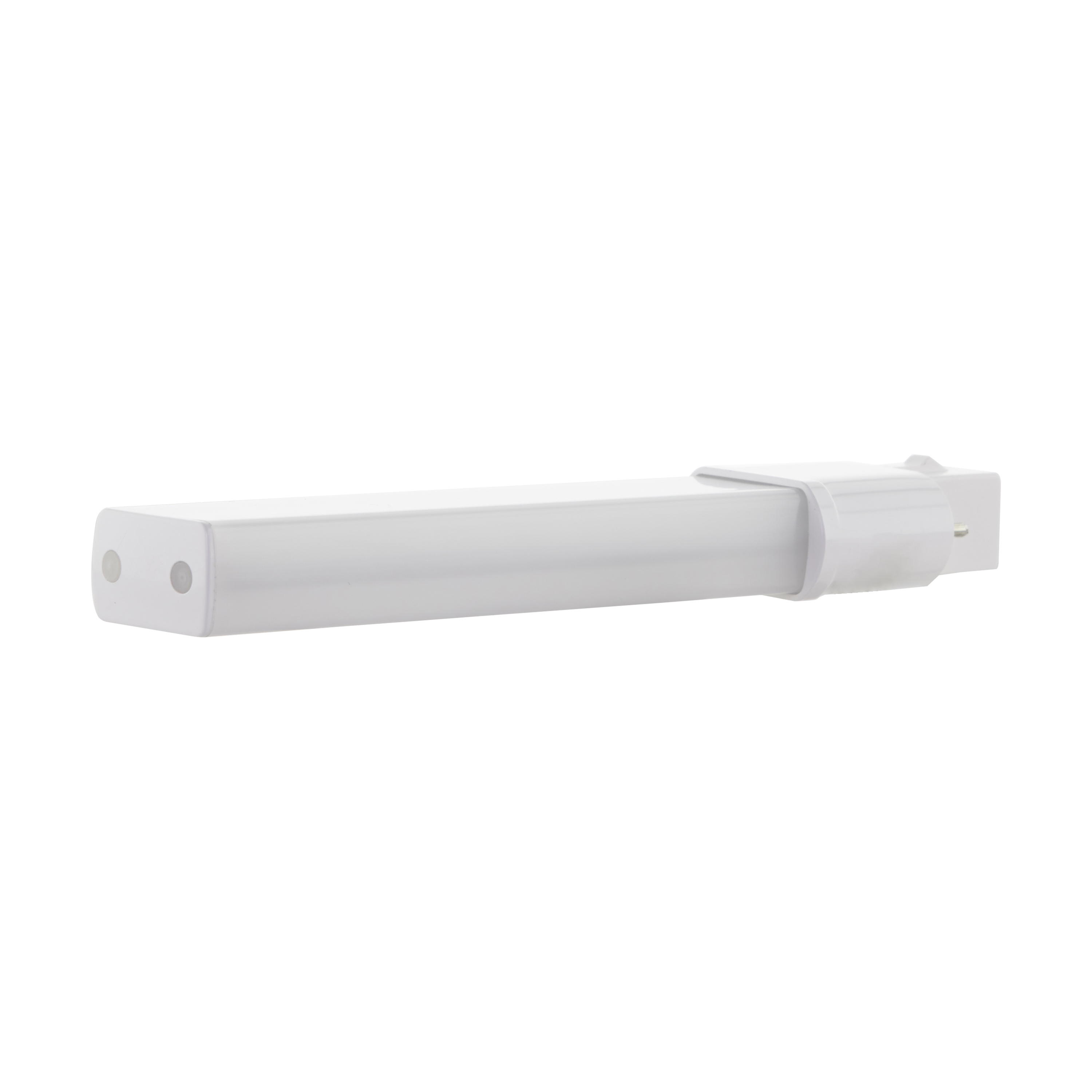

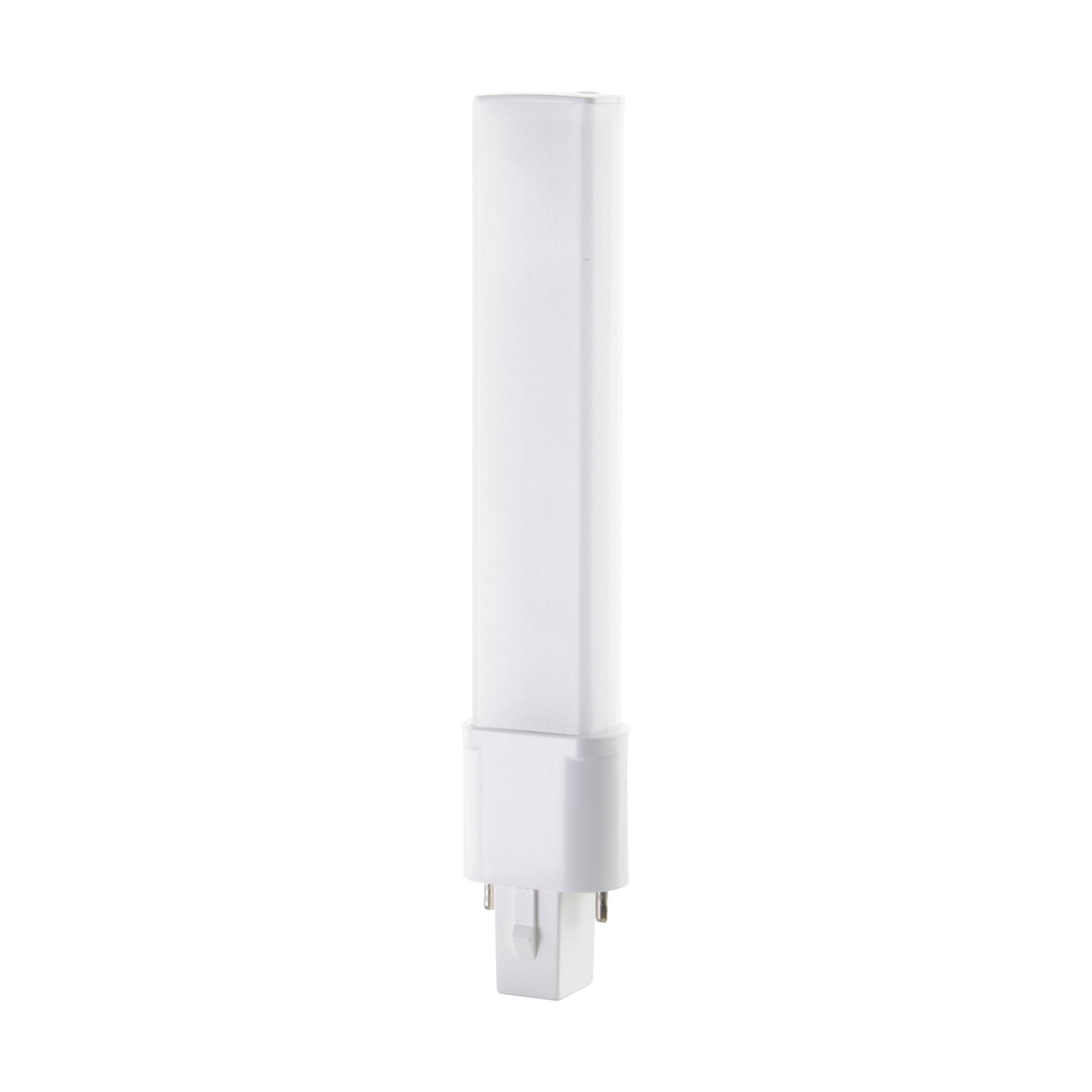

S18402

4.5W/LED/CFL/835/G23/BP

  • 4.5 Watt LED PL 2-PIN
  • 3500K
  • 450 Lumens
  • G23 base
  • 50000 Average rated hours
  • 360 deg. Beam Angle
  • 120-277 Volt
  • Type B
  • Ballast Bypass
location_rating^damp^1
lamp_ballast_type_ab^type_b^1
ip_rating^IP20^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
fcc_compliant^true^3
rohs_compliant^y^3
S18402 SpecificationsS18402 InstructionsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25
Tools
Lighting Layout Analysis For S18402
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt LED PL 2-PIN; 3500K; 450 Lumens; G23 base; 50000 Average rated hours; 360 deg. Beam Angle; 120-277 Volt; Type B; Ballast Bypass
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
MaterialPlastic
Fixture TypePL
StatusActive
StyleTransitional
Surge ProtectionBuilt-in-surge protection - 0.5KV
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.038-0.016A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
LensedTrue
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Fluor Equiv5W/7W/9W
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)3500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)360
Color TempNeutral White
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens450L
Volts120V-277V
Watts4.5W
Physical

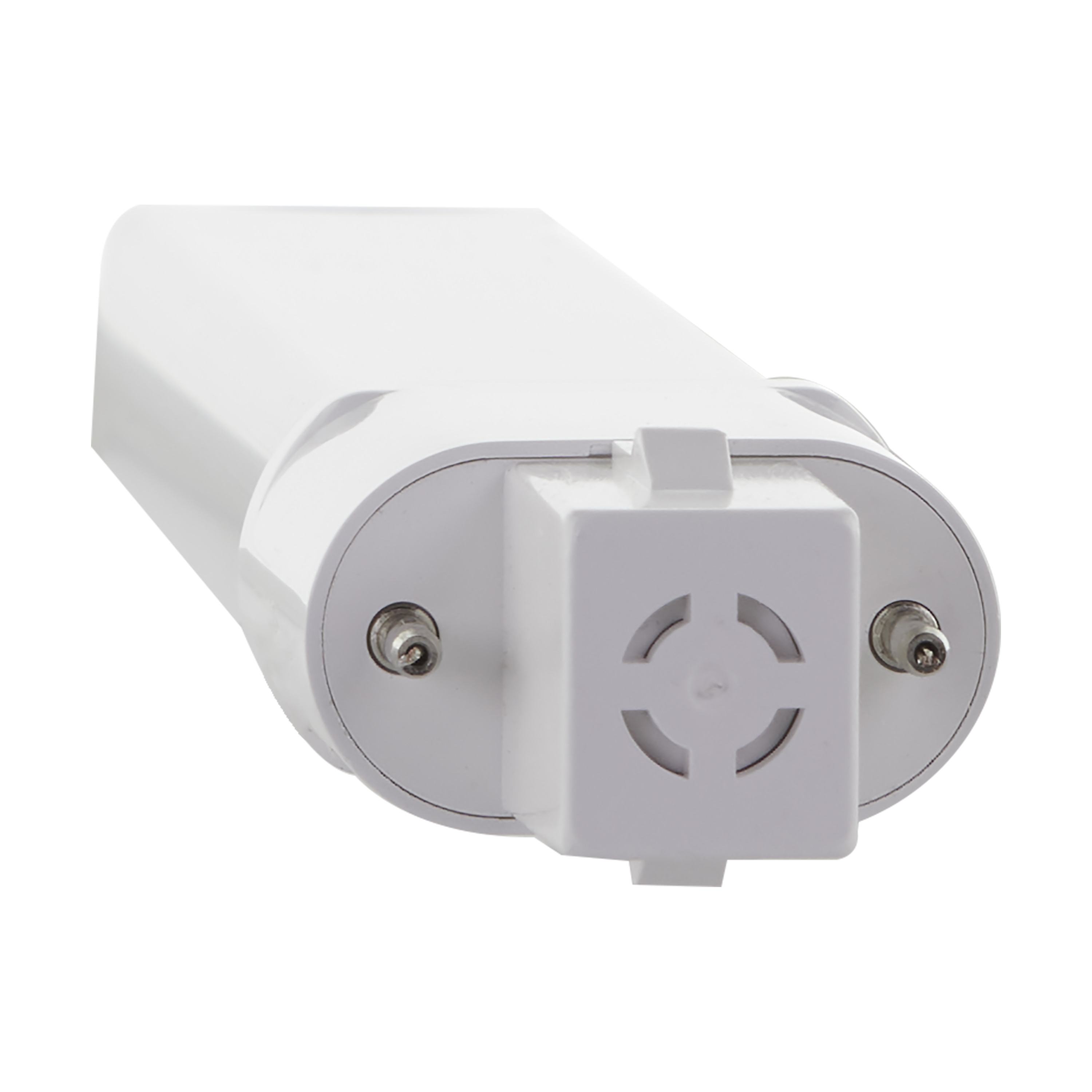

Lamp BaseG23 (2-Pin)
FinishFrost
Housing ColorWhite
ANSI BaseG23
Lamp TypePL

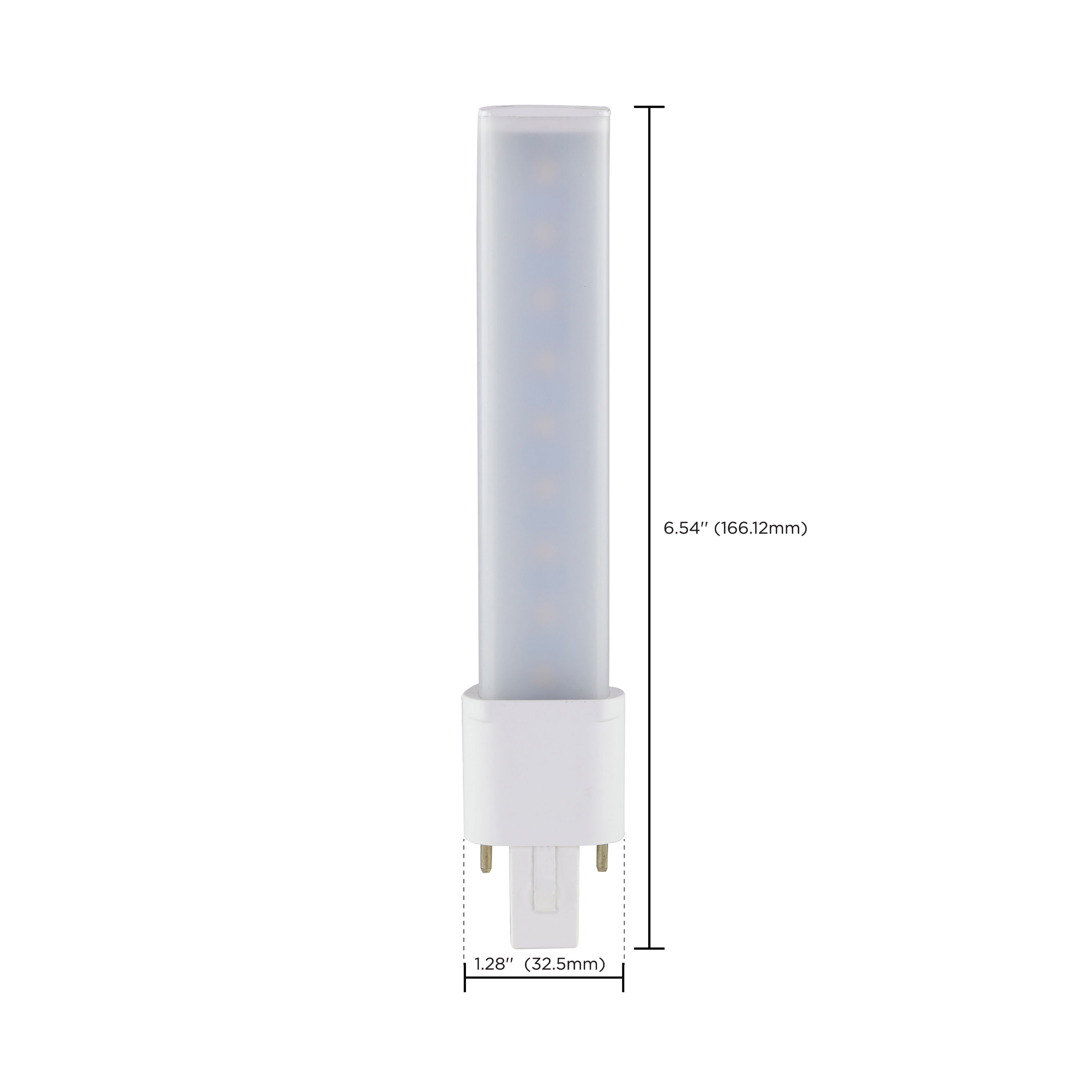

MOD Lamps1.28
MOL6.54
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
IP RatingIP20
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcETLus - Classified
CA Compliance TextLawful for sale
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923184024
Case Cube0.5311
Case Height17.7
Case Length6.1
Case Quantity50
Case UPC10045923184021
Case Weight27.5
Case Width8.5
EA Cube0.006
EA Height6.88
EA Length1.0
EA Quantity1
EA Weight0.68
EA Width1.5
Inner Cube0.0757
Inner Height7.48
Inner Length3.3
Inner Quantity10
Inner UPC20045923184028
Inner Weight5.5
Inner Width5.3
Pack TypeBox
Web Length6.54
Web Width1.28
