| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| Lamp Filament | LED |
| Material | Plastic |

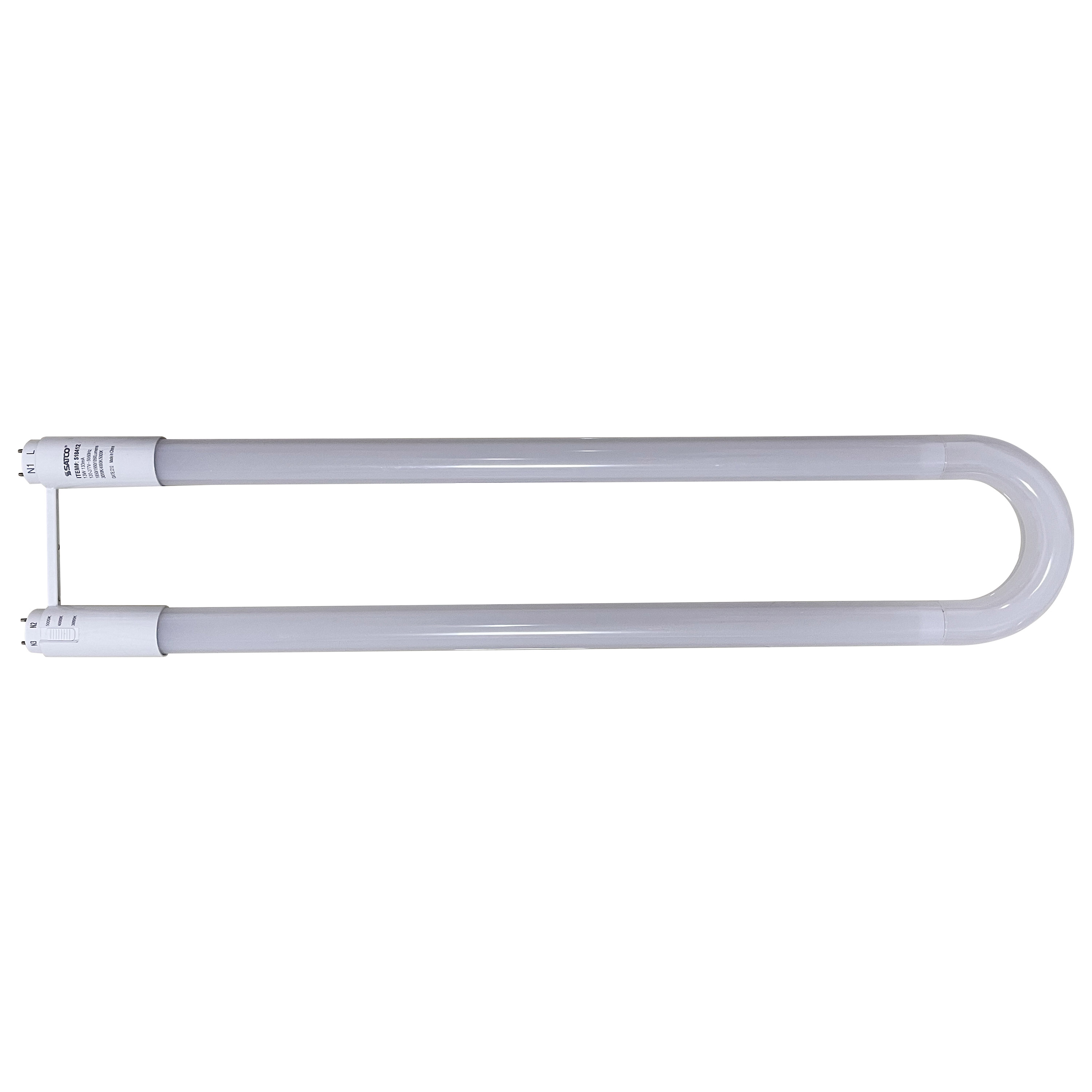

| Fixture Type | U-Bend |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in-surge protection - 0.7KV |
| Total Harmonic Distortion | 20% |

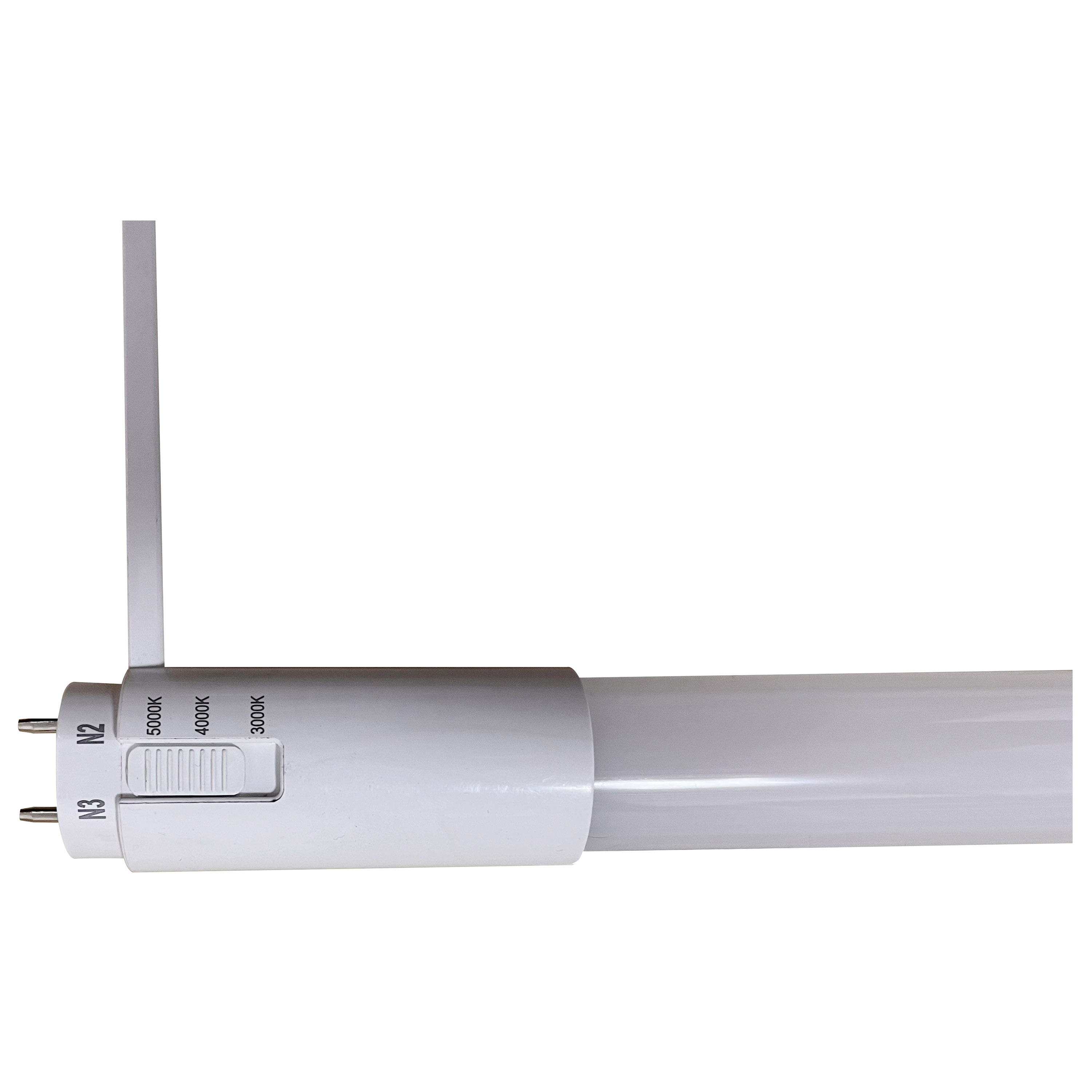

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | White |
| Additional Info | Replaces FB34T12/U3 |
| Amps | 0.11-0.05A |
| Has Camera | False |
| IOT Enabled | False |

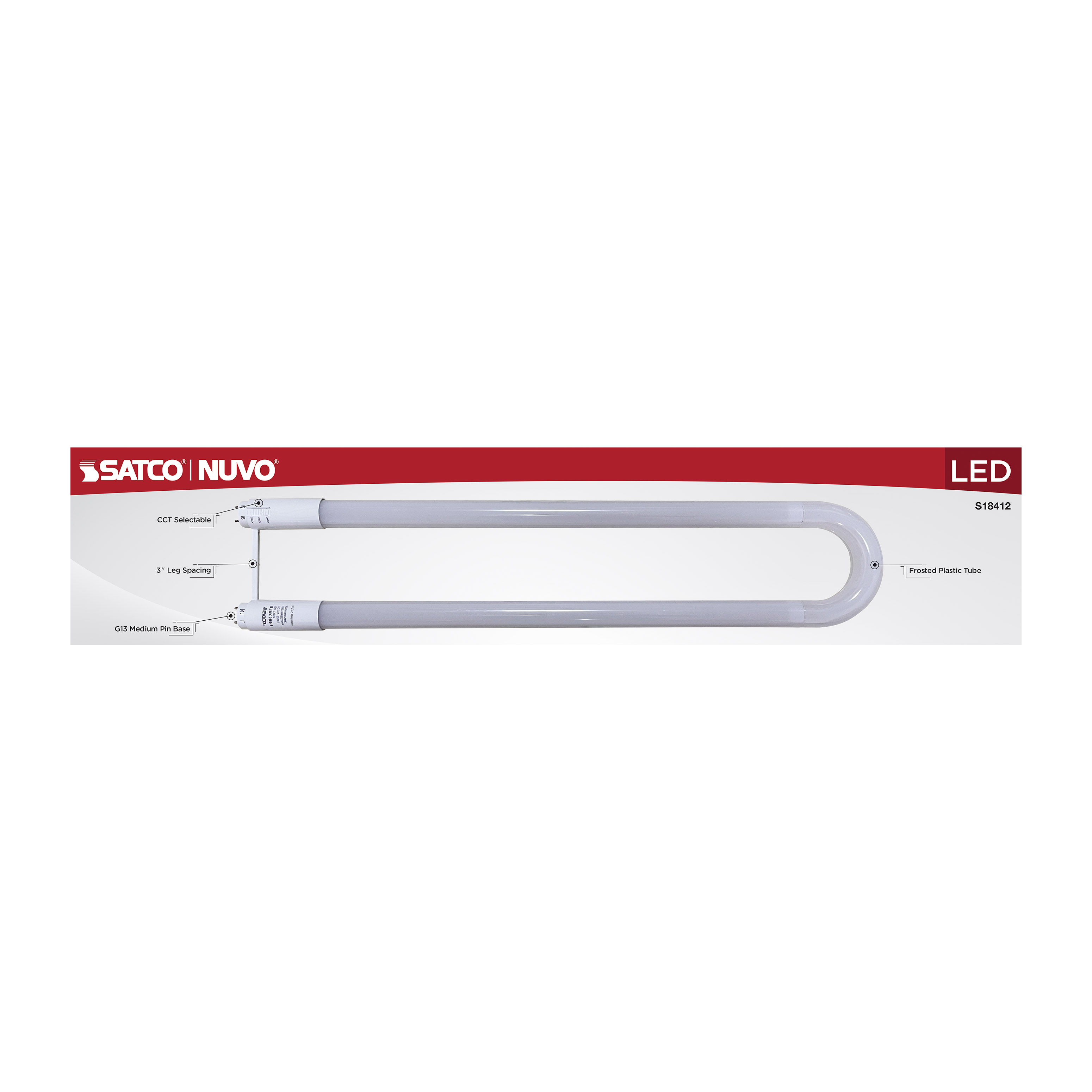

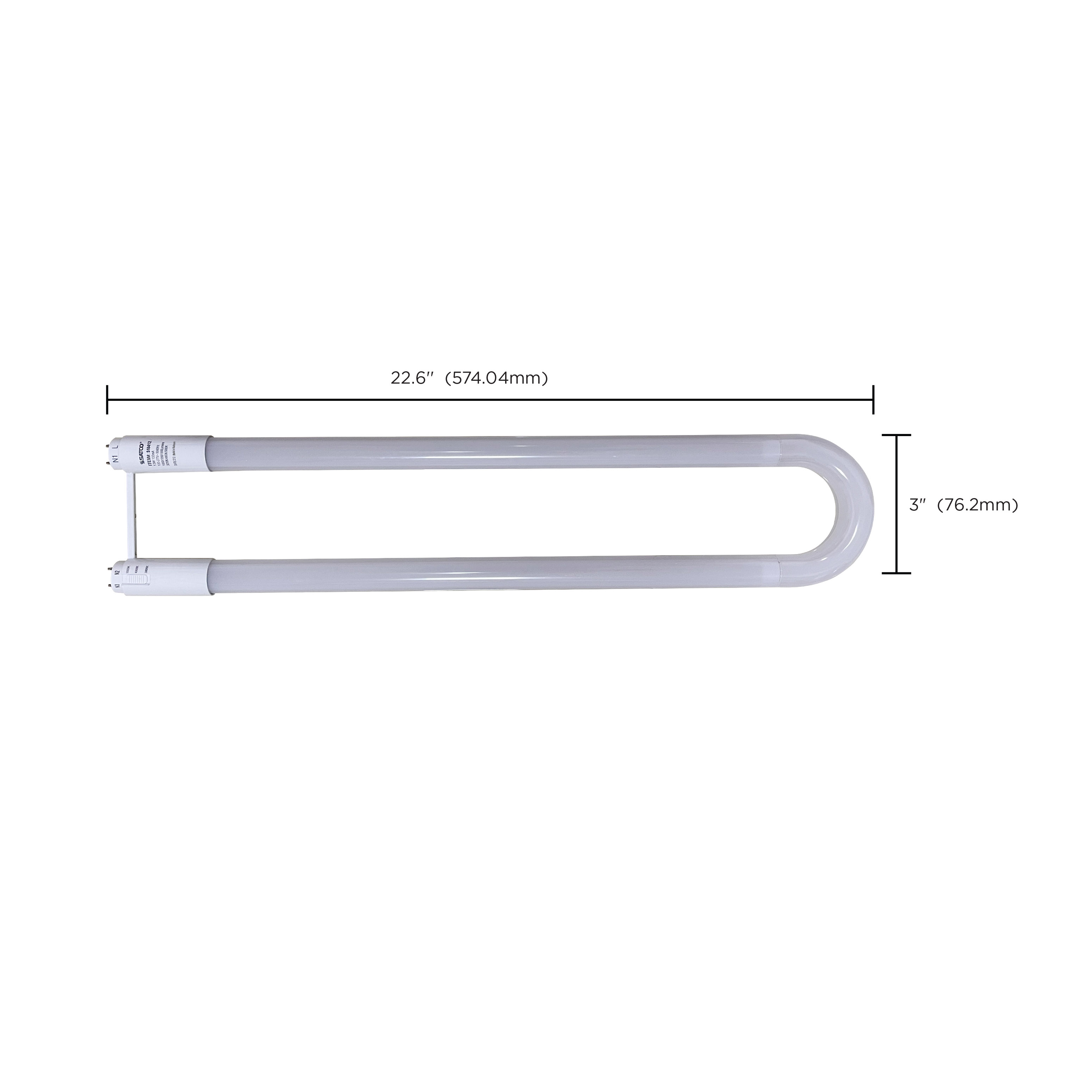

| Leg Spacing | 3.0 |
| Lens Finish | Frost |
| Lens Material | Plastic |
| Nominal Length | 22.5 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 32W |
| Incandescent Equivalent | 50W |
| CCT (Kelvin Temp) | 3000K/4000K/5000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 160 |
| Color Temp | Neutral White to Natural Light |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |

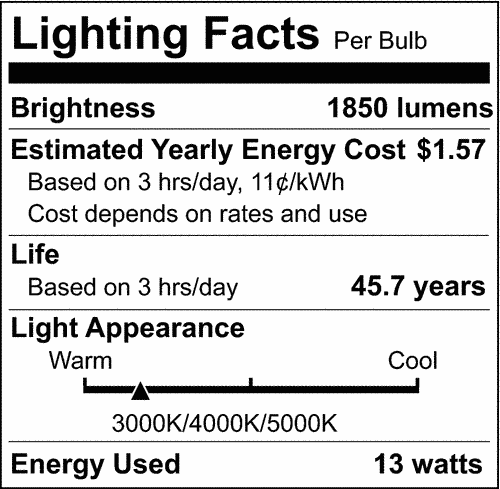

| Lumens | 1850L/1950L/1950L |
| Volts | 120V-277V |
| Watts | 13W |

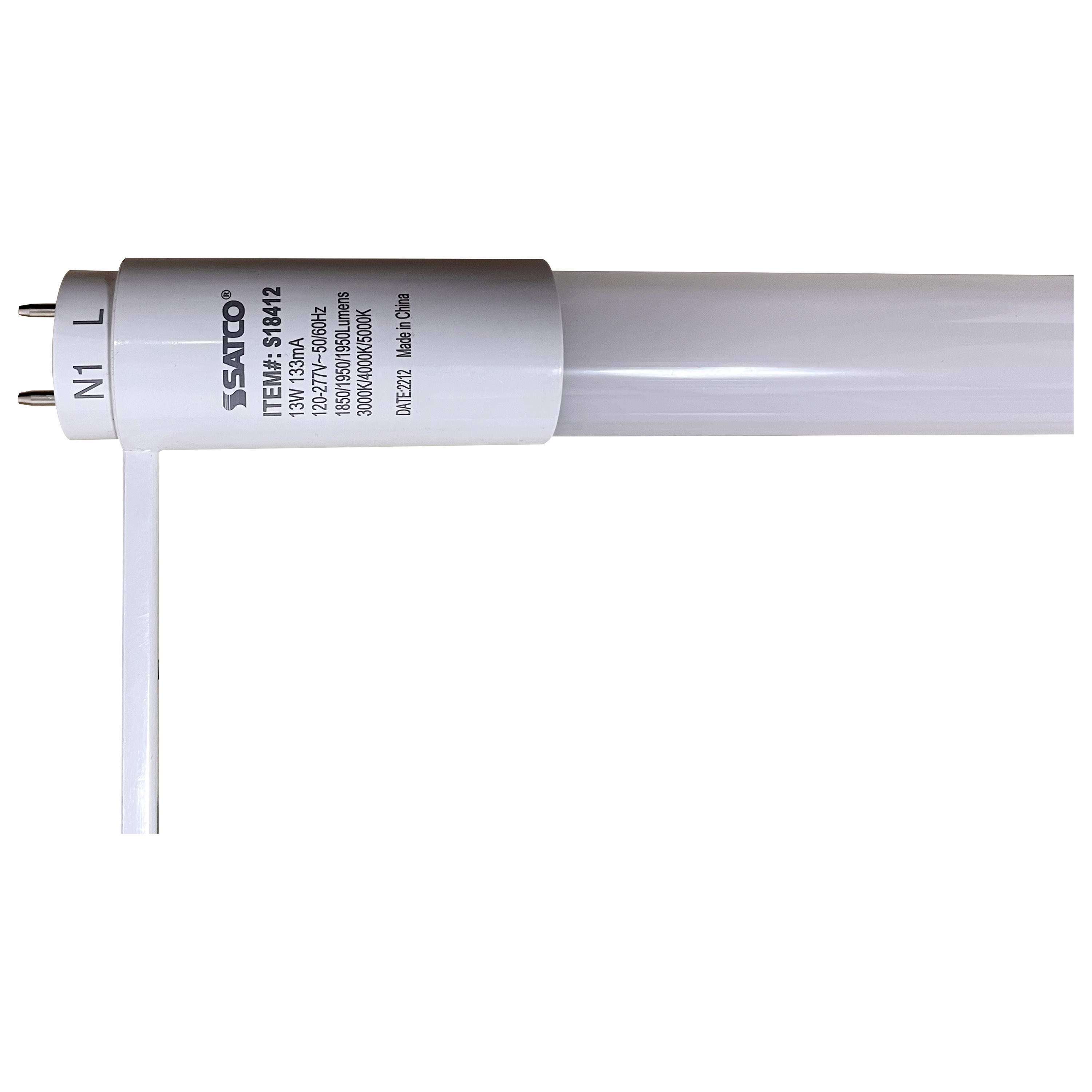

| Lamp Base | Medium Bi Pin |
|---|---|
| Finish | WHITE |
| Housing Color | White |
| ANSI Base | G13 |
| Lamp Type | T8 |
| MOD Lamps | 1.0 |

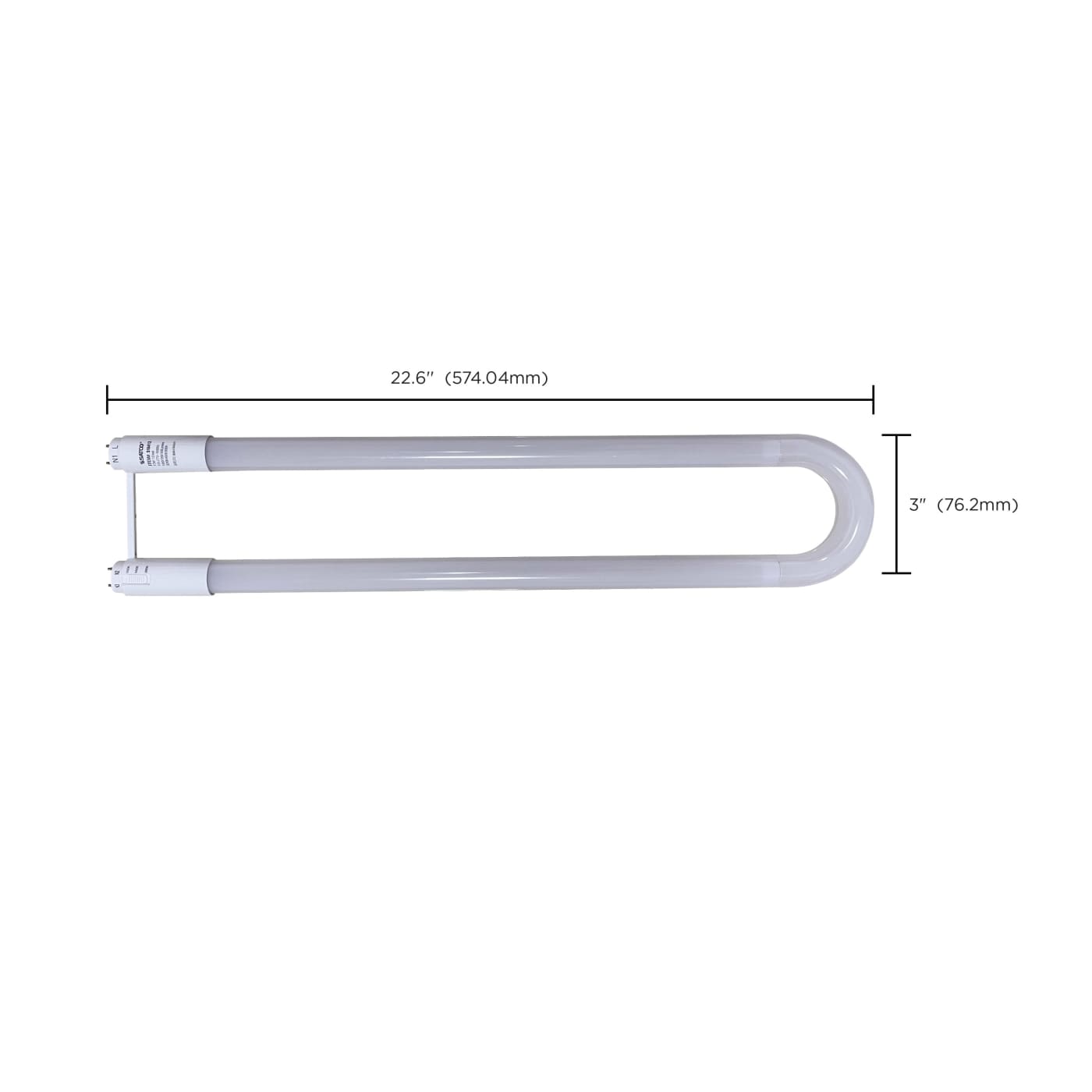

| MOL | 22.6 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| Flicker Free | False |
|---|
| CA Regulations | Exempt - Base Not Regulated |
|---|---|
| CA Status | Lawful for sale in California |
| FCC Compliant | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |

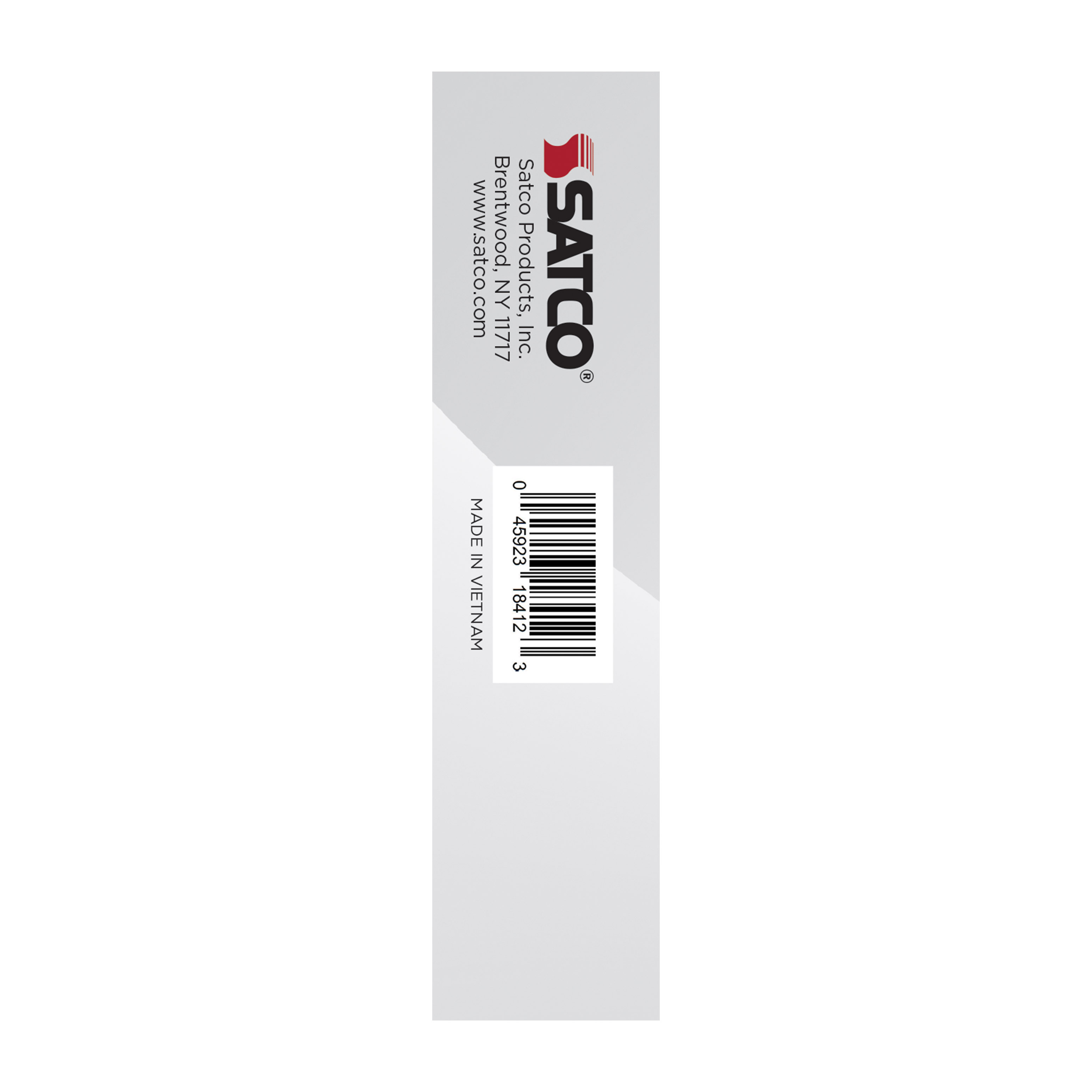

| UPC | 045923184123 |
|---|---|
| Case Cube | 1.1926 |
| Case Height | 8.27 |
| Case Length | 23.62 |
| Case Quantity | 12 |
| Case UPC | 10045923184120 |
| Case Weight | 8.6 |
| Case Width | 10.55 |
| EA Cube | 0.0761 |
| EA Height | 4.88 |
| EA Length | 22.83 |
| EA Quantity | 1 |
| EA Weight | 0.68 |
| EA Width | 1.18 |
| Inner Cube | 0.0 |
| Inner Height | 0.0 |
| Inner Length | 0.0 |
| Inner Quantity | 0 |
| Inner Weight | 0.0 |
| Inner Width | 0.0 |

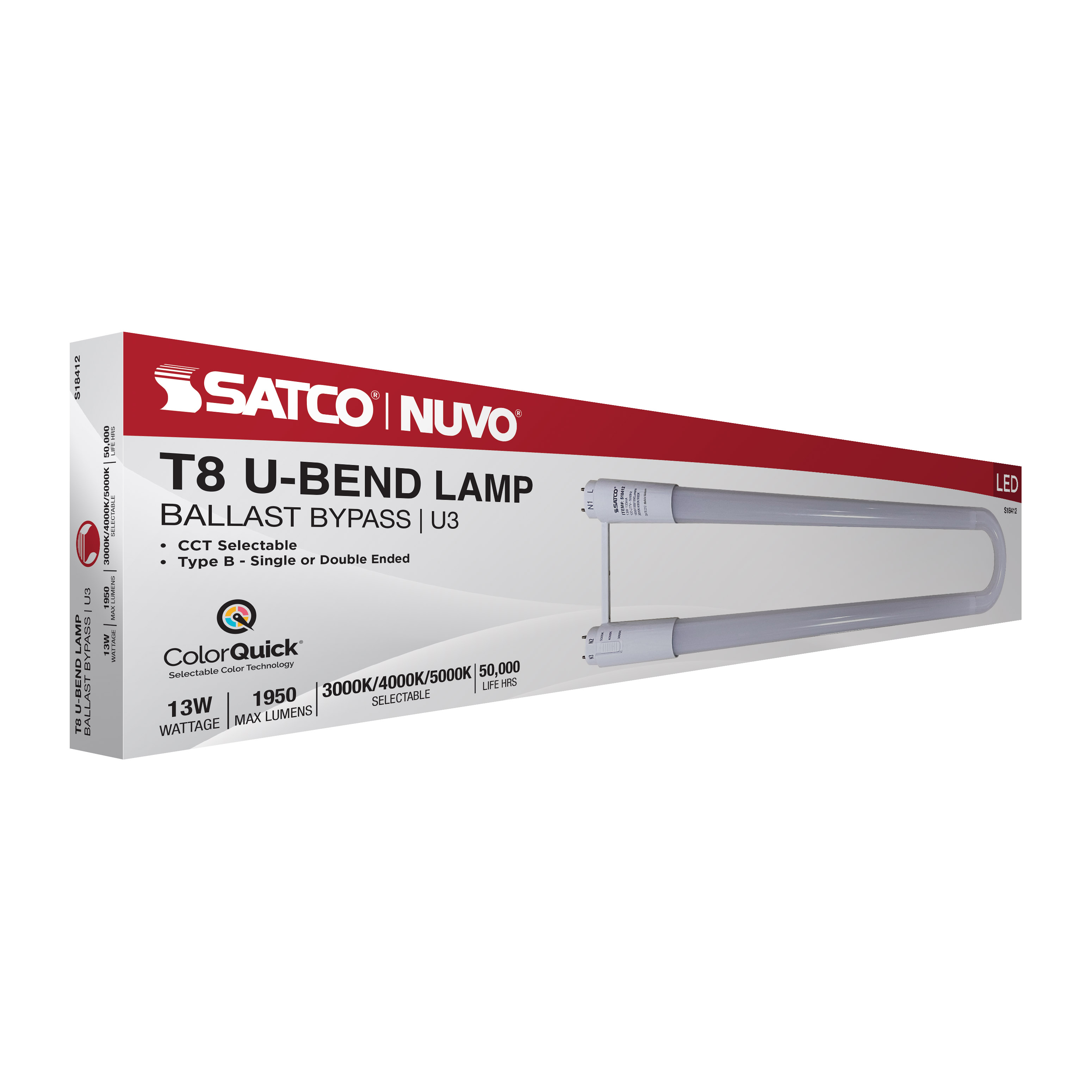

| Pack Type | Color Box |
| Web Length | 22.6 |
| Web Width | 1.0 |
