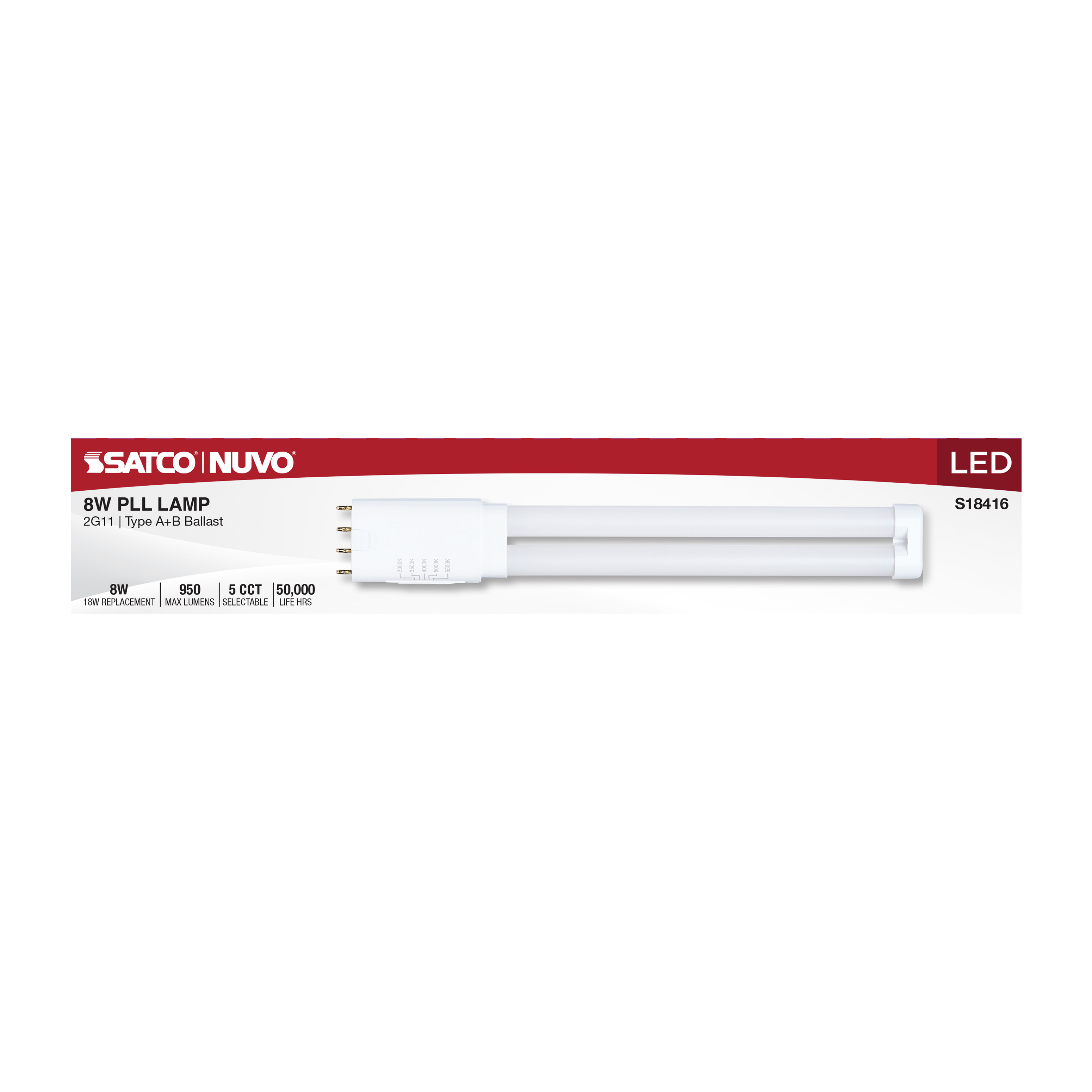

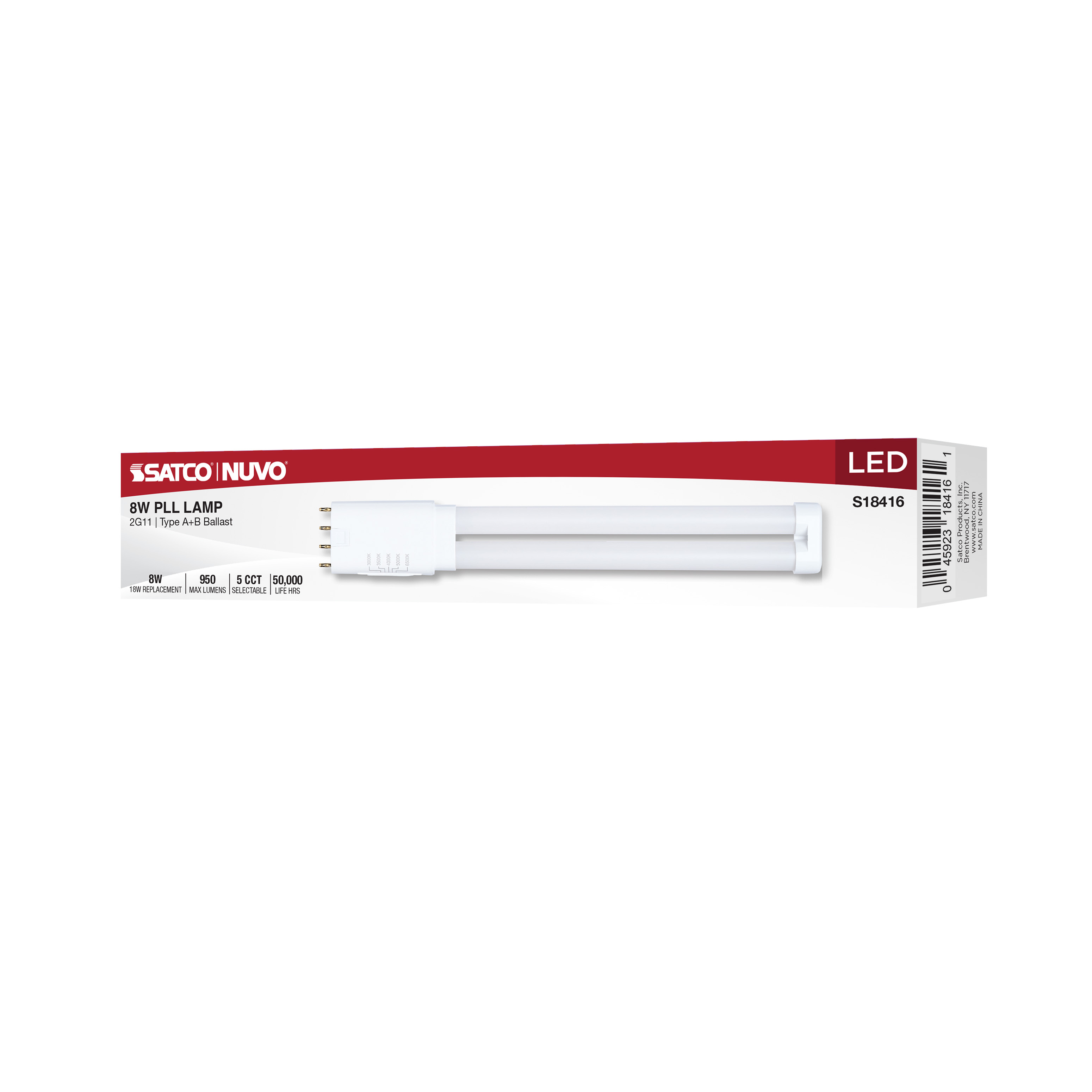

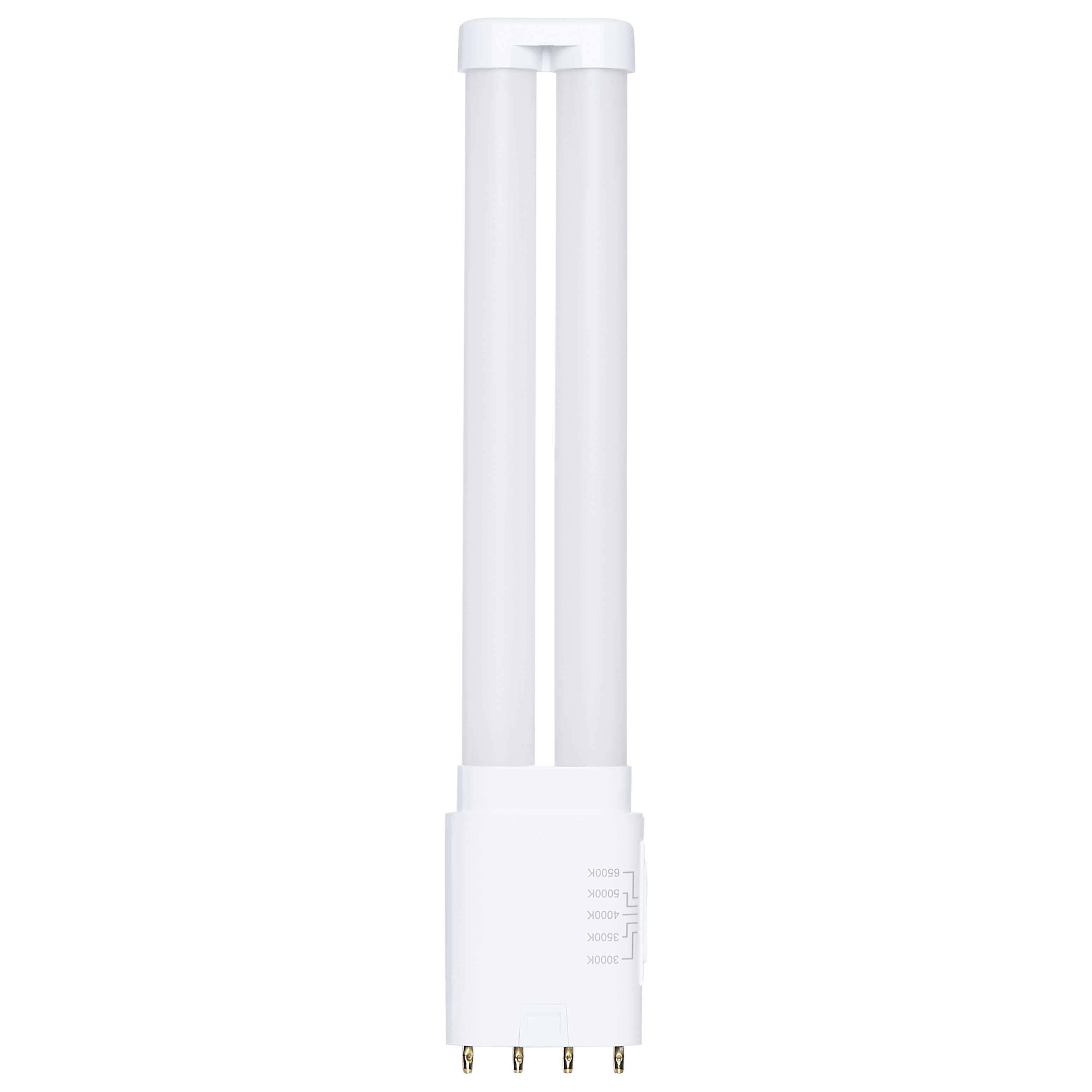

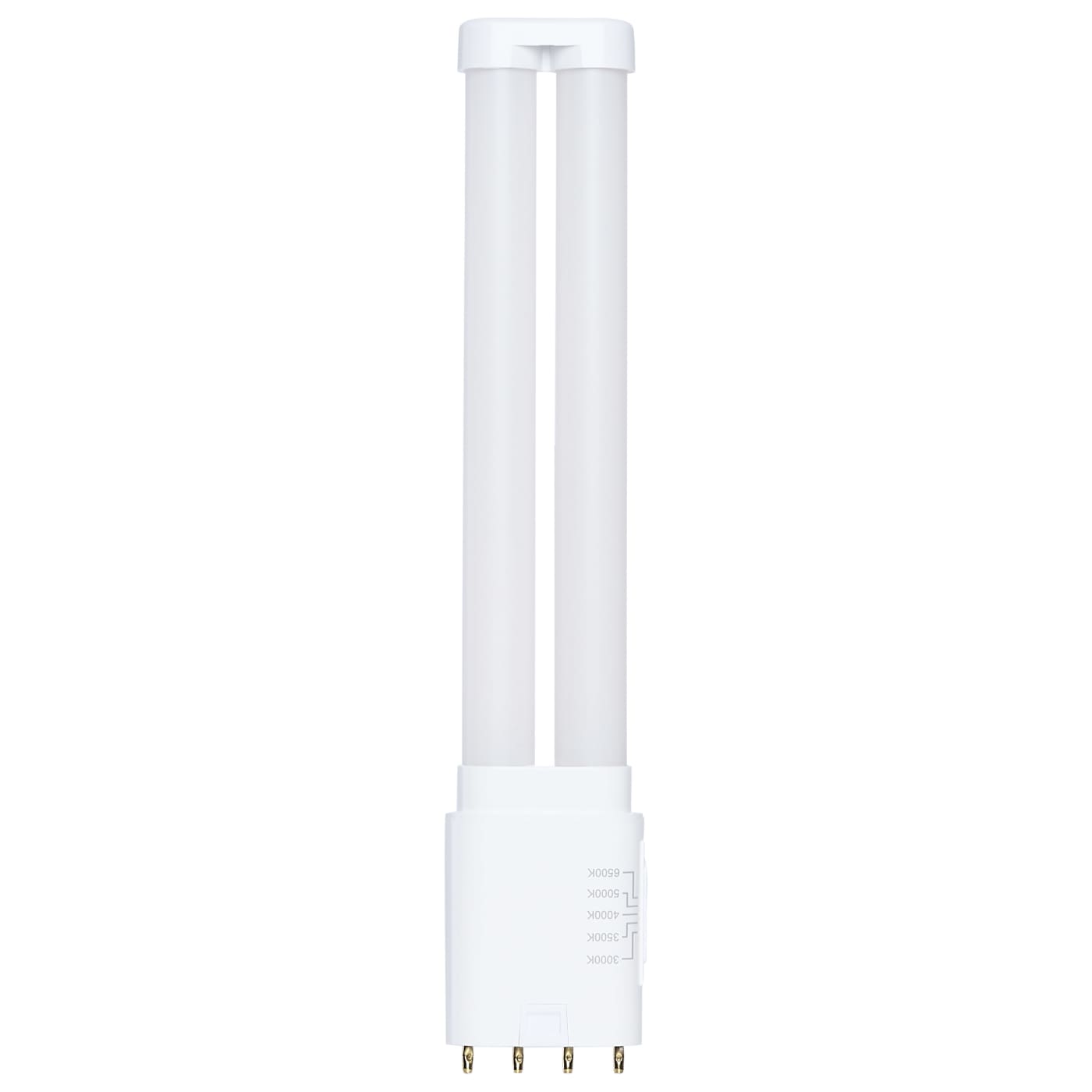

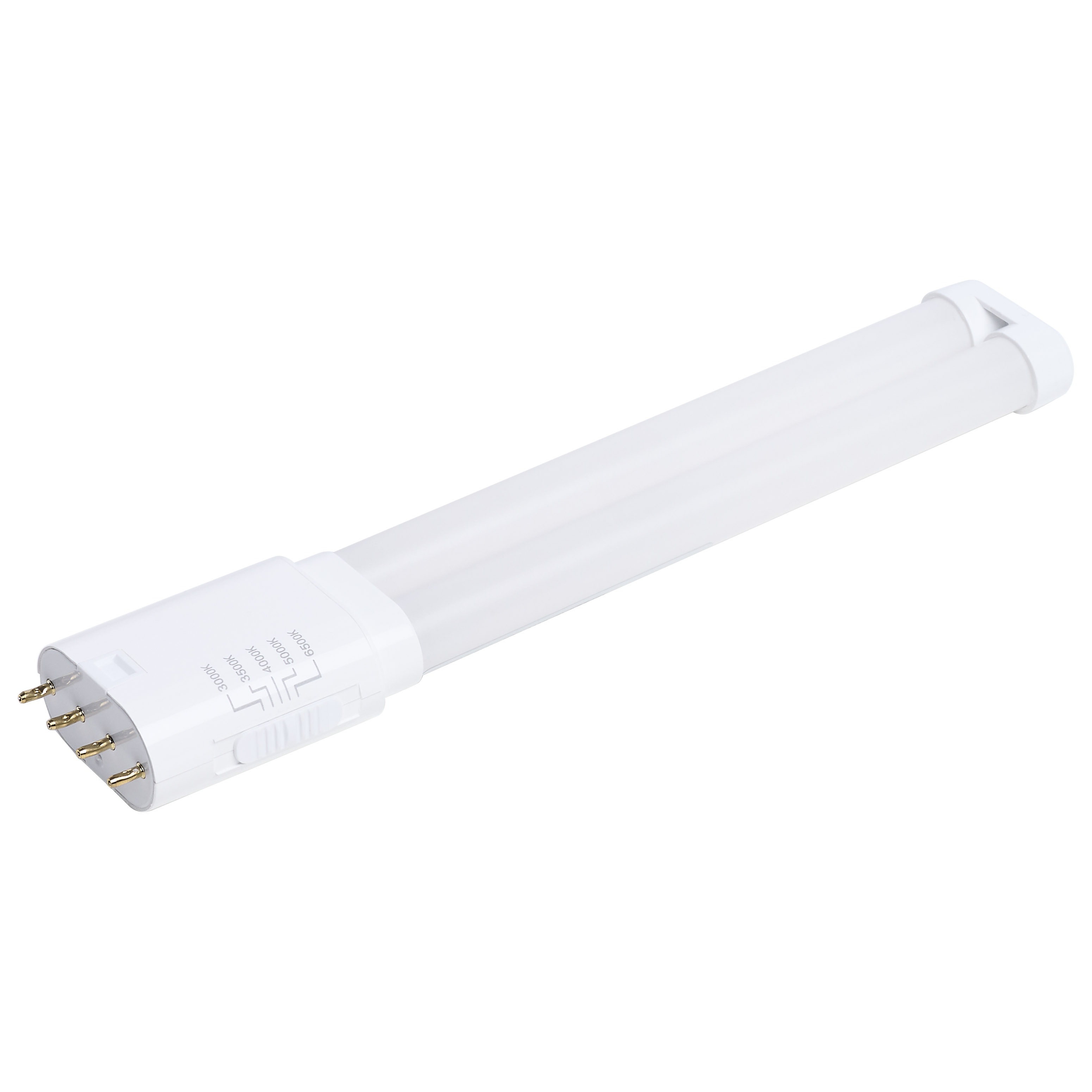

S18416

8PLL/LED/5CCT/AB

  • 8 Watt PLL LED
  • 2G11 Base

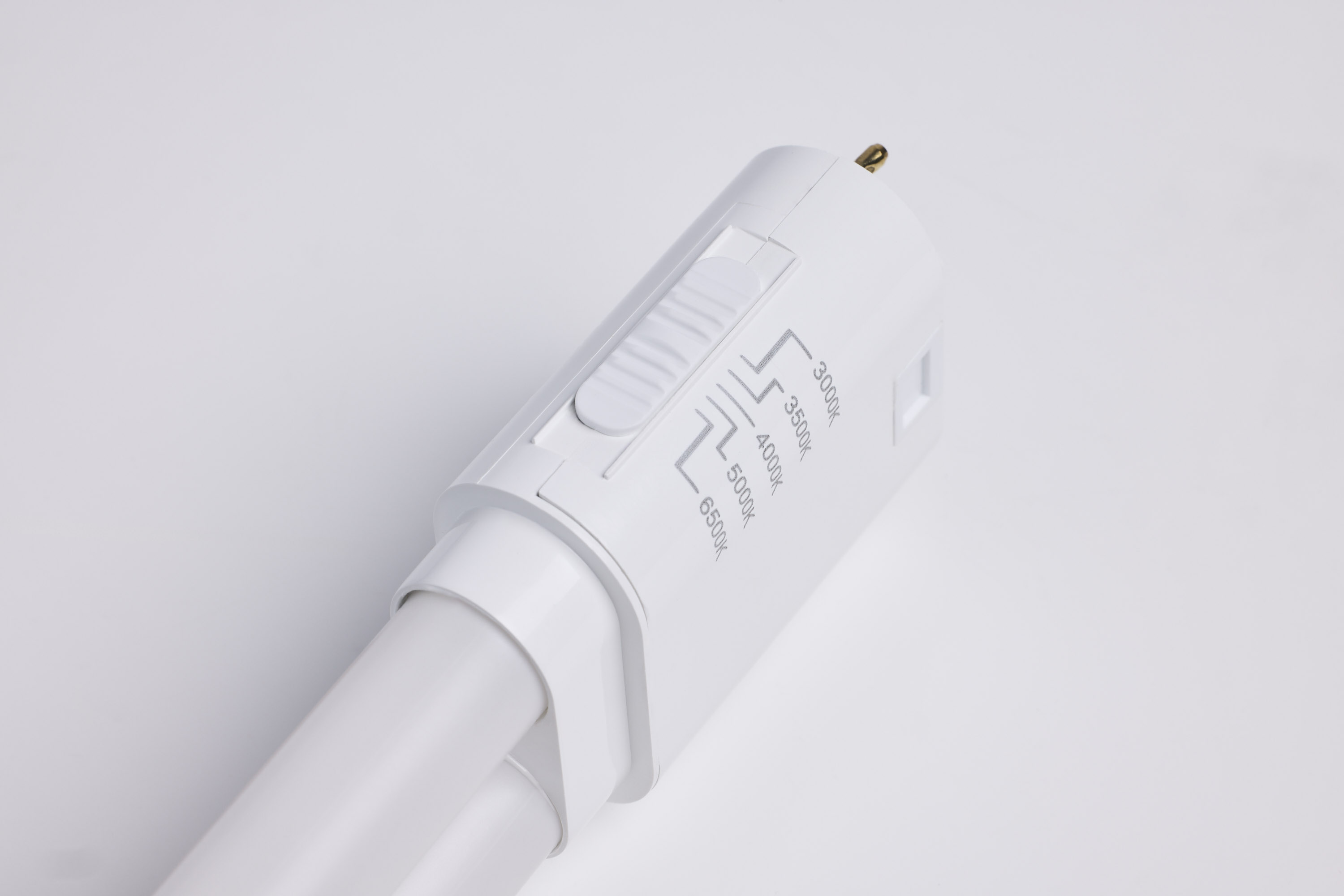

  • 30K/35K/40K/50K/65K CCT Selectable
  • Type A/B
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S18416 SpecificationsS18416 Dimmer Compatibility Chart.pdfS18416 Ballast Compatibility Chart.pdf
Description
Description
8 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt

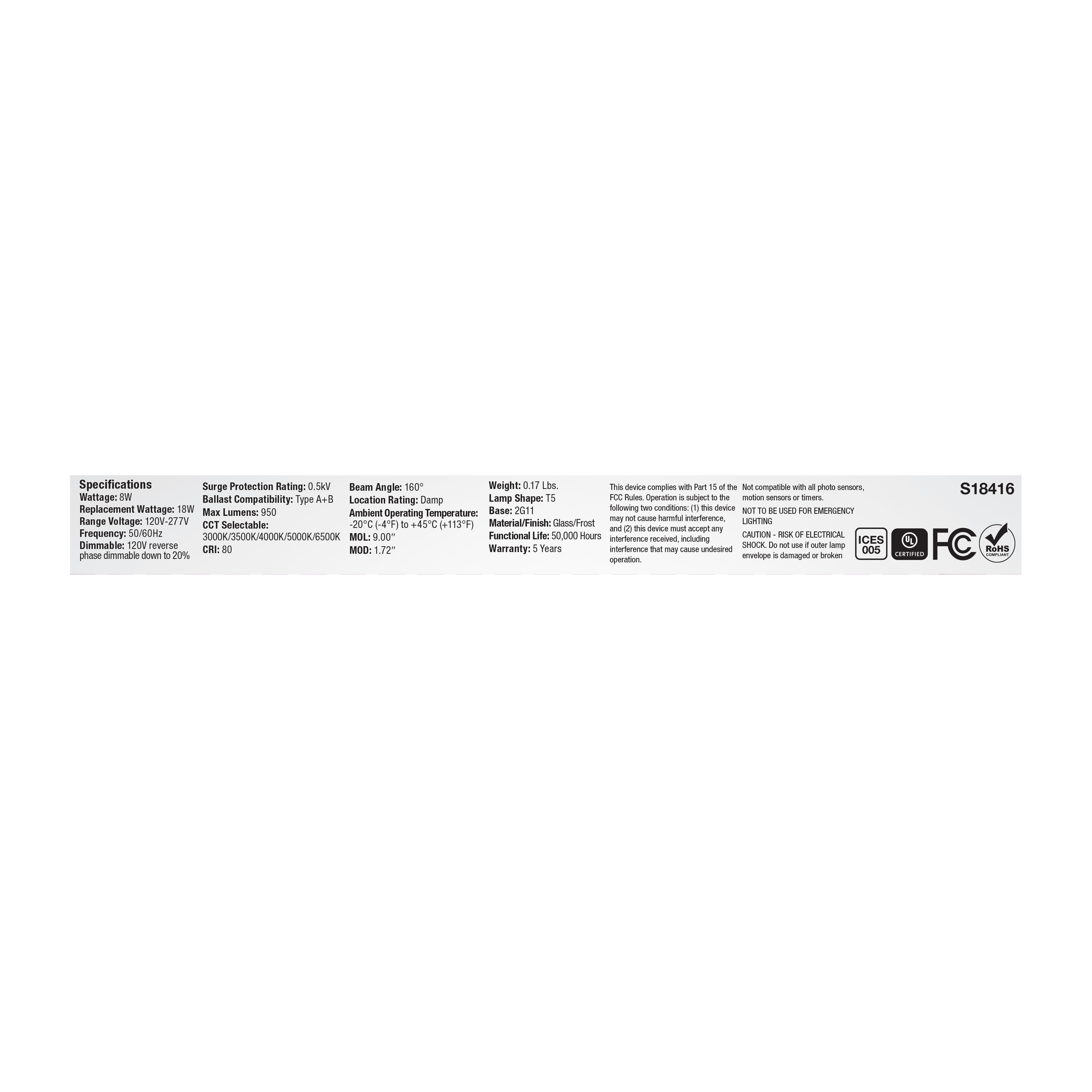

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A/B
Dimmable Text120V only
Lamp FilamentLED
MaterialGlass / Plastic
StatusActive
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.068A
IOT EnabledFalse

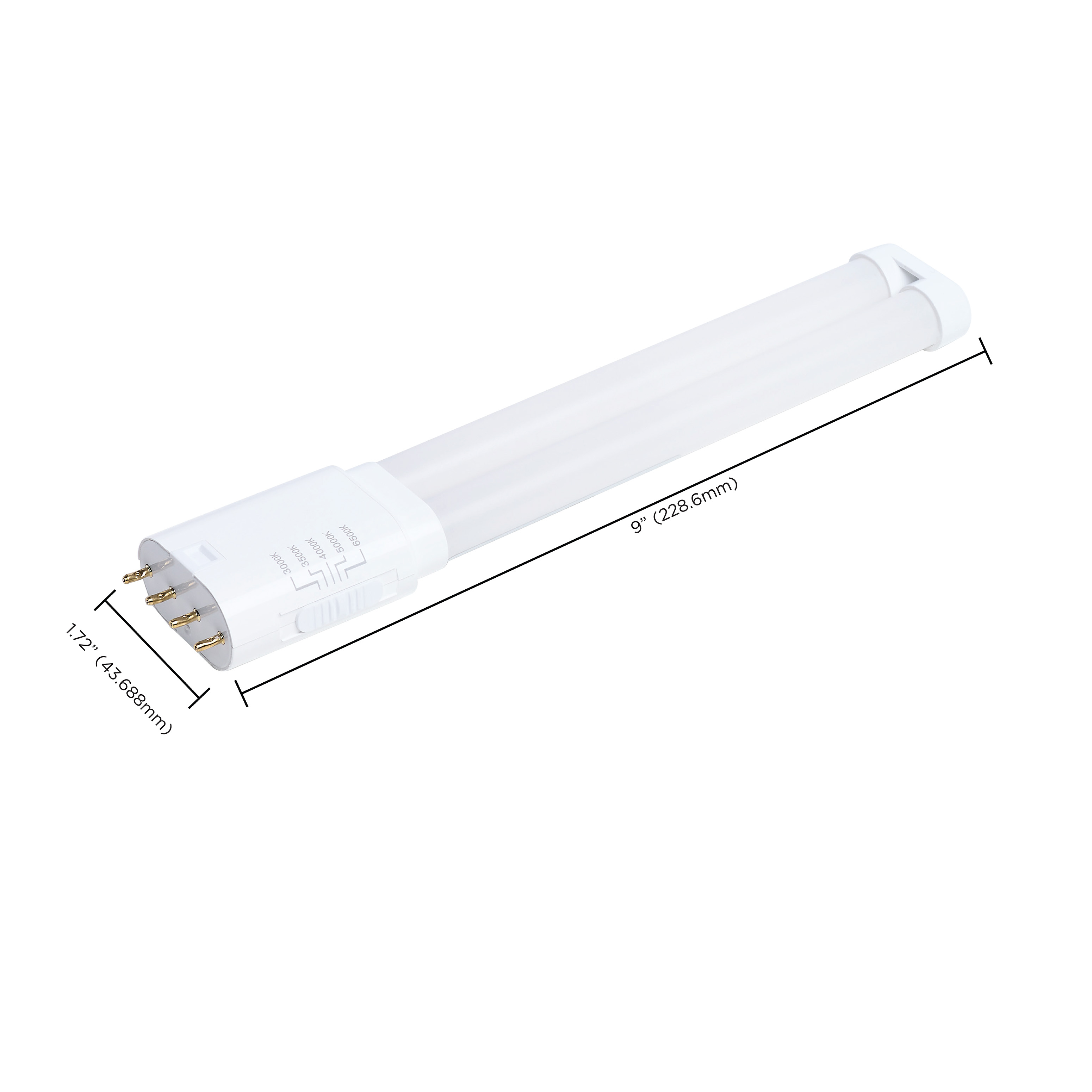

Nominal Length9.0
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv18W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)160
Color TempSoft White to Daylight
CRI80+
Dimming TypeReverse Phase
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens950L
Volts120V-277V
Watts8W
Physical
Lamp Base2G11
FinishFrost
Housing ColorWhite
ANSI Base2G11
Lamp TypeT5
MOD Lamps1.72
MOL9.0
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Features
Flicker FreeFalse
Compliance
ADA CompliantFalse
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923184161
Case Cube0.3201
Case Height5.71
Case Length10.04
Case Quantity25
Case UPC10045923184168
Case Weight5.44
Case Width9.65
EA Cube0.0093
EA Height0.98
EA Length9.25
EA Quantity1
EA Weight0.19
EA Width1.77
Inner Cube0.0
Pack TypeColor Box
Web Length9.0
Web Width1.72
