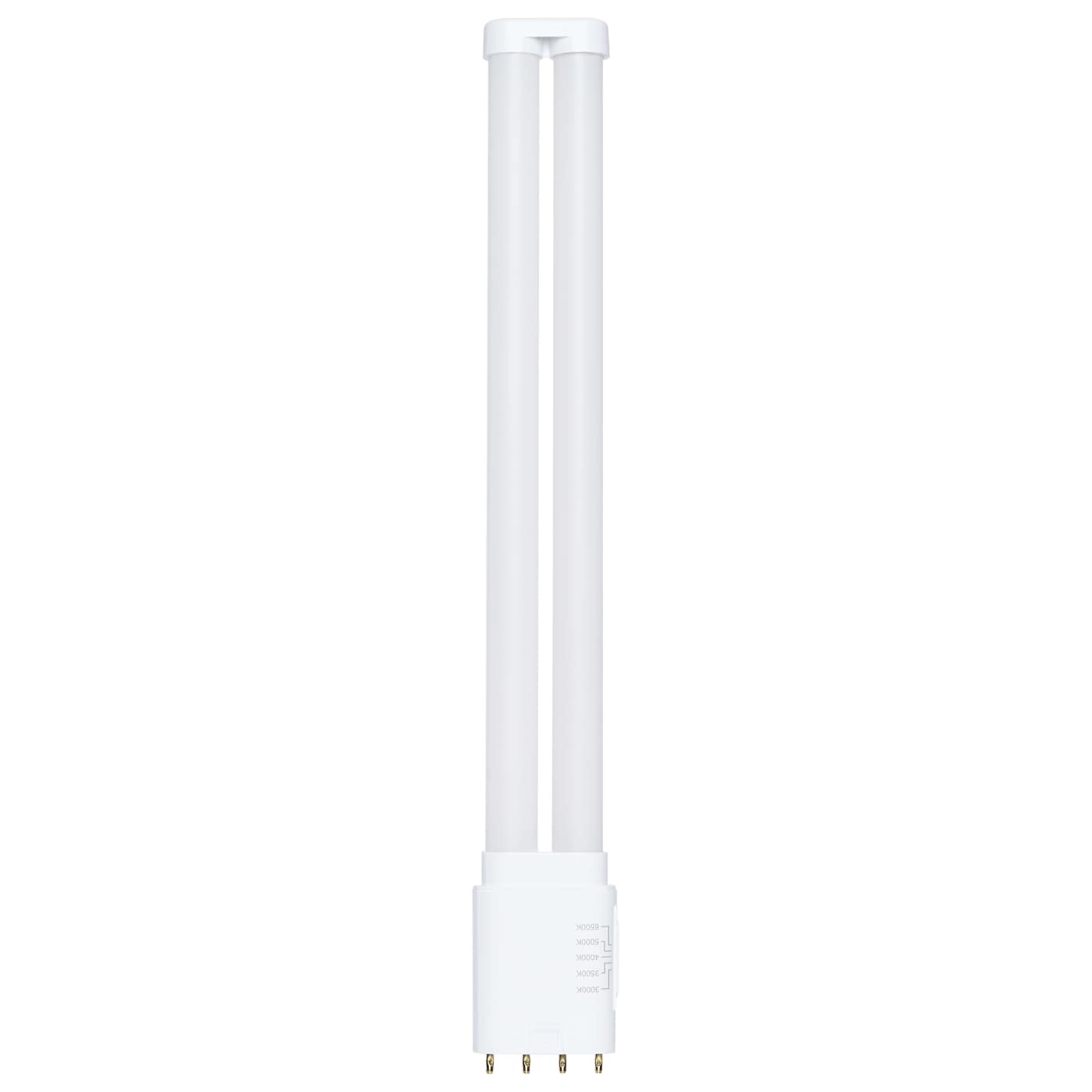

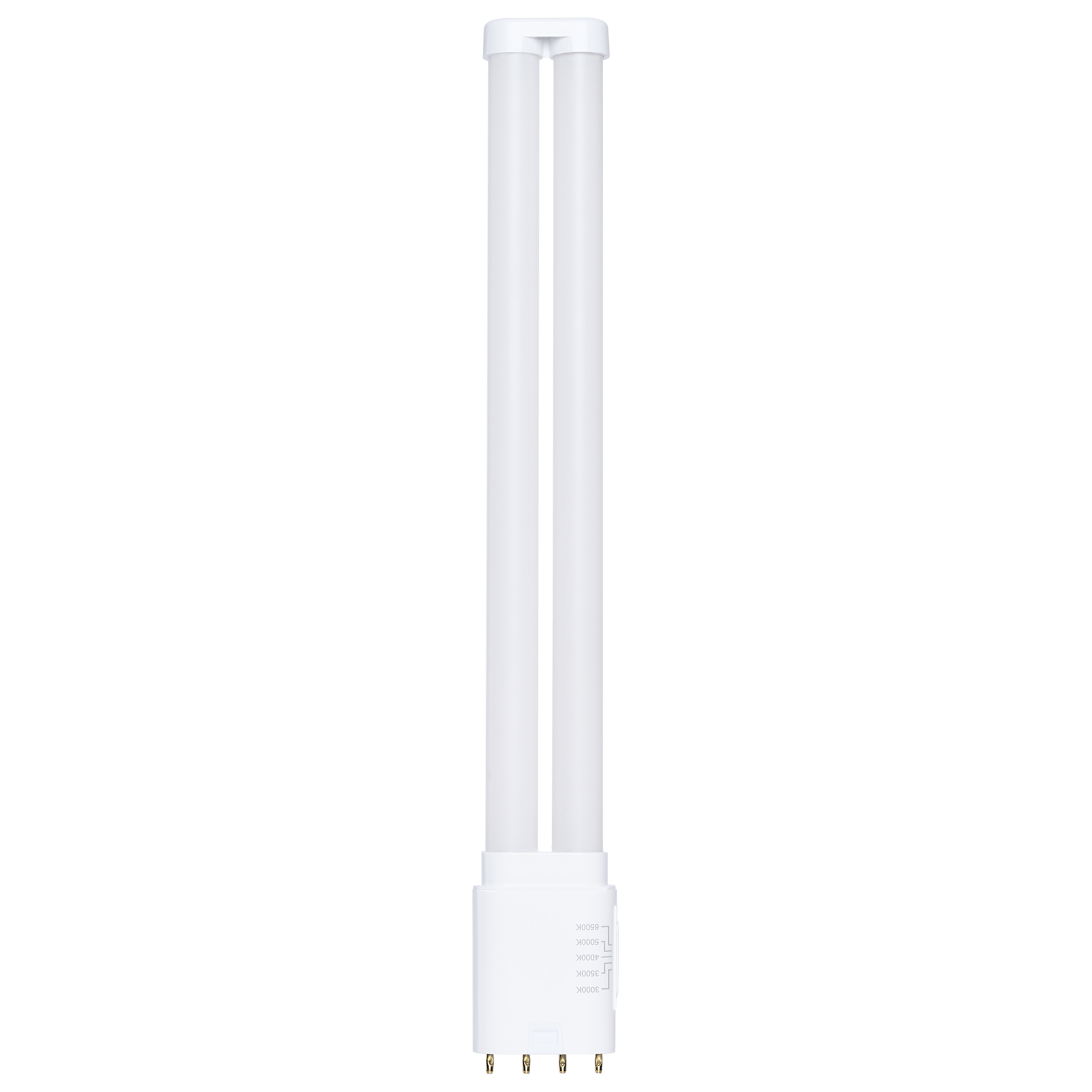

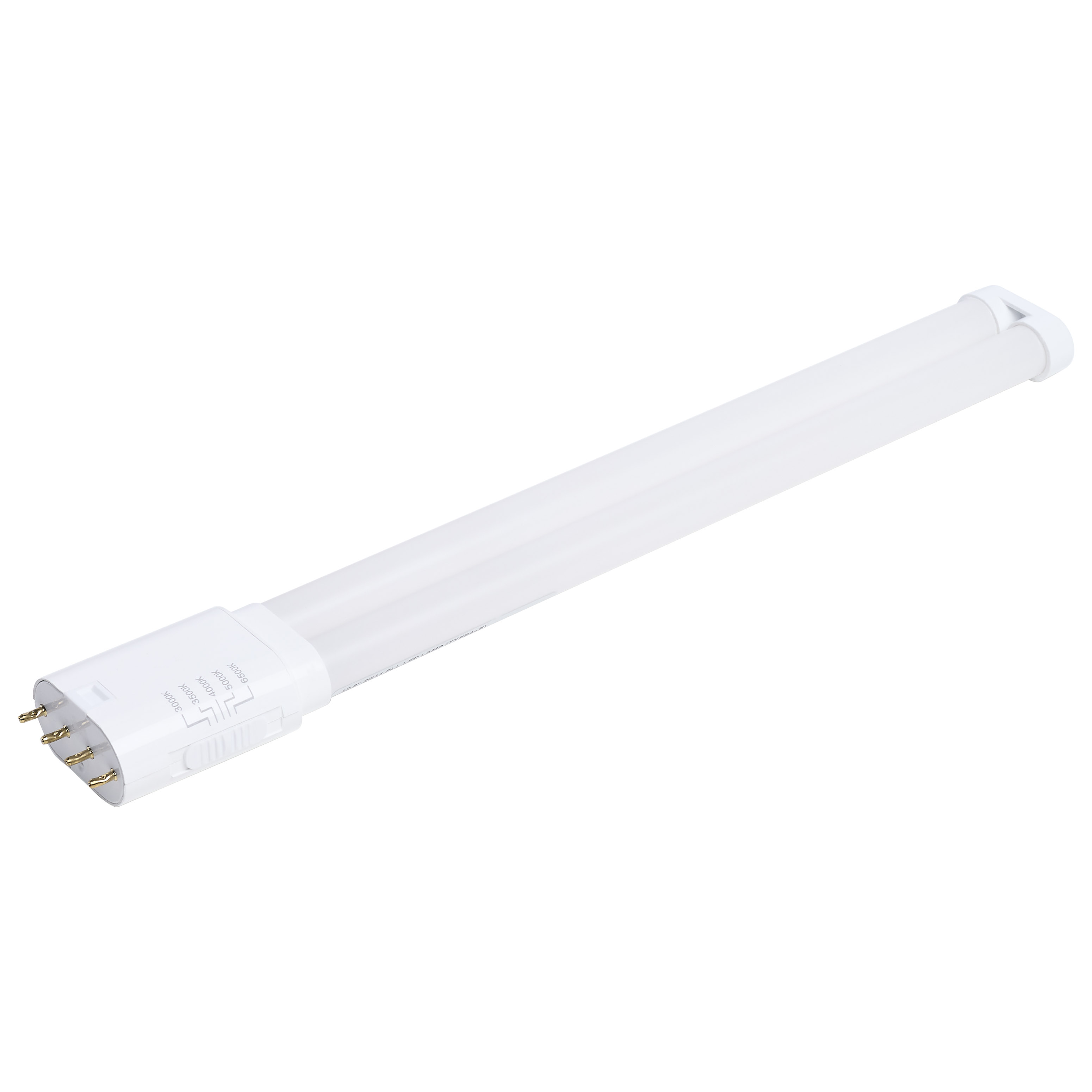

S18418

16PLL/LED/5CCT/AB

  • 16 Watt PLL LED
  • 2G11 Base

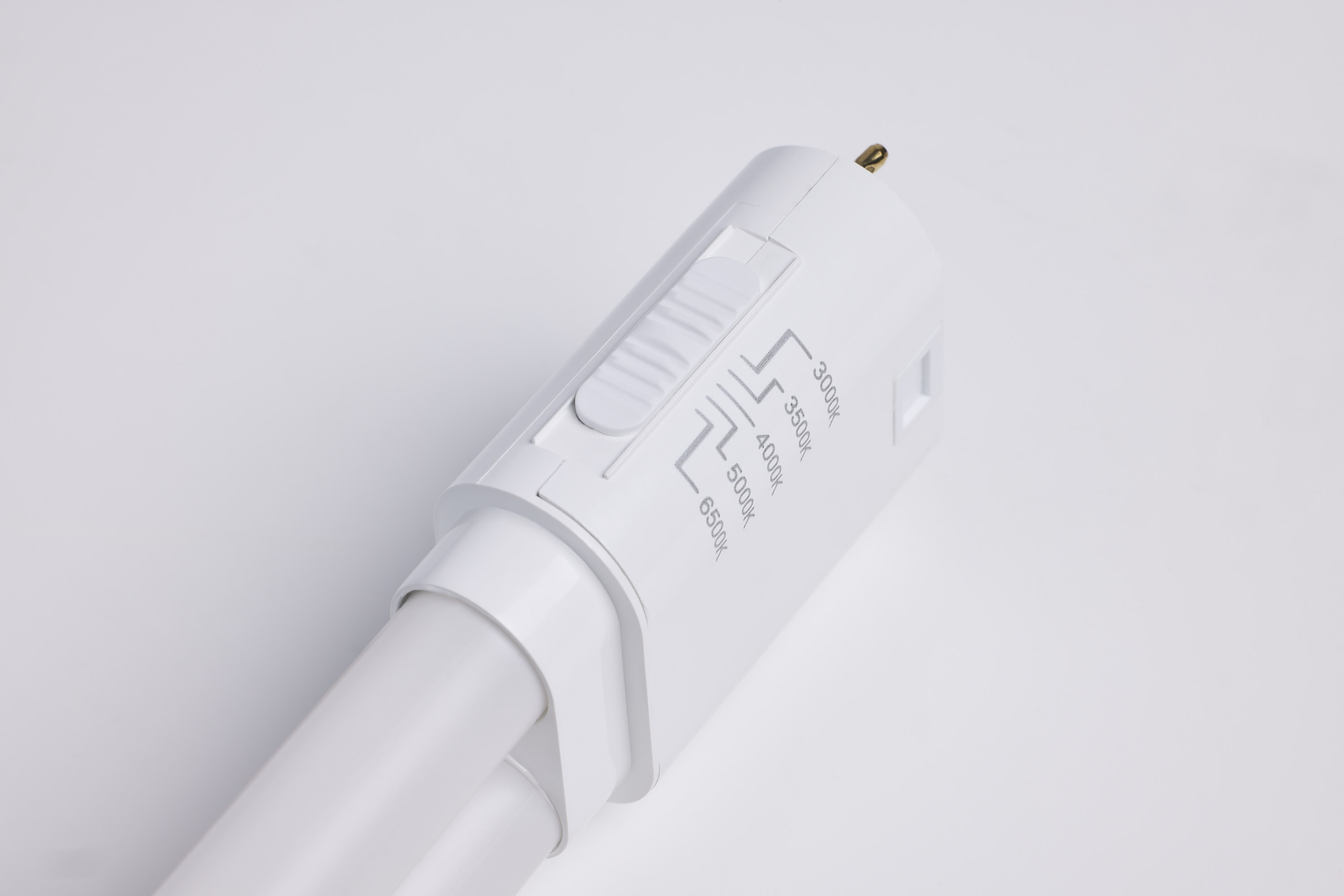

  • 30K/35K/40K/50K/65K CCT Selectable
  • Type A/B
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
ip_rating^IP20^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
beam_angle^160^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S18418 SpecificationsS18418 Instructions.pdfLED PLL LAMPS CCT SELECTABLE|TYPE A+B
Description
Description
16 Watt PLL LED; 2G11 Base; 30K/35K/40K/50K/65K CCT Selectable; Type A/B; 120-277 Volt
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A/B
Dimmable Text120V only
Lamp FilamentLED
MaterialGlass / Plastic
StatusActive
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion<20%
CCT SelectableTrue
Wattage SelectableFalse
Finish FamilyWhite
Amps0.136A
IOT EnabledFalse
Nominal Length16.0
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Product TechnologyLED
Fluor Equiv36W
Electrical

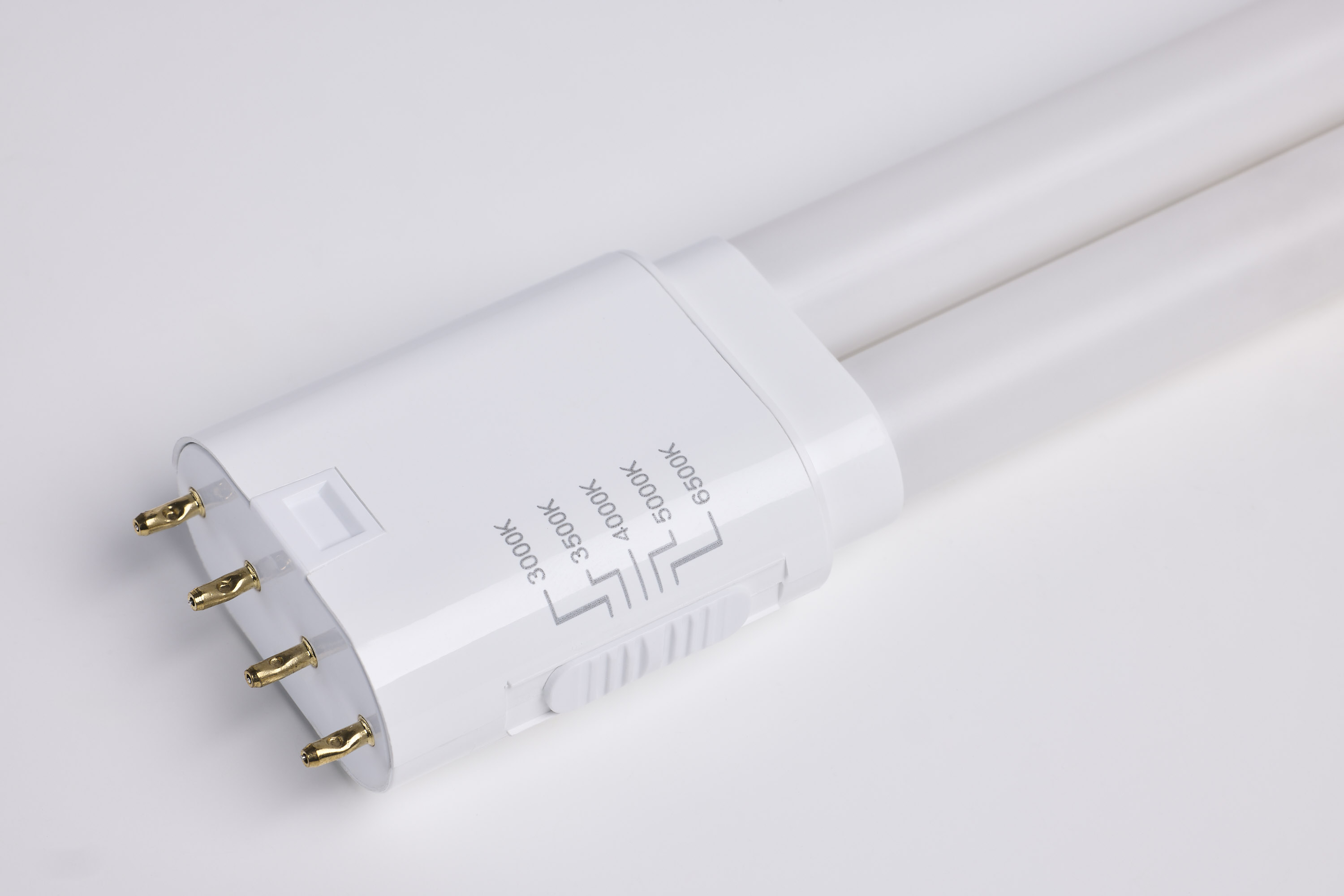

CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)160
Color TempSoft White to Daylight
CRI80+
Dimming TypeReverse Phase
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens2000L
Volts120V-277V
Watts16W
Physical
Lamp Base2G11
FinishFrost
Housing ColorWhite
ANSI Base2G11
Lamp TypeT5
MOD Lamps1.72
MOL16.6
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Features
Flicker FreeFalse
Compliance
ADA CompliantFalse
CA RegulationsExempt - Base Not Regulated
CA StatusLawful for sale in California
FCC CompliantTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Classified
CA Compliance TextLawful for sale
Energy Star CertifiedNo
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923184185
Case Cube0.5587
Case Height5.71
Case Length17.52
Case Quantity25
Case UPC10045923184182
Case Weight14.7
Case Width9.65
EA Cube0.0168
EA Height0.98
EA Length16.73
EA Quantity1
EA Weight0.55
EA Width1.77
Inner Cube0.0
Pack TypeColor Box

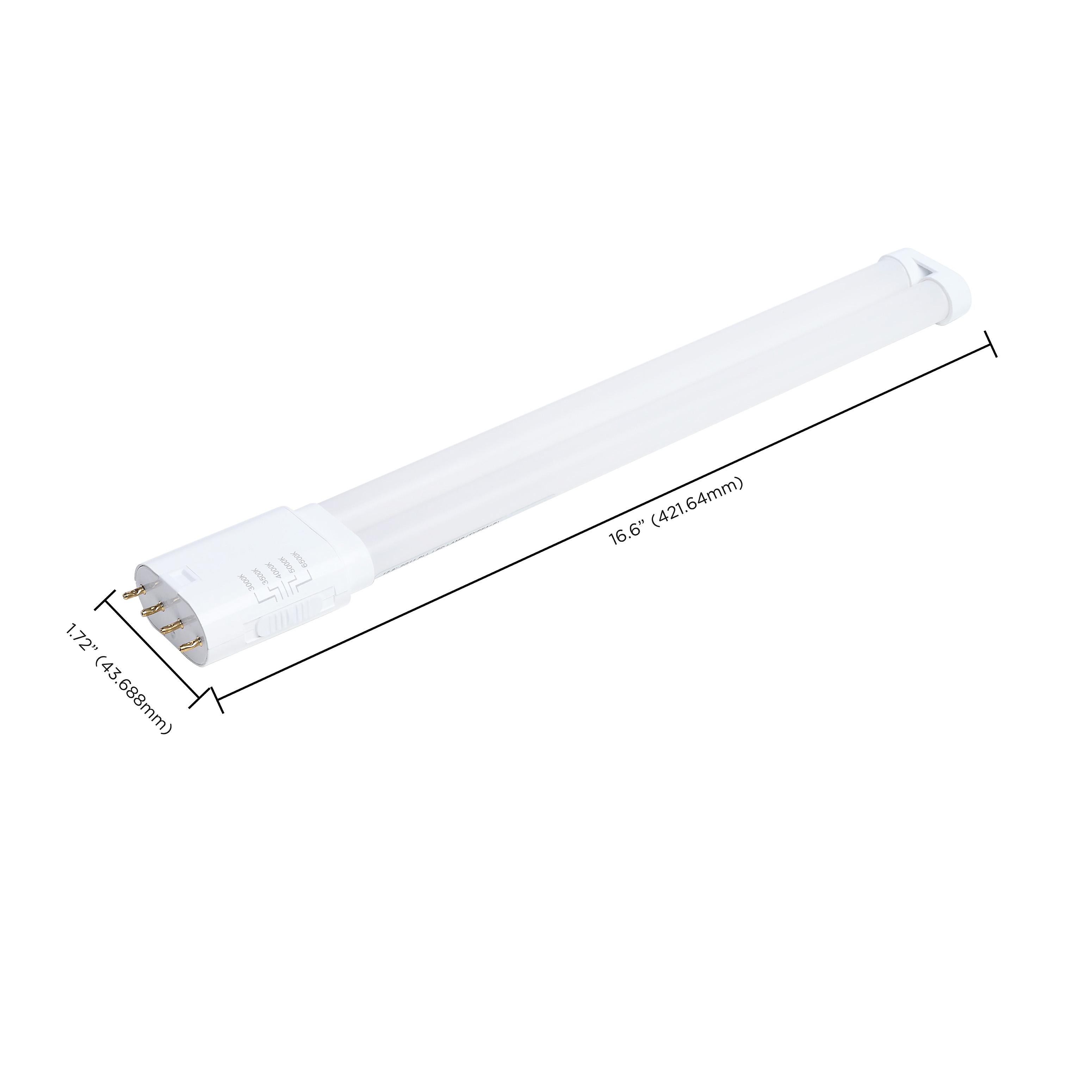

Web Length16.6
Web Width1.72
