| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type B |
| Ballasting Requirements | Ballast Bypass |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Material | Glass |
| Fixture Type | PL |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in-surge protection - 0.5KV |
| Total Harmonic Distortion | 20% |

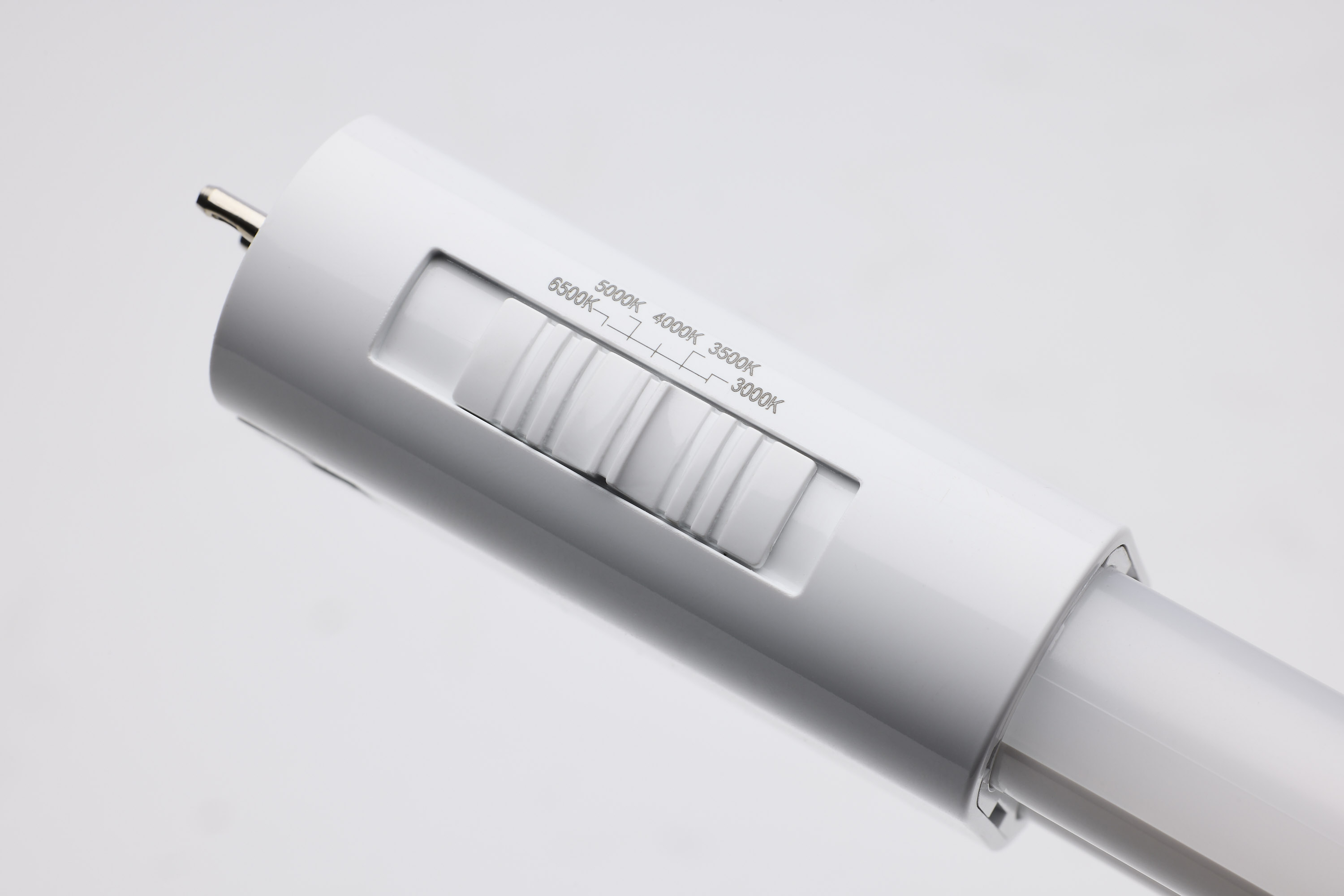

| CCT Selectable | True |
| Wattage Selectable | False |
| Finish Family | Frost |
| Amps | 0.085A |
| Has Camera | False |
| IOT Enabled | False |
| Leg Spacing | 0.43 |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Shatter Proof Type | PET Coated |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 24W |
| CCT (Kelvin Temp) | 3000K/3500K/4000K/5000K/6500K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 115 |
| Color Temp | Soft White to Daylight |
| CRI | 80+ |
| Operating Frequency | 60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 1180L/1200L/1250L/1250L/1250L |
| Volts | 120V-277V |
| Watts | 10W |
| Lamp Base | 2G11 |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | 2G11 |
| Lamp Type | T5 |
| MOD Lamps | 1.72 |
| MOL | 12.7 |
| Warranty | 5-Years |
|---|---|
| Installation Notes | Not for use in vapor tight fixtures. |
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cRUus - Recognized Component, cULus - Certified, cULus - Classified |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923184215 |
|---|---|
| Case Cube | 0.549 |
| Case Height | 6.22 |
| Case Length | 16.14 |
| Case Quantity | 20 |
| Case UPC | 10045923184212 |
| Case Weight | 7.51 |
| Case Width | 9.45 |
| EA Cube | 0.0144 |
| EA Height | 0.94 |
| EA Length | 13.98 |
| EA Quantity | 1 |
| EA Weight | 0.31 |
| EA Width | 1.89 |
| Inner Cube | 0.2089 |
| Inner Height | 5.43 |
| Inner Length | 15.35 |
| Inner Quantity | 10 |
| Inner UPC | 20045923184219 |
| Inner Weight | 2.41 |
| Inner Width | 4.33 |
| Pack Type | Box |

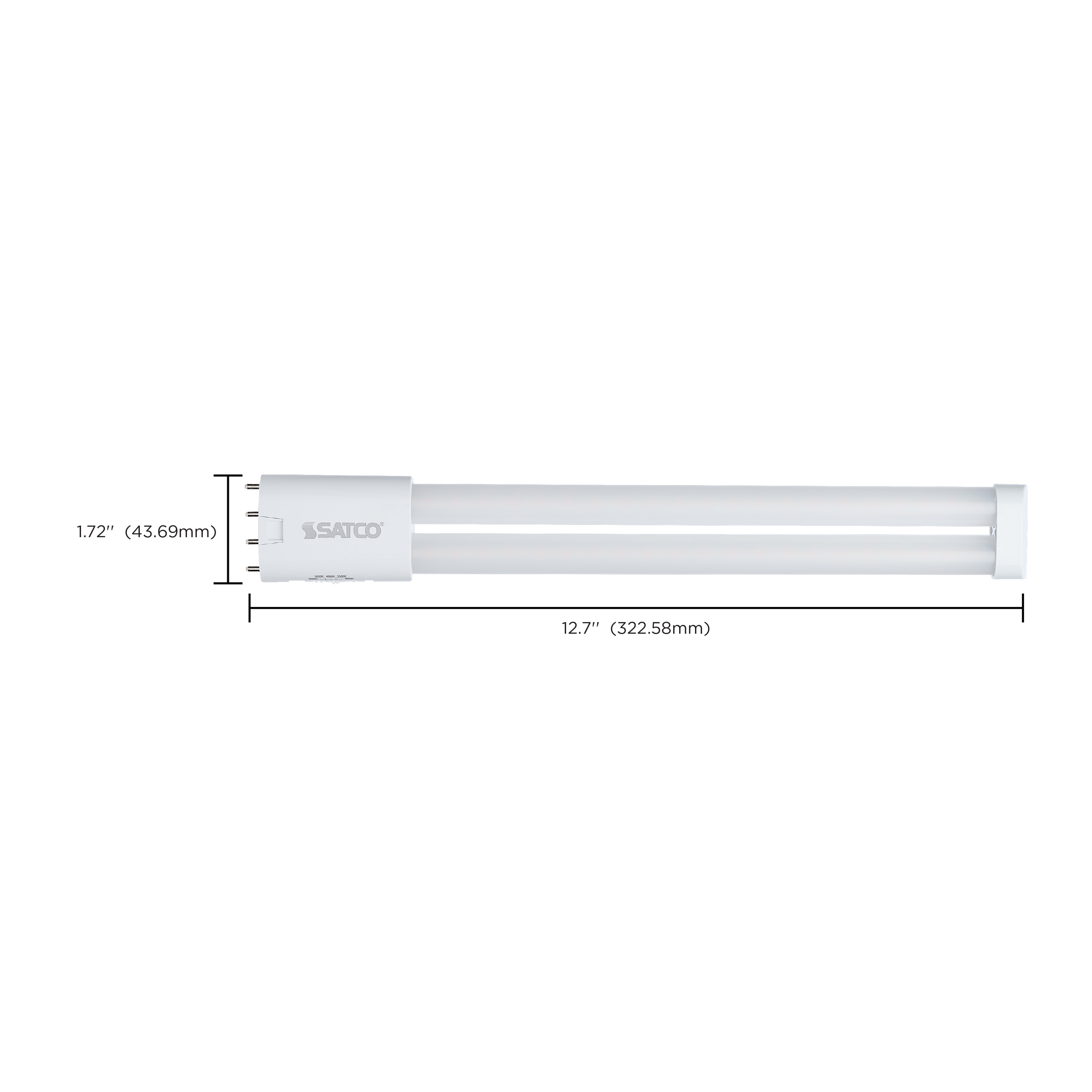

| Web Length | 12.7 |
| Web Width | 1.72 |
