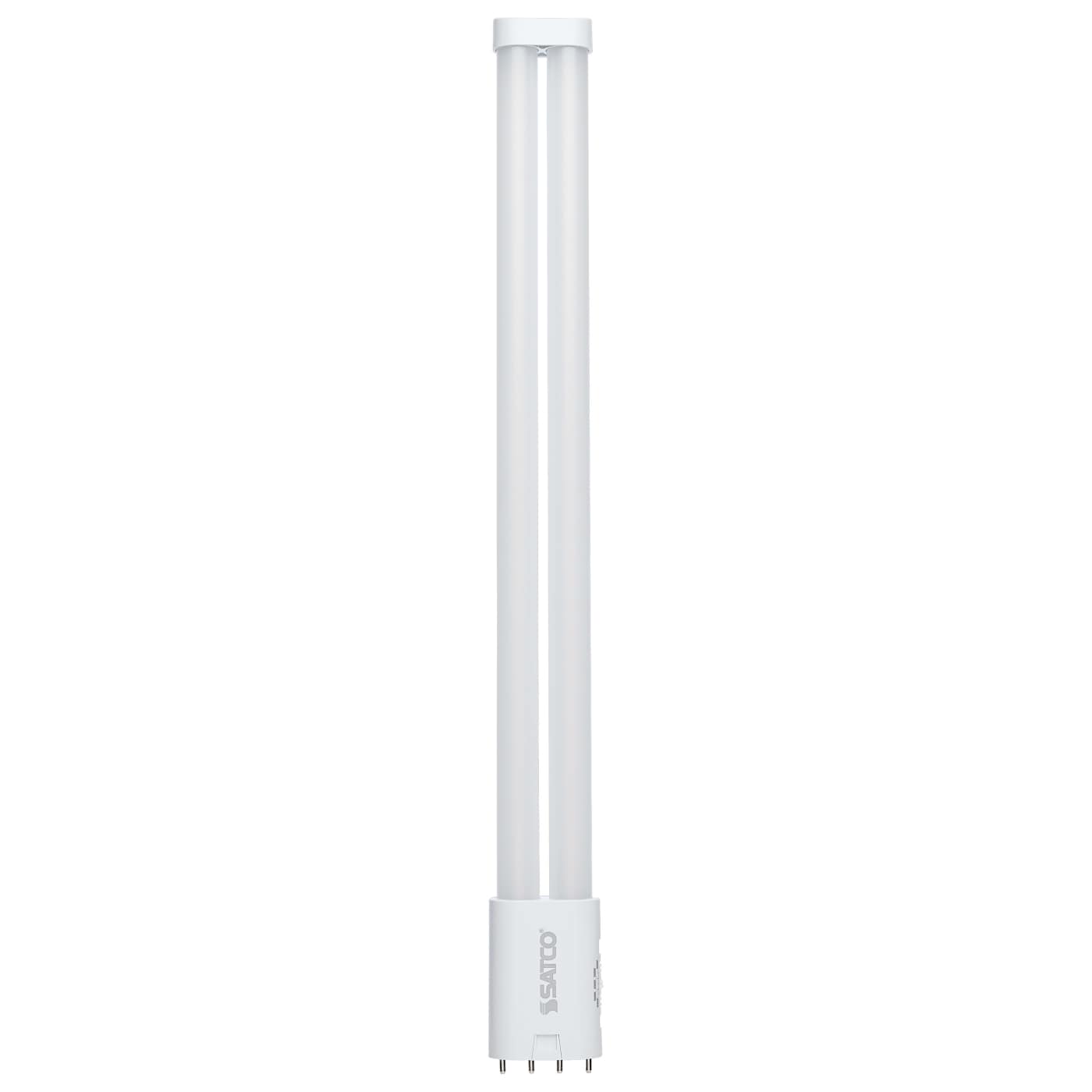

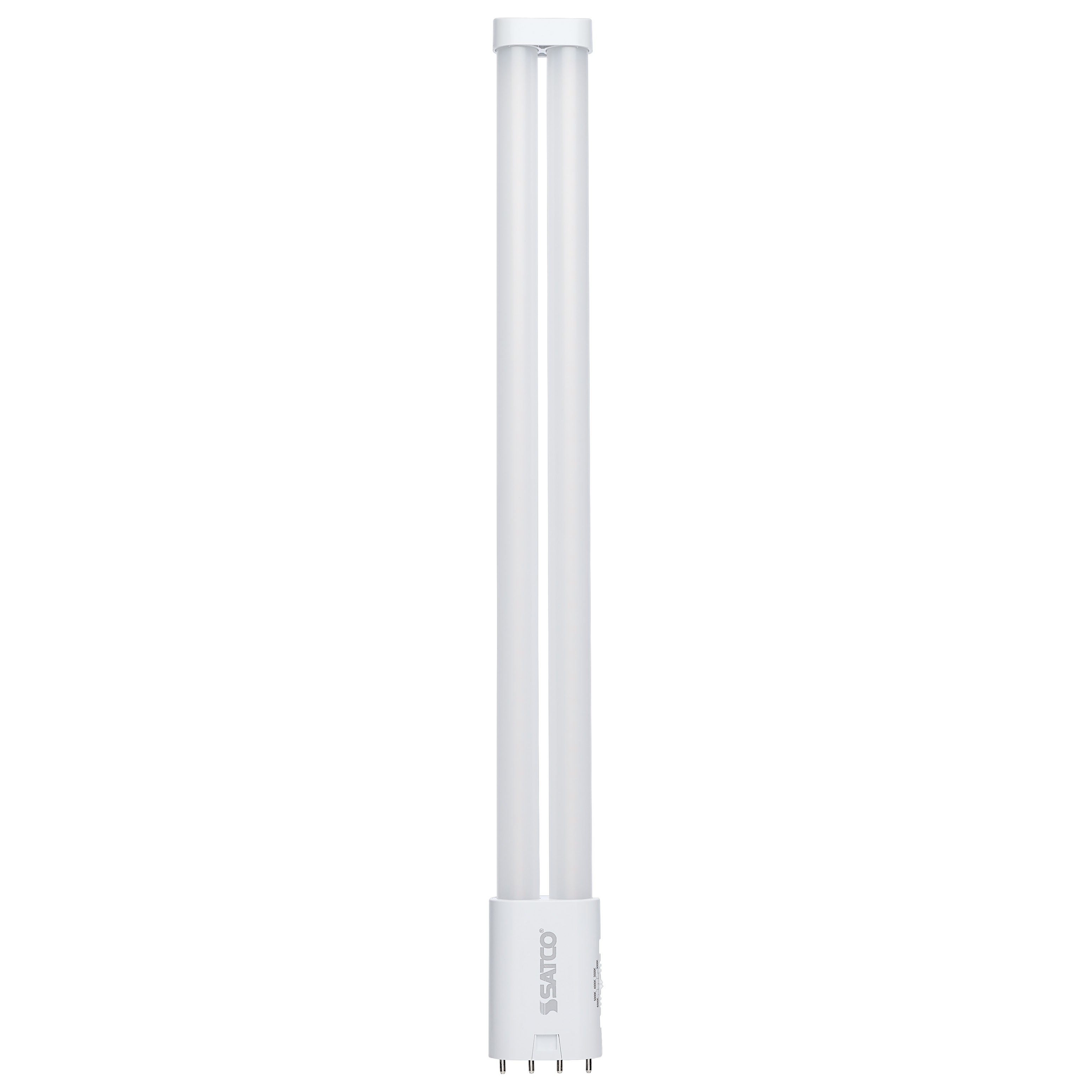

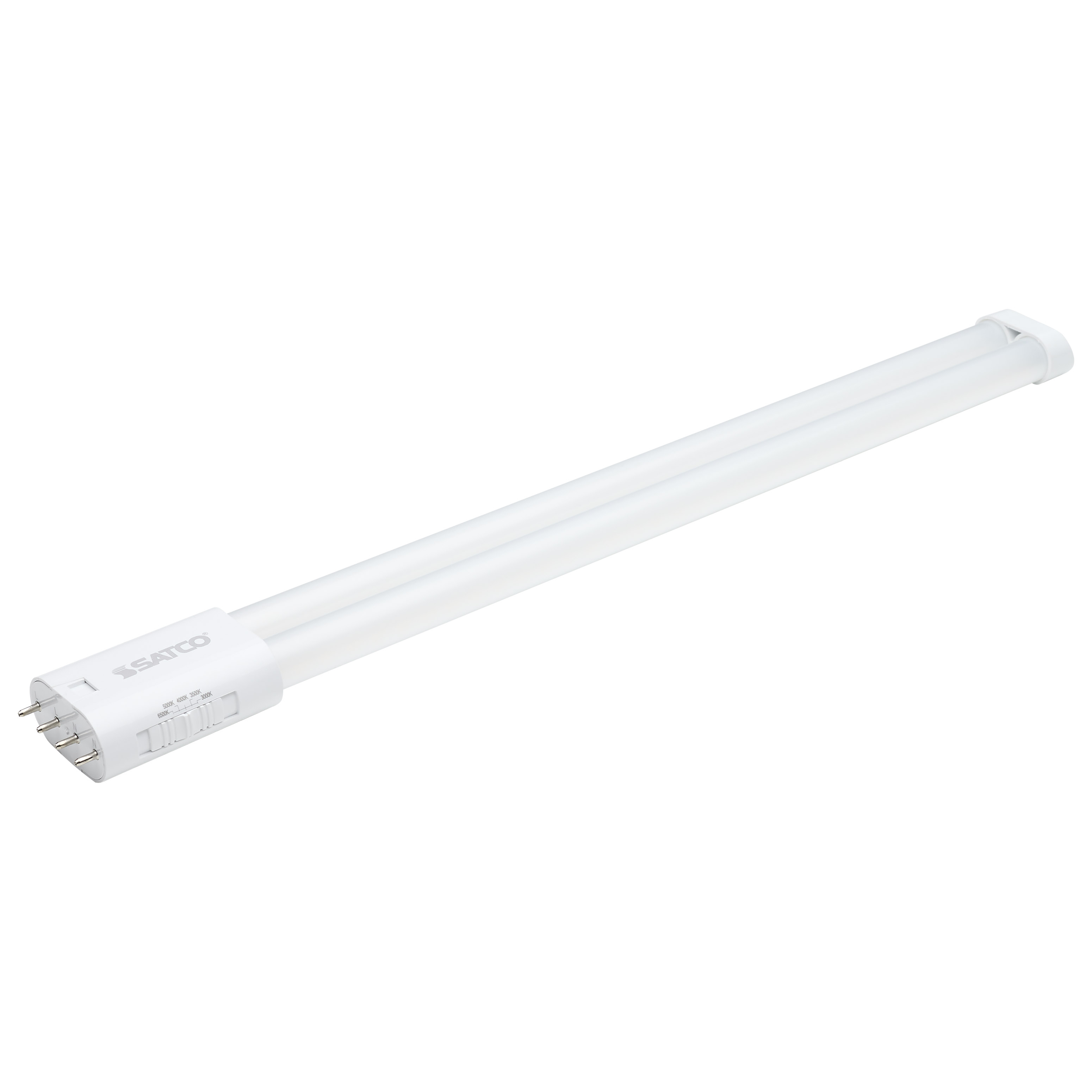

S18422

16PLL/LED/5CCT/BP

  • 16 Watt PLL LED
  • 2G11 Base

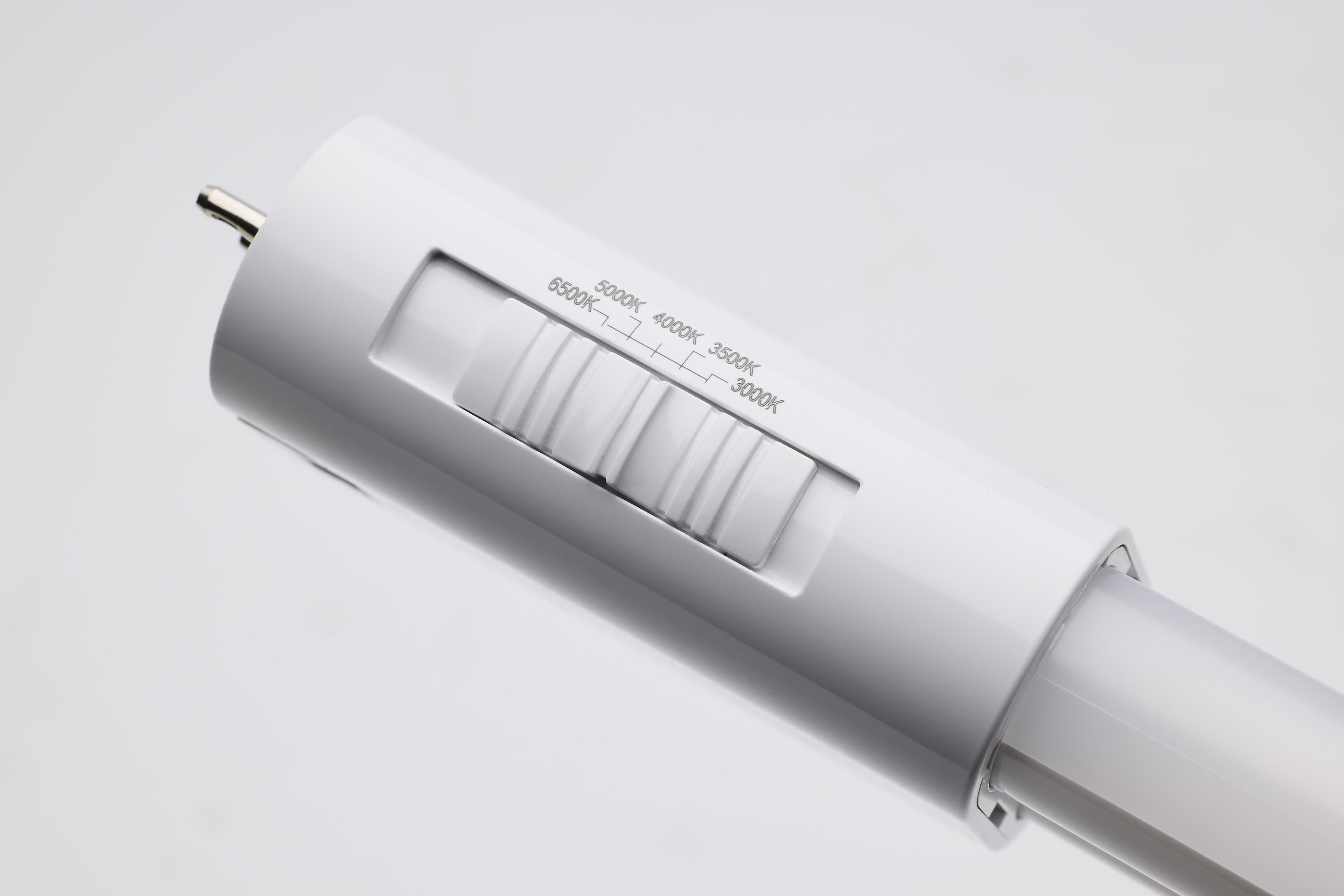

  • 30K/35K/40K/50K/65K CCT Selectable
  • Ballast Bypass
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S18422 SpecificationsS18422 Instructions.pdf
Tools
Lighting Layout Analysis For S18422
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
SATCO NUVO's innovative S18422 16W PLL lamp offers an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, this lamp will replace outdated, less efficient CFL tubes, consuming less energy while significantly extending the lifespan of the lamp. Available in five CCT options, users can customize their lighting environment with color temperatures ranging from a warm 3000K to a crisp daylight white of 6500K. Designed for use in enclosed fixtures, this lamp ensures safe and efficient operation. The durable PET coated glass tubing enhances light quality and provides higher heat resistance. The exceptional versatility and energy savings of this lamp make it an ideal choice for both residential and commercial applications.
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypePL
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.135A
Has CameraNo
IOT EnabledNo
Leg Spacing0.43
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv36W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)115
Color TempSoft White to Daylight
CRI80+
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens1900L/1950L/2000L/2000L/2000L
Volts120V-277V
Watts16W
Max Lumens2000L
Physical
Lamp Base2G11 (4-Pin)
FinishFrost
Housing ColorWhite
ANSI Base2G11
Lamp TypeT5

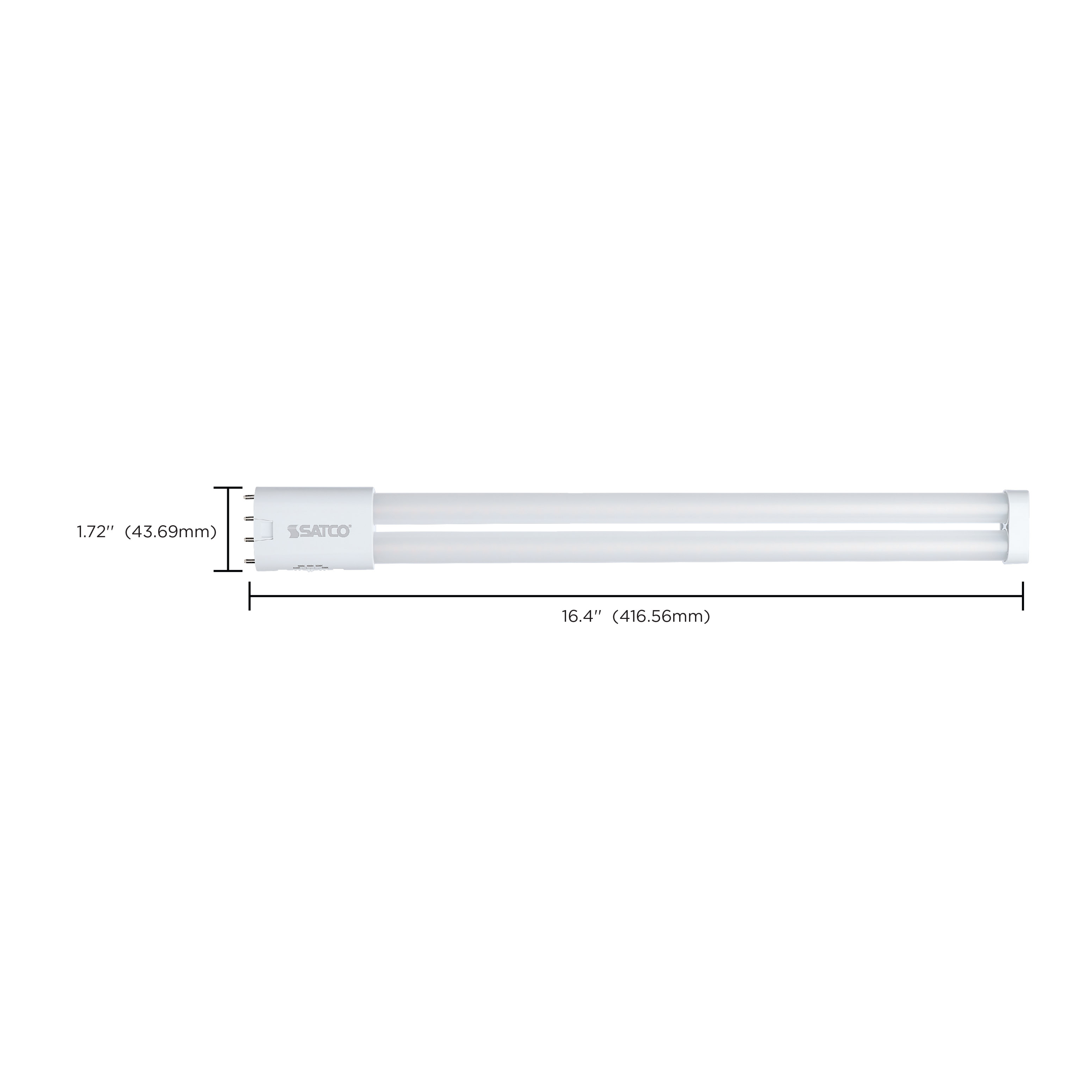

MOD Lamps1.72
MOL16.4
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923184222
Case Cube0.679
Case Height6.22
Case Length19.96
Case Quantity20
Case UPC10045923184229
Case Weight9.45
Case Width9.45
EA Cube0.0182
EA Height0.94
EA Length17.72
EA Quantity1
EA Weight0.39
EA Width1.89
Inner Cube0.2608
Inner Height5.43
Inner Length19.17
Inner Quantity10
Inner UPC20045923184226
Inner Weight4.19
Inner Width4.33
Pack TypeBox
Web Length16.4
Web Width1.72
