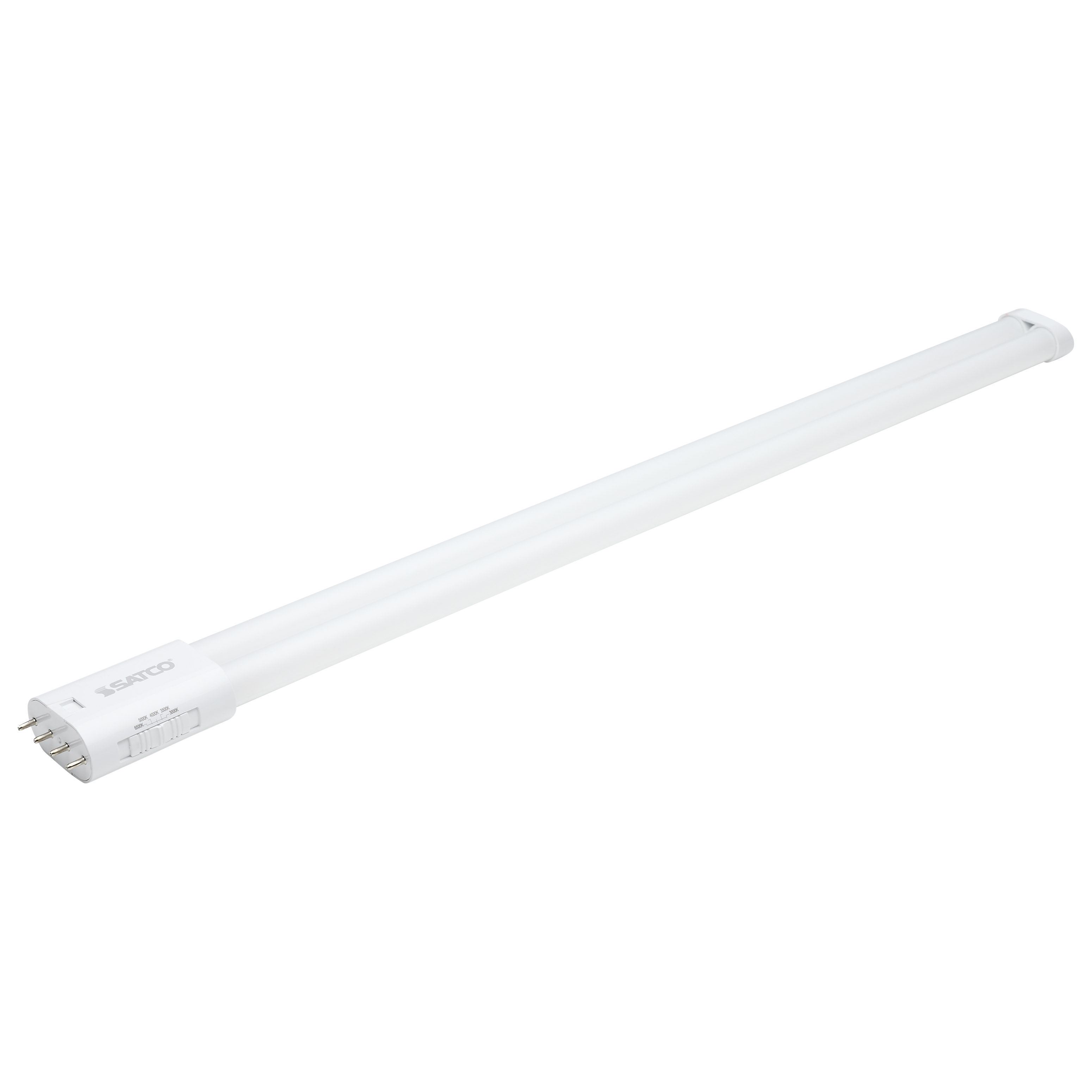

S18423

20PLL/LED/5CCT/BP

  • 20 Watt PLL LED
  • 2G11 Base

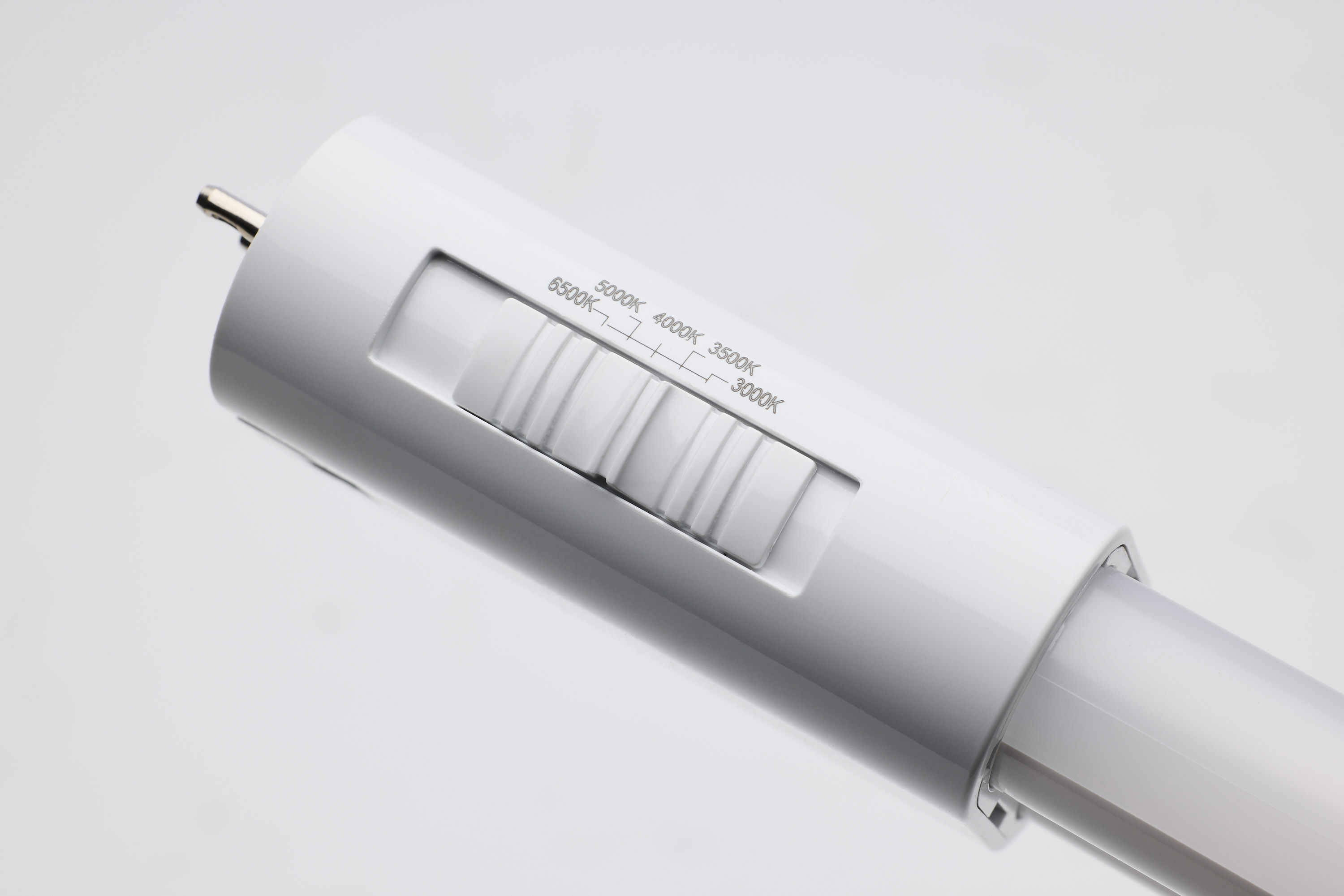

  • 30K/35K/40K/50K/65K CCT Selectable
  • Ballast Bypass
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
warranty^5_years^2
volts^120-277v^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S18423 SpecificationsS18423 Instructions.pdf
Tools
Lighting Layout Analysis For S18423
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

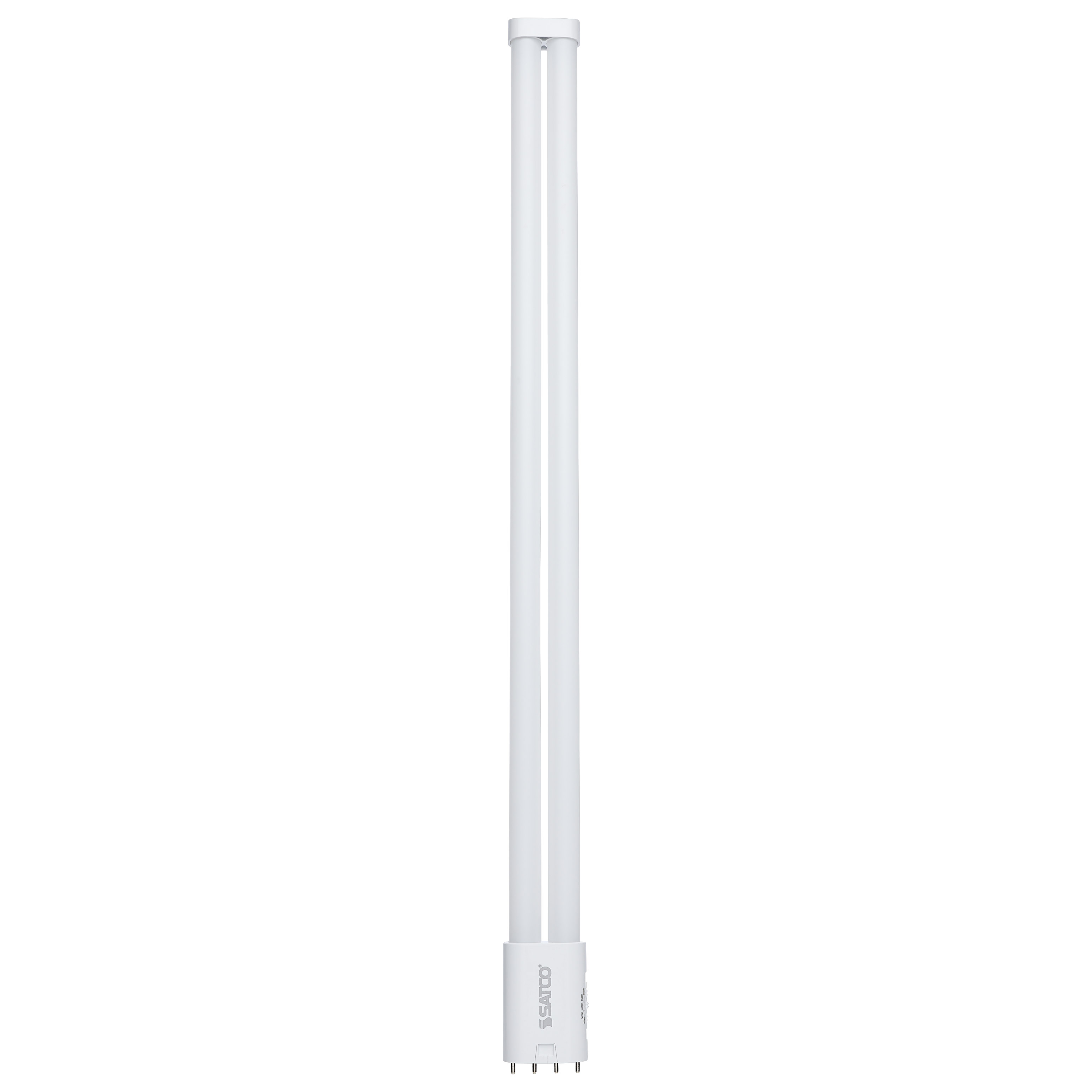

SATCO NUVO's innovative S18423 20W PLL lamp offers an easy solution for upgrading older luminaires to the energy-efficient benefits of LED technology. By utilizing a Type B ballast bypass, this lamp will replace outdated, less efficient CFL tubes, consuming less energy while significantly extending the lifespan of the lamp. Available in five CCT options, users can customize their lighting environment with color temperatures ranging from a warm 3000K to a crisp daylight white of 6500K. Designed for use in enclosed fixtures, this lamp ensures safe and efficient operation. The durable PET coated glass tubing enhances light quality and provides higher heat resistance. The exceptional versatility and energy savings of this lamp make it an ideal choice for both residential and commercial applications.
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass
Lamp FilamentLED
MaterialGlass
Fixture TypePL
StatusActive
StyleUtility
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.185A
IOT EnabledNo
Leg Spacing0.43
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Shatter Proof TypePET Coated
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv40W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
Hours Rated50000
Beam Angle (degree)140
Color TempSoft White to Daylight
CRI80+
Operating Frequency60Hz
Operating Temp-4F to +113F (-20C to +45C)
Lumens2650L/2700L/2800L/2800L/2800L
Volts120V-277V
Watts20W
Max Lumens2800L
Physical
Lamp Base2G11 (4-Pin)
FinishFrost
Housing ColorWhite
ANSI Base2G11
Lamp TypeT5
MOD Lamps1.72
MOL22.5
Additional Info
Warranty5-Years
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Documents
Compliance
DLC IDS-F570N1
FCC CompliantYes
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedYes
Title 20Exempt
T24/JA8 CompliantNo
Packaging
UPC045923184239
Case Cube0.8773
Case Height6.22
Case Length25.79
Case Quantity20
Case UPC10045923184236
Case Weight10.8
Case Width9.45
EA Cube0.0242

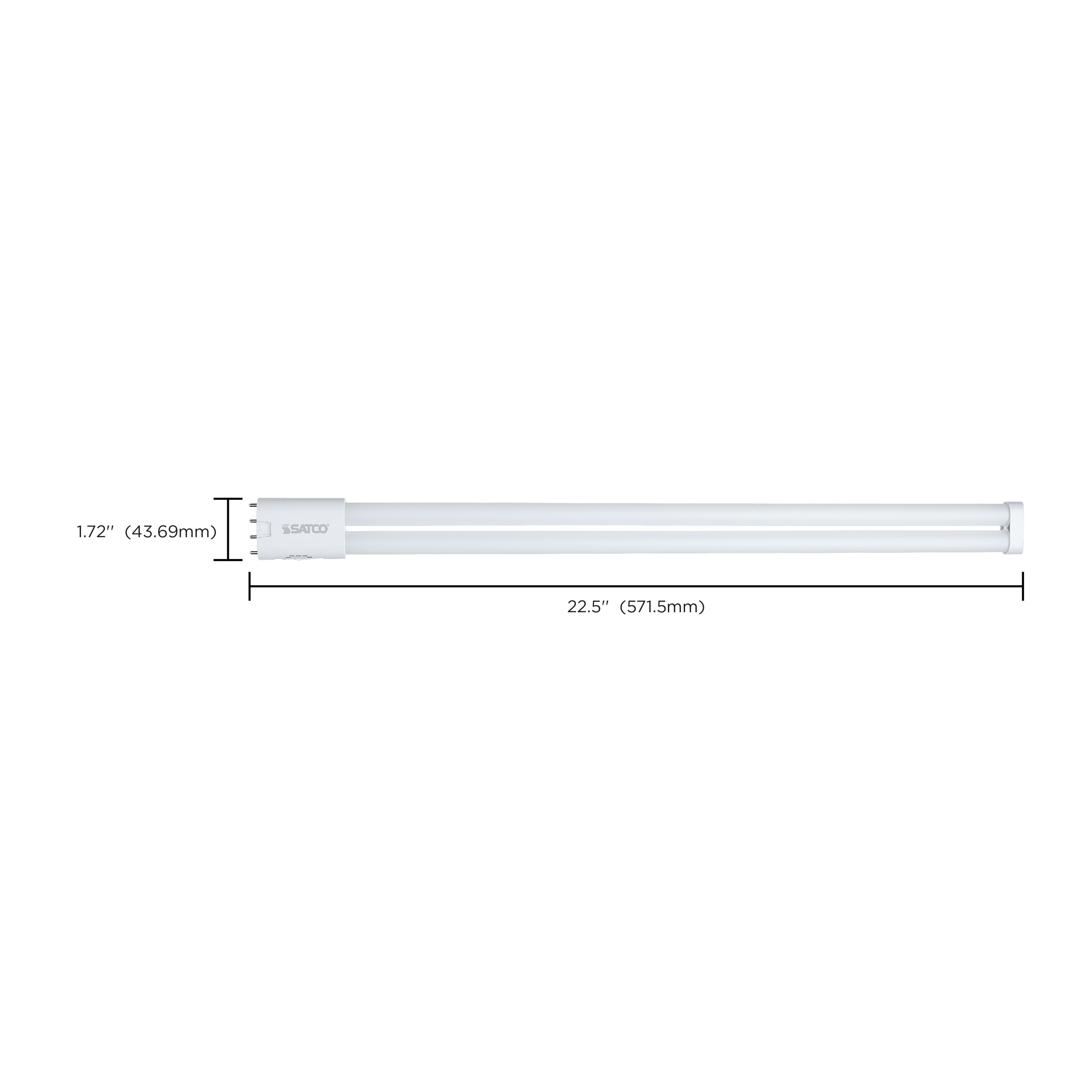

EA Height0.94
EA Length23.5
EA Quantity1
EA Weight0.44
EA Width1.89
Inner Cube0.3402
Inner Height5.43
Inner Length25.0
Inner Quantity10
Inner UPC20045923184233
Inner Weight4.76
Inner Width4.33
Pack TypeBox
Web Length22.5
Web Width1.72
