S18453 13T8/U1-G13/LED/850/DUAL

S18453

13T8/U1-G13/LED/850/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

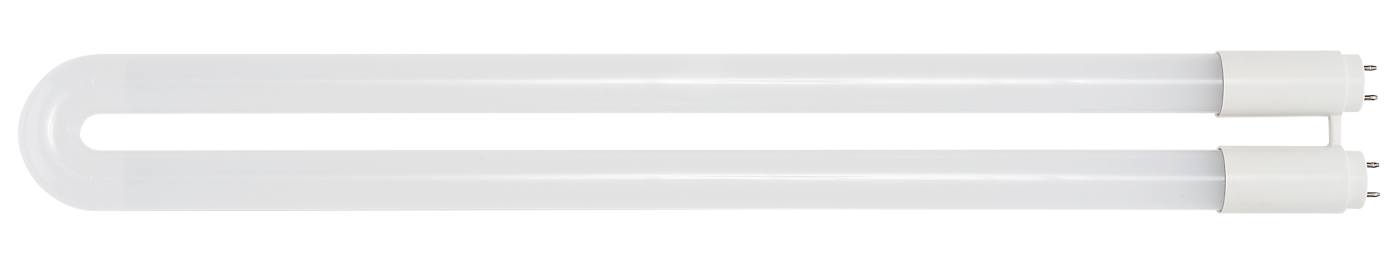

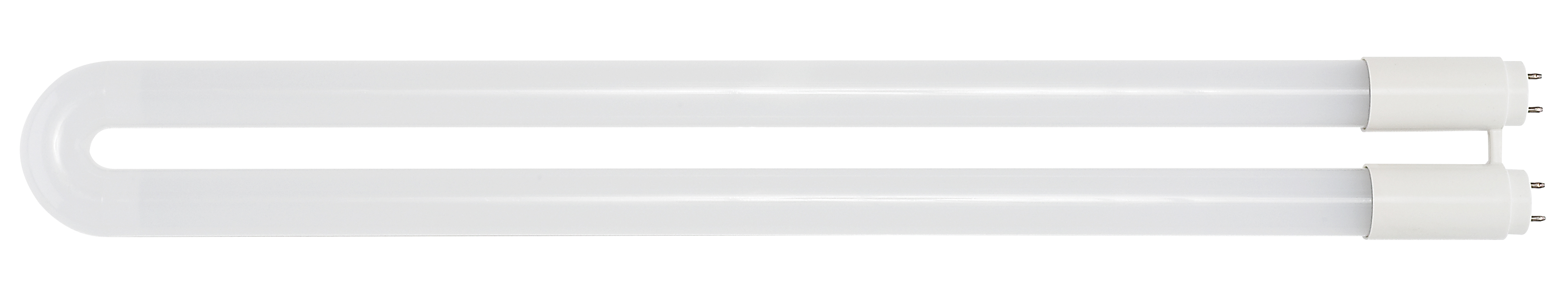

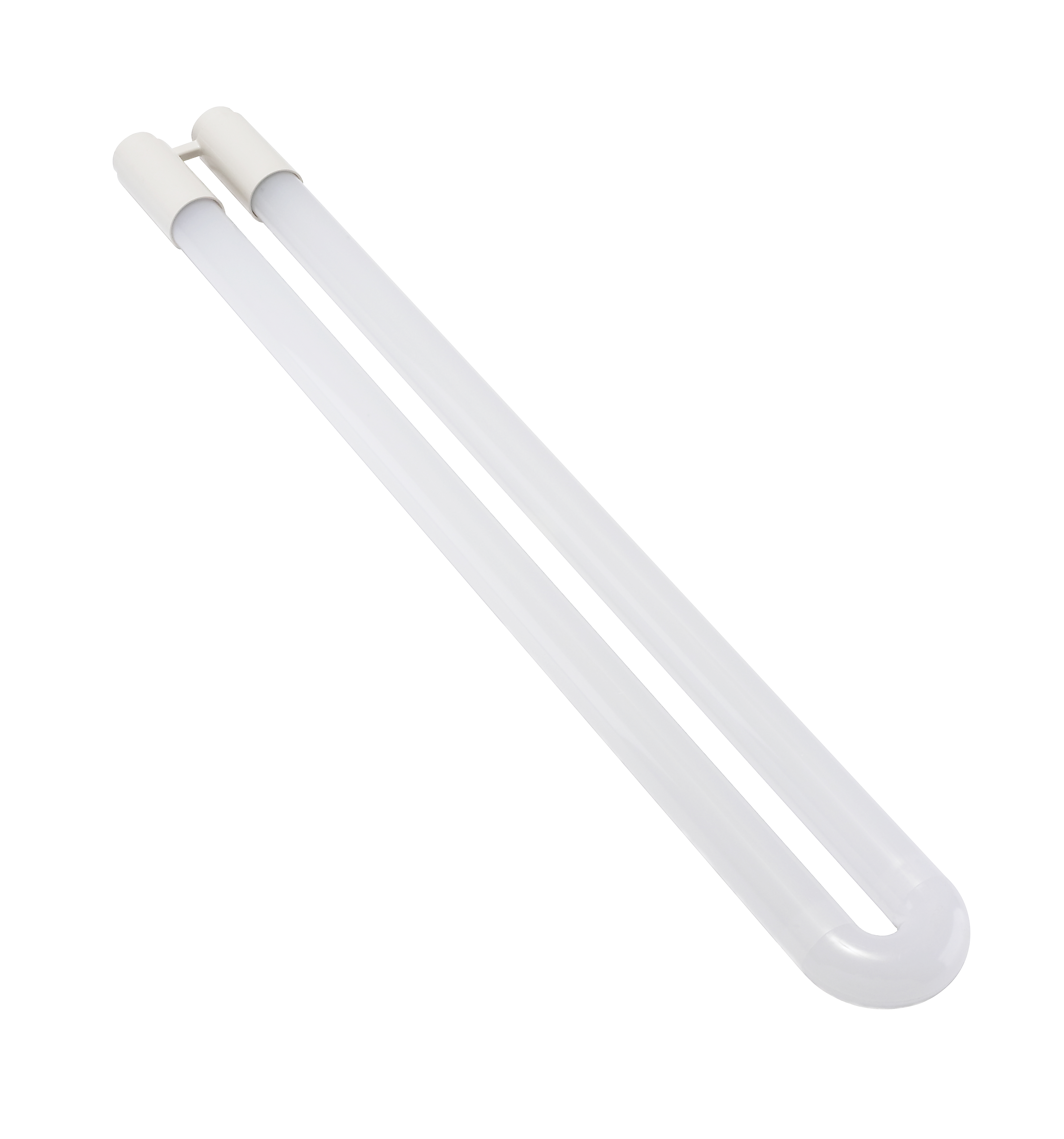

SATCO|NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, these replacement bulbs are type A/B ballast dependent or ballast bypass. With its high lumen output, and beam spread of 160 degrees, this lamp provides 50,000 hours of natural light.
  • MOL: 22.59 inches, MOD: 1.00 inch
  • Superior 80 CRI light quality, 2000 lumens, 5000K natural light, with a 160 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 13 watt LED replaces 31 watt fluorescent
  • Frost finished U-bend plastic bulb with plastic housing
  • DLC Certified and qualifies for rebates where available
  • 5 Year Limited Warranty
Lights

S18453

13T8/U1-G13/LED/850/DUAL

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring

SATCO|NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, these replacement bulbs are type A/B ballast dependent or ballast bypass. With its high lumen output, and beam spread of 160 degrees, this lamp provides 50,000 hours of natural light.
  • MOL: 22.59 inches, MOD: 1.00 inch
  • Superior 80 CRI light quality, 2000 lumens, 5000K natural light, with a 160 degree beam spread
  • Rated for enclosed fixtures
  • Damp location rated
  • 13 watt LED replaces 31 watt fluorescent
  • Frost finished U-bend plastic bulb with plastic housing
  • DLC Certified and qualifies for rebates where available
  • 5 Year Limited Warranty

Specifications

General
StatusActive
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent31W
Volts120V-277V
Ballast TypeType A/B
ShapeT8

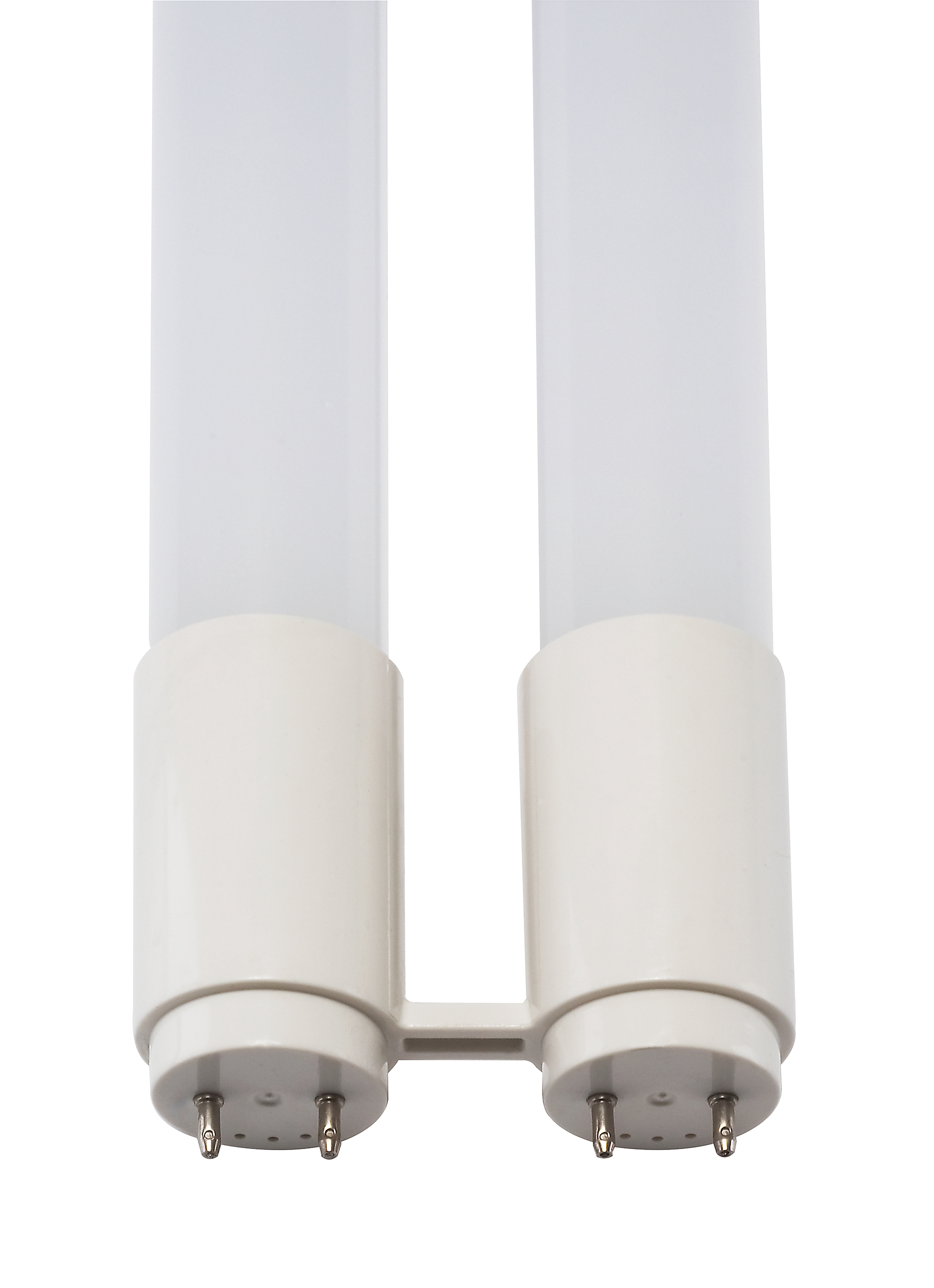

BaseMedium Bi Pin
ANSI BaseG13
Nominal Length22.5
FinishFrost
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2000L
Beam Spread160
Hours Rated50000
Product CategoryU-Bend
Lamp TypeU-Bend
TechnologyLED
Electrical
Watts13W
Incandescent Equivalent50W
Fluorescent Equivalent31W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)5000K
TemperatureNatural Light
CRI80
Lumens2000L
Beam Spread160
Power Factor0.9
Hours Rated50000
THD20%
Operating Temperature-25C (-13F) to +45C (+113F)
Physical
MOL22.59
MOD1
Nominal Length22.5
Leg Spacing1.625
ShapeT8
BaseMedium Bi Pin
ANSI BaseG13
FinishFrost
MaterialPlastic
Lens FinishFrost
Lens MaterialPlastic (PS)
Housing ColorWhite
Additional Information
Additional InfoReplaces FB31T8/U1
Shatter-Proof TypeYes
Installation NotesNot for use in vapor tight fixtures.
Rated For Enclosed FixtureYes
Warranty5 Year Limited - T8 LED Bulbs
Compliance
Safety ListingcULus - Listed; cULus - Classified; ETLus - SANITATION RECOGNIZED COMPONENT
Location RatingDamp
Energy StarNo
DLC ApprovedYes
DLC IDPLL0X0VFL6OP; PLY5P1LK7Z5W
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
FCC CompliantYes
NSF ApprovedETL Sanitation listed (conforms to NSF)
SDS SheetLED Lamp
Packaging
Each UPC045923184536
Each Quantity1
Each Length (in.)23.20
Each Width (in.)2.80
Each Height (in.)1.20
Each Weight (lb.)0.55
Each Cube (CuFt.)0.0451
Pack TypeBox
Inner Quantity0
Inner Length (in.)0.00
Inner Width (in.)0.00
Inner Height (in.)0.00
Inner Weight (lb.)0.00
Inner Cube (CuFt.)0.0000
Case UPC10045923184533
Case Quantity24
Case Length (in.)24.40
Case Width (in.)6.30
Case Height (in.)15.20
Case Weight (lb.)13.20
Case Cube (CuFt.)1.3522
×
×

Ballast Compatibility

Name Type View
T8 LED Chart R LED T8 U Bend View
T8 LED Emergency Chart R LED T8 U Bend View
×

Precautions

No precautions available at this time.

×
