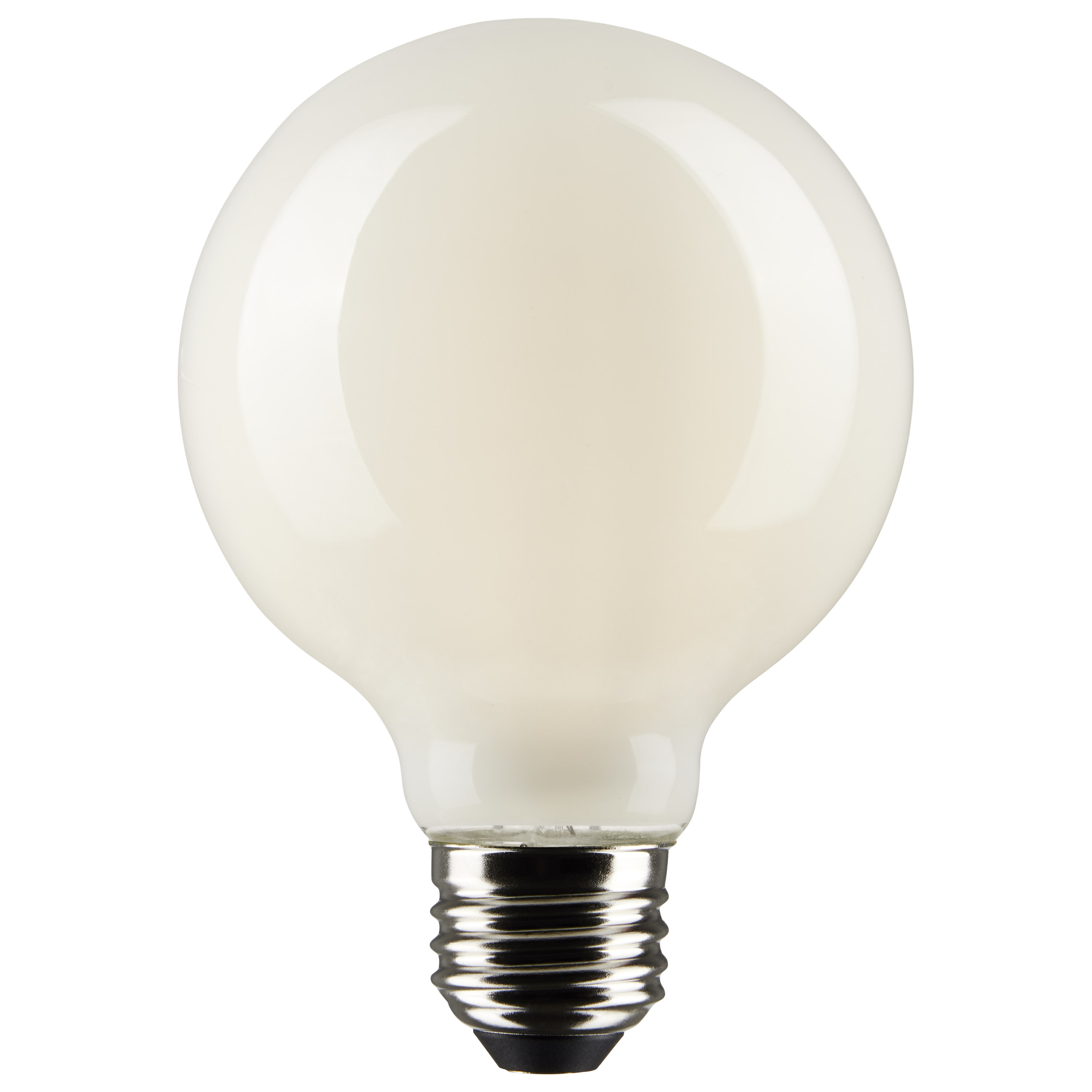

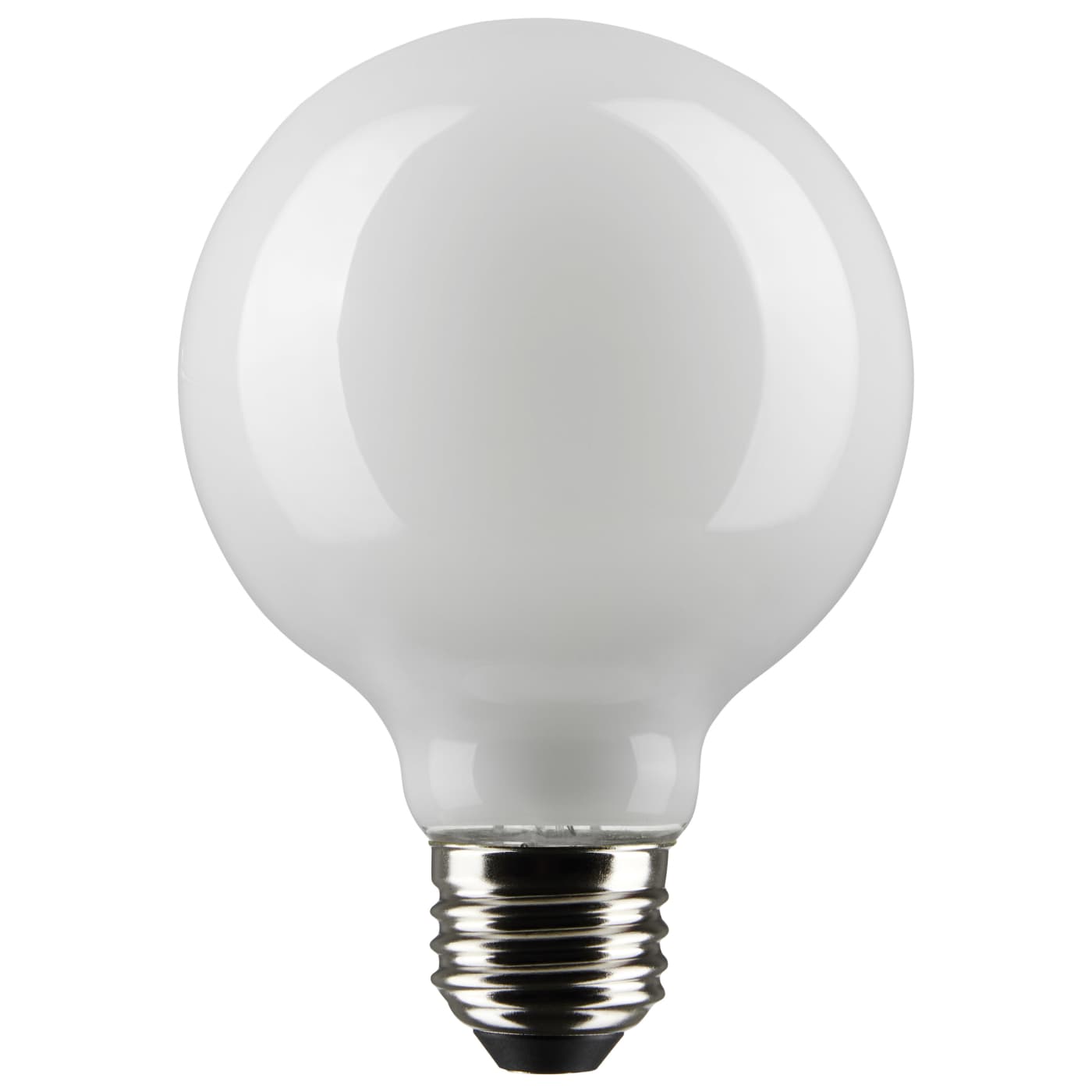

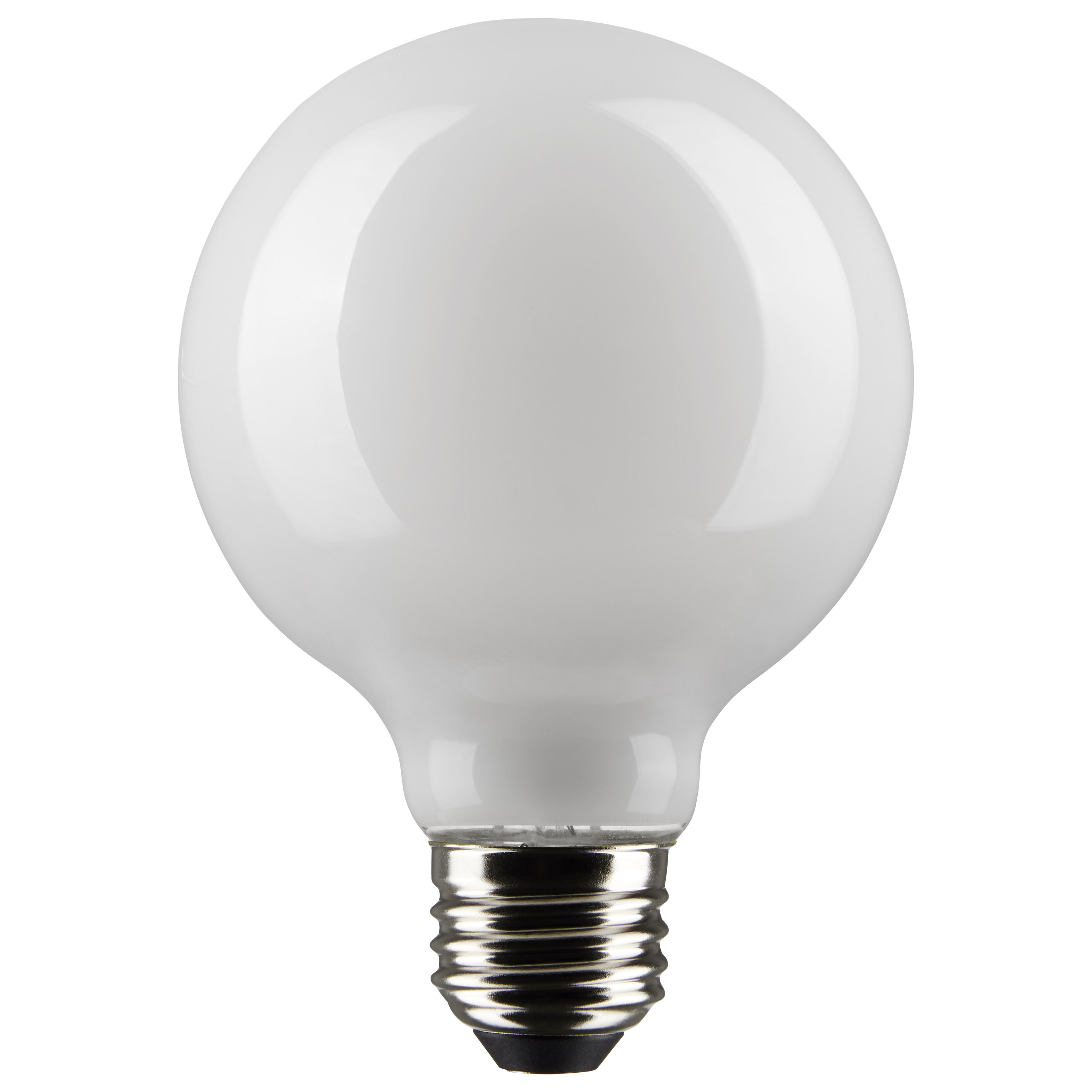

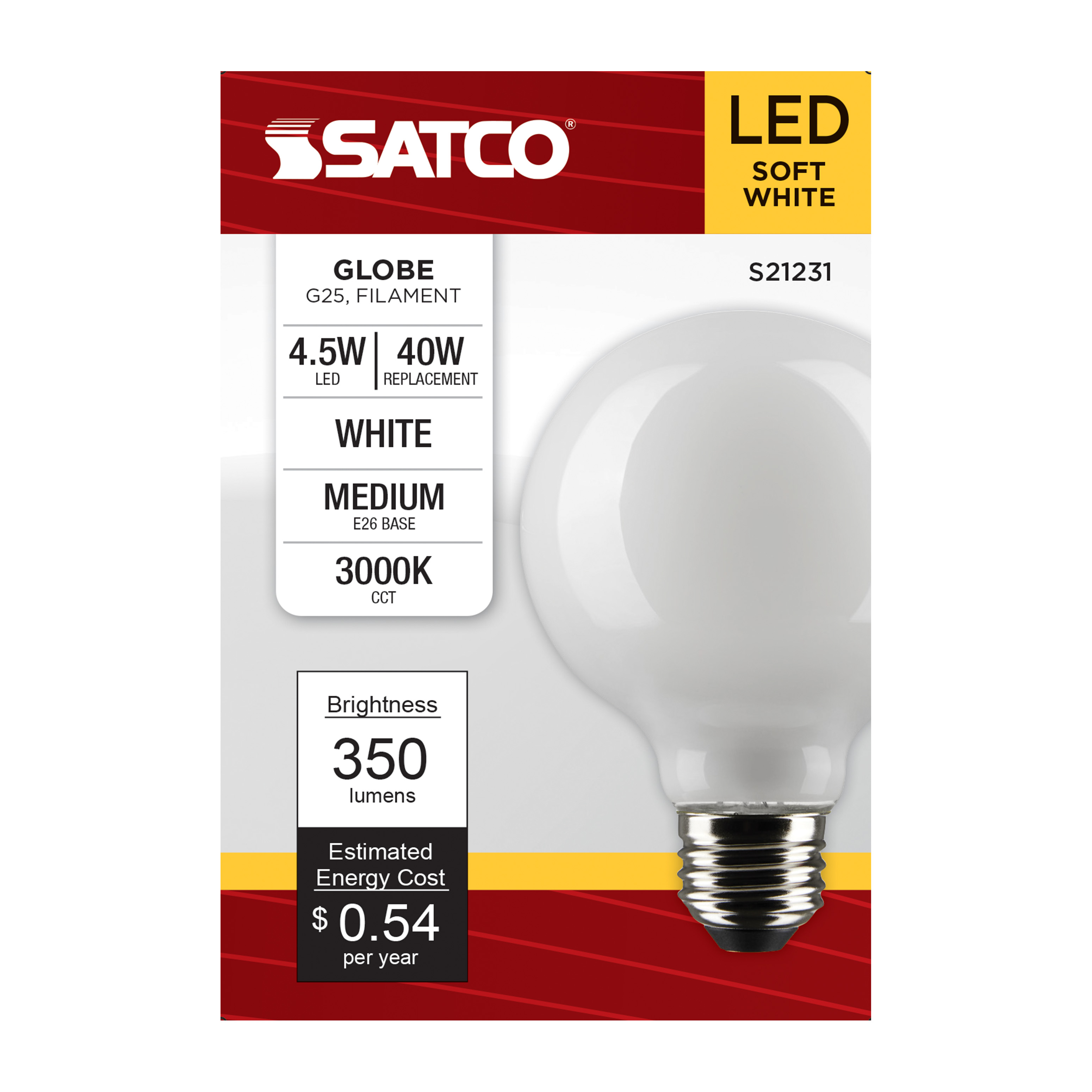

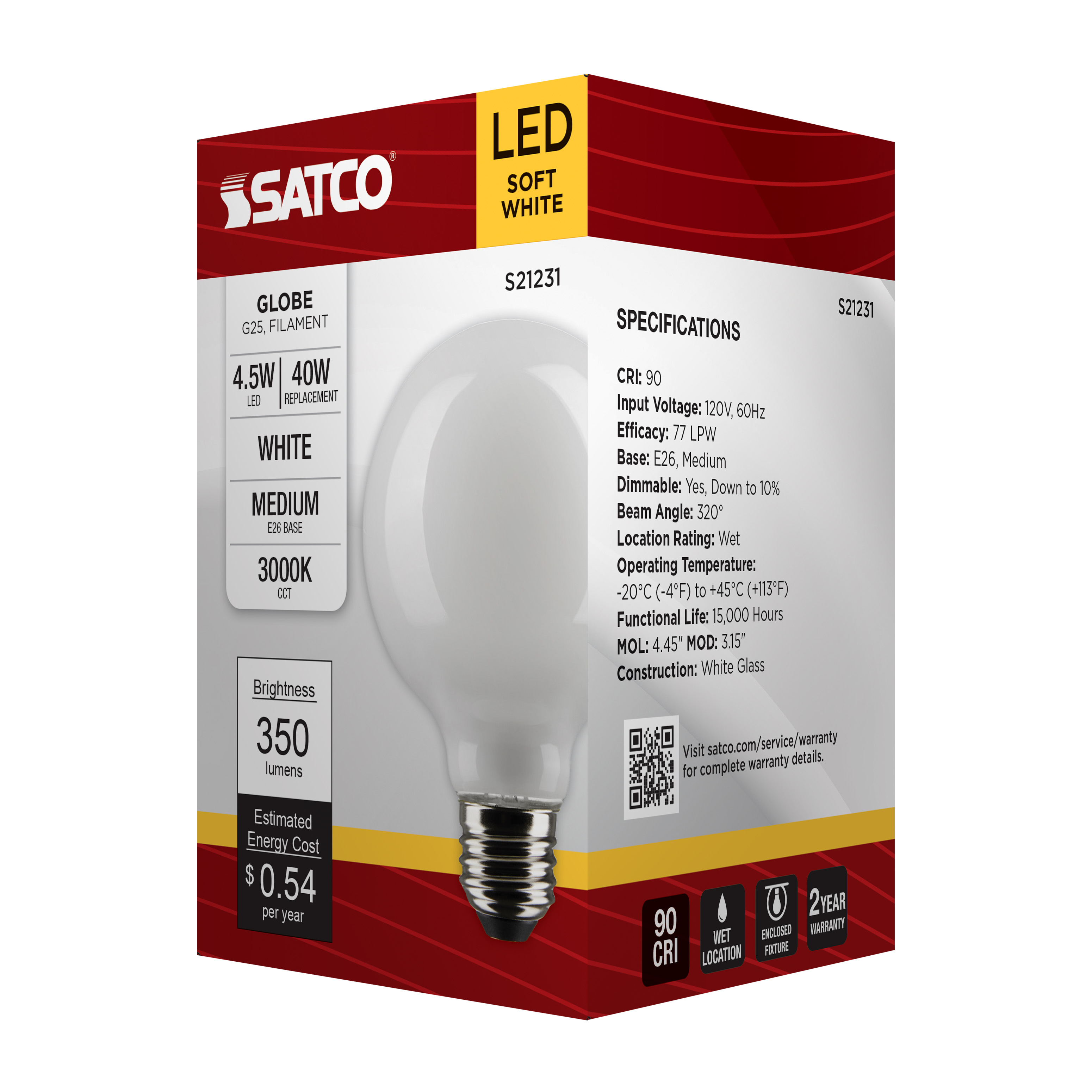

S21231

4.5G25/LED/WH/930/120V

  • 4.5 Watt G25 LED
  • White
  • Medium base
  • 90 CRI
  • 3000K
  • 120 Volt
title_20^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21231 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S21231
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt G25 LED; White; Medium base; 90 CRI; 3000K; 120 Volt

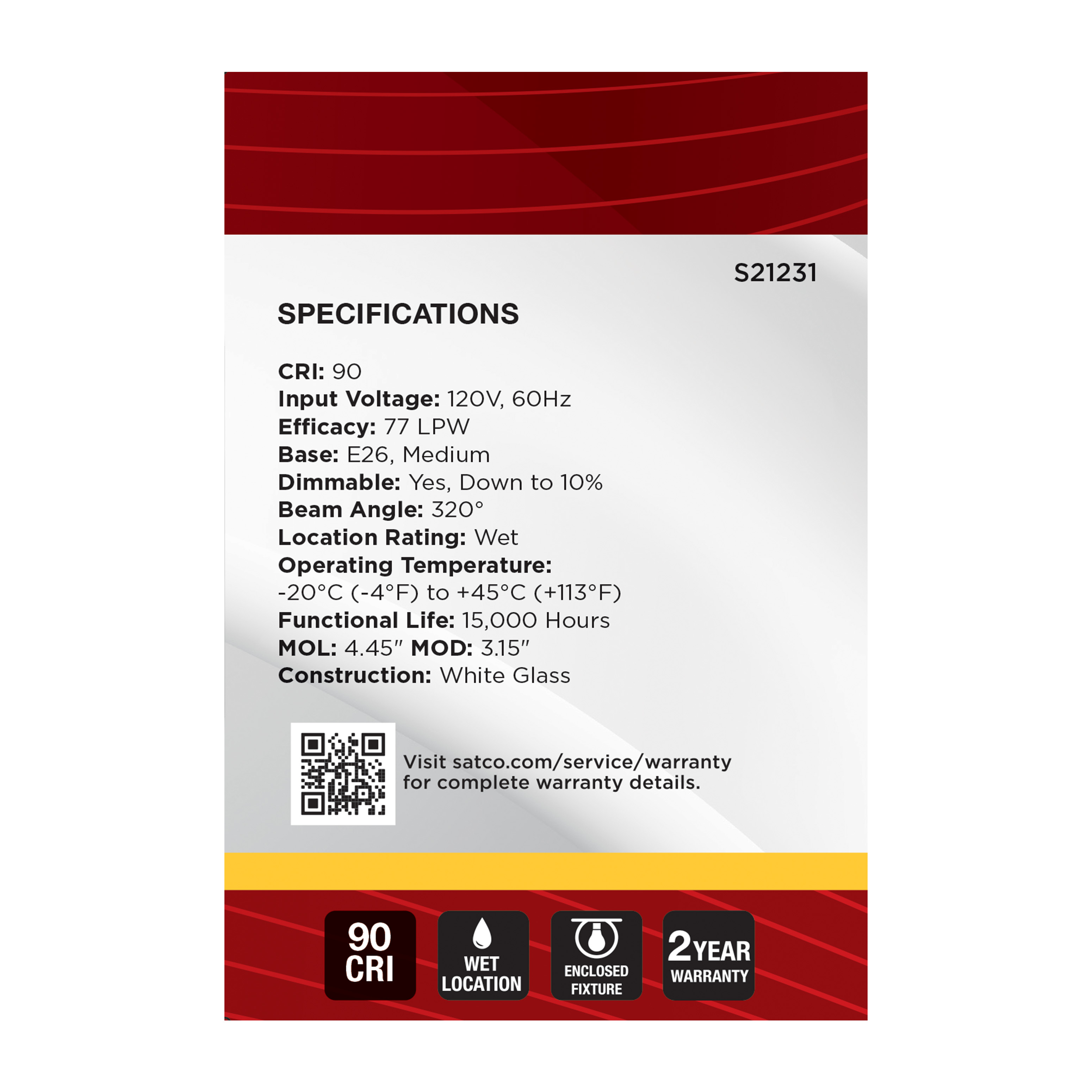

Products Specs
General
CompanySATCO
Dimmable Text120V only
Lamp FilamentLED Filament
MaterialGlass / Nickel Plated Aluminum
Fixture TypeGlobe
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.048A
Has CameraFalse
IOT EnabledFalse
Operating PositionUniversal
Power Factor0.77
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)320
Color TempSoft White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

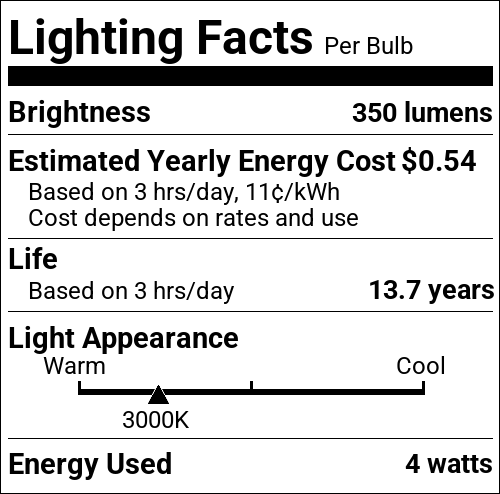

Lumens350L
Volts120v
Watts4.5W
Physical

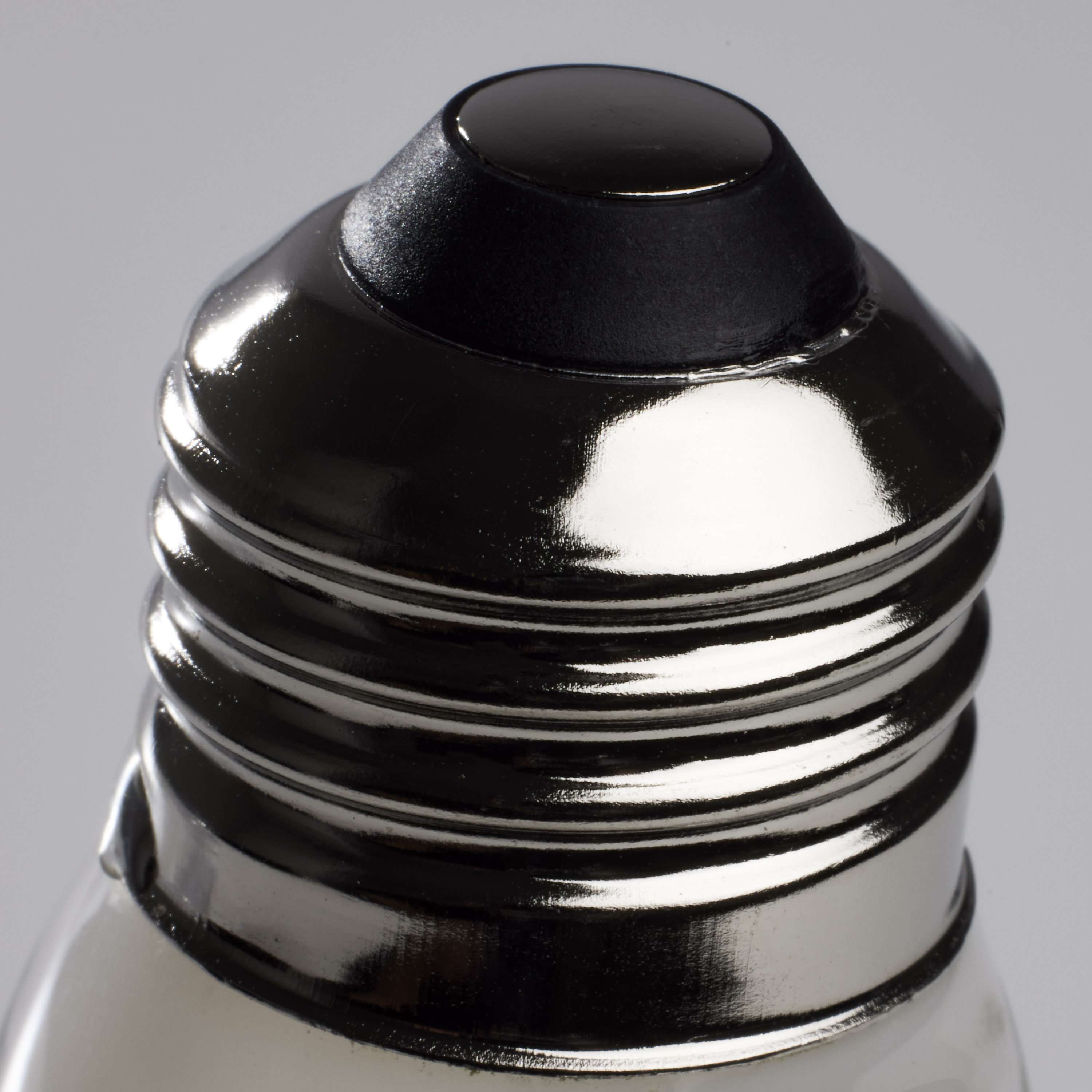

Lamp BaseMedium
FinishWHITE
Housing ColorNone
ANSI BaseE26
Lamp TypeG25

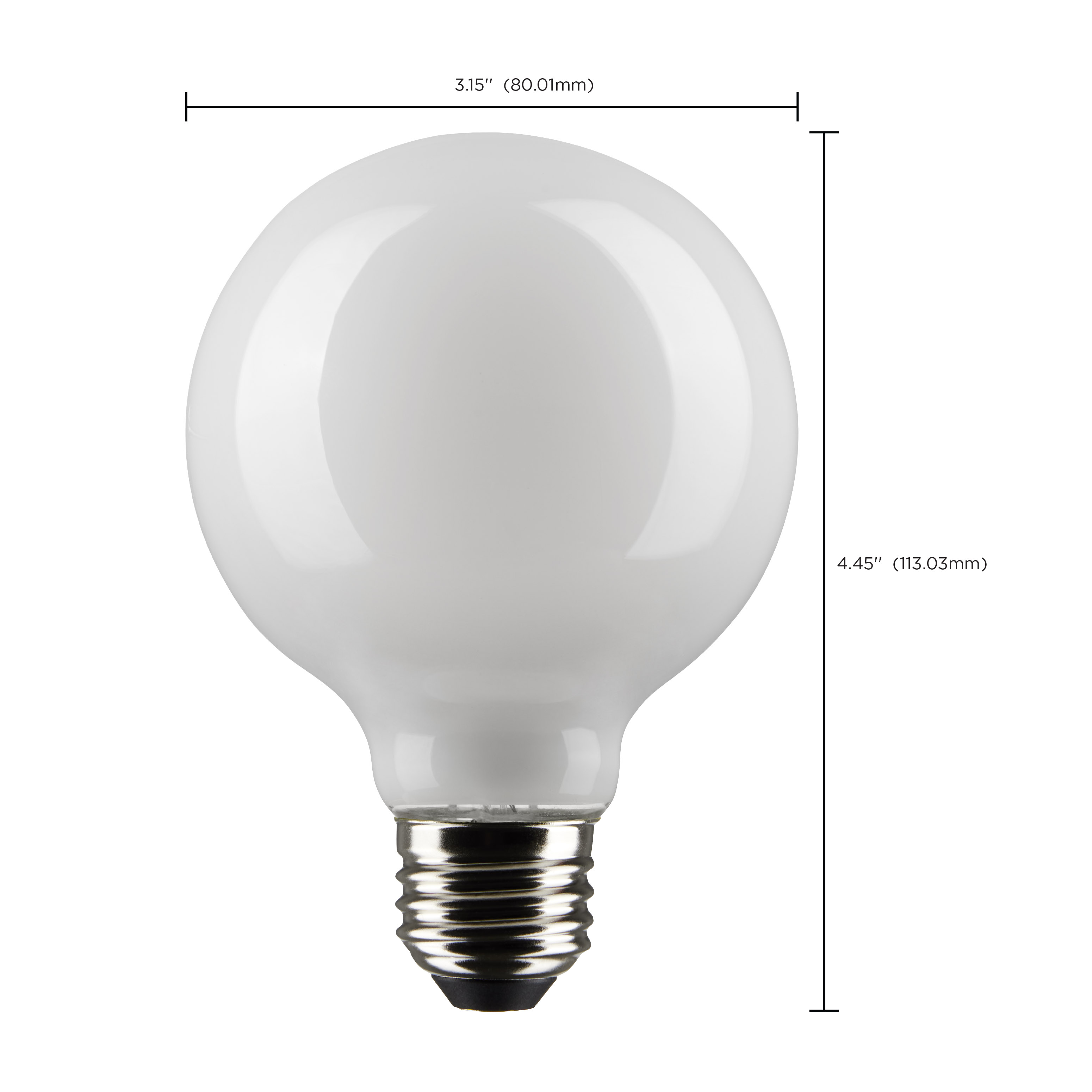

MOD Lamps3.15
MOL4.45
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
UL ApplicationFilament LED Lamp
DLC ApprovedFalse
Title 20Yes
Packaging
UPC045923205460
Case Cube1.2009
Case Height6.1
Case Length22.44
Case Quantity24
Case UPC10045923205467
Case Weight6.53
Case Width15.16
EA Cube0.0374
EA Height5.28
EA Length3.5
EA Quantity1
EA Weight0.17
EA Width3.5
Inner Cube0.2597
Inner Height5.67
Inner Length10.87
Inner Quantity6
Inner UPC20045923205464
Inner Weight1.3
Inner Width7.28

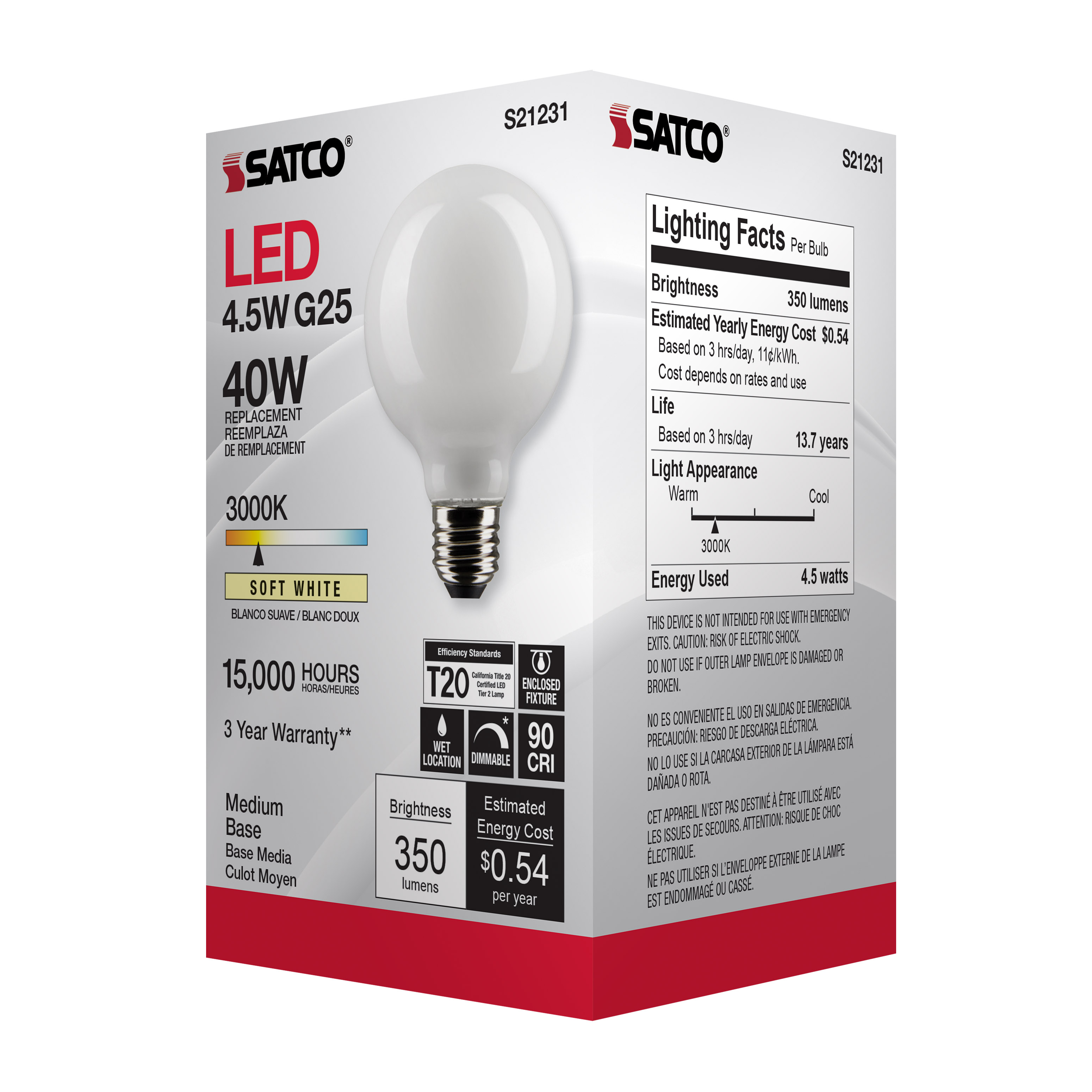

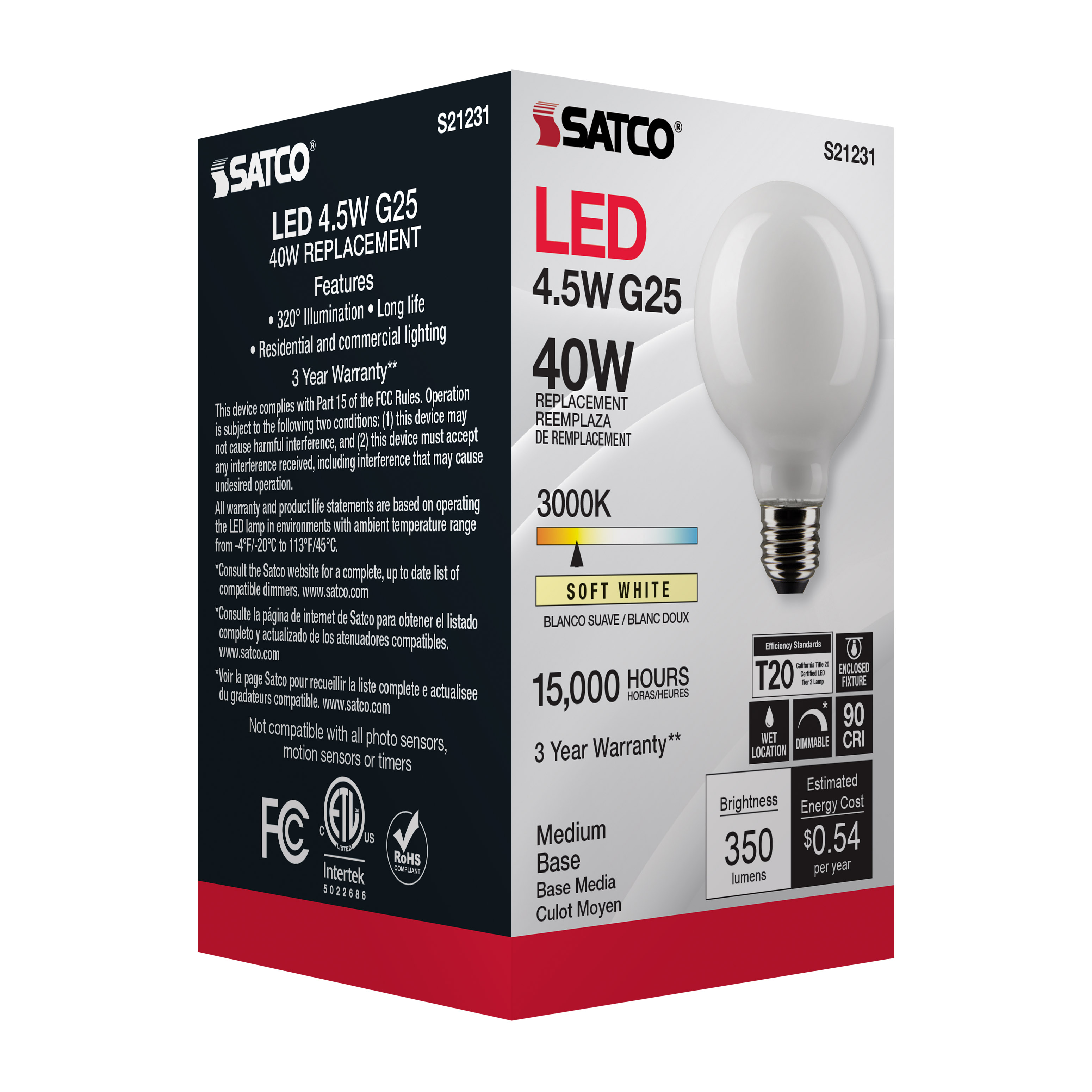

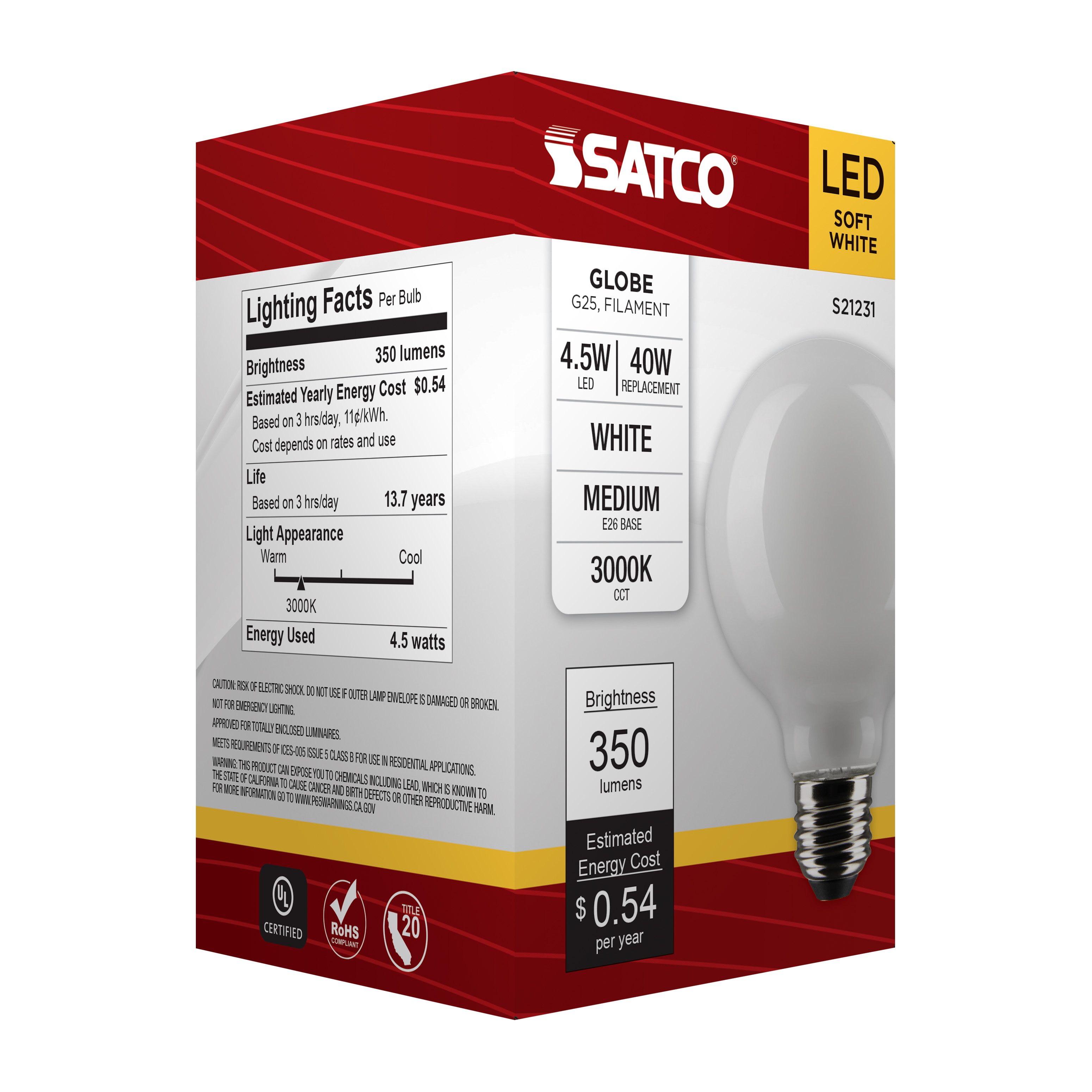

Pack TypeBox
Web Length4.45
Web Width3.15
