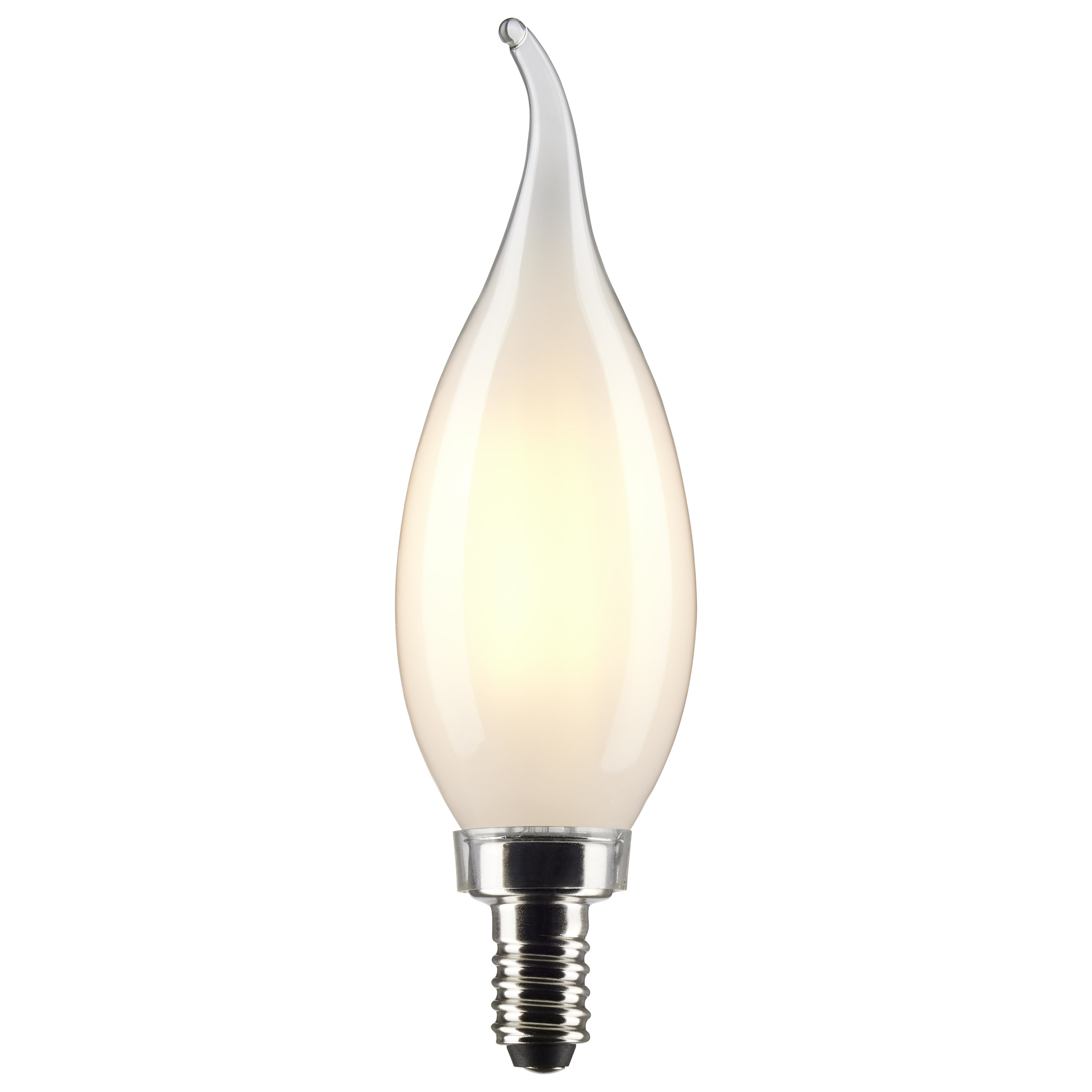

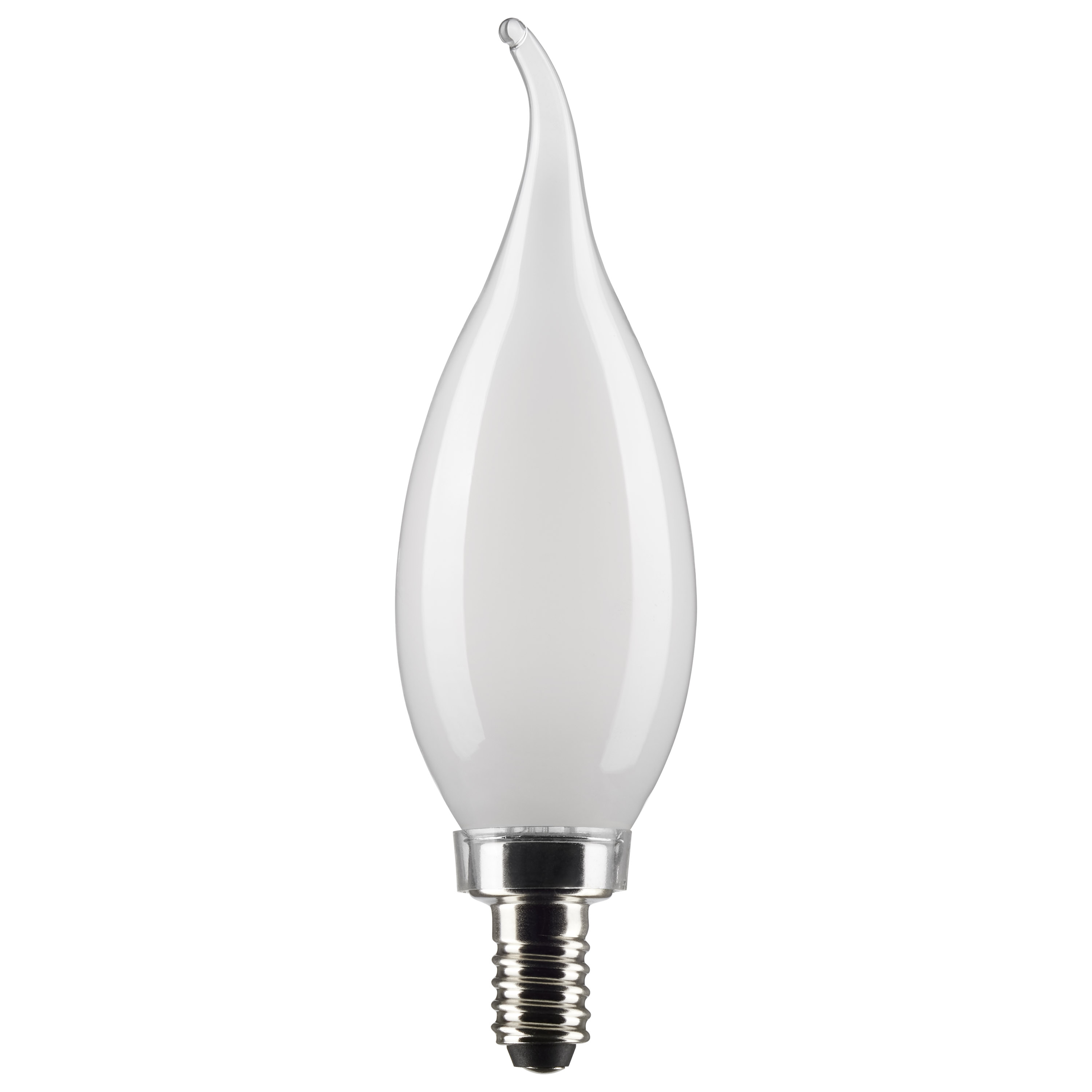

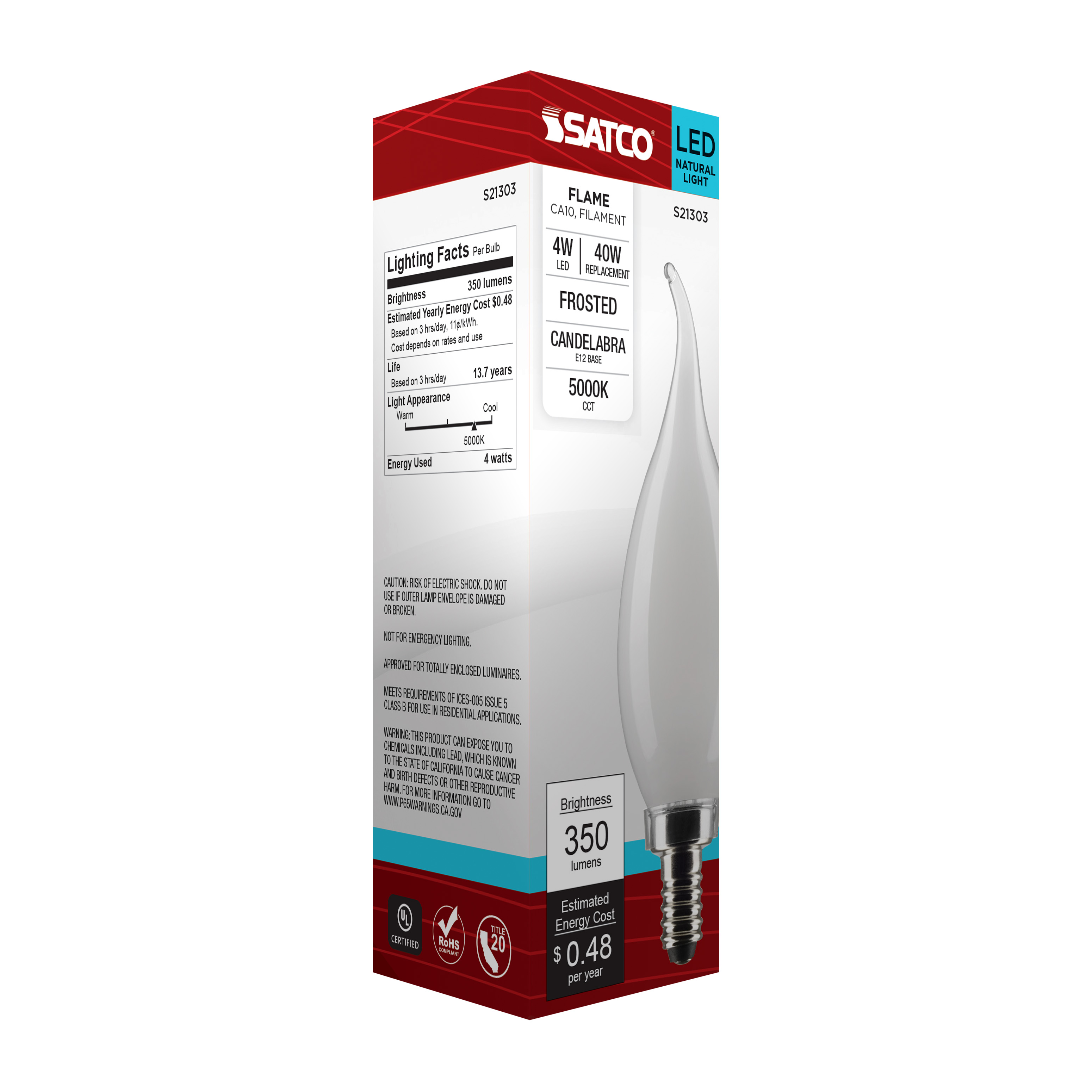

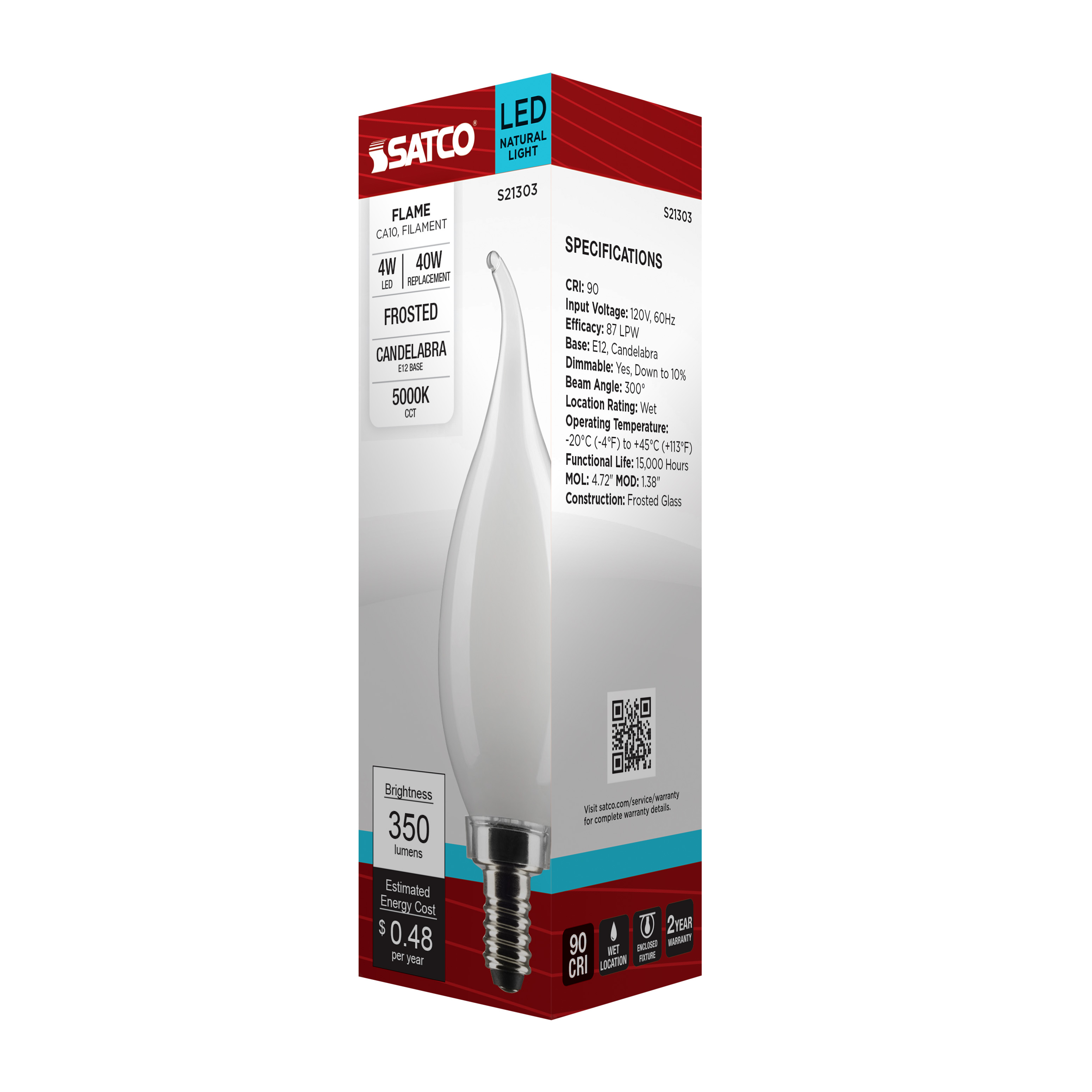

S21303

4CA10/LED/950/FR/120V/E12

  • 4 Watt CA10 LED Filament
  • Frost
  • Candelabra base
  • 90 CRI
  • 5000K
  • 120 Volt
title_20^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21303 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Tools
Lighting Layout Analysis For S21303
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4 Watt CA10 LED Filament; Frost; Candelabra base; 90 CRI; 5000K; 120 Volt
Products Specs
General
CompanySATCO
Dimmable Text120V only
Lamp FilamentLED Filament
MaterialGlass / Nickel Plated Aluminum
Fixture TypeCandle
StatusActive
StyleTraditional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.043A
Has CameraFalse
IOT EnabledFalse
Operating PositionUniversal
Power Factor0.75
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)5000K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)300
Color TempNatural Light
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-20C (-4F) to +45C (+113F)

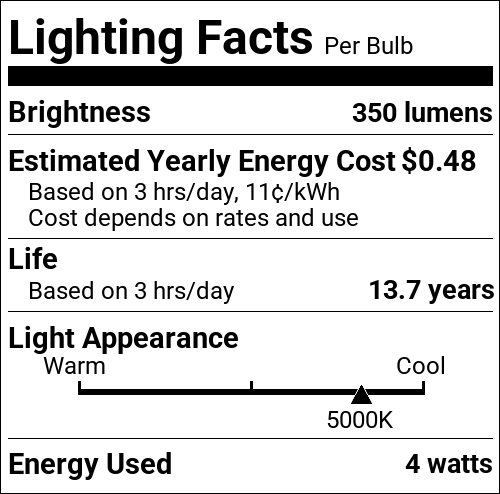

Lumens350L
Volts120v
Watts4W
Physical

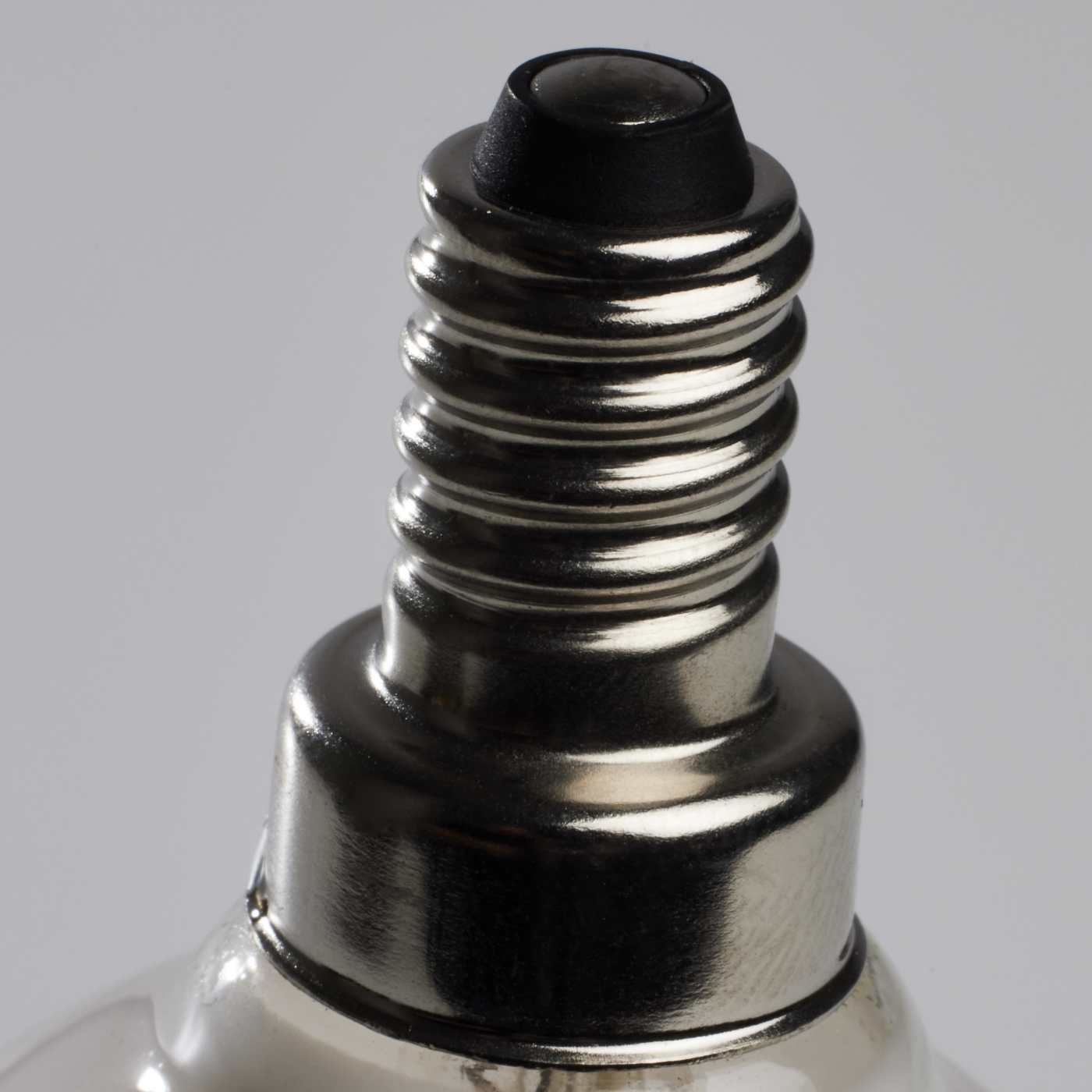

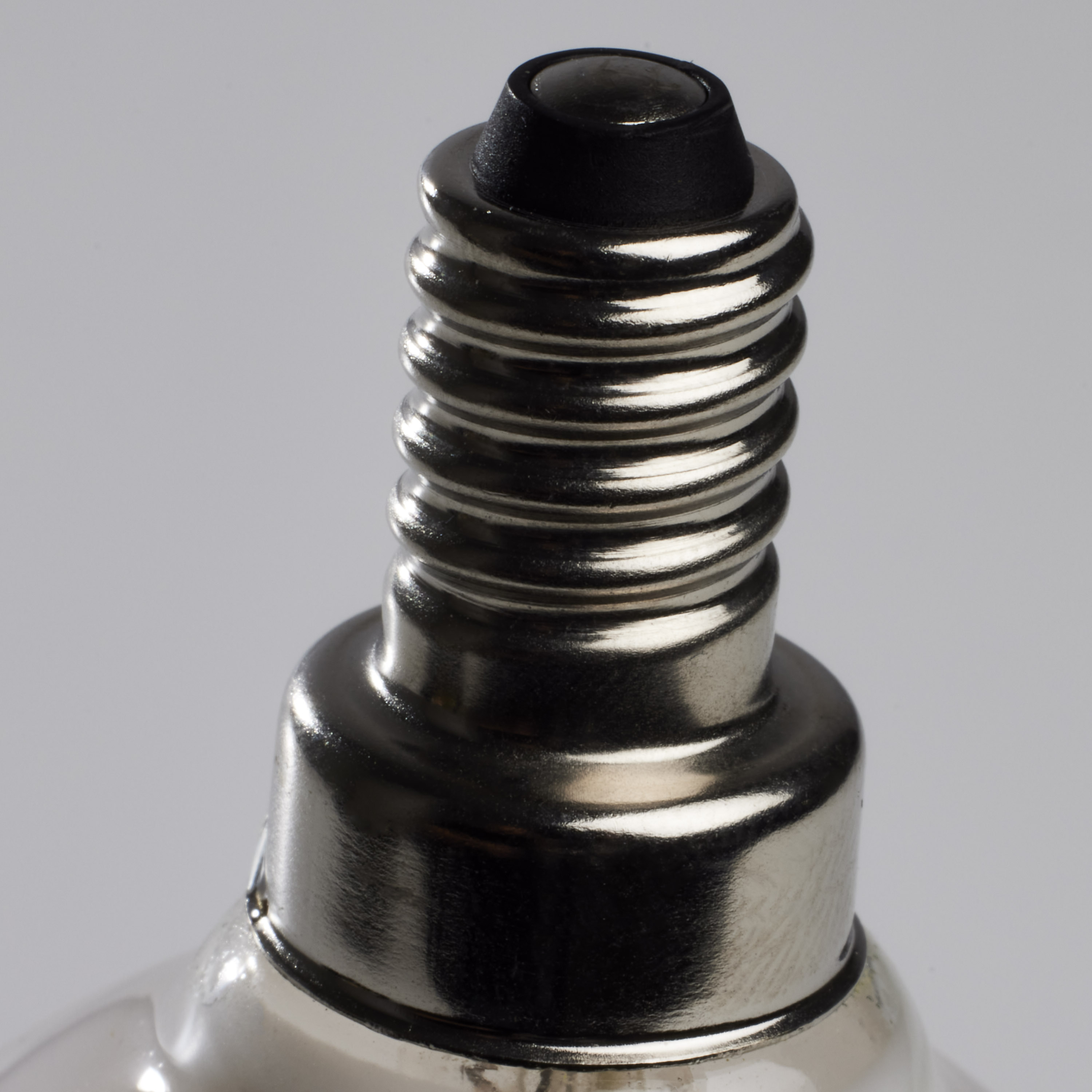

Lamp BaseCandelabra
FinishFrost
Housing ColorNone
ANSI BaseE12
Lamp TypeCA10

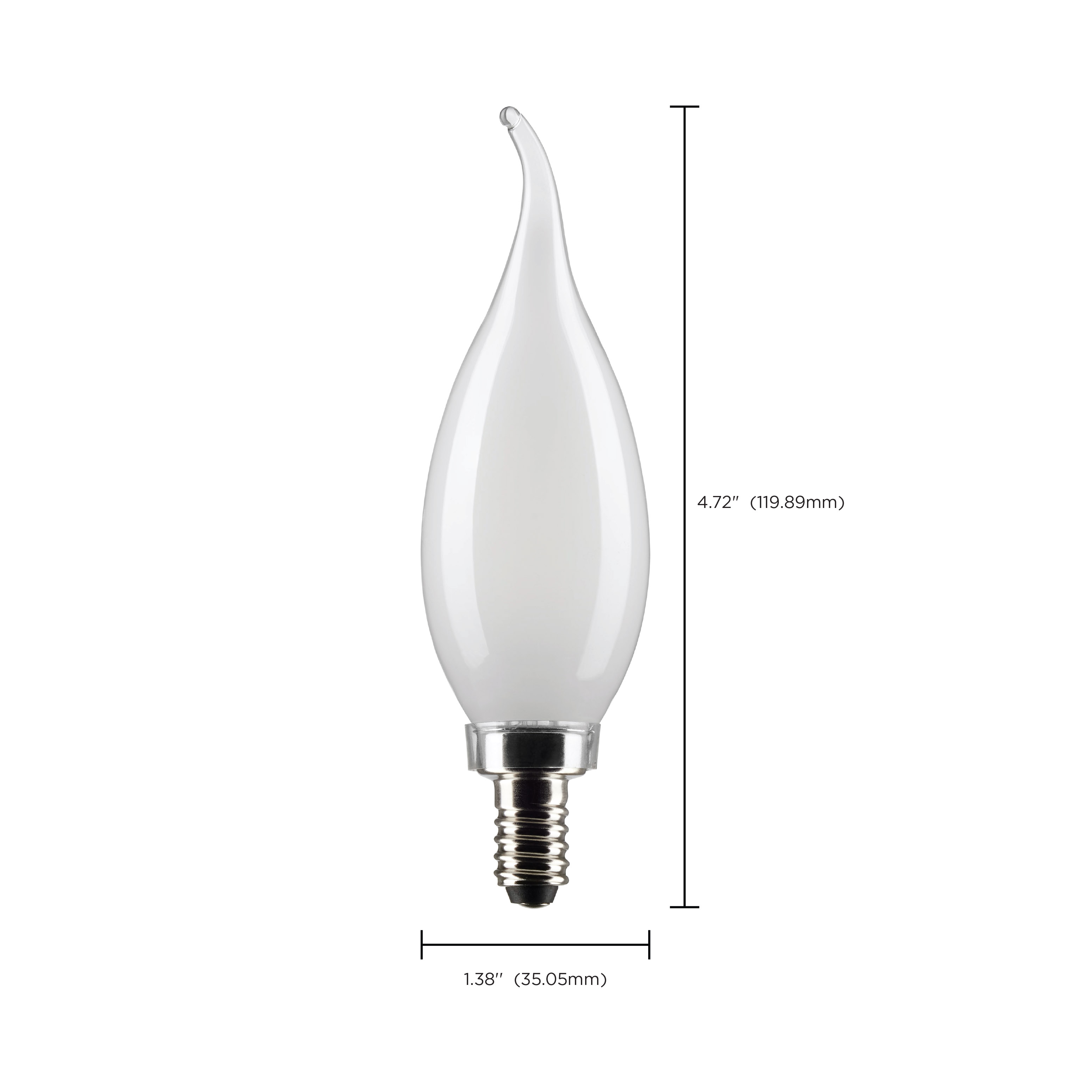

MOD Lamps1.38
MOL4.72
Additional Info
Warranty2-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsT20 Listed
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextLawful for sale
UL ApplicationFilament LED Lamp
DLC ApprovedFalse
Title 20Yes
Packaging
UPC045923206184
Case Cube0.2615
Case Height5.71
Case Length10.87
Case Quantity24
Case UPC10045923206181
Case Weight2.47
Case Width7.28
EA Cube0.0067
EA Height4.88
EA Length1.54
EA Quantity1
EA Weight0.07
EA Width1.54
Inner Cube0.0508
Inner Height5.28
Inner Length4.96
Inner Quantity6
Inner UPC20045923206188
Inner Weight0.49
Inner Width3.35
Pack TypeBox
Web Length4.72
Web Width1.38
