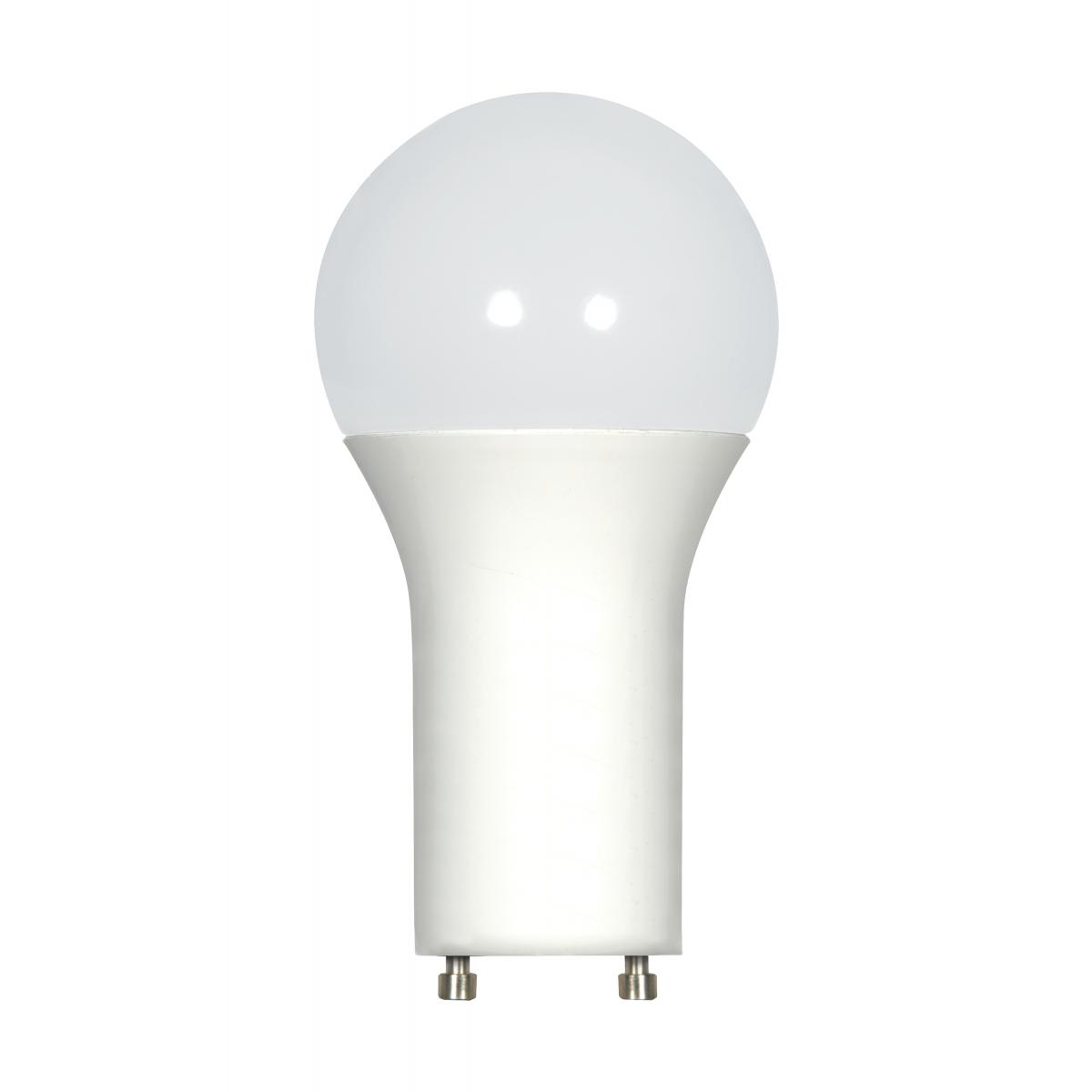

SKU S21328 - Image 1
SKU S21328 - Image 2

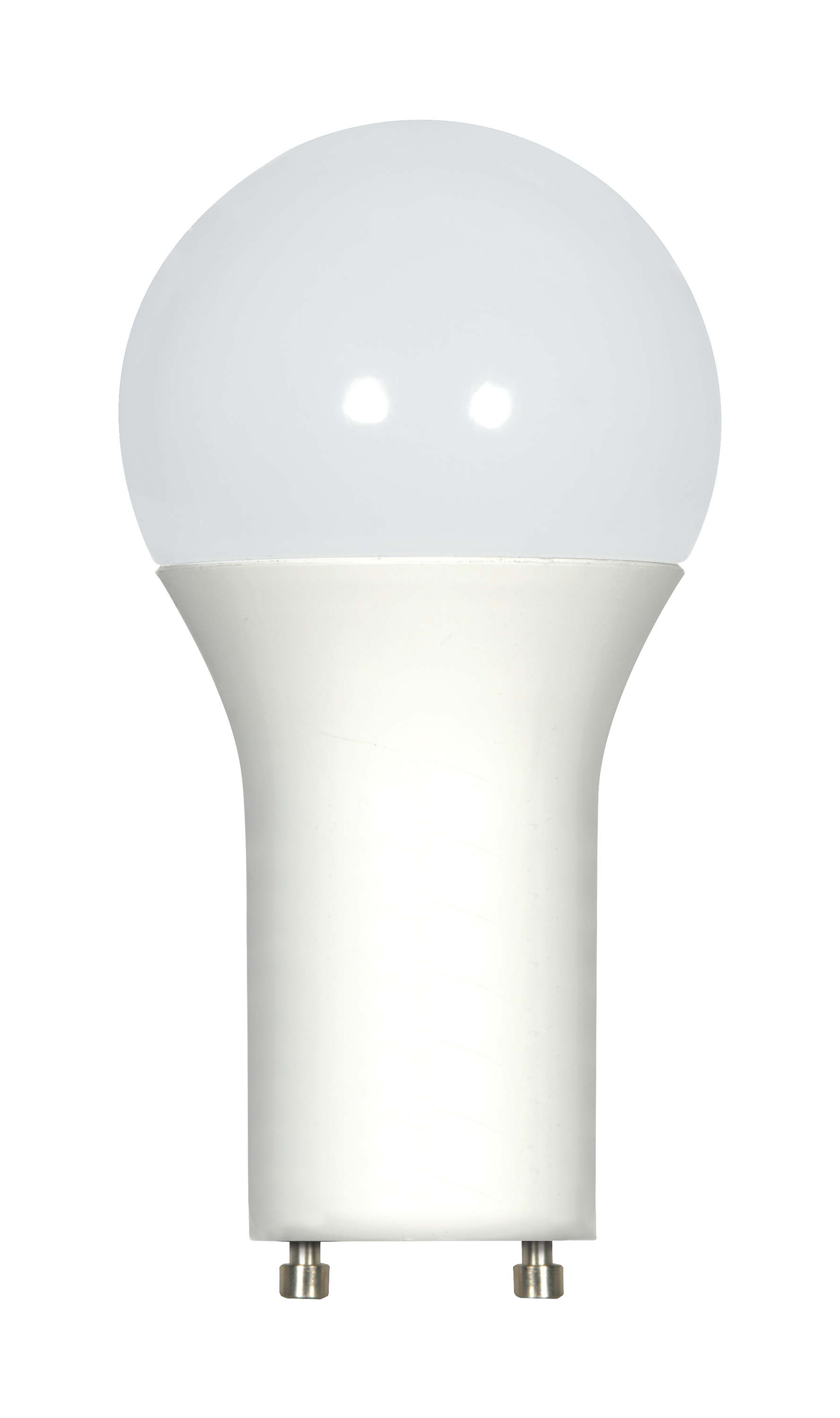

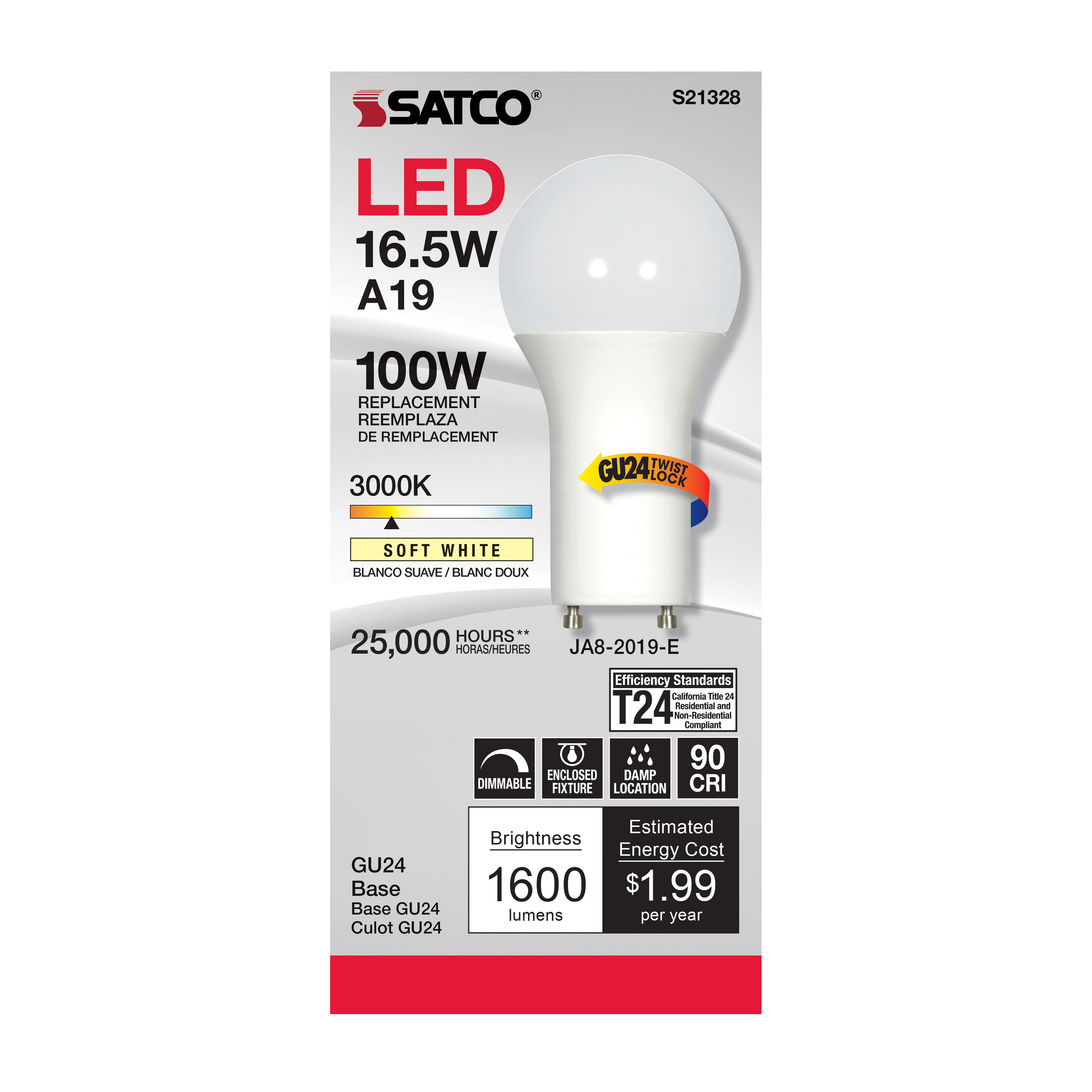

S21328

16.5A19LED/930/GU24/120V

  • 16.5 Watt
  • A19 LED
  • 90CRI
  • 3000K
  • GU24 base
  • 220 deg. Beam Angle
  • 120 Volt
  • 1600 Lumens
  • CEC
location_rating^damp^1
title_20^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^25k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21328 SpecificationsSN1730 LED Lamps & Downlights Retrofits Catalog 3 24 25SN1730 LED Lamps & Downlights Retrofits Catalog Low Res 5-12-25
Description
Description
16.5 Watt; A19 LED; 90CRI; 3000K; GU24 base; 220 deg. Beam Angle; 120 Volt; 1600 Lumens; CEC
Products Specs
General
CompanySATCO
Lamp FilamentLED
MaterialPlastic
Fixture TypeType A
StatusActive
StyleTransitional
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyWhite
Amps0.138A
Has CameraFalse
IOT EnabledFalse
Lens FinishFrost
Lens MaterialPlastic (PS)
Operating PositionUniversal
Power Factor0.95
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated25000
Beam Angle (degree)220
Color TempWarm White
CRI90+
Dimming TypeForward Phase or Reverse Phase or Phase Selectable
Operating Frequency60Hz
Operating Temp-25C (-13F) to +45C (+113F)
Lumens1600L
Volts120v
Watts16.5W
Physical
Lamp BaseBi Pin GU24
FinishFrost
Housing ColorWhite
ANSI BaseGU24
Lamp TypeA19
MOD Lamps2.36
MOL4.53
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed; T20 Listed
CA StatusLawful for sale in California
CO StatusLawful for sale
FCC CompliantTrue
HI StatusLawful for sale
Location RatingDamp
NV StatusLawful for sale
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
CA Compliance TextCalifornia T24 Listed
VT StatusLawful for sale
WA StatusLawful for sale
DLC ApprovedFalse
Title 20Yes
T24 CompliantTrue
Packaging
UPC045923213281
Case Cube0.6768
Case Height12.32
Case Length11.22
Case Quantity24
Case UPC10045923213288
Case Weight6.5
Case Width8.46
EA Cube0.0183
EA Height5.31
EA Length2.44
EA Quantity1
EA Weight0.23
EA Width2.44
Inner Cube0.1321
Inner Height5.63
Inner Length7.8
Inner Quantity6
Inner UPC20045923213285
Inner Weight1.5
Inner Width5.2
Pack TypeBox
Web Length4.53
Web Width2.36
