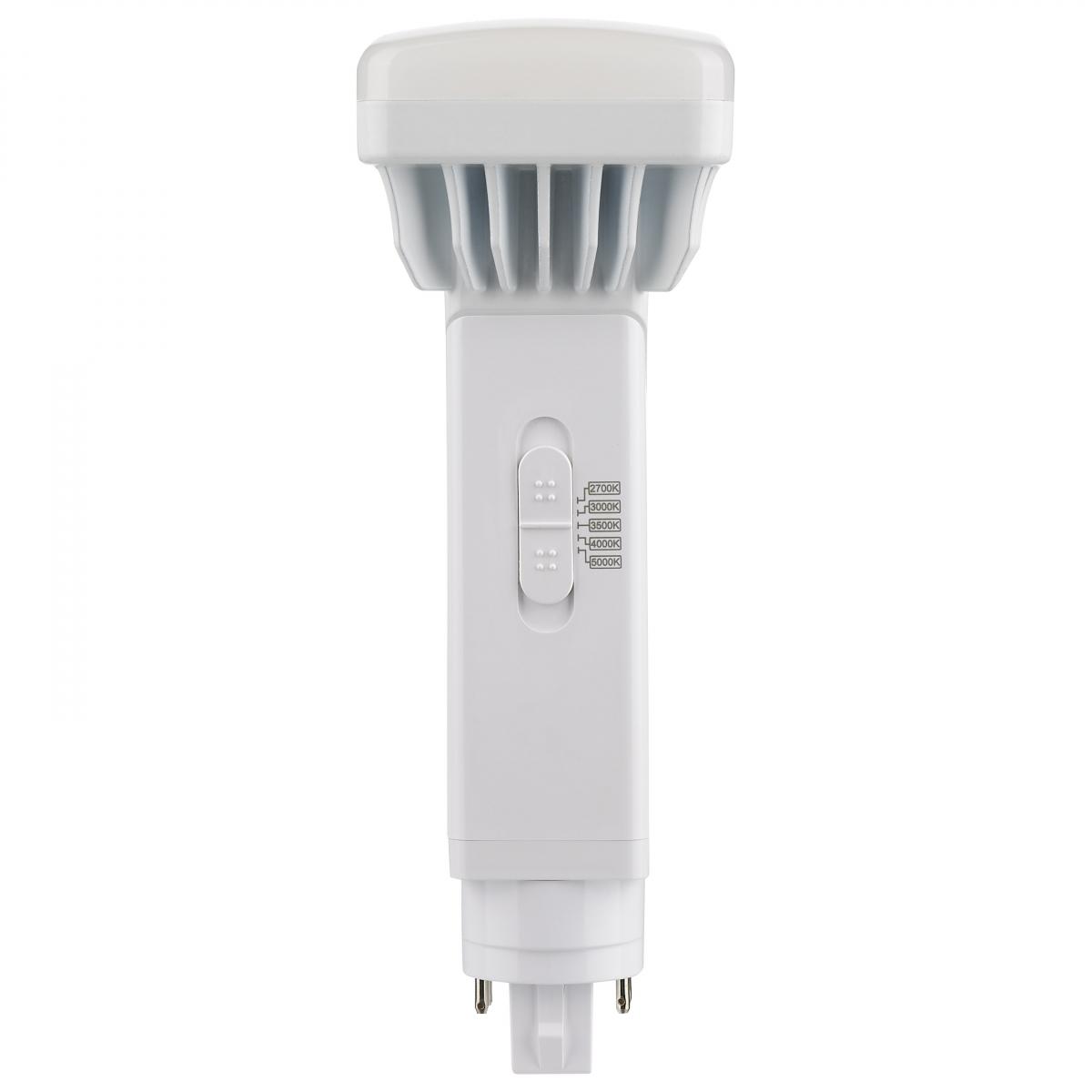

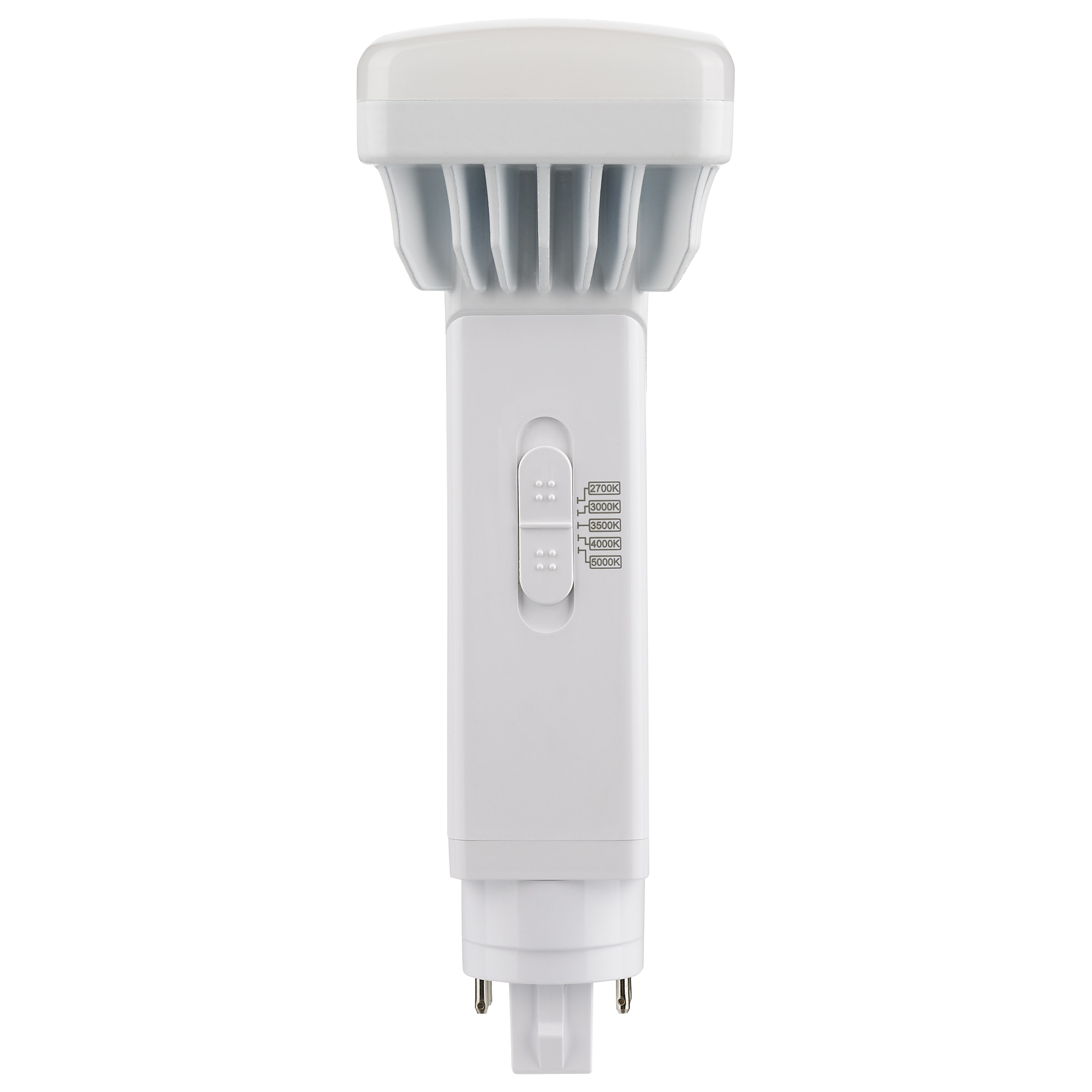

S21410 9PL/LED/HV/5CCT/A+B/G24Q

S21410

9PL/LED/HV/5CCT/A+B/G24Q

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts


SATCO|NUVO's Dual Position PL Lamps are the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, these lamps feature a 90 degree rotatable head that allows light to be directed as needed in both vertical and horizontal applications. They also extend lengthwise and offer a rotatable base to accommodate centering illumination in horizontal installations. To make these the ultimate pin-based solution, these lamps are available in 2-pin and 4-pin options and can be installed in ballast bypass and ballast compatible configurations. Five CCT selectable and dimmable with select ballasts, SATCO|NUVO's Dual Position Lamps are the ideal choice for any environment.

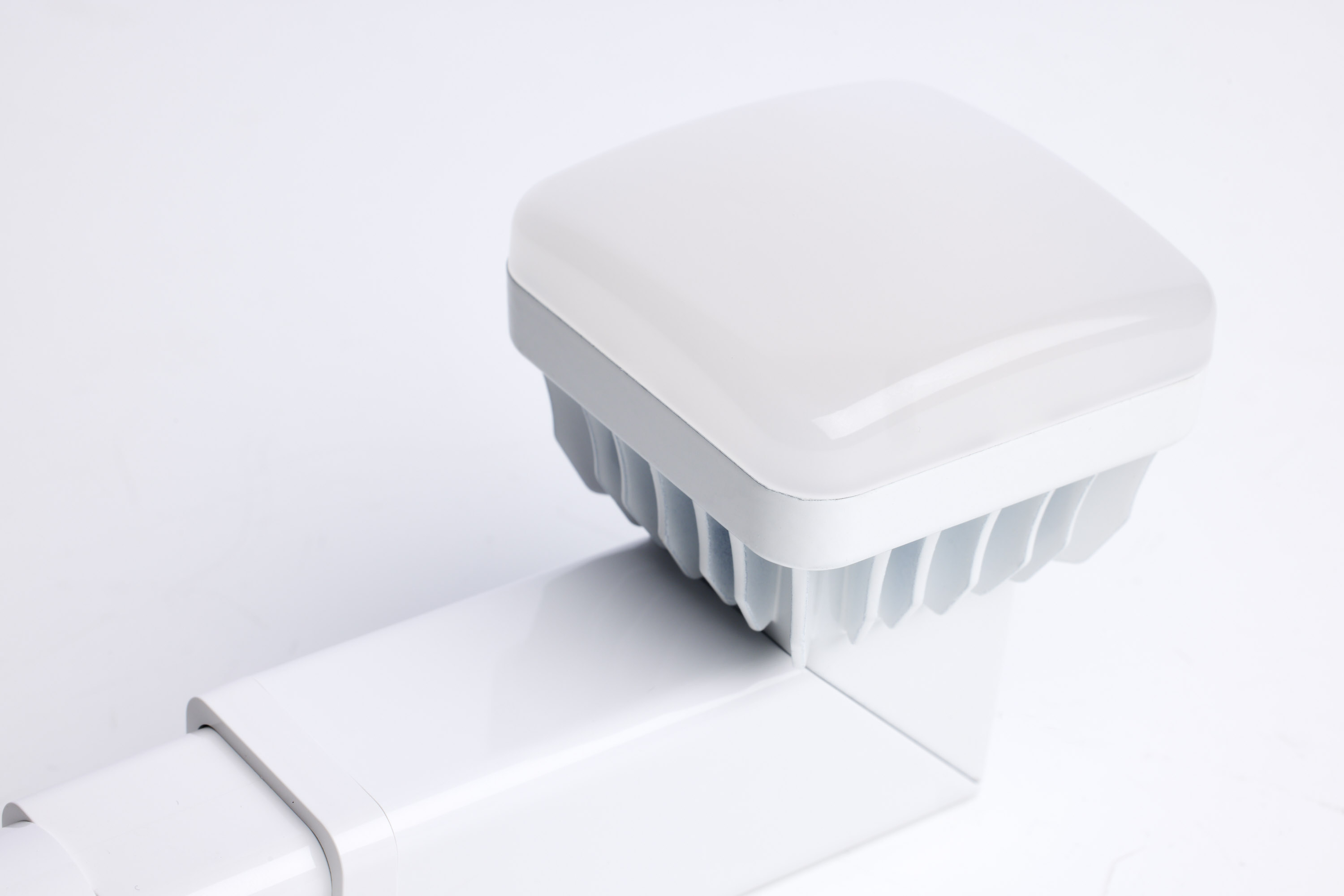

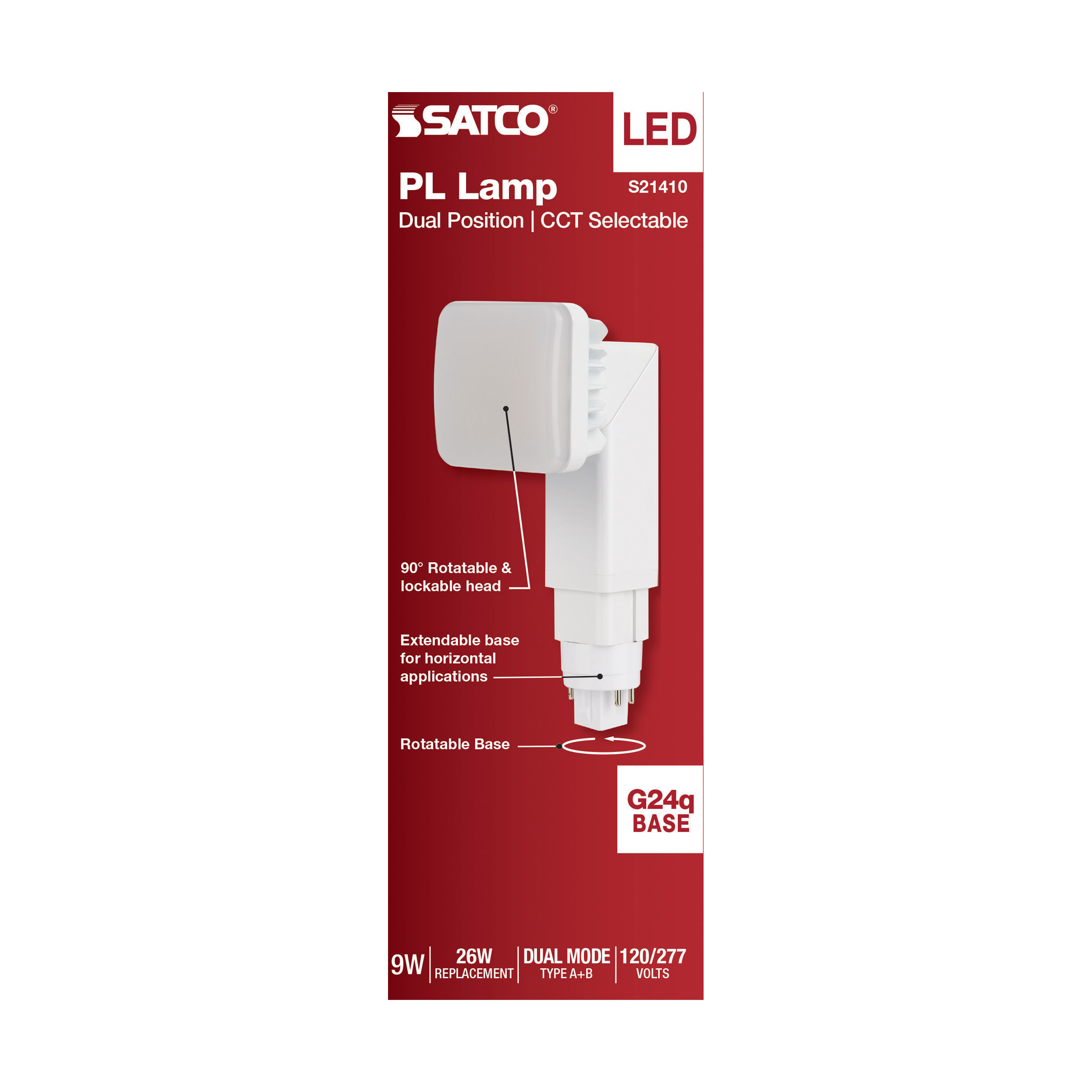

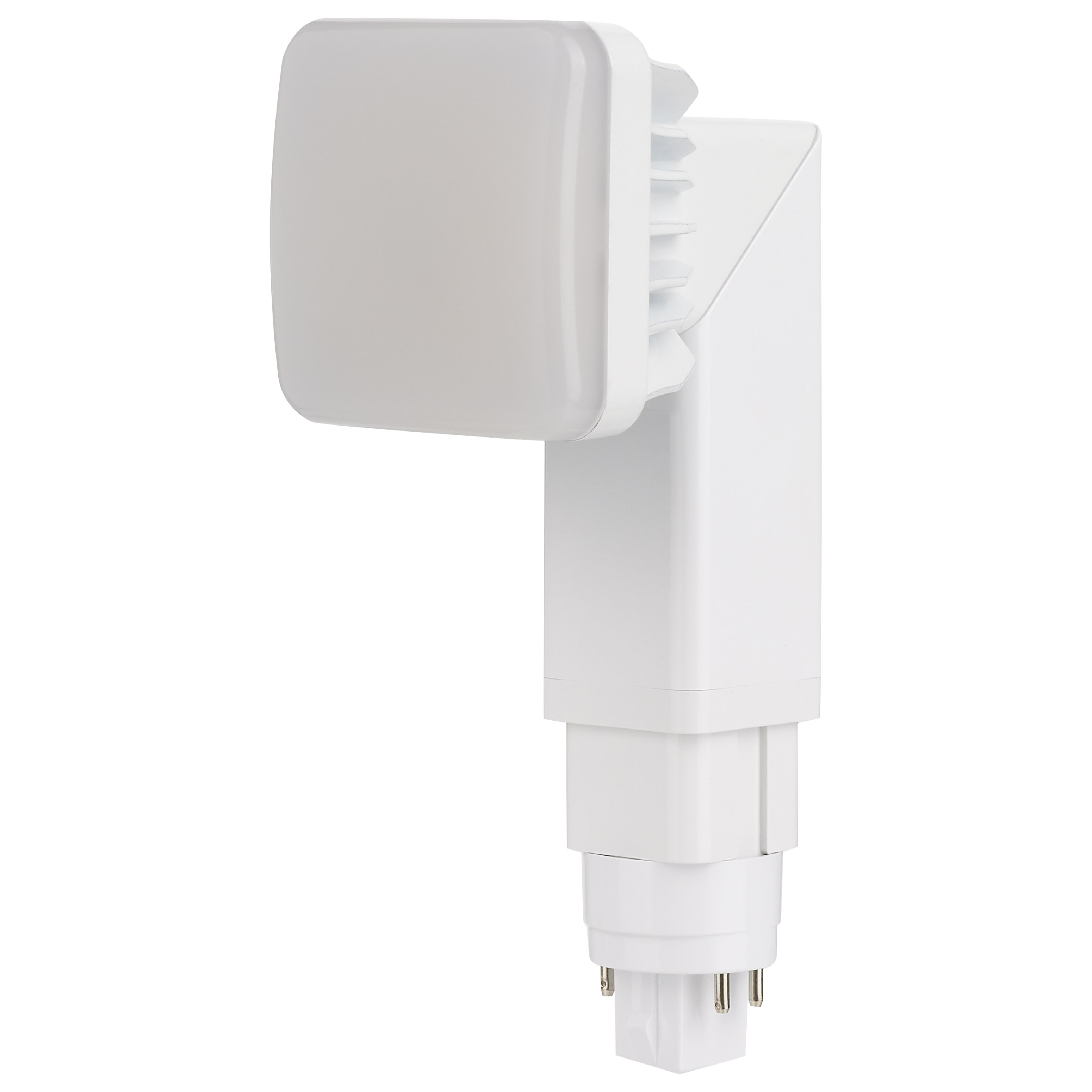

  • 90 Degree Rotatable and lockable head and end-cap
  • Extendable base for horizontal applications
  • 26W and 42W triple CFL bulb replacements
  • Dual mode Type A/B

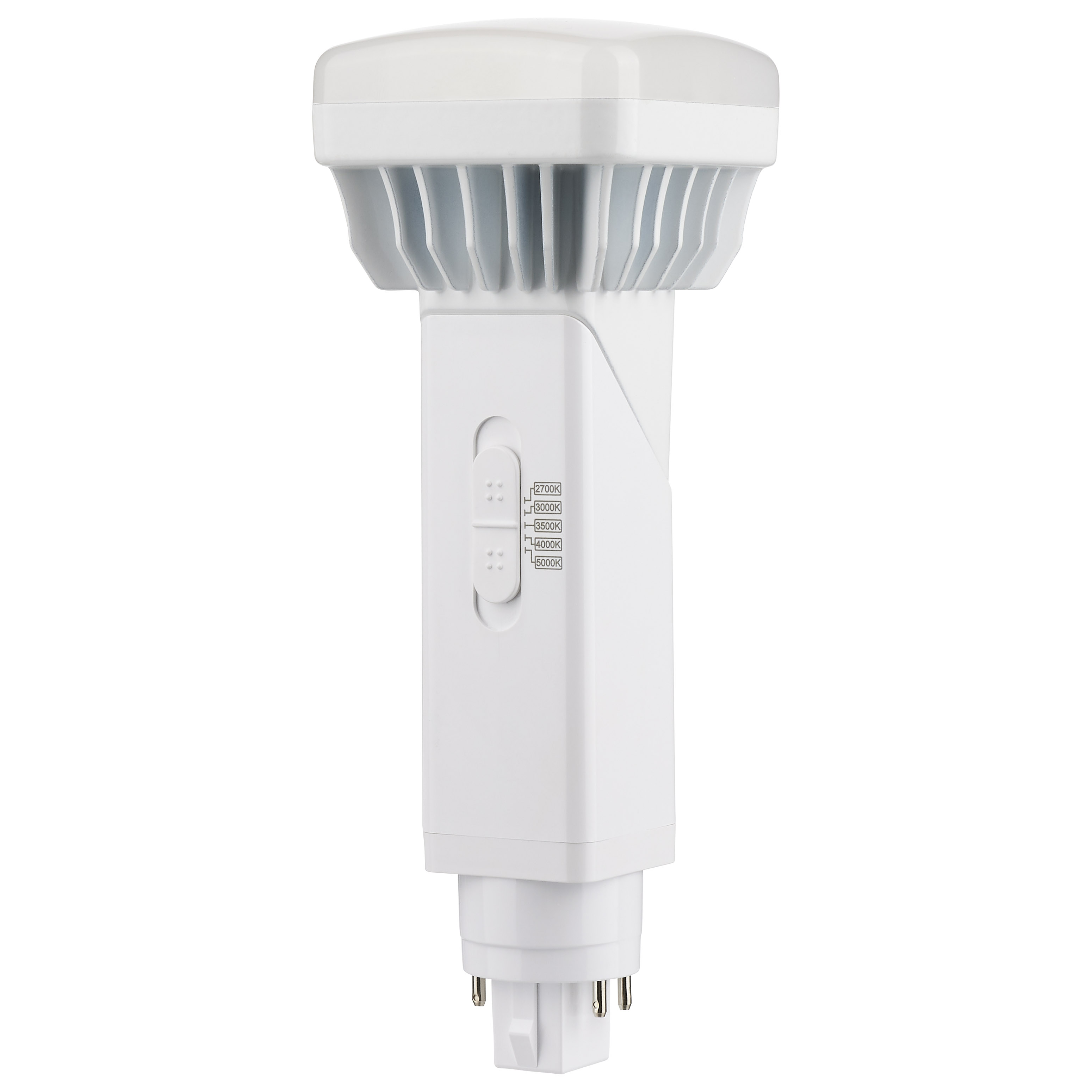

  • 5 CCT Selectable
  • Dimmable
  • Wet Location Rated

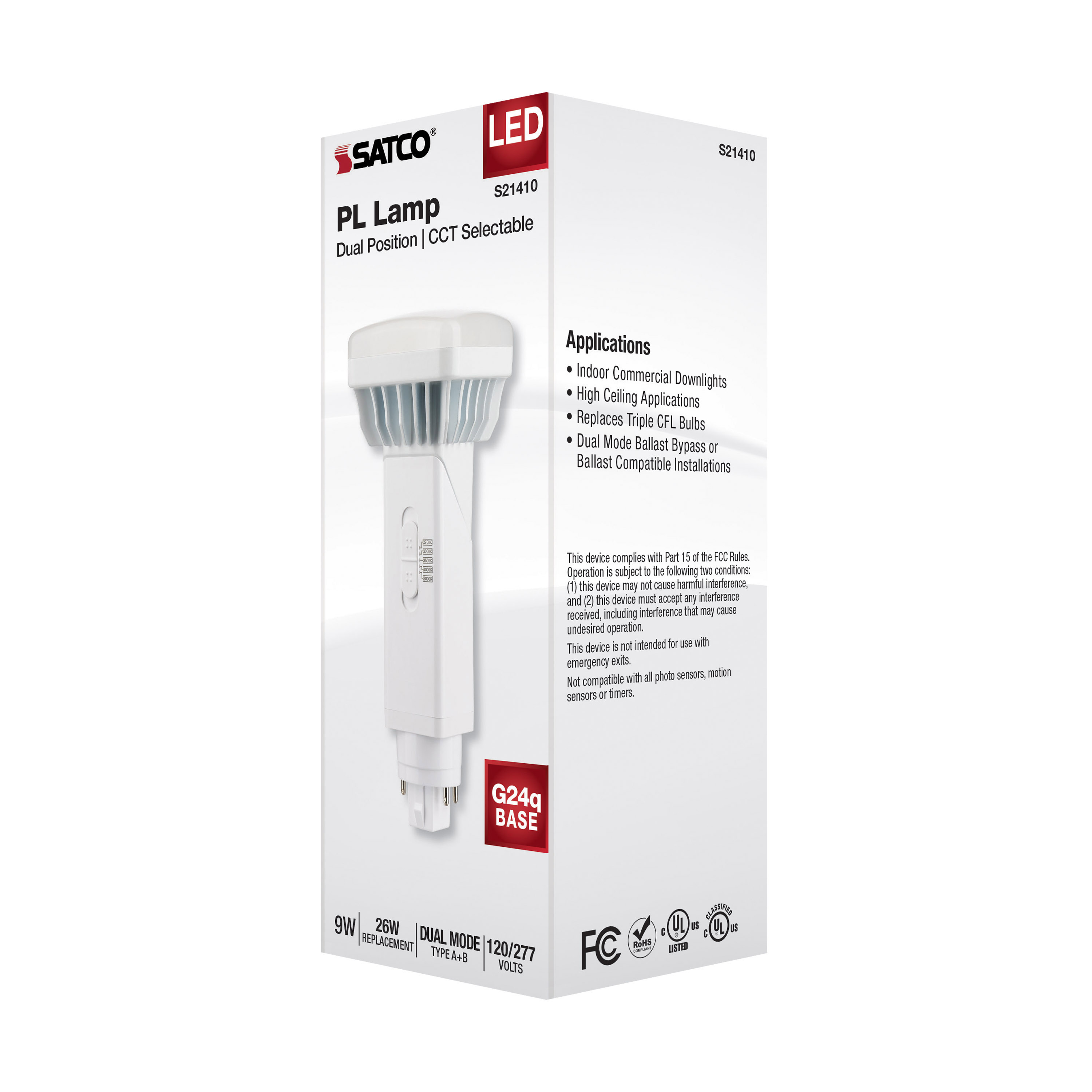

  • Suggested for use in Indoor commercial downlights and high ceiling applications
Lights

S21410

9PL/LED/HV/5CCT/A+B/G24Q

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts

SATCO|NUVO's Dual Position PL Lamps are the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, these lamps feature a 90 degree rotatable head that allows light to be directed as needed in both vertical and horizontal applications. They also extend lengthwise and offer a rotatable base to accommodate centering illumination in horizontal installations. To make these the ultimate pin-based solution, these lamps are available in 2-pin and 4-pin options and can be installed in ballast bypass and ballast compatible configurations. Five CCT selectable and dimmable with select ballasts, SATCO|NUVO's Dual Position Lamps are the ideal choice for any environment.
  • 90 Degree Rotatable and lockable head and end-cap
  • Extendable base for horizontal applications
  • 26W and 42W triple CFL bulb replacements
  • Dual mode Type A/B
  • 5 CCT Selectable
  • Dimmable
  • Wet Location Rated
  • Suggested for use in Indoor commercial downlights and high ceiling applications

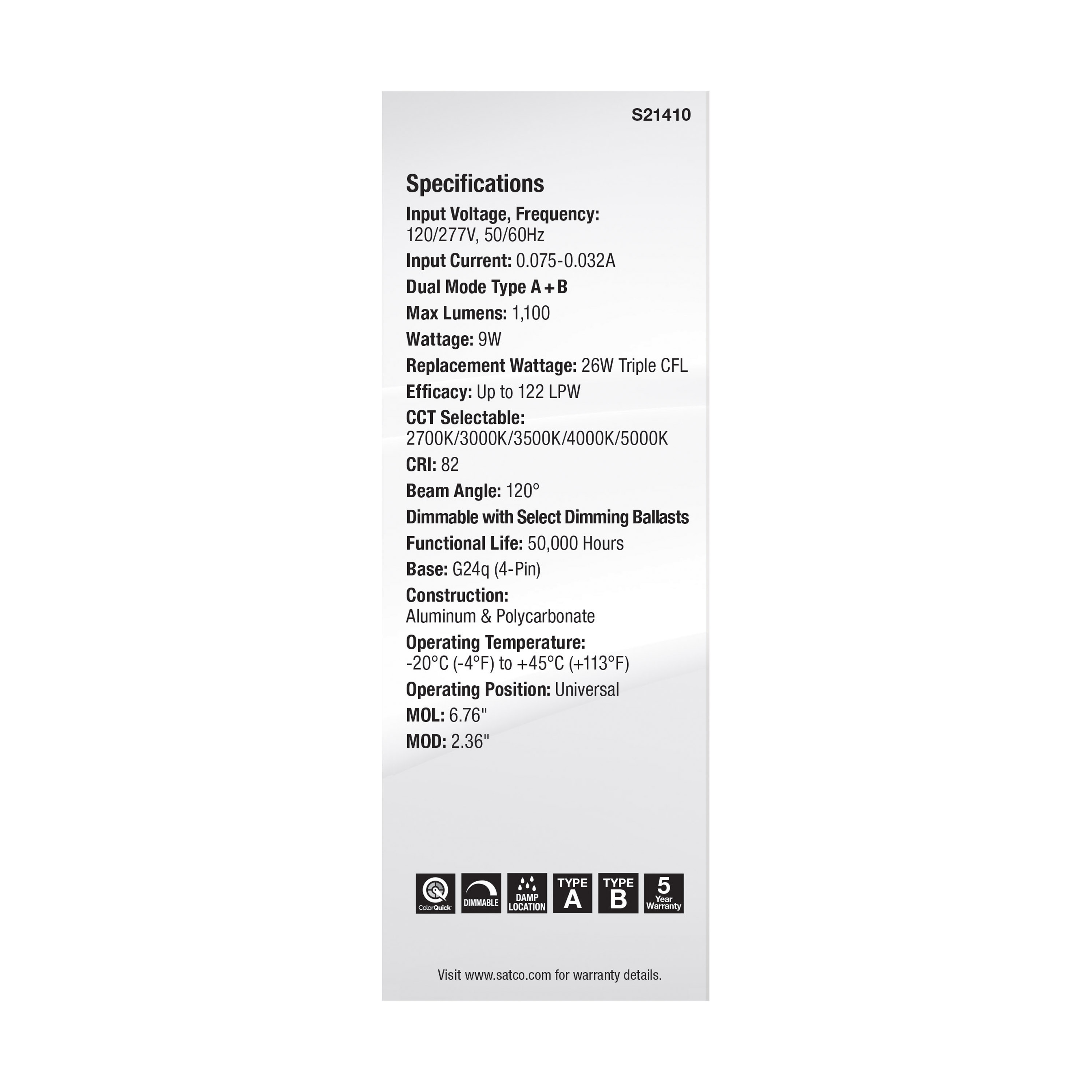

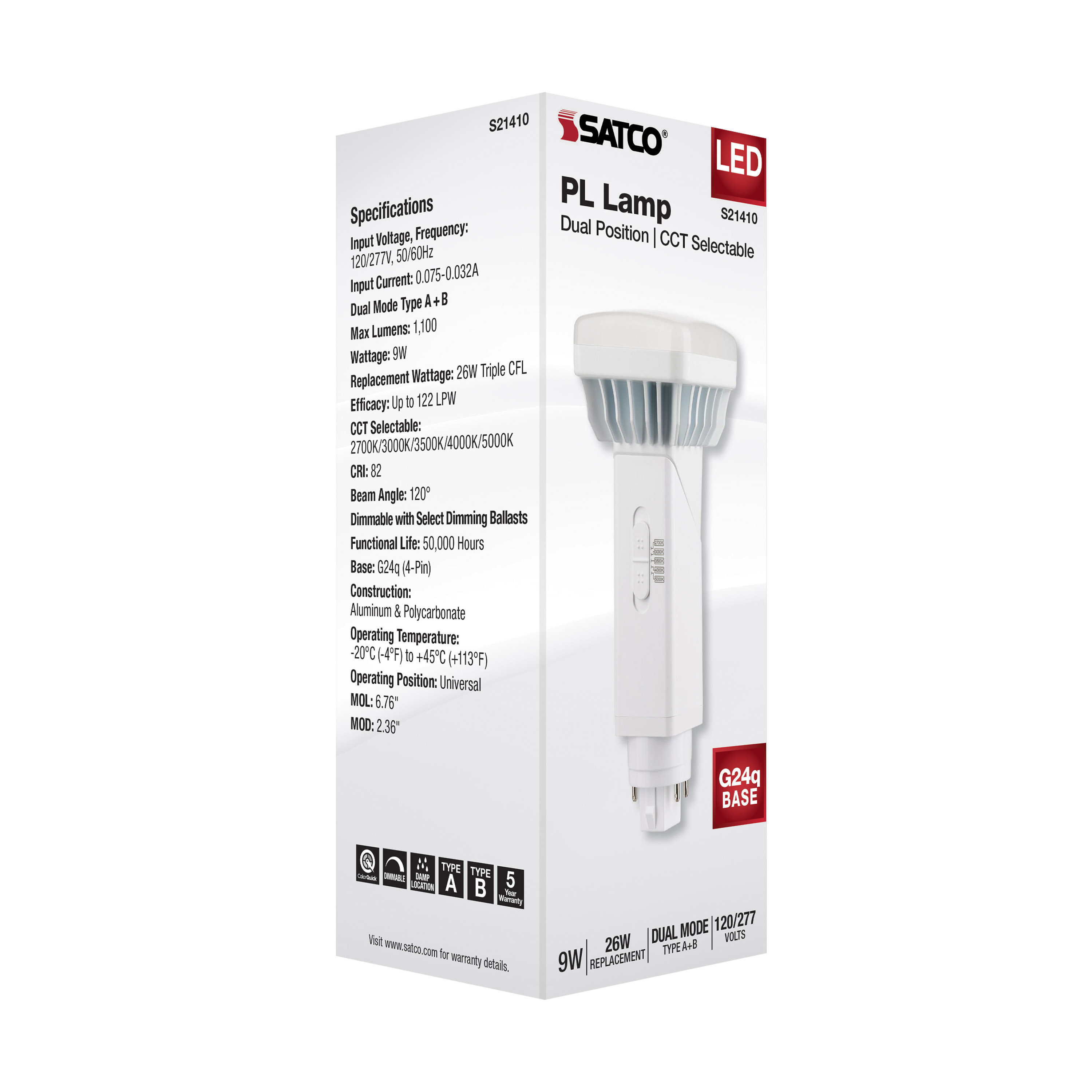

Specifications

Minimize
General
StatusActive
Watts9W
Fluorescent Equivalent26W
Volts120V-277V
Ballast TypeType A/B
ShapePL

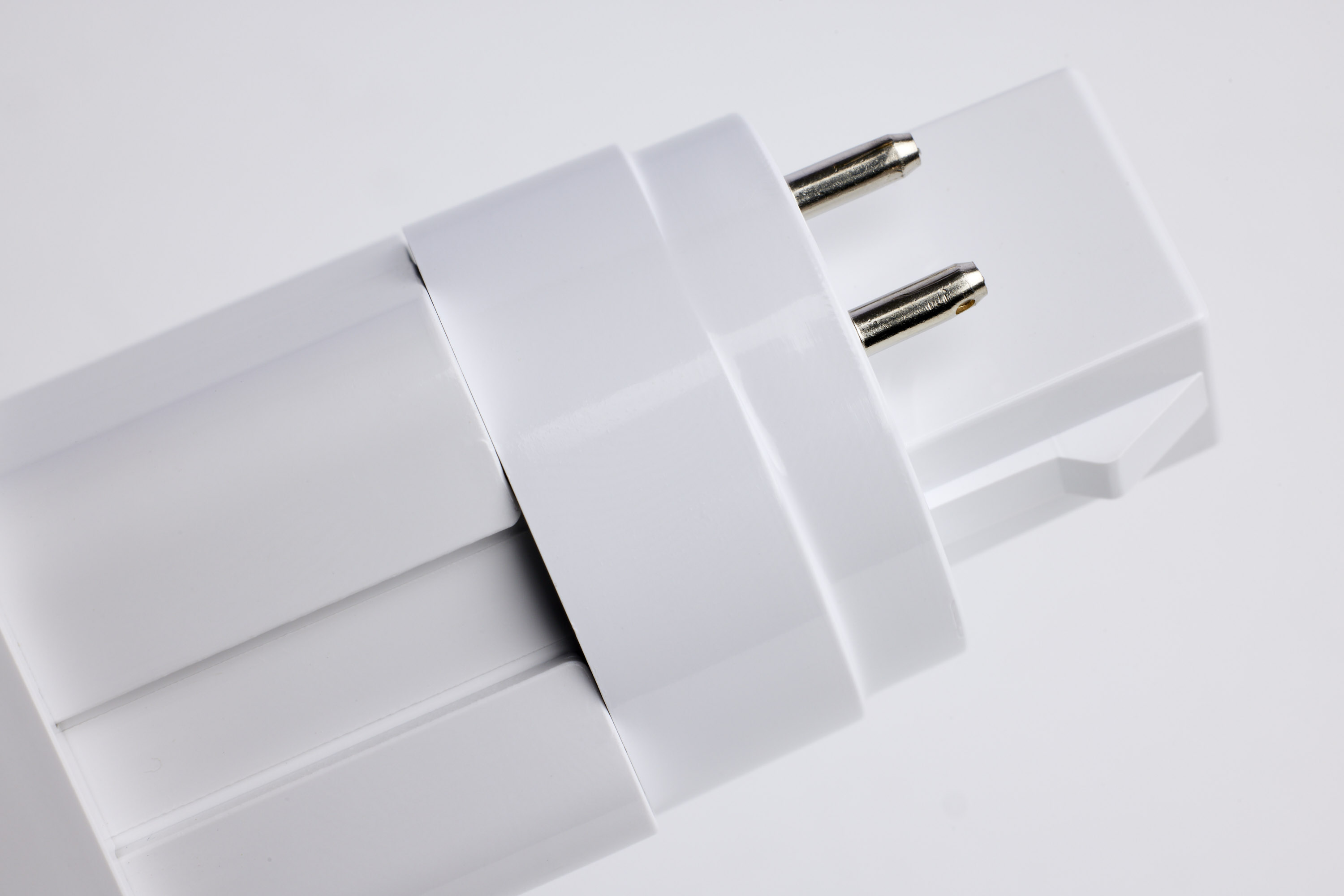

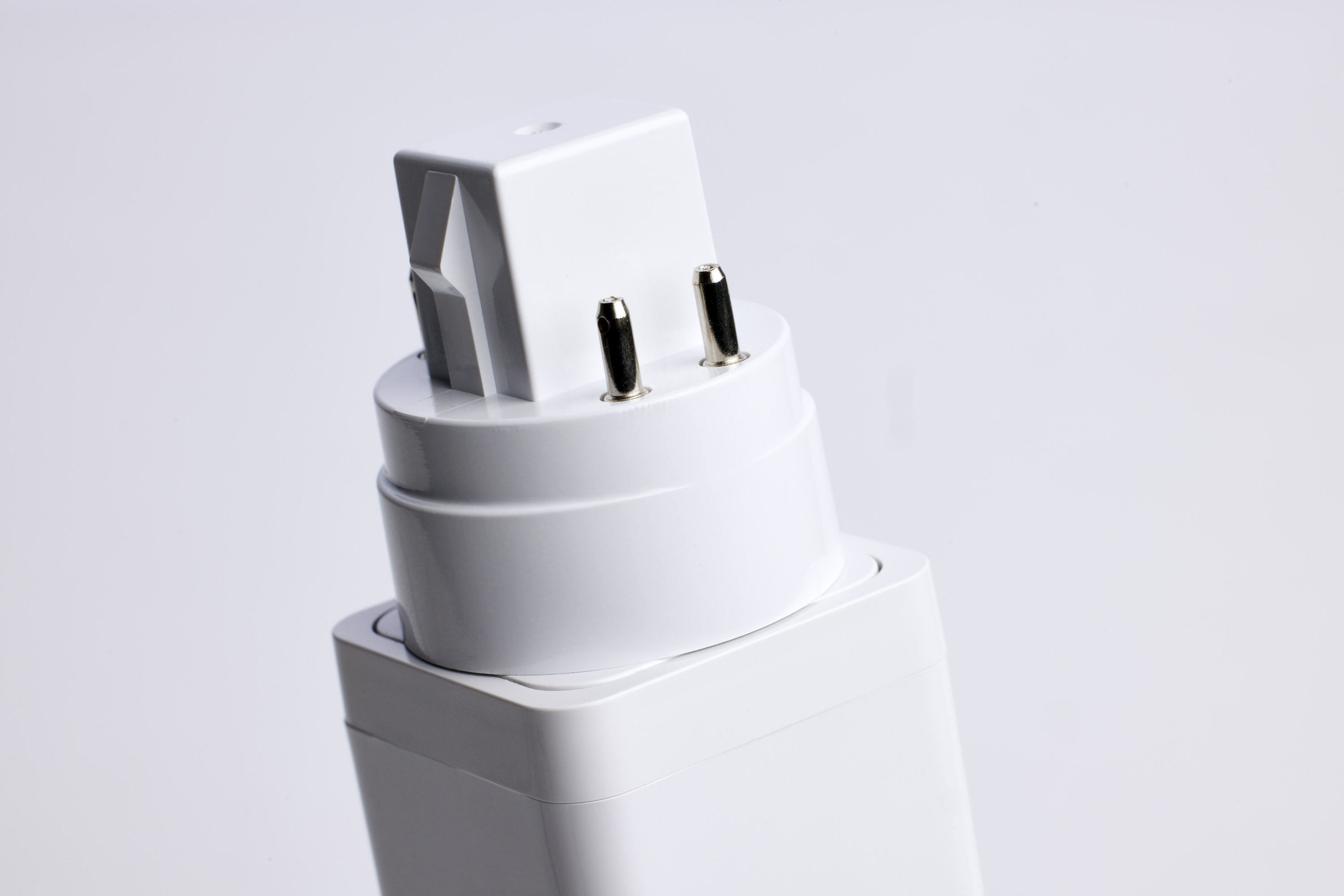

BaseG24q (4-Pin)
ANSI BaseG24q-4
FinishWhite
CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
TemperatureWarm White to Natural Light
CRI82
Lumens1100L
Beam Spread120
Hours Rated50000
Product CategoryPL 4-Pin
Lamp TypePL 4-Pin
Operating PositionUniversal
TechnologyLED
Electrical
Watts9W
Fluorescent Equivalent26W
Volts120V-277V
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
Ballast TypeType A/B
Operating Frequency50/60Hz
CCT (Kelvin)2700K/3000K/3500K/4000K/5000K
TemperatureWarm White to Natural Light
CRI82
Lumens1100L
Beam Spread120
Dimming NoteOnly Dimmable with Compatible Dimming Ballasts
Power Factor0.9
Hours Rated50000
THD20%
Operating PositionUniversal
Operating Temperature-20C (-4F) to +45C (+113F)
Physical
MOL6.76
MOD2.36
ShapePL
BaseG24q (4-Pin)
ANSI BaseG24q-4
FinishWhite
Housing ColorWhite
Weight (lb.)0.4
Additional Information
Installation NotesSuggested wattage equivalency = 26W CFL
Rated For Enclosed FixtureNo
Warranty5 Year Limited - 10 hr per day
Compliance
Safety ListingcULus - Listed; cULus - Classified
Location RatingDamp
DLC ApprovedYes
DLC IDS-GE9ZMN; S-K73DCJ
Air Tight RatedNo
NSF ApprovedYes
CA T20 / T24 RationaleExempt - Base Not Regulated
RoHS CompliantYes
SDS SheetLED Lamp
Packaging
Each UPC045923211478
Each Quantity1
Each Length (in.)2.44
Each Width (in.)2.44
Each Height (in.)6.89
Each Weight (lb.)0.53
Each Cube (CuFt.)0.0237
Pack TypeBox
Inner UPC20045923211472
Inner Quantity10
Inner Length (in.)12.80
Inner Width (in.)5.31
Inner Height (in.)7.36
Inner Weight (lb.)5.30
Inner Cube (CuFt.)0.2895
Case UPC10045923211475
Case Quantity50
Case Length (in.)27.36
Case Width (in.)13.19
Case Height (in.)8.27
Case Weight (lb.)26.30
Case Cube (CuFt.)1.7271

Documents

Size

99K

S21410 Spec Sheet

Type: PDF

Size

1.1M

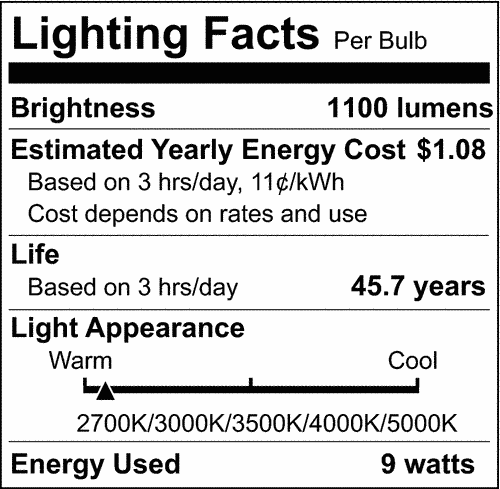

S21410 Lighting Facts Label
