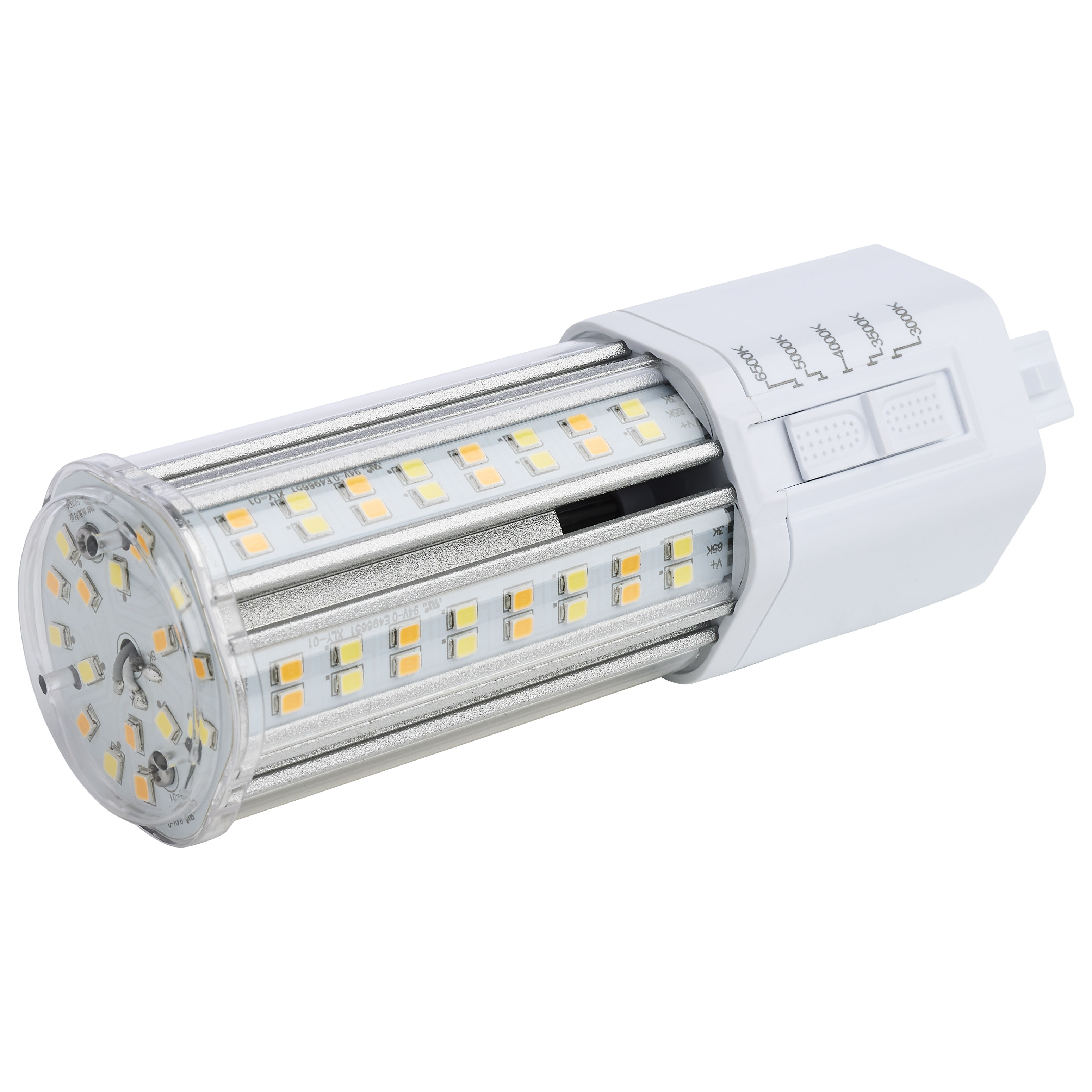

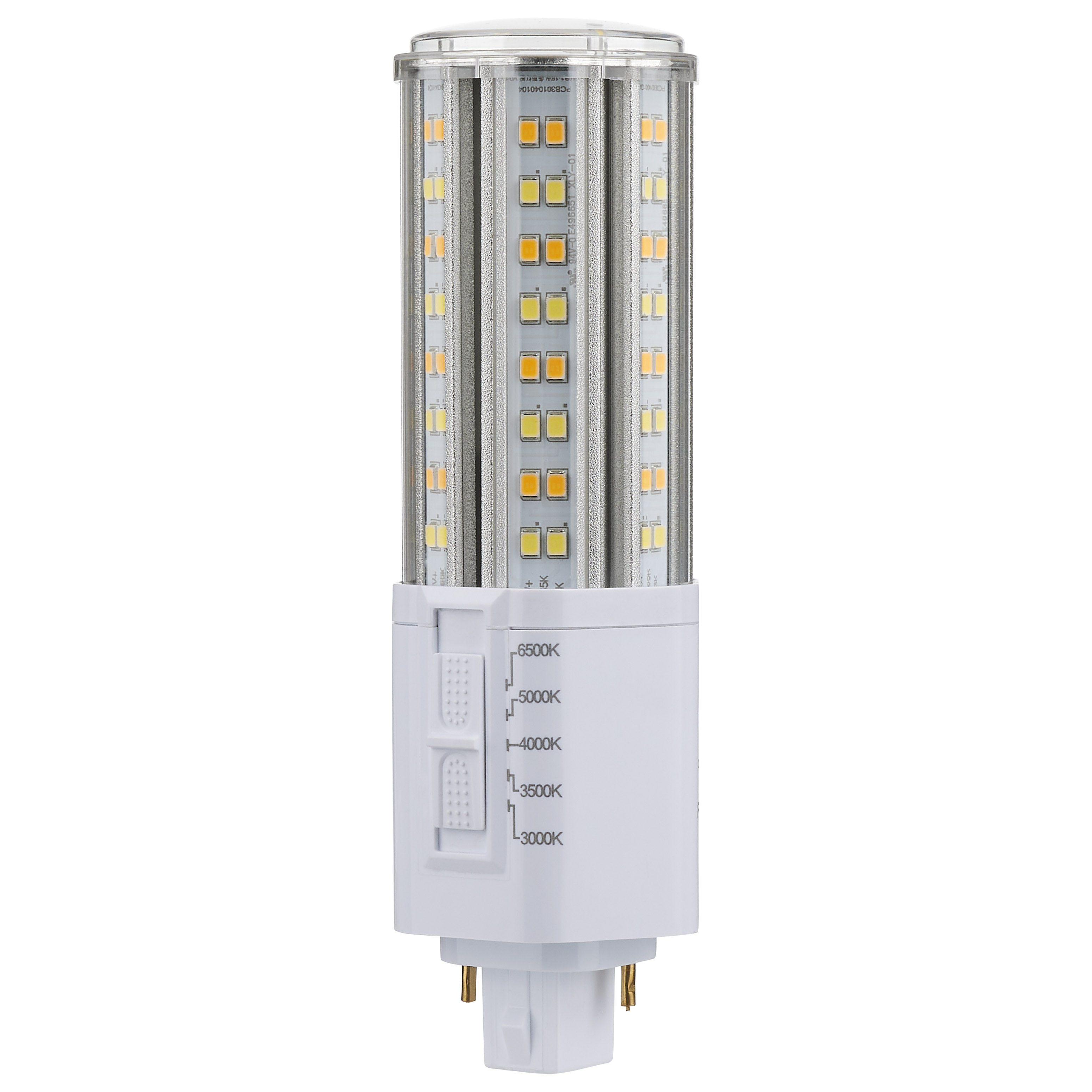

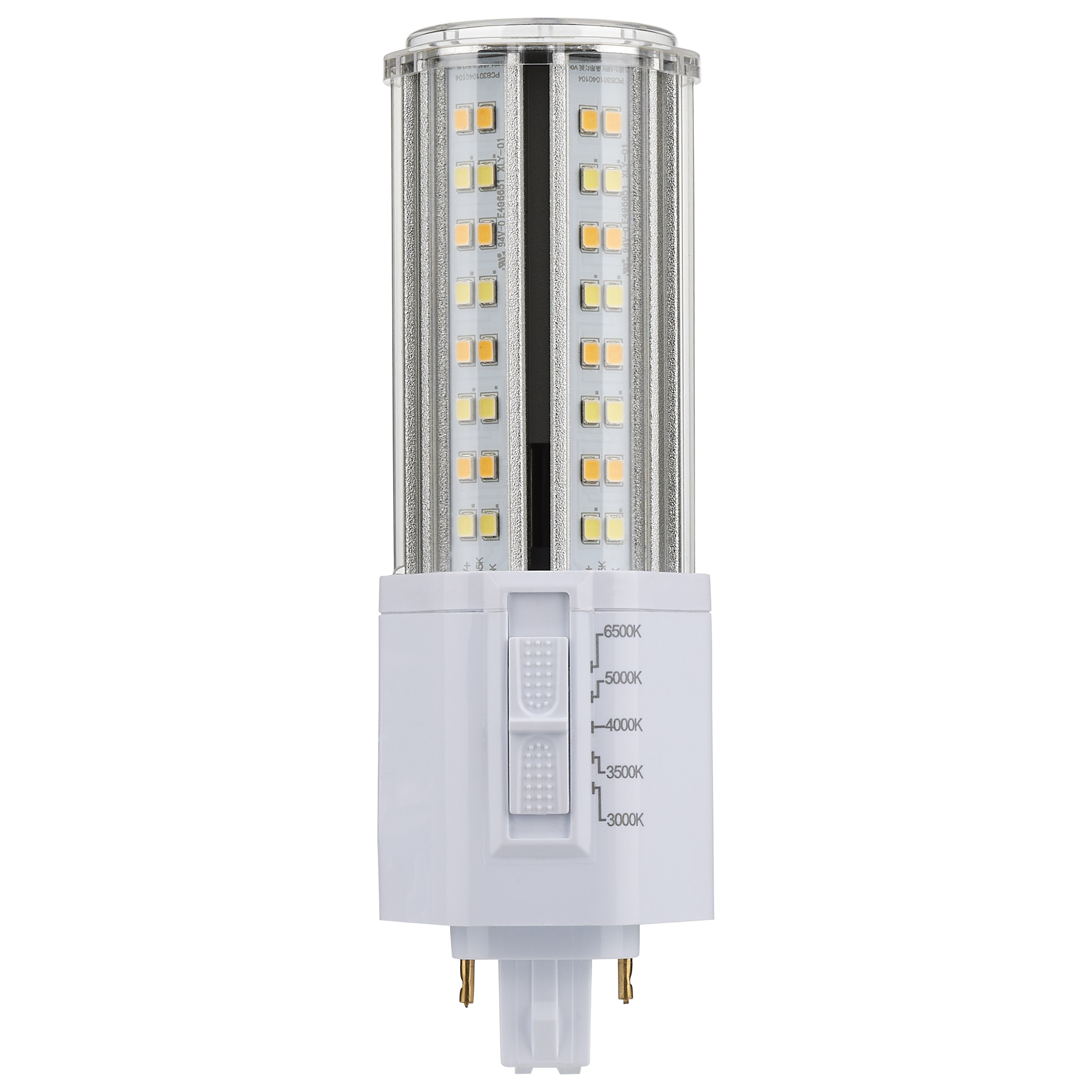

S21415

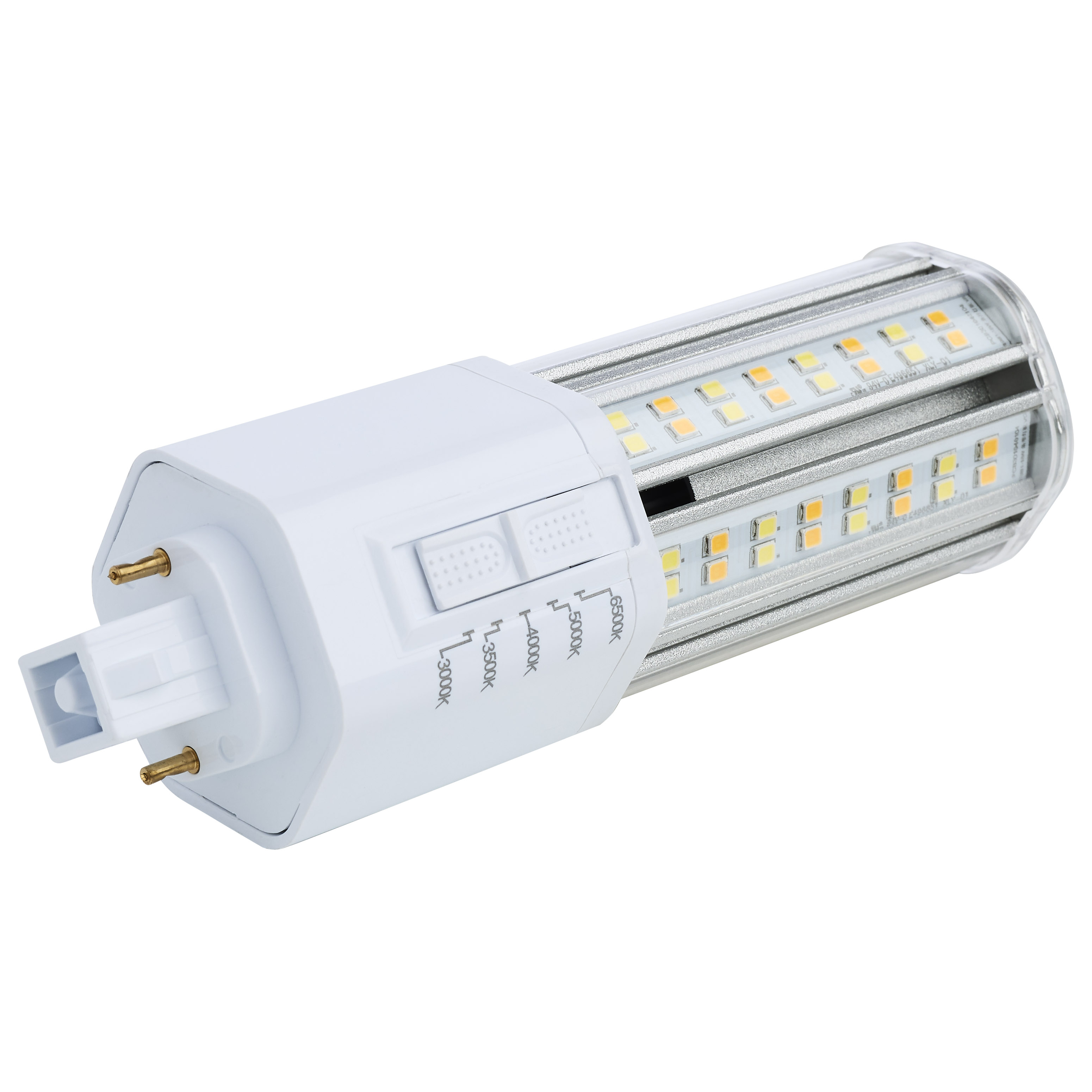

22W/PL/LED/HL/5CCT/G24

  • 22 Watt LED PL

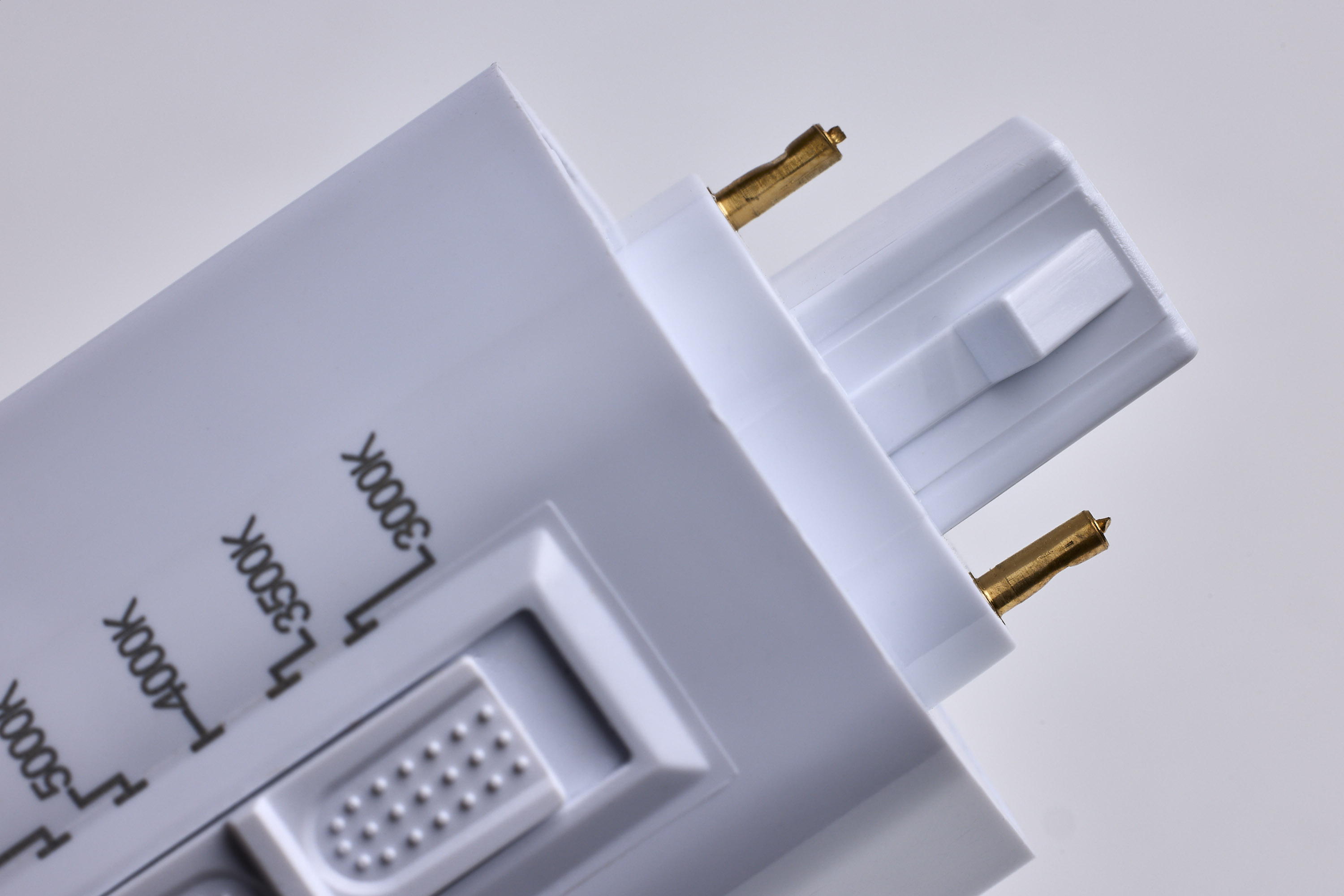

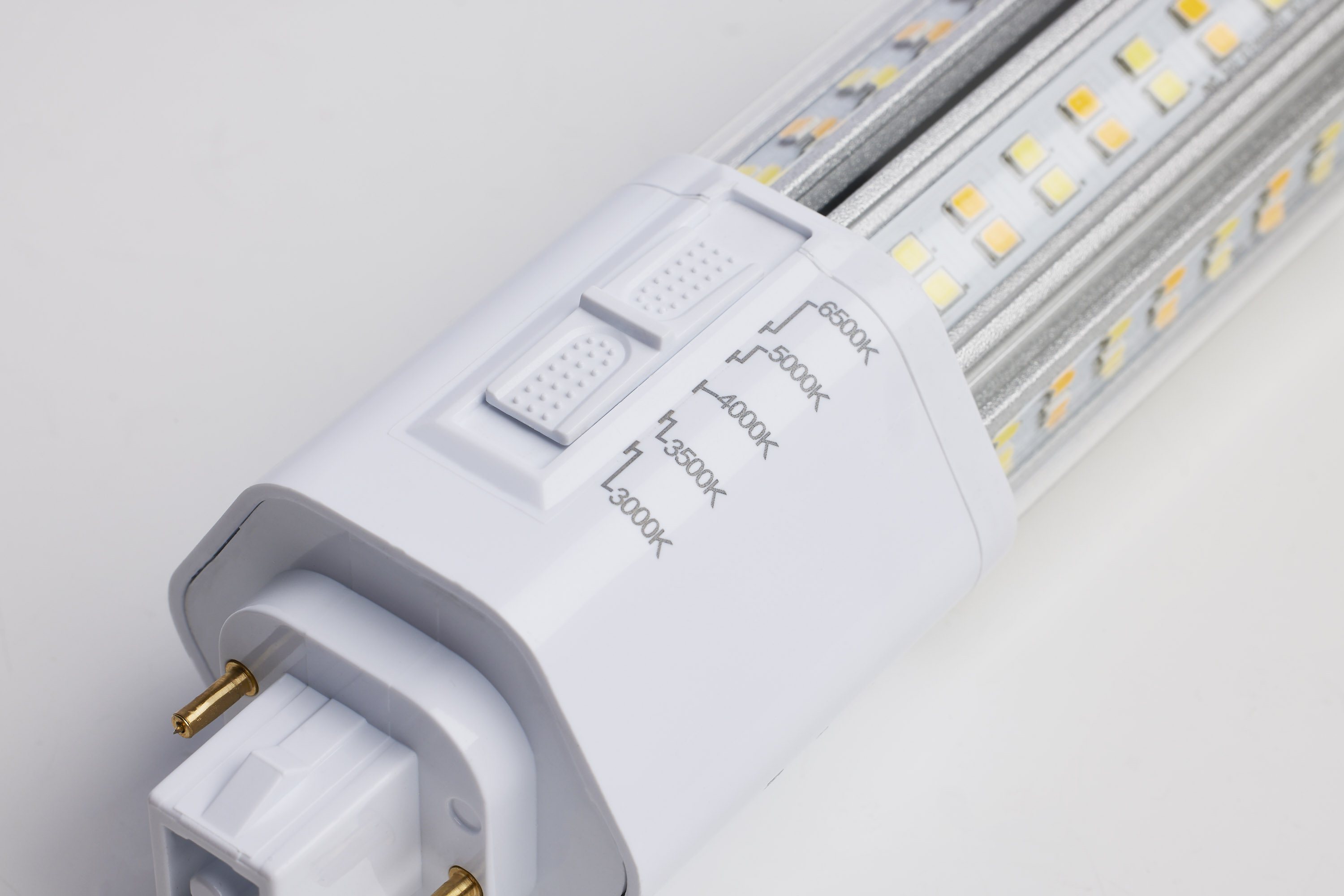

  • CCT Selectable
  • Lumens Selectable
  • Type B
  • Ballast Bypass
  • White Finish
  • 120/277 Volt
location_rating^damp^1
cc_selectable^y^1
lamp_ballast_type_ab^type_b^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
fcc_compliant^true^3
rohs_compliant^y^3
S21415 SpecificationsS21415 Photometrics 3000K.iesS21415 Photometrics 3500K.ies
Tools
Lighting Layout Analysis For S21415
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
22 Watt LED PL; CCT Selectable; Lumens Selectable; Type B; Ballast Bypass; White Finish; 120/277 Volt

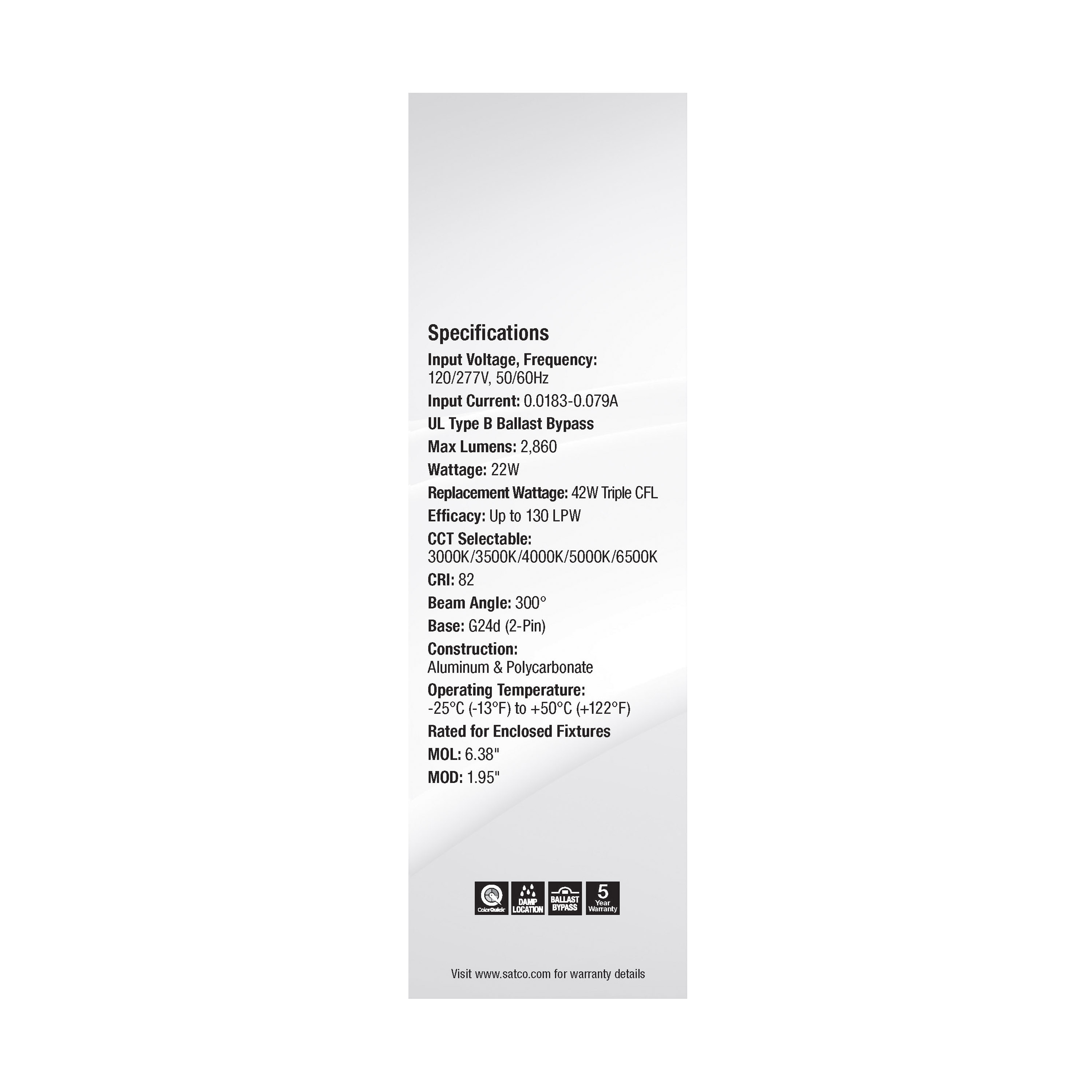

Products Specs
General
CompanySATCO
Lamp Ballast Type ABType B
Ballasting RequirementsBallast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Lamp FilamentLED
MaterialAluminum / Polycarbonate (PC)
Fixture TypePL 2-Pin
StatusActive
StyleTransitional
Surge ProtectionBuilt-in-surge protection - 0.5KV
Total Harmonic Distortion20%
CCT SelectableYes
Wattage SelectableNo
Finish FamilyWhite
Amps0.183/0.079A
Has CameraNo
IOT EnabledNo
Minimum Compartment SizeLength: 6 in. Width: 6 in. Height: 8.5 in.
Operating PositionUniversal
Power Factor>0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor, Outdoor
Product TechnologyLED
Fluor Equiv42W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)3000K/3500K/4000K/5000K/6500K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempWarm White to Natural Light
CRI80+
Operating Frequency50/60Hz
Operating Temp-25C (-13F) to +50C (+122F)
Lumens2750L-2860L
Volts120V/277V
Watts22W
Physical
Lamp BaseG24d (2-Pin)
FinishWHITE
Housing ColorWhite
ANSI BaseG24d
Lamp TypePL
MOD Lamps1.95
MOL6.38
Additional Info
Warranty5-Years
Installation NotesSuggested wattage equivalency = 42W CFL
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcRUus - Recognized Component, cULus - Certified, cULus - Classified
California BanLawful for sale
DLC ApprovedNo
Title 20Exempt
T24 CompliantNo
Packaging
UPC045923215742
Case Cube0.7755
Case Height16.14
Case Length10.04
Case Quantity24
Case UPC10045923215749
Case Weight12.82
Case Width8.27
EA Cube0.0269
EA Height7.68
EA Length2.56
EA Quantity1
EA Weight0.53
EA Width2.36
Inner Cube0.0
Inner Height0.0
Inner Length0.0
Inner Quantity0
Inner Weight0.0
Inner Width0.0
Pack TypeBox
Web Length6.38
Web Width1.95
