S21426

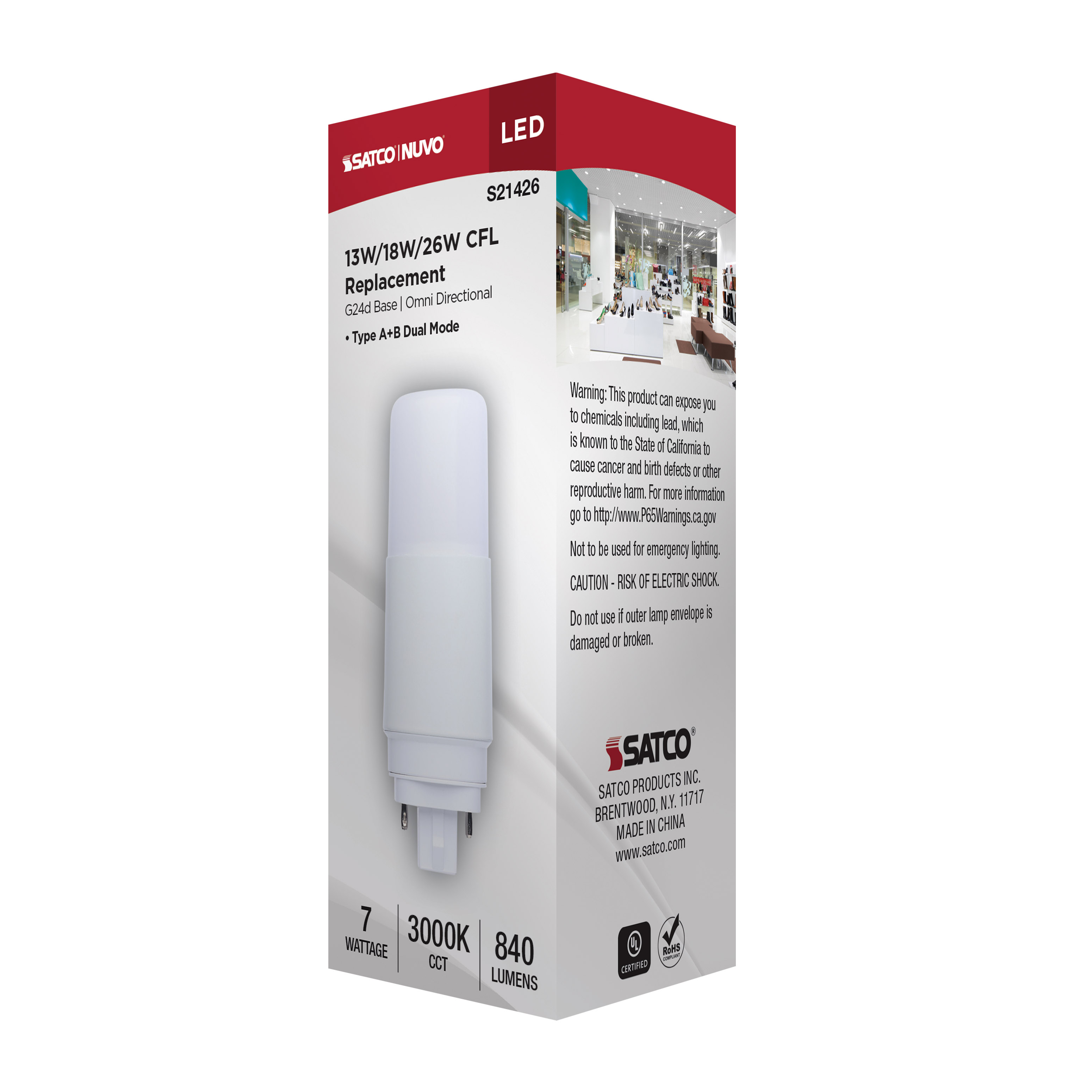

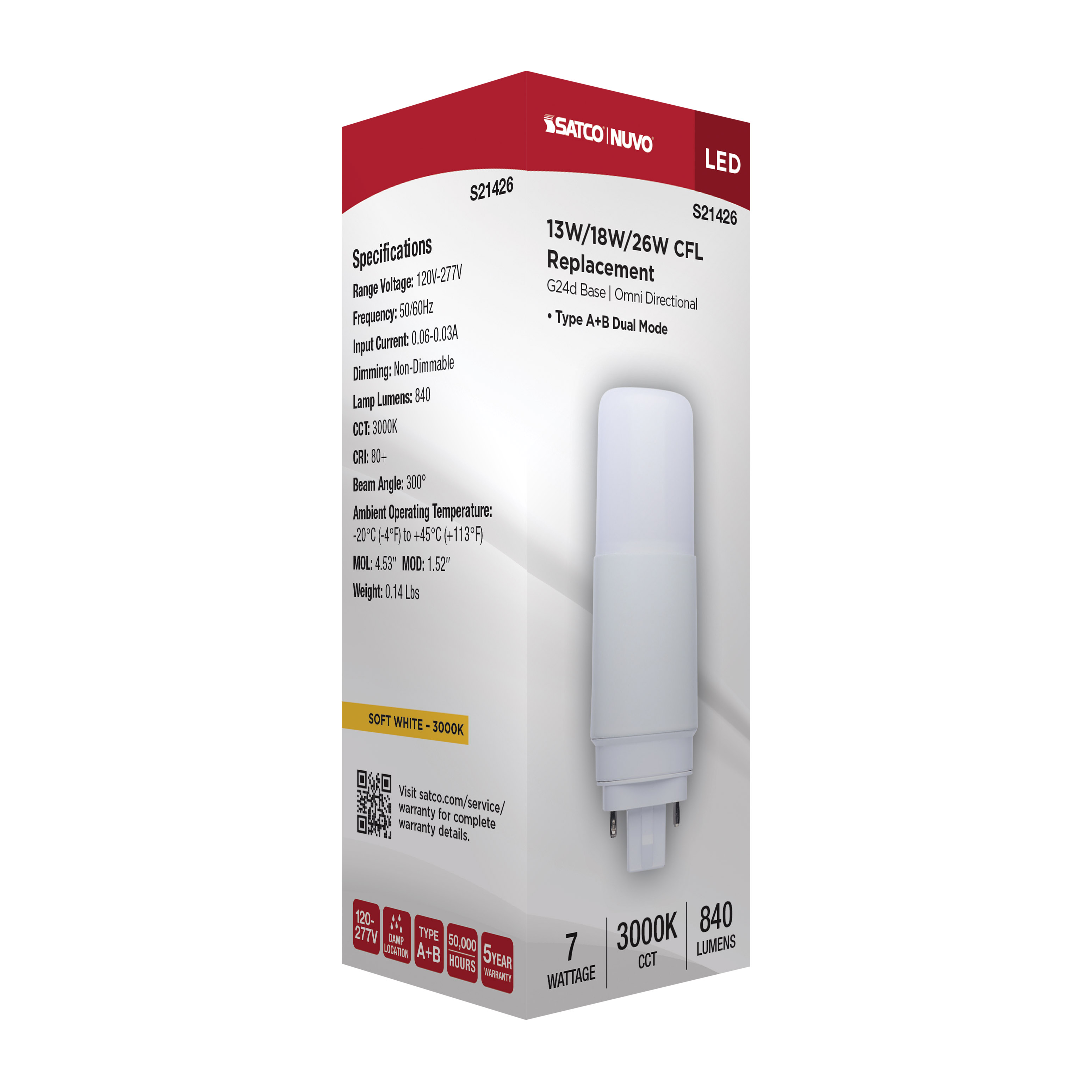

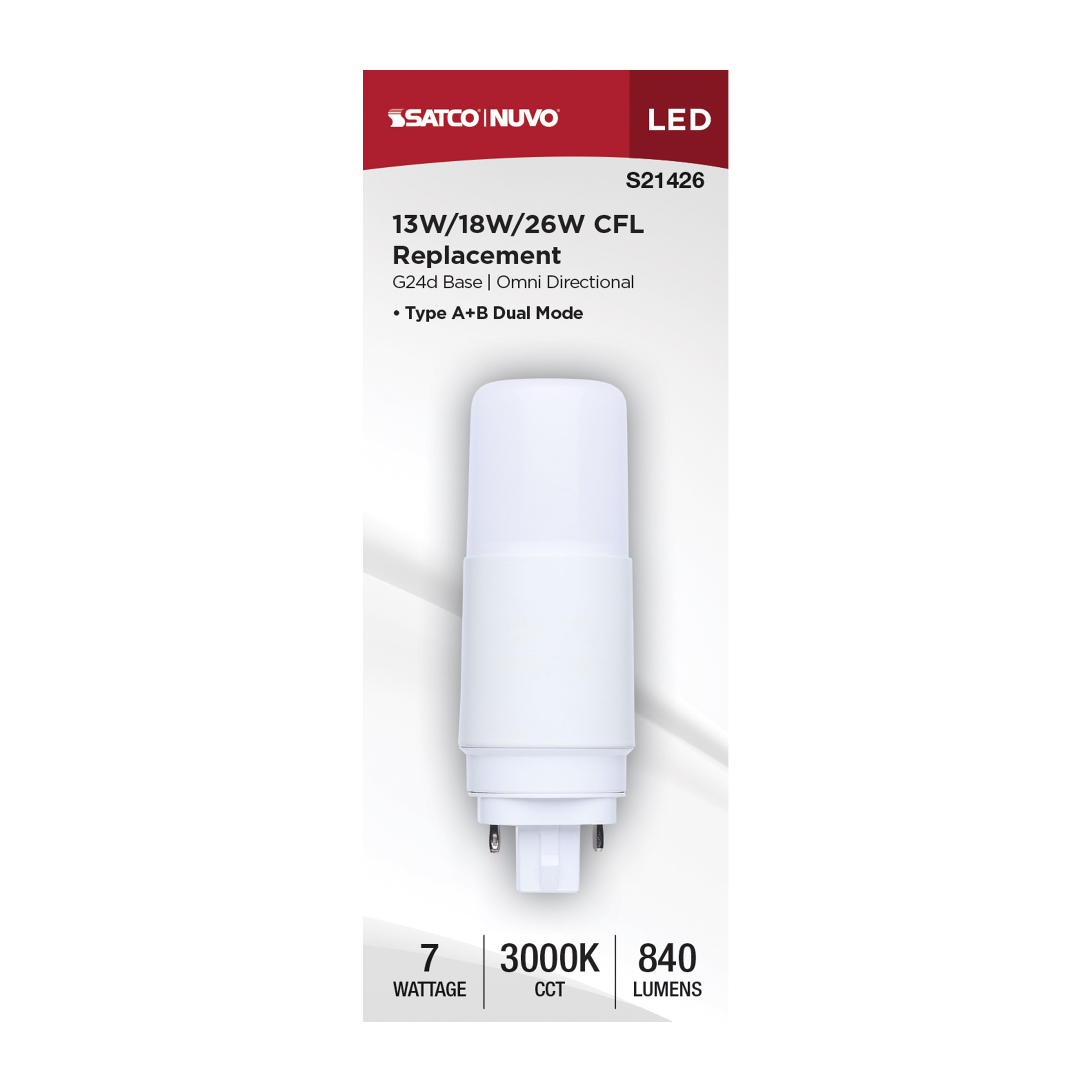

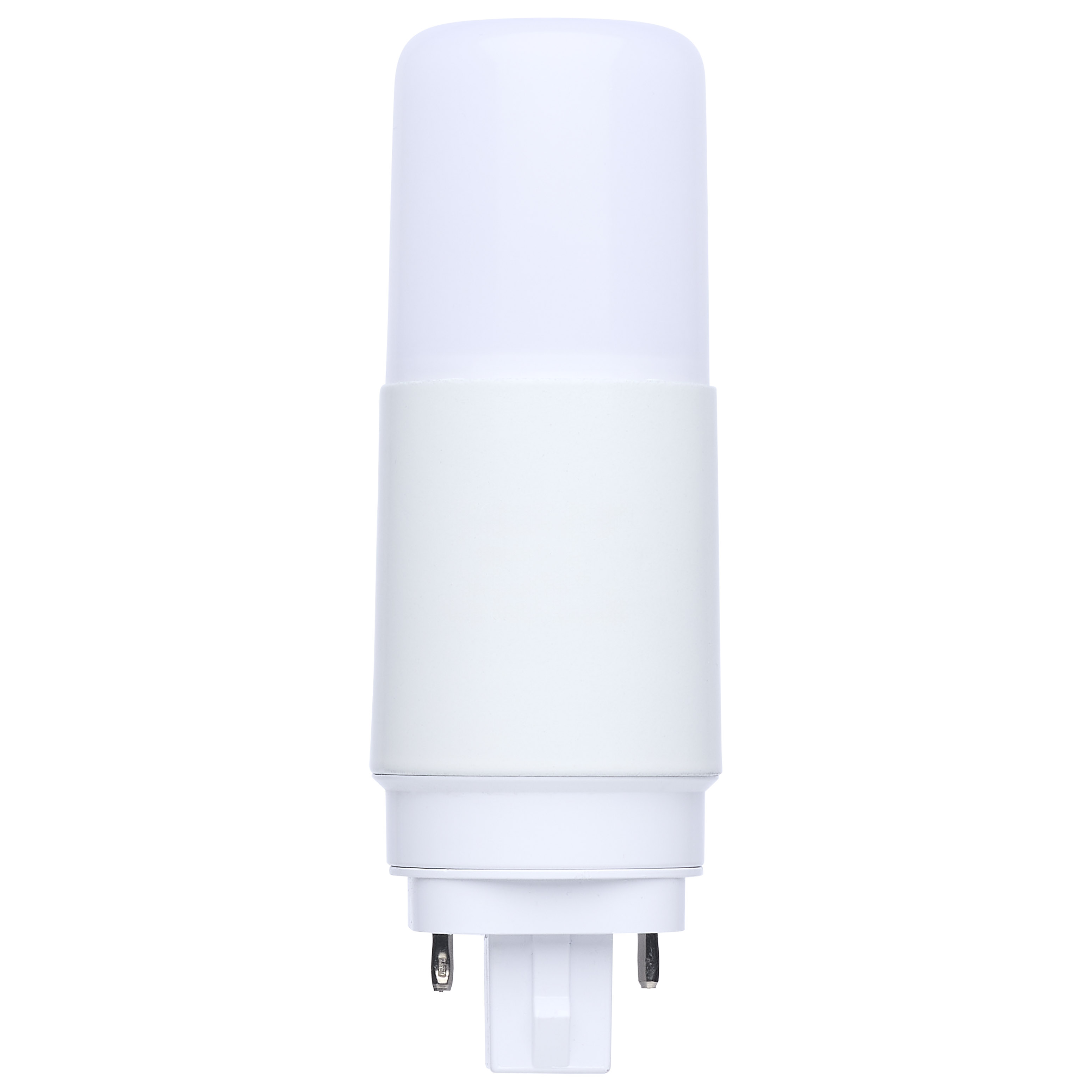

7CFL/L/830/G24D/AB/FR/U

  • 7 Watt
  • PL LED
  • G24D Base
  • Frost Finish
  • Type A/B Dual Ballast
  • 3000K
  • 120-277 Range Voltage
location_rating^damp^1
rated_for_enclosed_fixture^true^2
hours_rated^50k^2
safety_listing^culus_clas^3
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
nsf_approved^y^3
S21426 SpecificationsS21426 InstructionsS21426 Ballast Compatibility Chart
Tools
Lighting Layout Analysis For S21426
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
7 Watt; PL LED; G24D Base; Frost Finish; Type A/B Dual Ballast; 3000K; 120-277 Range Voltage
Products Specs
General
CompanySATCO
Lamp Ballast Type ABType A/B
Ballasting RequirementsBallast required (Type A) or Ballast Bypass (Type B)
CA RegulationsExempt - Base Not Regulated
Lamp FilamentLED
MaterialAluminum
StatusActive
Surge ProtectionBuilt-in-surge protection - 0.5KV
CCT SelectableFalse
Wattage SelectableFalse
Finish FamilyFrost
Amps0.058-0.025A
Has CameraFalse
IOT EnabledFalse

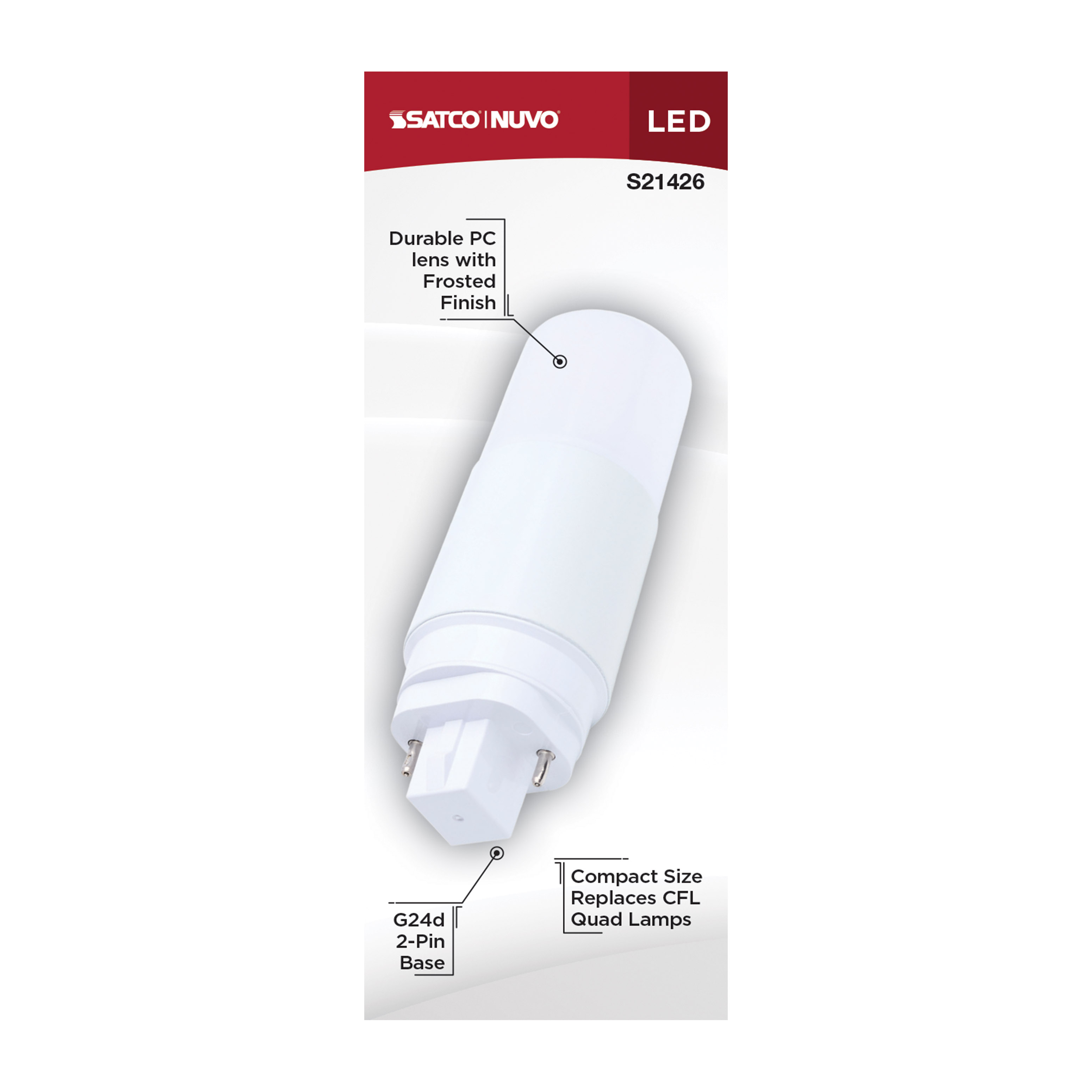

Lens FinishFrosted
Lens MaterialPolycarbonate (PC)
Minimum Compartment SizeLength 6.10 in. Width 6.10 in. Height: 7.87 in.
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv13W/18W/26W

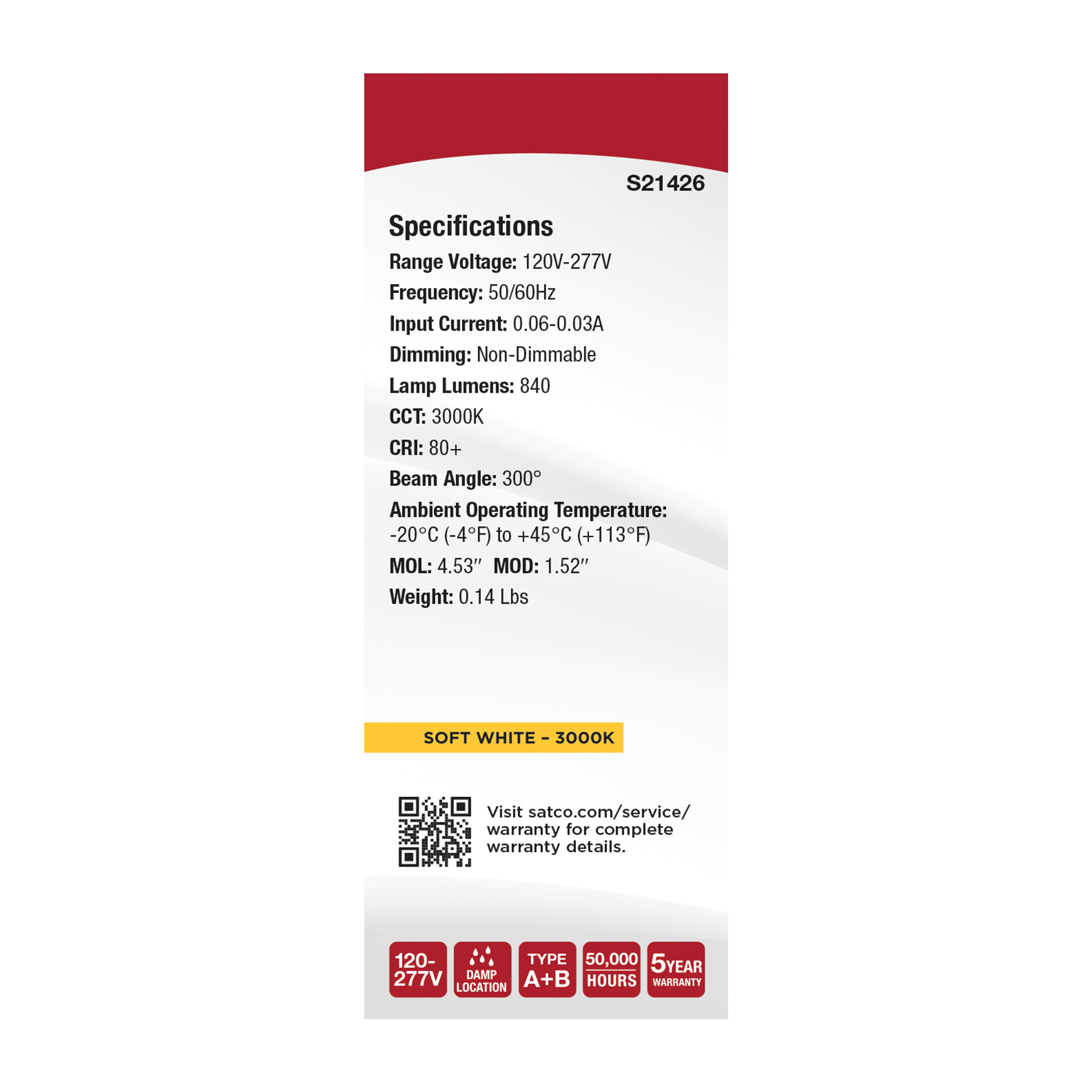

Electrical
CCT (Kelvin Temp)3000K
DimmableNon-Dimmable
Hours Rated50000
Beam Angle (degree)300
Color TempSoft White
CRI80+
Operating Frequency50/60Hz
Operating Temp-20C (-4F) to +45C (+113F)
Lumens840L
Volts120V-277V
Watts7W
Physical

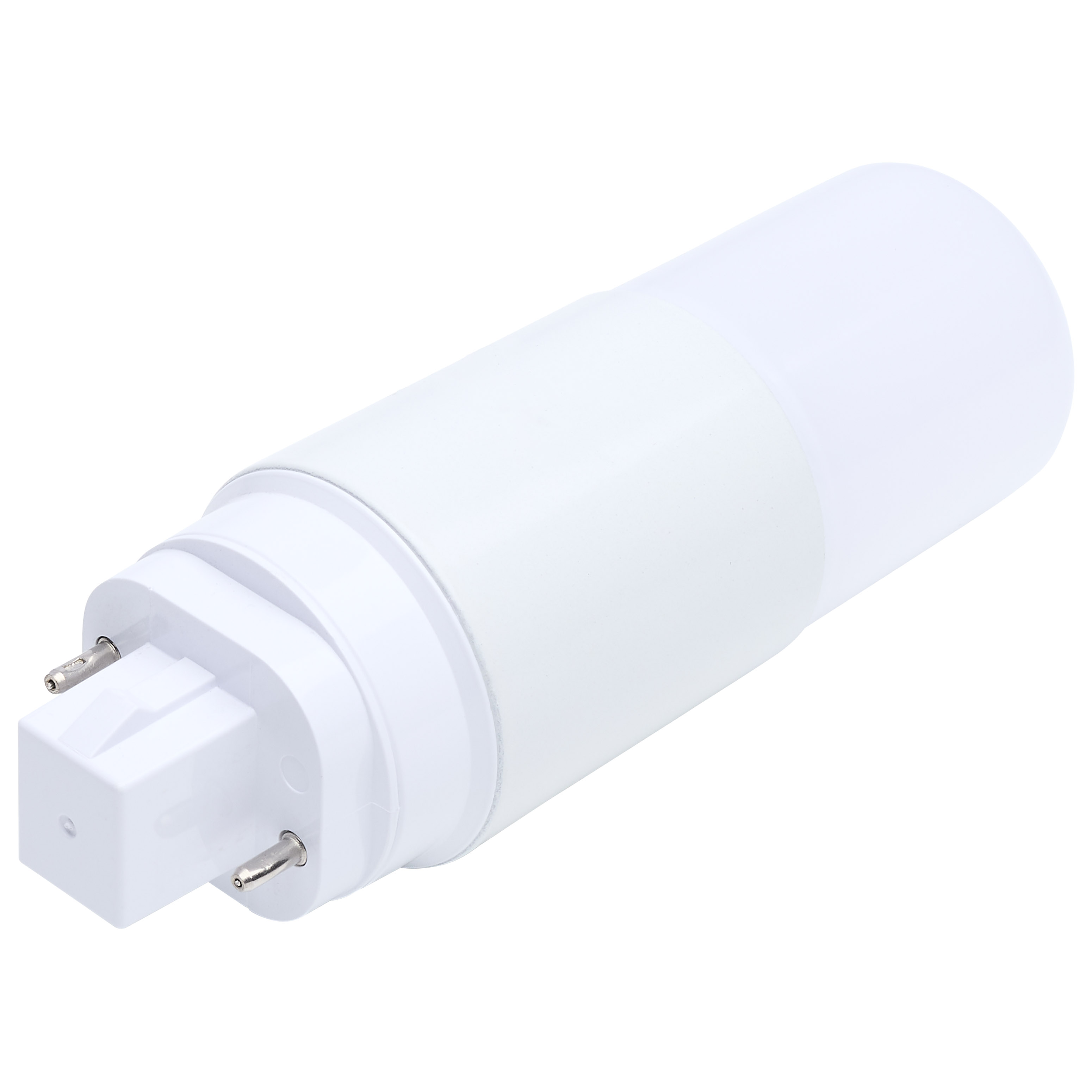

Lamp BaseG24d (2-Pin)
FinishFrost
Housing ColorWhite
ANSI BaseG24d
Lamp TypePL

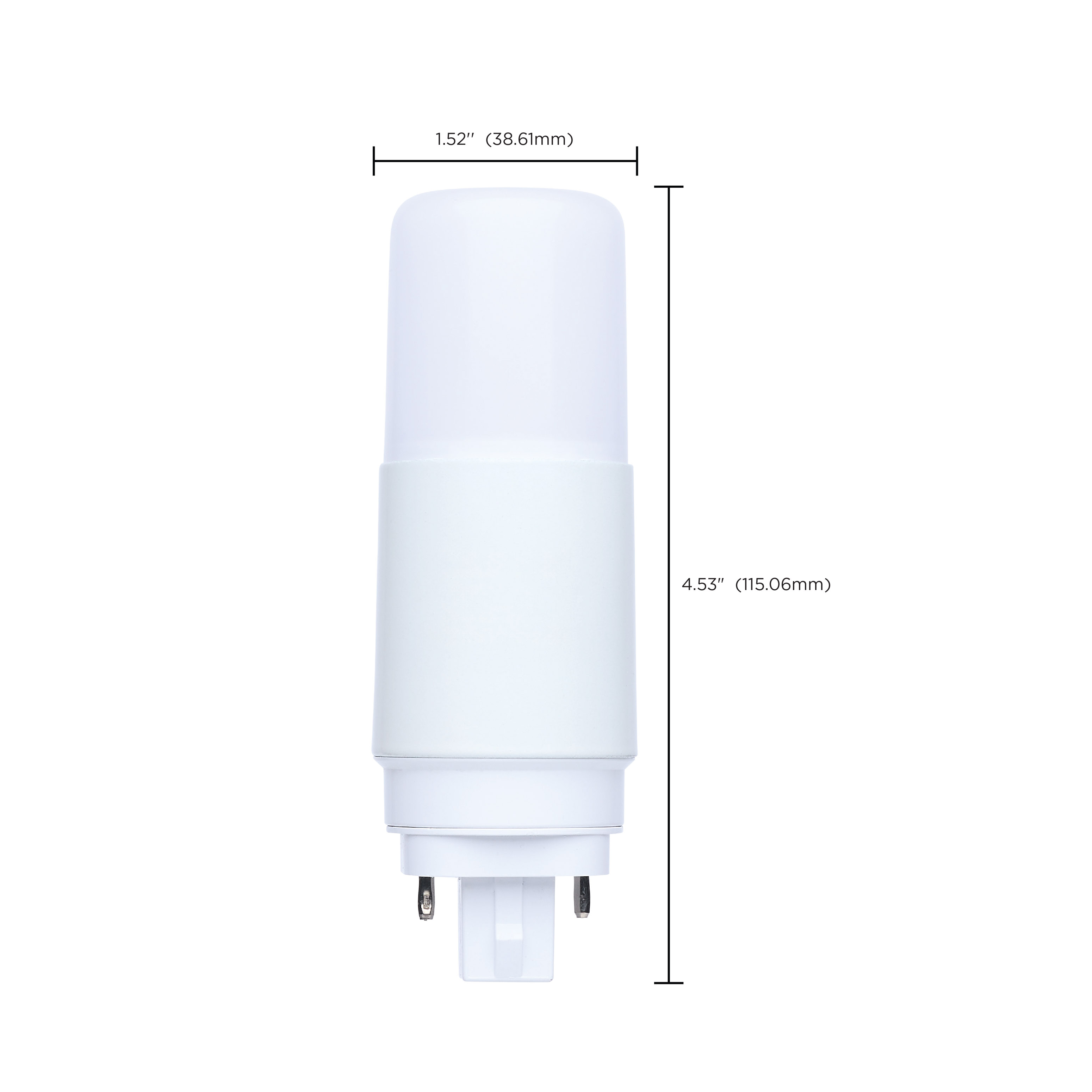

MOD Lamps1.52
MOL4.53
Additional Info
Warranty5-Years
Rated For Enclosed FixtureTrue
Documents
Compliance
CA StatusLawful for sale in California
FCC CompliantTrue
Location RatingDamp
NSF ApprovedYes
ROHS CompliantYes
Safety ListingcULus - Classified, cULus - Listed
CA Compliance TextLawful for sale
DLC ApprovedFalse
Title 20Exempt
T24 CompliantFalse
Packaging
UPC045923409417
Case Cube0.3497
Case Height4.92
Case Length11.73
Case Quantity24
Case UPC10045923409414
Case Weight5.33
Case Width10.47
EA Cube0.0086
EA Height4.72
EA Length1.77
EA Quantity1
EA Weight0.17
EA Width1.77
Inner Cube0.0619
Inner Height3.94
Inner Length5.47
Inner Quantity6
Inner UPC20045923409411
Inner Weight1.22
Inner Width4.96
Pack TypeBox
Web Length4.53
Web Width1.52
