| Company | SATCO |
|---|---|
| Lamp Ballast Type AB | Type A/B |
| Ballasting Requirements | Ballast required (Type A) or Ballast Bypass (Type B) |
| CA Regulations | Exempt - Base Not Regulated |
| Lamp Filament | LED |
| Material | Aluminum |
| Status | Active |
| Surge Protection | Built-in-surge protection - 0.5KV |
| CCT Selectable | False |
| Wattage Selectable | False |
| Finish Family | Frost |
| Amps | 0.042-0.018A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Finish | Frosted |
| Lens Material | Polycarbonate (PC) |
| Minimum Compartment Size | Length 6.10 in. Width 6.10 in. Height: 7.87 in. |
| Operating Position | Universal |
| Power Factor | 0.9 |
| SDS Class | LED_Lamp |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 13W |
| CCT (Kelvin Temp) | 3000K |
|---|---|
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 300 |
| Color Temp | Soft White |
| CRI | 80+ |
| Operating Frequency | 50/60Hz |
| Operating Temp | -20C (-4F) to +45C (+113F) |
| Lumens | 610L |
| Volts | 120V-277V |
| Watts | 5W |

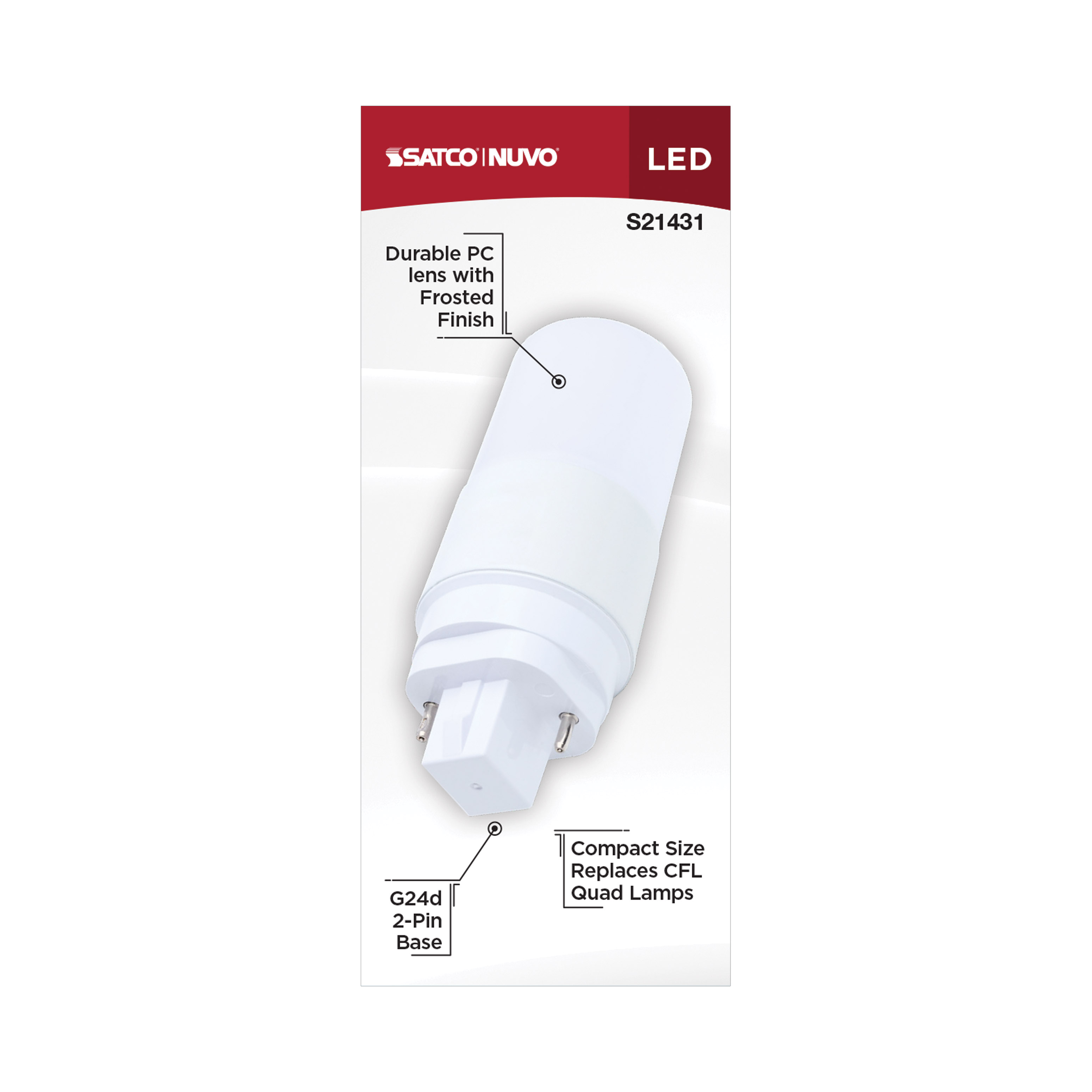

| Lamp Base | G24d (2-Pin) |
|---|---|
| Finish | Frost |
| Housing Color | White |
| ANSI Base | G24d |
| Lamp Type | PL |

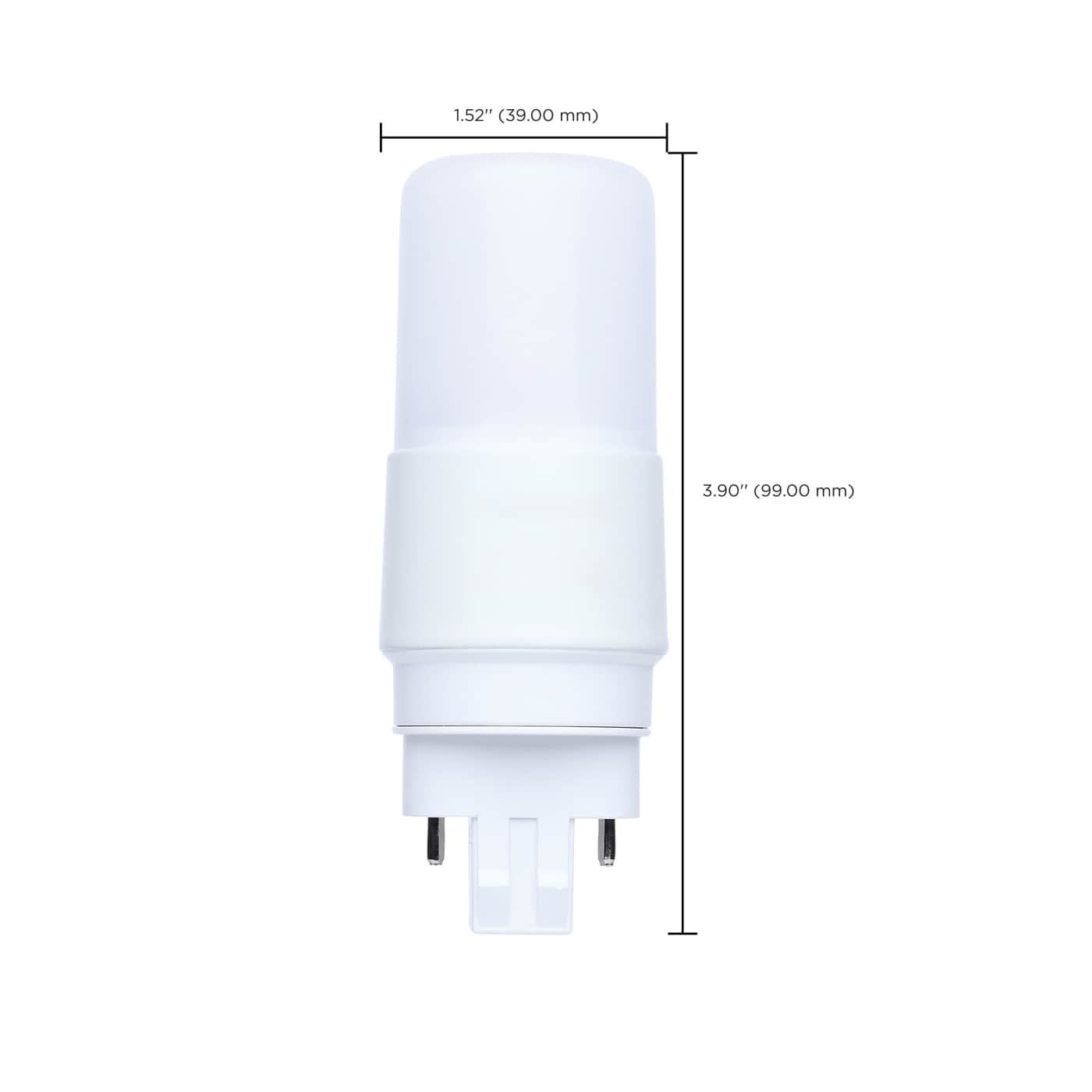

| MOD Lamps | 1.52 |
| MOL | 3.9 |
| Warranty | 5-Years |
|---|---|
| Rated For Enclosed Fixture | True |
| CA Status | Lawful for sale in California |
|---|---|
| FCC Compliant | True |
| Location Rating | Damp |
| NSF Approved | Yes |
| ROHS Compliant | Yes |
| Safety Listing | cULus - Classified, cULus - Listed |
| CA Compliance Text | Lawful for sale |
| DLC Approved | False |
| Title 20 | Exempt |
| T24 Compliant | False |
| UPC | 045923409707 |
|---|---|
| Case Cube | 0.3156 |
| Case Height | 4.92 |
| Case Length | 11.73 |
| Case Quantity | 24 |
| Case UPC | 10045923409704 |
| Case Weight | 4.38 |
| Case Width | 9.45 |
| EA Cube | 0.0076 |
| EA Height | 4.21 |
| EA Length | 1.77 |
| EA Quantity | 1 |
| EA Weight | 0.14 |
| EA Width | 1.77 |
| Inner Cube | 0.0513 |
| Inner Height | 3.74 |
| Inner Length | 5.47 |
| Inner Quantity | 6 |
| Inner UPC | 20045923409701 |
| Inner Weight | 1.0 |
| Inner Width | 4.33 |
| Pack Type | Box |
| Web Length | 3.9 |
| Web Width | 1.52 |
