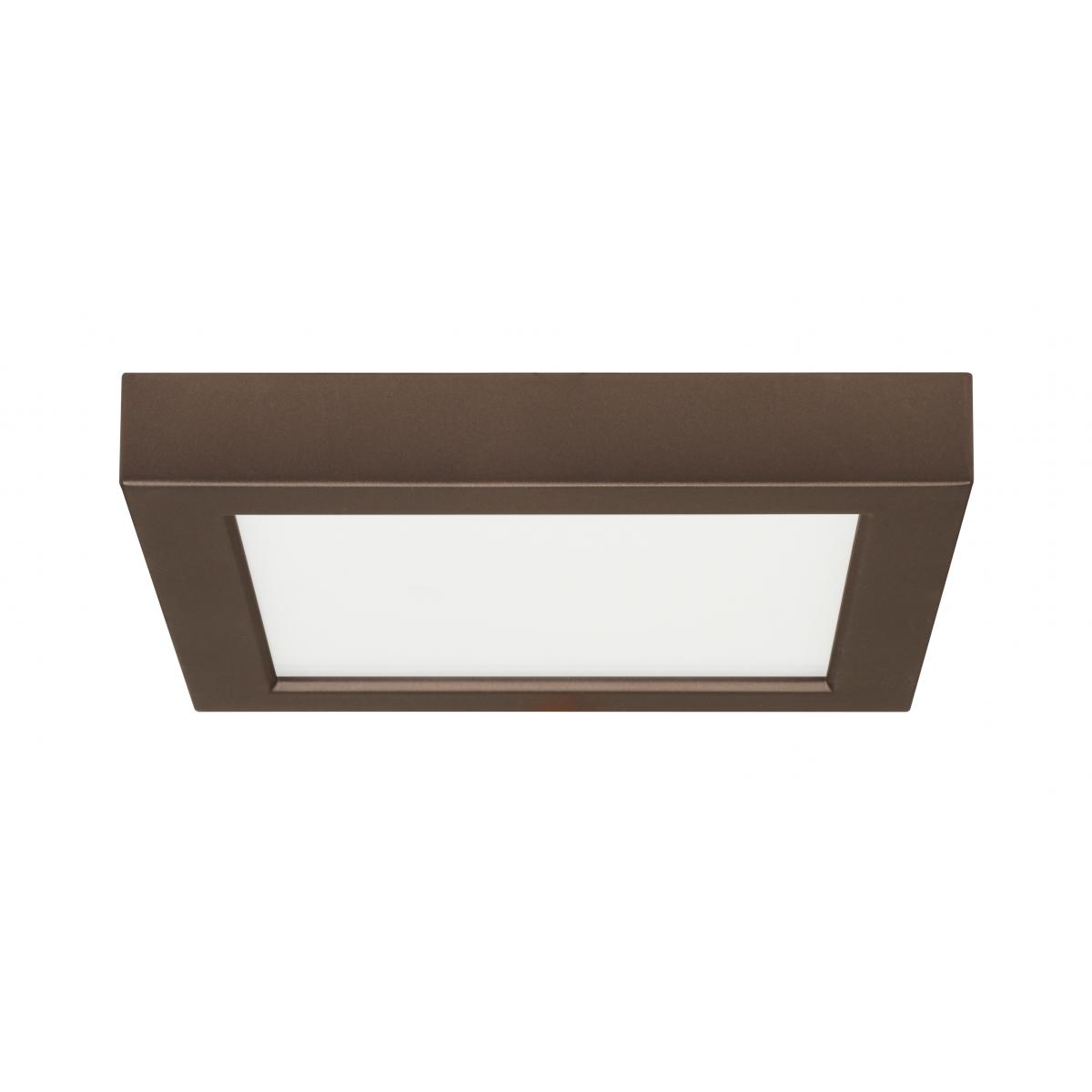

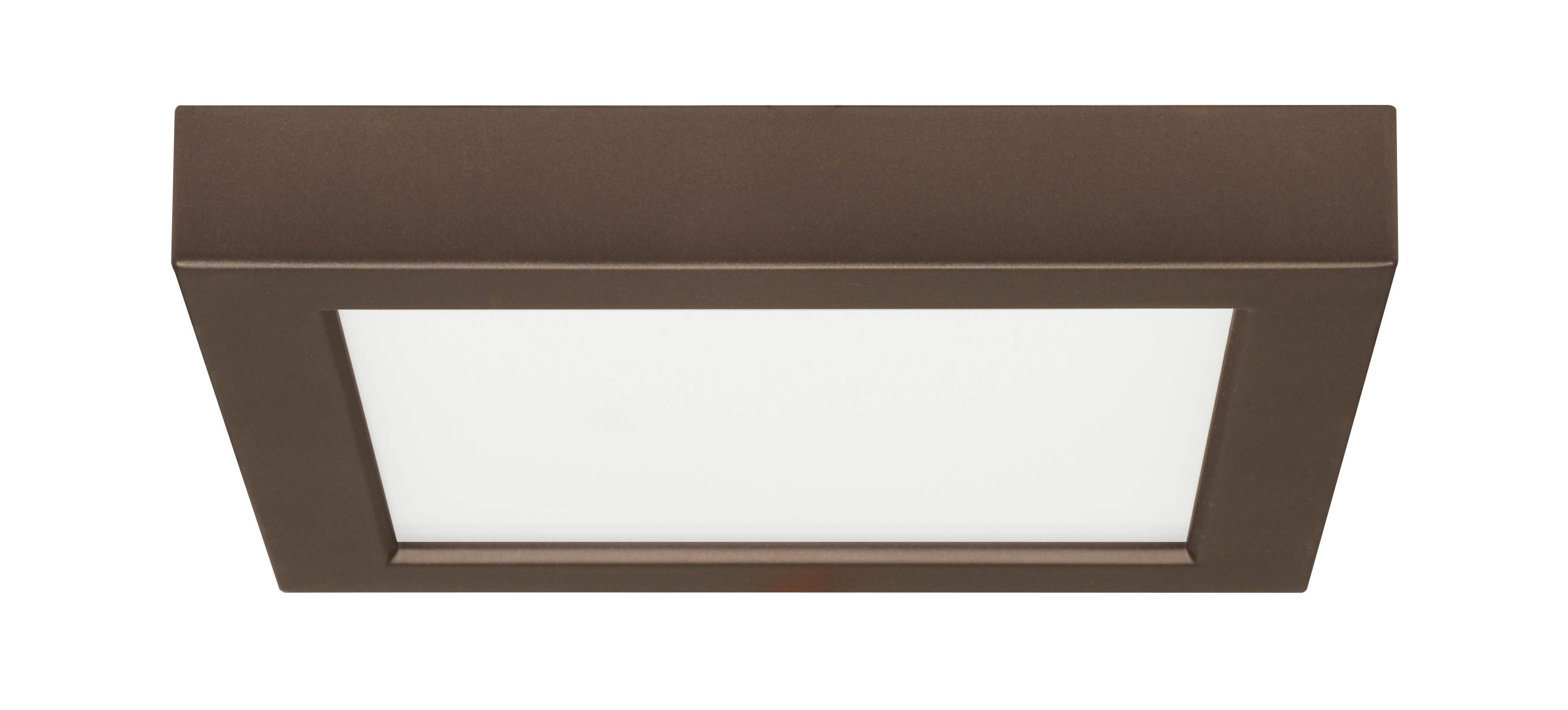

13.5W/LED/7"FLUSH/30K/SQ/BRZ - S21510
S21510

13.5W/LED/7"FLUSH/30K/SQ/BRZ

Discontinued - Suggested Replacement: 62-1716
  • 13.5 watt
  • 7" Flush Mount LED Fixture
  • 3000K
  • Square Shape
  • Bronze Finish
  • 120 volts
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
volts^120v^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21510 SpecificationsS21510 Instructions.pdf
Tools
Lighting Layout Analysis For S21510
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
13.5 watt; 7" Flush Mount LED Fixture; 3000K; Square Shape; Bronze Finish; 120 volts
Products Specs
General
CompanySATCO
Bulb IncludedIntegrated
MaterialAluminum
Fixture TypeBLINK
StatusObsolete
StyleUtility
CCT SelectableNo
Wattage SelectableNo
Finish FamilyBronze
Amps0.113A
Has CameraNo
IOT EnabledNo
Lens MaterialGlass
Power Factor0.99
SDS ClassLED_Lamp
Indoor OutdoorIndoor
Product TechnologyLED
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)3000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)108
Color TempWarm White
CRI90+
Dimming Type120V only, Phase cut

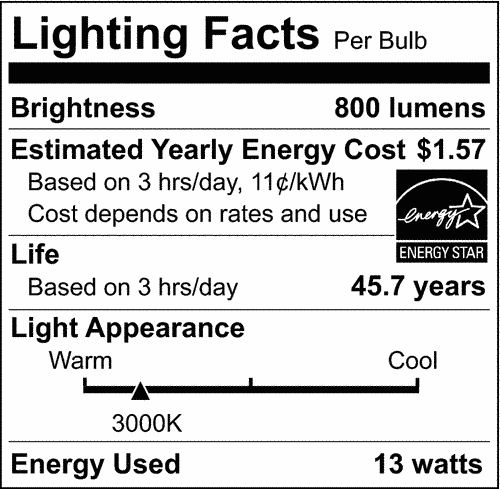

Lumens800L
Volts120v
Watts13.5W
ConnectionHardwire
Physical
Lamp BaseIntegrated
FinishBRONZE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeSquare
Mounting ProcedureCeiling/Wall
Additional Info
Warranty3-Years
Documents
Compliance
CA Prop 65Lead
FCC CompliantYes
Location RatingWet
NEC ComplianceClothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanCalifornia T24 Listed
DLC ApprovedNo
Energy Star CertifiedNo
Title 20Exempt
T24/JA8 CompliantYes
Packaging
UPC045923205101
Case Cube1.1401
Case Height10.43
Case Length16.54
Case Quantity12
Case UPC10045923205108
Case Weight20.5
Case Width11.42
EA Cube0.0773
EA Height9.67
EA Length1.77
EA Quantity1
EA Weight1.7
EA Width7.8
Pack TypeColor Box
Web Height1.0
Web Length7.0
Web Width7.0
