S21600

13.5W/CDL/4/120-347/FS/RND/DD

  • 13.5W Field Selectable LED 4-Inch Commercial Downlight
  • Dual Dimming
  • Round
  • 120-347 Volt
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
ip_rating^IP20^1
energy_star_certified^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21600 SpecificationsS21600 InstructionsS21600 PI Photometrics
Tools
Lighting Layout Analysis For S21600
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

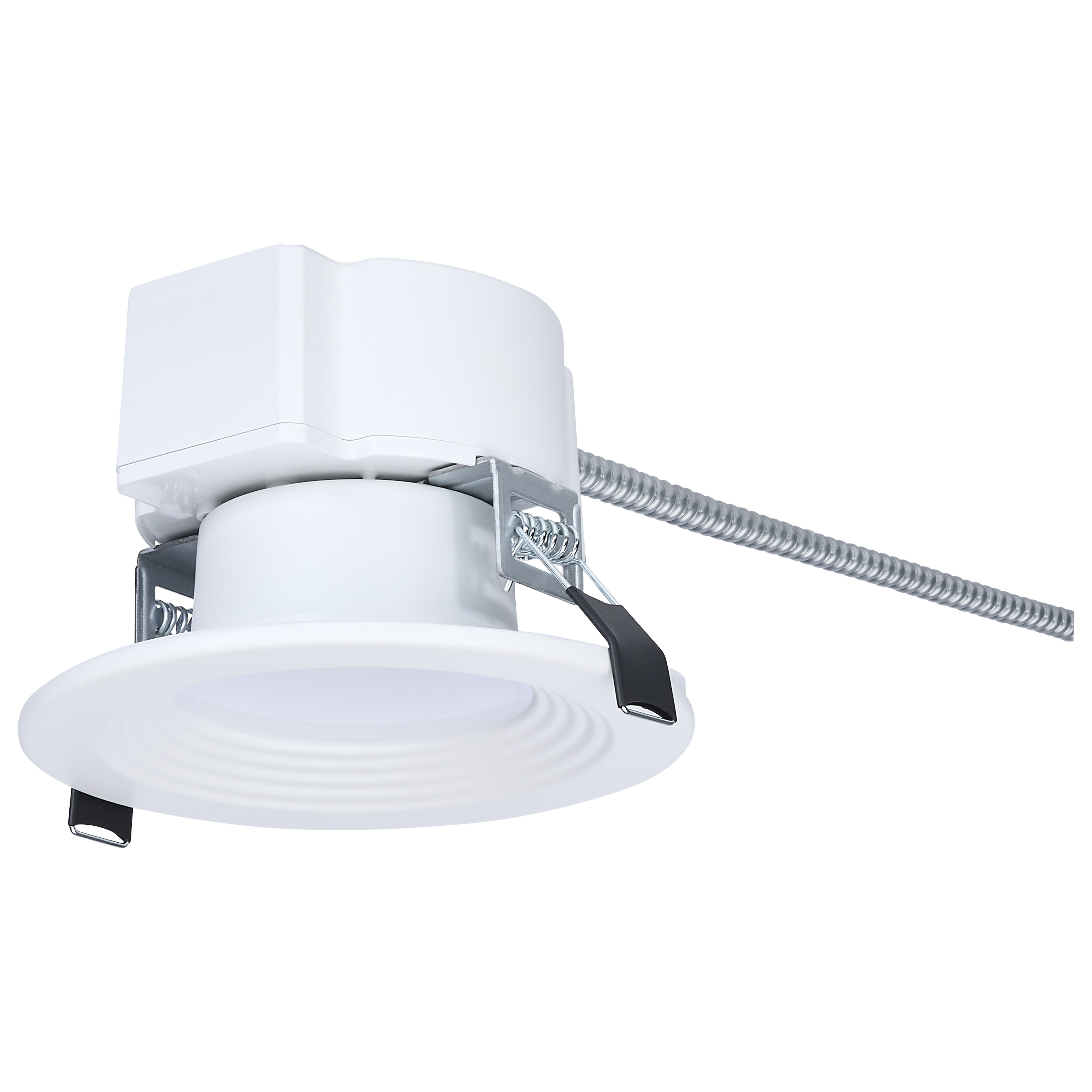

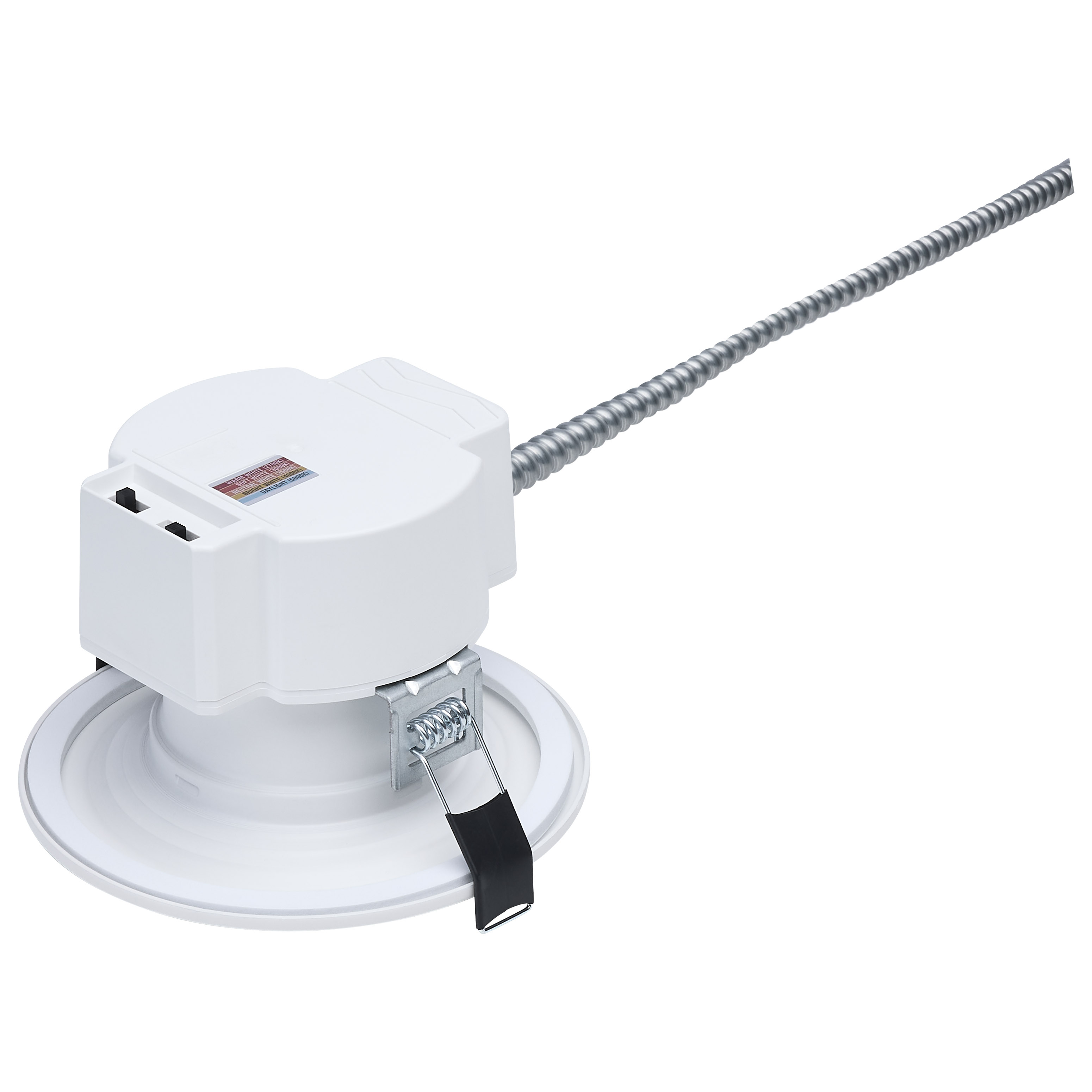

13.5W Field Selectable LED 4-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt

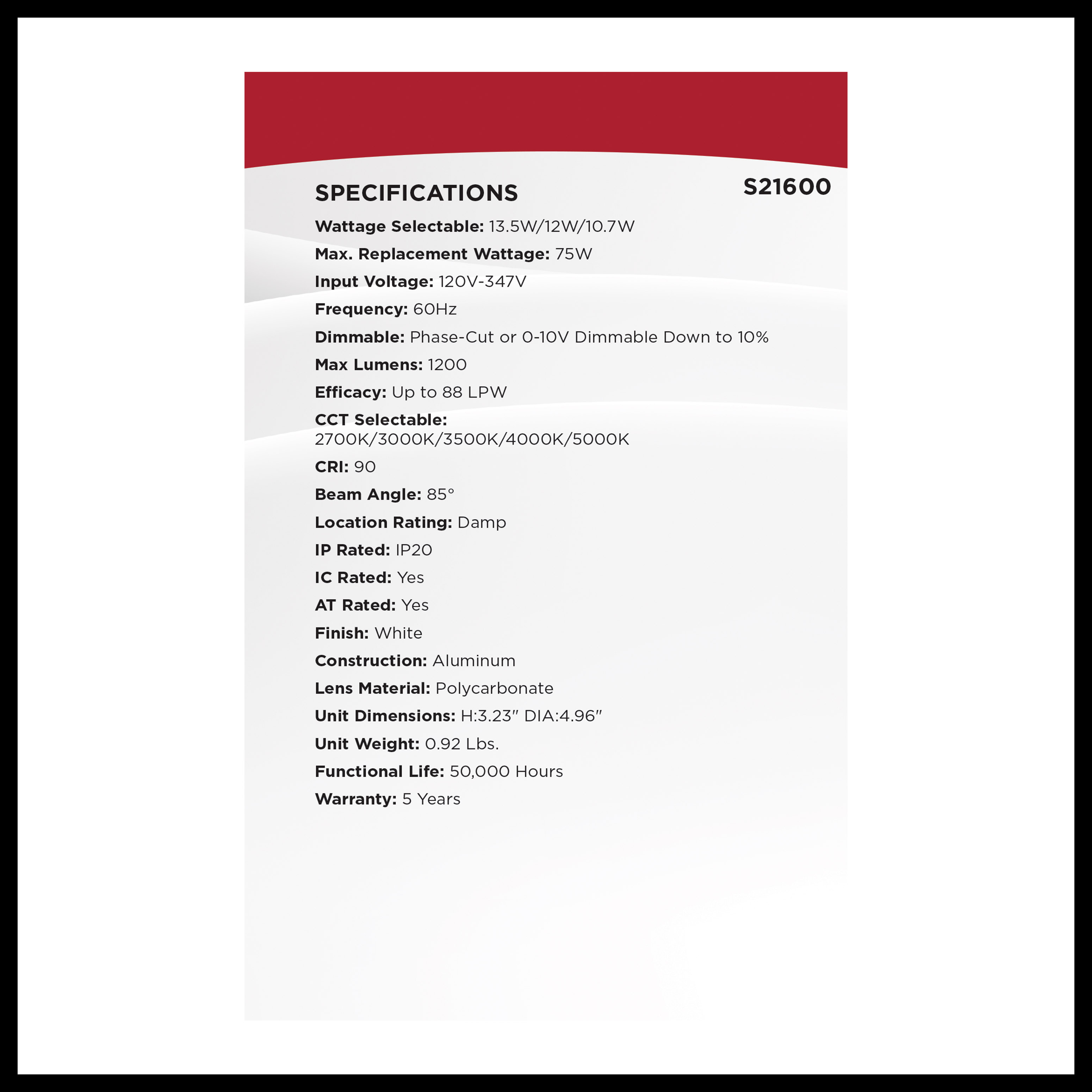

Products Specs
General
CompanyNUVO
Mounting Height3.07
Bulb IncludedIntegrated
Diameter4.96
Dimmable TextPhase Cut at 120V/0-10V at 120-347V
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault CCT setting is 3000K. Default wattage setting is 13.5W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<30%
Up Down InstallationDown

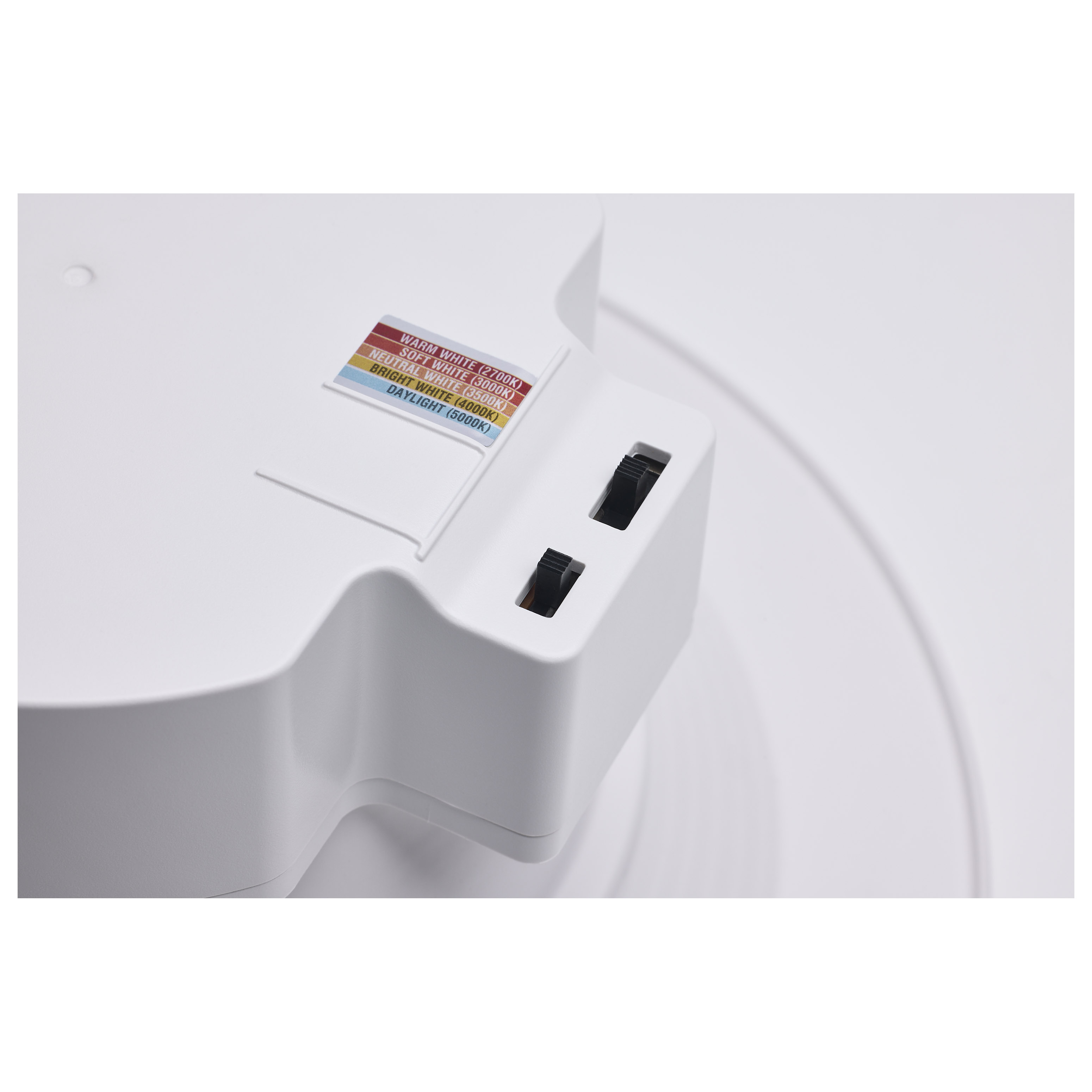

CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.113-0.039/0.100-0.035/0.089-0.031A
Mounting Diameter4.17
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Nominal Length4.0
Photo CellNo
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv18W
Incandescent Equivalent75W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)85
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens1200L/1000L/800L
Volts120V-347V
Watts13.5W/12W/10.7W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED

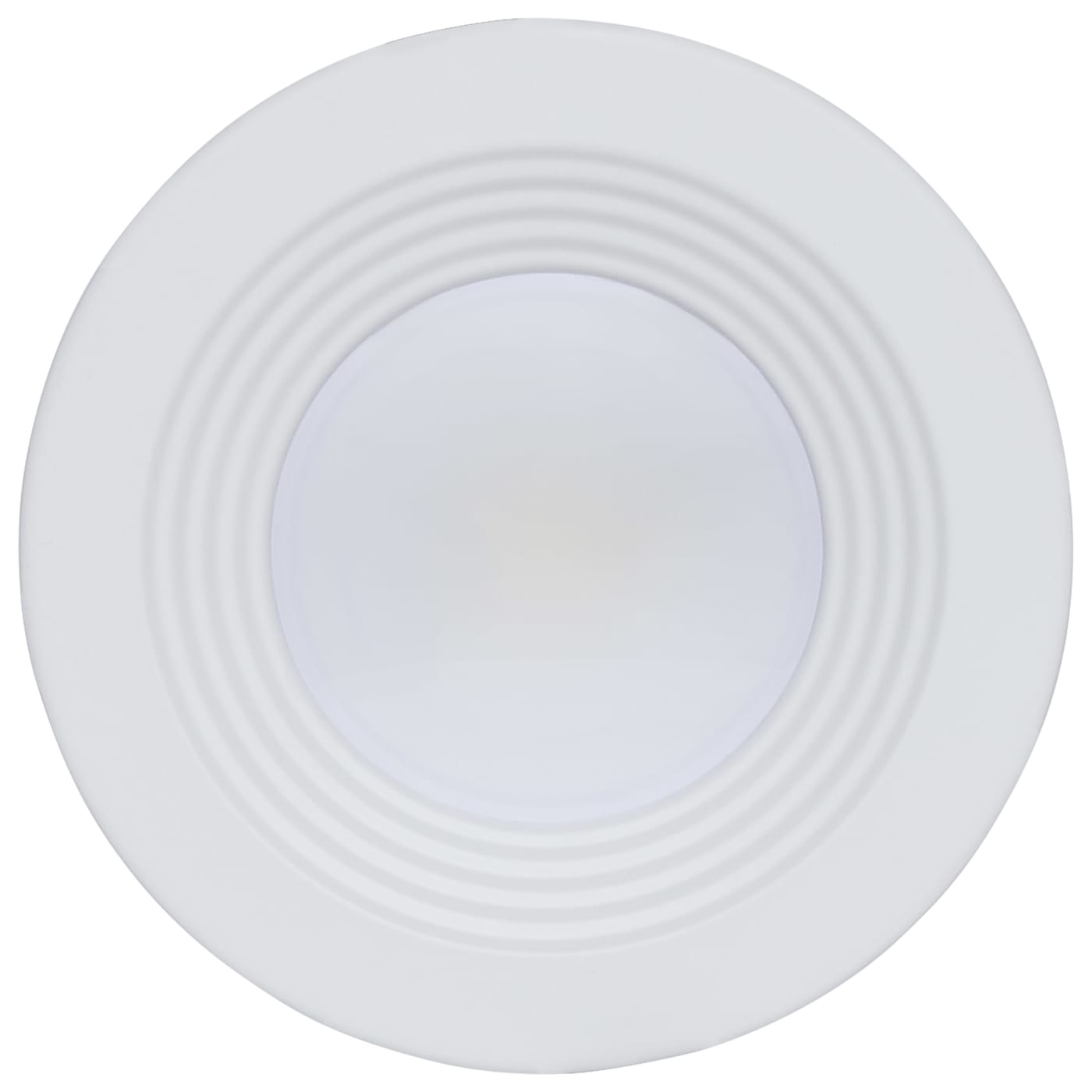

Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantFalse
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Energy Star ID4481353
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923411151
Case Cube0.9539
Case Height7.84
Case Length18.11
Case Quantity8
Case UPC10045923411158
Case Weight9.48
Case Width11.61
EA Cube0.0979
EA Height7.09
EA Length5.51
EA Quantity1
EA Weight1.07
EA Width4.33
Inner Cube0.0
Pack TypeColor Box

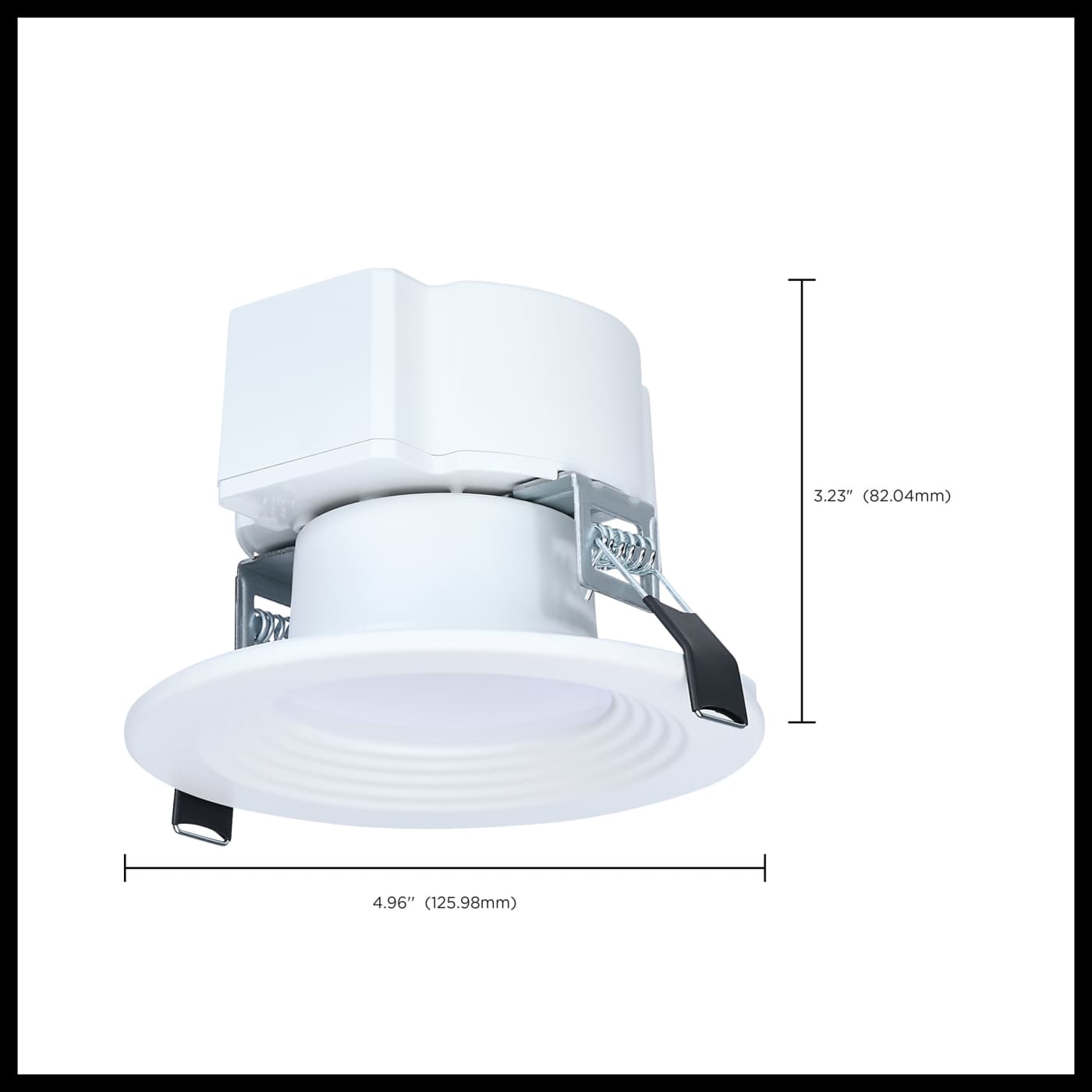

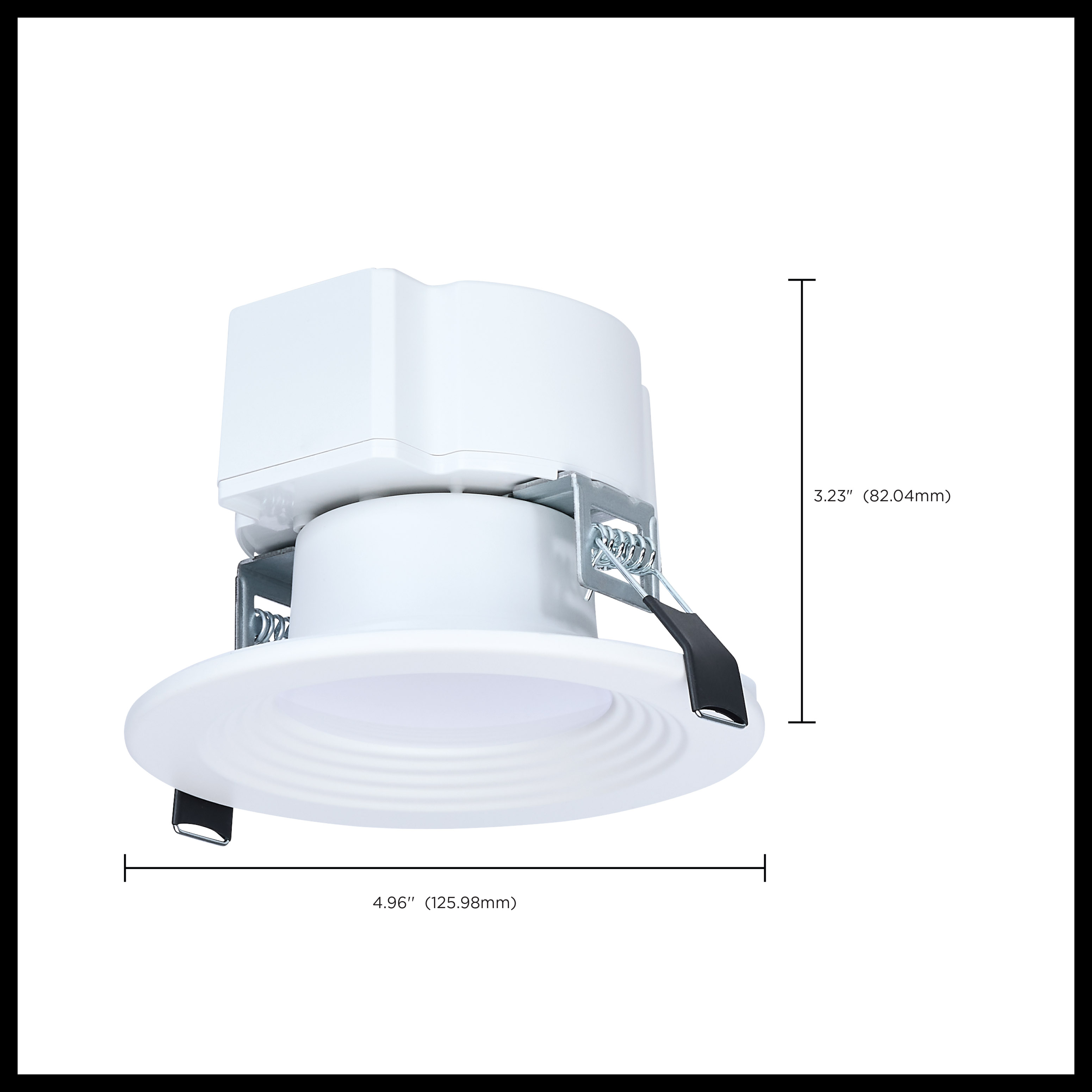

Web Height3.23
Web Width4.96
