S21601

18.5W/CDL/6/120-347/FS/RND/DD

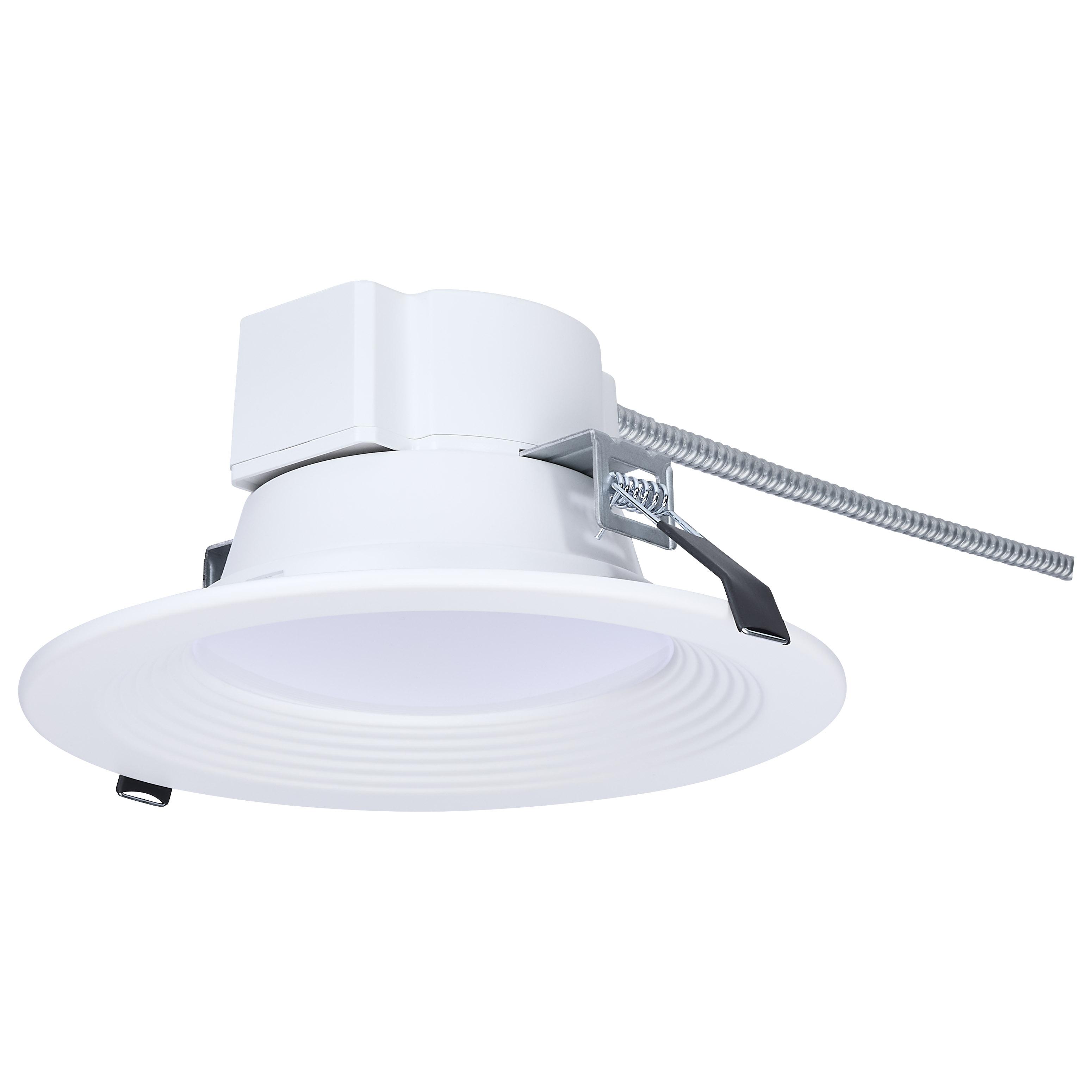

  • 18.5W Field Selectable LED 6-Inch Commercial Downlight
  • Dual Dimming
  • Round
  • 120-347 Volt
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
ip_rating^IP20^1
energy_star_certified^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21601 SpecificationsS21601 InstructionsS21601 PI Photometrics
Tools
Lighting Layout Analysis For S21601
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description

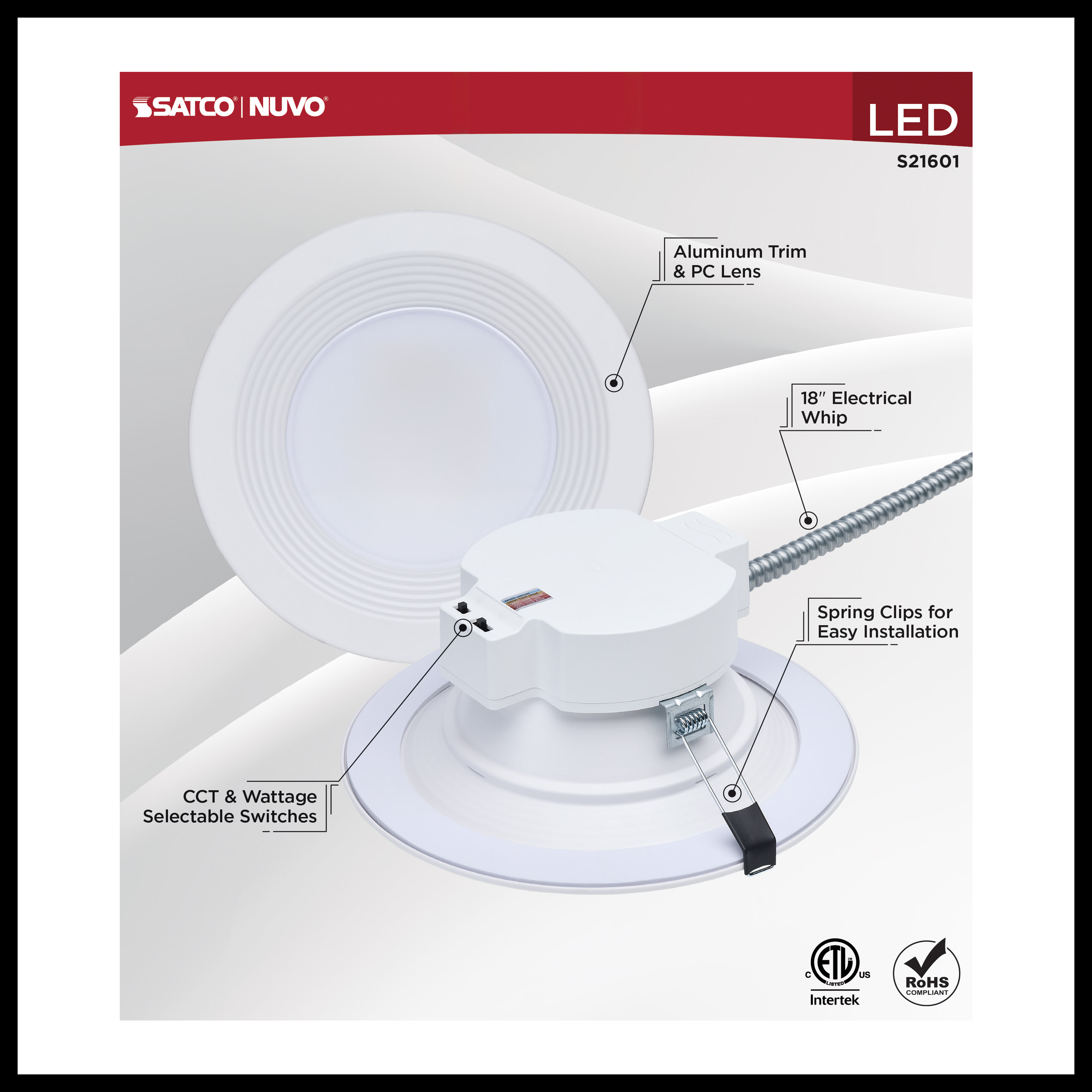

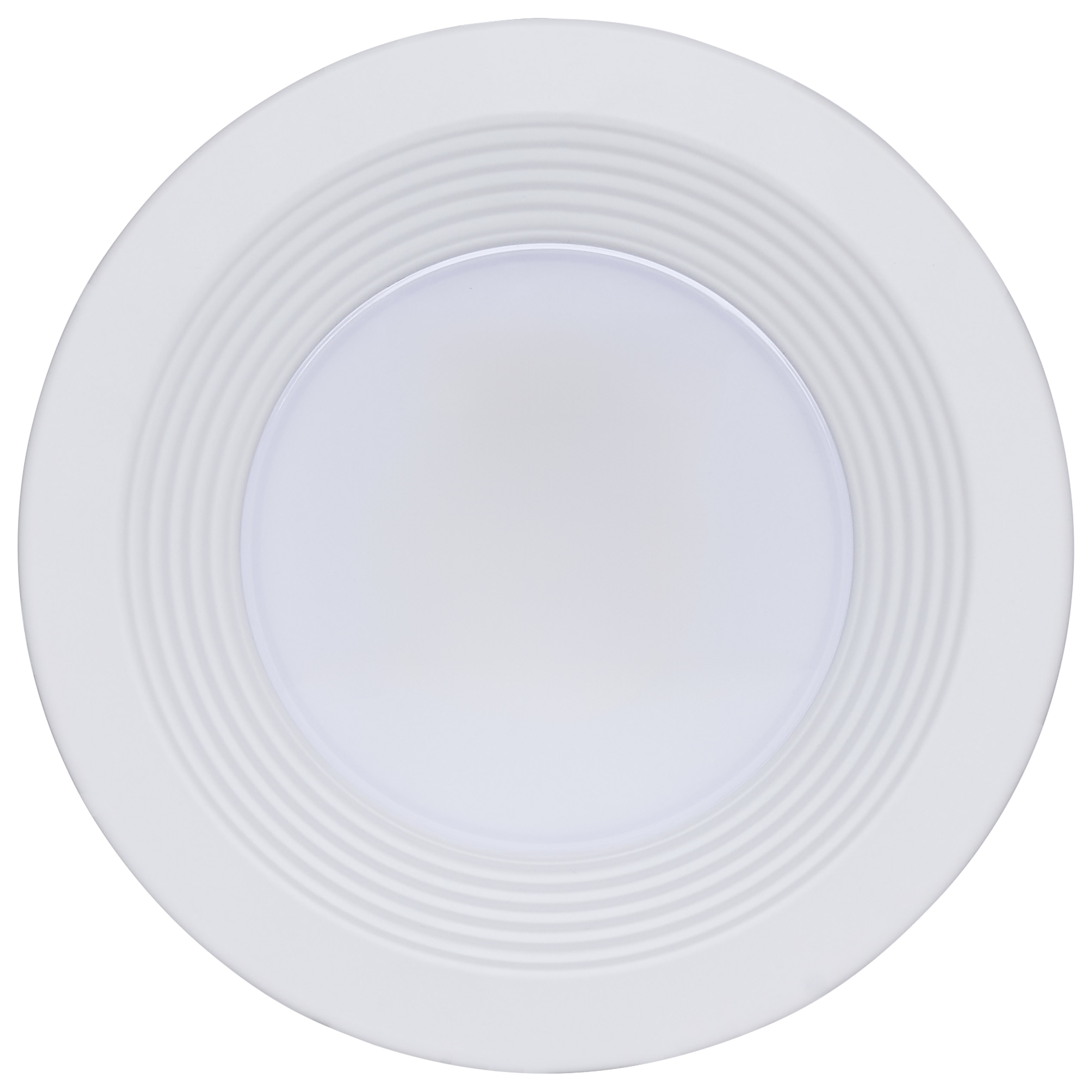

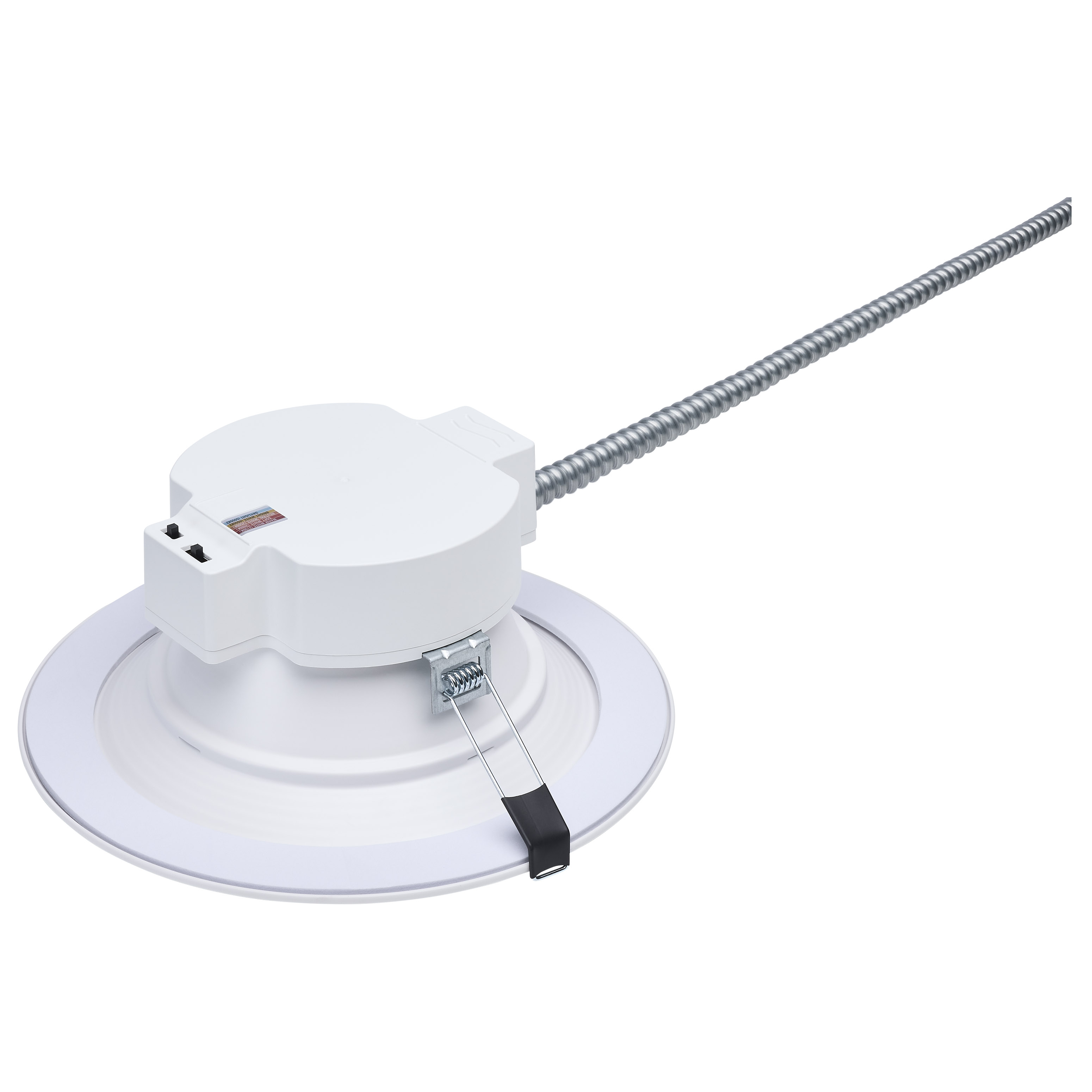

18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Round; 120-347 Volt

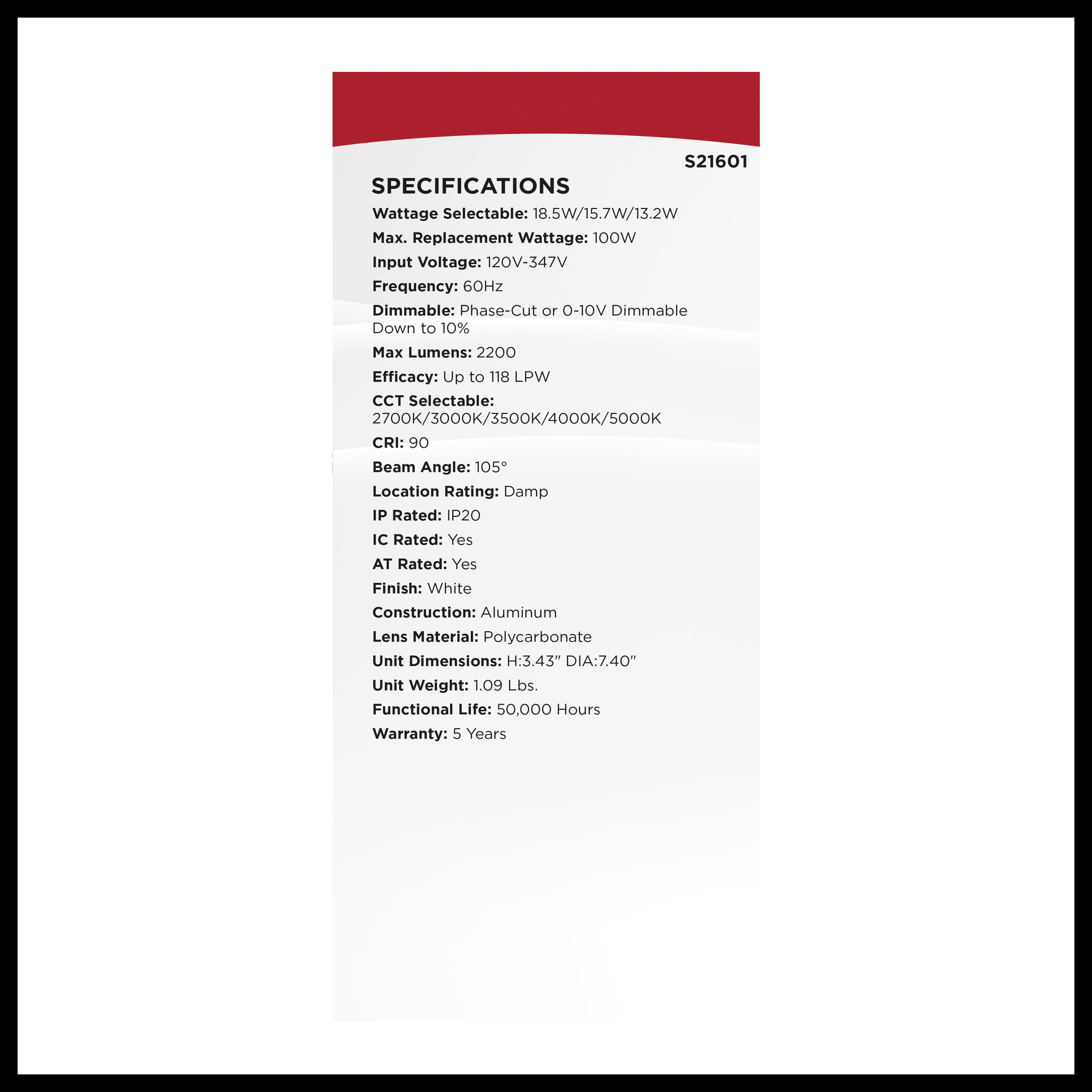

Products Specs
General
CompanyNUVO
Mounting Height3.29
Bulb IncludedIntegrated
Diameter7.4
Dimmable TextPhase Cut at 120V/0-10V at 120-347V
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault CCT setting is 3000K. Default wattage setting is 18.5W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<30%
Up Down InstallationDown

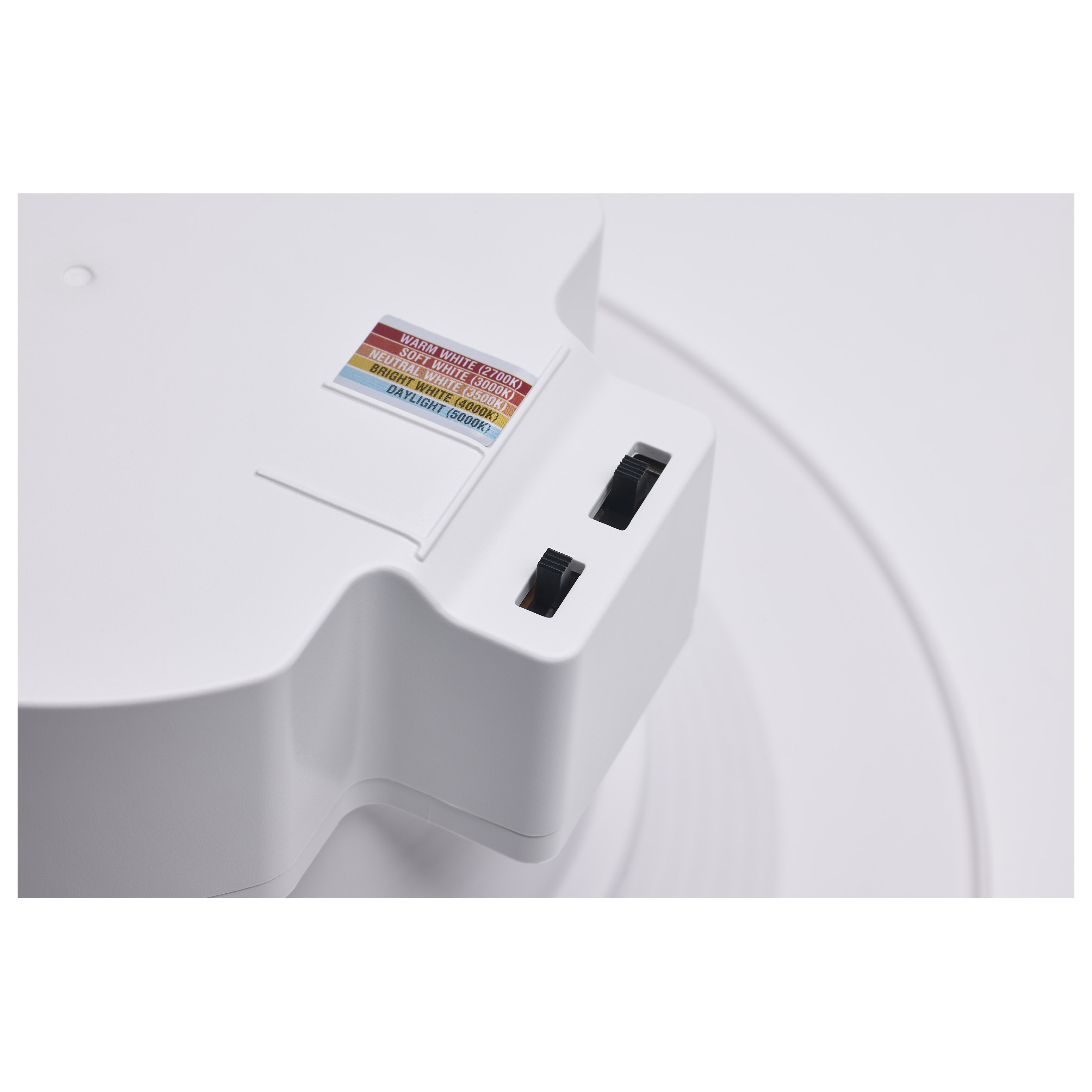

CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.154-0.053/0.131-0.045/0.110-0.038A
Mounting Diameter6.02
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Nominal Length6.0
Photo CellNo
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)105
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens2200L/1800L/1400L
Volts120V-347V
Watts18.5W/15.7W/13.2W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantFalse
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Energy Star ID4481356
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923411168
Case Cube1.539
Case Height9.84
Case Length16.54
Case Quantity8
Case UPC10045923411165
Case Weight12.39
Case Width16.34
EA Cube0.1626
EA Height9.06
EA Length7.87
EA Quantity1
EA Weight1.38
EA Width3.94
Inner Cube0.0

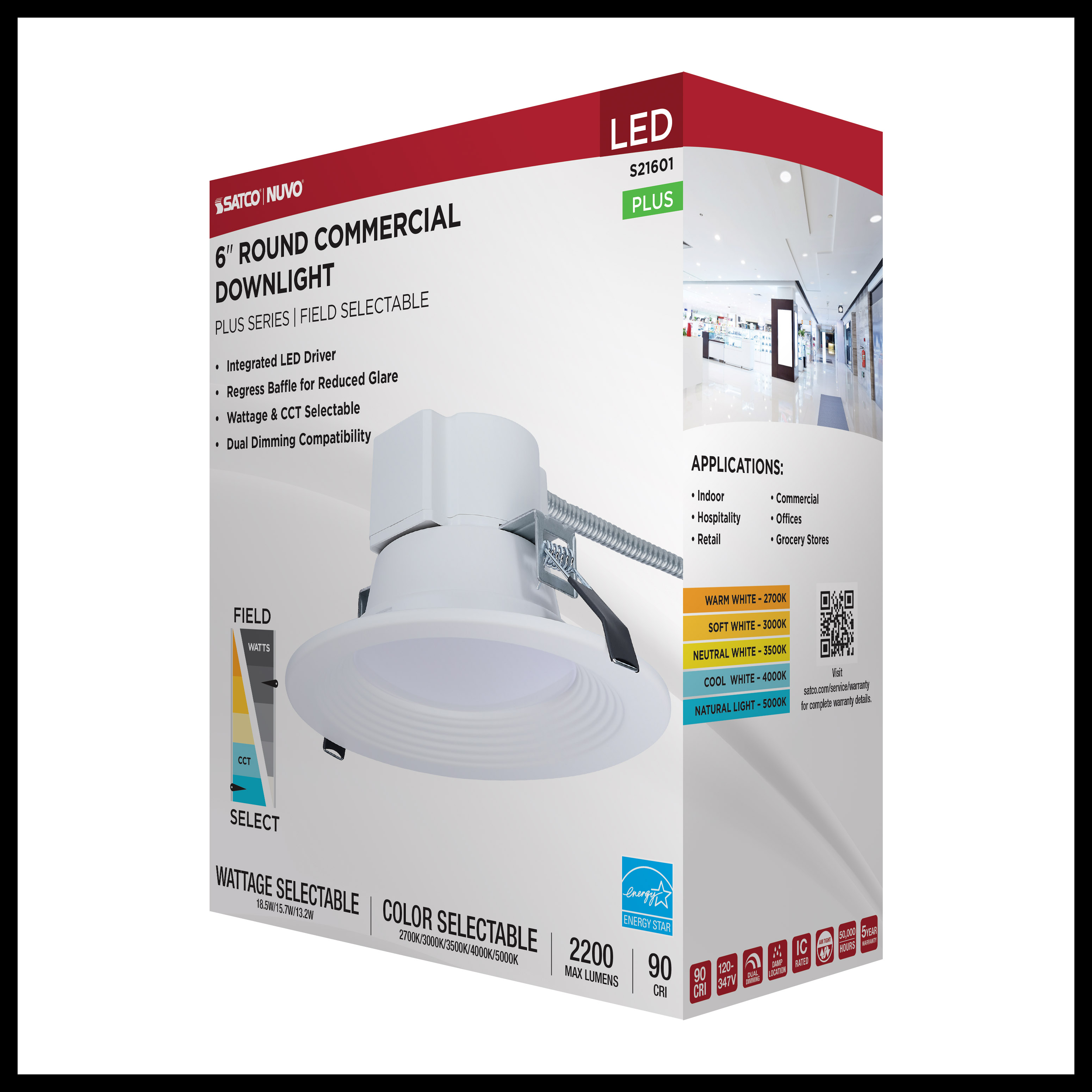

Pack TypeColor Box

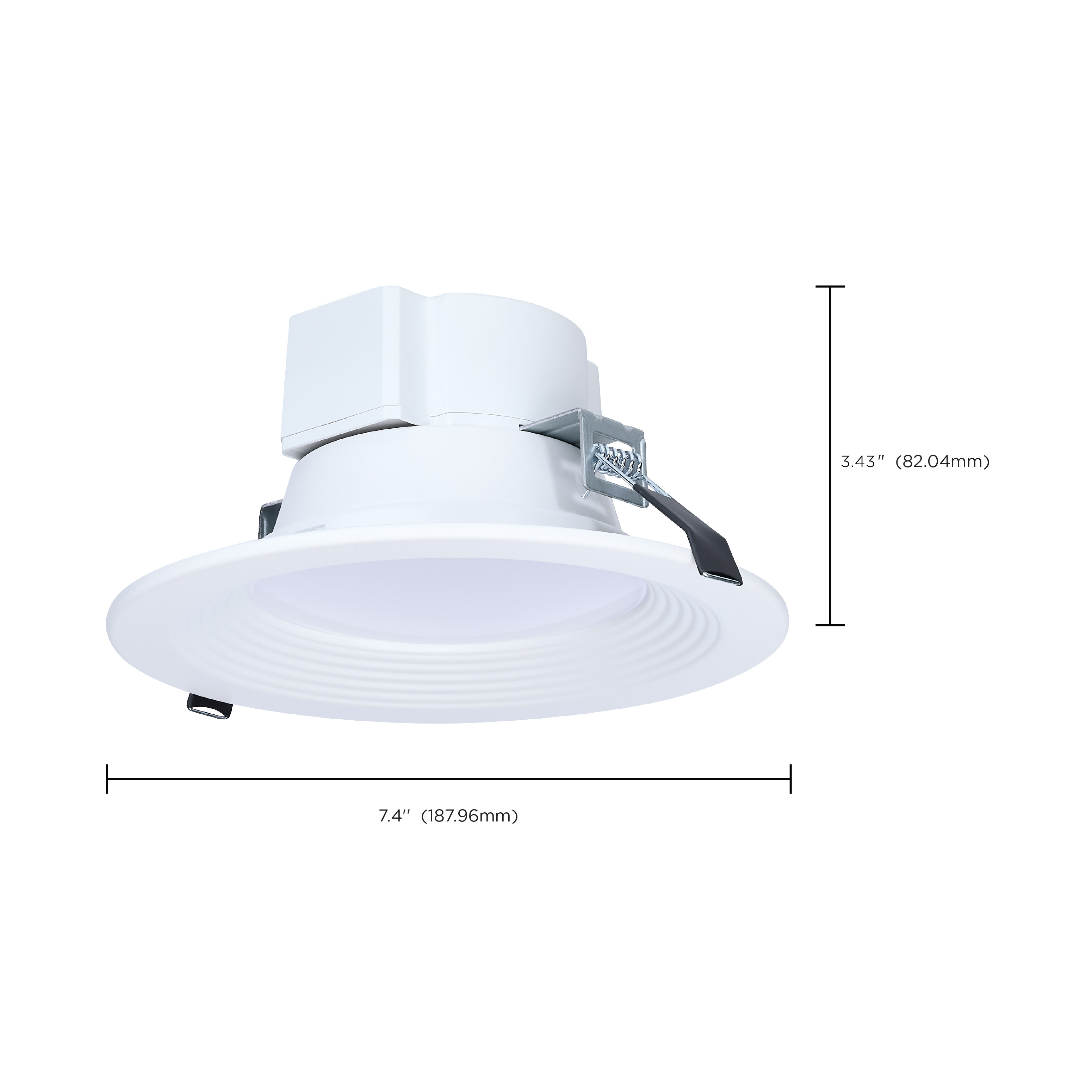

Web Height3.43
Web Width7.4
