S21603

35W/CDL/10/120-277/FS/RND/DD

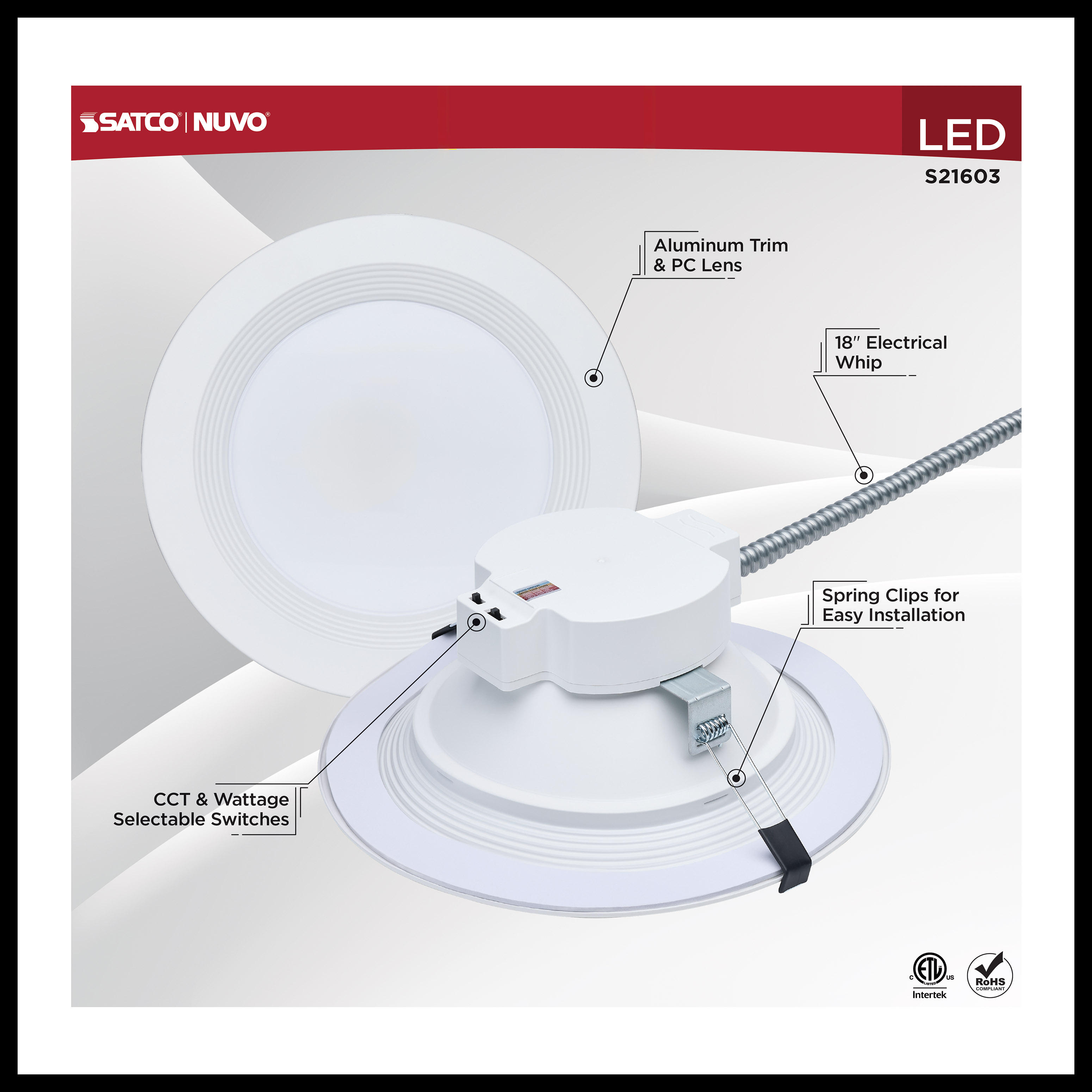

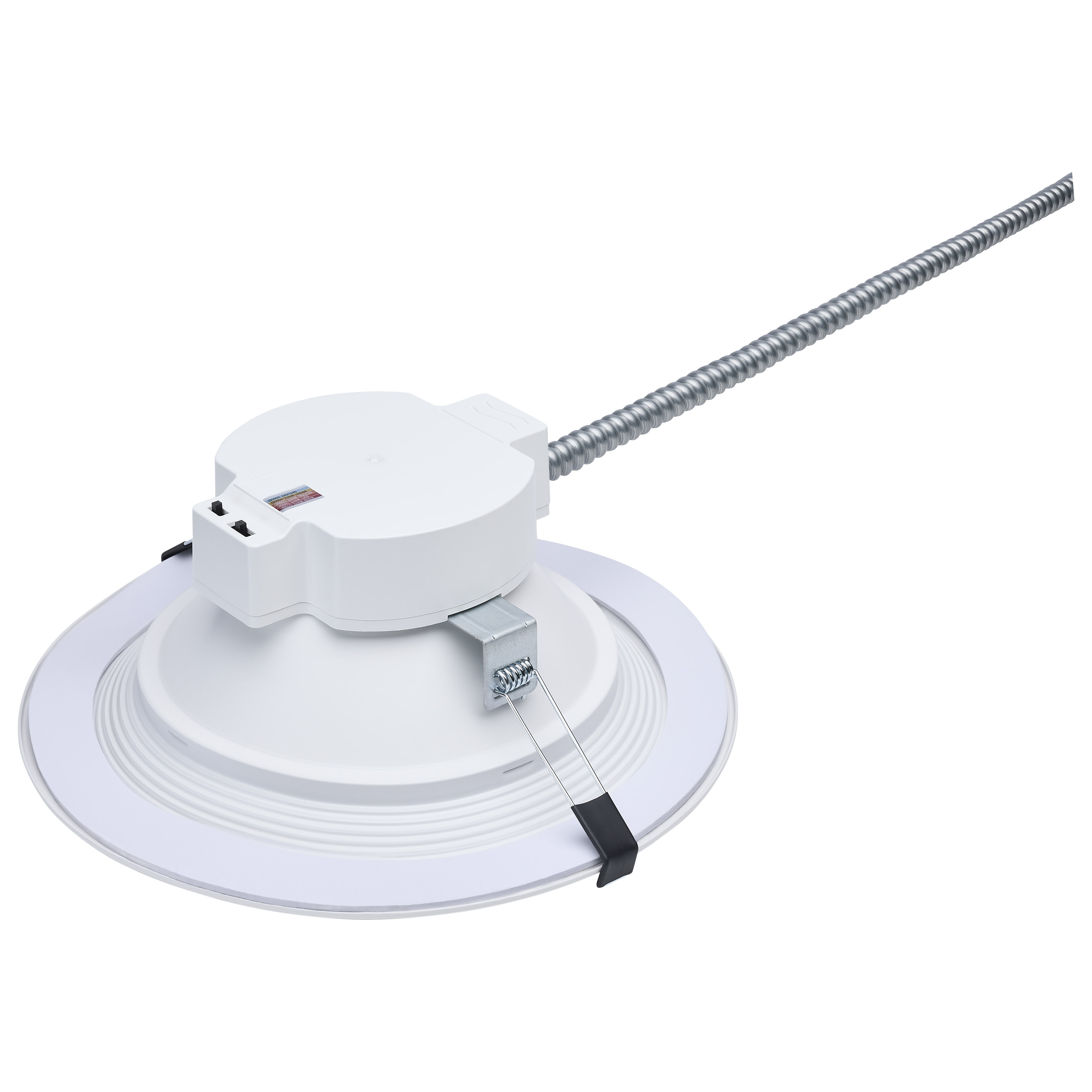

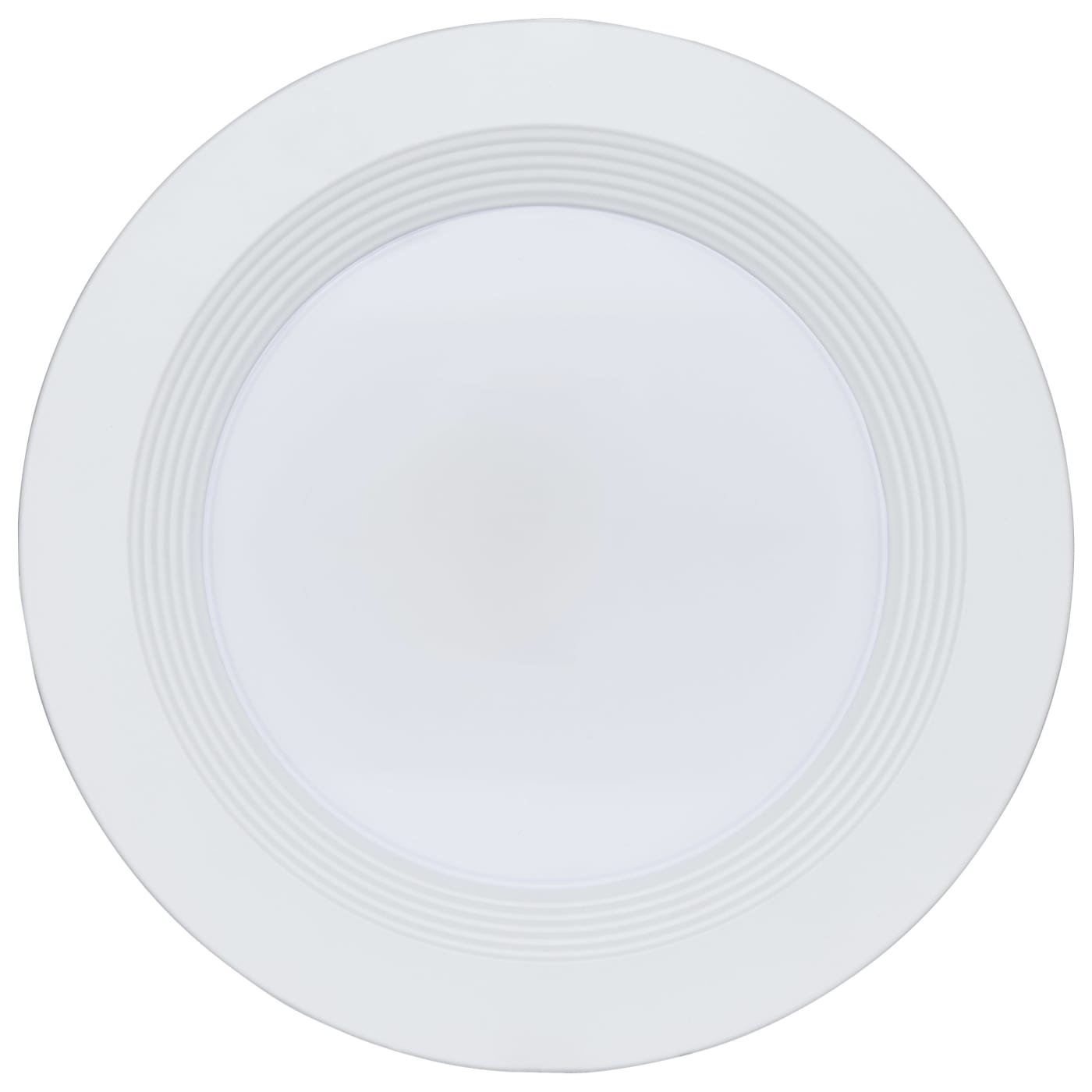

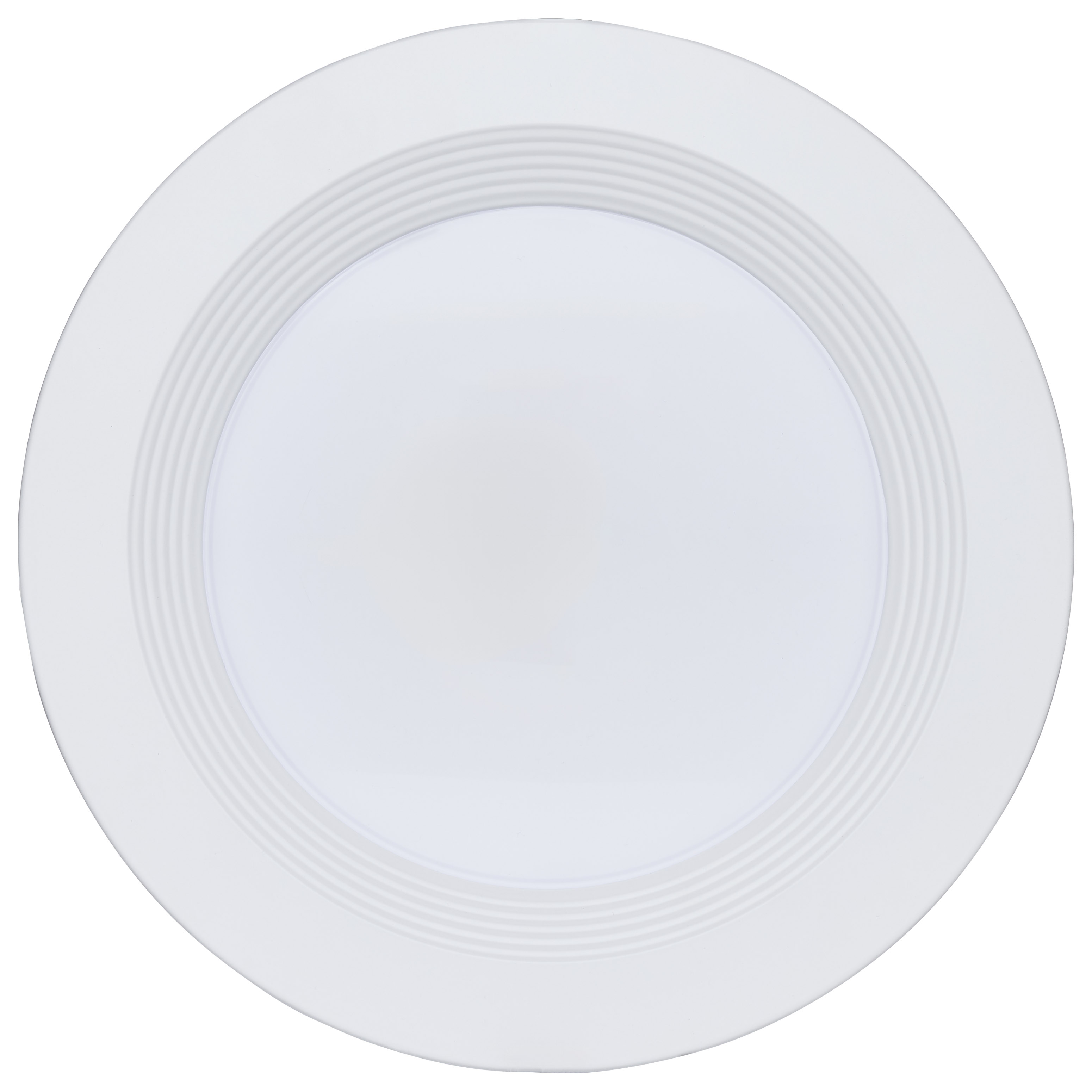

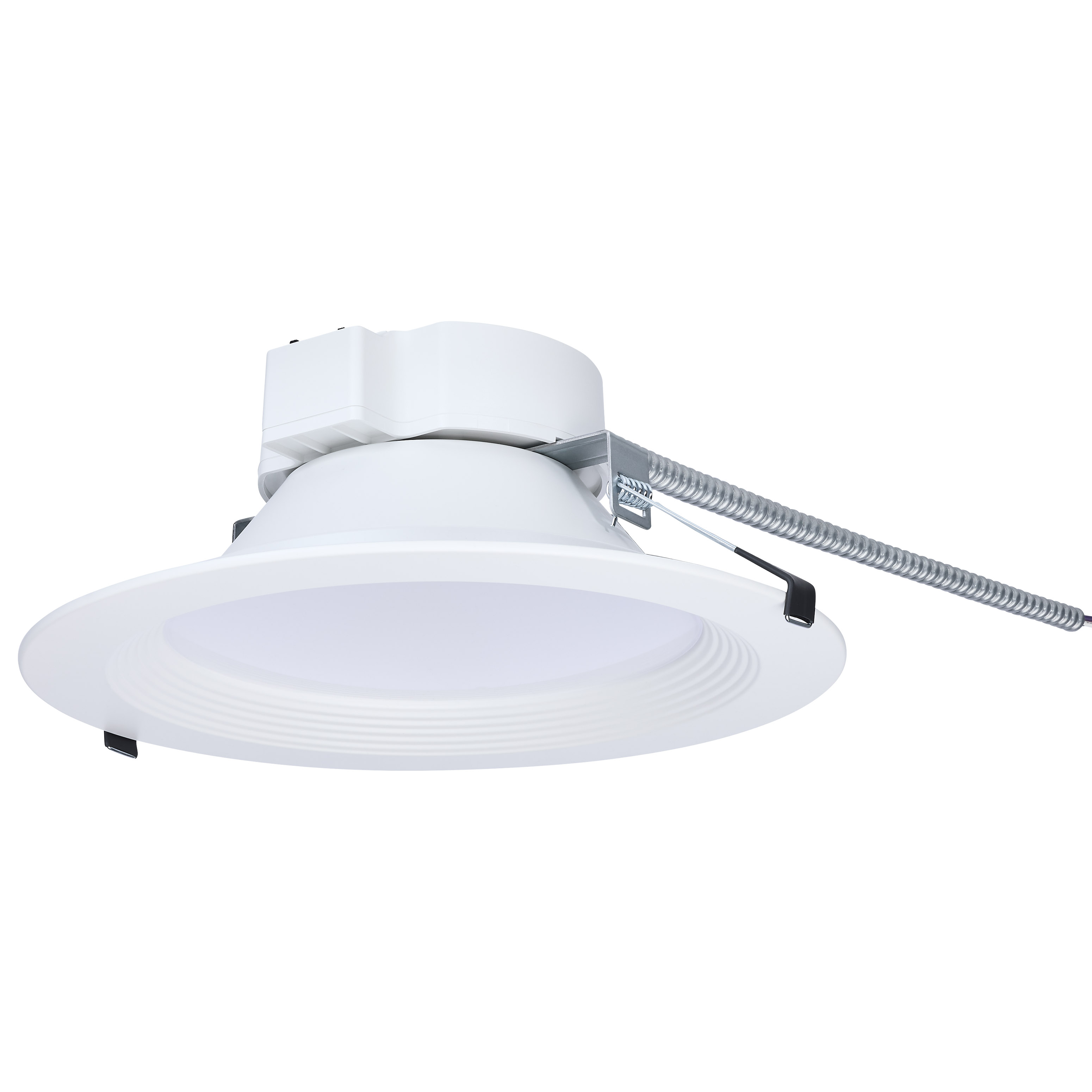

  • 35W Field Selectable LED 10-Inch Commercial Downlight
  • Dual Dimming
  • Round
  • 120-277 Volt
location_rating^damp^1
cc_selectable^y^1
air_tight^y^1
ip_rating^IP20^1
energy_star_certified^y^1
title_24^y^1
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21603 SpecificationsS21603 InstructionsS21603 PI Photometrics
Tools
Lighting Layout Analysis For S21603
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
35W Field Selectable LED 10-Inch Commercial Downlight; Dual Dimming; Round; 120-277 Volt

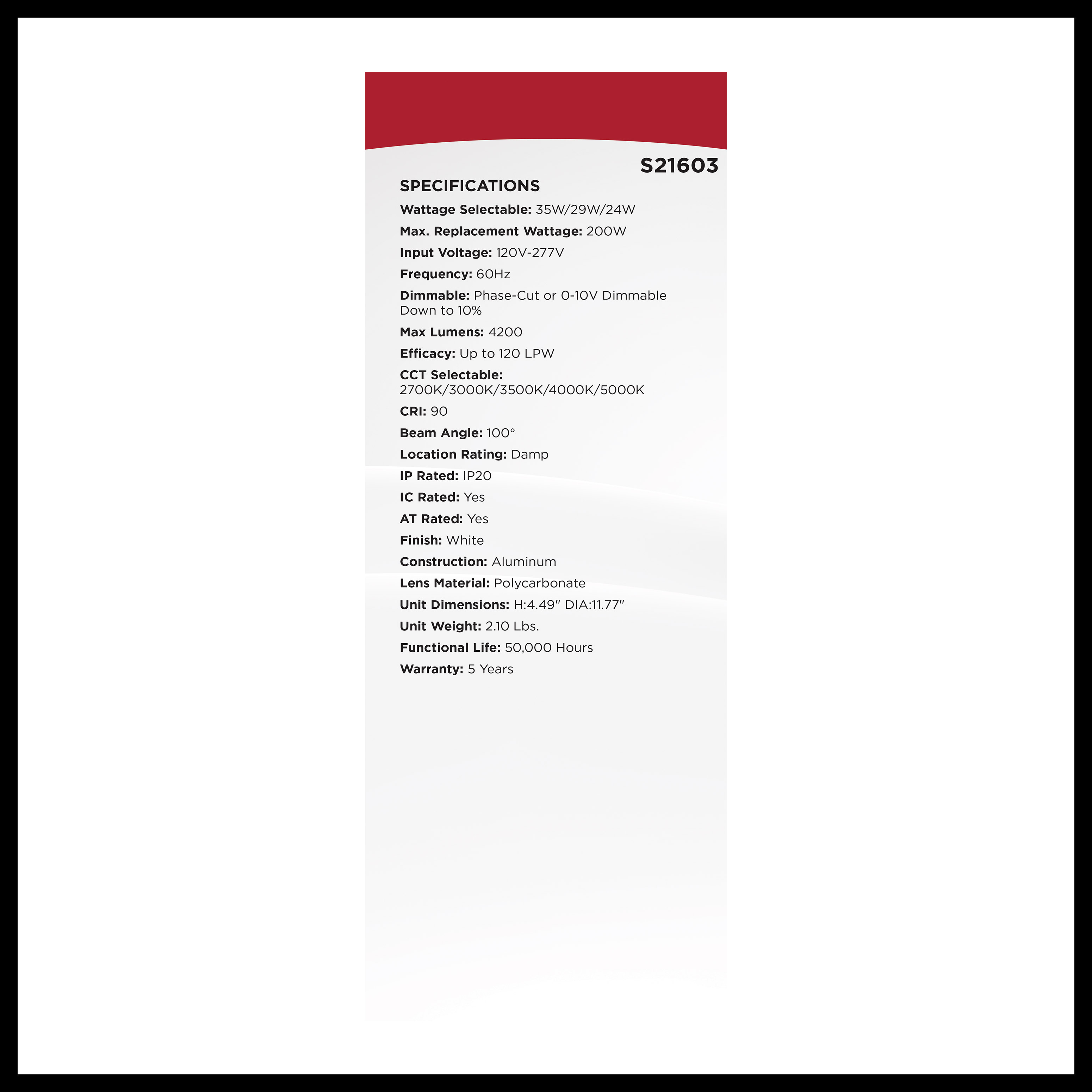

Products Specs
General
CompanyNUVO
Mounting Height4.32
Bulb IncludedIntegrated
Diameter11.77
Dimmable TextPhase Cut at 120V/0-10V at 120-347V
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault CCT setting is 3000K. Default wattage setting is 35W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<30%
Up Down InstallationDown

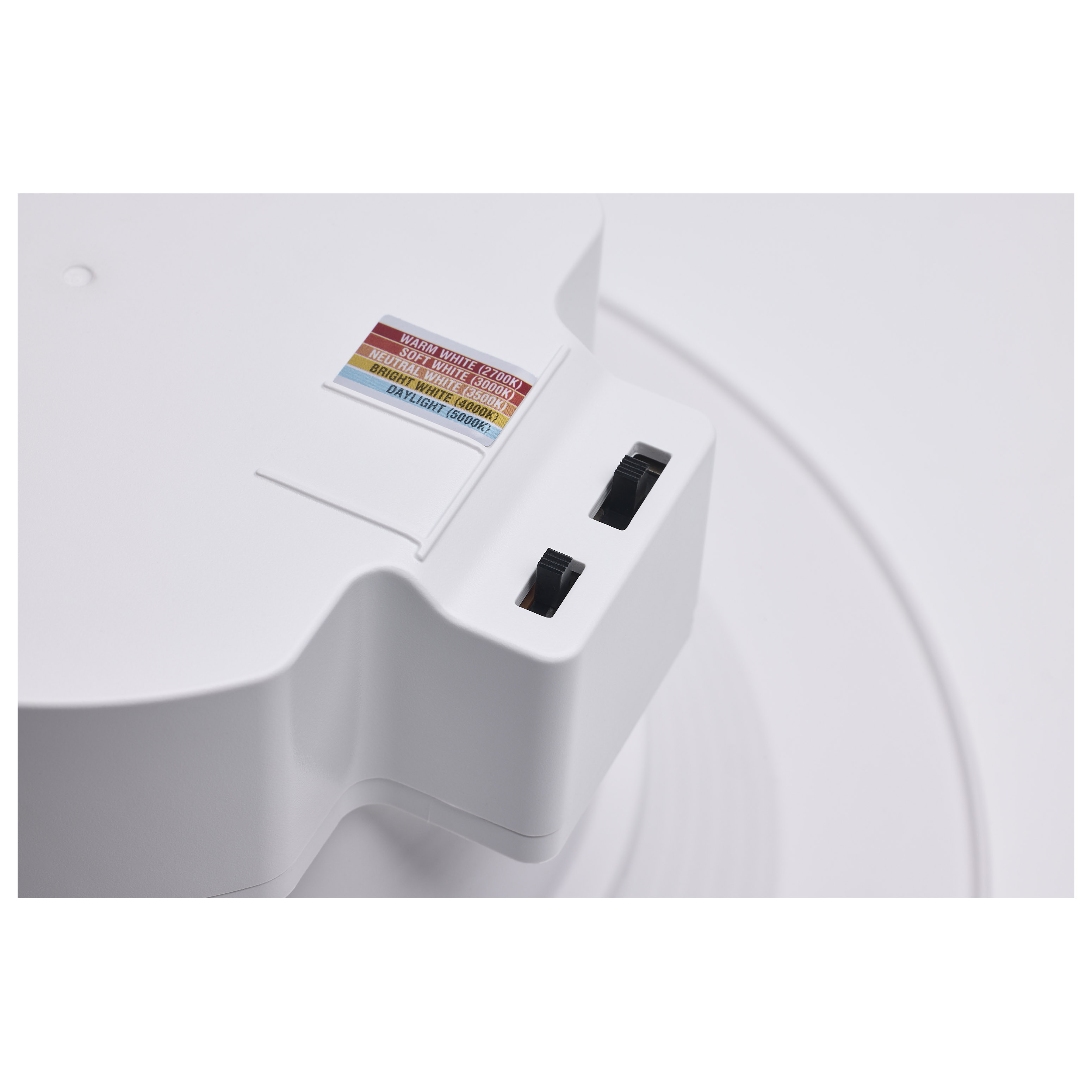

CCT SelectableTrue
Wattage SelectableTrue
Finish FamilyWhite
Amps0.267-0.116/0.242-0.105/0.200-0.087A
Mounting Diameter9.45
Has CameraFalse
IOT EnabledFalse
Lens MaterialPolycarbonate (PC)
Nominal Length10.0
Photo CellNo
Power Factor>0.9
SDS ClassLED_Fixture
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor
Product TechnologyLED
Fluor Equiv2 x 32W CFL
Incandescent Equivalent200W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming
Operating Frequency60Hz
Operating Temp-20C (-4F) to +40C (+104F)
Lumens4200L/3700L/3200L
Volts120V-277V
Watts35W/29W/24W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantFalse
Air TightTrue
CA RegulationsCalifornia T24 2016 - 2025 JA8 Listed
CA Prop 65Lead
CA StatusLawful for sale in California
Energy Star IDESID-4481360
FCC CompliantTrue
IC RatedTrue
IP RatingIP20
Location RatingDamp
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
CA Compliance TextLawful for sale
Energy Star CertifiedYes
Title 20Exempt
T24 CompliantTrue
Packaging
UPC045923411182
Case Cube2.072
Case Height13.58
Case Length19.69
Case Quantity4
Case UPC10045923411189
Case Weight12.28
Case Width13.39
EA Cube0.4475
EA Height12.8
EA Length12.8
EA Quantity1
EA Weight2.71
EA Width4.72
Inner Cube0.0
Pack TypeColor Box

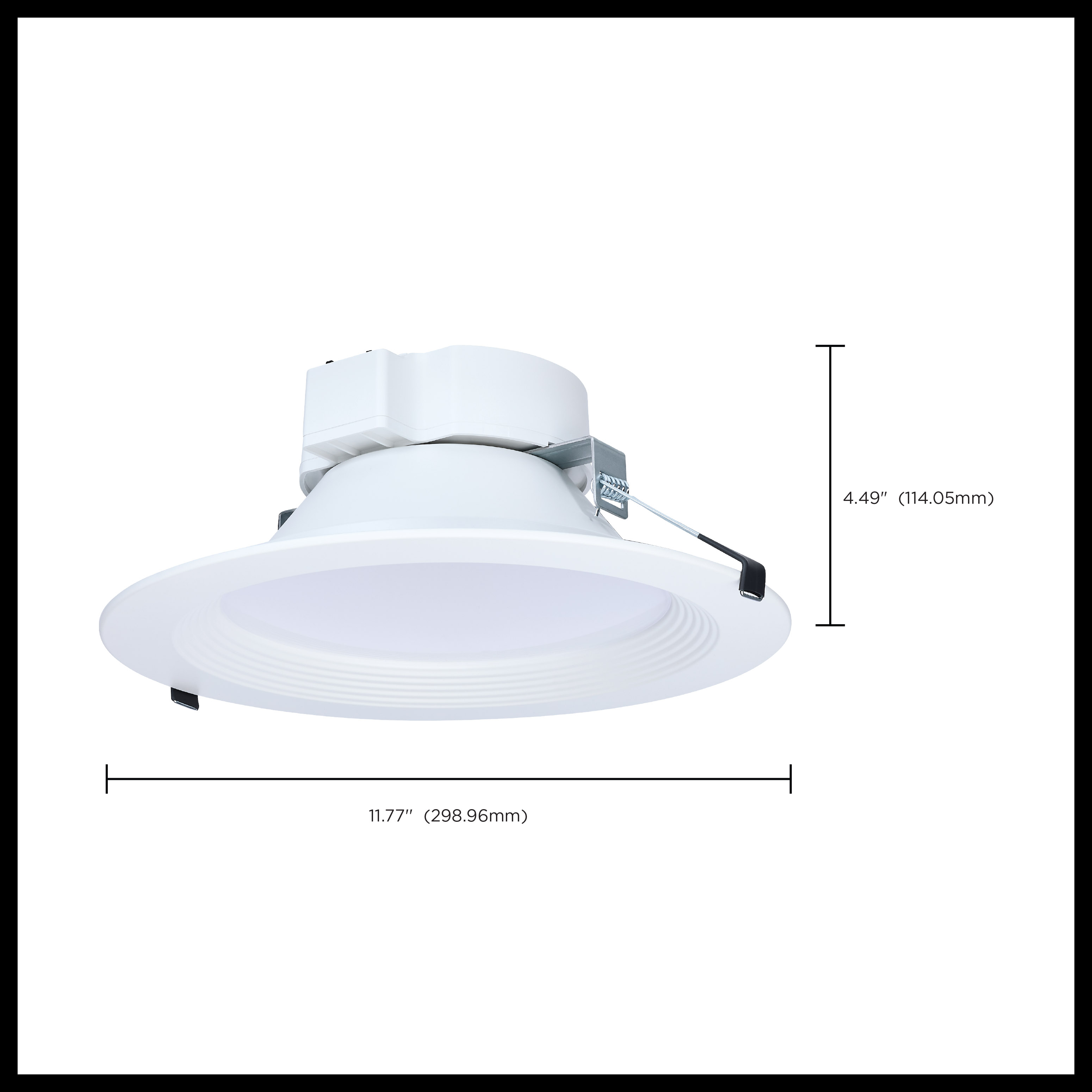

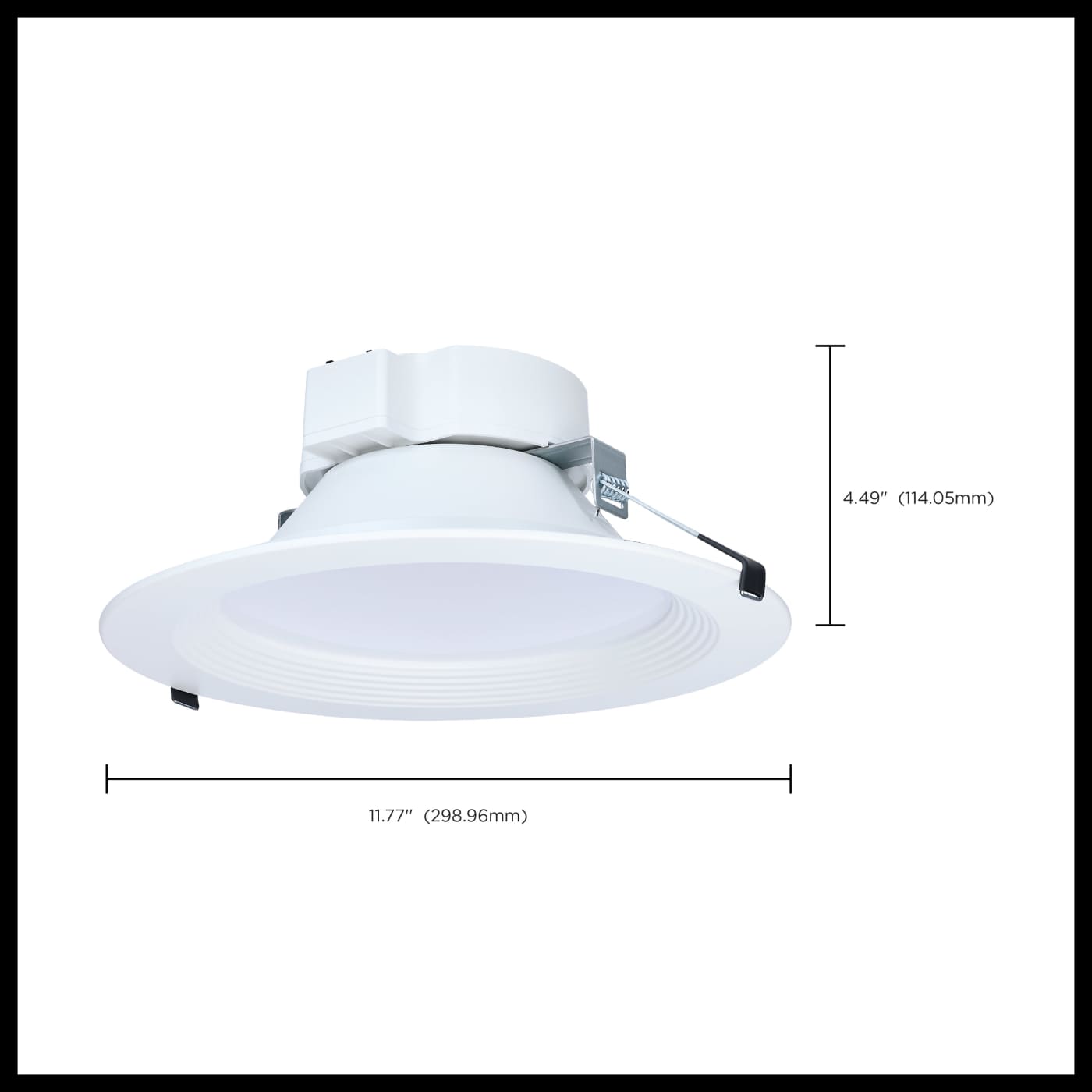

Web Height4.49
Web Width11.77
