S21605

20.5W/CDL/6/120-347/FS/RD/DD/E

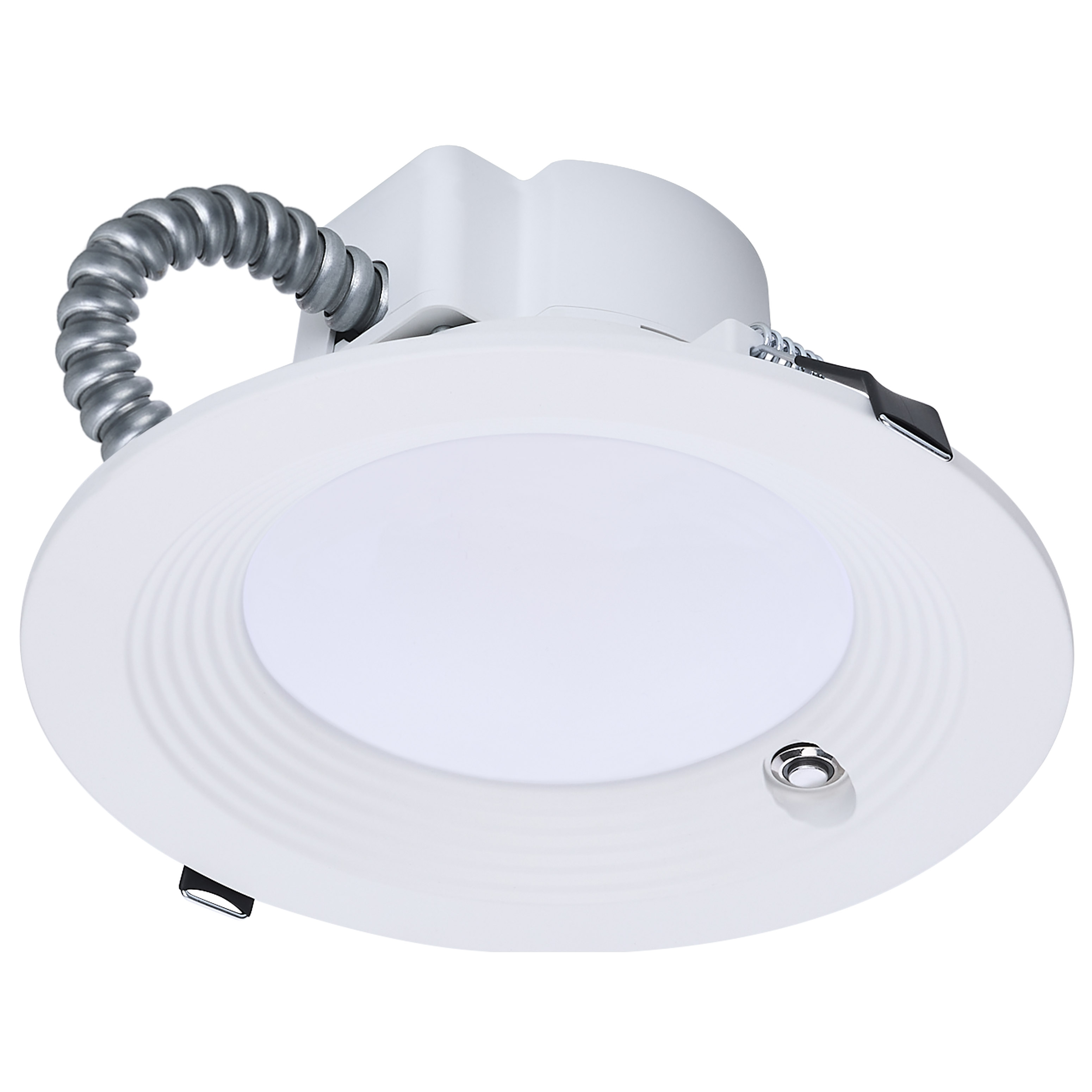

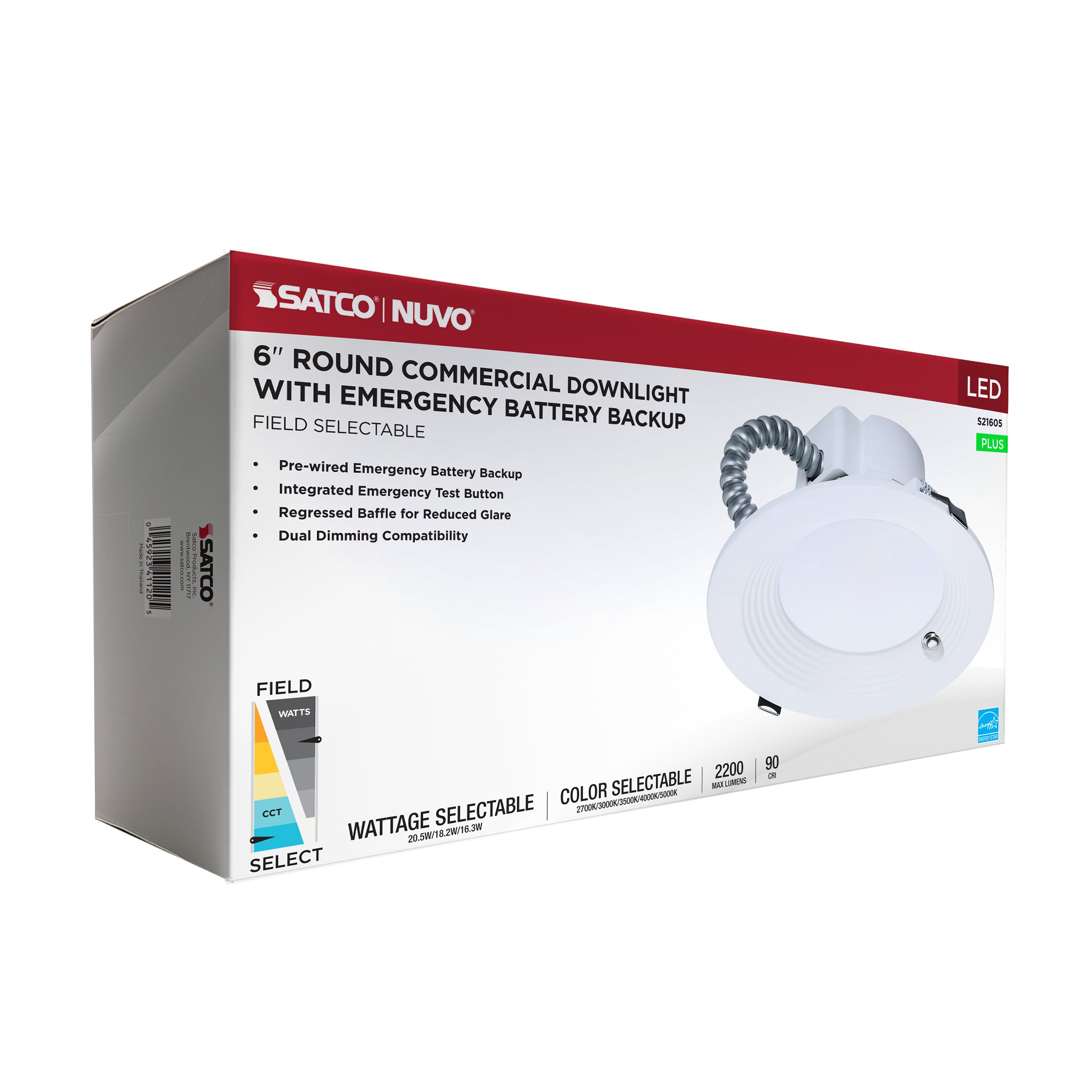

  • 20.5W Field Selectable LED 6-Inch Commercial Downlight
  • Dual Dimming

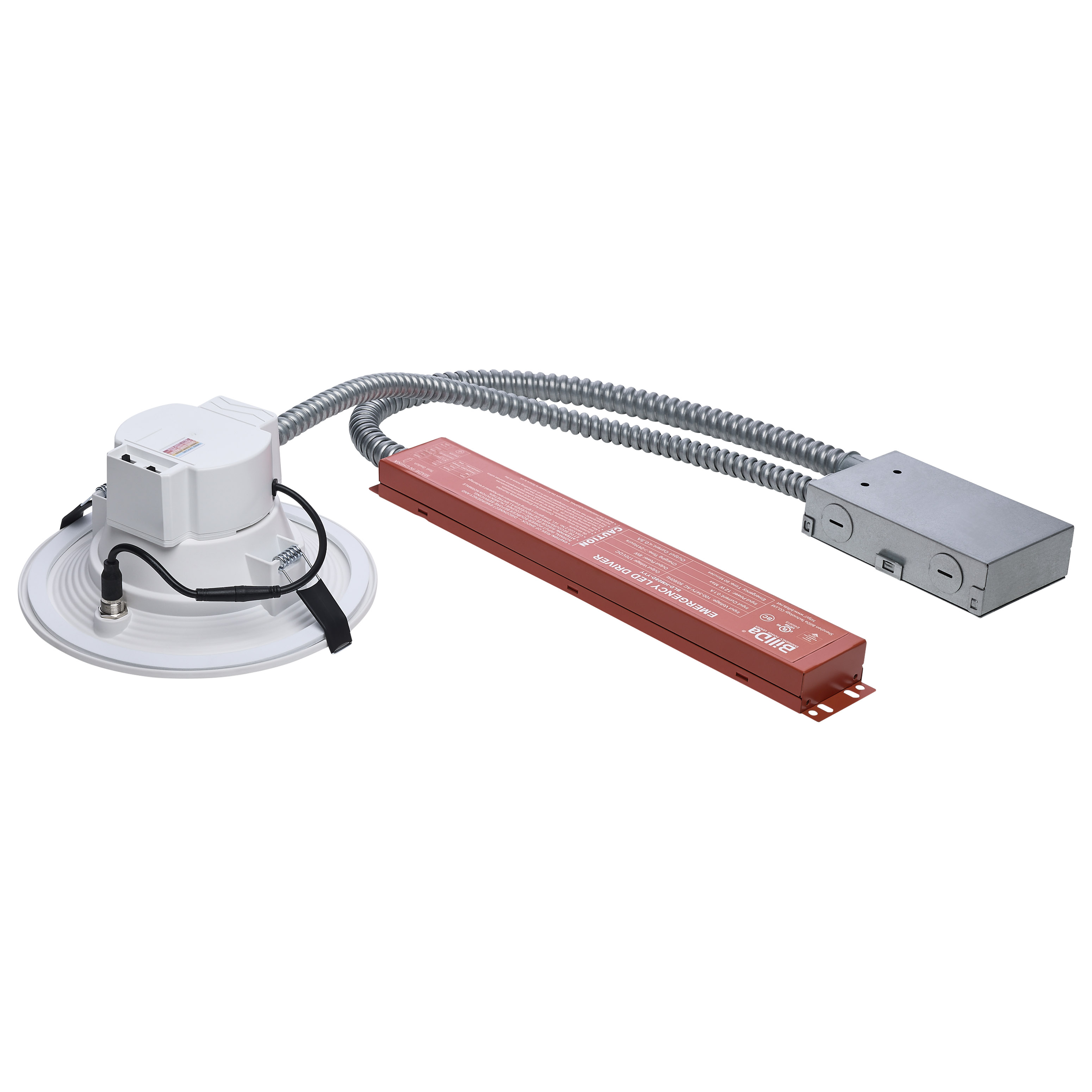

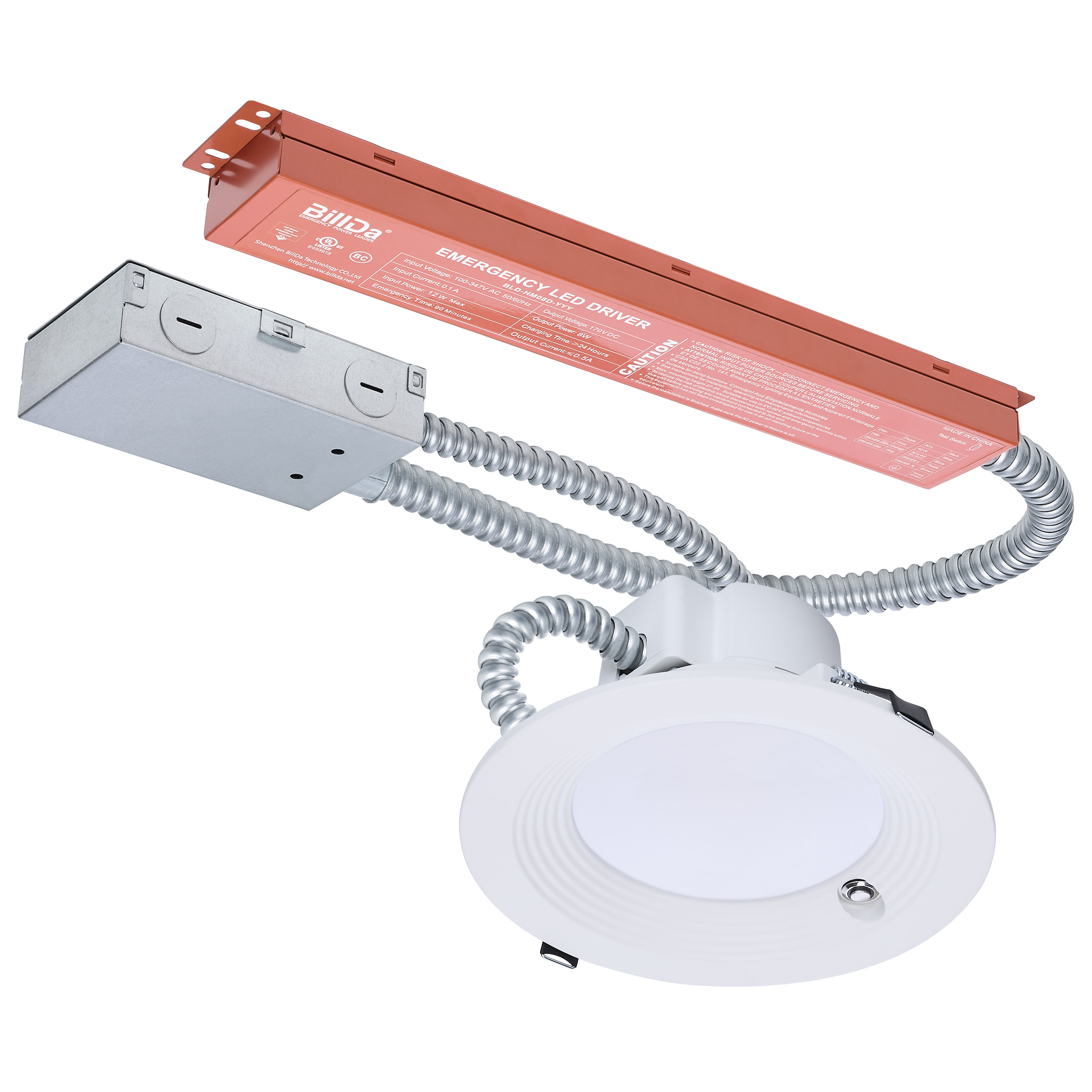

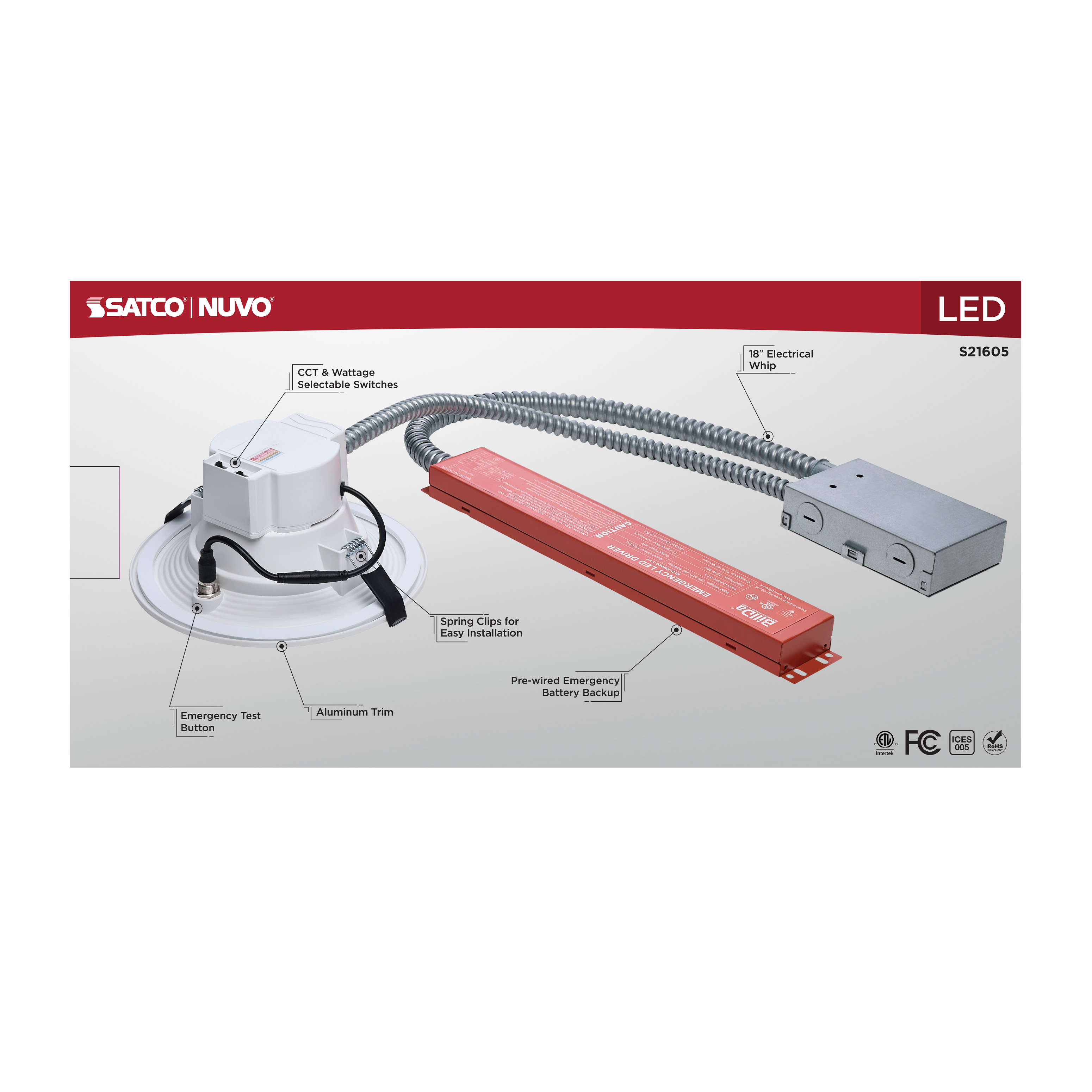

  • Integrated Emergency Driver
  • Round
  • 120-347 Volt
cc_selectable^y^1
air_tight^y^1
ip_rating^IP20^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21605 SpecificationsS21605 Instructions.pdf
Tools
Lighting Layout Analysis For S21605
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
20.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; Round; 120-347 Volt
Products Specs
General
CompanyNUVO
Mounting Height3.29
Bulb IncludedIntegrated

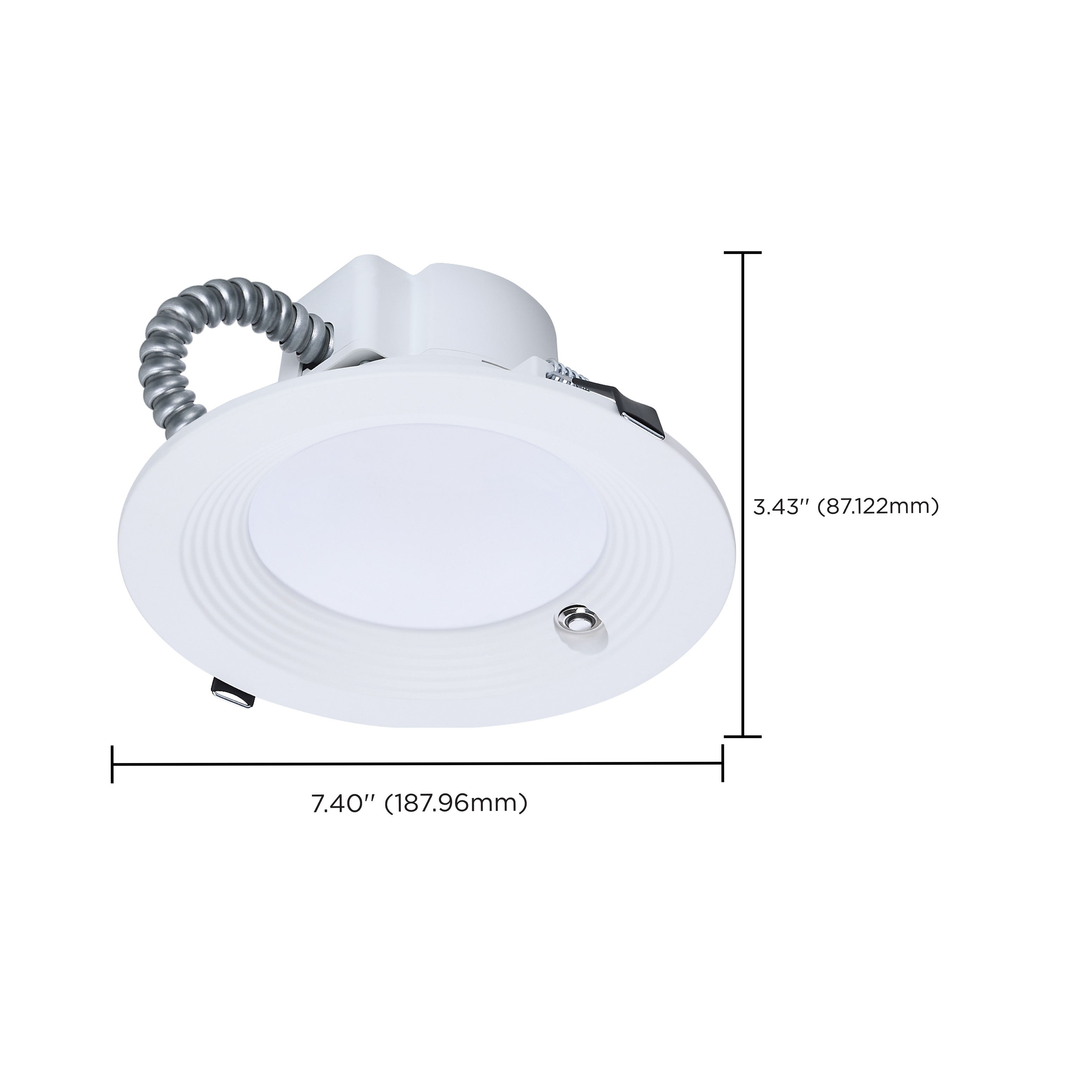

Diameter7.4
Dimmable TextDual Dimming; Forward or Reverse Phase at 120V/0-10V at 120-347V
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault CCT setting is 3000K. Default wattage setting is 20.5W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<30%
Up Down InstallationDown

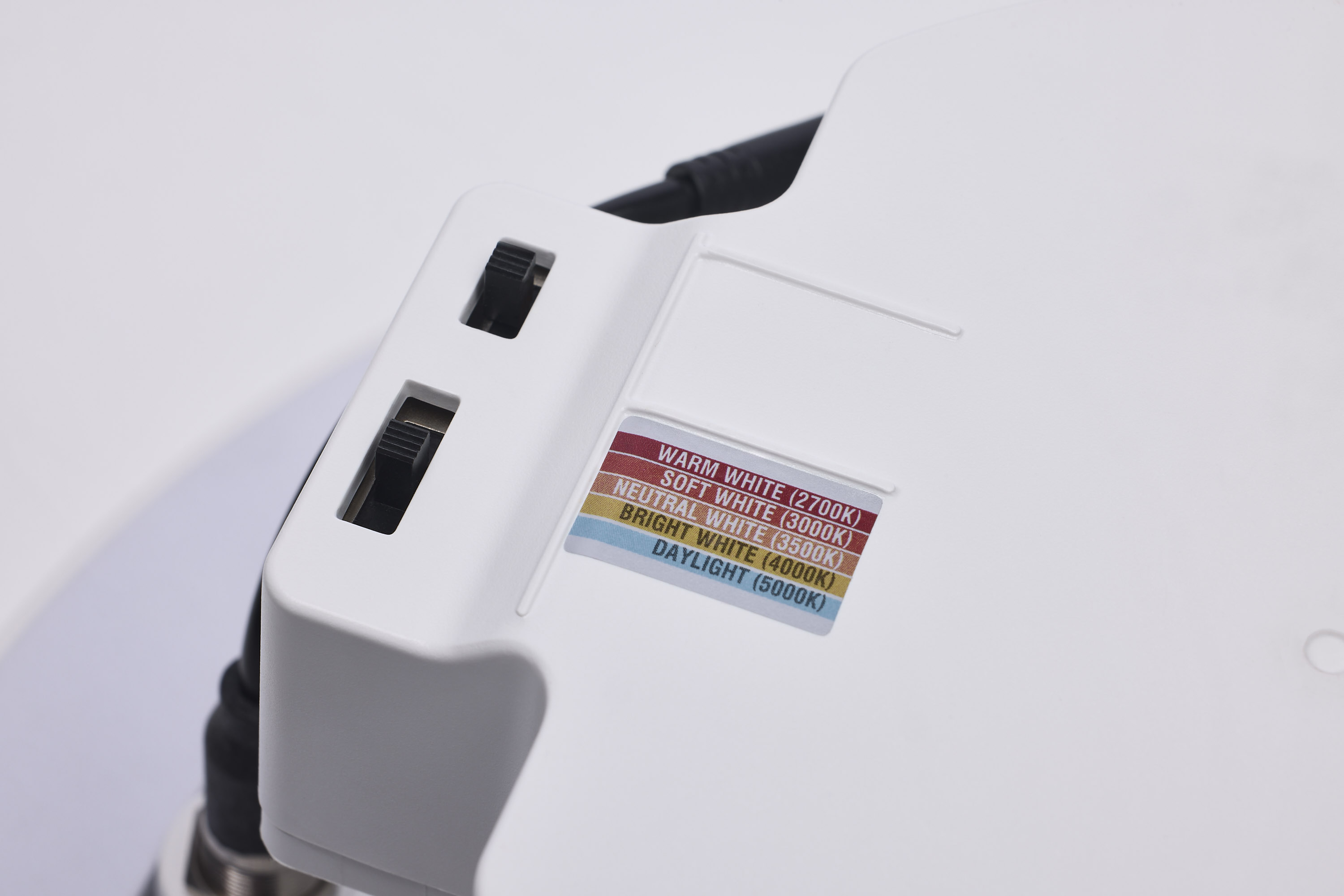

CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional Info90 Minute EM Battery Runtime
Amps0.154-0.053/0.131-0.045/0.110-0.038A
Mounting Diameter6.02
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Nominal Length6.0
Photo CellNo
Power Factor>0.9
SDS ClassLithium_Ion_Battery
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Fluor Equiv32W
Incandescent Equivalent100W
Electrical
CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)105
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Operating Frequency60Hz
Operating Temp+5C (+41F) to +40C (+104F)
Lumens2200L/1800L/1400L
Volts120V-347V
Watts20.5W/18.2W/16.3W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantNo
Air TightYes
CA Prop 65Lead
Energy Star ID4510059
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes
Packaging
UPC045923411205
Case Cube2.3259
Case Height17.52
Case Length24.8
Case Quantity6
Case UPC10045923411202
Case Weight28.09
Case Width9.25
EA Cube0.3327
EA Height16.85
EA Length8.66
EA Quantity1
EA Weight3.85
EA Width3.94
Pack TypeColor Box
Web Height3.43
Web Width7.4
