S21606

28W/CDL/8/120-347/FS/RND/DD/E

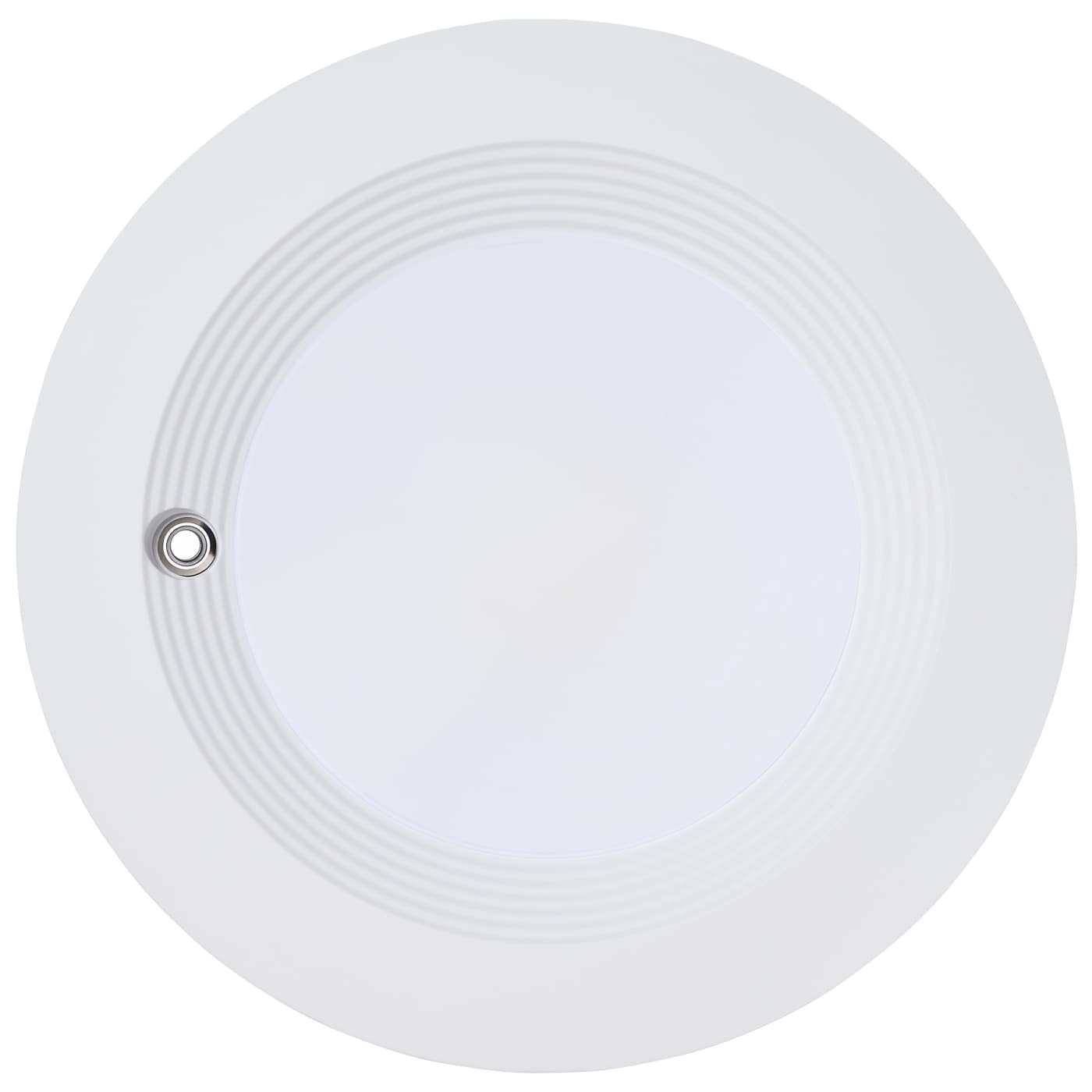

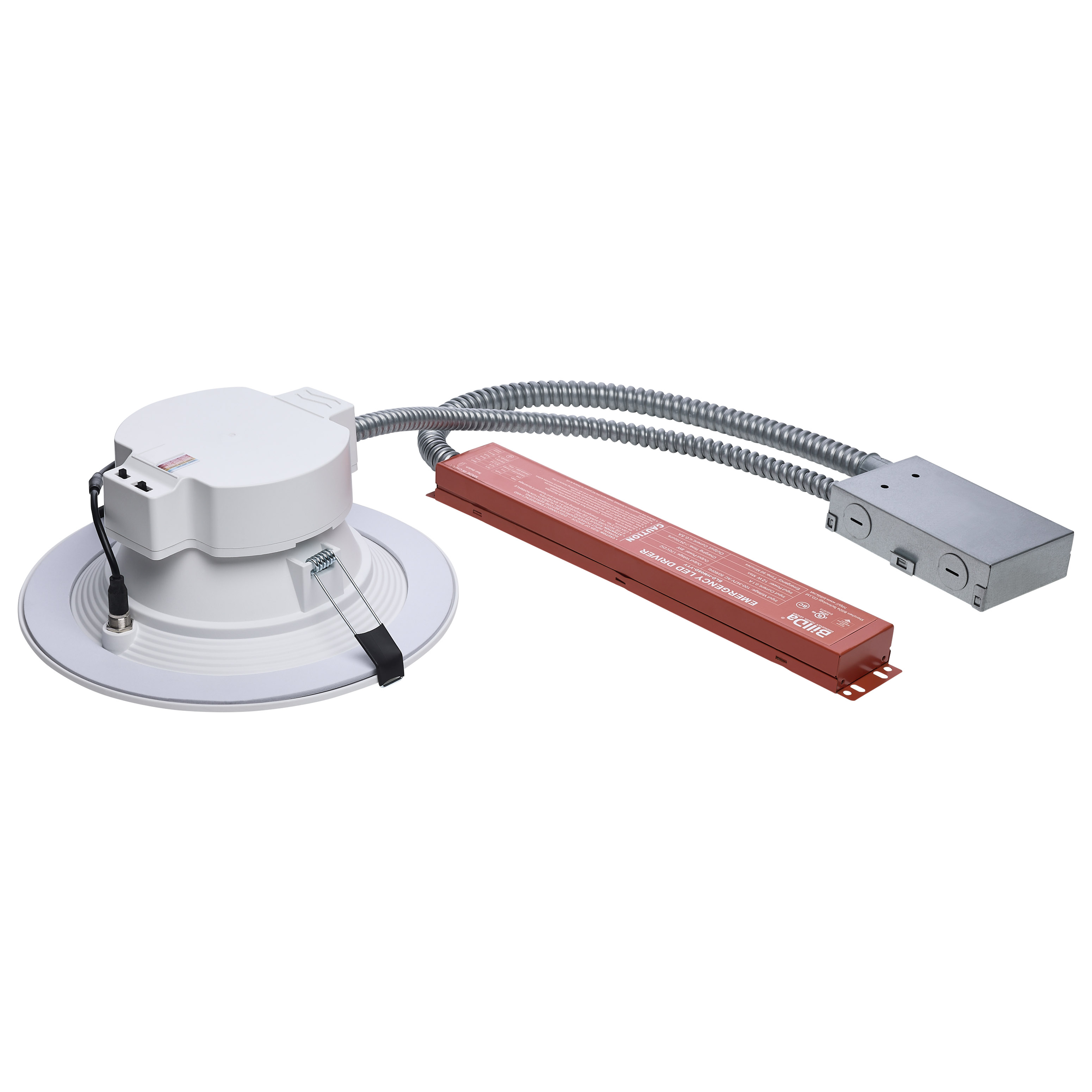

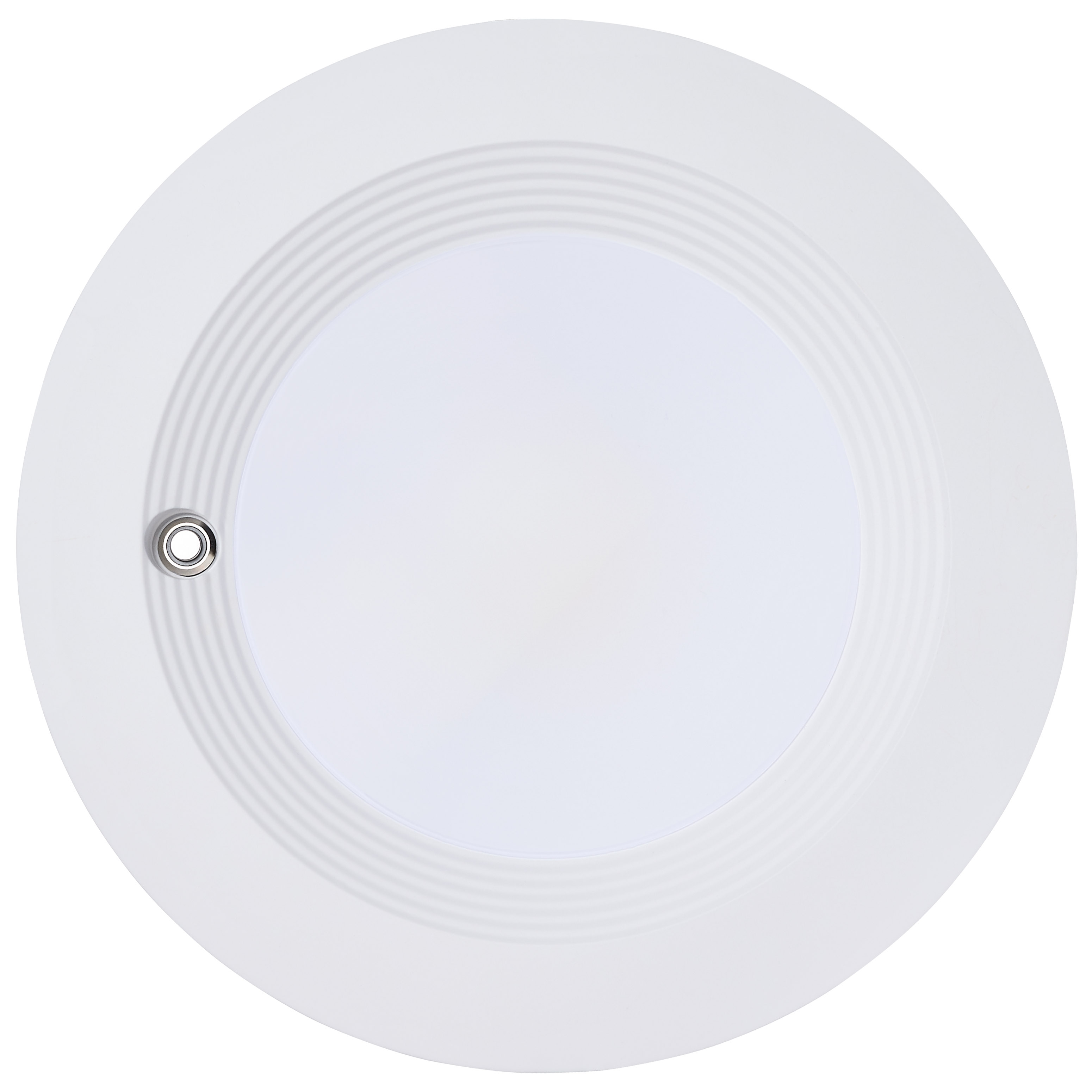

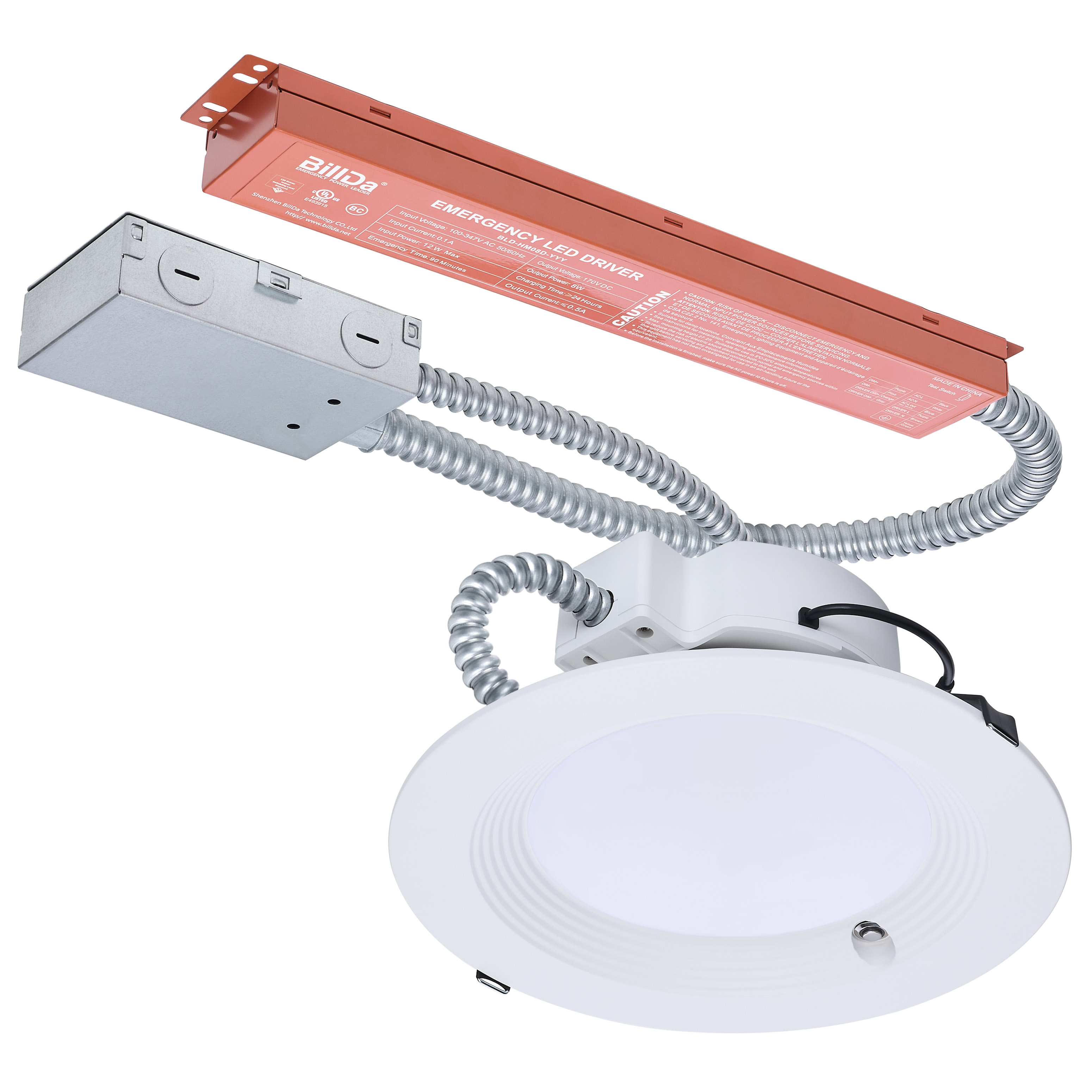

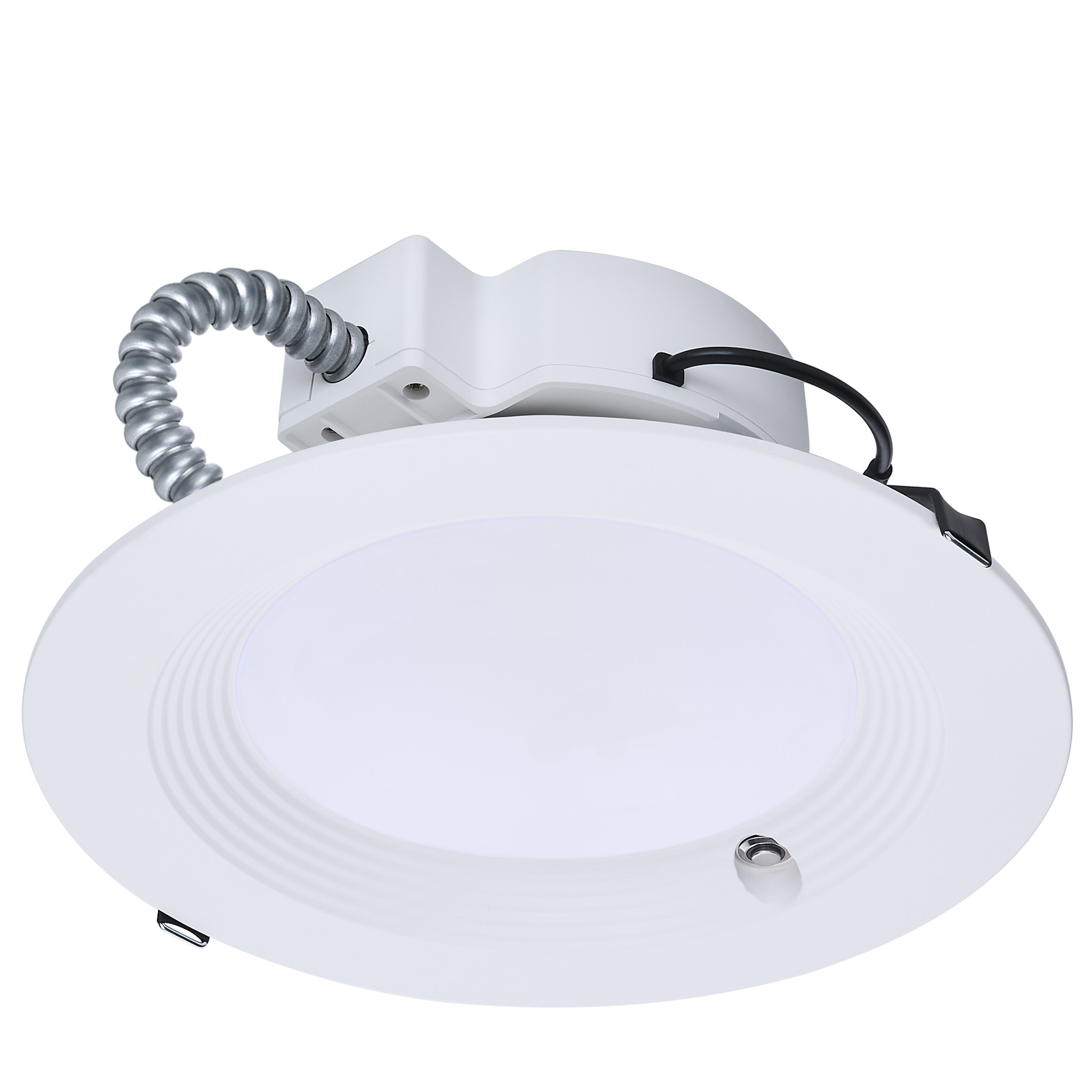

  • 28W Field Selectable LED 8-Inch Commercial Downlight
  • Dual Dimming

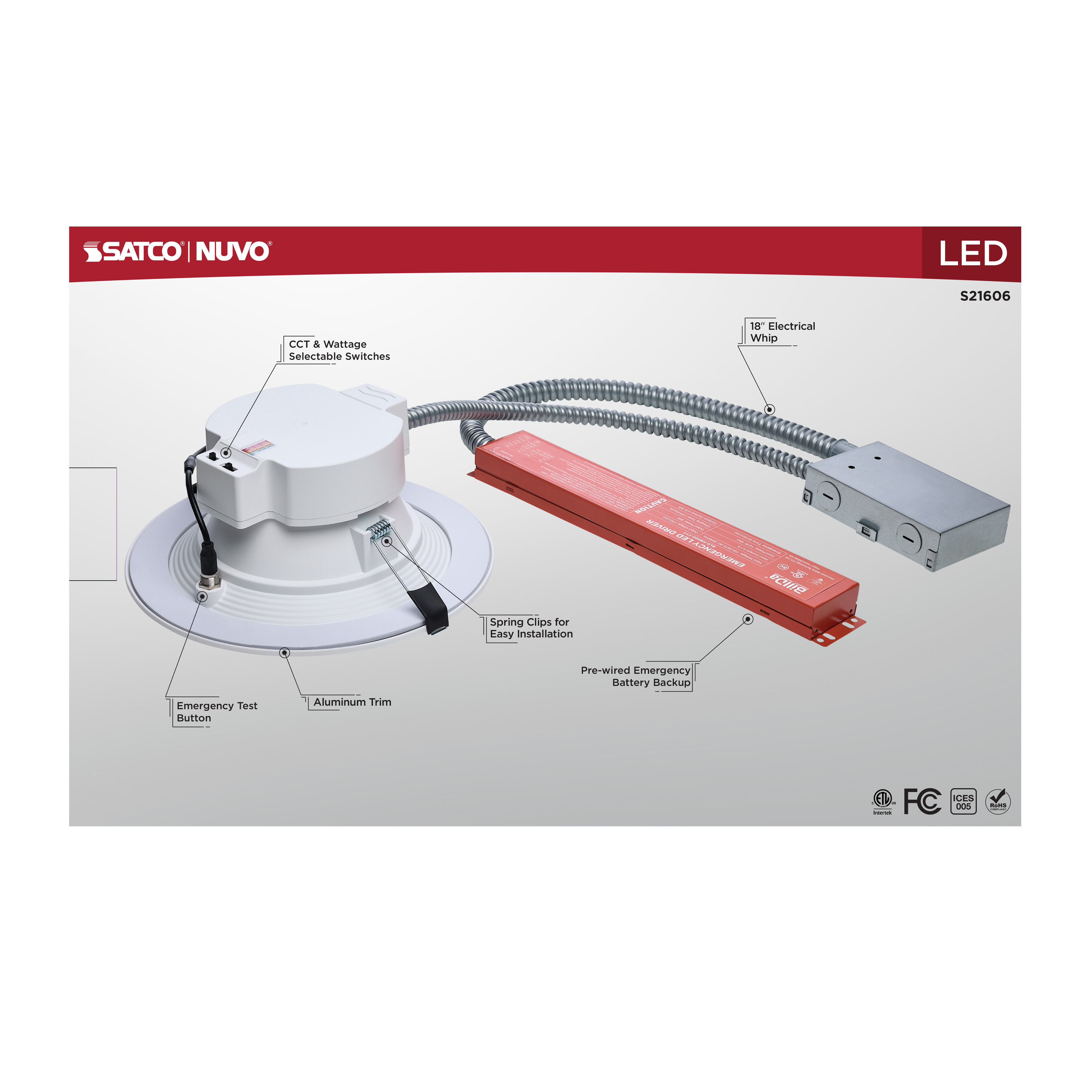

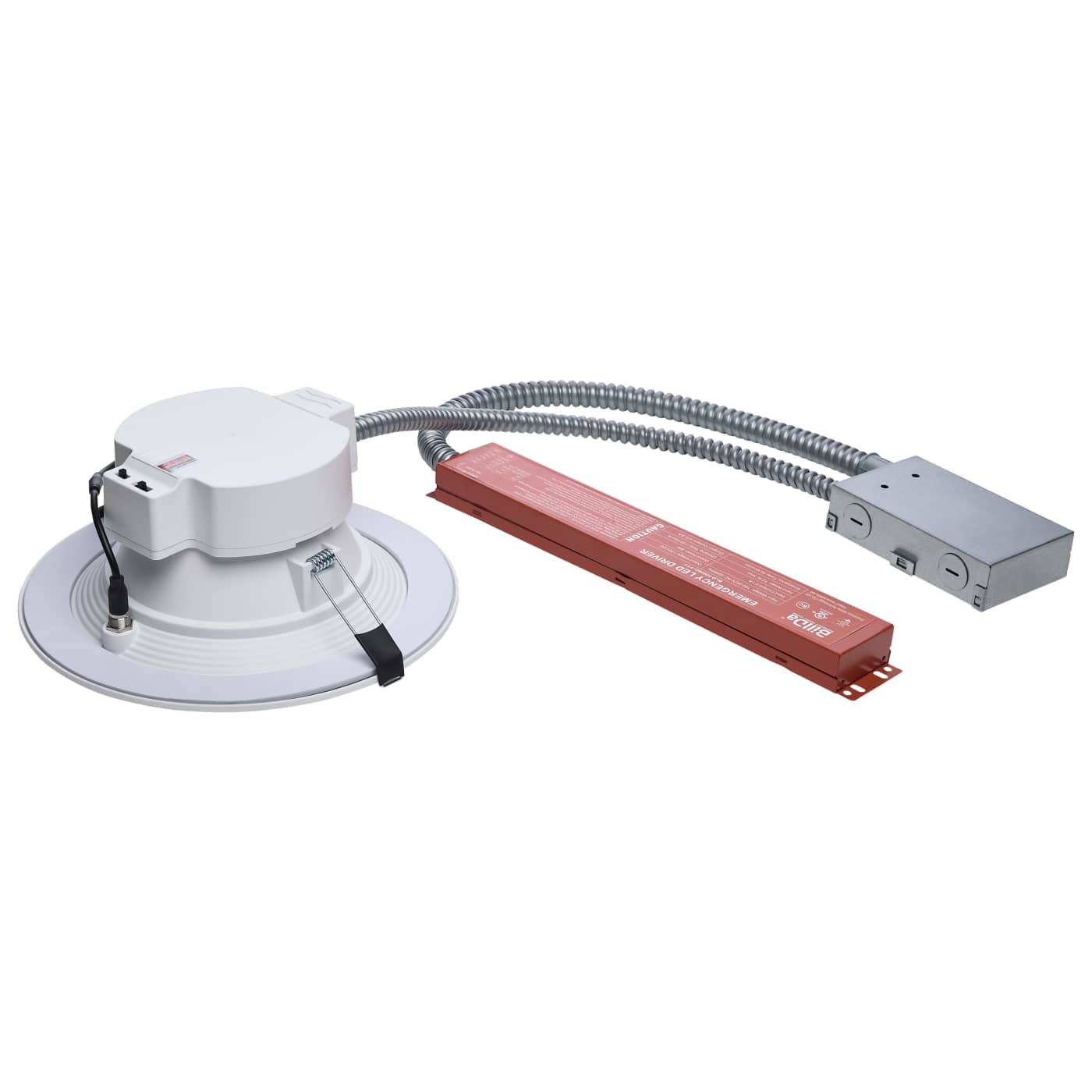

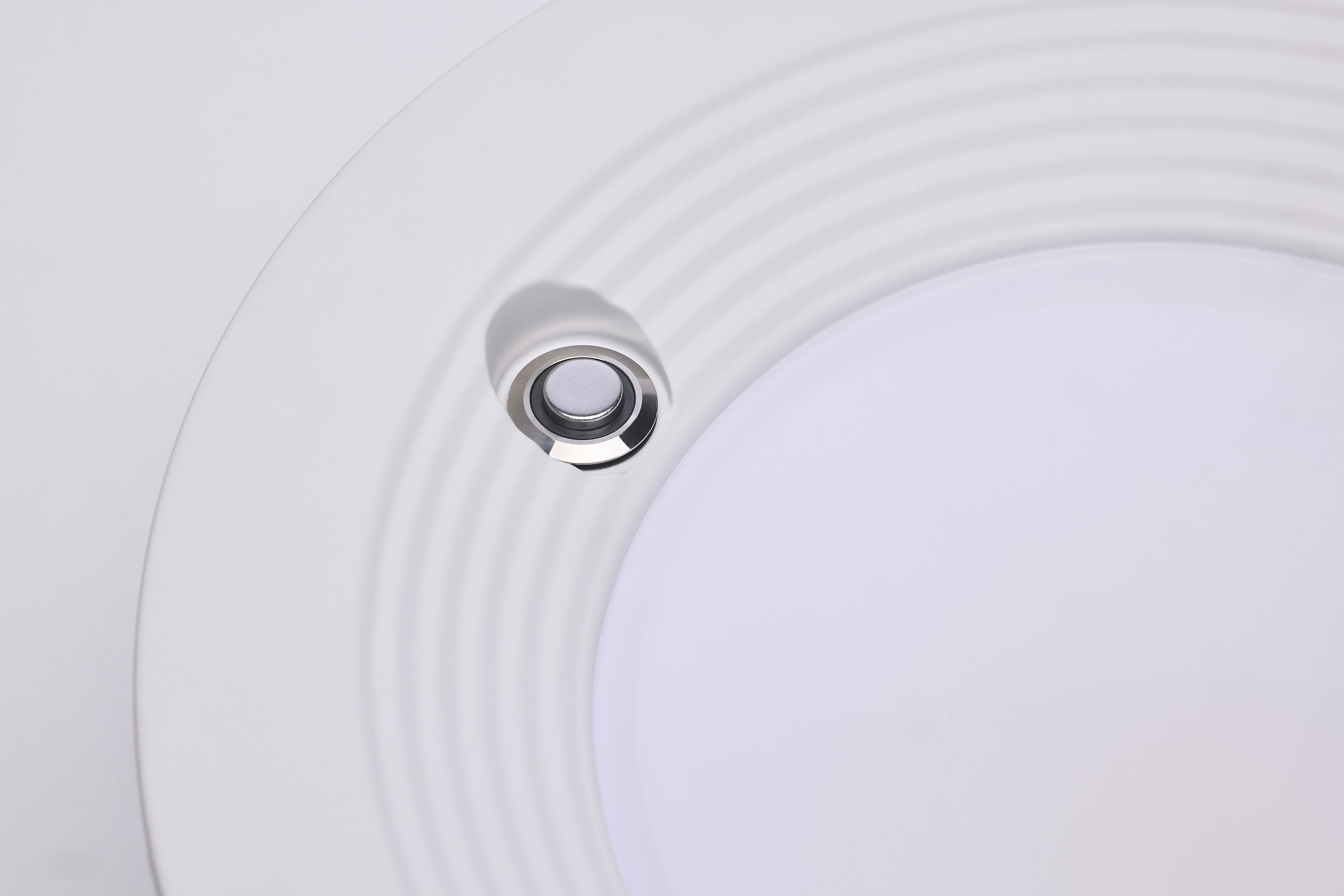

  • Integrated Emergency Driver
  • Round
  • 120-347 Volt
cc_selectable^y^1
air_tight^y^1
ip_rating^IP20^1
energy_star_certified^y^1
title_20^y^1
title_24^y^1
location_rating^wet^2
cri^90+^2
dimmable^dimmable^2
hours_rated^50k^2
ic_rated^y^2
dimmable_text^0-10_dim^2
safety_listing^cetlus_list^3
fcc_compliant^true^3
rohs_compliant^y^3
S21606 SpecificationsS21606 Instructions.pdf
Tools
Lighting Layout Analysis For S21606
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; Round; 120-347 Volt
Products Specs
General
CompanyNUVO
Mounting Height3.8
Bulb IncludedIntegrated

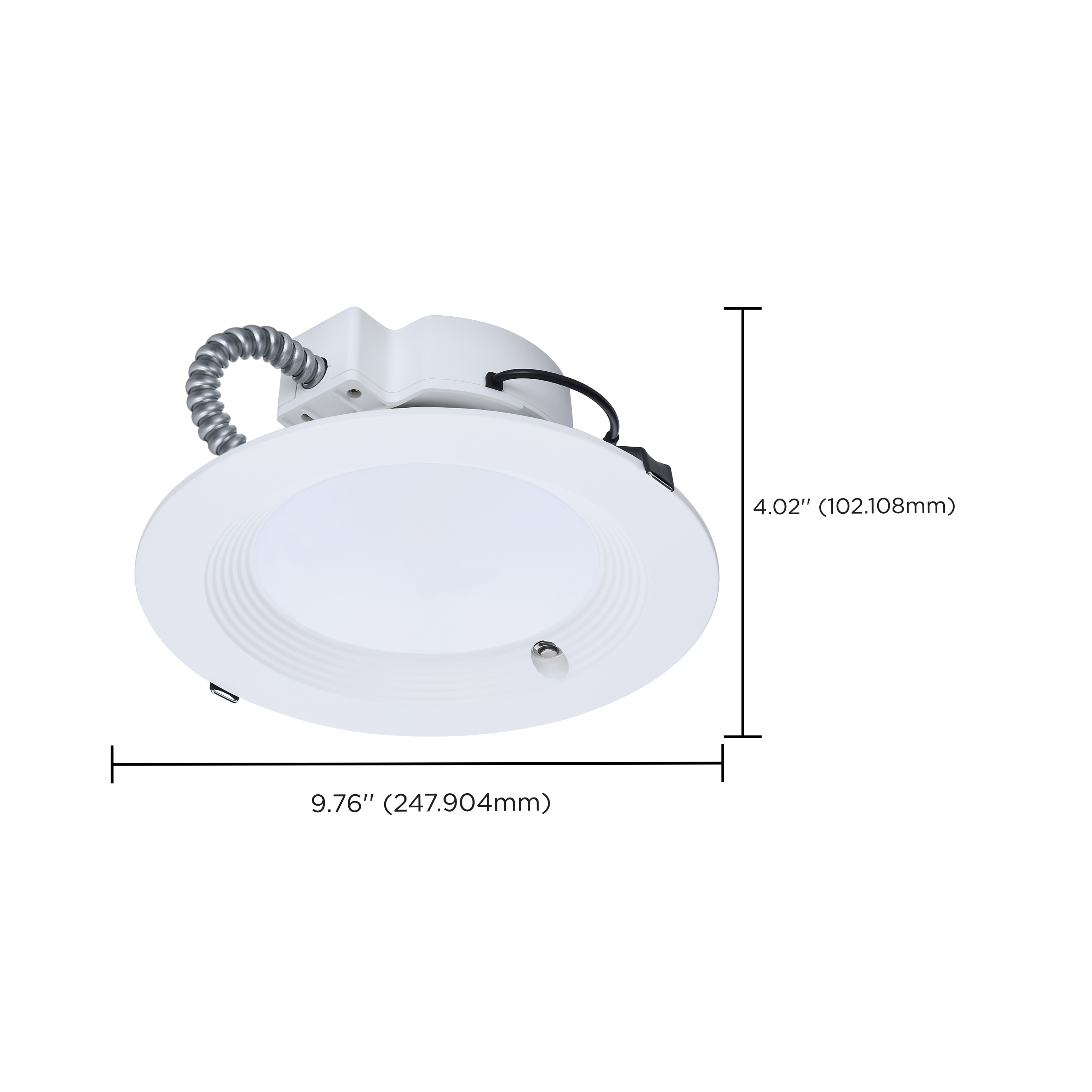

Diameter9.76
Dimmable TextDual Dimming; Forward or Reverse Phase at 120V/0-10V at 120-347V
MaterialAluminum
Fixture TypeCommercial Downlight Retrofit
Product NotesDefault CCT setting is 3000K. Default wattage setting is 28W.
StatusActive
StyleUtility
Surge ProtectionBuilt-in surge protection - 2.5KV
Total Harmonic Distortion<30%
Up Down InstallationDown
CCT SelectableYes
Wattage SelectableYes
Finish FamilyWhite
Additional Info90 Minute EM Battery Runtime
Amps0.213-0.073/0.188-0.065/0.143-0.050A
Mounting Diameter7.99
Has CameraNo
IOT EnabledNo
Lens MaterialPolycarbonate (PC)
Nominal Length8.0
Photo CellNo
Power Factor>0.9
SDS ClassLithium_Ion_Battery
Sloped Ceiling CompatibleNo
Indoor OutdoorIndoor and Outdoor
Product TechnologyLED
Fluor Equiv2 x 26W CFL
Incandescent Equivalent125W
Electrical

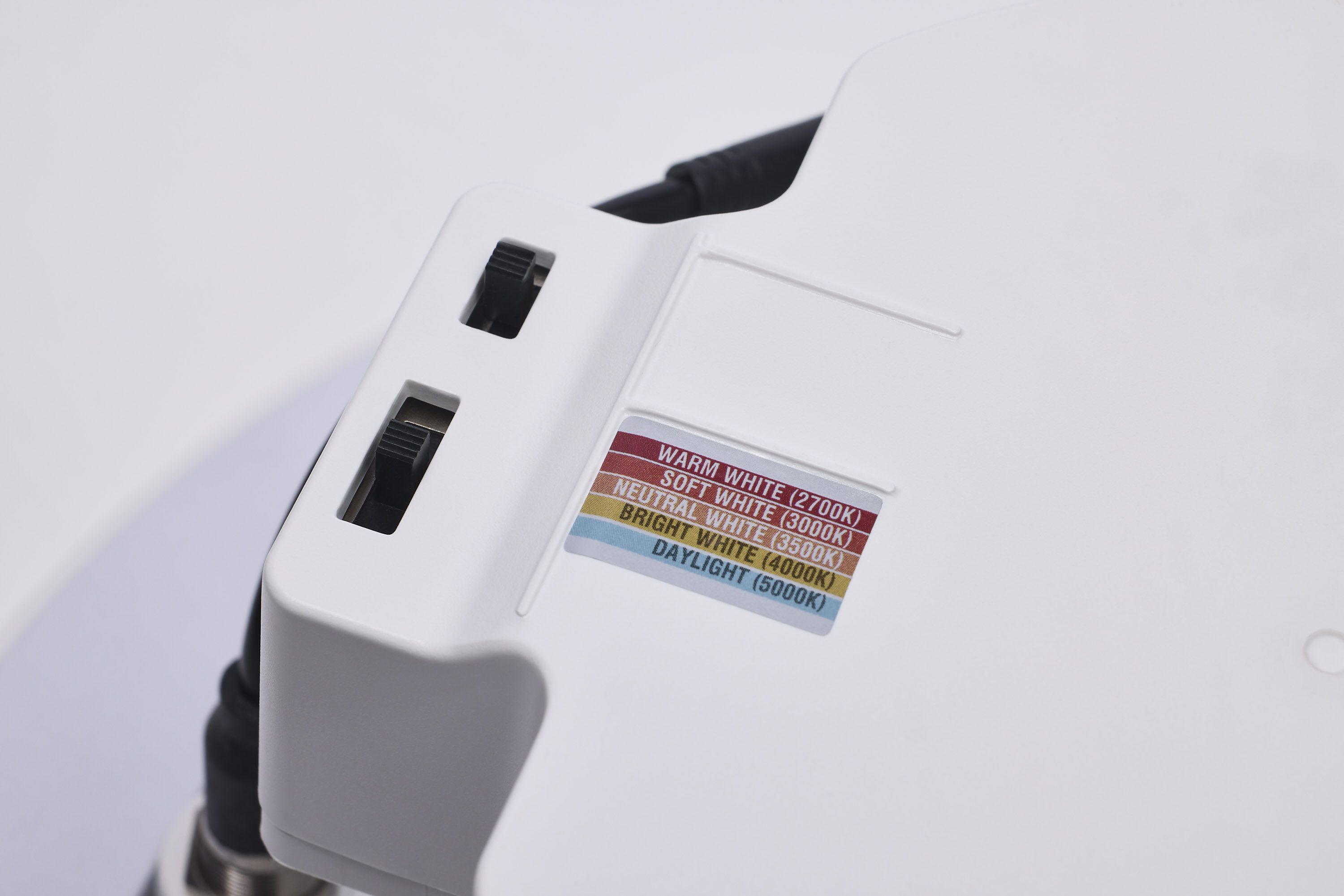

CCT (Kelvin Temp)2700K/3000K/3500K/4000K/5000K
DimmableYes-Dimmable
Hours Rated50000
Beam Angle (degree)100
Color TempWarm White to Natural Light
CRI90+
Dimming TypeDual Dimming, Forward or Reverse Phase at 120V/0-10V at 120-347V
Operating Frequency60Hz
Operating Temp+5C (+41F) to +40C (+104F)
Lumens3200L/2900L/2200L
Volts120V-347V
Watts28W/25W/20W
Physical
Lamp BaseIntegrated
FinishWHITE
ANSI BaseIntegrated
Lamp TypeIntegrated LED
Fixture ShapeRound
Additional Info
Warranty5-Years
Documents
Compliance
ADA CompliantNo
Air TightYes
CA Prop 65Lead
Energy Star ID4510061
FCC CompliantYes
IC RatedYes
IP RatingIP20
Location RatingWet
NSF ApprovedNo
ROHS CompliantYes
Safety ListingcETLus - Listed
California BanLawful for sale
Energy Star CertifiedYes
Title 20Yes
T24 CompliantYes
Packaging
UPC045923411212
Case Cube1.5272
Case Height13.58
Case Length17.32
Case Quantity3
Case UPC10045923411219
Case Weight17.02
Case Width11.22
EA Cube0.4364
EA Height16.85
EA Length10.63
EA Quantity1
EA Weight4.59
EA Width4.21

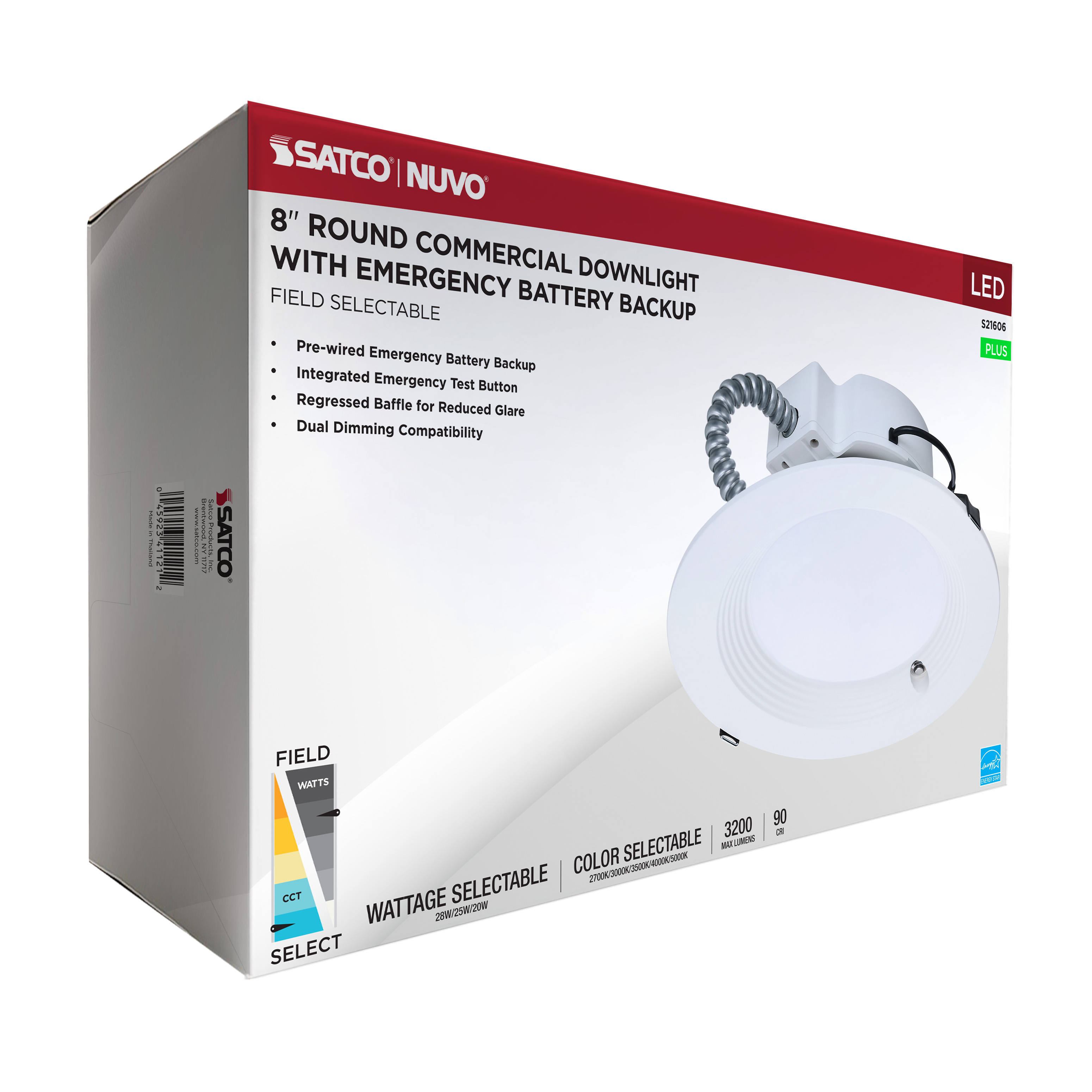

Pack TypeColor Box
Web Height4.02
Web Width9.76
