| Company | NUVO |
|---|---|
| Mounting Height | 4.32 |
| Bulb Included | Integrated |
| Diameter | 11.77 |
| Dimmable Text | Phase Cut at 120V/0-10V at 120-347V |
| Material | Aluminum |

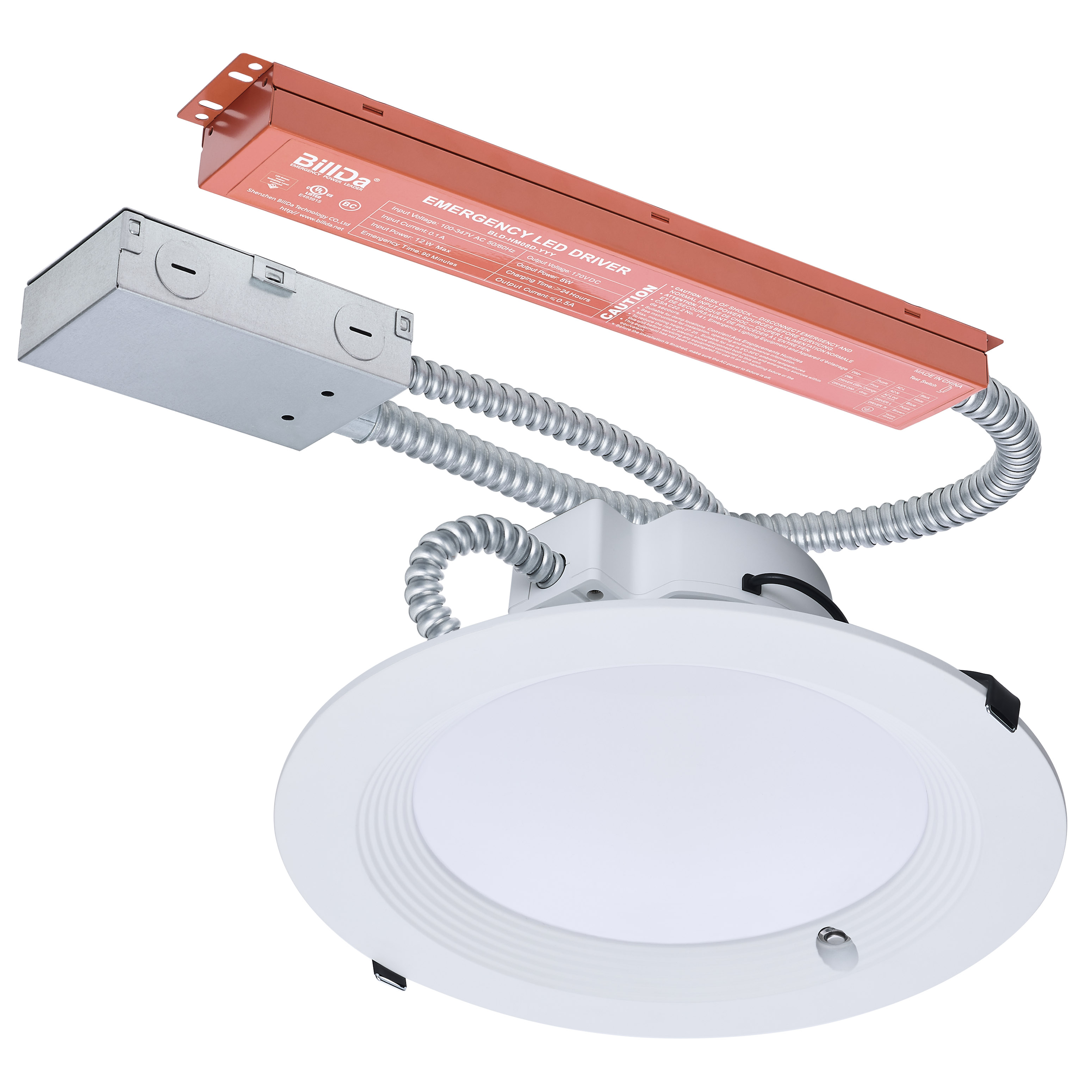

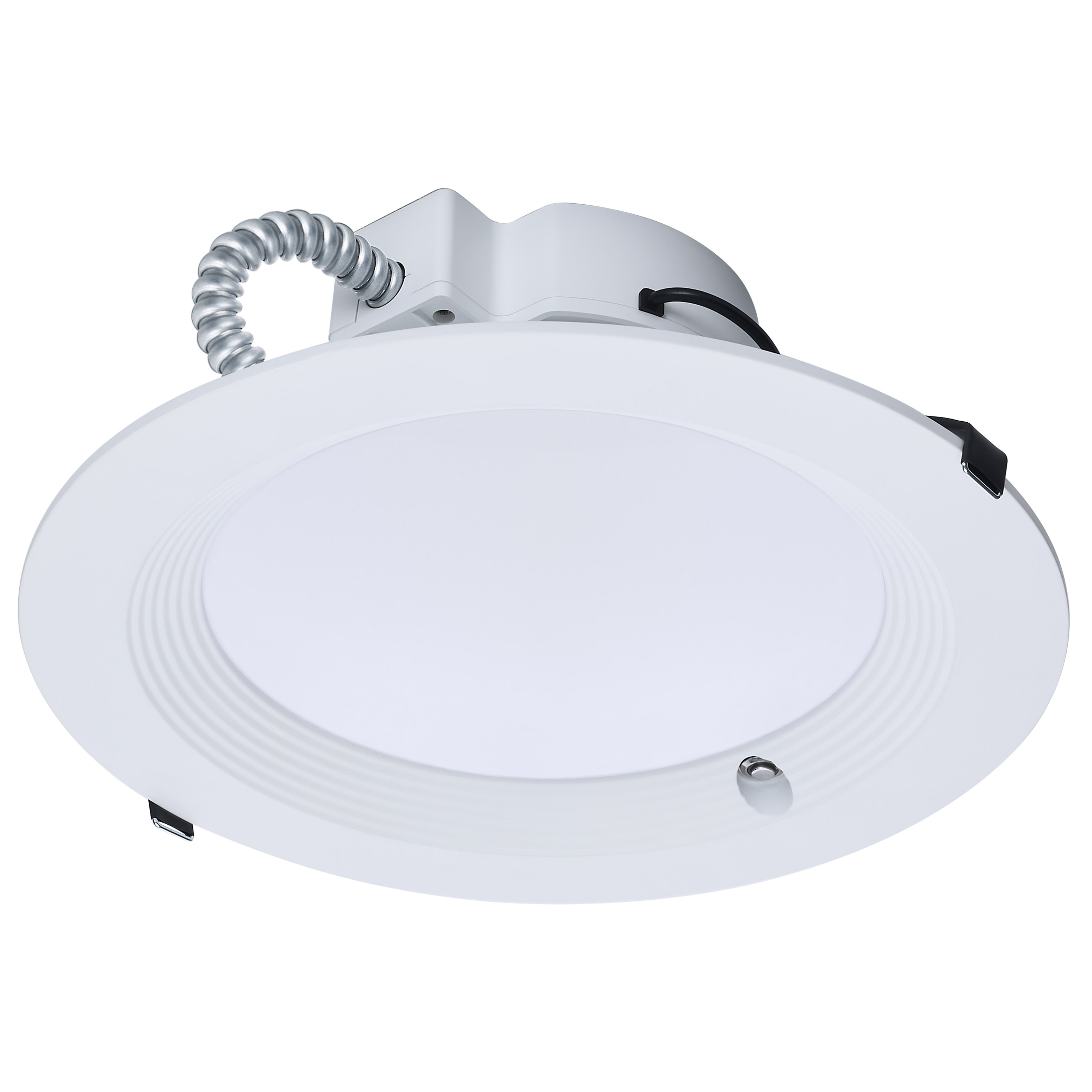

| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default CCT setting is 3000K. Default wattage setting is 38W. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <30% |
| Up Down Installation | Down |

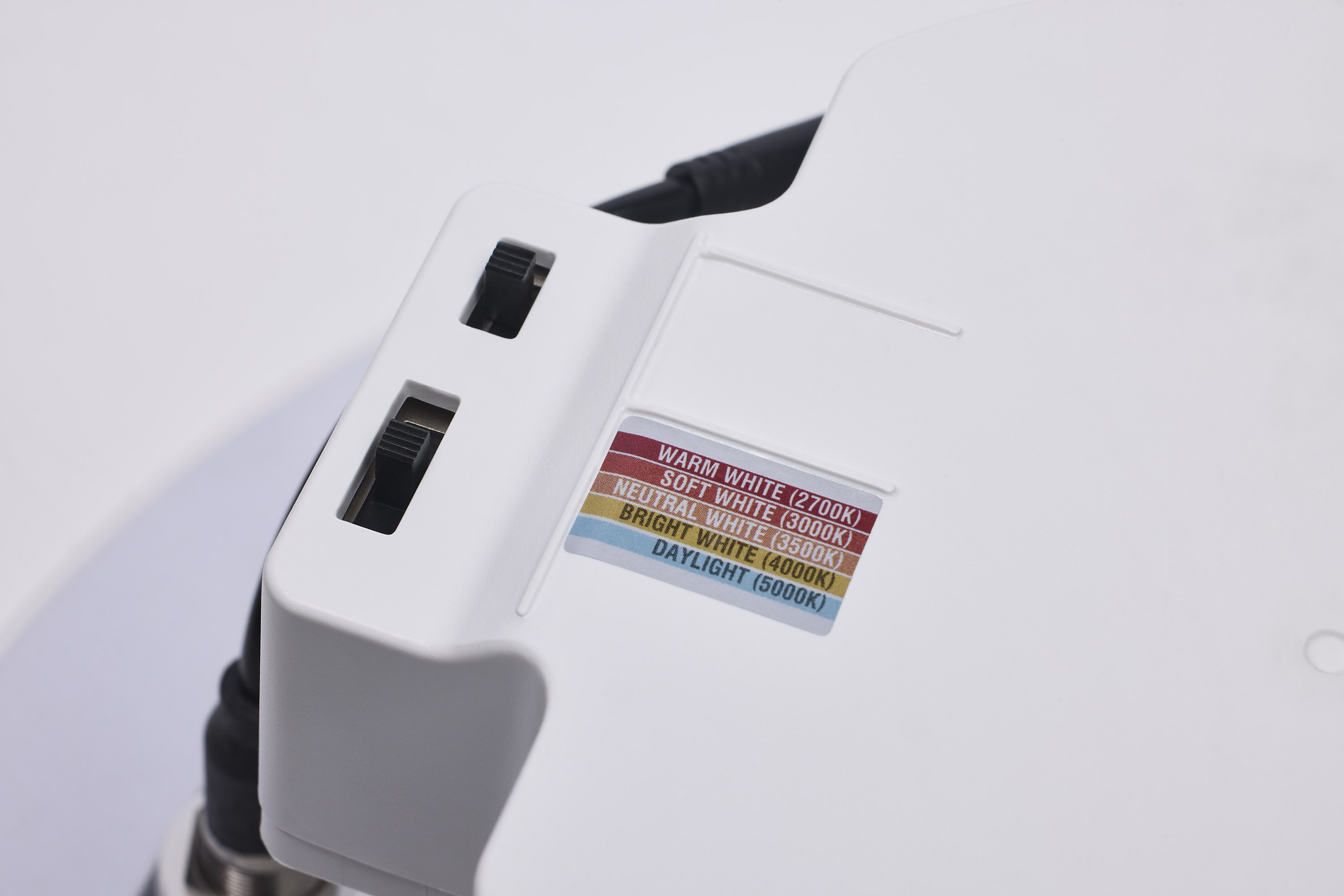

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |

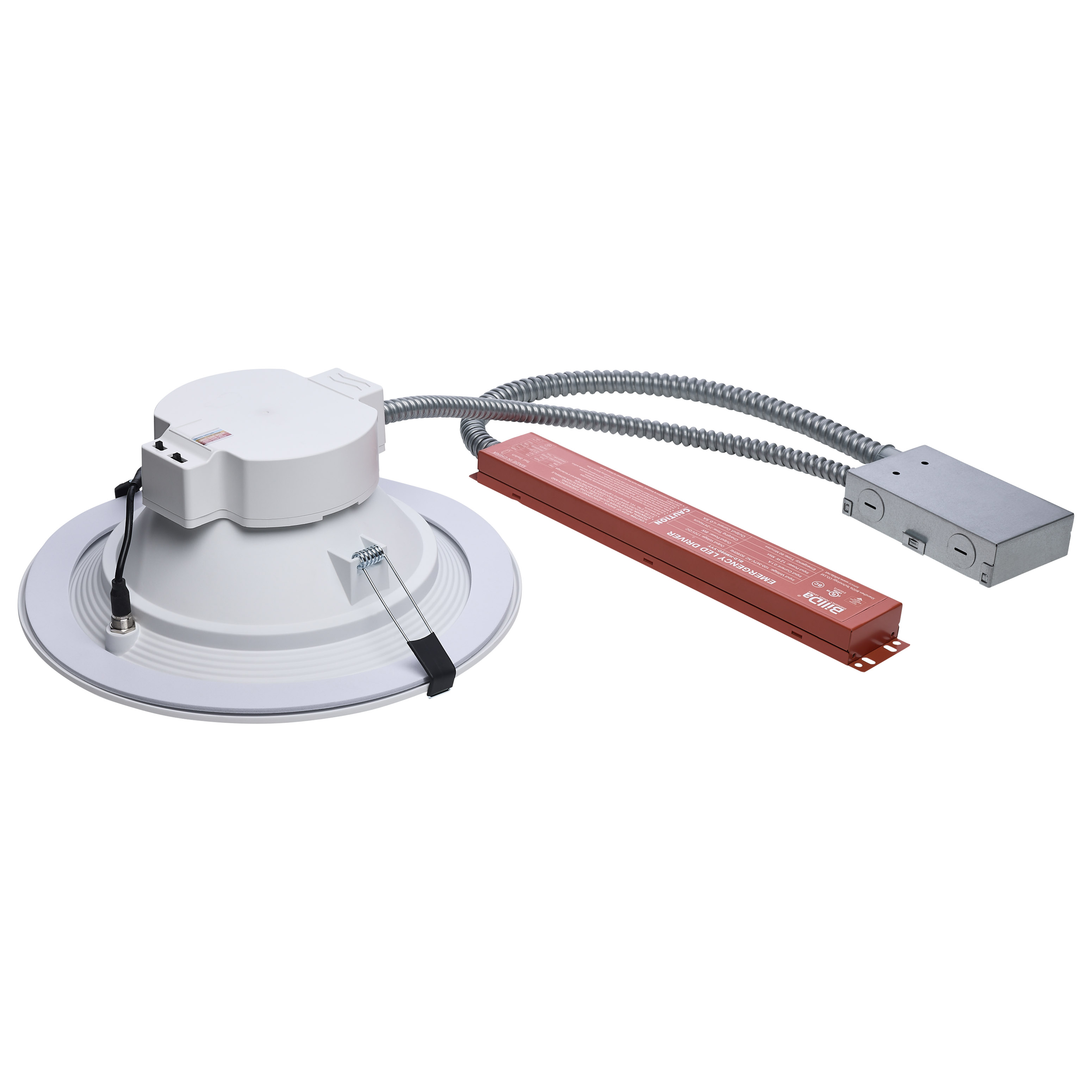

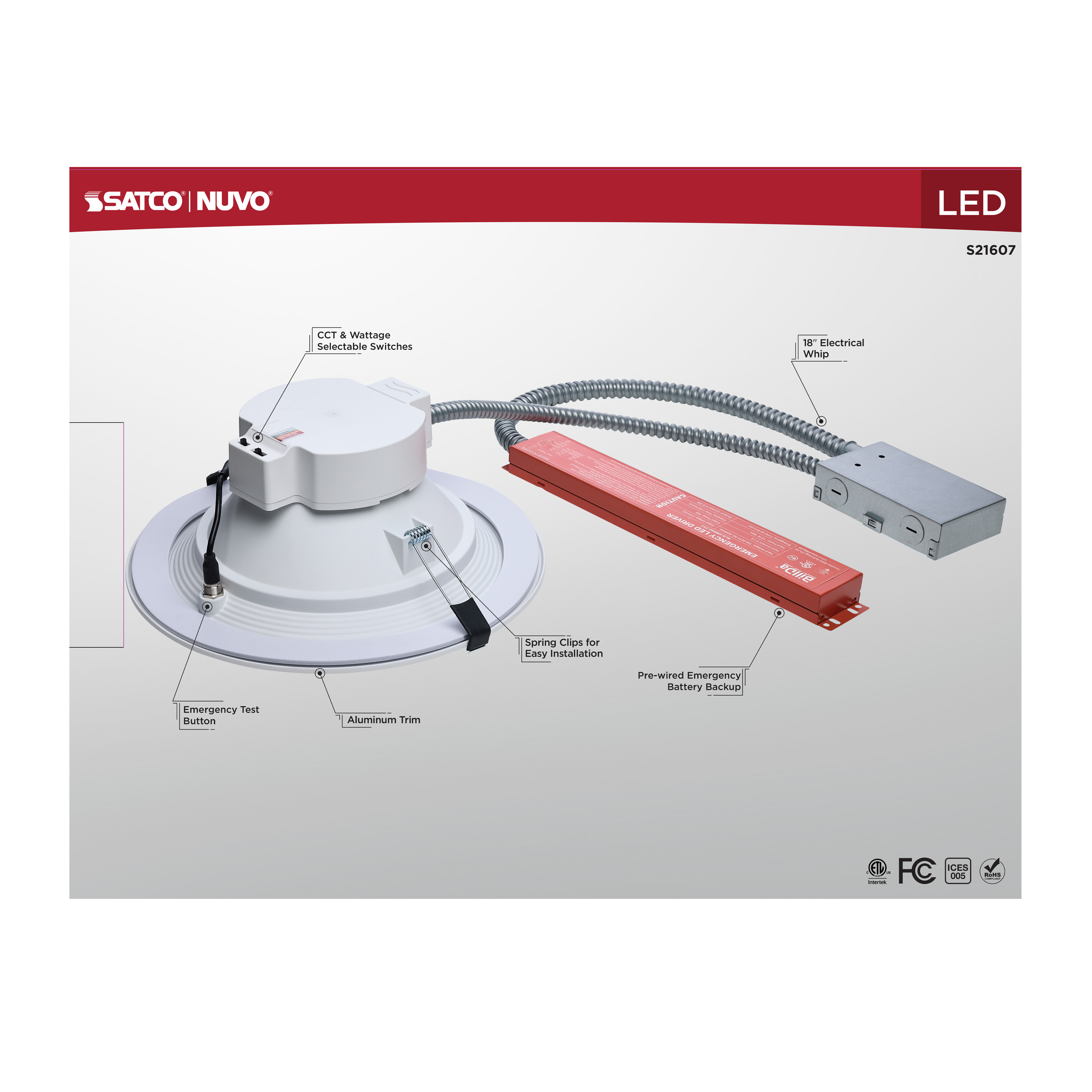

| Additional Info | 90 Minute EM Battery Runtime |
| Amps | 0.267-0.116/0.242-0.105/0.200-0.087A |
| Mounting Diameter | 9.45 |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Polycarbonate (PC) |
| Nominal Length | 10.0 |
| Photo Cell | No |
| Power Factor | >0.9 |
| SDS Class | Lithium_Ion_Battery |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 2 x 32W CFL |
| Incandescent Equivalent | 200W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 100 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Dual Dimming |
| Operating Frequency | 60Hz |
| Operating Temp | +5C (+41F) to +40C (+104F) |
| Lumens | 4200L/3700L/3200L |
| Volts | 120V-277V |
| Watts | 38W/31W/26W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Round |
| Warranty | 5-Years |
|---|
| ADA Compliant | False |
|---|---|
| Air Tight | True |
| CA Regulations | California T24 2016 - 2025 JA8 Listed;T20 SBCS Listed under Billda Item BLD-HMXXD-YYY |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Energy Star ID | 4510063 |
| FCC Compliant | True |
| IC Rated | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Yes |
| T24 Compliant | True |
| UPC | 045923411229 |
|---|---|
| Case Cube | 2.0346 |
| Case Height | 15.16 |
| Case Length | 17.32 |
| Case Quantity | 3 |
| Case UPC | 10045923411226 |
| Case Weight | 19.06 |
| Case Width | 13.39 |
| EA Cube | 0.5891 |
| EA Height | 16.85 |
| EA Length | 12.8 |
| EA Quantity | 1 |
| EA Weight | 5.08 |
| EA Width | 4.72 |
| Inner Cube | 0.0 |

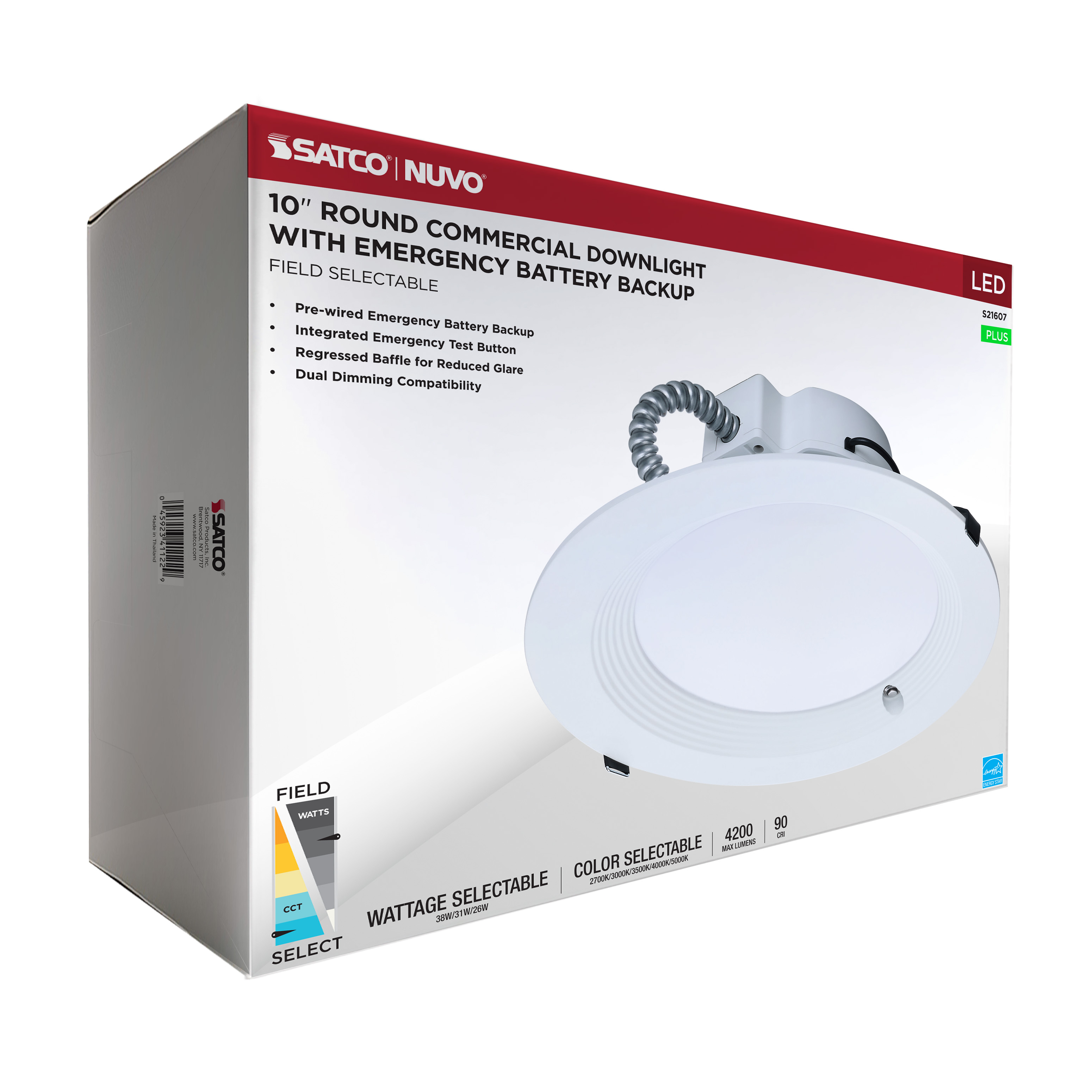

| Pack Type | Color Box |

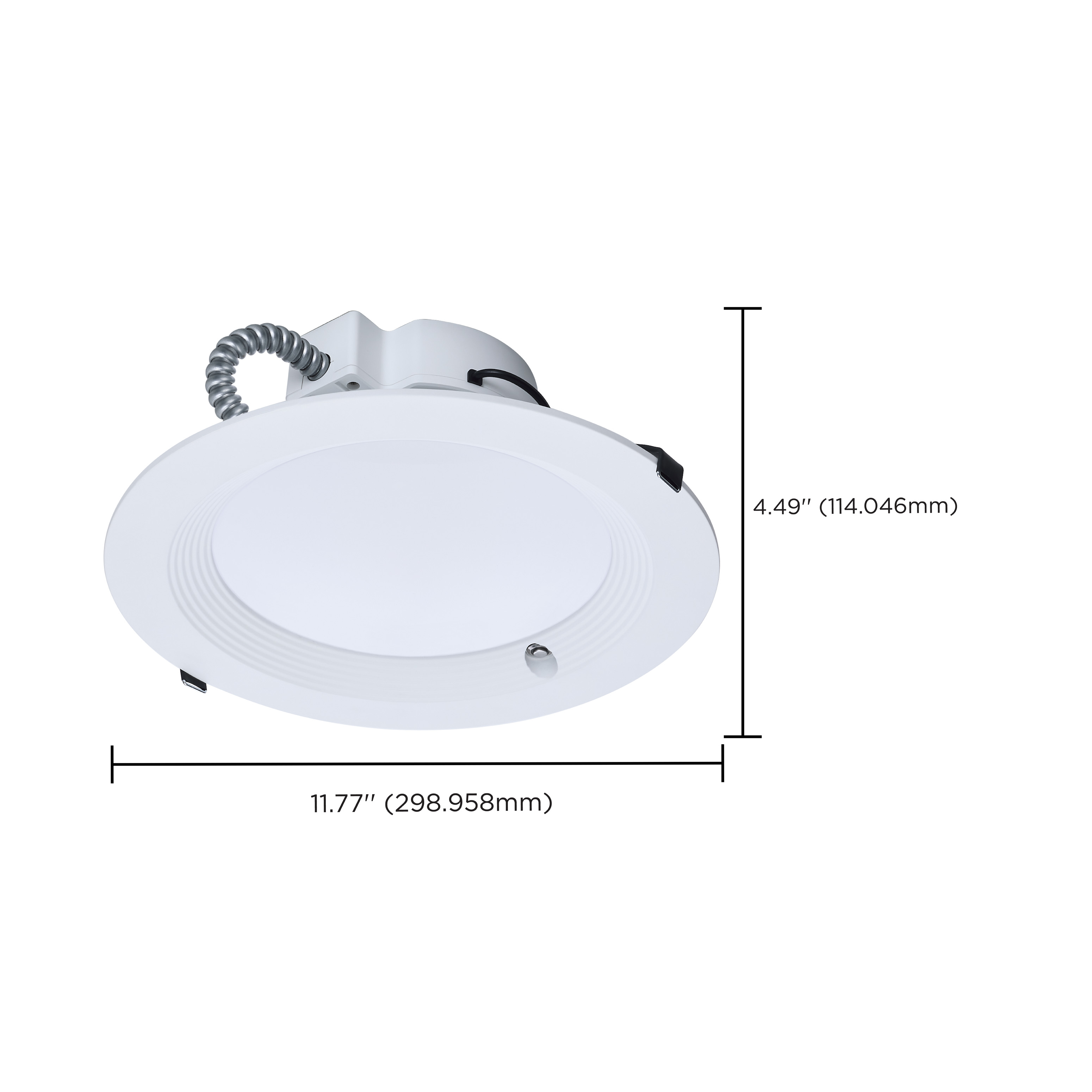

| Web Height | 4.49 |
| Web Width | 11.77 |
