| Company | NUVO |
|---|---|
| Mounting Height | 3.28 |
| Mounting Length | 6.02 |
| Mounting Width | 6.02 |
| Bulb Included | Integrated |
| Dimmable Text | Phase Cut at 120V/0-10V at 120-347V |
| Material | Aluminum |

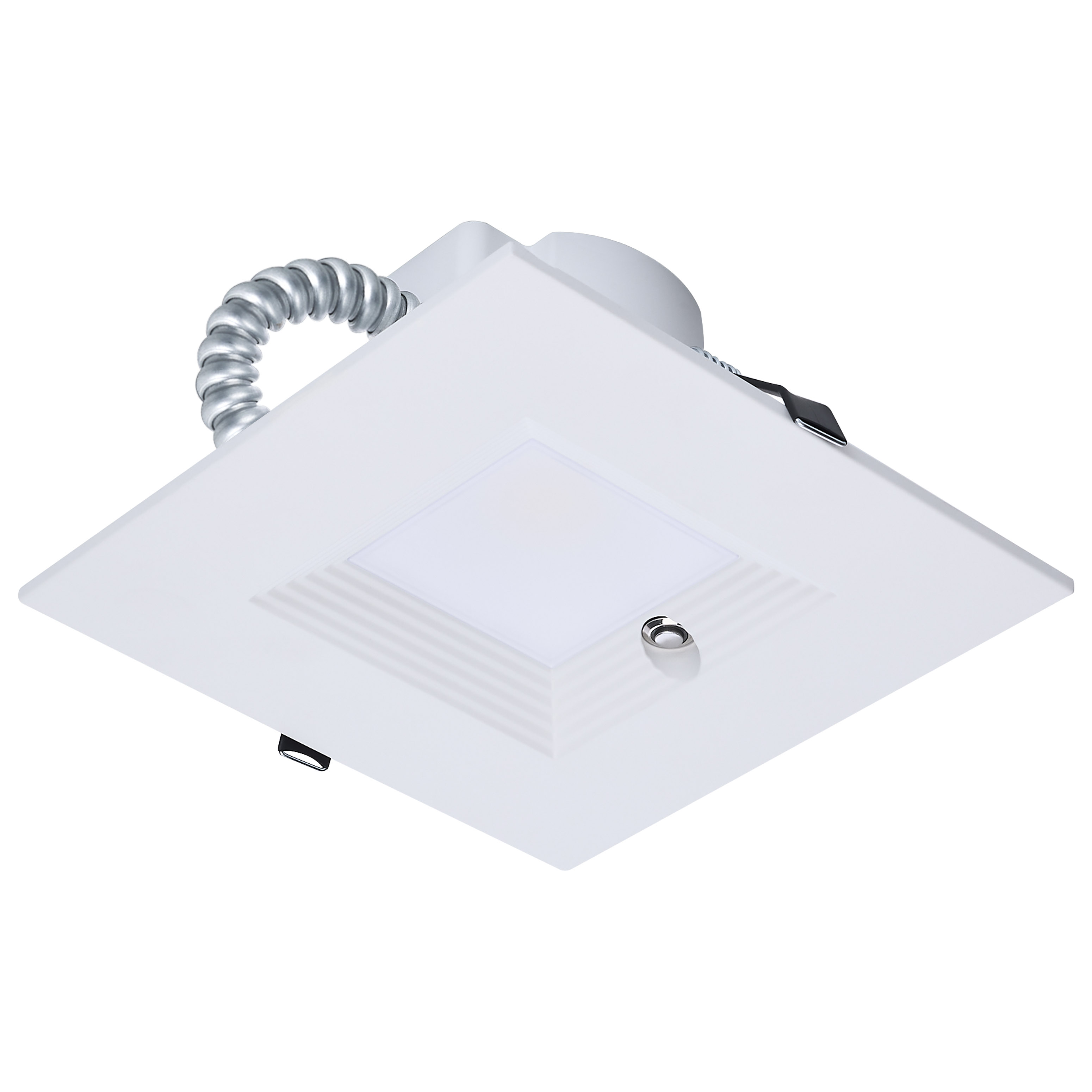

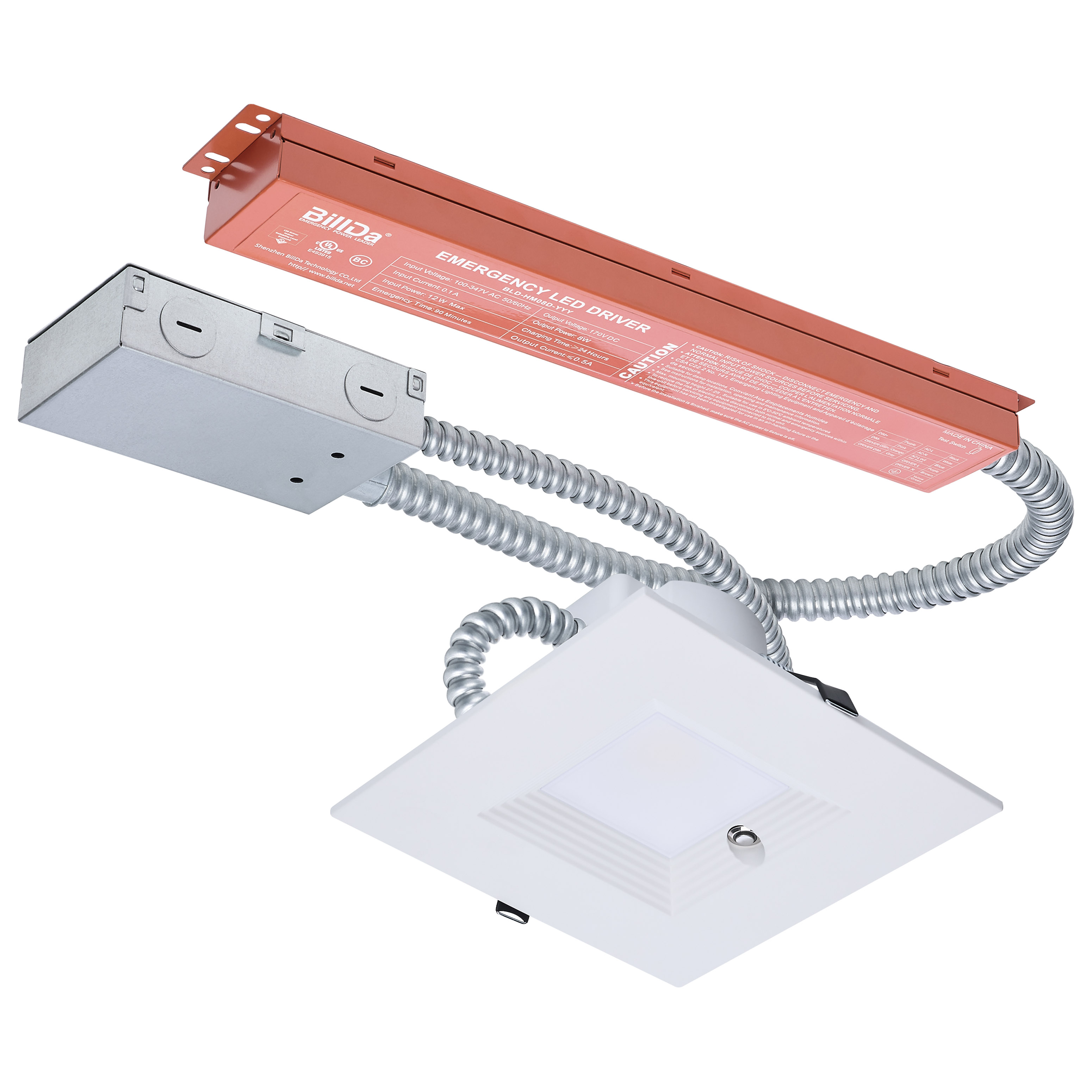

| Fixture Type | Commercial Downlight Retrofit |
| Product Notes | Default CCT setting is 3000K. Default wattage setting is 20.5W. |
| Status | Active |
| Style | Utility |
| Surge Protection | Built-in surge protection - 2.5KV |
| Total Harmonic Distortion | <30% |
| Up Down Installation | Down |

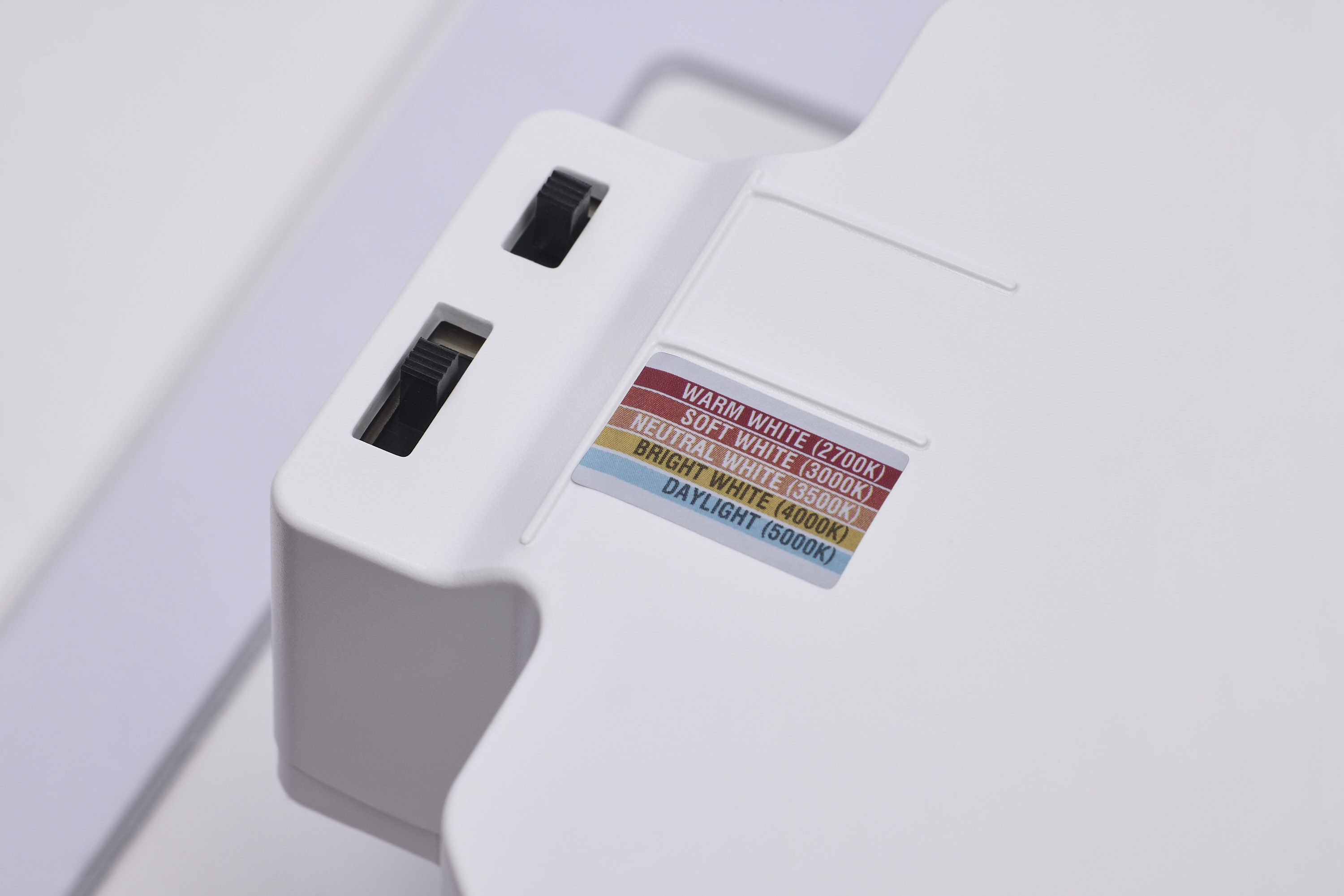

| CCT Selectable | True |
| Wattage Selectable | True |
| Finish Family | White |

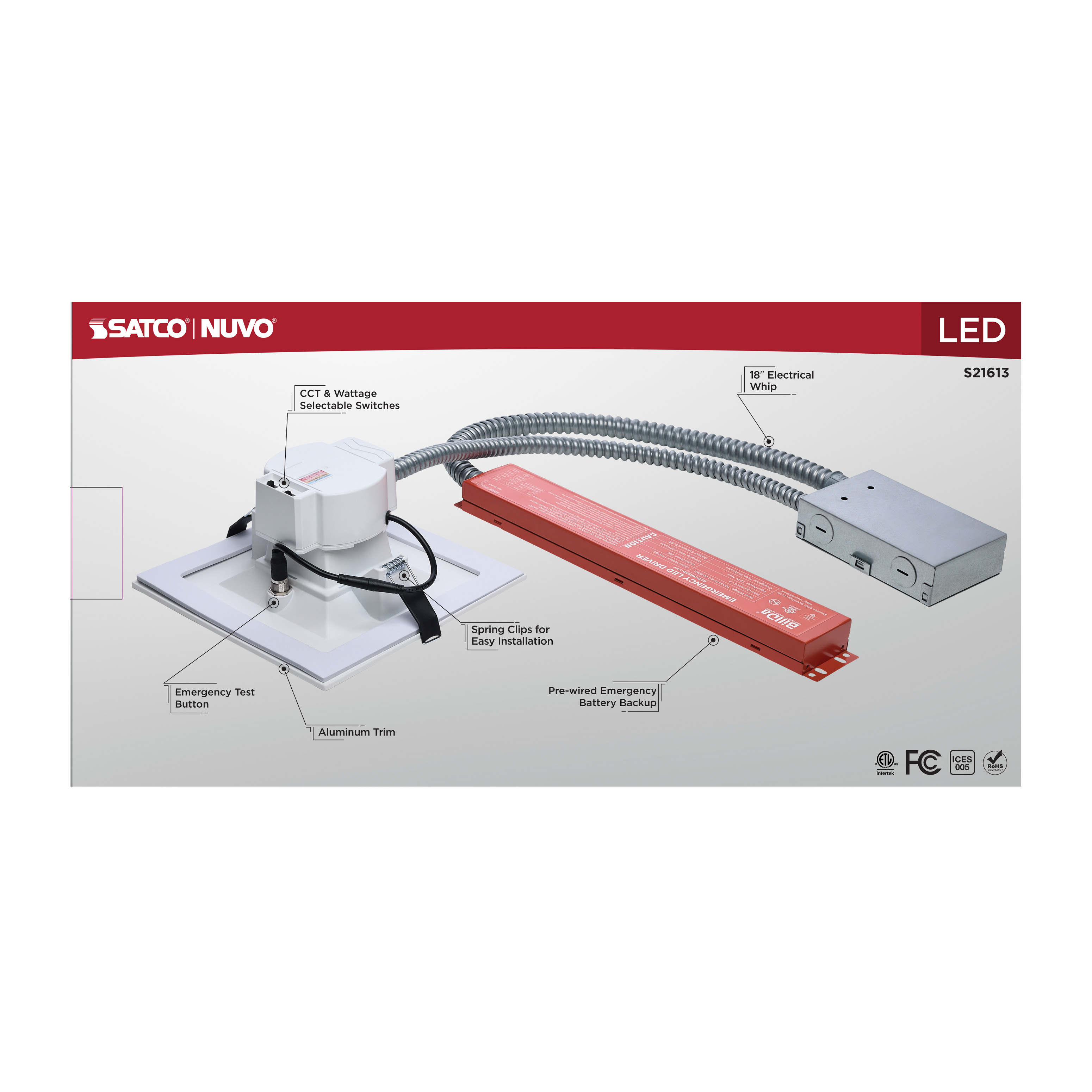

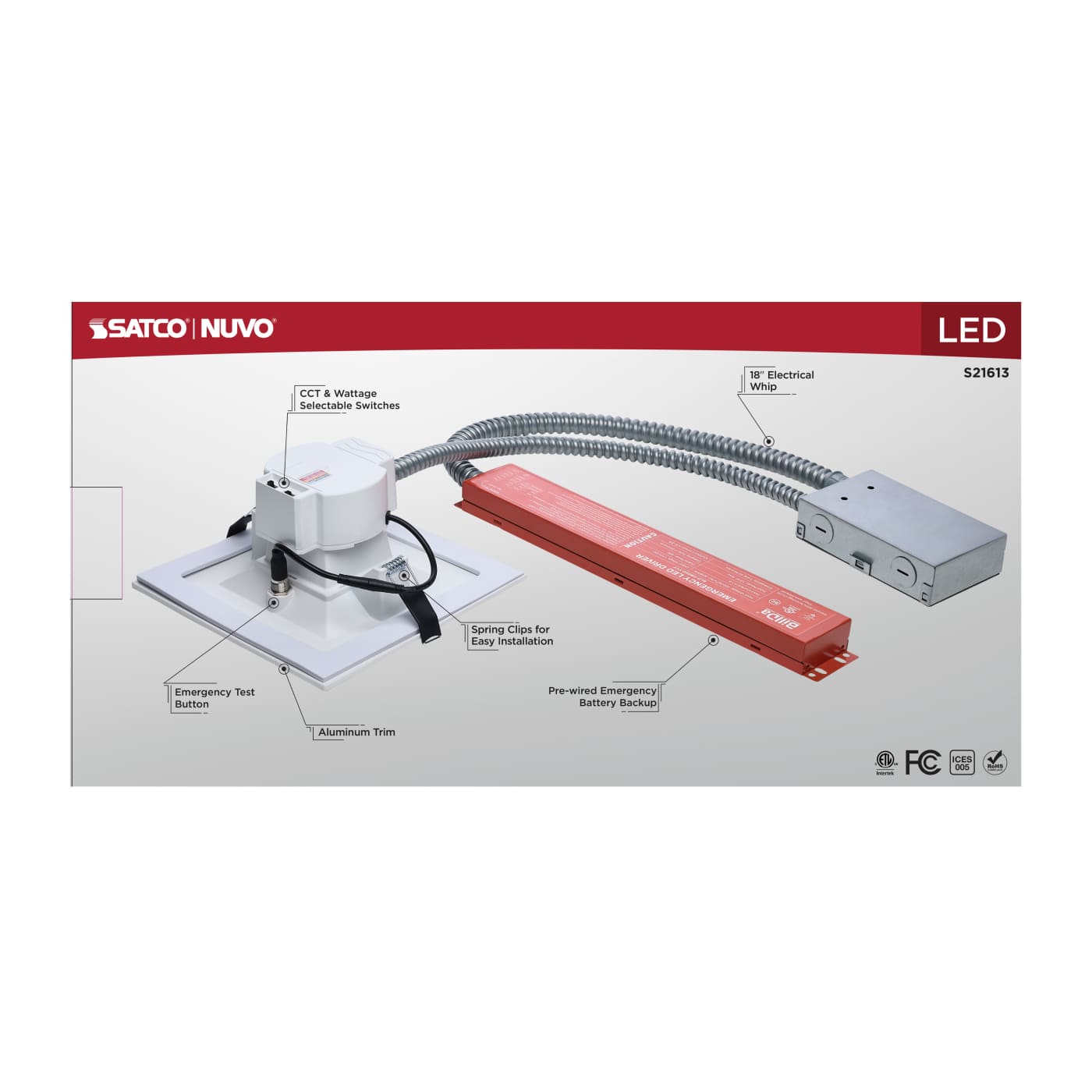

| Additional Info | 90 Minute EM Battery Runtime |
| Amps | 0.154-0.053/0.131-0.045/0.110-0.038A |
| Has Camera | False |
| IOT Enabled | False |
| Lens Material | Polycarbonate (PC) |
| Nominal Length | 6.0 |
| Photo Cell | No |
| Power Factor | >0.9 |
| SDS Class | Lithium_Ion_Battery |
| Sloped Ceiling Compatible | No |
| Indoor Outdoor | Indoor |
| Product Technology | LED |
| Fluor Equiv | 32W |
| Incandescent Equivalent | 100W |
| CCT (Kelvin Temp) | 2700K/3000K/3500K/4000K/5000K |
|---|---|
| Dimmable | Yes-Dimmable |
| Hours Rated | 50000 |
| Beam Angle (degree) | 85 |
| Color Temp | Warm White to Natural Light |
| CRI | 90+ |
| Dimming Type | Dual Dimming |
| Operating Frequency | 60Hz |
| Operating Temp | +5C (+41F) to +40C (+104F) |
| Lumens | 2200L/1800L/1400L |
| Volts | 120V-347V |
| Watts | 20.5W/18.2W/16.3W |
| Lamp Base | Integrated |
|---|---|
| Finish | WHITE |
| ANSI Base | Integrated |
| Lamp Type | Integrated LED |
| Fixture Shape | Square |
| Warranty | 5-Years |
|---|
| ADA Compliant | False |
|---|---|
| Air Tight | True |
| CA Regulations | California T24 2016 - 2025 JA8 Listed;T20 SBCS Listed under Billda Item BLD-HMXXD-YYY |
| CA Prop 65 | Lead |
| CA Status | Lawful for sale in California |
| Energy Star ID | 4510058 |
| FCC Compliant | True |
| IC Rated | True |
| IP Rating | IP20 |
| Location Rating | Damp |
| NSF Approved | No |
| ROHS Compliant | Yes |
| Safety Listing | cETLus - Listed |
| CA Compliance Text | Lawful for sale |
| Energy Star Certified | Yes |
| Title 20 | Yes |
| T24 Compliant | True |
| UPC | 045923411281 |
|---|---|
| Case Cube | 2.3259 |
| Case Height | 17.52 |
| Case Length | 24.8 |
| Case Quantity | 6 |
| Case UPC | 10045923411288 |
| Case Weight | 28.32 |
| Case Width | 9.25 |
| EA Cube | 0.3327 |
| EA Height | 16.85 |
| EA Length | 8.66 |
| EA Quantity | 1 |
| EA Weight | 3.87 |
| EA Width | 3.94 |
| Inner Cube | 0.0 |
| Pack Type | Color Box |

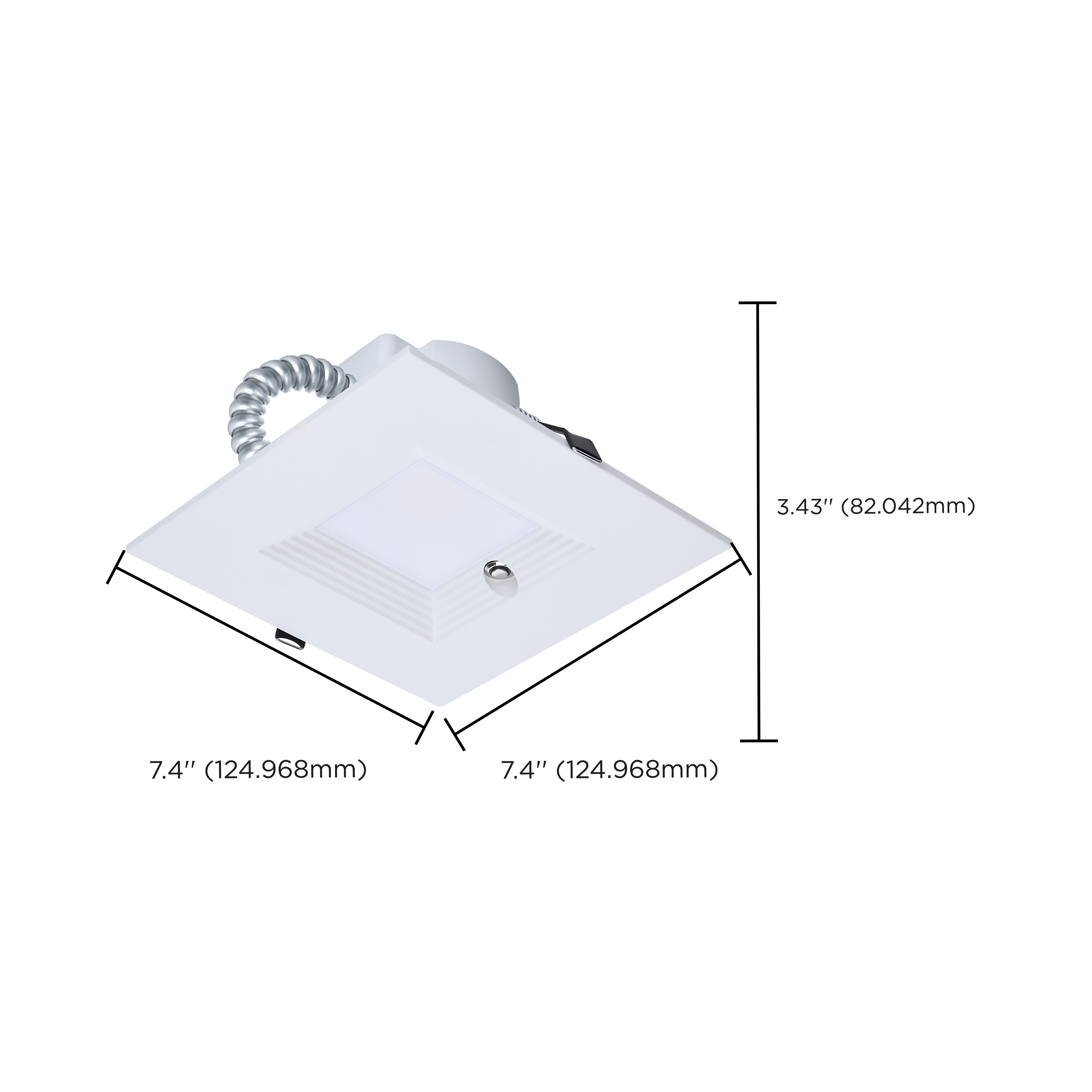

| Web Height | 3.43 |
| Web Length | 7.4 |
| Web Width | 7.4 |
