5.5A15/LED/27K/CL/E12/120V/2CD - S21710
5.5A15/LED/27K/CL/E12/120V/2CD - S21710
S21710

5.5A15/LED/27K/CL/E12/120V/2CD

Discontinued - Suggested Replacement: S21871
  • 5.5 Watt
  • A15 LED Filament
  • Clear
  • 2700K
  • Candelabra base
  • 120 Volt
  • 2-Card
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
safety_listing^culus_list^3
fcc_compliant^true^3
rohs_compliant^y^3

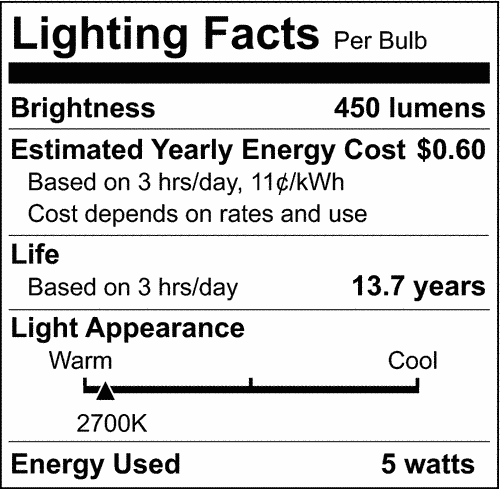

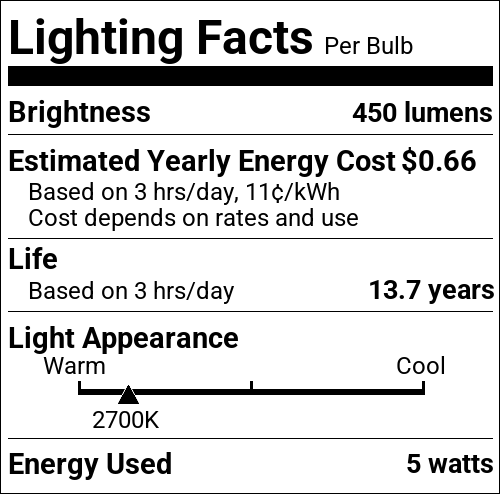

S21710 SpecificationsCarded & multi-pack LED filament lampsS21710 Lighting Facts Label
Tools
Lighting Layout Analysis For S21710
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
5.5 Watt; A15 LED Filament; Clear; 2700K; Candelabra base; 120 Volt; 2-Card
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
Fixture TypeType A
StatusObsolete
StyleTraditional
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.046A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Operating PositionUniversal
Power Factor0.9
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +113F (-20C to +45C)
Lumens450L
Volts120v
Watts5.5W
Physical
Lamp BaseCandelabra
FinishClear
ANSI BaseE12
Lamp TypeA15
MOD Lamps1.88
MOL3.63
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus - Certified, cULus - Listed
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923217104
Case Cube0.5555
Case Height8.07
Case Length23.23
Case Quantity12
Case UPC10045923217101
Case Weight2.12
Case Width5.12
EA Cube0.055
EA Height7.63
EA Length2.52
EA Quantity1
EA Weight0.17
EA Width4.94
Pack TypeCarded
Web Length3.63
Web Width1.88
