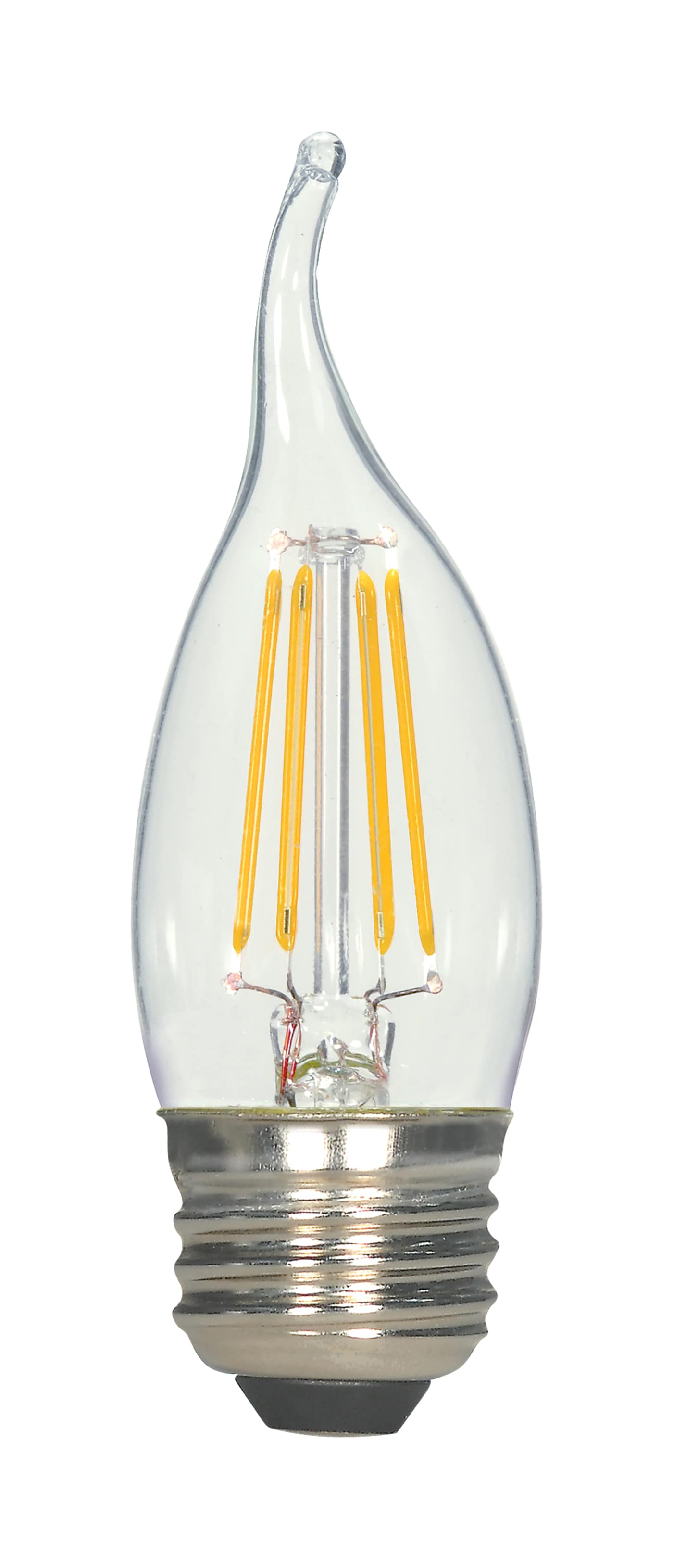

4.5W EFC/LED/27K/CL/120V/2CD - S21725
4.5W EFC/LED/27K/CL/120V/2CD - S21725
S21725

4.5W EFC/LED/27K/CL/120V/2CD

Discontinued - Suggested Replacement: S21849
  • 4.5 Watt CA10 LED Filament
  • Clear
  • Medium base
  • 2700K
  • 120 Volt

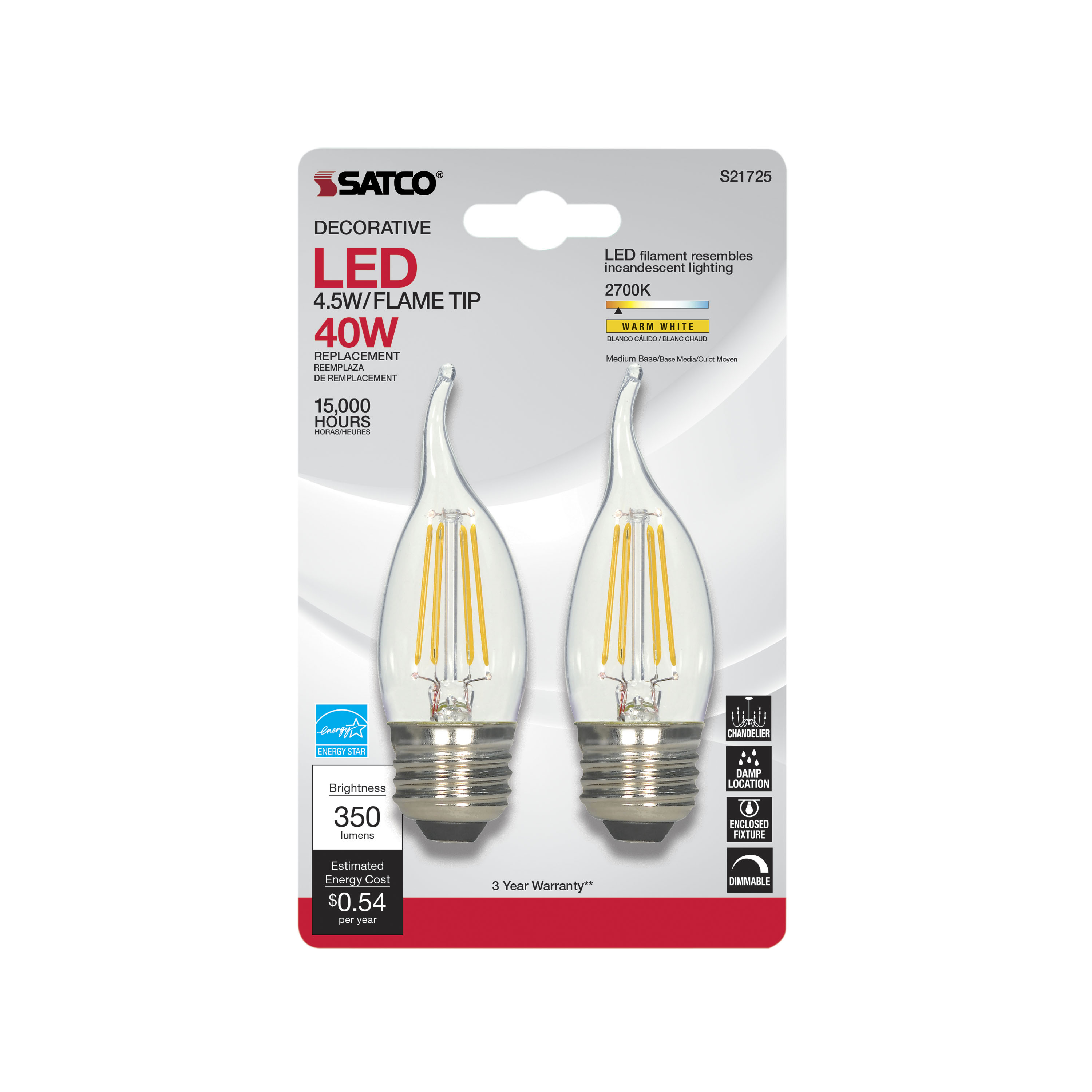

  • 2-Card
location_rating^damp^1
dimmable^dimmable^2
rated_for_enclosed_fixture^true^2
hours_rated^15k^2
volts^120v^2
fcc_compliant^true^3
rohs_compliant^y^3

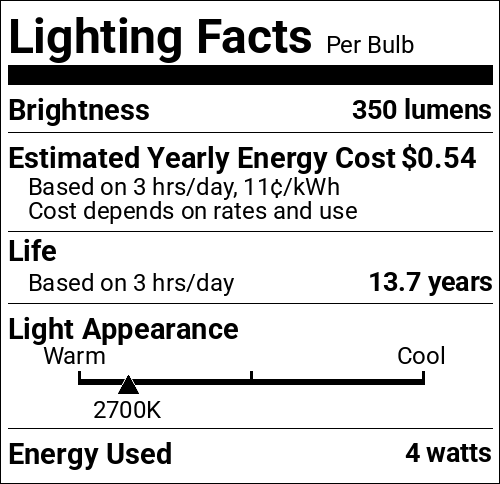

S21725 SpecificationsLED FILAMENT LAMPS JUNE 2022S21725 Lighting Facts Label
Tools
Lighting Layout Analysis For S21725
Create your own analysis for this Part Number
Custom Lighting Layout Analysis
Request a lighting layout
Description
Description
4.5 Watt CA10 LED Filament; Clear; Medium base; 2700K; 120 Volt; 2-Card
Products Specs
General
CompanySATCO
Lamp FilamentLED Filament
MaterialGlass
Fixture TypeCandle
StatusObsolete
StyleTransitional
CCT SelectableNo
Wattage SelectableNo
Finish FamilyClear
Amps0.038A
Has CameraNo
IOT EnabledNo
Lens FinishClear
LensedYes
Operating PositionUniversal
Power Factor0.7
SDS ClassLED_Lamp
Product TechnologyLED
Incandescent Equivalent40W
Electrical
CCT (Kelvin Temp)2700K
DimmableYes-Dimmable
Hours Rated15000
Beam Angle (degree)360
Color TempWarm White
CRI80+
Dimming Type120V only, Phase cut
Operating Temp-4F to +104F (-20C to +40C)
Lumens350L
Volts120v
Watts4.5W
Physical
Lamp BaseMedium
FinishClear
ANSI BaseE26
Lamp TypeCA10
MOD Lamps1.38
MOL3.88
Additional Info
Warranty2-Years
Rated For Enclosed FixtureYes
Documents
Compliance
FCC CompliantYes
Location RatingDamp
ROHS CompliantYes
Safety ListingcULus
California BanNon-Compliant
DLC ApprovedNo
Title 20No
T24/JA8 CompliantNo
US State BanCA
Packaging
UPC045923217258
Case Cube0.3857
Case Height7.87
Case Length16.54
Case Quantity12
Case UPC10045923217255
Case Weight1.82
Case Width5.12
EA Cube0.0259
EA Height7.08
EA Length1.46
EA Quantity1
EA Weight0.09
EA Width4.33
Pack TypeCarded
Web Length3.88
Web Width1.38
